BW Manufacturing DG-16 Installation and operation manual

3706 Mill Creek Drive NE
Comstock Park, MI 49321
VOICE: [phone]
FAX: [phone]
E-mail: [e-mail]
www.bwmanufacturing.com
Version 09/2014
U-01

2
Index
INTRODUCTION………………………………PAGE 3
TERMS & CONDITIONS OF SALE..................PAGE 4 & 5
SAFETY & HAZARDOUS WARNING..............PAGE 6
OPERATION & MAINT.……………………..…PAGE 7 & 8
GRINDING & POLISHING INSTRUCTIONS…PAGE 9
GRINDER/POLISHER PARTS …………...........PAGE 10 & 14
GRINDER/POLISHER ACCESSORIES..............PAGE 15 & 16

3
INTRODUCTION
FORWARD
WARNING READ THIS MANUAL CAREFULLY PRIOR TO OPERATING THE EQUIPMENT IN ORDER
TO UNDERSTAND HOW TO OPERATE AND SERVICE THE EQUIPMENT CORRECTLY. FAILURE TO
PROPERLY REVIEW THIS MANUAL COULD RESULT IN PERSONAL INJURY OR EQUIPMENT DAM-
AGE.
This manual should be considered a permanent part of the equipment and should remain with the equipment at all
times. Please note the following:
Measurements in this manual are given in metric and standard U.S. measurement equivalents.
Use only correct replacement parts and fasteners. Fasteners may require specific tools.
Right and left hand sides are determined by facing forward while sitting in the seat behind the steering wheel.
THIRD-PARTY MANUFACTURER INFORMATION
This equipment contains an engine manufactured by a third-party manufacturer. This engine may be covered by the
manufacturer’s standard factory warranty and the manufacturer may require that all repairs and/or service be com-
pleted pursuant to its warranty terms and conditions. Please refer to the product manual and Warranty Breakdown
for additional information on this warranty and any registration requirements.
SHRR 3140896v2

4
TERMS AND CONDITIONS OF SALE
1. Parties. “Seller”means BW Manufacturing, Inc. “Buyer”means any entity or individual purchasing goods from Seller.
2. Terms and Conditions of Sale. These Terms and Conditions of Sale define the relationship of Buyer and Seller and apply to
all sales of equipment (including, but not limited to Shotblasters, Scarifiers, Diamond Grinders/Polishers, Concrete Dust Collection
Systems, and Trailers), components incorporated into equipment, parts, supplies, materials or other personal property (individually
and collectively, “Equipment”) by Seller to Buyer. Buyer acknowledges and agrees that these Terms and Conditions of Sale are
incorporated in, and are a part of, any contract of sale and each quotation, purchase order, invoice, and any other document relat-
ing to the sale of Equipment by Seller to Buyer (these documents are collectively referred to as the “Agreement”).
3. Quotation Expiration. Written quotations signed by Seller are valid for a period of 30 days unless otherwise noted by Seller.
4. Pricing. Prices for Equipment and other related information shown in any Seller product publication, including but not limited to
catalogs, brochures, and websites, are subject to change without notice. Prices do not include related freight charges, use tax,
sales tax, excise tax, value-added tax, or similar taxes, or charges of any nature whatsoever imposed by any governmental au-
thority unless otherwise expressly noted by Seller.
5. Taxes. Prices quoted do not include (and Buyer shall pay) all taxes and fees of any kind that may be levied or imposed on ei-
ther party by federal, state, municipal, or other governmental authorities in connection with the sale or delivery of the Equipment
by Seller.
6. Terms of Payment. Unless Buyer has obtained credit approval from Seller, payment is due and payable to Seller in cash on
completion of Seller’s delivery obligation (COD). For Buyers with credit approval, any amounts due by Buyer to Seller that are
unpaid on or after 30 days of Seller’s invoice will bear interest at the simple interest rate of 2 percent (2%) per month or the maxi-
mum rate permitted by law, whichever is less. The accrual or payment of any interest as provided above will not constitute a waiv-
er by Seller of any rights and remedies in connection with a default by Buyer. Buyer will pay all court costs, attorney fees, and
other costs incurred by Seller in collecting past-due amounts, including interest. If shipment or delivery of Equipment is delayed by
or at the request of Buyer, payment will remain due in full on the original delivery date for Buyers without credit approval or 30
days from the date of Seller’s invoice for Buyers with credit approval. In either such event, Seller may impose, and Buyer shall
pay, storage charges and other incidental expenses incurred by Seller as a result of the delay in addition to any interest on late
payments as described above.
7. Security Interest. As security for payment of all amounts due to Seller, Buyer grants to Seller a security interest in all Equip-
ment sold by Seller to Buyer, and Seller will have all rights of a secured party under the Uniform Commercial Code with respect to
the Equipment. Buyer appoints Seller as its attorney-in-fact with authority, at Seller’s option, to take actions as Seller deems rea-
sonable in the circumstance to perfect the above security interest in any one or more jurisdictions, and Buyer shall pay all applica-
ble filing fees.
8. Limited Express Warranty. For a period of ninety (90) days from the completion of Seller’s delivery obligation under this
Agreement, Seller warrants that a limited selection of components manufactured by Seller and incorporated into the Equipment
will be free of defects in material and workmanship. A complete list of components covered under this warranty (“Warranty Break-
down”) is available at [www.bwmanufacturing.com/warrantybreakdown] and is incorporated in its entirety into this Agreement. In
the event Buyer has a claim related to the components covered under this warranty, Buyer shall be bound by the then-current
Warranty Breakdown. Buyer’s sole remedy for breach of this warranty is limited to repair and replacement, within the warranty
period, of defective components manufactured by Seller and covered under this warranty pursuant to the Warranty Breakdown.
Buyer is responsible for all shipping costs arising out of any warranty service provided by Seller. SELLER EXPRESSLY DIS-
CLAIMS AND EXCLUDES ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, WITH REGARDS TO THE EQUIPMENT AND/
OR COMPONENTS MANUFACTURED BY SELLER AND INCORPORATED INTO THE EQUIPMENT, WHICH ARE NOT IN-
CLUDED IN THE ABOVE REFERENCED WARRANTY, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FIT-
NESS FOR A PARTICULAR PURPOSE. BUYER ASSUMES FULL RESPONSIBILITY THAT THE EQUIPMENT PURCHASED
UNDER THE AGREEMENT MEETS THE SPECIFICATIONS AND/OR INTENDED USE OF BUYER, AND SELLER MAKES NO
REPRESENTATION WITH RESPECT THERETO.
9. Disclaimer of Third-Party Component Warranties. THE SOLE REMEDY AVAILABLE TO BUYER WITH RESPECT TO DE-
FECTS IN THE COMPONENTS MANUFACTURED BY THIRD PARTIES WILL BE AGAINST THE THIRD PARTY MANUFAC-
TURER UNDER ANY APPLICABLE MANUFACTURER’S WARRANTY TO THE EXTENT AVAILABLE TO BUYER. WITH RE-
GARDS TO COMPONENTS MANUFACTURED BY THIRD PARTIES AND INCORPORATED INTO THE EQUIPMENT, SELLER
MAKES NO WARRANTY, EXPRESS OR IMPLIED, RELATING TO THE COMPONENTS, WHETHER BASED ON BREACH OF
WARRANTY OR CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

5
10. No Consequential Damages. IN NO EVENT WILL SELLER BE LIABLE OR RESPONSIBLE FOR ANY SPECIAL, INCI-
DENTAL, CONSEQUENTIAL, EXEMPLARY, OR PUNITIVE DAMAGES, OR FOR EXPENSE OCCASIONED BY THE USE OF
DEFECTIVE EQUIPMENT.
11. Delivery. Any delivery dates or other schedule of performance by Seller are approximations, and the sole obligation of Seller
with respect to the schedule of delivery or performance will be to use commercially reasonable efforts to deliver the Equipment, or
otherwise to perform, consistent with the reasonable demands of its business. In any event, Seller will have no liability to Buyer or
any other person for delays in performance due to strikes or labor disputes of any type; accidents, fire, floods, acts of God, or ac-
tions by governmental authorities; acts, omissions, or delays of Buyer or any other third party; shortages of labor; or without limita-
tion of the above, for any causes reasonably beyond the control of Seller.
12. Title and Risk of Loss. Title to and risk of loss to the Equipment will pass to Buyer on delivery by Seller F.O.B. Seller’s place of
business, located at 3706 Mill Creek Dr. NE, Comstock Park, Michigan, 49321.
13. Inspection and Acceptance. Buyer will have two (2) days from the date of delivery to inspect the Equipment for defects and
nonconformance and to notify Seller, in writing, of any defects, nonconformance, or rejection of the Equipment. After this period,
Buyer will be deemed to have irrevocably accepted the Equipment. After acceptance, Buyer will have no right to reject the Equip-
ment for any reason or to revoke acceptance. Seller is not responsible for damage to the Equipment arising out of the shipment of
the Equipment to Buyer. Claims for damage due to shipping must be made by Buyer to the freight carrier.
14. Return of Equipment. All returns will be pursuant to Seller’s instructions. Buyer must contact Seller for a Return Material Au-
thorization (RMA) before returning any Equipment. All returns must reference the RMA number along with the original invoice num-
ber and the reason for return.
15. Cancellation or Termination. In the event of cancellation of the Agreement by Buyer, or in the event of default under the
Agreement by Buyer that is not cured within 30 days after notice by Seller, Buyer will pay to Seller on demand all direct and indirect
costs (including, without limitation, all applicable restocking or cancellation charges, including reimbursement for direct costs as-
sessed by the manufacturer) incurred directly or indirectly by Seller in connection with the Agreement, all as reasonably determined
by Seller, plus any lost profit. In no event, however, will any amount payable by Buyer under the Agreement exceed the total price
payable by Buyer for the Equipment.
16. Modifications and Waiver—Entire Agreement. The Agreement contains the entire agreement between Seller and Buyer and
can be modified or rescinded only by a writing signed by both parties. If any term of the Agreement is held invalid or unenforceable,
all other terms of the Agreement shall remain in effect. Any document submitted by Buyer to Seller confirming its intention to pur-
chase Equipment described in the Agreement will be deemed to constitute a confirmation and acceptance of the Agreement, even if
the document states terms in addition to or different from those in the Agreement. All agreements between Seller and Buyer will be
solely under the terms and conditions of the Agreement and Seller objects to any and all additional or different terms contained in
any document submitted to Seller by Buyer. Any execution by Seller of any other document submitted by Buyer in connection with
the purchase of Equipment does not constitute acceptance of or agreement to any terms and conditions in addition to or different
from those contained in the Agreement, but will constitute only acknowledgment of receipt of the document. In addition, Buyer’s
acceptance of these terms shall be conclusively presumed by Buyer’s (i) acceptance of delivery of or (ii) payment for Equipment
covered under the Agreement.
17. Compliance with Laws. Buyer will be responsible for compliance with any and all federal, state, or local laws or regulations
respecting safety or respecting use of the Equipment and shall indemnify and hold Seller harmless from and against any and all
claims of violations of laws or regulations or other claims of personal injury or property damage directly or indirectly related to the
installation, maintenance, or operation of the Equipment.
18. Export Control. Equipment supplied by Seller may be subject to various export laws and regulations. It is the responsibility of
the exporter and Buyer to comply with all laws and regulations. If any required export authorization is denied, Seller will be relieved
of any further obligation related to the sale and delivery of the Equipment.
19. Governing Law and Venue. This Agreement will be governed by and construed in accordance with the laws of the State of
Michigan. Buyer submits to personal jurisdiction in Michigan. Seller and Buyer agree that any action arising out of the sale of goods
or services in accordance with this document will be brought, heard, and decided in a court located in Kent County, Michigan and
that this venue is convenient. .
20. Authority. Each signatory represents that it has all requisite authority to execute the Agreement on behalf of its principal and
that the Agreement is fully enforceable against the principal in accordance with its terms.
SHRR 3140889v1

6
B W MANUFACTURING, INC.
GENERAL SAFETY & HAZARDOUS MATERIALS WARNING
WARNING SURFACE PREPARATION EQUIPMENT CAN BE DANGEROUS IF NOT OPERATED
PROPERLY. THE OPERATOR IS RESPONSIBLE FOR THE SAFE OPERATION OF THIS EQUIPMENT.
The operator must carefully read and follow any warnings or safety instructions provided with the equipment
prior to operating the equipment. Do not remove any safety devices or warnings on the equipment.
WARNING FLOOR AND/OR DECK SURFACES MAY BE COATED WITH OR CONTAMINATED BY
HAZARDOUS MATERIALS. Typical examples of hazardous materials include (i) tile mastic (likely to contain
asbestos); (ii) stained areas near electrical equipment (potentially containing PCBS); (iii) paint (potentially con-
taining lead); (iv) stained floor areas in chemical or other industrial facilities (potentially containing toxic pesti-
cides, cleaning fluids, solvents, or other harmful chemicals).
WARNING Preparation equipment is used to remove surface material from a variety of surfaces. The surface
preparation process often generates large amounts of dust and other small particles, which are released into the
air. WHEN A SURFACE CONTAINS HAZARDOUS MATERIALS, EXPOSURE TO THE DUST GENER-
ATED BY THE PREPARATION EQUIPMENT MAY POSE A HEALTH RISK. INSPECT ALL SURFACES
FOR POSSIBLE CONTAMINATES PRIOR TO USING PREPARATION EQUIPMENT AND CONSULT
HAZARDOUS MATERIAL EXPERTS AND GOVERNMENT AUTHORITIES BEFORE OPERATING
PREPARATION EQUIPMENT ON SURFACES SUSPECTED OF CONTAINING HAZARDOUS MATERI-
ALS.
WARNING BW MANUFACTURING, INC. IN NO WAY REPRESENTS THAT ITS PREPARATION
EQUIPMENT IS SUITABLE OR APPROVED FOR REMOVING HAZARDOUS MATERIALS FROM CON-
TAMINATED SURFACES. DO NOT ATTEMPT TO USE ANY PREPARATION EQUIPMENT MANUFAC-
TURED BY BW MANUFACTURING, INC. ON ANY CONTAMINATED SURFACE. It is the responsibility
of the preparation equipment operator and/or the contractor using the preparation equipment to inspect the pro-
posed worksite for contaminates and obtain approval from contamination experts and/or government authorities
before using BW Manufacturing, Inc. preparation equipment. It is also the responsibility of any contractor using
preparation equipment to inform its employees or subcontractors of all potential health risks associated with op-
erating preparation equipment and to ensure its employees or subcontractors are protected from exposure to
harmful materials.
BW MANUFACTURING, INC. IS NOT RESPONSIBLE FOR ANY INJURY, ILLNESS, DEATH, OR PROP-
ERTY DAMAGE THAT MAY RESULT FROM IMPROPER USE OF ITS PREPARATION EQUIPMENT OR
OTHER PRODUCTS
SHRR 3140898v1

7
DG-16
Diamond Grinder/polisher
Operating & Maintenance
Instructions
Front of
machine
NO
Heavy Left Cut
NO
Heavy Right Cut
YES
Proper Cutting
Pattern
A

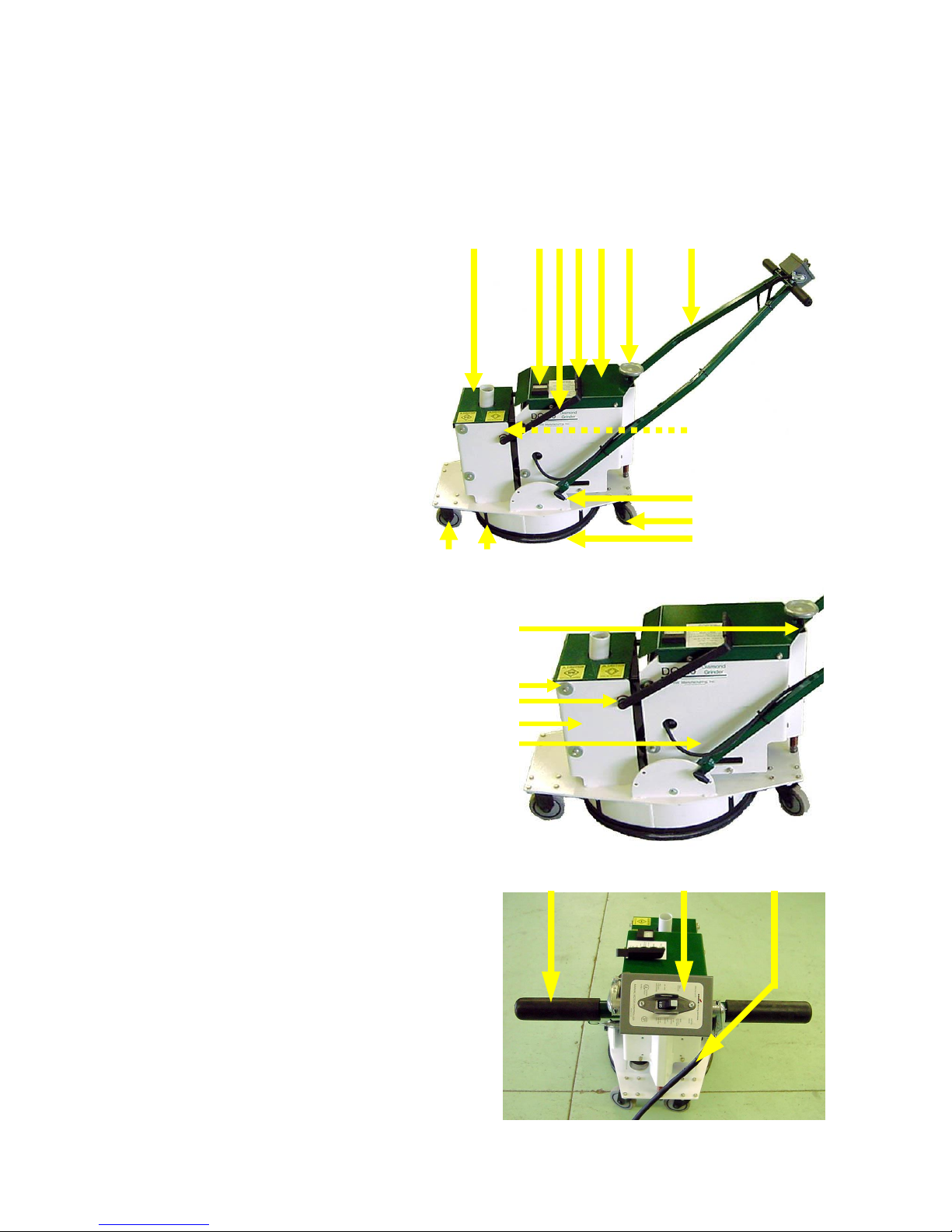

Starting & Operating Instructions
Connect vacuum hose to dust port (1), plug ma-
chine into power supply (2), flip switch to start
motor (3), flip handle (4) to engage diamonds,
check amp gauge (5) for proper operation, to
adjust grinding pressure use the adjustment
knob (6) to proper amperage draw.
When adjusting the amperage draw,
maintain the following:
220V - 18 Amps MAX.
&
440V - 6 Amps MAX.
265143
Proper Cutting Pattern
To achieve the proper cutting
pattern you will need to adjust
the machine with the four bolts
(A).

8
DG-16
Diamond Grinder/polisher
Operating & Maintenance
Instructions

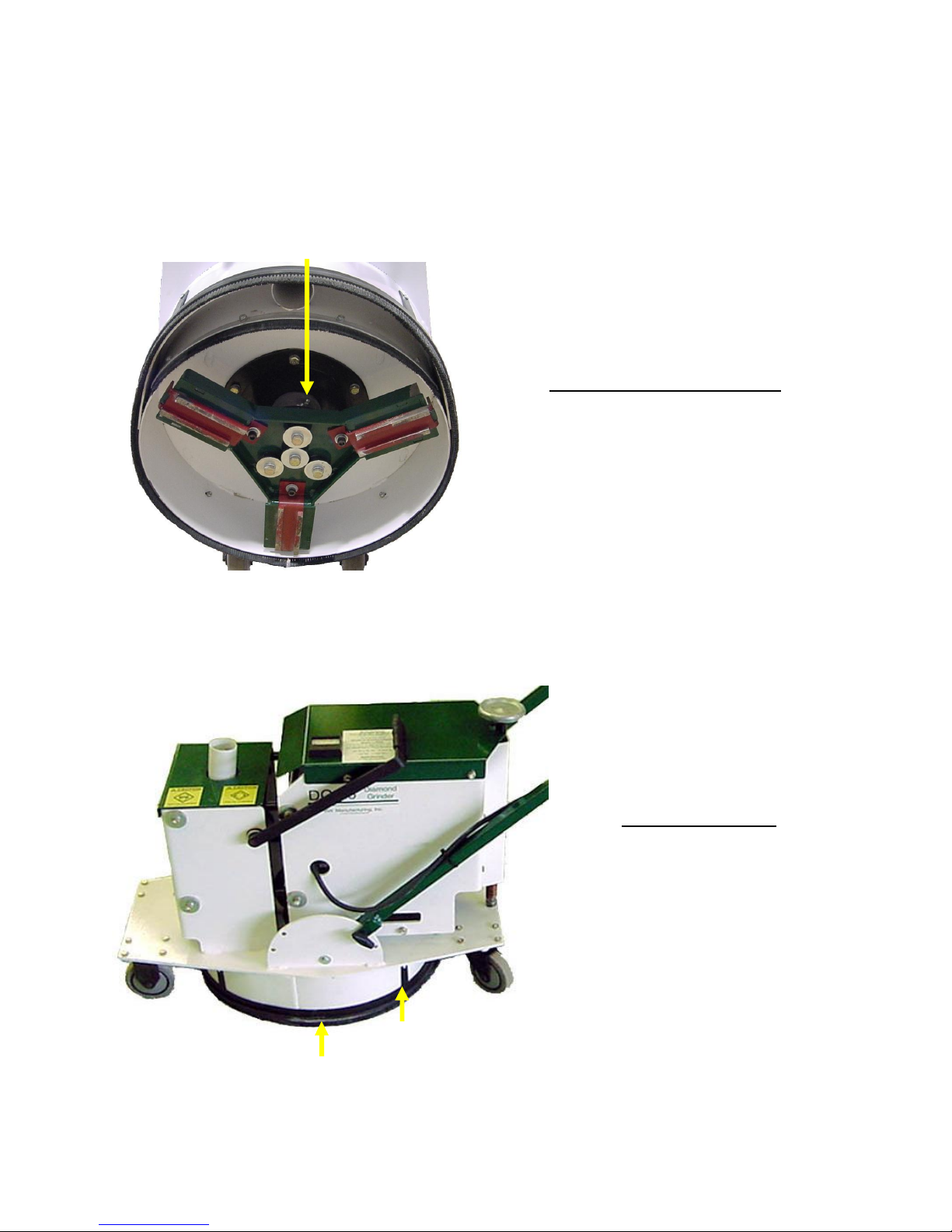

Greasing The Main Shaft Bearings
Grease main shaft bearings (A)
every 8 hours of operation
A
Brush Seal Adjustment
Loosen brush seal clamp ring (A) and
lower brush seal (B) to make contact
with the floor.
A
B

9
DG-16
Diamond Grinding
& Polishing
Instructions
Recommended procedure for heavy grinding to polish finish.
Diamond/Polishing Pad DG-16-2 DG-16-4
R-07-30 Diamond segment 10 to 18 amps 4 to 6 amps
R-07-80 Diamond segment 10 to 18 amps 4 to 6 amps
R-07-80 Diamond segment 6 to 12 amps 2 to 5 amps
R-07-140 Diamond segment 6 to 12 amps 2 to 5 amps
RP-50 Polishing pad 6 to 12 amps 2 to 5 amps
RP-100 Polishing pad 6 to 12 amps 2 to 5 amps
RP-400 Polishing pad 6 to 12 amps 2 to 5 amps
RP-800 Polishing pad 6 to 12 amps 2 to 5 amps
Recommended steps for a polished floor
(see chart above for more details)
1. R-07-30 (Coarse Grit) RED
2. R-07-80 (Medium Grit) YELLOW
3. R-07-140 (Medium/Fine Grit) BLUE
4. RP-50 (50 Grit)
5. RP-100 (100 Grit)
6. RP-400 (400 Grit)
7. RP-800 (800 Grit)

10
DG-16
Diamond Grinder/polisher
Parts
1 2 3
1. A-8629 Handle Grip
2. A-8601 Switch & Box (220V)
I-109 Switch & Box (460V)
3. A-8635 Cord (30 ft.) (220V)
I-116 Cord (30 ft.) (460V)
Plug Ends (not shown)
A-8636 Plug (220V)
A-8642 Plug (460V)
1. R-30-AS Frame Cover
2. G-108 Amp Gauge
3. R-25-AS Raise Handle
4. R-111 Raise Handle Grip
5. R-18-AS Motor Cover
6. S-067 Adjustment Knob
7. R-11-AS Handle
8. U-05 Stationary Caster
9. R-16-AS Brush Seal Clamp
10. U-04 Brush Seal
11. U-08 Swivel Caster
12. G-100 T-Handle
13. R-22 Raise Cam (not shown)
432
11
10
98
6 7
12
1 5
1. R-26-AS Adjuster Tube Assembly
2. 3/8LDFW Fender Washer
3. C-1681 Bushing
4. R-08-AS Frame Assembly
5. R-10-AS Motor Mount
2
3
4
5
1
13
Dia. DG-16-1
Dia. DG-16-2
Dia. DG-16-3

11
DG-16
Diamond Grinder/polisher
Parts
1
2
4
3
5
7
8
10
9
6
1. C-1681 Bushing (8 per mach.)
2. R-25-AS Raise Handle
3. R-29-AS Pivot Arm
4. D-1295 Taper Lock Bushing
5. R-118 Sheave
6. R-115 Belt (ELECTRIC)
7. D-1300 Idler Pulley
8. A-8637 Conduit Elbow
9. D-1311 Belt Tensioner
10. A-8639 Motor (460V)
A-8607 Motor (220V)
1. R-114 Down Pressure Spring
2. R-06 Adjuster Rod
3. D-1311 Belt Tensioner
4. R-124 Adjuster Rod Nut
5. R-23-AS Hub Mount
6. R-116-A Motor Sheave (460V)
R-34-A Motor Sheave (220V)
1
3
2
4
5
6
Dia. DG-16-4
Dia. DG-16-5

12
DG-16
Diamond Grinder/polisher
Parts

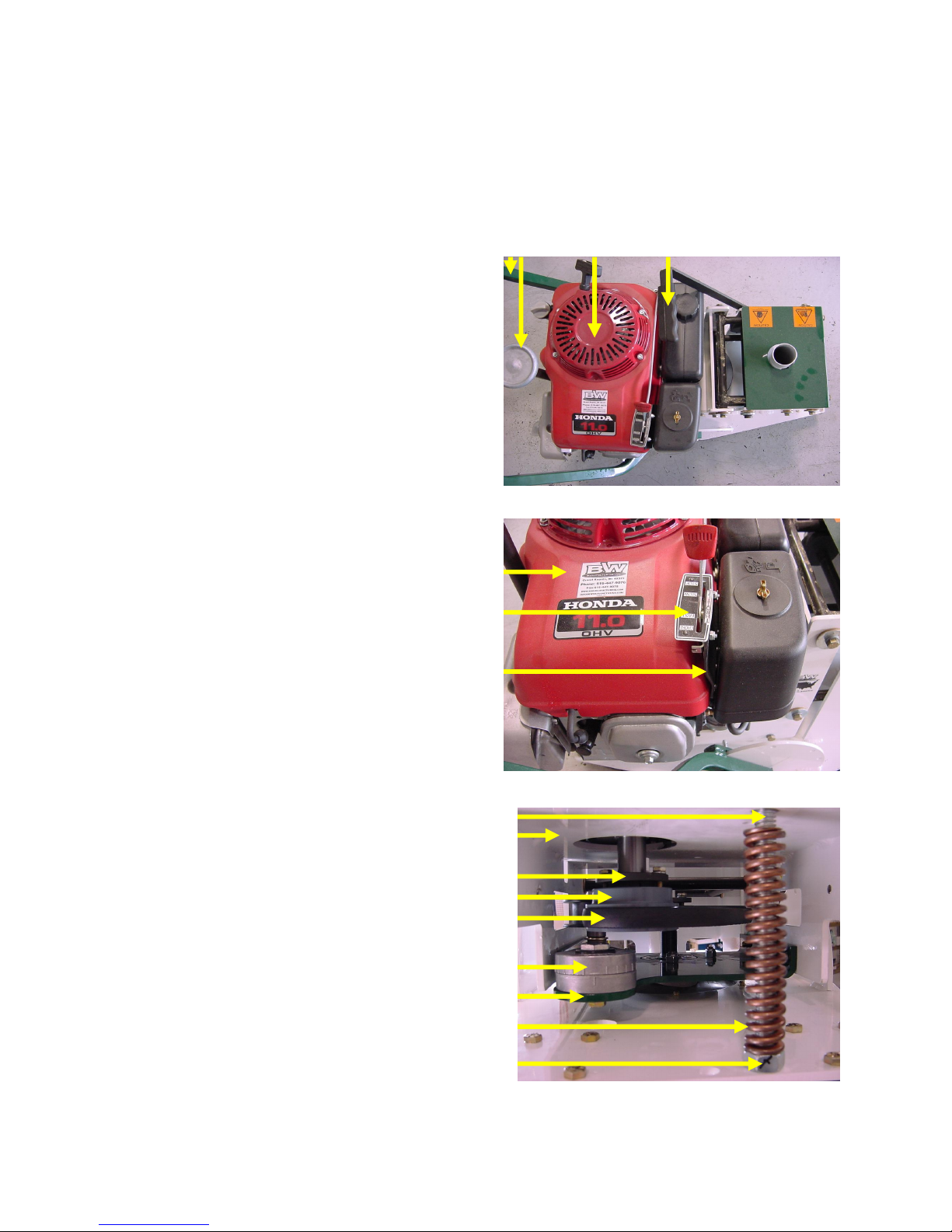

1. R-11-GAS Handle
2. S-067 Adjustment Knob
3. R-102 Gas Engine
4. R-25-AS Raise Handle
1 2 3 4
1. R-102 Gas Engine
2. R-103 Throttle Cable
3. U-19-AS Throttle Mount
1
2
3
1. R-06 Adjuster Rod
2. R-10-GAS Motor Mount
3. Q-1202 Bushing (GAS)
4. R-105 Sheave (GAS)
5. R-107 Belt (GAS)
6. D-1311 Belt Tensioner
7. R-23-AS Hub Mount
8. R-114 Spring
9. R-124 Adjuster Rod Nut
1
2
3
4
5
6
7
8
9
Dia. DG-16-6
Dia. DG-16-7
Dia. DG-16-8

13
DG-16
Diamond Grinder/polisher
Parts

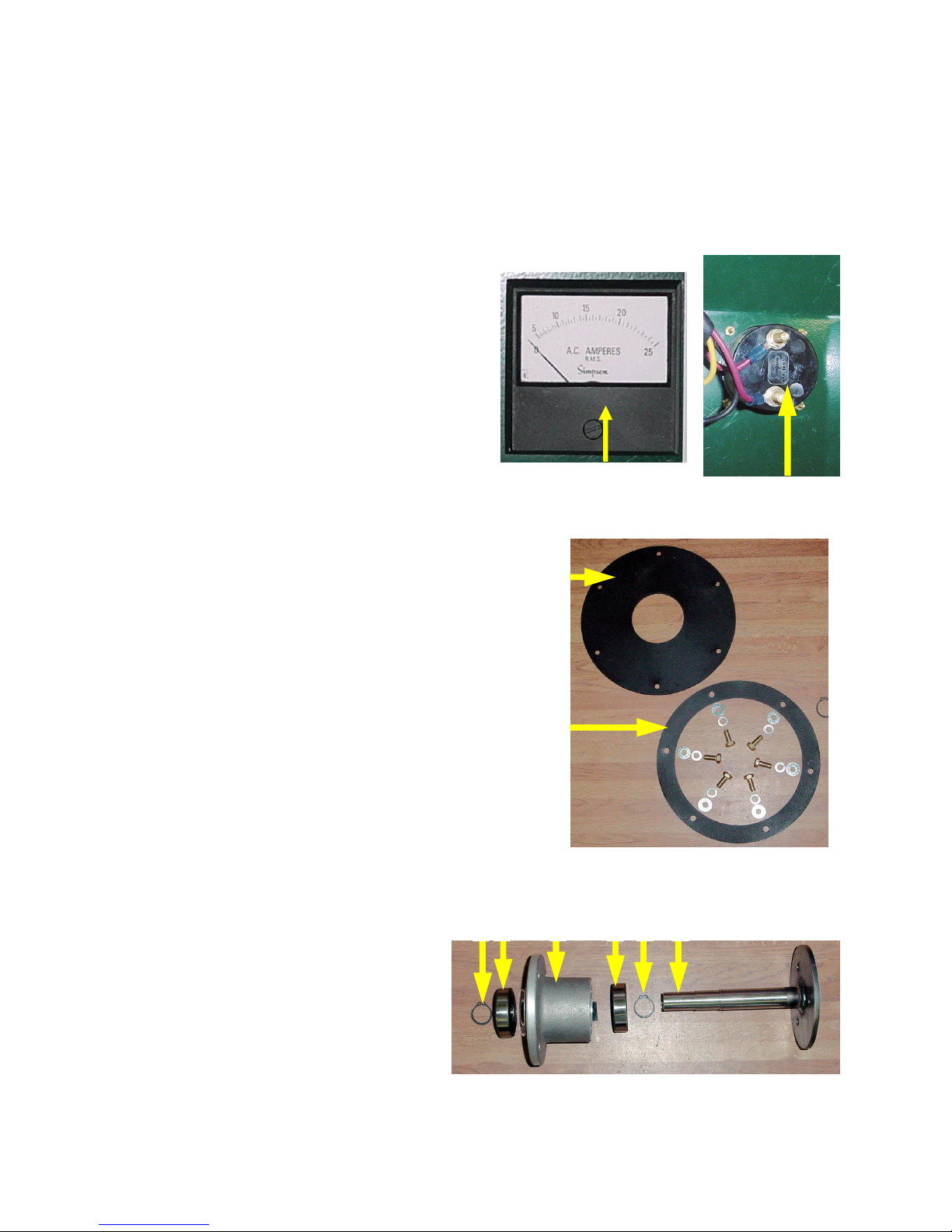

1. R-27 Hub Seal
2. R-01-AS Hub Seal Ring
1
2
1. D-1309 Snap Ring
2. D-1290 Bearing
3. R-36 Bearing Housing
4. D-1290 Bearing
5. D-1309 Snap Ring
6. R-03-AS Main Shaft
654321
2
1. G-108 Amp Gauge
2. G-108 Amp Gauge (underside)
1
Dia. DG-16-9
Dia. DG-16-10
Dia. DG-16-11

14
DG-16
Diamond Grinder/polisher
Parts

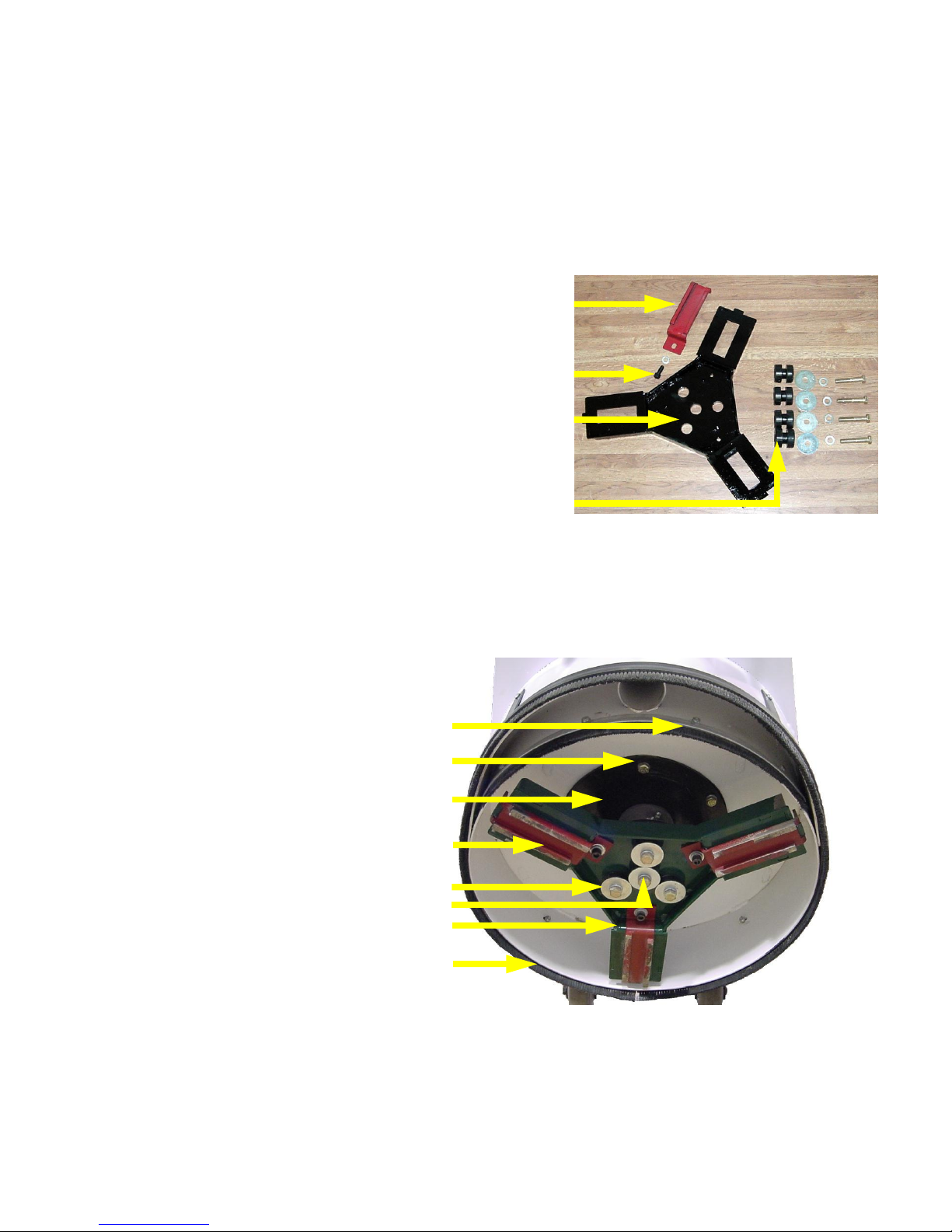

1. R-07-___ Diamond Cutter (3 per set)
(DG-16 requires 1 set)
2. 5/16-18X3/4 SHCS Diamond Mount Bolt
3. R-21-AS Diamond Mount Plate
4. R-112 Rubber Bushing (hard - blue & white dots) (center)
R-119 Rubber Bushing (soft - red & white dots) (outside)
1
2
3
4
1. U-04-AS Inner Brush
2. R-01-AS Hub Seal Ring
3. R-27 Hub Seal
4. R-07-__ Diamond Cutter*
5. R-119 Rubber Bushing
6. R-112 Rubber Bushing
7. R-21-AS Diamond Mount
8. U-04 Brush Seal
*part number is determined by grit see
exploded view for description of grits
1
2
3
5
8
4
7
6
Dia. DG-16-12
Dia. DG-16-13

15
DG-16
Diamond Grinder/polisher
accessories
Flat Diamond Cutters for heavy removal and flattening of rough concrete
Hard Concrete Diamonds
Part# Description
(Sold in sets of 3)
R-07-30-S Coarse (RED)
R-07-80-S Medium (YELLOW)
R-07-140-S Med/Fine (BLUE)
R-07-180-S Fine (BLACK)
Soft Concrete Diamonds
R-07-30H-S Coarse (SILVER)
R-07-80H-S Medium (ORANGE)
R-07-140H-S Med/Fine (GOLD)
R-07-180H-S Fine (DK. GRAY)
Round Diamond Cutters for smoothing concrete prior to polishing
American Round diamond
(Sold in sets of 6)
R-07-D81-S Medium (YELLOW)
R-07-D141-S Med/Fine (BLUE)
R-07-D81H-S Medium (ORANGE)
R-07-D181H-S Fine (DK. GRAY)
Carbide for carpet glue and mastic
R-07-C-S Carbide mount (sets of 3)
R-07-CC-S Carbide segment (sets of 3)
R-08 Carbide Mounting Screw
PCD cutters for heavy coating removal
American PCD Cutters
(Sold in sets of 3)
R-07-PCD-S Poly-Carbonate Diamond
Minimal down pressure required when using PCD Cutters
* PCD Cutters carry NO WARRANTY

16
3”Polishing kit
for heavy removal to a polish
Part# Includes
R-130 3. R-07-P2AS
1. R-07-D-81-S
1. R-07-D-141-S
6. RP-50
6. RP-120
6. RP-200
6. RP-400
6. RP-800
3”Polishing pads
RP-50 3”50 Grit (6 per set)
RP-120 3”120 Grit (6 per set)
RP-220 3”220 Grit (6 per set)
RP-400 3”400 Grit (6 per set)
RP-800 3”800 Grit (6 per set)
RP-1800 3”1800 Grit (6 per set)
RP-3500 3”3500 Grit (6 per set)
Round Mounts
Sold in sets of 3
R-07-P2AS-S 3”Mount
DG-16
Diamond Grinder/polisher
accessories

17
DG-16
Diamond Grinder/polisher
Page
Left
Intentionally
Blank
