1 Introduction
ClinicPatrol™is a combination of reverse osmosis and a filter cartridge for complete
Desalination of the permeate.
2 Planmeca App download
Download site for Planmeca ClinicPatrol™. Scan QR code
3 Documents and films regarding Planmeca ClinicPatrol™
To see the documents and films listed below, scan the abowe QR code
- Documents
oManual
oService and Maintenance, document
oCE Declaration of conformity
oFAQ
oInstallation guide for Units & Autoclaves
oInstallations setup for Autoclaves
oInstallations setups for Units & Autoclaves
- Films
oInstallation
oService guide
oGuide for filter replace

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
4 Scope of delivery
1. 1 Pcs. Planmeca ClinicPatrol™unit.
2. 1 Pcs. Planmeca Patrol™5
3. 1 Pcs. Planmeca Patrol™14
4. 1 Pcs. Power cable, Power Cord SCHUKO
5. 1 Pcs. Elbow 8mm
6. 2 M Black Tube, 8mm
7. 2 M Blue Tube, 8mm
8. 1 Pcs. HT-Drain
9. 1 Pcs. Straight terminal F3/8'' 8mm
10. 1 Pcs. Straight male ½'' 8mm
11. 1 Pcs. Reduction F3/8'' M3/4''
12. 1 Pcs. Flow Restrictor Stainless Steel 1.4mm
13. 4 Pcs. Clips 8mm
Be Advised: There are components in the set which are not to be used!!
1.
2.
3.
12.
13.
11.
10.
9.
6.
5.
4.
7.
8.

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
5 Installations Kits
14. 1 Pcs. Hydrofor 8, 25, 50L
15. 1 Pcs. SPX DN8 3/4F x 3/4E 1500mm
16. 5 m. Tube foodgrade 8mm
17. 1 Pcs. Power Cable with DK ground
18. 3 Pcs. Locking clips 8mm
19. 1 Pcs. Siphon w. Airgap
20. 1 Pcs. Female adaptor 8mm
21. 1 Pcs. BWT Multiblock
22. 1 Pcs. Reduction FM 3/4”
23. 1.Pcs. Bestmax blindcap for filterhead
24. 2 Pcs. 8mm push-in elbow
25. 1 pcs. Female X Male reduction 3/4“ x 1/2" (25/50 L Hydrofor)
26. 1 pcs. Female X Male reduction 1“ x 3/4" (50 L Hydrofor)
Be Advised: There are components in the set which are not to be used!!
18.
14.
15.
16.
19.
20.
17.
21.
23.
24.
22.
26
.
25.

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
6 Planmeca Patrol™Filter head (Part No.: 428124201)
The filter head is assembled like shown below.
If a change or repositioning of the connectors are needed it can easily be done.
Rotate the clip to release the connection. The connector can now be changed out or repositioned in another
angel. The connectors can be rateted in 360°. Remount the clip after change or reposition af the connector.

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
7 Overview of the back of the unit
Power Plug ( A )
Drain Outlet ( B )
Water Inlet ( C )
Pressure Tank ( D )
Product Outlet ( E )
Concentrate Restrictor ( F )

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
8 Step by step installation guide.
Mount the inlet water hose (15) to the inlet on the BWT Multiblock (21)
Mount the other end of the inlet water hose (15) on the Water Inlet (C).

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24

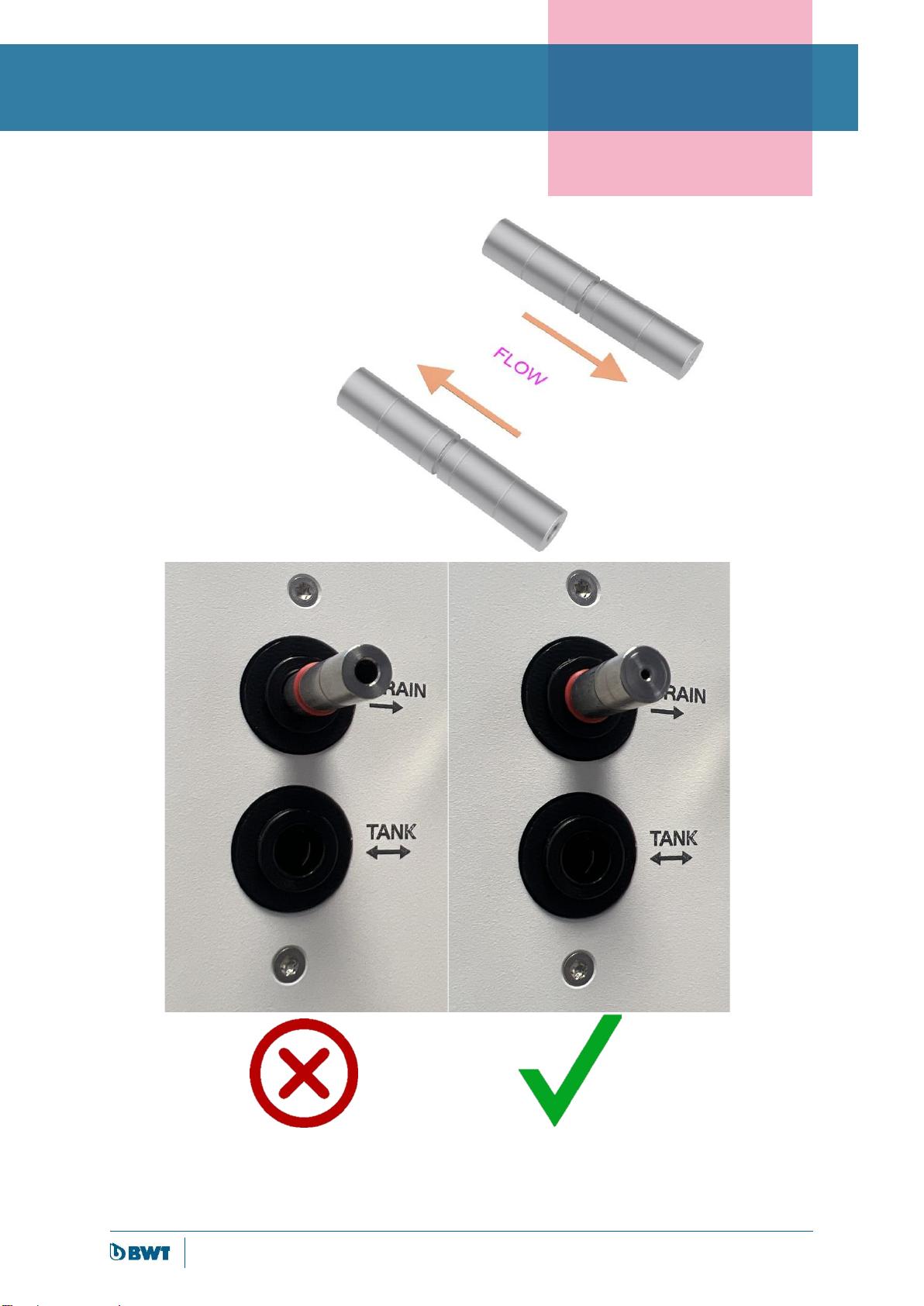

Be Aware!!
Restrictor flow.
Wrong Way Right Way

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
Insert the Concentrate Restrictor (12) in the Drain Outlet (B).
The Drain elbow (5) can now be mounted on the Concentrate Restrictor (12).

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
Cut the 8mm hose (6) in the needed length for connecting the unit to the Siphon (19). Push the 8mm hose (6) into
the drain elbow (5).
Push the 8mm push-in elbow
(24) into the top of the Siphon
(19).
Push the other end of the 8mm hose (6) into
the elbow (24) on the Siphon (19).

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
Use a pressure gauge to measure the pressure in the pressure tank (14)
The factory default pressure aprox. 4 bars. The tank must be deflated to 1 bar.

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
Use the 8 mm hose (7) and cut it in the needed length, for connecting the unit to the pressure tank. Push one end
of the 8mm hose (7) into the tank inlet (D). Remember to lock it with a locking clip (13).
Mount the Female adaptor 8mm (20) to the pressure tanks (14) inlet. Push the 8mm hose (7) into the adaptor (20)
and remember to lock it with a locking clip (13).

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
Mount the Straight terminal F3/8'' 8mm (9) on the Product Outlet (E).
Push the 8mm hose (16) into the adaptor (9).
Remember to lock it with a locking clip (13).

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
Mount the Reduction FM 3/4” (22) on the right side of the BWT Multiblock (21)
Push the 8mm hose (16) into the reduction (22)
Remember to lock it with a locking clip (13)

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
Plug in the power plug (4) into the units power inlet (A). Remember to set the power button in OFF position.
Insert the 230V plug (4) into a wall outlet.

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
Now the all the connections are done and the back look like this:

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
9 Blindcap & Membrane installation
Install the Blindcap (23) (left side) as shown in the picture:
Install the membrane (3) (right side) by slightly tipping the unit back, insert the filtertop in the unit and rotate the
membrane. Ensure that the filter and membrane catch the screw thread in the unit.
To see the film, scan the QR code in section 2.

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
10 Planmeca Patrol™Filter head installation
The filter for the autoclaves needs to be installed separately. After the BWT Multiblock, a tee is needed for
separating the treated water into water for the units and water to the Patrol™filter.
Mount a hose according to the installation. Remember the connection on the filter head is 1/2".
Here is an example:
On top of the filter head is a flow arrow that shows,
the flow direction of the water.
Water from
ClinicPatrol™
Water to
dental units
Water to
Planmeca
Patrol™5
filter

Installation guide Planmeca ClinicPatrol™by BWT for Units & Autoclaves
BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: [phone] / 24
(1) Push down the bypass selector on top of the filter head to rotate it and set the bypass for 0. When the 0
appears in the slot the selector knob clicks back up.
(2) Mount the hose from the tee on the inlet as shown.
Mount a hose from the filter head outlet to the autoclaves.
(2)
(1)
