BZB Gear BG-AVTPG-MINI-G2 User manual

BG-AVTPG-MINI-G2
HDMI 2.1 8K Signal Generator and Analyzer
User Manual

BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 2

BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL
Table of Contents
Statement 3
Safety Precaution 3
Introduction 4
Features 4
Packing List 5
Specifications 5
Operation Controls and Functions 6
Connection Diagram 7
Menu Operation 8
Operation Approach 11
Tech Support 13
Warranty 14
Mission Statement 15
Copyright 16
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 3

BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
●The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
●Do not expose the product to rain or moisture.
●To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
●Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
●This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
●Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 4

BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL
Introduction
The BG-AVTPG-MINI-G2 is a handheld, pocket-sized, and rechargeable
battery-supported device that can generate popular HDMI signals and detect important
HDMI features. With the help of the BG-AVTPG-MINI-G2, installers can easily set up and
test HDMI equipment in seconds.
In "Source" mode, the BG-AVTPG-MINI-G2 provides reliable video patterns up to
HDMI 2.1 8K60 4:2:0 10bit, 8K30 4:4:4 & 4K2K 120Hz or 4K HDR, including HDMI 2.0 & 1.4
resolutions such as 4K60, 1080P, and 720P. With adjustable color depth, installers and
integrators can instantly test the connected display's capability and decide if the display
under test is the right choice.
In "Sink" mode, the BG-AVTPG-MINI-G2 can be used as a reliable HDMI signal
detector to obtain fundamental information such as resolution, frame rate, and HDCP
version. This important information can help installers and integrators deal with tedious
HDMI compatibility issues with ease.
Features
● Video resolution* outputs up to 8K60 10bit 4:2:0, 8K30 4:4:4, & 4K2K 120Hz
● HDR 4K2K@60 4:2:0 10bit/12bit
● Built-in 4 video patterns**
● Both HDMI input and output support up to HDMI 2.1
● Fundamental HDMI feature analysis up to 8K4K@60 4:2:0 8bit HDMI 2.1
input
● HDCP 1.4 & 2.3 compliant
● Wide frequency range: 25MHz~1188MHz
● Input Video bandwidth: 40G
● Output Video bandwidth: 48G
● Hand-held pocket size
● Rechargeable battery powered for portability
● Operation time with a full charge up to 3 hours
* 4K2K60 DVI mode not supported
**Patterns may appear differently for each resolution.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 5

BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL
Packing List
●1x BG-AVTPG-MINI-G2
●1x USB-C cable
●1x User Manual
Specifications
Model Name
BG-AVTPG-MINI-G2
Technical Specifications
Usage
HDMI 2.1 Signal Generator and Analyzer
Video bandwidth
Input up to FRL 5 (40G)
Output up to FRL 6 (48G)
HDMI compliance
HDMI 2.1 and below
HDCP compliance
HDCP 2.3 and below
Video Support
Up to 8K60 4:2:0 10bit, 8K30 4:4:4, & 4K2K 120Hz
Video Format Support
HDMI
Control
Push Button
ESD protection
Human body model — ±15kV [air-gap discharge] & ±8kV [contact
discharge]
Input
1x HDMI
Output
1x HDMI
USB Support
Firmware update / Recharge
HDMI connector
Type A [19-pin female]
USB Connector
USB-C
Mechanical
Housing
Metal Enclosure
Dimensions
[L x W x H]
Model
5.1" x 3.5" x 0.6" [130 x 89 x 14mm]
Package
7.8" x 5.4" x 2.9" [198 x 137 x 74mm]
Carton
1'4"x 1'3" x 11.8" [420 x 400 x 300mm]
Weight
Model
10.4oz
Package
16 oz
Power Supply
USB-C / Battery
Operation Temperature
0~40°C [32~104°F]
Storage Temperature
-20~60°C [-4~140°F]
Relative Humidity
20~90% RH [no condensation]
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 6

BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL

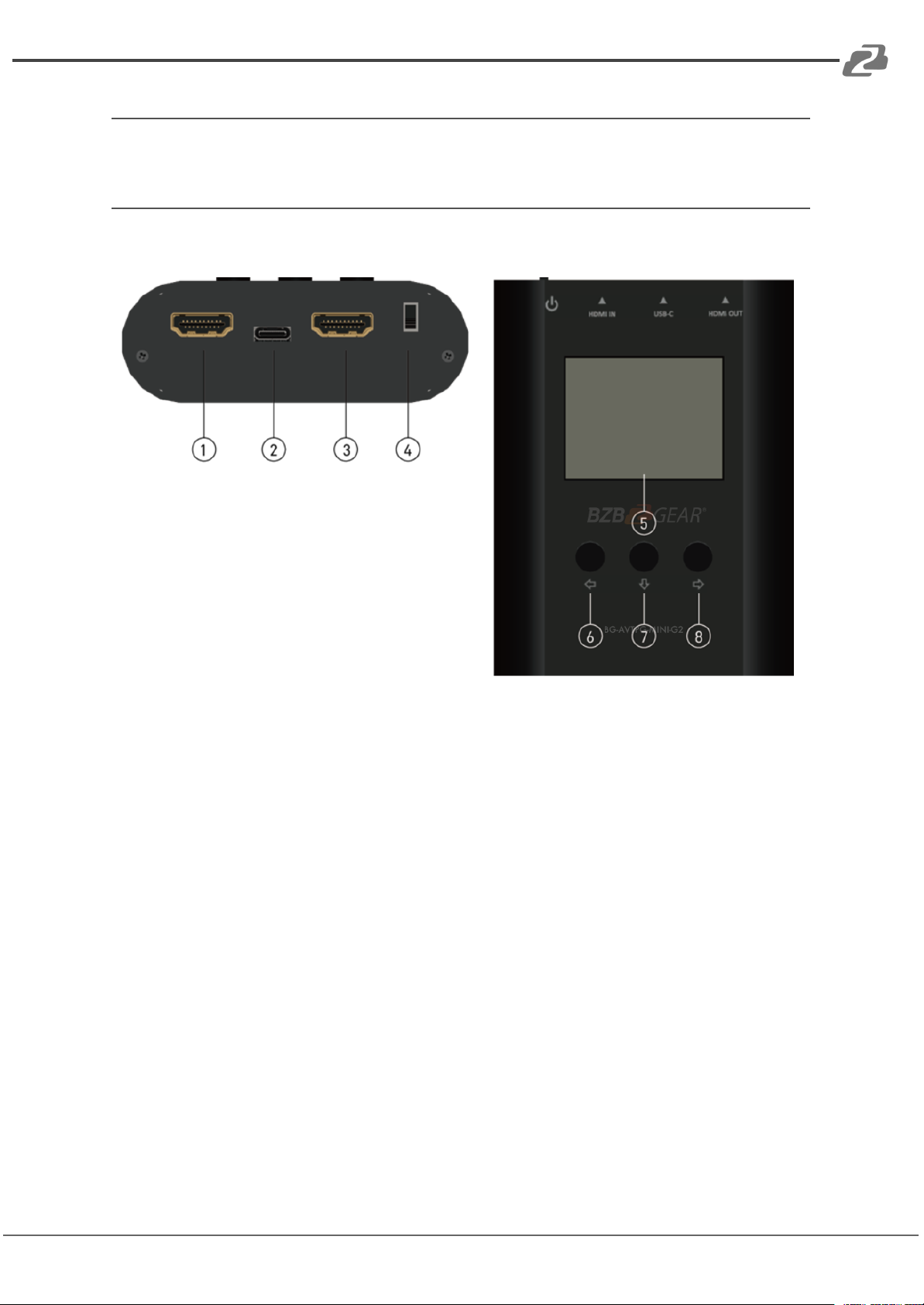

Operation Controls and Functions
Front and Top Panels
1. OUTPUT: HDMI output
2. USB-C: Firmware update / Recharge
3. INPUT: HDMI input
4. Power Switch: Power ON/OFF Switch
5. LCD Display: the measured data is shown here
6. Button (left): Back button
7. Button (down): Select button
8. Button (right): Enter button
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 7

BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL

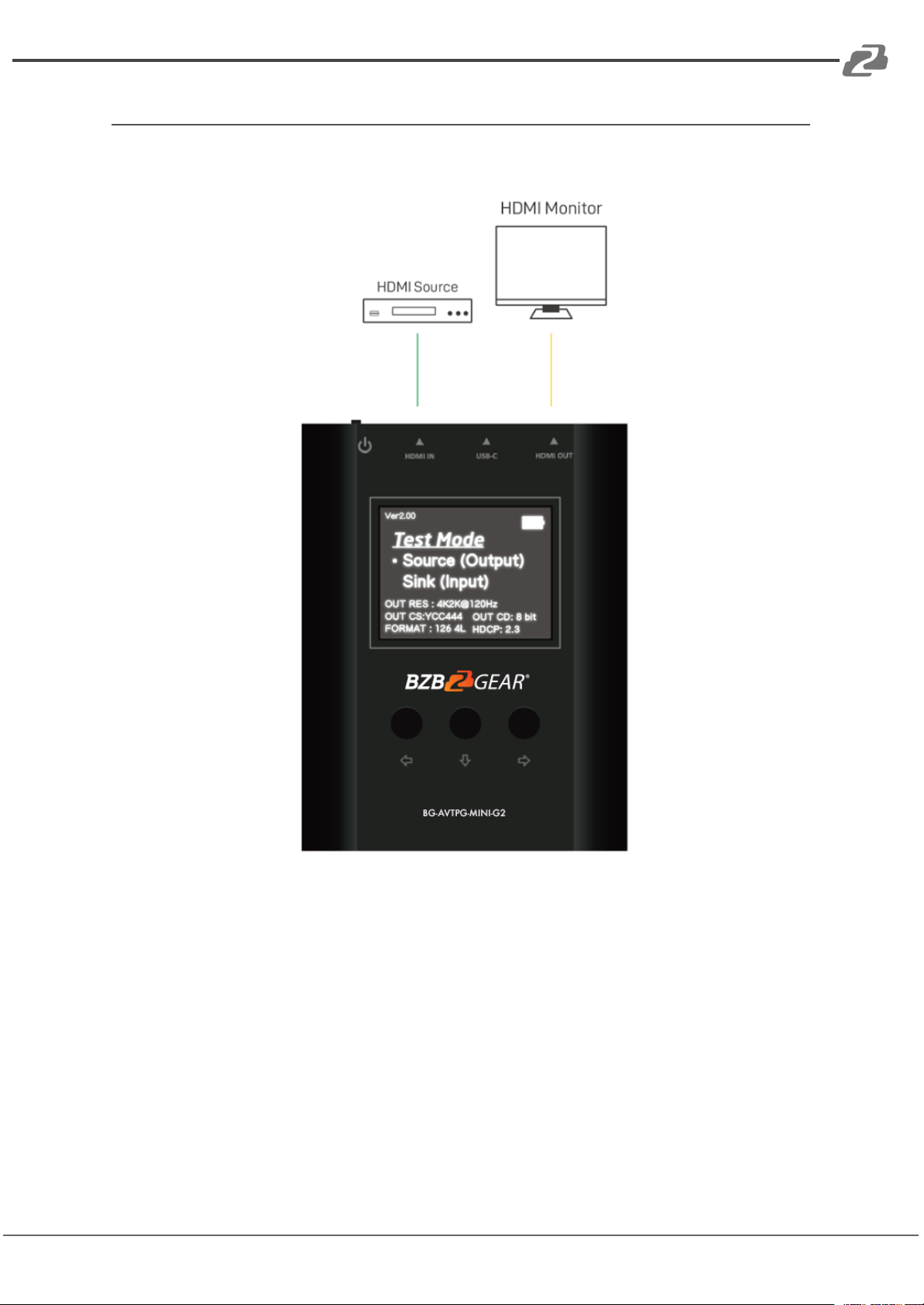

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 8

BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL
Menu Operation
Method A: Push Button
Menu
Item
Description
Source (Output)
Resolution
Select the video resolution and bandwidth
Color Space
Select color space (RGB, YCC444, YCC422,
YCC420)
Color Depth
Select color depth (8 bits, 10 bits, 12 bits)
HDCP
Enable/Disable HDCP function (1.4/2.3)
Pattern
Provide four test patterns for user to use (Gray
Gradient, Color Bars 1, Flat Fields, Color Bars 2)
Audio
Adjust the sound level of HDMI output (0dB, -6dB,
-12dB, -18dB, -24dB, Mute)
EDID
● [Source Data(to Input Source)] Show the
current device EDID information
● [Sink Data(From Monitor)] Show the
connected monitor EDID information
● [Source Option(to Input Source)]
● Default: Use default EDID
● Sink: Learn connected monitor EDID
● User Define: Use user defined EDID
Sink (Input)
Screen Info
The screen will show connected source signal
information like resolution, format, HDCP, etc..
Through
[ON] The A/V signal will pass-through from the HDMI
input to the HDMI output
[OFF] The HDMI output will send the device signal
pattern.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 9

BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL
Method B: Software Control through USB-C port
1. System Requirement
(1) OS Information: Windows XP/7/8.1/10/11
(2) Baud rates: 115200
(3) Software size: 1 MB
(4) Minimum RAM requirement: 256 MB
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 10

BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL

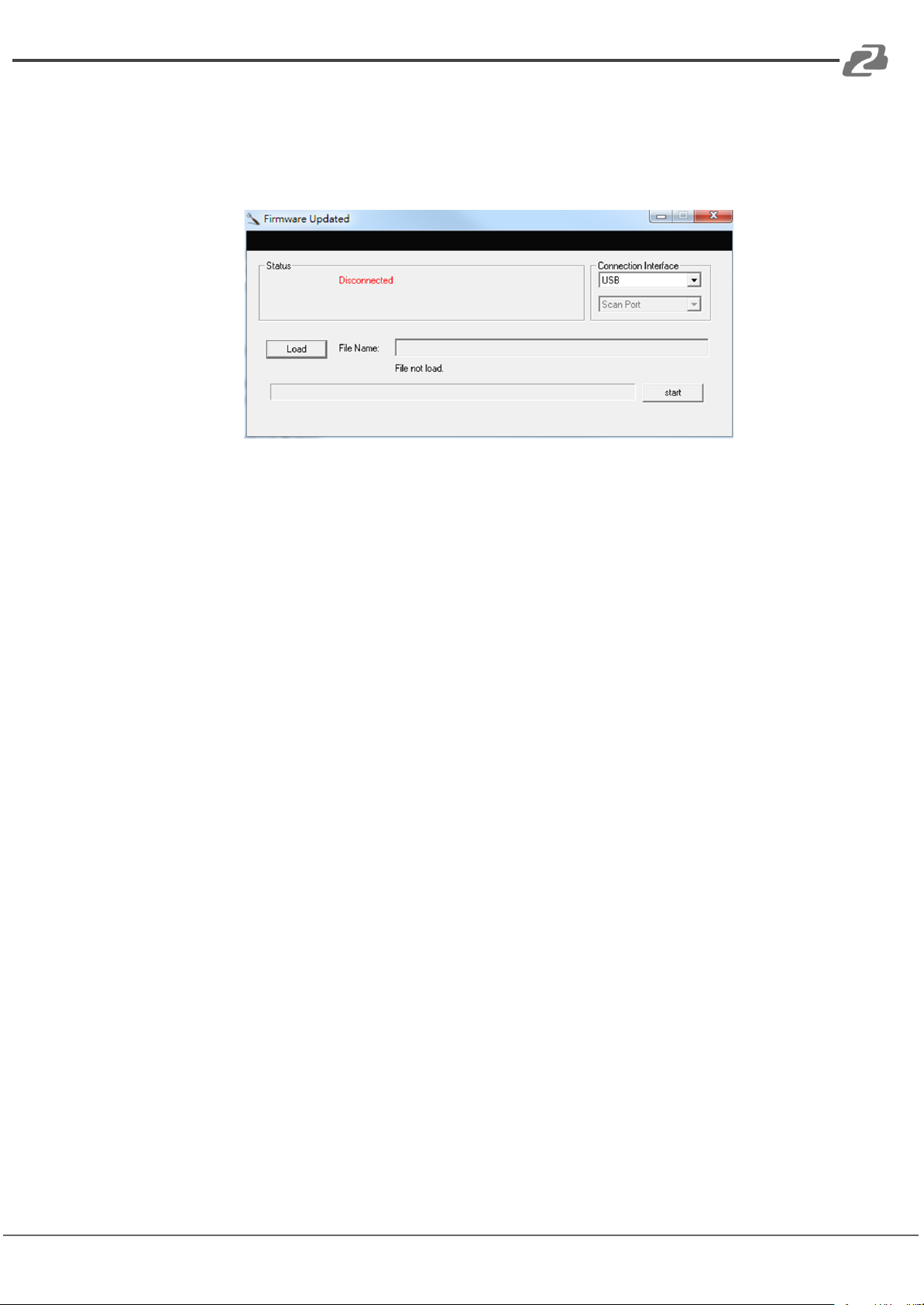

1. System
●Firmware Upgrade:
○Select “USB” as the Connection Interface
○Click the “Load” button to select the file which you want to upload
○Click the “start” button
○Power cycle the device and the firmware will start to update.
●Firmware Version
2. EDID
●Download Sink EDID
○Download the EDID of connected monitor to the computer
●Upload User EDID
○Upload an EDID file from a computer to the device
3. Battery Power Information
●The current battery power information
4. Test Mode
●Source (Output) mode
●Sink (Input) mode
5. The signal information of the output
●Shows the device’s output signal information like resolution, format, HDCP, etc..
6. Back/Select/Enter button
●Use the buttons to select a mode, category, & items.
7. Connect/Refresh Button
8. Connection Status
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 11

BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL
Operation Approach
Source Mode
When BG-AVTPG-MINI-G2 is treated as a source, it can generate different test patterns and
send them to a connected display.
How to use Source Mode:
●Make sure the connection between the BG-AVTPG-MINI-G2 HDMI output port and
the display is connected properly.
●Use the buttons or software to select the MODE category and enter SOURCE mode.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 12

BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL
●Set the output signal format and video testing pattern.
Sink Mode
When BG-AVTPG-MINI-G2 is in sink mode, it can read the HDMI source’s information and
in addition, the input HDMI can be passed through to an HDMI capable display if needed
(as shown below).
How to use Sink Mode:
●Connect the BG-AVTPG-MINI-G2 between HDMI source and HDMI display.
●Use the buttons or software to select the MODE category and enter SINK mode.
●The source information will be presented on the LCD. The process of acquiring
HDMI information will take about 3~5 seconds.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 13
