C.T.M. HS-2750 User manual

HS-2750 User Manual
C.T.M Power Chair
C.T.M. Power Chair
C.T.M. Power Chair

User ManualHS-2750
1.INTRODUCTION
2.IMPORTANT PRECAUTIONS
3.PRODUCT OVERVIEW
4.PRODUCT OPERATION
5.BATTERIES AND CHARGING
6.TROUBLE SHOOTING
7.MAINTENANCE AND CLEANING
8.ACCESSORIES
9.SPECIFICATION
---------------------------------------------------------1
-----------------------------------------2
-------------------------------------------------6
------------------------------------------------8
---------------------------------------11
------------------------------------------------13
----------------------------------15
---------------------------------------------------------17
--------------------------------------------------------18
Table of Contents

User ManualHS-2750
1
Information of European Representative :
If you have any questions, you can contact:
1.INTRODUCTION
Thank you and congratulations on purchasing your new C.T.M. Power Chair. It is
designed to provide you with transportation ability indoors and outdoors.
We pride ourselves on providing safe and comfortable products. Our goal is to ensure your
complete satisfaction with our product. We are certain that you will enjoy your C.T.M.
Power Chair.
Please read and observe all warning and instruction provided in the owner's manual before
operating this power chair. Also, retain this booklet for future reference.
In case of a serious incident with the product, you should inform the manufacturer and
the competent authority in your country.
CHIEN TI ENTERPRISE CO., LTD.
No. 13, Lane 227, Fu Ying Rd., Hsin Chuang Dist.,
New Taipei City, Taiwan, R.O.C.
Tel : [phone] Fax : [phone]
E-Mail : [email protected] http : //www.chienti.com.tw
MedNet EC-REP GmbH
Borkstrasse 10, 48163 Muenster, Germany

User ManualHS-2750
2.IMPORTANT PRECAUTIONS
2
2-1 CAUTIONS BEFORE DRIVING
※Drive for the first time :
1.Before take the first trip with power chair, you should familiarize yourself well with the operation
of power chair and with the operation elements. Please take your time to read this introduction
booklet.
2.Before driving, please evaluate the personal condition, and fully understand the operation of
power chair.
3.Batteries should be fully charged before your journey for maximum performance and longevity
(see section 5-2 ).
4.The maximum load of the power chair is 150KG. Do not exceed the maximum permissible load.
Exceeding the max.weight rating may result in injury to yourself.
5.The power chair is only designed for use by a single occupant whose maximum weight does
not exceed the maximum permissible load of the device. Never use the power chair to transport
more than one person (including children).
※Before each ride :
1.Please make sure the left / right levers is in Drive position. Do not sit on the power chair when
the left / right levers is in Neutral position. The chair could roll down on its own, causing injury.
(see section 4-4)
2.Inspect the tire pressure (if it is sufficient) and tire tread depth.
3.Check if all devices, connectors and wiring are connected properly and if all parts are tightened
firmly.
4.Please always set the speed control to its lowest speed before powering on. Check the battery
gauge and status indicator to ensure everything works fine before driving. (see section 4-1)
2-2 CAUTIONS WHEN DRIVING
1.Do not attempt to drive the power chair under below hazardous road condition. If necessary,
please drive it in the presence of an attendant :
- Dark, bad weather such as in rain, snow, mist, storm, and poor visibility.
- Narrow paths, level crossing, and uneven terrain.
- Wet grass, sand, gravel, or any other potentially hazardous condition.
2.Do not store the power chair in a humid condition such as rain or show as this may cause damage
to electronics or corrosion to frame.
Watch out the condition of weather before every journey and prepare the necessary rain
shade to avoid danger of remote defect or system malfunction. In case of getting wet
because of the unexpected bad weather, find a shelter immediately and wipe the power
chair with a dry cloth.
1.Mobility device may only be used on the traffic routes for which it is approved in accordance
with the relevant national legislation.
2.Do not drive on a slope which is over the limit. Please bypass, do not drive to across
the obstacle over the limit. (see section 9)
3.Do not drive your power chair if you are under the influence of alcohol or medication
that may affect your ability.
4.Do not stand on the footrest when get in or out of the seat. Step on the ground to get
in the seat and step on the footrest only when you seat securely.
5.Do not wear loose clothes or long skit to avoid rolling into the tire and causing danger.
6.You should not assemble, maintain, and operate the power chair before you read this
instruction booklet.
7.Do not attempt to modify or dismantle the battery box or carry out any maintenance work
that is not described in this user manual.
8.Do not change, modify, remove any parts from products especially safety protected parts
such as anti-tippers.
9.Any unauthorized modification is prohibited. Please do not attempt to modify the power chair.
10.Please observe all relevant rules and regulations pertaining to pedestrians and road
users at all times when you are driving the power chair.
11.Always be aware of pedestrians and situations which might require extra care when
using your power chair on public walk ways and footpaths.

User ManualHS-2750
3cm
3
2-3 CAUTIONS WHEN DRIVING ON INCLINE (SEE SECTION 9.)
•For maximum stability, lean forward in your body while proceeding up ramps, inclines,curbs,
or any low rise. (please refer to following picture)
•The weight capacity limit is 150kg at 6 degree ramp (please refer to above picture).
•Your power chair's ability to travel up inclines is affected by your weight, your power chair's
speed, your angle of approach to the incline, and your power chair setup.
•Never drive on a slope that exceeds the rated slope.
•When driving on ramp, adjust body center of gravity for power chair stability.
•When driving down a ramp or uneven terrain, keep the speed adjustment set to the
slowest to ensure a safely controlled driving.
•If the speed is too fast, release the joystick, let the power chair stop. When you feel that
you again have control of your power chair, push the joystick forward and continue
safely driving.
•To prevent any danger, do not make turns on ascending, descending ramp.
•Please avoid to driving on a long ramp or any uneven terrain to prevent any danger
from motor defected.
•Never place the power chair in freewheel mode (Neutral) on any sort of an incline or
decline to avoid roll-away.
•Do not reverse when driving down a ramp.
150kg / 6 degree
On flat road On slope
2-4 CAUTIONS WHEN CLIMBING
•The maximum climbing angel is 6 degree.
•The maximum height of obstacle and curb that power chair can climb is up to 30 mm.
Obstacle Obstacle
3.Do not place the power chair on a slope to avoid roll-away and danger.
4.Do not turn the power on before you get in and sit securely on the seat. Be certain that the power
is turned off when get in, get out. This will eliminate the possibility of accidentally activating the
remote module and causing injury.
5.When turning, reduce your speed and maintain a stable center of gravity. This greatly reduces
the possibility of a tip or fall.
6.Do not stretch your body out on the power chair.
7.Do not operate on staircases or escalators.
8.Please always set the speed control to its lowest speed when you start to drive, and observe
all relevant rules and regulations pertaining to pedestrians and road users at all times.
9.Do not make S turns or sharp turns while driving. This may cause the power chair to tip.
•When driving through an obstacle, stop the power chair. Keep it vertical with the obstacle and
driving straight.
Upon encountering extreme weather (rain, fog, snow, etc), immediately find cover and use
dry towel to wipe down the power chair

User ManualHS-2750
4
CAUTION: It is very important that you read this information regarding the possible
effects of Electromagnetic Interference on your power chair.
Powered wheelchairs and motorized scooters may be susceptible to electromagnetic
interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources
such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios,
and cellular phones. The interference (from radio wave sources) can cause the power
chair to release its brakes, move by itself, or move in unintended directions. It can also
permanently damage the power chair control system. The intensity of the interfering
EM energy can be measured in volts per meter (V/m). Each power chair can resist EMI
up to a certain intensity. This is called its "immunity level." The higher the immunity level,
the greater the protection will be. At this time, current technology is capable of achieving
at least a 20 V/m immunity level, which would provide useful protection from the more
common sources of radiated EMI. The immunity level of this product is 20 V/m.
There are a number of sources of relatively intense electromagnetic fields in the everyday
environment. Some of these sources are obvious and easy to avoid. Others are not
apparent and exposure is unavoidable. However, we believe that by following the warnings
listed below, your risk to EMI will be minimized.
Some cellular telephones and similar devices transmit signals while they are
ON, even when not being used.
Electromagnetic Interference and Warnings :
The sources of radiated EMI can be broadly classified into three types:
1.Hand-held portable transceivers (transmitters-receivers) with the antenna mounted
directly on the transmitting unit. Examples include: citizens band (CB) radios,
"walkie talkie," security, fire, and police transceivers, cellular telephones, and other
personal communication devices.
2.
Medium-range mobile transceivers, such as those used in police cars, fire trucks, ambulances,
and taxis. These usually have the antenna mounted on the outside of the vehicle.
3.Long-range transmitters and transceivers such as commercial broadcast transmitters
(radio and TV broadcast antenna towers) and amateur (HAM) radios.
Because EM energy rapidly becomes more intense as one moves closer to the transmitting
antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of
special concern. It is possible to unintentionally bring high levels of EM energy very close
to the power chair control system while using these devices. This can affect power chair
movement and braking. Therefore, the warnings listed below are recommended to prevent
possible interference with the control system of the power chair.
Other types of hand-held devices, such as cordless phones, laptop computers,
AM/FM radios, TV sets, CD players, and cassette players, and small appliances,
such as electric shavers and hair dryers, so far as we know, are not likely to
cause EMI problems to your power chair.
Power Chair Electromagnetic Interference :
2-5 ELECTROMAGNETIC INTERFERENCE AND WARNINGS
•Be mindful of road conditions and pass through obstacles slowly.
•Even though your power chair has been rated with maximum climbable, we suggest
not driving through an obstacle.

User ManualHS-2750
5
Electromagnetic interference (EMI) from sources such as radio and TV stations, amateur
radio (HAM) transmitters, two-way radios, and cellular phones can affect the power chair.
Following the warnings listed below should reduce the chance of unintended brake release
or power chair movement, which could result in serious injury.
1.Do not operate hand-held transceivers (transmitters-receivers), such as citizens band
(CB) radios, or turn ON personal communication devices, such as cellular phones,
while the power chair is turned ON;
2.Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming
close to them;
3.If unintended movement or brake release occurs, turn the power chair OFF as soon
as it is safe;
4.Be aware that adding accessories or components, or modifying the power chair, may
make it more susceptible to EMI;
5.Report incidents of driving or brake malfunctions to the distributor listed on the first page
of this manual and take note of any source of EMI.
Warnings :

User ManualHS-2750
6
1
3.PRODUCT OVERVIEW
6
41
5
3
7
2
2
3
6
5 7
4
Wiring diagram label
Pinch point warning
label
Keep hands away
Importer label
Information of importer
Information label
States the date of manufacture and serial number of the power chair.
N-D Lever Adjustment
label
Instructs freewheel mode
operation.
Heat caution warning label
Be aware that the motor may normally become hot during operating. Please
avoid skin contact.
Warning sticker
1.Please read the instruction Booklet carefully before using your power chair.
2.Keep the power chair properly maintained.
3.Do not drive the power chair on slippery surfaces or on slopes over 6°.
4.Do not drive on highways, crowded roads, or unfamiliar areas.
5.Do not turn at high speed in either forward or reverse.
6.Do no wash with water or leave power chair in a humid environment since
water can damage the electronic parts.
7.Always re-engage the emergency freewheel device after use.
Serial Number
Model Number
Date of Manufacture
Manufacturer
Warning
WEEE Conformity
EU Authorized representative
Medical Device
European Conformity
Consult Instructions for Use
Maximum weight capacity
OUTSIDE INSIDE
3-1 LABELS INFORMATION

User ManualHS-2750
Figure 2 - HS-2750 Rear View
Figure 1 - HS-2750 Front View
Handle Bar
Swing-away Joystick
Adjustment Latch
(see section 4-1)
Folding Lever
(see section 4-7)
Backrest Folding Device
(see section 4-5)
Motor
Anti-Tip Wheels
Free Wheel Lever
(see section 4-4)
Remote module
(see section 4-1)
Seat Pad
(see section 4-6)
Battery Box
(see section 5-2)
Footrest
(see section 4-3)
7
3.PRODUCT OVERVIEW
3-2 IDENTIFICATION OF PARTS
Armrest
(see section 4-2)

User ManualHS-2750
(A) Power button status indicator
Press the power button to switch on. The status indicator
(through the power button) will light up green, and the battery
gauge will display the current battery status.
Press the power button again to switch off the system. The
system will power down and the status indicator will switch off.
(B) Battery gauge
The battery gauge comprises five different LEDs. The number
of LEDs lit depends on the status
of the battery (see section 5-3).
(C) Speed dial
(C1) Speed symbol
Dial set to the left to slow down.
Dial set to the right to speed up.
(D) Charger connector
The charger connector, which is located on the right-hand side of the Remote, is used to
connect to a battery charger.
(E) Horn button
Press the horn button to sound the horn.
(F) Joystick
The joystick controls the direction and speed of drive. When the joystick is deflected from
the neutral position, the wheelchair will move in the same direction as the joystick. (Fig.4)
To stop driving, either pull the joystick back to the neutral position, or release the joystick
and it will automatically return to the neutral position.
Operation force : under 5N
Maximum currency : 43A
(G) Joystick position adjustment latch (Fig 5)
Pull the latch (Fig.5-1) to rotate the joystick to
desired position. (Fig. 5-2)
※Remove the wire harness before adjusting the
joystick.
(Fig. 5-3)
(B) (F)
(F)
(E)
(D)
(C1)
(A)
(C)
8
Figure 3
Figure 3
Figure 4
Figure 4
Before attempting to drive this power chair on your own, it is important that you familiarize
yourself with the controls, and how to operate them.
Intended use : The C.T.M. Power Chair provide a means by which a disabled occupant
i.e. a disabled person or a person not having the full capacity to walk unaided to have
mobility and the freedom to travel.
Indication : The occupant is a person who requires a power chair due to current or
anticipated mobility limitations. The C.T.M. power chair are intended to be applicable
to at least 50% of adult users, based upon the body size of adult users within the range
50th percentile adult female to 50th percentile adult male the abilities and with vary in
weight.
Contra-indications : None known.
4.PRODUCT OPERATION
4-1 REMOTE MODULE OPERATION
(G)
Figure 5
Figure 5
Figure 5-1
Figure 5-1
Figure 5-2
Figure 5-2
Figure 5-3
Figure 5-3

User ManualHS-2750
•Press down the left and right levers
(Fig.9-1) to fold the backrest. (Fig.9)
•Lift up footrest as arrows indicated to fold. (Fig. 7)
•Adjust the footrest fixation screw to required hole's position
(3 heights) (Fig.7-1). Tighten the fixation
screw if the footrest looses.
9
Figure 7
Figure 7
Figure 7-1
Figure 7-1
Figure 10
Figure 10
Figure 9
Figure 9
Figure 9-1
Figure 9-1
•In traveling, set the left / right levers to the Drive position.
(Fig. 8)
•To push the power chair by hand or in the event of a
faultor battery failure, the motors / gear boxes can be
released allowing the power chair to be pushed.
The left / right levers should be switched to the Neutral
position. (Fig. 8-1)
•Pull off velcro of the seat pad to disassemble it. (Fig.10)
Watch out for pinch warning
Flip up the armrest to get off or get onto the wheelchair from
one side. (Fig. 6)
Figure 6
Figure 6
4-2 ARMREST OPERATION
4-3 FOOTREST ADJUSTMENT
4-4 FREE WHEEL OPERATION
4-5 BACKREST FOLDING OPERATION
4-6 SEAT PAD DISASSEMBLY
Watch out for pinch warning
Do not stand on the footrest
before sitting properly or when
getting off the power chair to
avoid any danger.
※DO NOT use your chair while the drive are disengaged unless you are in the
presence of an attendant. DO NOT disengage the drive motors when your chair
is on an incline. The chair could roll down on its own, causing injury.
※When adjusting N-D lever, do not sit on the power chair
Figure 8-1
Figure 8-1
Figure 8
Figure 8

User ManualHS-2750
10
Figure 11-3
Figure 11-3
Figure 11-2
Figure 11-2
Figure 11-1
Figure 11-1
Figure 11-6
Figure 11-6
Figure 12
Figure 12
Figure 14
Figure 14
Figure 15
Figure 15
Figure 13
Figure 13
Figure 11-5
Figure 11-5
Figure 11-4
Figure 11-4
• For folding up the joystick bracket, please refer to chapter 4-1.
• Make sure the power chair is folded up in a steady standing position before letting go
(Fig 11-6).
• This product can be tugged along over short distances, but the area around the anti-tip
wheels must be free of obstacles.
• Adjust the gear lever to Neutral position before folding / expanding the power chair
(refer to chapter 4-4).
• During the folding / expanding process, the fixation PIN must be firmly inserted into its
hole (pictured below). Particularly during expansion, the PIN must be secure in position
(bottom right figure) before mounting to operate to prevent serious danger.
4-8 AUTO-POWER OFF :
Power will automatically be off if there is a system
malfunction or circuit overload to ensure safety. Make
sure the power chair is moved to a flat surface. Press
the button (G) on the battery box and press the power
button to activate the system.
4-9 SLEEP MODE
•The power chair will go into sleep mode if no activity is detected for programmable time
period. (Default programmable time is 10 mins.)
•To wake up the power chair, press the power button again.
(G)
Folding positioning hole (inner side of frame) Expanding positioning hole (outer side of frame)
Expanding:
1. Lower the footrest.
2. Lift up the folding lever under the seat and hold it still. (Fig 11-2).
3. Push the seat and backrest outwards to expand (Fig 12).

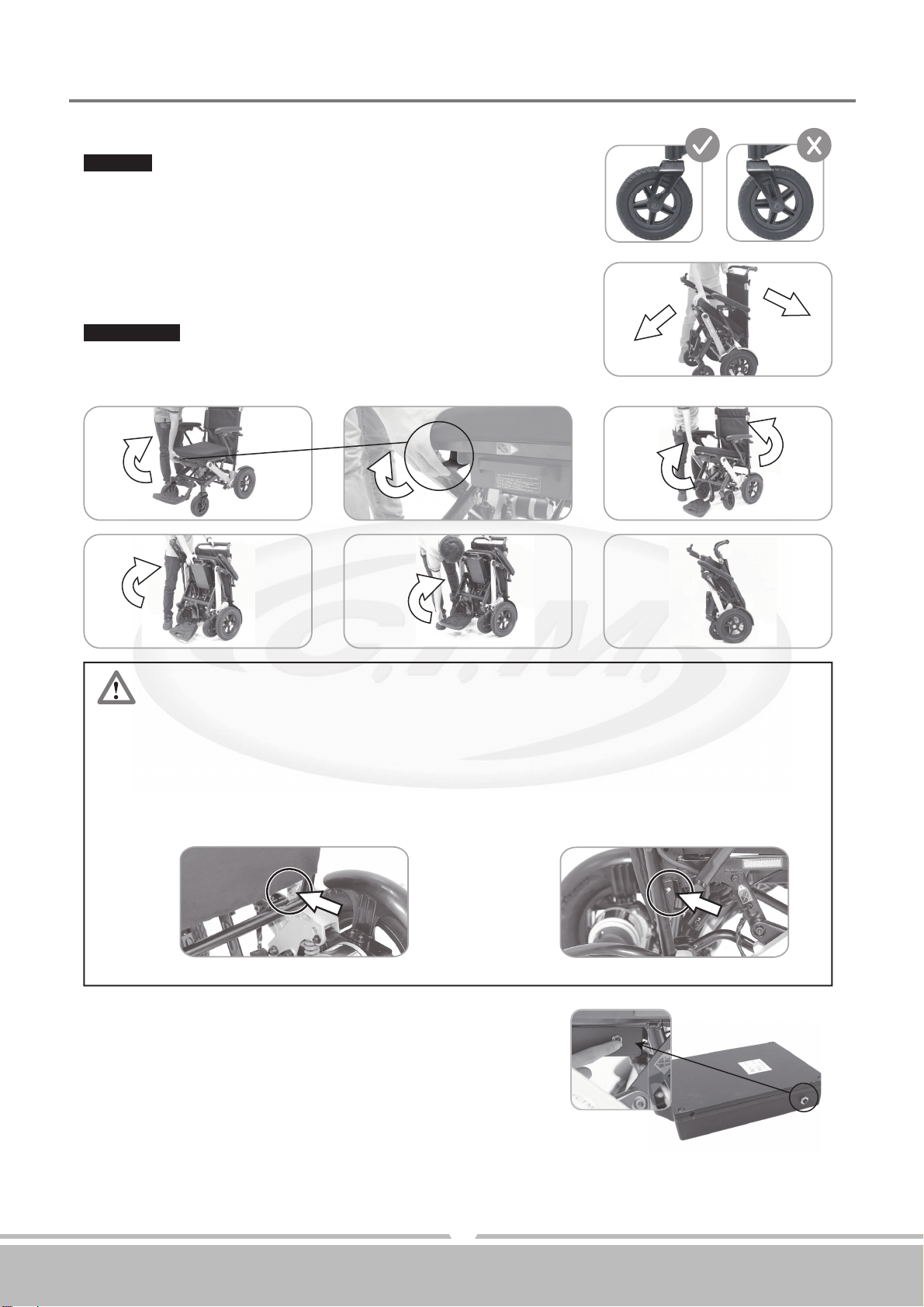

4-7 FOLDING OPERATION
Folding:
1. Confirm the front wheels are facing forwards for easier
folding (Fig 11).
2. Lift up the folding lever under the seat and hold it still. (Fig 11-2).
3. Tug the seat and backrest inwards (Fig 11-3).
4. Release the folding lever to fold up the whole power chair.
(Fig 11-4).
5. Fold the footrest upwards (Fig 11-5).
6. Use the front wheels to support its standing position. (Fig 11-6)
Figure 11
Figure 11

User ManualHS-2750
11
5.BATTERIES AND CHARGING
•Please read this section thoroughly before charging.
•Please turn the power off before charging and make sure to set the left/right levers to
the Drive position. (see section 4-1/4-4)
•Please see section < 8.Product Specification > for the specification of lithium battery.
•Do not switch off, unplug or interrupt the recharge cycle until the charging cycle has
completed (charger indicator turns green)
•Batteries must be charged before using the power chair for the first time. (see section 5-2)
•Full charge the batteries after each day's use. (see section 5-2)
•HS-2750 uses lithium battery. Recommended range of storage : Temperature : 25+-5oC,
under 60oC during transportation. Humidity : 25% ~ 85%, out of this range might affect
the performance of the charger and battery.
•If storing your power chair for a prolonged period (3 months or more), full charge the
batteries and store the batteries in a dry, well-ventilated environment. Batteries must
be recharged every six months at least if storing for more than six months.
•The efficiency and lifetime of batteries will vary depends on the usage of the batteries.
The improper charging way or insufficient equipment will minimize batteries' lifetime.
•Please do not charge non-stop over 15 hours.
•Batteries are subject to disposal and recycling regulations that vary by country and region.
Always check and follow your applicable regulations before disposing of any battery.
•It’s highly recommended to have your power chair inspected for battery every six month
despite how often you use the power chair. Please contact your dealer.
•Do not sit or operate the power chair when charging.
•Store the lithium battery and charger in a dry, well-ventilated environment, away
from any source of direct heat, humidity, oil, acid, alkaline, and ozone to prevent
overheating, fire, malfunctioning or shortening of lifespan.
•Do not cover charger by any objects. Use the charger in a well-ventilated area.
Do not smoke and keep away from open flames as explosive gases may be
generated while charging the batteries.
•Please only use the original batteries and charger, well control the charging
time to prevent damage to batteries and equipments. Do not use chargers from
other brands or connect the charger with an extension chord.
•Do not disassemble charger, battery box and open sealed parts by yourself to
prevent danger of electric shock and liquid leakage.
•Do not damage or disassemble battery box to avoid damaging on internal battery.
•Always avoid batteries short-circuit.
•In case of any malfunction, strange smell, heat, discoloration or deformation
on lithium batteries, remove the battery before having dealer for repair.
•Rough handling operations, throwing, rolling, crushing, shaking, overly strong
impact and extrusion to batteries should be avoided, to prevent battery casing
broken or internal structure damage.
•Maintenance & repair must only be carried out by a competent engineer or
authorized dealer. Please contact dealer if you need to replace internal battery.
5-1 CAUTIONS FOR CHARGING
※Batteries must be fully charged before first use and recharged after each day use.

User ManualHS-2750
1.Pull the security latch (under the seat) open (Fig. 16-1) to pull the battery box out (Fig. 16).
To reinstall, level the battery box with the
slide rails and pull the security latch open
(Fig 16-1), then push the box inwards until
a "click" sound is heard to lock it in place.
※There are two charging ports, one is on battery box, and the other is on remote module.
2.Take the originally equipped charger (A) to connect the charger output cable (E) to the
charging port (F) of the battery box. Connect the AC power cord (B) to a standard wall
power outlet (C). Check if the LED(orange) light turns on (in charging).
LED Light indicator (D)
The LED(red) light will turn on when power on. The LED(orange) light will turn on when
the battery is in charging. When the battery is full charged, the LED light turns green.
12
5-2 CHARGING OPERATION
1.Plug the charger converter connector (I) into the joystick controller charging port (G).
2.Connect the other connector (J) into the charger output cable (E).
3.Connect the AC power cord (B) to a standard wall power outlet (C). Check if the LED
(orange) light turns on (in charging).
Figure 16
Figure 17
Figure 18
16-1
16-2
• Watch out for pinching.
• The detachable battery box must be
pushed in completely and made sure
it can't be loosened to lock in place.
(E)
(A)
(B)
(D)
(C)
(F)
(G)
(I)
(J)
The time needed to a full charge will be around 7 hours. Disconnect the AC power cord
(B) right after charging. The charger LED light indicator (D) should light up green when
fully charged. If not, it is a sign of charger (A) or battery malfunction. Please contact your
authorized dealer. Do not attempt to repair by yourself.
Battery box charging port
Remote charging port
(E)
(A)
(B)
(D)
(C)

User ManualHS-2750
13
※Always check number of flashes to prevent battery running down during driving.
6.TROUBLE SHOOTING
For more information about the error, and what to do about it, open the
logs within one of the programming & diagnostic tools.
Figure 19
The status indicator
If, when powered up, there is an error with the system, then the status
indicator will flash red. The number of flashes will indicate the type of
error. These are described in the table below.
6-1 STATUS INDICATOR ERRORS
6-2 THE BATTERY GAUGE INDICATION
Flash code Error description
1
2
3
4
5
6
7
Remote / joystick error
Network or configuration error
Left motor error
Right motor error
Left park brake error
Right park brake error
Module error (other than Remote)
High voltage warning
Figure 20
A high voltage warning is indicated by all LEDs on, and the green
LEDs flashing. This occurs when the battery voltage level has risen
above the high voltage warning set-point.
The battery gauge comprises five different LEDs (1 x red, 2 x orange, 2 x green), situated above
the remote module's horn button.
※The number of LEDs lit depends on the status of the battery, as shown below.
5-3 BATTER GAUGE OPERATION
Please contact your authorized dealer for any malfunction.
Battery Gauge Status
Fully charged. This level is set by the Battery Gauge Maximum parameter.
Operate normally. Pay attention to the battery voltage.
Operate normally. Pay attention to the battery voltage.
Consider charging battery
Battery needs charging. This level is set by the Battery Gauge Minimum parameter.
Low voltage warning
Figure 21
A low voltage warning is indicated with the left-most LED flashing.
This occurs when the battery voltage level has decreased below
its low voltage warning set-point. Charge the battery immediately.
Please be aware that the travelling range of your power chair is impacted by how fast the batteries are
discharged. This will depend on many circumstances, such as ambient temperature, condition of the
surface of the road, tyre pressure, weight of the driver, driving environment (inclines etc.) and utilisation
of your lighting system if fitted. We recommend that you test your local ride with a family member to
ensure a safe journey.

User ManualHS-2750
14
Figure 22
Figure 23
Figure 24
Figure 25
OONAPU OONAPU ("Out Of Neutral At Power Up") is a safety feature that
prevents accidental movement of the wheelchair, either when powering
up, or when the wheelchair comes out of an inhibit state.
If the LiNX LE System is turned on (or comes out of an inhibit state)
while the joystick is not in the centre position, an OONAPU warning
is displayed. During an OONAPU warning, the battery gauge LEDs
will flash continually to alert the user, and the chair will not drive.
If the joystick is returned to the centre position within five seconds,
the warning will clear and the wheelchair will drive normally.
However, if the joystick remains out of neutral for longer than five
seconds, an OONAPU error will occur; the error is displayed by the
Status indicator flashing red, and the chair will not drive. To clear
the error, return the joystick to the neutral position and power the
unit off and then on again.
Cut-off voltage
When the battery voltage decreases below the battery cut-off voltage:
•the first (red) LED will flash on the battery gauge
•the horn will sound once every 10 seconds
•Charge the battery immediately to avoid damaging the battery.
Drive inhibit indication
Drive inhibit mode is indicated by the battery gauge with a right-to-left
chase sequence.
The chase sequence starts with the green LED on the right-hand
side, and one-by-one, each LED will switch on and then off. When
the sequence completes at the left-most red LED, it begins again
at the right-hand side.
The chase sequence continues until the error condition has been
cleared. (see section 6-1 for error indication)
Battery charging
Plug the battery charger into the Remote's XLR socket.
The Battery Gauge will indicate the system is being charged by
cycling between a left-to-right chase sequence, and then displaying
the approximate battery charge state at the end of the chase sequence.
Driving is prevented (inhibited) while the system is being charged.
Please see actual charging status as per LED light indicator of
charger. (see section 5-2)

HS-2750 User Manual
Annual Maintenance
We recommend that the chair has at least one full service per year from an authorized
dealer. This will ensure that your power chair is functioning properly and also helps
prevent future complications. This should include :
•Armrest/handle bar: Only use damp cloth with gentle detergent or 75% alcohol to wipe
the surface. Do not use abrasive cleaners.
•Seat Upholste/ backrest: Use vacuum cleaner or damp cloth with gentle detergent to
wipe the seat. Do not use abrasive cleaners as this will damage the seat. Do not sit
until the seat dries out.
•Remote module/Metal parts: Only use damp cloth to wipe and use dry cloth to dry out
immediately. Do not use abrasive cleaners as this will damage the parts. When power
chair dries out, the shroud can be applied with a light of wax to keep its gloss.
•Joints of parts (like font wheel fork, axle): Apply a little grease when the part is making
a grinding noise.
Regular Maintenance and Cleaning
01.Please turn off the power chair and make sure the lever is in Drive position before inspection
or maintenance to avoid roll-away.
02.User should inspect the power chair more often especially when the power chair has
possibly been riding on the bad road condition such as, grass, sand, bumps, and potholes.
03.Clean the dusts by old toothbrush before applying grease.
04.Avoid knocking or bumping the controller, especially the joystick.
05.Avoid prolonged exposure of your power chair to extreme conditions, such as heat, cold,
or moisture.
06.Keep the controller clean.
07.Check that all controller connectors are tight and secured properly.
08.Never hose off your power chair or place it in direct contact with water.
09.Keep the upholstery and frame clean by wiping with a soft cloth, particularly after driving
through wet, sandy or muddy conditions. Do not use harsh abrasive materials when
cleaning. Do not apply liquid cleaners or solvents directly to the control box, battery
charger or any electrical connections.
10.Keep wheels free from lint, hair, sand and carpet fibres.
11.Lightly oil axle pin, wheel axles and bearings once every three months, if necessary.
12.Inspect the tires. Tread depth should not be allowed to drop below 1mm.
13.Use only recommended batteries and have batteries changed by Qualified Dealer if you
have doubts about your ability to lift the components.
14.Charge batteries regularly. Make sure the charger lead plugs are engaged properly
in the sockets. Do not disconnect by pulling the cord.
15.With the controller turned off, check the joystick. Make sure it is not bent or damaged
and that it returns to the center when you release it. Check the rubber boot around the
base of the joystick for damage. Visually inspect the boot. Do not handle or try to repair
it. See your authorized dealer for any questions.
16.Visually inspect the controller harnesses. Make sure that they are not frayed, cut or
have any wires exposed. See your authorized dealer if there is a problem with any of
these harnesses.
17.Make sure all components of the control system are securely fastened to your power
chiair and don't over-lock any connector screws to prevent them from loosening.
15
7.MAINTENANCE AND CLEANING
7-1 REGULAR MAINTENANCE AND CLEANING
The power chair needs some basic attention to ensure it provides reliable service.
We recommend that the user ensures that the power chair is checked regularly for
maintenance requirements and receives a thorough, annual maintenance check up.

HS-2750 User Manual
7.MAINTENANCE AND CLEANING
7-2 INSPECTION CHECKS
Remote module
Check if the LED light indicator lights
up after powering on.
Check if there is any error indication
on status indicator or battery gauge.
Check if the battery gauge is displayed
and whether it is at low power.
Check for correct function of buttons
and joystick.
Check for the horn button to sound
the horn.
Check for correct function, no noisy
sound, malfunction or overheat.
Release the joystick to test if brake
works.
Check for correct function.
Check if folding/unfolding function is
acting smoothly without noise.
Check if there is any deformation or
loose on joint of frame, handrail
bracket and footrest.
Check if there is any loosen part. Please tighten the screws.
Check if the battery gauge lights up
after connecting with the charger.
The charger LED light indicator does
not light up green when fully charged.
Check if tire tread depth is less than
1mm.
Contact your dealer.
Contact your dealer.
Check for the connection and make sure
it is connected firmly.
Check if the tire has cracks or
deformation.
No foreign objects in tires.
Check the tire pressure.
Check that wheels rotate without
wobbling.
Check if the charger is functioning
correctly and the batteries are
charged.
Motor
Contact your dealer
Please refer to section 6-1 / 6-2.
※Contact your dealer if battery gauge is
not working.
※Recharge the battery immediately if low.
(Please refer to section 5-3.)
Contact your dealer.
Contact your dealer.
Contact your dealer.
Contact your dealer.
Contact your dealer.
Brake
N-D lever
Mechanical
Structure
Battery Box
Wheels / Tires
Battery Charger
Check point Inspection What to do if the inspection is failed
Please always check your power chair before you start your every journey. if you
find the sign of power chair malfunction, please contact your authorized dealer.
16

HS-2750 User Manual
8.ACCESSORIES
17
Please contact your distributor if you need the accessories below.
High Capacity 30.15Ah Batteries Seatbelt ----
To be determined
8-1 Optional Accessories
Increases power chair endurance. Increases stability during ride.

HS-2750 User Manual
9.SPECIFICATION
18
*Subject to change without notice. ( Rev. 0, 2023/05/05 )
Overall Length
Overall Width
Overall Height
Front Wheels
Rear Wheels
Weight W/ Batteries
Max. Speed
Weight Capacity
Ground Clearance
Grade Climbable
Curb Climbable
Turning Radius
Brake
Seat Type
Seat Width
Drive Train
Motor Size
Battery Size
Weight of Battery
Travel Range
Battery Charger
1055 mm / 42"
635 mm / 25"
1030 mm / 40.6"
200 mm / 7.8"
320 mm / 12.6"
29.5 kg / 65 lbs
8 kmph / 5 mph
150 kg / 330 lbs
85 mm / 3.3"
6 degree
30 mm / 1.2"
950 mm / 37.4"
Electro-Mechanical
Padded Breathable Nylon Back Rest
460 mm / 18"
2 Motor, Rear-Wheel Drive
24V / 250W / 3250 r.p.m.
(1) 25.9V / 11.6Ah
2.45 kg / 5.4 lbs
14 km / 8.7 Miles
2A Off Board
