alerta ALT-1100 User manual

User
Manual
ALT-1100 Car Transit Wheelchair UK Version

www.alertamedical.com
PAGE 02
A
1
Warning
1. Practice to use the wheelchair with companion before use.
2. Do not lean backwards in the wheelchair without sway bars.
3. Do not tilt the wheelchair to the right side or left side or lift the wheelchair while using it.
4. Do not brake the wheelchair while the wheel is rolling. If without companion, the user can
grip the hand-rim tightly to stop.
5. Do not stand on the plate, which will turn the wheelchair over.
6. Do not modify the wheelchair without our technician’s permission.
The warranty is not valid in the case of unauthorised modification.
7. Do not use the wheelchair on an escalator..
Product Usage
Transportation tool for the disabled, the sick, the old and the weak.
Max User Weight
The max user weight for this wheelchair is 115kg.
Main Components of Transit Chair
1. Handgrip
2. Back cushion
3. Armrest
4. Seat cushion
5. Rear wheel
6. Brake
7. Front wheel
8. Footrest
9. Footplate
2
3
4
5
6
7
8
9

Making cutting-edge medical equipment affordable PAGE 03
How to Use
Unfold
1. Hold the handgrips with two hands and pull them apart.
2. Wheelchair with soft cushion: press the seat tubes to the appropriate position (picture B)
to make the cushion smooth.
Note: Do not pull the handgrips too hard while unfolding in case of damaging the parts; do
not hold the seat tube with fingers while pushing down the cushion in case of pinching your
fingers.
Fold
1. Turn both footplates upwards.
2. Wheelchair with soft cushion: pull up the middle part of the cushion to fold (Picture C).
B C

www.alertamedical.com
PAGE 04
Flip up Armrest
Press the plastic lock device and pull up the armrest, then it will flip up.
Safe Usage of Crossing Obstacles
The companion must hold the handgrip tightly and press the pedal of bottom tube to lift the
front castors, then cross the obstacle.
Wheelchair Transportation
We recommend that you do not sit on your Wheelchair when in a vehicle, but transfer to a
vehicle seat. A Wheelchair secured in a vehicle will not provide the equivalent safety level and
security as the vehicle’s seating systems.
However, when transfer is not practical or impossible, ensure the following:
1. Check that the vehicle is suitably designed, insured and equipped to transport a passenger
seated in a Wheelchair.
2. Remove any part of the Wheelchair (accessories, etc.) that can be easily detached and
store it in the vehicle’s luggage hold
3. Ensure the Wheelchair is transported in a forward facing direction. Rearward facing is only
acceptable if the passenger’s head and back can be supported by a suitable bulkhead
We recommend that the wheelchair is secured within the vehicle using the 4-point webbing
tie-down system with Karabiner.
Note: Although safety during transportation largely depends upon the diligence of the
person securing the tie-downs and passenger restraints it is the user’s responsibility to
ensure that the wheelchair has been safely secured.

Making cutting-edge medical equipment affordable PAGE 05

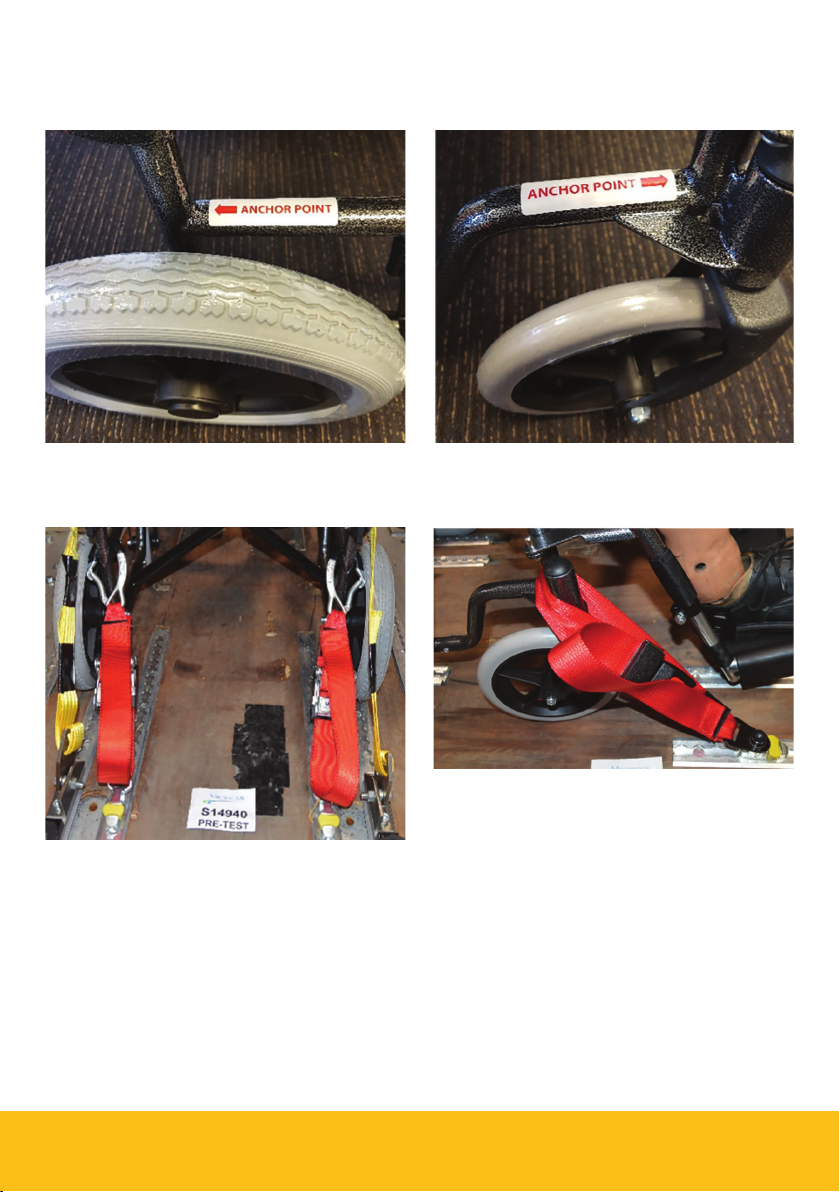

2 Rear anchor-points and 2 Front anchor-points are clearly marked on the chair frame next to
the wheels.
Secure to the vehicle floor at these point as shown

www.alertamedical.com
PAGE 06
Patient Restaint
Use the buckle seat belt with your chair as
additional restraint.
The patient vehicle restraint system should be
fed around the patients waist and underneath
the metal plate on the chairs removable side,
as shown.
Maintenance
1. Check the bolts of every parts of the wheelchair to see if they are loosen after being used
for a period. Tighten the loosen ones to avoid the hidden danger.
2. Add lubricating oil to the moving parts each week in case of inflexibility using.
3. Use soft dry cloth to clean the moisture and the contamination on the wheelchair to avoid
the rusting.
4. Keep the cushion and back pad dry and lean to avoid the skin infection.
Attention
1. The transit chair is used indoor or outdoor flat ground. It is not suitable to use it for a long
time on a sloping surface.
2. The brakes are used to stabilize the transit chair while people are sitting in the transit chair,
getting off the wheelchair or stopping the wheelchair on an uneven road. Do not brake the
wheelchair while the wheelchair is moving. The transit chair might turn over if braking the
transit chair when it is moving on a downhill path.
3. Please don’t stand or apply force on the footrest while getting on or out of the chair.
4. If the chair doesn’t have an anti-roll device installed, please don’t incline the back rest in
case the fall happens.
5. If you change the direction of the chair in downhill path, it will cause instability and possibly
even a fall.

Making cutting-edge medical equipment affordable PAGE 07
After-Sale Service
1. If there is any quality problem not caused by intentional actions in one week since the day
the product be sold, the company is responsible for return, replacement, repair;
2. Maintenance Period: One year since the day of buying.
3. Free services will be provided for any quality problem under regular services within the
maintenance period.
The following is not covered by warranty:
1. Broken front castors and tyres; broken or split upholstery and armrest.
2. Breakages by improper use.
3. Breakages by unforeseeable natural disasters.
4. Regarding quality problems beyond the warranty period, users should report such to the
company who supplied the chair.
5. Our company provide repair of parts with reasonable cost according the invoice and
guarantee card. If user can’t provide invoice, the maintenance period should be identify as
one extra month after manufacture date.
Warranty Card
Model No.
Date of Purchase:
Invoice No.
Address:
Date: Repairer:Repair Details:
Repair Record
Manufacturing No.
Dealer (Stamp)
Customer Name:
Telephone:
