Cabletron Systems CyberSWITCH CSX150 User manual

USER’SGUIDE
Release 1.2
Cabletron Systems
[phone] phone
[phone] fax
[e-mail]

USER’S GUIDE
2 SFVRA Configuration Manager
NOTICE
You may post this document on a network server for public use as long as no
modifications are made to the document.
Cabletron Systems reserves the right to make changes in specifications and other
information contained in this document without prior notice. The reader should in
all cases consult Cabletron Systems to determine whether any such changes have
been made.
The hardware, firmware, or software described in this manual is subject to change
without notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY
INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES
WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING
OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION
CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN ADVISED OF,
KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH
DAMAGES.
©Copyright 1998 by Cabletron Systems, Inc. All rights reserved.
Cabletron Systems, Inc.
P.O. Box 5005
Rochester, NH 03866-5005
Order Number: 9032431
VIRUS DISCLAIMER
Cabletron Systems has tested its software with current virus checking
technologies. However, because no anti-virus system is 100% reliable, we strongly
caution you to write protect and then verify that the Licensed Software, prior to
installing it, is virus-free with an anti-virus system in which you have confidence.
Cabletron Systems makes no representations or warranties to the effect that the
Licensed Software is virus-free.
Copyright © July 1997, by Cabletron Systems, Inc. All rights reserved.
TRADEMARKS
Cabletron Systems, CyberSWITCH, MMAC-Plus, SmartSWITCH, SPECTRUM,
and SecureFast Virtual Remote Access Manager are trademarks of Cabletron
Systems, Inc.
All other product names mentioned in this manual are trademarks or registered
trademarks of their respective companies.

SFVRA Configuration Manager 3
COPYRIGHTS
All of the code for this product is copyrighted by Cabletron Systems, Inc.
© Copyright 1991-1997 Cabletron Systems, Inc. All rights reserved. Printed in the
United States of America.
Portionsofthecodeforthisproductarecopyrightedbythefollowingcorporations:
Epilogue Technology Corporation
Copyright 1991-1993 by Epilogue Technology Corporation. All rights reserved.
Livingston Enterprises, Inc.
Copyright 1992 Livingston Enterprises, Inc.
Security Dynamics Technologies Inc.
Copyright 1995 by Security Dynamics Technologies Inc. All rights reserved.
Stac Electronics
Stac Electronics 1993, including one or more U.S. Patents No. 4701745, 5016009,
5126739 and 5146221 and other pending patents.
Telenetworks
Copyright 1991, 92, 93 by Telenetworks. All rights reserved.
CABLETRON SYSTEMS, INC. PROGRAM LICENSE AGREEMENT
IMPORTANT: Before utilizing this product, carefully read this License Agreement.
This document is an agreement between you, the end user, and Cabletron Systems,
Inc. ("Cabletron") that sets forth your rights and obligations with respect to the
Cabletron software program (the "Program") contained in this package. The
Program may be contained in firmware, chips or other media. BY UTILIZING THE
ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME BOUND BY THE
TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND THE
LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IF YOU DO
NOT AGREE TO THE TERMS OF THIS AGREEMENT, PROMPTLY RETURN
THE UNUSED PRODUCT TO THE PLACE OF PURCHASE FOR A FULL
REFUND.

USER’S GUIDE
4 SFVRA Configuration Manager
CONTENTS
Using this Guide 8
About this Guide 8
Documentation Set 9
Guide Conventions 10
System Overview 11
The SFVRA-CFG Network 12
Interoperability Overview 16
Interoperability Protocols 16
Interoperability Devices 16
System Components 17
ISDN Network Devices 17
System Requirements 18
SFVRA-CFG’s Database PC Requirements 18
SFVRA-CFG’s Application PC Requirements 18
System Installation 19
Installing the SFVRA-CFG System 19
Installing When Using MS SQL Server 19
Installing the MS SQL Server 19
Installing the ODBC Drive Pack 3.0 19
Installing the SFVRA-CFG Software 21
Installing the SFVRA-CFG Database 22
Login Accounts 25
Installing When Using MS Access 26
Installing the ODBC Drive Pack 3.0 27
Installing Adobe Acrobat Reader 27
Using the SFVRA-CFG Application 28
Overview 28
SFVRA-CFG Configuration Scenarios 28
New Network Configuration 29
Updates for an Established Network 30
Copying Updated Files 30
Starting the SFVRA-CFG Application 31
Configuration Building Blocks 31
Using the SFVRA-CFG Menus 33
System Messages 33
Configuring Tables 35
Overview 35
Configuring the Product Code Table 35
Configuring the SFVRA Database Table 38
Configuring Site Templates 40
Overview 40
Adding a Site Template 41
Configuring Template Physical Resources 43
Configuring Basic Rate (BRI) Resources 43
Configuring Primary Rate (PRI) Resources 44

SFVRA Configuration Manager 5
Configuring V.35 or RS232 Resources 46
Configuring Digital Modem Resources 47
Configuring Template Options 47
Configuring MAC Layer Bridging Information 48
Configuring IP Information 49
Configuring IPX Information 51
Configuring AppleTalk Information 53
Configuring SNMP Information 54
Configuring PPP Information 55
Configuring Call Control Information 57
Configuring Default Line Protocol Information 59
Configuring Template Security Information 60
Configuring Template Connections Information 61
Configuring Authentication Information 61
Configuring Restriction Information 62
Configuring Access Information 64
Configuring Protocol Information 65
Configuring IP Information 65
Configuring IPX Information 66
Configuring AppleTalk Information 69
Configuring Bridging Information 70
Configuring Sites 71
Overview 71
Adding a Site 71
Configuring Site Properties 71
Configuring Contact Information 73
Configuring the Site’s Systems 73
Configuring Circuits 79
Overview 79
Initial Steps 79
Configuring Circuit Properties 80
Configuring Circuit Data Links 81
Configuring Circuit Call Screening 83
Configuring Circuit Accesses 83
Configuring Connection Groups 85
Overview 85
Adding Connection Groups 85
Modifying Star Configurations 87
Modifying Connection Information 92
Adjusting Telephone Numbers 92
Entering Calling Line IDs 94
Adjusting Restriction Information 95
Adjusting Access Information 96
Adjusting Protocol Information 97

USER’S GUIDE
6 SFVRA Configuration Manager
Configuring IP Network Information 99
Overview 99
IP Network Concepts 99
Network Interfaces 99
Static Routes 101
Configuring IP Network Subnet Information 102
Configuring IP Network Subnet Properties 103
Configuring IP Network Subnet Interfaces 105
Configuring IP Network Subnet Static Routes 109
Configuring IP Network Systems Information 112
Configuring IP Network System Properties 113
Configuring IP Network System Interfaces 114
Configuring IP Network System Static Routes 116
Configuring IP Filters 118
Configuring IPX Network Information 120
Overview 120
Configuring IPX Network Segment Information 120
Configuring IPX Network Segment Properties 121
Configuring IPX Network Segment Interfaces 122
Configuring IPX Network Systems Information 125
Configuring IPX Network System Properties 126
Configuring IPX Network System Interfaces 127
Configuring AppleTalk Network Information 129
Overview 129
Configuring AppleTalk Network Segment Information 129
Configuring AppleTalk Network Segment Properties 130
Configuring AppleTalk Network Segment Zones 131
Configuring AppleTalk Network Segment Ports 133
Configuring AppleTalk Network Segment Static Routes 134
Configuring AppleTalk Network System Information 137
Configuring AppleTalk Network System Properties 138
Configuring AppleTalk Network System Ports 139
Configuring AppleTalk Network System Static Routes 140
Configuring SNMP Management Groups 143
Overview 143
Configuring SNMP Management Group Properties 144
Configuring SNMP Management Group Communities 144
Designating SNMP Management Group Trap Receivers 145
Selecting SNMP Management Group Managed Sites 146
SFVRA-CFG Reports 147
Exporting Configuration Files 148
Overview 148
System Configuration Files 148
Generating Configuration Updates 149
Downloading Configuration Updates 150
Copying Configuration Updates 150

SFVRA Configuration Manager 7
SFVRA Database Data 152
Generating SFVRA Database Data 153
Downloading SFVRA Database Data 153
Resetting SFVRA Database Data 155
Using SFVRA-CFG Options 156
Overview 156
Setting the Tool Bar Display 156
Confirming Database Actions 157
Setting Up and Using Search Filters 157
Setting the SFVRA-CFG Configuration Folder Path 159
Routine Maintenance 160
Overview 160
Configuration Back Up 160
Upgrading SFVRA-CFG Application Software 160
Upgrading SFVRA-CFG Database Software (Only if using MS SQL Server) 162
System Worksheets 164
Network Topology 165
System Details 166
Resources 166
Lines 166
Accesses 167
Device Information 168
Bridging and Routing Information 169
Bridging 169
IP Routing 169
IPX Routing 170
AppleTalk Routing 171
Getting Assistance 172
Reporting Problems 172
Contacting Cabletron Systems 172
INDEX 174

U SING THIS G UIDE
This guide provides an overview as well as instructions for installing and configuring the SFVRA
Configuration Manager (also referred to as SFVRA-CFG). This guide has been written for the
network administrator responsible for setting-up, configuring, and maintaining networks
configured using SFVRA-CFG.
ABOUT THIS GUIDE
The User’s Guide is divided into the following chapters:
System Overview provides a basic description of the SFVRA-CFG network, an interoperability
overview, a brief description of system components, and a list of system requirements.
System Installation provides a step-by-step description of installing your SFVRA-CFG.
Using the SFVRA-CFG Application provides instructions for starting up the SFVRA-CFG
application, and also instructions for using the menu option and tool bars for configuration. A
discussion of SFVRA-CFG system messages is also included.
Configuring Tables provides instructions for configuring a product code table and an SFVRA table.
Information configured in these tables is incorporated later when entering other configuration
information.
Configuring Site Templates provides instructions for defining SFVRA-CFG site templates. A site
template is a time-saving tool, allowing you to configure a template of basic site information that
can be used over and over when configuring similar sites.
Configuring Sites provides instructions for defining individual sites. For each site you will enter
various site properties (including the site template you wish to use for this site), optional contact
information, and the systems associated with this site.
Configuring Circuits provides instructions for defining the site’s circuit information. Circuits are the
physicalWAN connections to each system. Circuit information includes line properties, and where
applicable, data link and access information.
Configuring Connection Groups provides instructions for establishing connection groups among the
configured sites. Connection groups allow you to divide a network into groups of sites that need
to intercommunicate. Within each group, you can select a central site for the group, creating a star
configuration.
Configuring IP Network Information provides instructions for defining IP subnets, then entering IP
information for that subnet. This chapter also provides instructions for entering IP information for
individual systems. IP network information defines how an IP network will interconnect.
Configuring IPX Network Information provides instructions for defining IPX segments, then entering
IPX information for that segment. This chapter also provides instructions for entering IPX
information for individual systems. IPX network information defines how an IPX network will
interconnect.

SFVRA Configuration Manager 9
U SING THIS G UIDE
Documentation Set
Configuring AppleTalk Network Information provides instructions for defining AppleTalk segments,
then entering AppleTalk information for that segment. This chapter also provides instructions for
entering AppleTalk information for individual systems. AppleTalk network information defines
how an AppleTalk network will interconnect.
Configuring SNMP Management Groups provides instructions for defining groups of sites that are
collectively managed by an SNMP Manager.
SFVRA-CFG Reports provides instructions for generating reports that summarize the information
you have configured using SFVRA-CFG.
Exporting Configuration Files provides instructions for incrementally updating a specific system’s
configuration, then transferring the new configuration files to the site.
Using SFVRA-CFG Options provides instructions for using the tool bar, confirming database
actions, defining and using search filters, and setting the configuration folder path.
Routine Maintenance provides instructions for backing up the database files and for performing
SFVRA-CFG application and database software upgrades.
APPENDICES
The User’s Guide provides the following appendices:
NETWORK WORKSHEETS
These worksheets are provided to help you gather pertinent information for configuring your
system. We recommend that you print copies of these blank forms and fill in the appropriate
information before you begin configuring your system.
GETTING ASSISTANCE
This appendix provides information for getting assistance if you run into problems when
installing your system. A FAX form is included. You can print this form, fill out the information
requested, and FAX it to Cabletron Systems, using the provided FAX number.
DOCUMENTATION SET
This guide, the User’s Guide, provides detailed information to install and configure your system. It
also provides information you can use to keep your SFVRA-CFG running smoothly.
Context-sensitive help is available for fields within the user interface. To activate context-sensitive
help, Windows NT users can use the mouse to select the field in question and press <F1>. Buttons
can be selected by using the Tab key. Windows 95 users can use the right mouse button to click on
the field in question.
The Release Notes provide release highlights and important information related to this release that
you should review before you configure the SFVRA-CFG. The Release Notes are provided in a file
that can be accessed under the SFVRA-CFG’s Help menu.

USER’S GUIDE
10 SFVRA Configuration Manager
GUIDE CONVENTIONS
The following conventions are used throughout the documentation:
SYSTEM COMMANDS
All commands are italicized, and in a different font than the general text. For example, if you are
instructed to enter the path for the location of the NDIS driver, the command would appear as
follows:
c:\Program Files\SFVRACFG\driver
DOCUMENTATION TITLES
All references to Documentation and Chapter titles will use the same font as normal text, but will
be italicized. For example, all references to the chapter Configuring Functions will appear as:
Configuring Functions

S YSTEM O VERVIEW
The SFVRA-CFG allows a network consisting of Cabletron CyberSWITCH systems and/or
SmartSwitch Remote Access Modules to be configured and managed centrally. Itis madeupof two
main components: the SFVRA-CFG database (using either MS SQL Server, a Windows NT
application, or MS Access, a Windows NT/Windows 95 application), and the SFVRA-CFG
application, which runs on a Windows 95 or Windows NT device.
The SFVRA-CFG application is the interface to the database. Through the SFVRA-CFG application,
the network administrator can generate each system’s configuration files separately, with the
system’s view of the network, then download the configuration files electronically to the system. It
is also important to note that downloading these configuration files does not update the system’s
existing configuration files, it overwrites them.
Once installed,the SFVRA-CFG application requiresa connectionto theSFVRA-CFGdatabase. The
application is connected by a 32-bit ODBC (Open Database Connectivity) software driver.
The SFVRA-CFG application can be run on multiple workstations simultaneously, with one central
SFVRA-CFG database. This allows a large network to be managed by more than one network
administrator.
For backup purposes, the administrator may archive versions of the database. The database can
also be replicated onto multiple servers so that a hot-backup is always available.
For a network administrator, the SFVRA-CFG application provides the following features:
• Provides a quick mechanism to define a system at a site, based on administrator-defined
templates and standard configurations.
• Allows the definition of the major protocol networks, mapping them to specific sites and then
to systems at that site.
• Allows the definition of the network’s ISDN circuits, and also the mapping of the circuits to
sites and systems.
• Generates the configuration files for a specific system.
• Transfers the configuration files to a specific system using a proprietary, secure protocol.

USER’S GUIDE
12 SFVRA Configuration Manager
The graphic below illustrates an SFVRA-CFG model using an MS SQL database.
THE SFVRA-CFG NETWORK
The major concepts you need to understand to configure an SFVRA-CFG network are:
• connection groups
• sites and systems
• circuits (also known as lines)
• network protocol views
SQL
ODBC
ISDN
Configuration
Upgrades
VRA-CFG
Application
VRA-CFG
Database
CSX5500
CSX1200
CSX1200
MMAC PLUS
Cabletron
Systems
MMAC-Plus with
Remote Access Module
SmartSWITCH
B25B27
B26B28
WORKGROUPREMOTE ACCESS SWITCH
B29
E1 ONLYB-CHANNELS
LAN
10BASE-TRXTXSERVICE B31
B30 L1
B21B23
B22B24
B17B19
B18B20
B13B15
B14B16
E1
DT1 D
B9 B11
B10B12
B5 B7
B6 B8
B1 B3
B2 B4
POWER
B25B27
B26B28
WORKGROUPREMOTE ACCESS SWITCH
B29
E1 ONLYB-CHANNELS
LAN
10BASE-TRXTXSERVICE B31
B30 L1
B21B23
B22B24
B17B19
B18B20
B13B15
B14B16
E1
DT1 D
B9 B11
B10B12
B5 B7
B6 B8
B1 B3
B2 B4
POWER

SFVRA Configuration Manager 13
S YSTEM O VERVIEW
The SFVRA-CFG Network

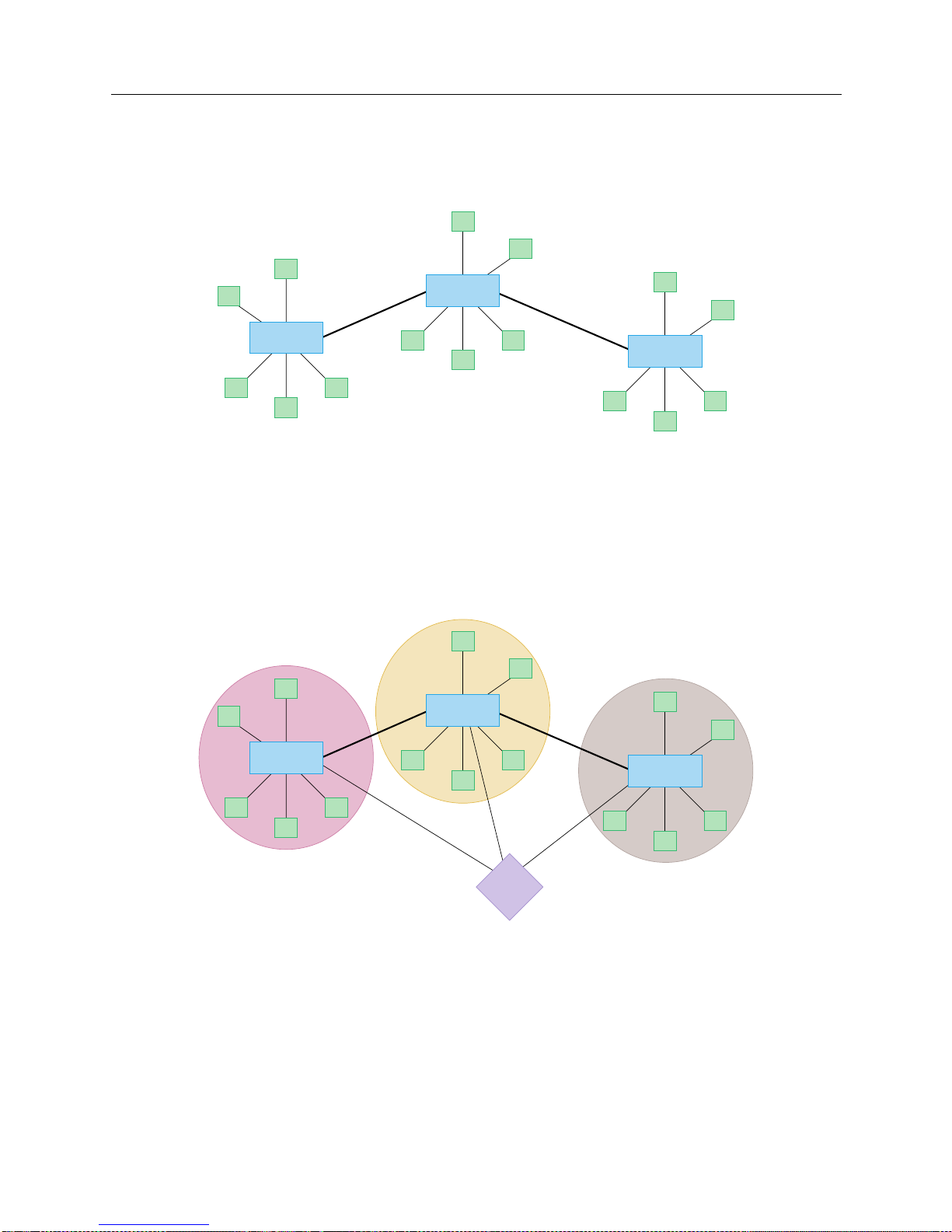

As shown below, an SFVRA-CFG network is composed of multiple sites that are attached via WAN
circuits.
Through configuration, the SFVRA-CFG network can be subdivided into connection groups. These
are groups of sites that can communicate with each other. Within each group a star network is
normally defined. This means that there is one designated central site, and the rest of the sites in
the group are considered “Remotes.”
The following graphic illustrates the connection group concept.
A site can have one or more systems. The systems are normally viewed as one system by other sites.
This means that they can share a device authentication system name and authentication password/
secret. They may optionally be connected to a multi-line hunt group. In a hunt group, all systems
can share one phone number.
A system is a communication device that implements PPP (Point-to-Point Protocol) or Combinet
Proprietary Protocol (CPP). It can be a communicating host (such as a PC with a modem) or a
remote LAN with an attached bridge or router.
Site
Site
Site
SiteSite
Nashville
Site
Site
Site
Site Site
Memphis
Site
Site
Site
SiteSite
Knoxville
Site
Site
Site
SiteSite
Site
Site
Site
Site Site
Site
Site
Site
SiteSite
Nashville
Memphis Knoxville
Admin
User
Group West
Group Central
Group East

USER’S GUIDE
14 SFVRA Configuration Manager
The following graphic illustrates possible site configurations and a mapping of the sites’ physical
and virtual connectivity.
ISDN
V
i
r
t
u
a
l
C
o
n
n
e
c
ti
o
n
REMOTE SITE
CSX1200
INTERNET
CENTRAL SITE
CSX5500CSX5500
Router
MMAC PLUS
Cabletron
Systems
MMAC-Plus with
SmartSWITCH
Remote Access Module
B25B27
B26B28
WORKGROUPREMOTE ACCESS SWITCH
B29
E1ONLYB-CHANNELS
LAN
10BASE-TRXTXSERVICE B31
B30 L1
B21B23
B22B24
B17B19
B18B20
B13B15
B14B16
E1
D
T1
D
B9 B11
B10B12
B5 B7
B6 B8
B1 B3
B2 B4
POWER

SFVRA Configuration Manager 15
S YSTEM O VERVIEW
The SFVRA-CFG Network
Twosites cancommunicate by one ormore connections thatuse circuits.A connection between two
systems uses circuits at each end, one attached to each system. The graphic below illustrates the
variety of circuits that can be used in an SFVRA-CFG network.
In addition to defining the physical topology of the network, the administrator also defines the
virtual topology for each major network protocol. There is a separate protocol view for IP, IPX, and
AppleTalk.
The SFVRA-CFG captures the definition of each subnet and segment, and how each system
interfaces to it. This helps to generate all systems’ configurations as well as any routing tables that
are needed.
INTERNET
REMOTE SITE
CENTRAL SITE
Router
REMOTE SITE
ISDN
Analog
Basic Rate
ISDN
Primary Rate
ISDN
Dedicated T1
CSX5500CSX5500
CSX1200
Router
MMAC PLUS
Cabletron
Systems
MMAC-Plus with
Remote Access Module
SmartSWITCH
B25B27
B26B28
WORKGROUPREMOTEACCESS SWITCH
B29
E1ONLYB-CHANNELS
LAN
10BASE-TRXTXSERVICE B31
B30 L1
B21B23
B22B24
B17B19
B18B20
B13B15
B14B16
E1
D
T1
D
B9 B11
B10B12
B5 B7
B6 B8
B1 B3
B2 B4
POWER

USER’S GUIDE
16 SFVRA Configuration Manager
INTEROPERABILITY OVERVIEW
Interoperability is the ability to operate and exchange information in a heterogeneous network.
SFVRA-CFG supports interoperability with many different remote devices over ISDN.
INTEROPERABILITY PROTOCOLS
In order to communicate with various remote devices over ISDN, the SFVRA-CFG must identify
the device type and the line protocol it is using.
The line protocols supported are:
• Combinet Proprietary Protocol (CPP) Ethernet Frames
• Point-to-Point Protocol (PPP) Encapsulation for IP Datagrams
The PPP protocols supported are:
• LCP (Link Control Protocol)
• MLP (Multilink Protocol)
• Authentication Protocols
CHAP (Challenge Handshake Authentication Protocol)
PAP (Password Authentication Protocol)
• NCP (Network Control Protocols)
IPCP (Internet Protocol Control Protocol for TCP/IP)
IPXCP (Internetwork Packet Exchange Control Protocol for IPX)
BCP (Bridge Control Protocol for bridges)
ATCP (AppleTalk Control Protocol for AppleTalk Routing)
• CCP (Compression Control Protocol)
INTEROPERABILITY DEVICES
The remote devices that connect to Cabletron’s CyberSWITCH or SmartSwitch Remote Access
Module can be classified into three types:
• MAC Layer Bridges (PPP or HDLC)
• IP Host Devices (PPP)
• IP Router Devices (PPP)
MAC layer bridges connect to the Cabletron systems using either HDLC or PPP.
IP Host devices are single workstations or PCs that connect to the Cabletron systems at the IP
network layer. These devices use PPP to communicate with the systems.
IP router devices are single devices that represent many other IP hosts and routers to the Cabletron
systems.They mustuse the CHAP or PAP protocol to identify themselves to the system.IP routers
usually provide IP network address information at connection time (and use PPP to send user data
to the Cabletron systems).

SFVRA Configuration Manager 17
S YSTEM O VERVIEW
System Components
SYSTEM COMPONENTS
The major components of SFVRA-CFG network are:
• SFVRA-CFG Database
The storage vessel for network information. It is built on a either MS SQL Server, version 6.5 or
later, or using Microsoft Access.
• SFVRA-CFG Application
The interface to the SFVRA-CFG database.
• Open Database Connectivity (ODBC)
An ODBC software driver that connects the SFVRA-CFG application with the SFVRA-CFG
database.
ISDN NETWORK DEVICES
The SFVRA-CFG provides a centralized configuration/maintenance function for ISDN networks.
The network devices can be separated into the following categories:
•ISDNrouters
• remote ISDN bridge devices
• PC based terminal adapters
• ISDN enabled workstations
The SFVRA-CFG generates configuration files for the following Cabletron CyberSWITCH ISDN
routers and SmartSwitch Remote Access Modules:
These configuration files describe the CyberSWITCH/module and the devices that they connect to.
Other typesof ISDN routers may also be configured in a network. However, configuration files are
not generated for these devices; the only information configured for these devices is the
information that the CyberSWITCH/module requires.
Typical remote ISDN bridges provide one Ethernet port and one Basic Rate ISDN port. The Basic
Rate port is connected to the switched digital network and is used to make connections to an ISDN
router. The Ethernet port is used to connect to a remote LAN. The remote bridge device sends
Ethernet frames from devices on the remote LAN over the switched network.
PC-based terminal adapters connect to a remote personal computer and use the switched digital
network toconnect to an ISDN router. The terminal adapter sends network protocol specificframes
from the host PC device over the switched network.
Workstation-based terminal adapters connect to a workstation and use the switched digital
network toconnect to an ISDN router. The terminal adapter sends network protocol specificframes
from the workstation over the switched network.
• 9W006 • CSX150 • CSX1200 • CSX6000
• 9W007 • CSX1000 • CSX5500 • CSX7000

USER’S GUIDE
18 SFVRA Configuration Manager
SYSTEM REQUIREMENTS
To ensure reliable service and optimal performance, your system should meet certain physical
requirements. This section identifies components of an ideal hardware system on which to run
SFVRA-CFG. Note that the SFVRA-CFG application runs optimally on the SFVRA-CFG database
PC.
SFVRA-CFG’SDATABASE PC REQUIREMENTS
The following requirements apply only if using MS SQL Server. For optimal performance, we
recommend:
• 100-200 MHz Pentium™PC
•32MBRAM
• 200 MB free disk space (includes database)
•WindowsNT4.0
• Microsoft SQL Server 6.5 or above with SQL Server 32-bit ODBC driver
• Local network connection to managed systems
• Keyboard, mouse, and monitor
SFVRA-CFG’SAPPLICATION PC REQUIREMENTS
• 100-200 MHz Pentium™PC
•32MBRAM
• 15 MB free disk space
• Network connection to Microsoft SQL Server
• Windows 95 or Windows NT
• SQL Server or MS Access 32-bit ODBC driver
• Keyboard, mouse, and color monitor

S YSTEM I NSTALLATION
The SFVRA-CFG consists of two components: the SFVRA-CFG Database that uses either MS SQL
Server or MS Access; and the SFVRA-CFG application, which is the user interface to the database.
You also need an Open Database Connectivity (ODBC) software driver to connect these two
components.
This chapter provides instructions for installing the SFVRA-CFG system, and we also include
instructions for installing the Adobe Acrobat Reader. You will need this reader to view the SFVRA-
CFG user documentation.
INSTALLING THE SFVRA-CFG SYSTEM
As noted above, the SFVRA-CFG can operate with one of two databases: The MS SQL Serveror MS
Access. Installation instructions vary depending on the intended database. Instructions for each
method follow.
INSTALLING WHEN USING MS SQL SERVER
When Using MS SQL Server as a database, you must perform the following steps to install the
SFVRA-CFG system.
1. Install the MS SQL Server
2. Install the ODBC Driver Pack 3.0
3. Install the SFVRA-CFG Software
4. Install the SFVRA-CFG Database
The following sections include instructions for performing each step.
INSTALLING THE MS SQL SERVER
Install the SQL Server according to the manufacturer’s instructions. Ensure that the MS SQL Server
Service is running from the Start Menu\Programs\Microsoft SQL Server 6.5. Select SQL Service
Manager and verify that the MS SQL Server Service is running. If it is not, select to start the service.
INSTALLING THE ODBC DRIVE PACK 3.0
The ODBC hides the type of server, the location of the server, and the network protocol used to
access the server from the application. This is an important feature; it gives the administrator the
ability to control exactly how the database is being used. DBMS vendors usually provide ODBC

USER’S GUIDE
20 SFVRA Configuration Manager
drivers that are specific to that type of database. SFVRA-CFG requires the use of a 32-bit ODBC
driver.
Complete the following ODBC set-up on the device that will run the SFVRA-CFG application and
on the device containing the MS SQL Server. As noted above, the ODBC will allow you to connect
to the SFVRA-CFG database.
1. Close any active applications.

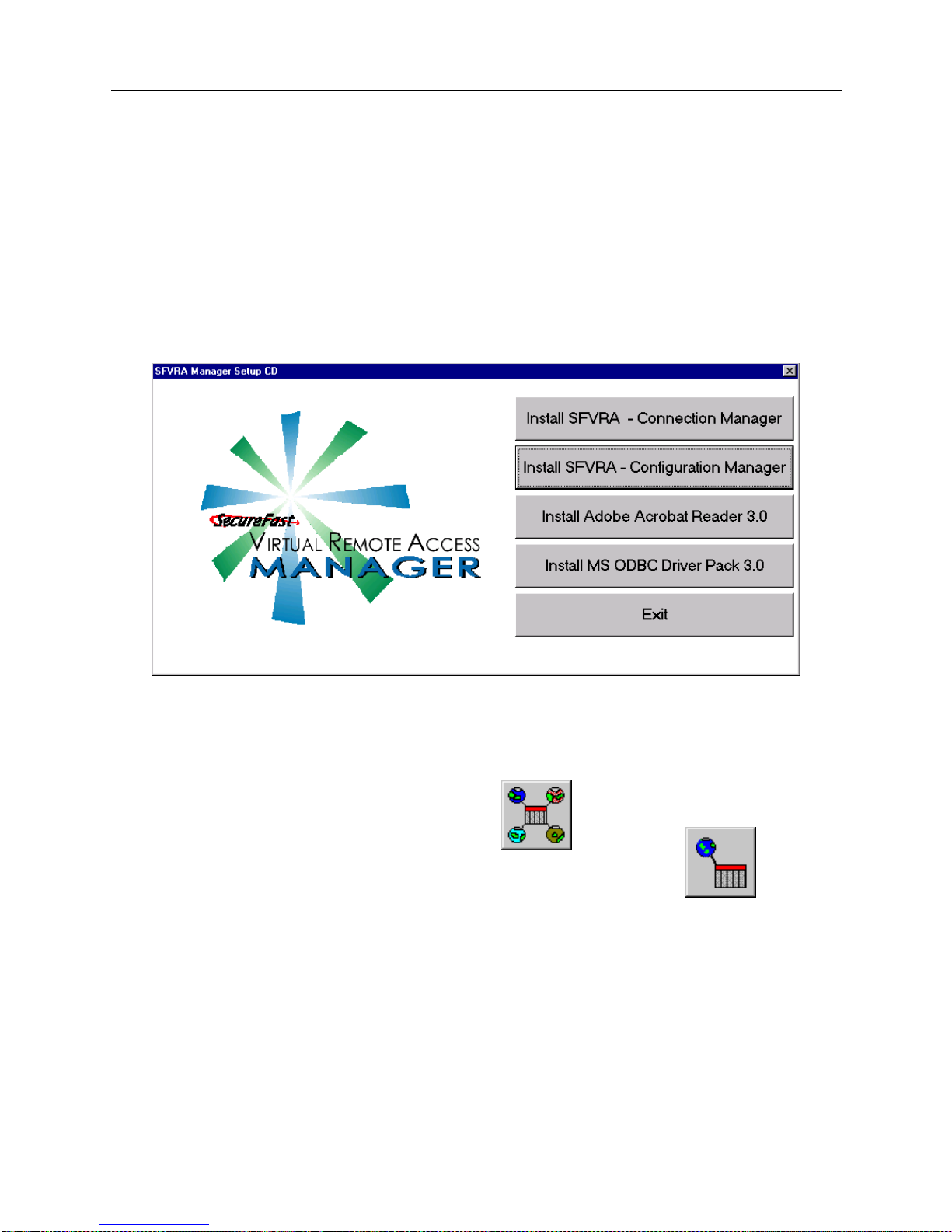

2. Insert the SFVRA Manager CD into the CD-ROM drive. If, as is usually the case, your CD-ROM
is setup for AutoPlay, the following screen will automatically load:
To manually load the above screen, select Run from the Start Menu. Enter <CD-ROM
drive>:\SCCD.EXE as the program to open, then select OK.
3. From the initial install shield screen (shown above) click Install ODBC Drive Pack 3.0.
4. When prompted, choose the Complete Install option.
5. If installation fails, repeat the above steps, however, choose the Custom option
instead of Complete Install.
a. Ensure that SQL Server and ODBC components are selected.
b. Deselect Desktop Drivers and Oracle by clicking in the respective boxes.
6. If the Data Sourceswindow is displayedduring the installation of the ODBC DriverPack select
to add a datasource; otherwise, oncethe installation of the ODBC Driver Pack completes, select
32 bit ODBC from the Control Panel and select to add a data source.
7. Select the SQL Server driver. Click OK.
8. Enter SFVRACFG for the Data Source Name.
