Cadillac STS 2007 User manual

Overview ........................................................ 3
Overview .................................................. 4
Features and Controls ................................ 15
Features and Controls ............................ 16
Navigation Audio System ............................ 91
Navigation Audio System ........................ 92
Voice Recognition ..................................... 121
Voice Recognition ................................. 122
Vehicle Customization ............................... 137
Vehicle Customization ........................... 138
Phone ......................................................... 149
Phone .................................................. 150
Index .......................................................... 159
2007 Cadillac STS/STS-V Navigation System M
1

GENERAL MOTORS, GM, the GM Emblem,
CADILLAC, the CADILLAC Crest & Wreath, and
the name STS are registered trademarks of
General Motors Corporation.
DTS and DTS Digital
Surround are registered
trademarks of Digital
Theater Systems, Inc.
The information in this manual supplements the
owner manual. This manual includes the latest
information available at the time it was printed. We
reserve the right to make changes in the product
after that time without notice. For vehicles first sold
in Canada, substitute the name General Motors
of Canada Limited for Cadillac Motor Car Division
whenever it appears in this manual.
Keep this manual with the owner manual in the
vehicle, so it will be there if it is needed. If
the vehicle is sold, leave this manual in the
vehicle.
Canadian Owners
For Canadian owners that would like to obtain a
French language manual, see “Canadian Owners”
in the Index of your vehicle’s owner manual.
Litho in U.S.A.
Part No. 15905203 A First Printing
©
2006 General Motors Corporation. All Rights Reserved.
2

Overview ......................................................... 4
Navigation System Overview ......................... 4
Getting Started .............................................. 6
Cleaning the Display ................................... 14
Section 1 Overview
3

Overview

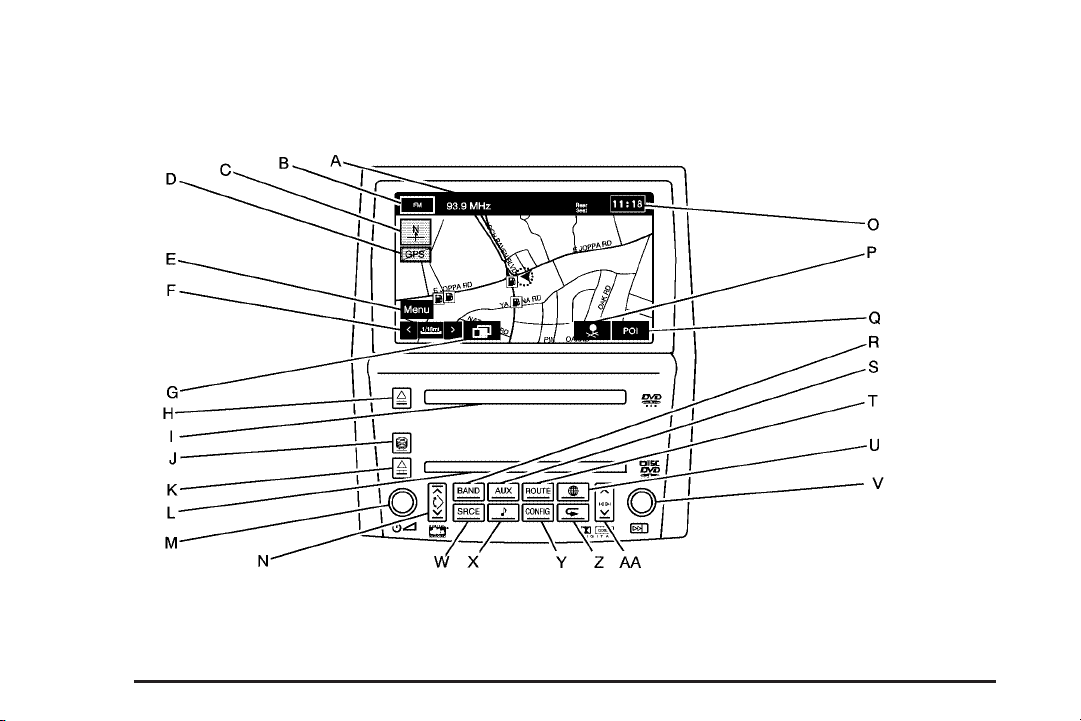

Navigation System Overview
4

A. Audio Status Line
B. Audio Source Screen Button. See Navigation
Audio System on page 92 for more information.
C. North Up/Heading Up Symbol. See Symbols
on page 21 for more information.
D. No GPS Symbol. See Symbols on page 21 for
more information.
E. Navigation Menu Symbol. See Navigation
Menu on page 33 for more information.
F. Map Scales. See “Map Scales” under Maps on
page 18 for more information.
G. Guidance Window Symbol. See Symbols on
page 21 for more information.
H. Z(Map DVD Eject) Key. See “Hard Keys”
under Using the Navigation System on page 16
for more information.
I. Map DVD Loading Slot.
J. M(CD/DVD Changer Loading) Key. See
Six-Disc CD/DVD Changer on page 103 for
more information.
K. Z(CD/DVD Changer Eject) Key. See
Six-Disc CD/DVD Changer on page 103 for
more information.
L. CD/DVD Changer Loading Slot.
M. On(Power/Volume) Knob. See “Hard Keys”
under Using the Navigation System on
page 16 for more information.
N. ¦m¥(Navigation Screen Tilt) Key (in/out).
See “Hard Keys” under Using the Navigation
System on page 16 for more information.
O. Clock. See “Clock” under Configure Menu on
page 75 for more information.
P. Memory Point Symbol. See Symbols on
page 21 for more information.
Q. POI Symbol (Point of Interest). See Symbols
on page 21 for more information.
R. BAND Key. See Navigation Audio System on
page 92 for more information.
S. AUX (Auxiliary) Key. See “Hard Keys” under
Using the Navigation System on page 16
for more information.
T. ROUTE Key. See Destination on page 55 for
more information.
U. )(Map) Key. See “Hard Keys” under Using
the Navigation System on page 16 for
more information.
V. w(Tune) Knob. See Navigation Audio
System on page 92 for more information.
5

W. SRCE (Source) Key. See Navigation Audio
System on page 92 for more information.
X. e(Audio) Key. See Navigation Audio System
on page 92 for more information.
Y. CONFIG Key. See Configure Menu on page 75
for more information.
Z. k(Navigation Voice Prompt Repeat) Key.
See “Hard Keys” under Using the Navigation
System on page 16 for more information.
AA. ¦tu¥(Seek/Scan) Key. See Navigation
Audio System on page 92 for more information.
Getting Started
Before you begin to operate the navigation system,
read this manual thoroughly to become familiar with
it and to understand how the system works.
Keeping your mind on the drive is important for safe
driving. See “Defensive Driving” in the Index of your
vehicle’s owner manual for more information. Get
familiar with your vehicle’s navigation system so
you can use it with less effort and take full
advantage of its features. Your navigation system
includes not only navigation, but also audio
functions. While your vehicle is parked:
•Familiarize yourself with all of its controls: hard
keys on the faceplate and touch-sensitive
screen buttons.
•Familiarize yourself with its operation.
•Set up your audio by presetting your favorite
stations, setting the tone, and adjusting the
speakers. Then, when driving conditions
permit, you can tune to your favorite stations
using the presets and steering wheel controls
(if equipped).
•Set up the navigation features that can only be
done before you begin driving, such as entering
an address or a preset destination.
Entering a destination or alphanumeric text
requires many steps, so you can only perform
these operations when the vehicle is in PARK (P).
You will notice that touch-sensitive screen
buttons leading to the alphanumeric keyboard are
dimmed out while driving.
6

Other functions may also be locked out while
driving and they too will appear grayed out on the
screen — but all functions are available when
parked. Some functions can be performed while
driving, as long as you can do so without diverting
too much of your attention from your driving.
{CAUTION:
This system provides you with a far greater
access to audio stations and song listings.
Giving extended attention to entertainment
tasks while driving can cause a crash and
you or others can be injured or killed.
Always keep your eyes on the road and
your mind on the drive — avoid engaging
in extended searching while driving.
{CAUTION:
Looking at the moving map on the
navigation screen frequently or for too
long while driving can cause a crash and
you or others can be injured or killed.
Keep your eyes and mind on the road and
avoid looking too long or too often at the
moving map on the navigation screen.
Use the voice guidance directions
whenever possible.
The navigation system allows you to do the
following:
•Plan a route with provided turn-by-turn route
and map guidance with voice prompts.
•Select a destination using various methods
and choices.
•Receive broadcast announcements on traffic
and emergency alert communications.
7

The information in the system may not always be
complete. Road conditions such as prohibited
turns, detours, and construction zones, change
frequently. It is important to consider whether you
can follow the directions given by the system
for the current conditions.

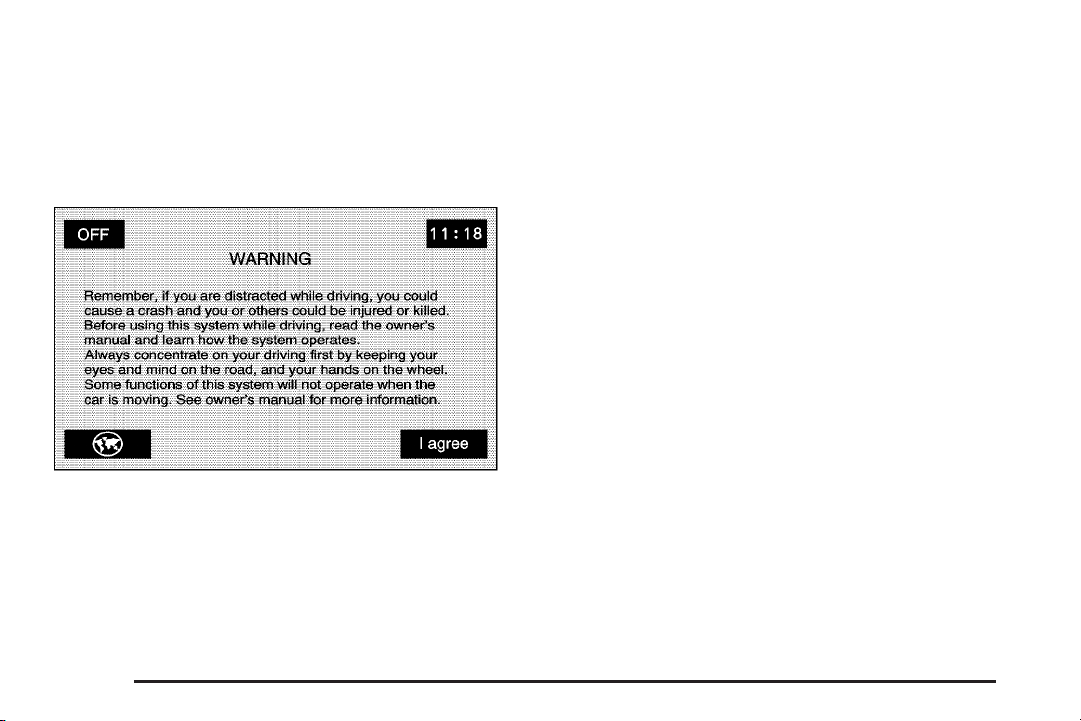

Each time you start your vehicle and turn on the
navigation system by touching the map hard key,
you will see this screen. You can touch I agree to
proceed into the system, or the globe symbol in the
lower left corner of the screen to change the
language of the system. For more information on
changing the language, see Personalization on
page 138.
When getting started you may set the navigation
system to your preference using various
options. To do so, reference the following topics:
•To adjust screen appearance, see “Screen
Appearance” under Configure Menu on
page 75.
•To adjust the clock and other time options,
see “Clock” under Configure Menu on
page 75.
•To plan a route, see Destination on page 55.
•To adjust the volume of voice guidance
prompts or voice recognition, see “Navigation
Set Up” under Configure Menu on page 75.
8

Setting Radio Station Presets
To set preset radio stations, do the following:
1. Press the power/volume knob to turn
the system on.
2. Press the BAND hard key.
3. Select the desired band (AM, FM1, FM2,
XM1, or XM2 (if equipped)).
4. Seek, scan, or tune to the desired stations
using the seek and scan hard key arrows or
the tuning knob.
5. Press and hold one of the six preset screen
buttons, at the bottom of the screen, until you
hear a beep or see the station displayed
on the selected preset button.
6. Repeat the steps for each preset.
See “Preset Stations” under Navigation Audio
System on page 92 for more information.
Setting the Time
To set the time, do the following:
1. Press the power/volume knob to turn the
system on.
2. Press the CONFIG hard key.
3. Press the H(clock) screen button.
4. Select the 12hour or 24hour screen button to
display the time in standard or military time.
5. Select the AM or PM screen buttons.
6. Select the appropriate time zone screen
button.
7. Select the Daylight Saving Time screen
button, if necessary.
8. Press and hold the hour and minute arrow
buttons to increase or to decrease the time
or press the GPS TIME screen button to reset
radio time to GPS time.
The radio will use the GPS satellite to set the
time. The vehicle needs to be in an open area to
receive the signal. See “Clock” under Configure
Menu on page 75 for more information.
9

Setting the Region, Entering an
Address and Point of Interest, and
Storing a Home Destination and Preset
Destinations
Before entering an Address, Point of Interest,
Home, or Preset Destination, select the appropriate
region that contains the final destination. Your
vehicle must be stopped to perform this operation.
Setting the Region
To set the region, do the following:
1. Press the power/volume knob to turn the
system on.
2. Insert the DVD map disc. See “Installing the
Map DVD” under Maps on page 18 for more
information.
A notice may appear. Touch the I agree
screen button to proceed.
3. Press the ROUTE hard key.
4. Press the Region screen button.
5. Select the appropriate region numbered screen
button that contains your final destination.
The system will return to the DESTINATION
ENTRY screen. See “Region” under Destination
on page 55 for more information.
Entering an Address
To set a destination by entering a street address,
do the following:
1. Press the power/volume knob to turn the
system on.
2. Insert the DVD map disc. See “Installing the
Map DVD” under Maps on page 18 for more
information.
A notice may appear. Touch the I agree
screen button to proceed.
3. Press the ROUTE hard key. Verify that the
selected Region is correct.
4. Press the CAddress screen button.
5. Enter the street name using the alpha keypad
on the screen.
Do not enter directional information or street
type, and use the space symbol screen
button (U) between street or city names.
For example, the street name N. Royal
Oak Rd. should be entered as royalUoak.
Use the backspace (V) screen button if
an incorrect character has been entered.
10

6. Select the desired street name with the
correct designation (Dr., Ln., St., etc.) from
the list.
7. If there is more than one city, the system will
display the list of cities that have a street with
that name. Select a city from the list.
8. Enter the house number using the numeric
keypad on the screen and touch the OK
screen button.
A map screen will appear with the destination
marked.
9. Select the h(destination) symbol screen
button.
10. Select the Guide screen button.
11. Once you begin driving you will hear an audio
prompt to “Proceed to the highlighted route.”
You are now in route guidance mode.
See “Address” under Destination on page 55 for
more information.
Entering a Point of Interest (POI)
To set a destination by entering a Point of Interest
(POI), do the following:
1. Press the power/volume knob to turn the
system on.
2. Insert the DVD map disc. See “Installing the
Map DVD” under Maps on page 18 for more
information.
A notice may appear. Touch the I agree
screen button to proceed.
3. Press the ROUTE hard key. Verify that the
selected Region is correct.
4. Press the i(POI) screen button.
5. Enter the specific title of the POI in the name
space (i.e. Washington Monument) using the
alpha keypad on the screen.
6. Select the POI from the list.
7. If there is more than one city, the system will
display the list of cities that have a street with
that name. Select a city from the list or
select the Input Name screen button to input
the city name.
A map screen will appear with the destination
marked.
11

8. Select the h(destination) symbol screen
button.
9. Select the Guide screen button.
10. Once you begin driving you will hear an audio
prompt to “Proceed to the highlighted route.”
You are now in route guidance mode.
Using the Category or City selections will aid the
system in finding your POI by limiting the
search options. See “Point of Interest (POI)” under
Destination on page 55 for more information.
Storing a Home Destination
1. Press the power/volume knob to turn the
system on.
2. Insert the DVD map disc. See “Installing the
Map DVD” under Maps on page 18 for more
information.
A notice may appear. Touch the I agree
screen button to proceed.
3. Press the )(map) hard key.
4. Press the Menu screen button from the map
screen.
5. Press the NMemory Points screen button.
6. Press the LHome screen button.
7. Press the Add screen button.
8. Press the Address screen button and enter all
address information.
9. Press the OK screen button.
The LHome icon will be highlighted on the
DESTINATION ENTRY screen. See “Using
Your Home or Preset Destinations” later in this
section for more information.
See “Memory Points” under Navigation Menu
on page 33 for more information.
Storing a Preset Destination
1. Press the power/volume knob to turn the
system on.
2. Insert the DVD map disc. See “Installing the
Map DVD” under Maps on page 18 for more
information.
A notice may appear. Touch the I agree
screen button to proceed.
3. Press the )(map) hard key.
4. Press the Menu screen button from the map
screen.
5. Press the NMemory Points screen button.
12

6. Press the APreset Dests. screen button.
7. Press the Add screen button and select
the numbered preset row to store the
destination as.
8. Press the Address screen button and enter all
address information.
9. Press the OK screen button.
The numbered preset destination will be
highlighted on the DESTINATION ENTRY
screen. See “Using Your Home or Preset
Destinations” later in this section for more
information.
See “Memory Points” under Navigation Menu
on page 33 for more information.
Using Your Home or Preset
Destinations
These destinations are available for selection
while driving.
1. Press the power/volume knob to turn the
system on.
2. Insert the DVD map disc. See “Installing the
Map DVD” under Maps on page 18 for more
information.
A notice may appear. Touch the I agree
screen button to proceed.
3. Press the ROUTE hard key. Verify that the
selected Region is correct.
4. Select the L(Home symbol) or one of the
available preset destination symbols. A map
screen will appear with the destination
marked.
5. Select the h(destination) symbol screen
button.
6. Select the Guide screen button.
7. Once you begin driving you will hear an audio
prompt to “Proceed to the highlighted route.”
You are now in route guidance mode.
See “Preset Destination” or “Home” under
Destination on page 55 for more information.
13

Canceling Guidance
Guidance will be canceled once you arrive at your
final destination. To cancel guidance prior to
arrival at the final destination, do the following:
1. Press the )(map) hard key.
2. Press the Menu screen button from the map
screen.
3. Press the EChange Route screen button.
4. Press the Cancel Guidance screen button.
5. Press the Yes screen button to confirm
cancellation.
Guidance Volume
To adjust the volume of voice guidance prompts,
do the following:.
1. Press the CONFIG hard key.
2. Press the 3(navigation set up) screen
button.
3. Press the >Volume screen button.
4. Select the desired volume or select Off. The
system will play back the new volume level.
See “Volume” under Configure Menu on page 75
for more information.
Cleaning the Display
If the panel or the display is stained, wipe it with a
dry, soft cloth, such as a silicon cloth.
Notice: If you use abrasive cleaners when
cleaning glass surfaces, you could scratch the
glass. When cleaning the glass, use only a
soft cloth and do not spray cleaner directly on
the system.
Do not apply spray cleaner directly to the system,
the cleaner could affect the mechanical parts.
Do not wipe the panel with a hard cloth or use a
volatile liquid such as thinner or alcohol, it
could scratch the surface or erase the characters.
14

Features and Controls .................................. 16
Using the Navigation System ....................... 16
Maps ........................................................... 18
Symbols ...................................................... 21
Head-Up Display (HUD)
(During Route Guidance) ......................... 32
Navigation Menu ......................................... 33
Destination .................................................. 55
Keyless Access System .............................. 73
OnStar
®
System .......................................... 74
Configure Menu ........................................... 75
Global Positioning System (GPS) ................ 87
Vehicle Positioning ...................................... 88
Problems with Route Guidance ................... 89
If the System Needs Service ....................... 89
Ordering Map DVDs .................................... 90
Database Coverage Explanations ................ 90
Section 2 Features and Controls
15

Features and Controls
Using the Navigation System
This section presents basic information you will
need to know to operate the navigation system.
Use the hard keys located on the navigation
system along with the available touch screen
buttons on the navigation screen to operate the
system. See Navigation System Overview on
page 4 for more information.
Once the vehicle is moving, various functions will
be disabled to reduce driver distractions.
Hard Keys
The following hard keys are located on the
navigation system:
Z(Map DVD Eject): Press the eject key located
next to the map DVD loading slot to eject the
map DVD. The map DVD slot is the slot directly
below the display screen.
M(Load): Press the CD/DVD changer loading
key to go to the loading screen and begin loading
DVDs or CDs. See Six-Disc CD/DVD Changer
on page 103 for more information.
Z(CD/DVD Eject): Press the eject key next to
the CD/DVD changer loading slot to begin
ejecting DVDs or CDs. See Six-Disc CD/DVD
Changer on page 103 for more information.
On(Power/Volume): Press the power/volume
knob to turn the audio system on and off. Turn
the knob to increase or decrease the volume to the
audio system.
ymz(Tilt): Press the up arrow on the tilt key to
tilt the navigation screen forward. Press the
down arrow on the tilt key to tilt the screen
rearward. There are three tilt positions to choose
from.
BAND: Press the BAND key to access the audio
source screen. The press the BAND key to
toggle among the bands available, FM, AM, XM
(if equipped), and WX (weather). See Navigation
Audio System on page 92.
SRCE (Source): Press the source key to switch
between the audio sources. Pressing this key
will switch between the radio and the CD/DVD
player. See Navigation Audio System on page 92.
16

AUX (Auxiliary): Press the AUX key to access
screens from which you will operate Bluetooth
®
,
OnStar
®
, or control video input. See Bluetooth
®
Phone on page 150,OnStar
®
System on page 74,
and Auxiliary Devices on page 118 for more
information.
e(Audio): Press the audio key to access the
Audio Adjust screen, to adjust bass, midrange,
fade, balance, and DSP (Digital Signal Processing)
settings. See Navigation Audio System on
page 92.
ROUTE: Press the ROUTE key to access the
Destination Entry screen or the search area and
begin planning a destination. See Destination
on page 55.
CONFIG (Configure): Press the CONFIG key to
access the SETTING Function screen. See
Configure Menu on page 75.
)(Map): Press the map key to access the map
screen.
k(Navigation Repeat): Press the navigation
repeat key to repeat the last voice guidance
prompt, while on a planned route.
y©¨z(Seek/Scan): Press the seek/scan
arrows to go to the next or previous radio station,
or press and hold to scan stations. See
Navigation Audio System on page 92.
w(Tune) Knob: Turn the tune knob to
change frequencies. See Navigation Audio System
on page 92.
Alpha-Numeric Keypad
Letters of the alphabet, symbols, punctuation, and
numbers will be displayed on the navigation
screen as an alpha or numeric keypad. The alpha
keypad will be displayed when the system
needs input of a city or street name.
All characters are touch-sensitive screen buttons.
Touch a character to select it.
Sym. (Symbol): Touch this screen button to
access the numeric keypad, punctuation marks,
and other characters. There are two pages
available. Use the right and left arrow screen
buttons to view the pages.
A - Z (Alphabet): Touch this screen button to
display to the alpha keypad.
17

Others: Touch this screen button to display
special characters. There are two pages of
characters available. Use the right and left arrow
screen buttons to view the pages.
U(Space): Touch this screen button to enter
a space between characters or the words of a
name.
V(Back space): Touch this screen button if an
incorrect character has been selected.
To make name selections easier, the system will
only allow you to select a character which can
follow the last one entered. For example, if a Z is
entered, a T will not be available to select. The
system will highlight the available characters.
If a name is not available after input, it may need
to be inputted differently, the map DVD database
may not contain that information, or the correct
search area has not been selected. See Database
Coverage Explanations on page 90 for more
information.
Touch-Sensitive Screen Buttons
Touch-sensitive screen buttons are located on the
screen. When a screen button has been
selected, a beep will sound. These buttons will be
highlighted when a feature is available. There
are also some toggle screen buttons that will be
light blue when active and dark blue when inactive.
Maps
This section includes basic information about the
map database.
Regional Maps
The maps are stored on a DVD. The 48
contiguous United States and portions of Canada
are contained on one disc.
If a regional map does not contain a specific city,
the map DVD may not contain the city or it
may be misspelled.
Refer to the Navigation System Map Disc manual
to view a detailed explanation of map coverage
and detailed city lists in each region. This manual
will be in the map DVD case when the vehicle
is delivered from the factory.
18

Installing the DVD Map Disc
When your vehicle is delivered from the factory,
the dealer may have installed the map DVD. If the
map DVD was not installed, use the following
directions to load the map DVD:
Read the following steps completely before
operating this feature.
1. Turn the ignition on.
2. Load the map DVD into the slot, located just
below the navigation system screen, by
inserting it partially until the system pulls it in.
Once the map DVD is inserted correctly, you will
have the following two choices:
I agree: Touch this screen button to proceed to
the navigation system.
^(Language): Touch this screen button to
change the language of the navigation system,
Driver Information Center (DIC), Head-Up Display
(HUD), etc. See “Language” under Personalization
on page 138 for more information.
Once a language has been selected, touch I
agree to enter the navigation system. The map will
appear showing your current vehicle position.
Ejecting the DVD Map Disc
When the DVD map disc is not loaded, you will
not be able to use the navigation portion of
the system.
Z(Map DVD Eject): Press the eject key,
located next to the map DVD loading slot, to eject
the map disc. Pull the disc out. The map DVD
slot is the slot directly below the display screen.
Setting the Search Area
See Destination on page 55 for information on
changing the search area.
Map Adjustments
You can adjust the scale of view on the map. As
you drive, the map will scroll automatically
based on the direction you are traveling.
19

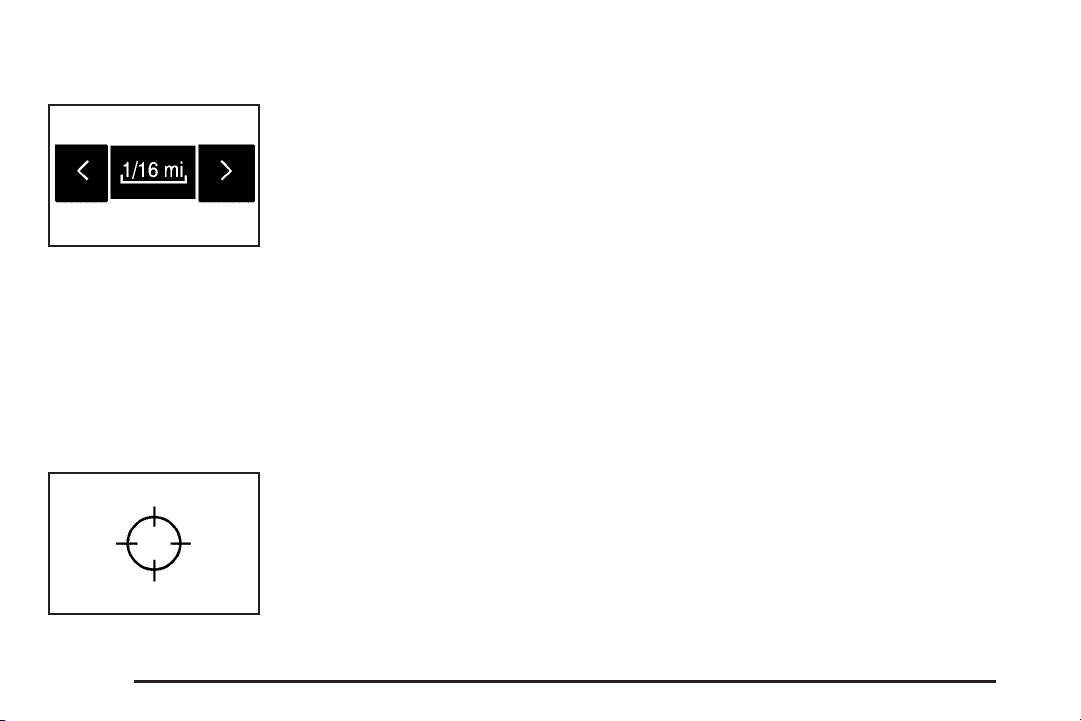

Map Scales
To view a larger or
smaller scale of the
map, touch the
map scale arrows.
Change the level of map detail by either zooming in
or zooming out using the arrow screen buttons or
by touching the scale on the bar. The system will
adjust the map accordingly. The scale of a map can
range from 1/32 of a mile (50 m) to 128 miles
(256 km).
Scrolling the Map
Touch anywhere on the
map screen twice and
the scroll symbol
will appear. Use this
feature to scroll across
the map.
Hold your finger in any direction outside of the
scroll symbol and the map will continue to scroll in
that direction until you remove your finger from
the map screen.
If scrolling while your vehicle is in PARK (P), the
system will scroll initially at a slower rate. It
will increase if you continue touching the map
screen.
If scrolling while your vehicle is in motion, you
have one scroll speed and a limited distance to
scroll. Keep touching the map screen to scroll for a
longer distance.
If the scroll feature is used to scroll the map and
your vehicle icon becomes lost, press the map
hard key to return to the current vehicle location on
the map.
When scrolling on the map, the system will display
the address of the scroll symbol location and
the distance from your vehicle’s current position to
the scroll symbol location.
Use the scroll feature on the map to set a
destination. See “Map” under Destination on
page 55 for more information.
20
