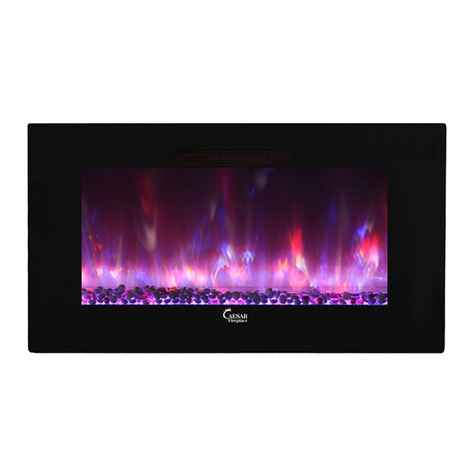

Caesar Fireplace CHFP-002 User manual

INSTALLATION AND
OPERATING INSTRUCTIONS
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: ETL
ELECTRIC FIREPLACE
CHFP-002/CHFPV-20/CHFP-30B/CHFP-40B/CHFP-50B/CHFP-60B/CHFP-74B/
CHFP-102B/SCW-001/SCW-002/SCW-003/SCI-001/SCI-002/SCI-003/CHFPN-60/CHFPN-74/CHFPN-102
CHFP-74BS/
CHFPV-20
CHFP-50B, the similar size as
CHFP-30B, CHFP-40B,
CHFP-60B, CHFP-74B,
CHFP-74BS and CHFP-102B.
SCI-002, the similar size
as SCI-001 and SCI-003.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
WARNING
SAFETY INFORMATION
!WARNING
Phone [phone] Fax [phone] www.caesarfireplace.com [email protected]· · ·
If the information in these instructions
are not followed exactly, a fire may
result causing property damage,
personal injury or loss of life.
19295 E. Walnut Dr N, City of Industry, CA 91748
C US
CHFPN-74, the similar size as CHFPN-60
and CHFPN-102.
CHFP-002
SCW-001, the similar size as
SCW-002 and SCW-003.

2
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.
TABLE OF CONTENTS
1.0 PACKING LIST
2.0
3.1 DIMENSIONS
3.2 LISTING APPROVALS
3.3 GENERAL INSTRUCTIONS
4.0 PLACING APPLIANCE
4.1 UNPACKING AND TESTING APPLIANCE
4.2 GROUNDING APPLIANCE
5.0 INSTALLATION
5.1 WALL-MOUNT INSTALLATION
5.2 RECESSED INSTALLATION
5.3 FREE STANDING INSTALLATION
6.0 FINISHING
6.1 GLASS DOOR REMOVAL
CHFPV-20 AND SCW SERIES
6.1.2 METHOD FOR CHFP- AND CHFP-74BS
6.2 MEDIA BED KITS INSTALLATION
6.2.1 6 INTERCHANGEABLE MEDIA BED KITS INCLUDED
6.3 GLASS DOOR INSTALLATION
7.0 OPERATING INSTRUCTIONS
7.1 MAIN POWER BUTTON
7.2 REMOTE CONTROL
7.2.1 BATTERY INSTALLATION
7.2.2 REMOTE OPERATION
7.3 LED CONTROL
7.4 CONTROL PANEL
8.0
8.1 PARTIALLY REFLECTIVE GLASS CLEANING
8.2 GLASS DOOR CLEANING
8.3 SERVICING
9.0 REPLACEMENT PARTS
10.0 TROUBLE SHOOTING
11.0 WARRANTY
WELCOME & CONGRATULATIONS
MAINTENANCE
3.0 INTRODUCTION
5.1.1 WALL-MOUNT INSTALLATION METHOD FOR CHFPV-20 AND SCW SERIES
5.1.2 WALL-MOUNT INSTALLATION METHOD FOR CHFP-××B AND CHFP-74BS
5.2.1 INSTALLATION METHOD FOR SCW SERIES
5.2.2 INSTALLATION METHOD FOR CHFP-××B AND CHFP-74BS
××B
6.3.1 GLASS DOOR INSTALLATION METHOD FOR CHFPV-20 AND SCW SERIES
6.3.2 GLASS DOOR INSTALLATION METHOD FOR CHFP-××B AND CHFP-74BS
7.1.1 THE BUTTON THAT IS USED FOR CHFP-002
7.1.2 THE BUTTON THAT IS USED FOR CHFPV-20 AND SCW SERIES
7.1.3 THE BUTTON THAT IS USED FOR CHFP-××B, CHFP-74BS, SCI, AND CHFPN SERIES
7.2.2.1 REMOTE OPERATION FOR CHFPV-20
7.2.2.2 REMOTE OPERATION FOR ALL MODELS EXCEPT CHFPV-20
7.4.1 CONTROL PANEL THAT IS USED FOR CHFPV-20 AND SCW SERIES
7.4.2 CONTROL PANEL THAT IS USED FOR CHFP-××B AND CHFP-74BS
7.4.3 CONTROL PANEL THAT IS USED FOR SCI AND CHFPN SERIES
7.5 INTELLIGENT CONTROL
6.1.1 METHOD FOR
3
4
4
5
5
7
8
8
8
9
10
10
11
12
12
12
13
14
14
14
15
15
15
16
16
16
17
17
17
17
17
18
18
18
18
19
20
20
21
21
21
22
23
23
23
23
24
25
26

3
1.0 PACKING LIST
No Description Quantity
1 Electric fireplace
2Installation and operating instructions 1 pc
3 Remote control (battery included)
4
5
Stands 2 pcs
7
Wall mount bracket
8
Wall anchors
9
Screws
Media bed kits
6 sets
8
17 2346
5
CHFP-002, CHFPV-20, CHFP-30B, CHFP-40B,
CHFP-50B, CHFP-60B, CHFP-74B, CHFP-74BS,
CHFP-102B, SCW-001, SCW-002, SCW-003,
SCI-001, SCI-002, SCI-003, CHFPN-60,
CHFPN-74, CHFPN-102
CHFP-30B, CHFP-40B, CHFP-50B, CHFP-60B,
CHFP-74B, CHFP-74BS, CHFP-102B
CHFPV-20, CHFP-30B, CHFP-40B, CHFP-50B,
CHFP-60B, CHFP-74B, CHFP-74BS, CHFP-102B,
SCW-001, SCW-002, SCW-003
1 pc
13 sets
12 sets
18 sets
CHFPV-20, CHFP-30B, CHFP-40B, CHFP-50B,
SCW-001
CHFP-60B, CHFPN-60, CHFP-74B, CHFPN-74,
CHFP-74BS, SCI-001, SCW-002, SCW-003
CHFP-102B, SCI-002, SCI-003, CHFPN-102
Model
1 pc
1 pc
CHFP-30B
SCW-002, SCW-003, CHFP-60B, CHFP-74B,
CHFP-74BS, CHFP-102B
7 sets
8 pcs CHFP-30B, CHFP-40B, CHFP-50B, CHFP-60B,
CHFP-74B, CHFP-74BS, CHFP-102B
(For CHFPV-20) (For all models
except CHFPV-20)
3 sets CHFPV-20
6Backlight 1 pc CHFP-30B, CHFP-40B, CHFP-50B, CHFP-60B,
CHFP-74B, CHFP-74BS, CHFP-102B
(For CHFP-30B)
( CHFP-40B)For
( CHFP-50B)For
( CHFP-60B)For
( CHFP-74B and CHFP-74BS)For
( CHFP-102B)For
9
(For CHFPV-20)
9 sets SCW-001, CHFP-40B, CHFP-50B
( SCW-001)For
( )For SCW-002 and SCW-003

3.0 INTRODUCTION
2.0 WELCOME & CONGRATULATIONS
Thank you and congratulations for choosing to purchase an electric fireplace from Caesar Fireplace,
the world leader in electric fireplaces. To view the full line of Caesar Fireplace products, please visit
or our social media website as below:
4
!
WARNING
THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF TOUCHED.
Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fire or injury.
Risk of burns. Power to the appliance should be turned off and the appliance allowed to cool before
servicing. To disconnect power to the appliance, turn controls to off, then remove plug
Do not install damaged, incomplete or substitute components.
Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns.
Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot
surfaces.
It is imperative that the control compartments, circulating blower and its passageway in the appliance
and are kept clean. The appliance should be inspected before use and at least annually by a qualifed
service person.
Under no circumstances should this appliance be modified.
Do not use this appliance if any part has been in contact with water. Immediately call a qualified service
technician
to inspect the appliance and to replace any part of the control system which has been in contact
with water.
Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualifed service person.
Do not strike or slam shut the appliance glass door.
Keep the packaging material out of reach of children and dispose of the material in a safe manner. As
w ith all plastic bags, these are not toys and should be kept away from children and infants.
Servicing should be done only while the appliance is disconnected from the power supply circuit.
Always unplug appliance when not in use.
Do not operate this appliance with a damaged cord or plug after the appliance malfunctions, has been
dropped or damaged in any manner. Return appliance to authorized service facility for examination,
electrical or mechanical adjustment, or repair.
Do not use appliance outdoors.
Never place appliance where it may fall into a bathtub or other water container.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, etc. Arrange cord away
from cluttered area and where it will not be tripped over.
Connect to properly grounded outlets only.
Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an
electric shock or fire, or damage the appliance.
To prevent a possible f i r e , do not block air intakes or exhaust in any manner. Do not use on soft surfaces,
like a carpet, where openings may become blocked.
Always plug appliances directly into a wall outlet/receptacle. Never use an extension cord or r elocatable
power tap outlet/power strip)(.
To prevent accidental swallowing, media bed kits should be kept away from children and infants.
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
from outlet.
Remote control contains small batteries. Keep away from children. If swallowed, seek medical attention
immediately.
Do not install battery backwards, charge, put in fire or mix with used or other battery types-may explode
or leak causing injury.
·
·
www.facebook.com/caesarhardware
www.twitter.com/caesarhardware
www.instagram.com/caesarhardware
www.youtube.com/caesarhardware
www.caesarfireplace.com

5
3.1 DIMENSIONS
FRONT VIEW SIDE VIEW
22-3/4 (578mm)"
6-3/4 (171mm)"
50 (1270mm)"
24 (610mm)"
36 (915mm)"
14-1/8 (360mm)"
Power Line
4 (102mm)"
TOP VIEW
44-1/2 (1132mm)"
6-1/2 (161mm)"
Take the dimensions of CHFP-50B for example.
3.2 LISTING APPROVALS
This appliance has been tested in accordance with the ETL Standards for fixed and location-dedicated electric
room appliances in the United States and Canada. If you need assistance during installation, please contact
your local dealer.
Model Number CHFP-50B
Description
Wall-mount,
recessed,
or free standing
Appliance
Voltage 120V AC
Watts Max 1500W
Amps 13 AMP
Appliance Width 50" 1270mm)(
Appliance Height 24" 610mm( )
Appliance Depth 6-3/4" 171mm( )
Net Weight 96 lbs (43kgs)
Gross Weight 100 lbs (45kgs)
Btus 5100 BTU
Take the listing approvals of CHFP-50B for example.
NOTE: This appliance must be electrically wired and
grounded in accordance with local or, in the absence of
local, with National Electric Code ANSI/NFPA 70-latest
edition in the United States or the Canaian Electric Code,
ETL in Canada.

Model
CHFPN-102
CHFPV-20
CHFP-30B
CHFP-40B
CHFP-50B
CHFP-60B
CHFP-74B/CHFP-74BS
CHFP-102B
SCI-001
SCI-002
SCI-003
CHFPN-60
CHFPN-74
Description
Wall-mount
Voltage Appliance Dimensions
(W×H×D)
120V AC
Watts
Max 1500W
Amps
13AMP
Buts
5100BUT
Wall-mount,
recessed, or
free standing
appliance
Recessed
appliance
Narrow
appliance
appliance
20"×35"×6-3/4"
(508×889×171mm)
30"×17"×6-3/4"
(762×429×171mm)
40"×20"×5-5/8"
(1016×510×143mm)
50"×24"×6-3/4"
(1270×610×171mm)
60"×24"×6-3/4"
(1524×610×171mm)
74"×24"×6-3/4"
(1880×610×171mm)
102"×24"×6-3/4"
(2590×610×171mm)
42"×34"×8-7/8"
(1067×864×225mm)
48"×35"×8-7/8"
(1219×889×225mm)
60"×24"×5-7/8"
(1524×610×150mm)
74"×24"×5-7/8"
(1880×610×150mm)
102"×24"×5-7/8"
(2590×610×150mm)
CHFP-002 Infrared mini
heater
12"×16"×10"
(305×406×254mm)
SCW-001
SCW-002
SCW-003
45-3/4"×19-7/8"×6-3/4"
(1162×505×171mm)
60"×24"×6-3/4"
(1524×610×171mm)
74"×24"×6-3/4"
(1880×610×171mm)
/
/
/
/
/
/
20-3/4"×10-7/8"
(528×276mm)
34-1/2"×18-1/2"×5-3/8"
(877×472 mm)×136
44-1/2"×22-3/4"×4"
(1132×578×102mm)
Box Dimensions
(W×H×D)
68-1/2"×22-3/4"×4"
(1740×578×102mm)
54-1/2"×22-3/4"×4"
(1385×578×102mm)
96-1/2"×22-3/4"×4"
(2451×578×102mm)
36"×33"×8-7/8"
(915×840×225mm)
40-1/2"×33"×8-5/8"
(1029×836×219mm)
44-3/8"×33-7/8"×8-5/8"
(1128×861×219mm)
56-1/2"×20-1/2"×5-1/8"
(1436×521×130mm)
70-1/2"×20-1/2"×5-1/8"
(1792×521×130mm)
98-1/2"×20-1/2"×5-1/8"
(2500×522×130mm)
26"×11"
(660×280mm)
13-1/2"×23-1/4"
(345×592mm)
36"×14-1/8"
(915×360mm)
46"×14-1/8"
(1168×360mm)
60"×14-1/8"
(1525×360mm)
88"×14-1/8"
(2234×360mm)
32-7/8"×30-5/8"
(836×778mm)
38"×25-3/8"
(967×644mm)
44"×26-3/8"
(1120×669mm)
56"×20"
(1424×510mm)
70-1/8"×20"
(1782×510mm)
98-3/8"×18-1/4"
(2498×464mm)
52/23 54/25
96/43 100/45
45/21 48/22
123/56 132/60
150/68 158/72
184/83 192/87
65/29 72/32
86/39 95/43
107/49 116/53
Dimensions With Stand
Included (W×H×D)
Visible Fire
Dimensions
(W×H)
N.W
(lbs/kgs)
69/31
G.W
(lbs/kgs)
73/33
/
/
6
30"×18-1/4"×9-3/4"
(762×464×248mm)
40"×21-1/4"×8-5/8"
(1016×540×219mm)
50"×25-1/4"×9-3/4"
(1270×641×219mm)
60"×25-1/4"×9-3/4"
(1524×641×219mm)
74"×25-1/4"×9-3/4"
(1880×641×219mm)
102"×25-1/4"×9-3/4"
(2590×641×219mm)
27-3/4"×16-3/4"×4"
(706×423×102mm)
/7-7/8"×9-1/2"
(200×240mm) 18/8 22/10
/
54-1/2"×22-3/4"×4"
(1385×578×102mm)
68-1/2"×22-3/4"×4"
(1740×578×102mm)
46" ×14-1/8"
(1168×360mm)
60" ×14-1/8"
(1525×360mm)
84/38 88/40
119/54 128/58
143/65 152/69
Wall-mount, or
recessed
appliance
/
/
/
38-1/2"×18-1/2"×4"
(980×472×102mm)
30-3/4" ×9"
(780×228mm)
34-3/8"×31-7/8"×8-5/8"
(874×810×220mm)
Model
CHFPN-102
CHFPV-20
CHFP-30B
CHFP-40B
CHFP-50B
CHFP-60B
CHFP-74B/CHFP-74BS
CHFP-102B
SCI-001
SCI-002
SCI-003
CHFPN-60
CHFPN-74
CHFP-002
SCW-001
SCW-002
SCW-003
87/40 95/43
103/47 111/50
145/66 154/70

3.3 GENERAL INSTRUCTIONS
This electric appliance meets the construction and safety standards of H U D for application in manufactured ...
homes when installed according to these instructions.
APrior to plugging your appliance into an electrical outlet, verify that the house circuit breakers for the outlet are on
B. The appliance may emit a slight, harmless odor when first used. This odor is normal and it is caused by the
initial heating of internal appliance elements and will not occur again.
C. If your appliance does not emit heat, consult the operation section of this manual for further information.
D. Use with a ETL or UL certified surge protector.
. .
!
WARNING
READ THESE INSTRUCTIONS COMPLETELY BEFORE BEGINNING INSTALLATION FAILURE TO .
FOLLOW THEM COULD CAUSE AN APPLIANCE MALFUNCTION RESULTING IN SERIOUS INJURY
AND/OR PROPERTY DAMAGE.
ALL ELECTRIC APPLIANCES HAVE HOT AND ARCING OR SPARKING PARTS INSIDE.
DO NOT OPEN RISK OF ELECTRIC SHOCK NO USER-SERVICEABLE PARTS INSIDE. . .
DO NOT USE DAMAGED ELECTRICAL CORDS.
SERVICING SHOULD BE DONE ONLY WHILE THE APPLIANCE IS DISCONNECTED FROM THE
POWER SUPPLY CIRCUIT.
TO PREVENT ELECTRIC SHOCK MATCH THE WIDE BLADE OF PLUG TO WIDE SLOT OF
RECEPTACLE AND FULLY INSERT.
7

4.0 PLACING APPLIANCE
4.2 GROUNDING APPLIANCE
GROUNDING METHODS
METAL SCREW
(A)
NOT ALLOWED IN CANADA
GROUNDING
MEANS
ADAPTER
GROUNDING PIN
COVER OF
GROUNDED
OUTLET BOX
(C)
(B)
This appliance is for use on 120 Volts. The cord has a plug
as shown in A An adapter as shown in is available ( ). (C)
for connecting three-blade grounding type plugs to two-slot
receptacles. The green grounding lug extending from the
adapter must be connected to a permanent ground such as
a properly grounded outlet box. The adapter should not be
used if a three-slot grounded receptacle is available.
To disconnect appliance, turn controls to off, then remove
plug from outlet.
Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance
operates properly by plugging the power supply cord into a conveniently located 120 Volt grounded outlet.
4.1 UNPACKING AND TESTING APPLIANCE
!
WARNING
NEVER PLACE THIS ELECTRIC APPLIANCE WHERE IT MAY FALL INTO A BATHTUB OR OTHER
WATER CONTAINER.
WEAR SAFETY GLOVES AND SAFETY GLASSES FOR PROTECTION DURING INSTALLATION AND
MAINTENANCE.
TO PREVENT CONTACT WITH SAGGING OR LOOSE INSULATION THE ELECTRIC APPLIANCE ,
MUST NOT BE INSTALLED AGAINST VAPOR BARRIER OR EXPOSED INSULATION LOCALIZED .
OVERHEATING COULD OCCUR AND A FIRE COULD RESULT.
DO NOT EXPOSE THE ELECTRIC APPLIANCE TO ELEMENTS SUCH AS RAIN ETC, , .
8

5.0 INSTALLATION
!
WARNING
RISK OF FIRE! THE POWER CORD MUST NOT BE PINCHED AGAINST A SHARP EDGE SECURE CORD TO AVOID .
TRIPPING OR SNAGGING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK OR PERSONAL INJURY. DO NOT RUN ,
CORD UNDER CARPETING. DO NOT COVER CORD WITH THROW RUGS RUNNERS, ETC ARRANGE CORD , .
AWAY FROM CLUTTERED AREAS AND WHERE IT WILL NOT BE TRIPPED OVER.
RISK OF FIRE TO PREVENT A POSSIBLE FIRE DO NOT BLOCK AIR INTAKE OR EXHAUST IN ANY MANNER DO NOT . , .
USE ON SOFT SURFACES WHERE OPENINGS MAY BECOME BLOCKED.
RISK OF FIRE DO NOT BLOW OR PLACE INSULATION AGAINST THE APPLIANCE. .
THIS ELECTRIC APPLIANCE IS TESTED AND LISTED FOR USE ONLY WITH THE APPROVED OPTIONAL ACCESSORIES .
USE OF OPTIONAL ACCESSORIES NOT SPECIFICALLY TESTED FOR THIS ELECTRIC APPLIANCE COULD VOID THE
WARRANTY AND/OR RESULT IN A SAFETY HAZARD.
IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT FOLLOWED EXACTLY A FIRE MAY RESULT ,
CAUSING PROPERTY DAMAGE PERSONAL INJURY OR DEATH DO NOT STORE OR USE GASOLINE OR OTHER , .
FLAMMABLE VAPORS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
THIS APPLIANCE IS HEAVY IT IS HIGHLY RECOMMENDED THAT TWO PEOPLE INSTALL THIS APPLIANCE..
HEATER VENTS ON THE ELECTRIC APPLIANCE CANNOT IN ANY WAY, BE COVERED AS IT MAY CREATE A FIRE , .
.
9
NOTE: Follow all National and local electrical codes.

5.1 WALL-MOUNT INSTALLATION
10
D ue to the many different materials used on different walls, it is highly recommended that you consult your
local builder before you install this appliance on the wall.
5 1.1 WALL-MOUNT INSTALLATION METHOD FOR CHFPV-20 AND SCW SERIES .
SIDE VIEW
18-1/2 (472mm)"
6-3/4 (171mm)"
Power Line
AHave two people hold the appliance against the wall to determine the final
location
B. Mark out location then mount the bracket onto the wall using the five supplied
screws.This bracket MUST have the hooks and be leveled.
C. With the wall mounting bracket installed, have two people lift the appliance
up and insert the two hooks on the bracket into the two slots on the back of the
appliance.
D. Check the appliance for stability, ensuring that the bracket will not break
free from the wall.
.
.
,
facing upward
NOTE: CHFPV-20, SCW-001, SCW-002, and SCW-003.
Below is the illustration of SCW-001, for the wall mount bracket and the quantity of wall
anchors that be used for other models, please see page3.
Wall-mount installation method for
NOTE:
screwed into the wall studs where possible. If the wall studs cannot
be used, ensure that the supplied plastic anchors are used to affix
the bracket to the wall and the bracket is adequately secured.
It is strongly recommended that the mounting bracket be
Wall anchor×5
Wall Mount Bracket
Hooks
REAR VIEW
4 (102mm)"

11
SIDE VIEW
22-3/4 (578mm)"
6-3/4 (171mm)"
Power Line
4 (102mm)"
AHave two people hold the appliance against the wall to determine the final
location
B. Mark out location then mount the bracket onto the wall using the five supplied
screws.This bracket MUST have the holes facing downward and be leveled.
C. With the wall mounting bracket installed, have two people lift the appliance
up and hang the appliance on the bracket.
D. Check the appliance for stability, ensuring that the bracket will not break
free from the wall.
.
.
,
for screws
NOTE: CHFP-30B, CHFP-40B, CHFP-50B, CHFP-60B, CHFP-74B,
CHFP-74BS, and CHFP-102B. Below is the illustration of CHFP-50B, for the wall mount bracket
and the quantity of wall anchors that be used for other models, please see page3.
Wall-mount installation method for
NOTE:
screwed into the wall studs where possible. If the wall studs cannot
be used, ensure that the supplied plastic anchors are used to affix
the bracket to the wall and the bracket is adequately secured.
It is strongly recommended that the mounting bracket be
REAR VIEW
Wall anchor×5
Wall Mount Bracket
5 1.2 CHFP- B AND CHFP-74BS . WALL-MOUNT INSTALLATION METHOD FOR ××

5.2 RECESSED INSTALLATION
FRONT VIEW
Wall anchor×4
SIDE VIEW
SIDE VIEW
Power Line
4 (102mm)"
22-3/4 (578mm)"
44-1/2"(1132mm)
22-3/4 (578mm)"
A. Leave a box in the wall, the size is W44-1/2"×H22-3/4"×D4".
B. Have two people put the box into the wall, and fix the box to the wall by adjusting side steel plate with self-tapping
screws.
C. Put the hooks on the both sides of glass door into the holes in the box. Then push down the glass door to its place.
D. Check the appliance for stability, ensuring that the appliance will not break free from the wall.
12
NOTE: CHFP-30B, CHFP-40B, CHFP-50B, CHFP-60B, CHFP-74B,
CHFP-74BS, and CHFP-102B. Below is the illustration of CHFP-50B, for the quantity of wall
anchors that be used for other models, please see page3.
Installation method for
5 2.2 INSTALLATION METHOD FOR CHFP- B AND CHFP-74BS . ××
5 2.1 INSTALLATION METHOD FOR SCW SERIES.
NOTE: SCW-001, SCW-002 and SCW-003. Below is the illustration of
SCW-001, for the quantity of wall anchors that be used for other models, please see page3.
Installation method for
FRONT VIEW SIDE VIEW
Wall anchor×4
Power Line
4 (102mm)"
A. Leave a box in the wall, the size is W38-1/2"×H18-1/2"×D4".
B. Have two people put the box into the wall, and fix the box to the wall with self-tapping screws.
C. Put the hooks on the both sides of glass door into the holes in the box. Then push down the glass door to its place.
D. Check the appliance for stability, ensuring that the appliance will not break free from the wall.
38-1/2"(982mm)
18-1/2"(472mm)
18-1/2"(472mm)

AUpend the box, then fix the stand with 4 screws at each side, as shown in the figure (A). Base installation is finished.
BPut the hooks on the both sides of glass door into the holes in the box. Then push down the glass door to its place.
.
.
FRONT VIEW
50 (1270mm)"
Screw×8
Stand×2
25-1/4"(641mm)
A
5.3 FREE STANDING INSTALLATION
NOTE: nly for CHFP-30B, CHFP-40B, CHFP-60B, CHFP-74B, CHFP-74BS, and CHFP-102B can be
installed free standing. Below is the illustration of CHFP-50B.
O
13

OPENINGS, OPERATION OF OR DOORS OR ACCESS FOR SERVICE. OBSERVE
6 1 GLASS DOOR REMOVAL.
6.0 FINISHING
6 1.1 METHOD FOR CHFPV-20 AND SCW SERIES .
Data Line
Power Line
A.
B. To disconnect the data line and power line, press the plastic connector, then pull them out.
Plastic Connector Plastic Connector
C. Remove the glass door from appliance.
Two people to hold the glass door and lift the door unti it’s out of the holes.
14
B elow is the illustration of CHFPV-20.

A.
B. Remove the glass door from appliance.
Two people to hold the glass door and lift the door until it’s out of the holes.
6.1.2 CHFP- B AND CHFP-74BSMETHOD FOR ××
6 2 MEDIA BED KITS INSTALLATION .
Carefully place media bed kits into the bottom tray on the front of the appliance
as illustrated. Apply an even layer from side to side.
15
6 2.1 6 INTERCHANGEABLE MEDIA BED KITS INCLUDED.
Morocco Dream Winter Flakes Tahiti Getaway
Falling Stars Glamour Night Treasure Hunt
NOTE: Glass front must be removed and the appliance must be finished in its final location
before the media bed kits are installed. Media bed kits may have sharp edges, wear safety
glasses and gloves when handling.

Model CHFPV-20/CHFP-30B/CHFP-40B/CHFP-50B/SCW-001
Media kits Falling
Stars
Glamour
Night
Winter
Flakes
Treasure
Hunt
Morocco
Dream
Tahiti Getaway
(1 bag of soft sand included)
Quantity 1 box 1 box 1 box 1 box
1 box 1 box
Model CHFP-60B/ CHFP-74B/CHFP-74BS/SCW-002/SCW-003/CHFPN-60/CHFPN-74/SCI-001
Media kits
Quantity
Model CHFP-102B/SCI-002/SCI-003/CHFPN-102
Media kits
Quantity
16
A. Two people to hold the glass door and put the hooks into the holes.
B. Check the glass door for stability, ensuring the hooks will not break free from the holes.
6.3 GLASS DOOR INSTALLATION
6 3.1 GLASS DOOR INSTALLATION METHOD FOR CHFPV-20 AND SCW SERIES.
A. To connect power line, align the plastic connector and red dot, then connect data line.
B. Two people to hold the glass door and put the hooks into the holes.
C. Check the glass door for stability, ensuring the hooks will not break free from the holes.
6.3.2 CHFP- B AND CHFP-74BS GLASS DOOR INSTALLATION METHOD FOR ××
Falling
Stars
Glamour
Night
Winter
Flakes
Treasure
Hunt
Morocco
Dream
Tahiti Getaway
(2 bags of soft sand included)
2 boxes 2 boxes 2 boxes 2 boxes 2 boxes 2 boxes
Falling
Stars
Glamour
Night
Winter
Flakes
Treasure
Hunt
Morocco
Dream
Tahiti Getaway
(2 bags of soft sand included)
3 boxes 3 boxes 3 boxes 3 boxes 3 boxes 3 boxes

17
7.0 OPERATING INSTRUCTIONS
Once the appliance has been plugged into a grounded electrical outlet, it is ready to operate.
The Main Power Button is located on the right top of the fireplace as illustrated.
Press this button to position to turn on the appliance, press O side turns it off. " " " "the backlight will be lighted up,
7.1 MAIN POWER BUTTON
POWER BUTTON
7 1.2 THE BUTTON THAT IS USED FOR CHFPV-20 AND SCW SERIES .
The Main Power Button is located on the right of the control panel as illustrated.
Press this button to turn on the appliance. Press again and the button will bounce back. The appliance is turned off.
FRONT VIEW
POWER BUTTON
7 1.3 THE BUTTON THAT IS USED FOR CHFP- B, CHFP-74BS, SCI, AND CHFPN
SERIES
. ××
7 1.1 THE BUTTON THAT IS USED FOR CHFP-002 .
The Main Power Button is located at the back of the heater.
Press this button to position to turn on the appliance, the backlight will be lighted up, press side turns it off. " " "O"
POWER BUTTON
POWER LINE
REAR VIEW
TOP VIEW
(For CHFPV-20) (For SCW-001)
POWER BUTTON
FRONT VIEW
POWER BUTTON
FRONT VIEW
POWER BUTTON
TOP VIEW
(For CHFP-30B) (For SCI-001) (For CHFPN-74)

7.2 REMOTE CONTROL
7.2.1 BATTERY INSTALLATION
A. Pulling the battery holder out of the slot remote.
B. Install the battery. It uses CR 2032 battery.
C. Reinstall the battery holder into the remote by sliding it into position, as shown.
Remote
(REAR VIEW)
Battery (CR 2032)
Battery Holder
Battery must be recycled or disposed of
properly. Check with your Local Authority or
Retailer for recycling advice in your area.
7.2.2 REMOTE OPERATION
7.2.2.1 REMOTE OPERATION FOR CHFPV-20
A. Plug in your electric appliance.
B. Press POWER button, the appliance is on standby mode. " "
CThe ON/OFF" button can be used to power up or down the appliance. Pressing
this button activates the power to the appliance. Long-press this button for 6 seconds,
then after a beep, heating function will be locked,
Also long-press for 6 seconds again to unlock heating function.
,
. "
the backlight of this button will be
off. Under the locked
mode "HEAT" button is not available.
EN
DTo change flame color, press the "COLOR A button. There are 3 colors to choose
from red, yellow, and blue.
.
,
,
,
"
The indicator will show digital "1" to "3" when changing colors.
When you press the button for 3 seconds until you hear a beep the indicator will show
digital "0" the flame color and brightness will be changed automatically.
18
NOTE: Make certain new batteries are installed correctly and the appliance turned on! The
remote control will NOT work if the Main Power Switch is NOT pressed down. When operating
the remote control, it must be directed towards the right of appliance.
ETo change flame bed color, press the "COLOR B button. blue, red, purple,
green, cyan, yellow, and white.
.
, ,
" There are 7 colors to choose from,
The indicator will show digital "1" to "7" when changing colors. When you press
the button for 3 seconds until you hear a beep the indicator will show digital "0"the flame bed color and
brightness will be changed automatically.

I. Press "TIMER" button, this sets the timing for switching the fireplace off automatically. The timer
ranges from 1 to 8 hours, which will be shown on the indicator from "1H" to "8H". Timer is turned off when the
indicator shows "0H". If the appliance is restarted, timer also needs to be reset again.
H. to activate the heater press the HEAT button. The initial set-up heat level will be
set for low heat 750W , "-". To adjust the heat level press again for high heat (1500W ,
"--". Press it for the third time, then the mechanism will stop function. After 10 seconds,
" ".
Under the unlock mode
the indicator will show
indicator will show the
indicator will show OF
, , " "
( ) ) the
J. turn on the appliance, all the backlight will be lighted up. Do not press any button for 20 seconds, all
the backlight will be off.
When you
K. Press the "ON/OFF" buttom to turn off the appliance.
E-1 change flame bed color, press the "FLAME BED button.
green, blue, purple, cyan, yellow, orange, saffron, golden, verdant, and lavender.
, ,
. To " There are 12 colors to choose from, red, white,
The indicator will show digital
"1" to "9" and "A" to "C" when changing colors. When you press the button for 3 second until you hear a
beep the indicator will show digital "0" the flame bed color and brightness will be changed automatically.
(For CHFP-002, CHFP-××B, CHFP-74BS, SCI, and CHFPN series)
7.2.2.2 REMOTE OPERATION FOR ALL MODELS EXCEPT CHFPV-20
D-1 To change flame color, press the "FLAME button.
red, yellow, blue, white, red & yellow, red & blue, red & white, yellow & blue, yellow & white,
blue & white, red & yellow & blue, multicolor
,
,
. " There are 12 colors to choose from,
. The indicator will show digital "1" to "9" and "A" to "C" when
changing colors. When you press the button for 3 seconds until you hear a beep the indicator will show digital
"0" the flame color and brightness will be changed automatically. (For CHFP-002, CHFP-××B, CHFP-74BS,
SCI, and CHFPN series)
A . Plug in your electric appliance.
C The ON/OFF" button can be used to power up or down the appliance. Pressing this
button activates the power to the appliance. Long press this button for 6 seconds, then
after a beep, heating function will be locked. Also long-press for 6 seconds again to unlock
heating function. ,
. "
-
Under the locked mode "HEAT" button is not available.
B Press POWER button at side, the appliance is on standby mode.. " " " "
19
F. To change brightness, press the DIMMER button. 5 adjustments to choose from " " There are . The indicator
will show "L1" to "L5" when pressing this button.
G To change flame speed, press the SPEED button. There are 5 speeds to choose from . " " . indicator
show "V1" to "V5" when pressing this button.
The will
D-2 To change flame color, press the "FLAME button. There are 5 colors to choose from red, yellow, blue,
white, and multicolor.
. ,
, ,
"
The indicator will show digital "1" to "5" when changing colors. When you press the button
for 3 seconds until you hear a beep the indicator will show digital "0" the flame color and brightness will be
changed automatically. (For SCW series)
E-2 To change flame bed color, press the "FLAME BED button. red, yellow, blue,
white, and multicolor.
.
, ,
" There are 5 colors to choose from,
The indicator will show digital "1" to "5" when changing colors. When you press the button
for 3 seconds until you hear a beep the indicator will show digital "0"the flame bed color and brightness will be
changed automatically. (For SCW series)

20
I. Press "TIMER" button, this sets the timing for switching the fireplace off automatically. The timer
ranges from 1 to 8 hours, which will be shown on the indicator from "1H" to "8H". Timer is turned off when the
indicator shows "0H". If the appliance is restarted, timer also needs to be reset again.
K. Press the "ON/OFF" button to turn off the appliance.
J. Press button to set room temperature Press + to heat up, press - to cool down. (It is inapplicable to
SCW series)
.
7.3 LED CONTROL
A. The button can be used to power up or down the backlight.
B. To change backlight, press the button. There are 7 colors to choose from, yellow, red, blue, white, green,
cyan, and purple.
C. To change brightness, press the button. There are 5 adjustments to choose from.
7.4 CONTROL PANEL
NOTE: This remote control must remain within 8 meters or 26 feet of the appliance to be
effective and this range may be reduced as the battery power is depleted.
NOTE: It is applicable to CHFP-30B, CHFP-40B, CHFP-50B, CHFP-60B, CHFP-74B, CHFP-74BS,
and CHFP-102B.
NOTE: Control panel is the same as remote control.
G change flame speed, press the SPEED button. There are 5 speeds to choose from. .To " " The indicator will
show V1 to V5 when pressing this button." " " "
H-1 to activate the heater press the HEAT button. The initial set-up heat level will be. , , " " Under the unlock mode
, "-". (,
"--". Press it for the third time, then the mechanism will stop function. After 10 seconds,
" ". (For CHFP-
set for low heat (750W)To adjust the heat level press again for high heat 1500W)the indicator will show
the
the indicator will show OF
indicator will show
××B, CHFP-74BS, SCI-001, SCI-002, SCW, and CHFPN series)
F. T " " o change brightness, press the DIMMER button. There are 5 adjustments to choose from. The indicator
will show "L1" to "L5" when pressing this button.
H-2 to activate the infrared heater press the HEAT button. The initial set-up heat level . , , " " Under the unlock mode
, "-". (,
"--". Press it for the third time, then the mechanism will stop function. After 10 seconds,
"O ". (For CHFP-002 and SCI-003)
will be set for low heat (750W)To adjust the heat level press again for high heat 1500W)the indicator will show
the
the indicator will show F
indicator will show
