Operation Manual
CM510-xx50P & CM510-XX60P
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen
Tel：[phone] Fax：[phone] P：361009
Web：en.caimore.com/ www.caimore.com.cn Email:[e-mail]
版权所有2003-2009
---- 才茂通信 通畅天下 ----

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
2
Statement
Copyright Statement：
All contents included in this user manual are protected by copyright law, any organization or person has
no right to copy, reproduce and spread by any method, unless gets the written authorization from Xiamen
Caimore communication technology co.,Ltd.
Trademark：
Caimore and other Caimore brands are possessed by Xiamen Caimore communication technology
co.,Ltd. Other brands or registered brands mentioned in this page are possessed by their owner.
Notice:
The file will be updated because of the unscheduled upgrade of products and other reasons. Unless there
are other agreement, the file is only used as the manual guide, the information and suggestion included in
this page do not constitute any express or implied warranty.

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
3
Catalog
1 Installation.......................................................................................................................................................5
1.1 Overview..............................................................................................................................................5
1.2 Unpacking............................................................................................................................................ 5
1.3 Installation and Cable Connection.......................................................................................................5
1.3.1 Installation of Antenna and SIM Card......................................................................................5
1.3.2 Install Cables.............................................................................................................................6
1.4 Power Supply..................................................................................................................................... 10
1.5 Detect The Network...........................................................................................................................10
2 Configuration Mode......................................................................................................................................10
2.1 Local Serial Port Configuration.........................................................................................................10
2.1.1 Tool Configuration..................................................................................................................10
2.1.2 Manual Configuration.............................................................................................................13
2.2 Wireless Network Configuration....................................................................................................... 13
3 Batch Configuration......................................................................................................................................13
3.1 Export Configuration......................................................................................................................... 13
3.2 Import Configuration......................................................................................................................... 14
4 Preparation Before Configuring....................................................................................................................15
5 Details of Configuration............................................................................................................................... 16
5.1 Basic Conf..........................................................................................................................................16
5.1 .1 Instruction of Basic Conf.......................................................................................................16
5.2 Center Server Conf............................................................................................................................ 17
5.2.1 Single Server Mode Configuration.........................................................................................17
5.2.2 Multiple Server Mode Configuration..................................................................................... 17
5.3 Advance Conf.....................................................................................................................................19
5.3.1 Instruction of Advance Conf...................................................................................................19
5.4 Net Conf.............................................................................................................................................21
5.4.1 Instruction of Net Conf...........................................................................................................21
5.5 Activate Conf..................................................................................................................................... 21
5.5.1 Instruction of Net Conf...........................................................................................................21
5.6 Protocol Conf..................................................................................................................................... 23
5.6.1 Instruction of Protocol Conf...................................................................................................23
5.6.2 Parameters Configuration Reference Table of All Transmission Protocol............................ 24
5.6.3 Configure registered packet....................................................................................................26
5.6.4 Configure heartbeat packet.....................................................................................................27
5.7 Local Network / Server Mode Parameters........................................................................................ 27
5.7.1 Instruction of Local Network / Server Mode Parameters...................................................... 28
Appendix I: AT Commands Set....................................................................................................................... 30
Appendix II: Description of Indicator............................................................................................................. 32
Appendix III: Equipment Power Consumption...............................................................................................32
Appendix IV: TCP Protocol Document........................................................................................................... 32

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
4
Appendix V: UDP Protocol Document............................................................................................................33

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
5
1 Installation
1.1 Overview
To meet the design function, DTU must be installed correctly. Usually, the installation should be under
the guidance of qualified engineer who is approved by Xiamen Caimore communication technology
co.,Ltd.
Notice：
Please install the DTU without power!
1.2 Unpacking
To ensure the safe transportation, DTU should be packed reasonably. Please keep the package material
when you open the box so as to use them again when before transporting in the future.
The components of DTU：
One unit CAIMORE DTU
One power adapter
One companion cd-rom
One dual-frequency antenna Vehicle mounted antenna(SMA interface)
One 20Pin RS484 line or one DB9 RS232 cross line,selected by different equipment
Optional accessories:
High power gain dual-frequency antenna (SMA interface)
Products guide rail
RS232 Direct connection line
Notice：
Please confirm that the accessories coincides with packing list when you open the product box.
1.3 Installation and Cable Connection
1.3.1 Installation of Antenna and SIM Card
The antenna adopts SMA female base, locked it on the left side of DTU casing.
Please insert the SIM card in the same side of antenna, and eject it by pushing the yellow button.
Please keep the contact surface of metal up when inserting the SIM card sheath into the SIM card slot, and
ensure it is very tight to prevent dropping of SIM card. If you want to take SIM card out, please push the
yellow button by sharp needle which is on the left side of SIM card.

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
6
1.3.2 Install Cables
Definition of RS232 DB9 interface:
(1)CMxx60P series’ interface:
Diagram of interface plane:
DTU user data interface DB9 cable connector is BoxHeader, pitch:2.0mm, 9Pin.
Applicable Model List
Applicable Model
CM3160P
CM6560P

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
7
Interface’s definition
Interface
Number
Function
Classification
Interface
Name
Default
Function
Extended
Function
Input
or
Output
Electrical
Characteristics
1
Online prompt
Online
Online prompt
pin(After DTU
connect data
center, this pin
output high
level+5v, after
disconnect data
center, this pin
input low
level-5v)
NO
output
Voltage output
range：
-5V~+5V
2
RS232
RX
RS232 interface,
receive
pin(Assume
DTU connected
to computer ,the
date flow is:
DTU<-computer)
NO
input
Standard RS232
voltage
3
TX
RS232 interface,
send pin(Assume
DTU connected
to computer ,the
date flow is:
DTU->computer)
NO
output
Standard RS232
voltage
4
NC
NC
NO
5
GND
RS232
NO
GND
6
NC
无
7
Enable pin
SW
IO port power
switch(By
controlling this
pin controls the
power on and off
throughout the
DTU, when
connected -10v ~
0v voltage or let
the pin dangling
DTU power on)
power DTU, 3.3v
NO
input
SW function, input
voltage:-10v~30v

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
8
~ 30v voltage
DTU power off
8
NC
NO
9
NC
NO
(2)CMxx50P series’ interface:
Diagram of interface plane
DTU user data interface DB9 cable connector is BoxHeader, pitch:2.0mm, 9Pin.
Applicable Model List
Applicable Model
CM3150P
CM6550P
CM8150P
CM8250P
CM8350P
CM510-21H
CM510-21T
CM510-21F
Definition of Interface:
Interface
Number
Function
Classification
Interface
Name
Default
Function
Extended
Function
Input
or
Output
Electrical
Characteristics
1
Online prompt
Online
Online prompt
pin(After DTU
connect data
center, this pin
output high
level+5v, after
disconnect data
center, this pin
input low
level-5v)
NO
output
Voltage output
range：
-5V~+5V
2
RS232
RX
RS232 interface,
receive
pin(Assume DTU
connected to
NO
input
Standard RS232
voltage

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
9
computer ,the
date flow is:
DTU<-computer)
3
TX
RS232 interface,
send pin(Assume
DTU connected
to computer ,the
date flow is:
DTU->computer)
NO
output
Standard RS232
voltage
4
Active
Sleep mode
activated IO pin
(not supported,
reserved for
future expansion
use)
NO
5
GND
RS232
NO
6
无
NO
7
Enable pin
SW
IO port power
switch(By
controlling this
pin controls the
power on and off
throughout the
DTU, when
connected -10v ~
0v voltage or let
the pin dangling
DTU power on,
power DTU, 3.3v
~ 30v voltage
DTU power off)
CTS
Hardware
Flow
Control
input
SW function, input
voltage:-10v~30v
8
USB
USB+
USB+
RTS
Hardware
Flow
Control
9
USB-
USB-
NO

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
10
1.4 Power Supply
The DTU model can be used in complex environment. Usually, the range of power changes large. To
adapt to complex application environment excellently and improve the stability of system, the power
supply adopts advanced power technology, and power provided directly by external power supply
transformer.
Notice:
When DTU changes information with base station, the instantaneous current changes quickly and peak
current is very large. So it requires higher quality of external power supply transformer.
1.5 Detect The Network
Please connect the cable and ensure that it is correct, then connect antenna, put into a valid SIM card
and power the DTU, then the PWR indicator will light. If DTU connect to network, the online indicator
will flash. And it will normally light after connect to server. It indicates that DTU works normally. When
there is data transmission in user data interface, the ACT lamp flashes.
Notice:
Please confirm that antenna and serial port line connect DTU and SIM card has been inserted before
powering up.
2 Configuration Mode
There are three configuration mode for DTU: local serial port configuration, remote network
configuration and remote SMS configuration(only 3180 series support it).
2.1 Local Serial Port Configuration
There are two configuration of local serial port configuration, tool configuration and manual
configuration. The instruction focus on tool configuration.

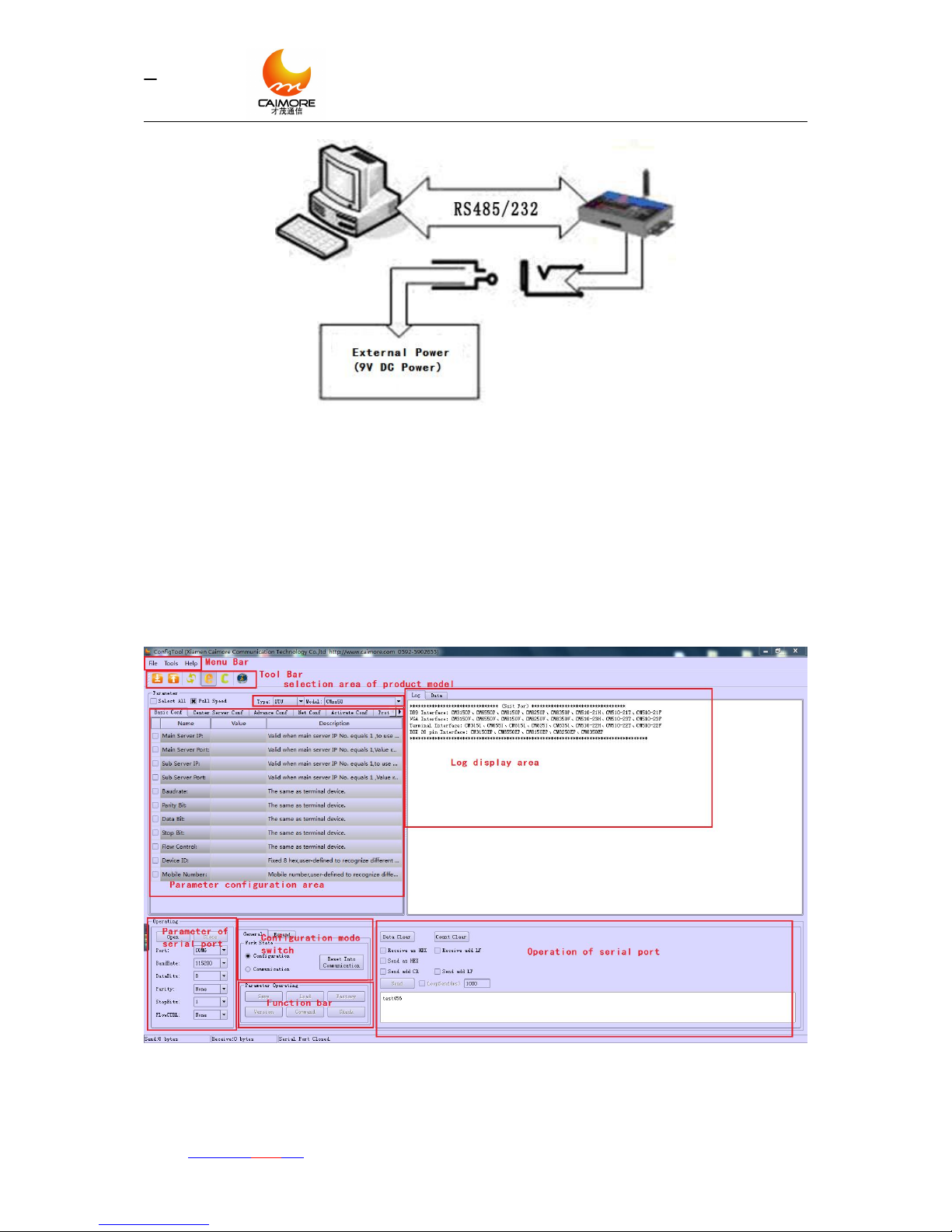

2.1.1 Tool Configuration
1、Connect DTU and computer by serial port line, and pay attention to the serial port number of
computer.
The principle of connection between DTU and computer which is used to configure DTU
parameters as follow:

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
11
Notice:
Before configure DTU parameters, please connect DTU and computer by serial port line and
power DTU according to the cue of configuration software.
2、Please find “Xiamen Caimore DTU configuration software VXXX.exe” (XXX is software
version.The file path in CD: English\ wireless data transmission terminal DTU\ tool software of products\
DTU configuration software V544 of xiamen caimore communication technology co.,Ltd\ DTU
configuration software VXXX.exe of xiamen caimore), then run the program. Program interface as
follows.
`
3、Please choose corresponding “Type” and “Model” according to the product you want to
configure. The operation area is “selection area of product model”.
Comparison Table of Selected Model and Product Model:

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
12
Selected Model
Interface
Type
Product Model
CMxx50
DB9
CM3150P,CM6550P,CM8150P,CM8250P,CM8350P,CM510-21H,
CM510-21T,CM510-21F
CMxx60
DB9
CM3160P、CM6560P
CMxx50-SERVER
DB9
CM3150P-SVR,CM6550P-SVR,CM8150P-SVR,CM8250P-SVR,CM8
350P-SVR,CM510-21H-SVR,CM510-21T-SVR,CM510-21F-SVR
Remark: you can find the corresponding models in configuration log.
Operation:
Click the Model:
Then you can see:
After choosing one of them, the corresponding model will be listed in the data logging option
box. For example, if you choose , then the available model will be
listed. As follows:
4. In the area of “Parameter of serial port”, please set “Port” to which is used to connect
DTU and computer; set “Baud Rate” to 115200 and “Parity” to NONE; “StopBits” to 1;
“FlowCTRL” to NONE. Then open the port.
5. After step four, it will appear a cue of “Please power on the device” in “Log display area”.
As follows:
Please power the DTU or re-power it.
6. Please choose “Configuration” in “work state” of “General” which inside the area of
“ Configuration mode switch”. Then it will enter configuration state.

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
13

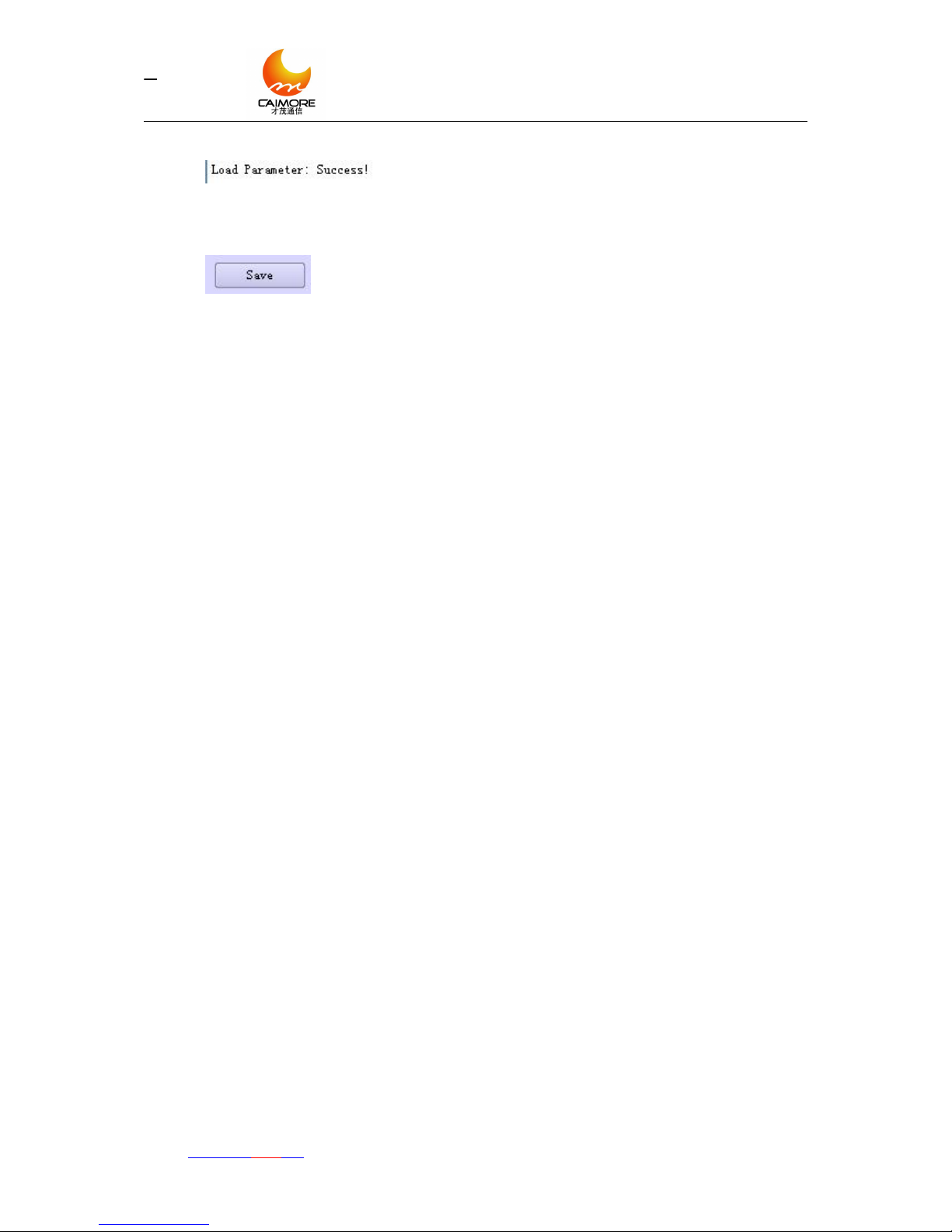

7. You can configure parameters after it appear a cue that “Load Parameter: Success!”.
8. The configuration process can refer to 4. Configure DTU Rapidly and 5. Details of DTU
Configuration.
9. Please click “Save” to save configuration after configuring.
2.1.2 Manual Configuration
1. Run software such as “Serial Port Tool”, “Super Terminal” and so on.
2. Please set “Port” to which is used to connect DTU and computer, then configure the
parameter of serial port: BaudRate as 115200, DataBits as 8, Parity as NONE, StopBits as 1,
FlowCTRL as NONE.
3. At the same time of powering DTU, please hold ‘S’ key until there is a cue of entering
configuration state.
4. Please configure DTU by AT commands. (The detail AT commands can refer to Appendix II, AT
Commands Set).
5. Please reboot DTU after configuring.
Notice:
We suggest you use tool configuration rather then manual configuration for that tool
configuration is simpler and more convenient.
2.2 Wireless Network Configuration
After DTU connects with server, the server can configure DTU’s remotely by wireless network.
Process as follows:
1. Server sends a data package of ***COMMIT CONFIG*** to specific DTU.
2. It shows DTU enters network configuration state if server receives a data package of Remote
Config Ready returned from DTU.
3. Please configure DTU’s parameter by AT commands. (The detail AT commands can refer to
Appendix II, AT Commands Set).
4. After configuring, please reboot DTU by sending command of AT+RESET.
3 Batch Configuration
3.1 Export Configuration
1. Please run configuration tool
2. Enter configuration state, and load parameter. For detail steps refer to 2.1.1 Tool Configuration.

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
14
3. After loading configuration information, click File and Export.
4. Then there is a Export window.
5. You can set the file path and file name in this interface. Then click the save button.
3.2 Import Configuration
1. Please run configuration tool.
2. Select corresponding model:
Select DTU in Type
Select corresponding model in Model
3. After entering configuration, click File and Import.

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
15
4. Then there is a Import window.
5. In this interface, you can select the corresponding configuration file you want. Then click the
Open button.
4 Preparation Before Configuring
1. Please run Xiamen Caimore DTU Configuration Software VXXX.exe.
2. Choose corresponding model:
Choose DTU in Type
Choose corresponding model in Model
Comparison Table of Selected Model and Product Model:
Selected Model
Interface
Type
Product Model
CMxx50
DB9
CM3150P,CM6550P,CM8150P,CM8250P,CM8350P,CM510-21H,
CM510-21T,CM510-21F

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
16
CMxx60
DB9
CM3160P、CM6560P
CMxx50-SERVER
DB9
CM3150P-SVR,CM6550P-SVR,CM8150P-SVR,CM8250P-SVR,CM8
350P-SVR,CM510-21H-SVR,CM510-21T-SVR,CM510-21F-SVR
3. Enter Configuration State:
1）Choose corresponding serial port, set baud rate to 115200bps, data bits to 8, parity to
NONE,stop bits to 1, and flowctrl to NONE.
2）Choose Configuration in General.
3）Click Open to open serial port.
4）Power DTU according to the cue.
5）You can configure parameters after there is a cue of Load Parameter:Success!
5 Details of Configuration
5.1 Basic Conf
At this page, there are some basic configuration parameters. If there is no special requirements or just
for a test, you can configure DTU quickly by it.
5.1 .1 Instruction of Basic Conf
Basic Conf’s Interface:

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
17
Description of Basic Conf:
Name
Description
Notice
Main Server IP
Set it to main server’s IP address or domain name.
If there is no static IP for server, please
use domain name.
Main Server Port
Set it to main server’s port which is used to communicate with
DTU.
Sub Server IP
Set it to sub server’s IP address or domain name.
If there is no static IP for sub server,
please use domain name.
Sub Server Port
Set it to sub server’s port which is used to communicate with
DTU.
If there is no sub server, please set IP
and port as same as main server’s.
Baudrate
Baud rate.
Please set these parameters as same as
PLC’s.
Parity Bit
Parity bit.
Data Bit
Data bit.
Flow Control
Flow control.
Device ID
A eight hex number for server to identify different DTU.
Device ID is used in TCP mode.
Please make it sure that the number is
different from DTU to DTU.
Mobile Number
A eleven decimal number for server to identify different DTU.
Mobile number is used in UDP mode.
It is not necessarily to set mobile
number as same as SIM card number.
5.2 Center Server Conf
There are two modes to configure center server parameters, single server mode and multiple servers
mode.
5.2.1 Single Server Mode Configuration
Single server mode is configured with Main Server IP and Port, Basic Conf page,. The details can refer
to Instruction of Basic Conf.
5.2.2 Multiple Server Mode Configuration
Center Server Conf’s Interface:

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
18
Description of Center Server Conf:
Name
Description
Notice
NO. of server Link
The number of server
The max number of server link is
different from model to model:
xx50 -- 8, xx60 -- 4
Main Server IP
Set it to main server’s IP address or domain name.
If there is no static IP for server, please
use domain name.
Main Server Port
Set it to main server’s port which is used to communicate with
DTU.
Sub Server IP 1-7
Set it to sub server’s IP address or domain name.
If there is no static IP for sub server,
please use domain name.
Sub Server Port
1-7
Set it to sub server’s port which is used to communicate with
DTU.
Primary DNS
Server Address
Primary DNS server address
1. If server IP is set as domain name,
please set domain name server address
simultaneously.
2. If DNS server does not be appointed,
it will use DNS server provided by
operator.
3. Please make it sure that the DNS
server address you set is available.
Alternate DNS
Server Address
Alternate DNS server address

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
19
4. If DNS server does not be appointed,
please set address to 0.0.0.0 for
3160/6560 series, other series are set to
empty.
5.3 Advance Conf
Parameters in this page are used to configure DTU’s working state, such as time to reconnect center
and data of heartbeat package and so on. They are different among different models.
5.3.1 Instruction of Advance Conf
Advance Conf’s Interface
a. CMxx50 series / CMxx50-Server series:
b. CMxx60 series:

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: [phone]
Web:http://en.caimore.com Fax:[phone]
20
Description of Advance Conf
Name
Model
Description
Notice
COM Mode
xx50, xx60
Protocol used in communication. Include TCP, UDP,
and TRNS.
Debug Level
Different level debug information shown at Data display
area .
0=No info,
1=partial info,
2= the entire info.
Byte Package
(Task) Interval
Time to receive data from serial port.
The unit is ms, range is
1~65535.
It is usually set as
200ms.
Re-connected
Interval
It is interval time of trying to connect server again when
DTU disconnect with center server.
The unit is second,
range is 0~65535.
It better to keep default
value.
The parameter will be
invalid if it has been set
as 0.
Multi-center
Reconnection
Interval(Muti-center
Off Reconnection
Time)
It is interval time of trying to connect other servers
when there is at least one server has connected with
DTU.
The unit is second,
range is 0~65535.
Reconnection
Attempts
When the number of times that DTU fails to reconnect
server over the value of this parameter, DTU will
reboot.
Range is 0~65535.
It better to set the
parameter with a small
figure.
DTU DIS Interface
Interval
When there is no data from PLC in a time with specified
length, DTU will send a heartbeat packet to server by
itself. The time with special length is DTU DIS Interface
Interval.
The unit is second,
range is 30~65535.
TCP Data Unit Size
The maximum number of transmission bytes.
The unit is byte, range is
1~1440.
Automatic Restart
Time
xx60
Time to reboot DTU.
The unit is minute,range
is 0~10000.
DTU won’t reboot
automatically if the
parameter is set to 0.
