CAKEWALK UM-2G User manual

UM-2G_e.book 1 ページ ２００８年１１月１２日 水曜日 午後１０時６分

2
201a, 202
Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and
“IMPORTANT NOTES” (p. 3; p. 5). These sections provide important information concerning the proper
operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every
feature provided by your new unit, Owner’s manual should be read in its entirety. The manual should
be saved and kept on hand as a convenient reference.
Copyright © 2008 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written
permission of ROLAND CORPORATION.
UM-2G_e.book 2 ページ ２００８年１１月１２日 水曜日 午後１０時６分

3
USING THE UNIT SAFELY
002a
• Do not open or perform any internal
modifications on the unit.
...................................................................................................................
003
• Do not attempt to repair the unit, or
replace parts within it (except when this
manual provides specific instructions
directing you to do so). Refer all servicing to
your retailer, the nearest Roland Service
Center, or an authorized Roland distributor,
as listed on the “Information” page.
...................................................................................................................
004
• Never install the unit in any of the following
locations.
•Subjecttotemperature extremes (e.g.,
direct sunlight in an enclosed vehicle,
near a heating duct, on top of heat-
generating equipment); or are
• Damp (e.g., baths, washrooms, on wet
floors); or are
• Exposed to steam or smoke; or are
• Subject to salt exposure; or are
•Humid;orare
• Exposed to rain; or are
• Dusty or sandy; or are
• Subject to high levels of vibration and
shakiness.
...................................................................................................................
007
• Make sure you always have the unit placed
so it is level and sure to remain stable.
Never place it on stands that could wobble,
or on inclined surfaces.
...................................................................................................................
011
• Do not allow any objects (e.g., flammable
material, coins, pins); or liquids of any kind
(water, soft drinks, etc.) to penetrate the
unit.
...................................................................................................................
012d
• Immediately turn the power off, and
request servicing by your retailer, the
nearest Roland Service Center, or an
authorized Roland distributor, as listed on
the “Information” page when:
• If smoke or unusual odor occurs
•Objectshavefalleninto, or liquid has
been spilled onto the unit; or
• The unit has been exposed to rain (or
otherwise has become wet); or
• The unit does not appear to operate
normally or exhibits a marked change in
performance.
...................................................................................................................
Used for instructions intended to alert the
user to the risk of injury or material
damage should the unit be used
improperly.
* Material damage refers to damage or
other adverse eects caused with
respect to the home and all its
furnishings, as well to domestic animals
or pets.
Used for instructions intended to alert the
user to the risk of death or severe injury
should the unit be used improperly.
The symbol alerts the user to things that must be
carried out. The specic thing that must be done is
indicated by the design contained within the circle. In the
case of the symbol at left, it means that the power-cord
plug must be unplugged from the outlet.
The symbol alerts the user to important instructions or
warnings.The specic meaning of the symbol is
determined by the design contained within the triangle. In
the case of the symbol at left, it is used for general
cautions, warnings, or alerts to danger.
The symbol alerts the user to items that must never be
carried out (are forbidden). The specic thing that must not
be done is indicated by the design contained within the
circle. In the case of the symbol at left, it means that the
unit must never be disassembled.
UM-2G_e.book 3 ページ ２００８年１１月１２日 水曜日 午後１０時６分

4
013
• In households with small children, an adult
should provide supervision until the child
is capable of following all the rules
essential for the safe operation of the unit.
...................................................................................................................
014
• Protect the unit from strong impact.
(Do not drop it!)
...................................................................................................................
023
• DO NOT play a CD-ROM disc on a
conventional audio CD player. The resulting
sound may be of a level that could cause
permanent hearing loss. Damage to
speakers or other system components may
result.
...................................................................................................................
104
• Try to prevent cords and cables from
becoming entangled. Also, all cords and
cables should be placed so they are out of
the reach of children.
...................................................................................................................
106
•Neverclimbontopof, nor place heavy
objects on the unit.
...................................................................................................................
108c
• Disconnect all cords coming from external
devices before moving the unit.
...................................................................................................................
UM-2G_e.book 4 ページ ２００８年１１月１２日 水曜日 午後１０時６分

5
IMPORTANT NOTES
Power Supply
307
• Before connecting this unit to other devices, turn off
the power to all units. This will help prevent
malfunctions and/or damage to speakers or other
devices.
Placement
352a
• This device may interfere with radio and television
reception. Do not use this device in the vicinity of such
receivers.
352b
• Noise may be produced if wireless communications
devices, such as cell phones, are operated in the
vicinity of this unit. Such noise could occur when
receiving or initiating a call, or while conversing.
Should you experience such problems, you should
relocate such wireless devices so they are at a greater
distance from this unit, or switch them off.
354a
• Do not expose the unit to direct sunlight, place it near
devices that radiate heat, leave it inside an enclosed
vehicle, or otherwise subject it to temperature
extremes. Excessive heat can deform or discolor the
unit.
355b
• When moved from one location to another where the
temperature and/or humidity is very different, water
droplets (condensation) may form inside the unit.
Damage or malfunction may result if you attempt to
use the unit in this condition. Therefore, before using
the unit, you must allow it to stand for several hours,
until the condensation has completely evaporated.
Maintenance
401a
• For everyday cleaning wipe the unit with a soft, dry
cloth or one that has been slightly dampened with
water. To remove stubborn dirt, use a cloth
impregnated with a mild, non-abrasive detergent.
Afterwards, be sure to wipe the unit thoroughly with a
soft, dry cloth.
402
• Never use benzine, thinners, alcohol or solvents of any
kind, to avoid the possibility of discoloration and/or
deformation.
Handling CD-ROMs
801
• Avoid touching or scratching the shiny underside
(encoded surface) of the disc. Damaged or dirty CD-
ROM discs may not be read properly. Keep your discs
clean using a commercially available CD cleaner.
Additional Precautions
553
• Use a reasonable amount of care when using the unit’s
buttons, sliders, or other controls; and when using its
jacks and connectors. Rough handling can lead to
malfunctions.
556
• When connecting / disconnecting all cables, grasp the
connector itself–never pull on the cable. This way you
will avoid causing shorts, or damage to the cable’s
internal elements.
558b
• To avoid disturbing your neighbors, try to keep the
unit’s volume at reasonable levels (especially when it is
late at night).
559a
• When you need to transport the unit, package it in the
box (including padding) that it came in, if possible.
Otherwise, you will need to use equivalent packaging
materials.
204
* Microsoft, Windows and Windows Vista are
registered trademarks of Microsoft Corporation.
206e
* The screen shots in this document are used in
compliance with the guidelines of the Microsoft
Corporation.
206j
* Windows® is known officially as: “Microsoft®
Windows® operating system.”
207+209
* Apple, Macintosh and Mac OS are registered
trademarks of Apple Inc.
220
* All product names mentioned in this document
are trademarks or registered trademarks of their
respective owners.
UM-2G_e.book 5 ページ ２００８年１１月１２日 水曜日 午後１０時６分

6
Contents
USING THE UNIT SAFELY.............................................................................................................................. 3
IMPORTANT NOTES ....................................................................................................................................... 5
Contents of the Package ................................................................ 7
Names of Things and What They Do ............................................. 8
Front Panel ....................................................................................................................................................... 8
Side Panel.......................................................................................................................................................... 9

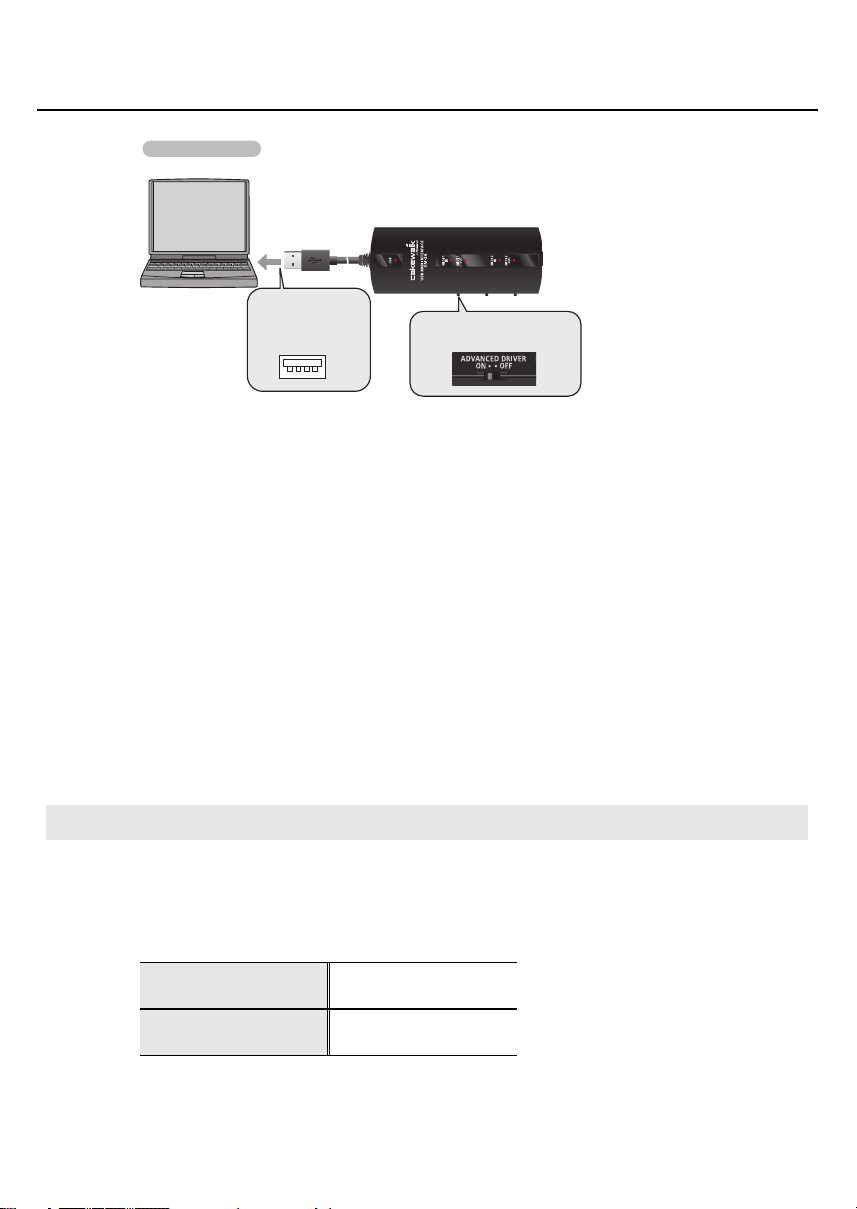

Getting Connected and Installing Drivers ..................................11
Windows Vista Users...................................................................................................................................11
Installing the Driver .......................................................................................................................11
Input/output Device Settings for Your Application...........................................................13
Windows XP Users .......................................................................................................................................14
Installing the Driver .......................................................................................................................14
Input/output Device Settings for Your Application...........................................................17
Settings for Using the UM-2G with Windows Media Player............................................17
Macintosh Users ...........................................................................................................................................18
Installing the Driver .......................................................................................................................18

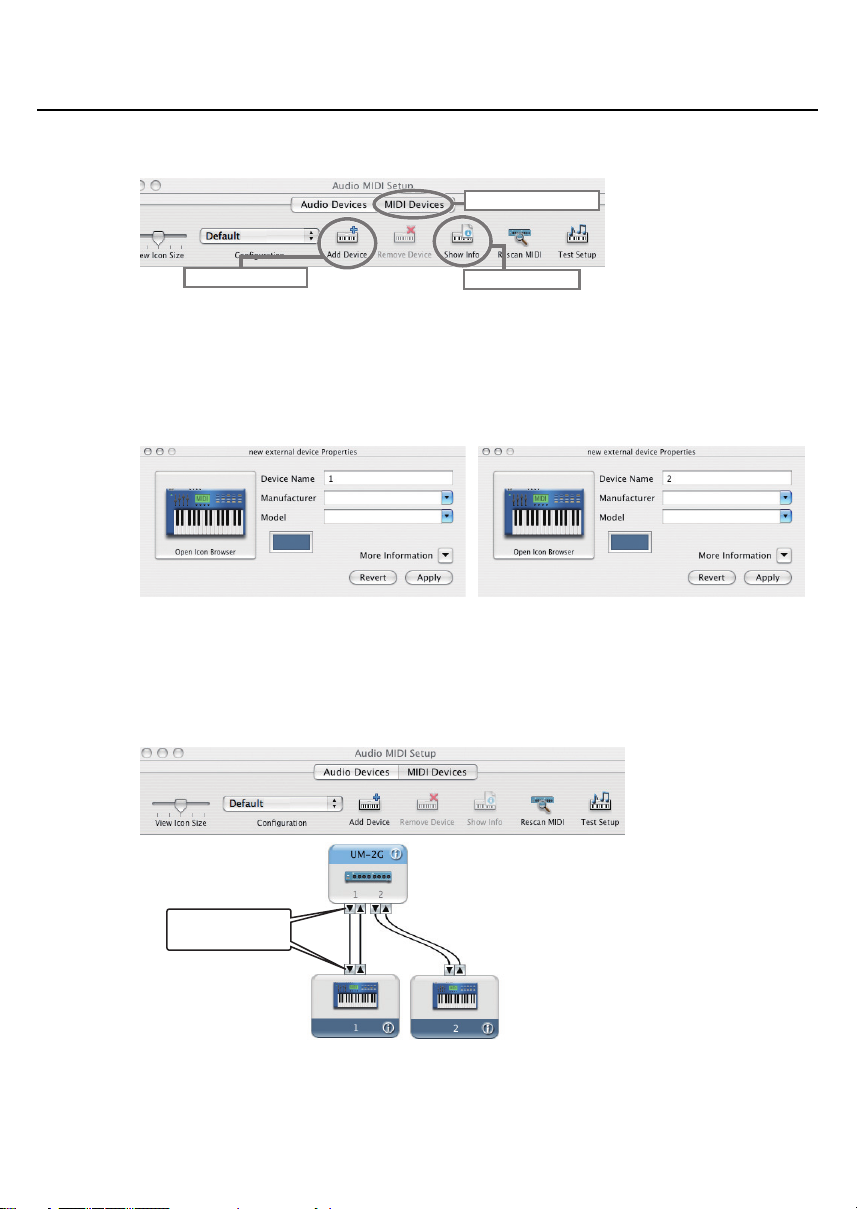

MIDI Device Settings .....................................................................................................................19
Basic Use ........................................................................................22

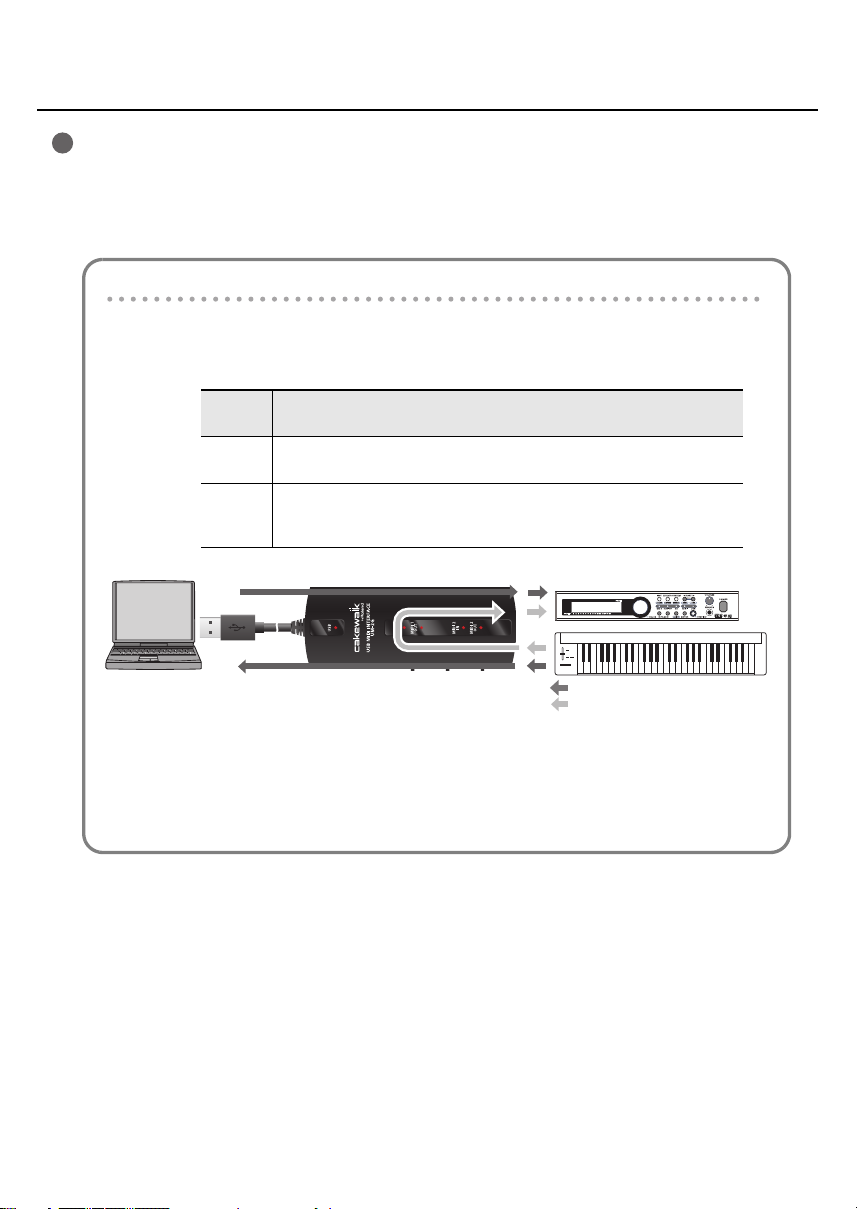

Basic Connections and MIDI Flow..........................................................................................................22
Transmitting MIDI Messages from a MIDI Keyboard or Digital Piano
to the Sequencer Software .........................................................................................................22
Transmitting MIDI Messages from the Sequencer Software
to a MIDI Sound Module or Digital Piano ..............................................................................23
Transmitting MIDI Messages from a MIDI Keyboard or Other Device
to a MIDI Sound Module..............................................................................................................24
Troubleshooting ...........................................................................25
Deleting the Driver ......................................................................................................................................34
Appendices....................................................................................36
About Standard Driver Mode ..................................................................................................................36
Main Specifications.......................................................................38
Index ..............................................................................................39
UM-2G_e.book 6 ページ ２００８年１１月１２日 水曜日 午後１０時６分

7
Contents of the Package
The UM-2G includes the following items. When you open the package, first make sure that all
items are included. If any are missing, contact the dealer where you purchased the UM-2G.
USB MIDI Interface UM-2G
CD-ROM “UM-2G CD-ROM”
This contains drivers for use with the UM-2G.
Owner’s Manual
This is the manual you are reading. Please keep it on hand for reference.
UM-2G_e.book 7 ページ ２００８年１１月１２日 水曜日 午後１０時６分

8

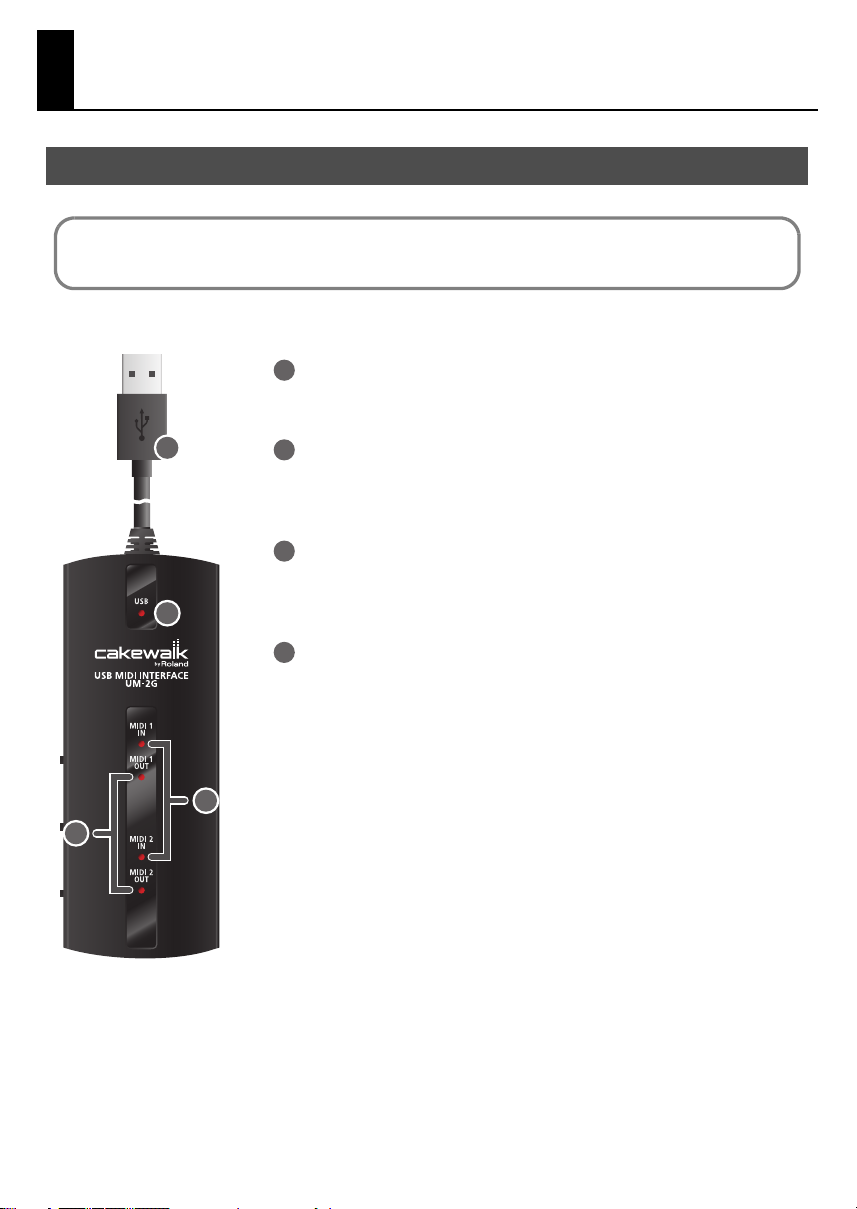

Names of Things and What They Do
USB Cable
Use this when connecting the UM-2G to your computer.
USB Indicator
This will light when you’ve connected the UM-2G to your computer and
your computer has detected the UM-2G.
MIDI IN Indicator
If the [MIDI THRU] switch is OFF, this indicator will light when MIDI
messages are received from the device connected to MIDI IN connector.
MIDI OUT Indicator
If the [MIDI THRU] switch is OFF, this indicator will light when MIDI
messages from the computer are being transmitted.
Front Panel
You must install the driver before you connect the UM-2G to your computer for the first time.
Install the driver as described in “Getting Connected and Installing Drivers” (p. 11).
2
1
3
4
1
2
3
4
UM-2G_e.book 8 ページ ２００８年１１月１２日 水曜日 午後１０時６分

9
Names of Things and What They Do

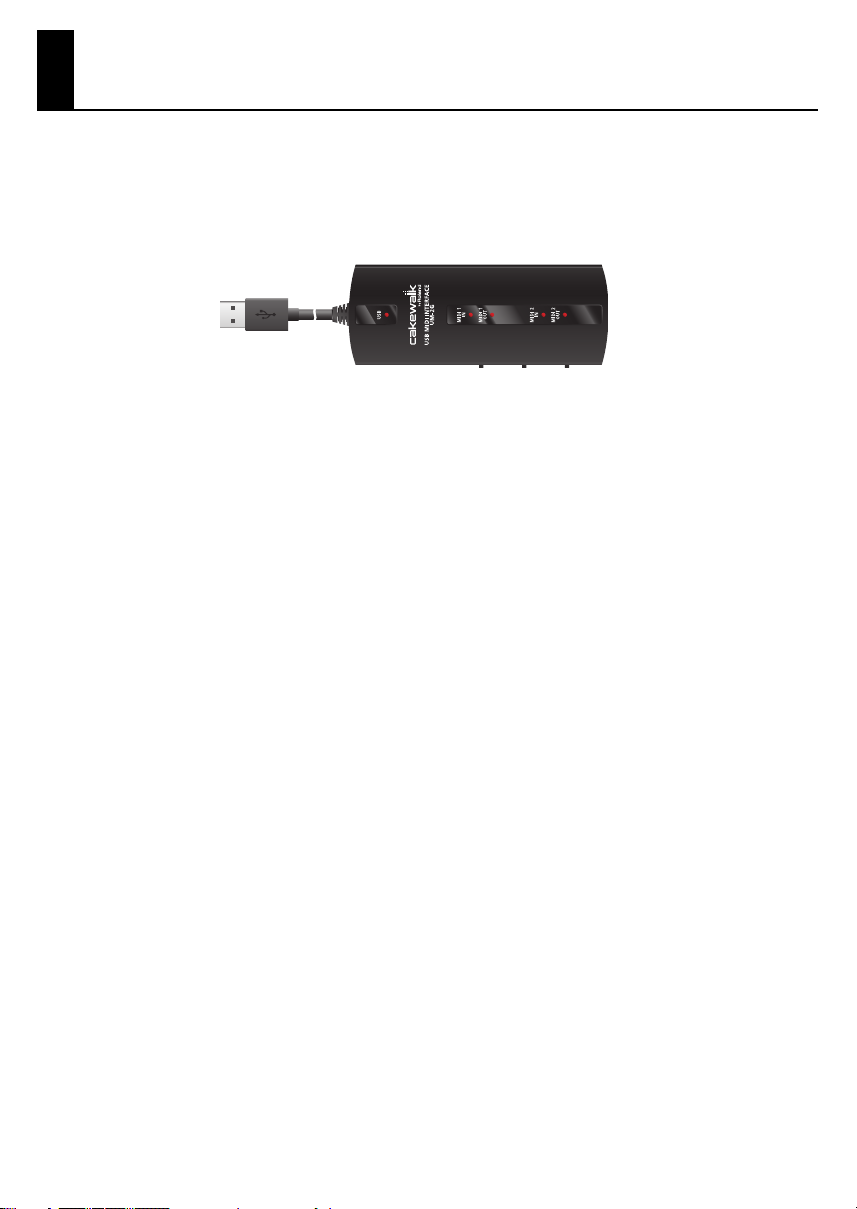

Right Side
fig.panel
MIDI IN Connector
Connect this to the MIDI OUT connector of the device (such as a MIDI keyboard) that will be
transmitting MIDI messages to your computer.
MIDI OUT Connector
Connect this to the MIDI IN connector of the device (such as a sound module) that is to be
employed by your computer for playing music.
Left Side
fig.panel
[ADVANCED DRIVER] (mode select) Switch
This switches the operating mode between Advanced mode and Standard driver mode.
Normally, you should use Advanced mode (ON).
*FPT=Fast Processing Technology of MIDI Transmission
Side Panel
ON
(Advanced
mode)
This mode utilizes the UM-2G’s special, advanced MIDI driver.
This advanced driver uses *FPT technology for rapid, high-performance
MIDI transmissions.
OFF
(Standard
driver mode)
This mode uses the standard MIDI driver included with the OS.
Use this if you do not have the special driver installed.
6
5
5
6
78
7
UM-2G_e.book 9 ページ ２００８年１１月１２日 水曜日 午後１０時６分

10
Names of Things and What They Do
[MIDI THRU] Switch
Selects the destination to which the MIDI messages that flow in through the UM-2G’s MIDI IN
connector are to output. There is a separate switch for MIDI 1 and MIDI 2, allowing you to
change this setting independently for each set of connectors.
8
[MIDI THRU] Switch ON/OFF setting
You can use the [MIDI THRU] switch to specify the destination of MIDI
messages sent from the MIDI keyboard or digital piano connected to the MIDI
IN connector.
fig.connect-change_e
* You can change the setting of the [MIDI THRU] switch while the UM-2G is
connected to the computer. There’s no need to re-connect the UM-2G when
doing so.
* Don’t change the setting of the [MIDI THRU] switch while playback is in
progress. Doing so will cause MIDI errors.
Switch
Setting MIDI Message Destination Device
OFF MIDI messages flowing in through the UM-2G’s MIDI IN connector are
routed to the computer (sequencer software).
ON
MIDI messages flowing in through the UM-2G’s MIDI IN connector are
output from the UM-2G’s MIDI OUT connector. If you are not using
sequencer software with your performances, set this to ON.
MIDI Message Flow (THRU OFF)
MIDI Message Flow (THRU ON)
UM-2G_e.book 10 ページ ２００８年１１月１２日 水曜日 午後１０時６分

11
Getting Connected and Installing Drivers
What is a driver?
A “driver” is software that transfers data between the UM-2G and application software
running on your computer, when your computer and the UM-2G are connected. The driver
sends data from your application to the UM-2G, and from the UM-2G to your application.
Steps to be performed on the UM-2G itself are marked by a symbol.
Do not connect the UM-2G to your computer until you are directed to do so.
1. Start up Windows without the UM-2G connected.
* Disconnect all USB cables other than those for a USB keyboard and/or USB mouse (if used).
2. Close all currently running software.
3. Insert the included “UM-2G CD-ROM” into your CD-ROM drive.
4. In the CD-ROM, go to the appropriate folder as listed below, and double-click the
Setup icon.
UM-2G\Driver\Vista\Setup.exe
* If a message saying “Drivers must be installed by an administrator” appears, log on to
Windows as a user whose account has administrative privileges, and perform the installation
again.
Windows Vista Users
Installing the Driver
The installation procedure will differ depending on your system.
Please proceed to one of the following sections, depending on the system you use.
• Windows Vista users.................................... p. 11
• Windows XP users ........................................ p. 14
• Macintosh (Mac OS X) users...................... p. 18
*IfyouwanttouseStandarddriver mode, refer to “Installation of the Standard
Driver” (p. 36).
Operation of the UM-2G
UM-2G_e.book 11 ページ ２００８年１１月１２日 水曜日 午後１０時６分

12
Getting Connected and Installing Drivers
5. A confirmation screen regarding user account control will appear.
Click [Continue].
6. The screen will indicate “The UM-2G Driver will be installed on your computer.”
Click [Next].
* If any other message appears, proceed as directed by the message.
7. To begin the installation, click [Next] once again.
Installation will begin.
If a dialog box related to Windows security appears, click [Install].
The screen will indicate “Ready to install the driver.”
* If any other message appears, proceed as directed by the message.
8. Set the UM-2G’s [ADVANCED DRIVER] switch to the ON position.
* If the [ADVANCED DRIVER] switch is set to OFF, the installation will not take place as described
in the following procedure.
Operation of the UM-2G
UM-2G_e.book 12 ページ ２００８年１１月１２日 水曜日 午後１０時６分

13
Getting Connected and Installing Drivers
9. Connect the UM-2G to your computer.
10.The message “Installing device driver software” will appear in the lower right
corner of the screen, and the driver will be installed automatically.
* It may take some time (ten seconds or more) until the message appears.
* If any other message appears, note the content of the message and close it.
11.When installation has been completed, the screen will indicate “Installation has
been completed.”
Click [Close] to close the UM-2G Driver Setup dialog box.
If the System Settings Change dialog box appears, click [Yes]. Windows will automatically
restart.
This completes the driver installation.
Next, you’ll need to make the input/output device settings for your application.
* You won’t be able to use the UM-2G unless you’ve made these settings.
Specify the MIDI device that you’ll be using with your application. (For details on how to make
these settings, refer to the instruction manual that came with your application.)
* If you’re unable to select the UM-2G device in the device settings of your application, it may be
that a problem has occurred. Refer to “Troubleshooting” (p. 25).
* You can’t use the UM-2G’s MIDI input/output device in the Media Player application included
with Windows.
Input/output Device Settings for Your Application
MIDI OUT device 1(UM-2G)
2(UM-2G)
MIDI IN device 1(UM-2G)
2(UM-2G)
Operation of the UM-2G
Connect to the
computer’s
USB connector. [ADVANCED DRIVER]
switch ON
UM-2G_e.book 13 ページ ２００８年１１月１２日 水曜日 午後１０時６分

14
Getting Connected and Installing Drivers
Steps to be performed on the UM-2G itself are marked by a symbol.
Do not connect the UM-2G to your computer until you are directed to do so.
1. Start up Windows without the UM-2G connected.
* Disconnect all USB cables other than those for a USB keyboard and/or USB mouse (if used).
2. Close all currently running software.
3. Insert the included “UM-2G CD-ROM” into your CD-ROM drive.
4. In the CD-ROM, go to the appropriate folder as listed below, and double-click the
Setup icon.
UM-2G\Driver\XP\Setup.exe
*Ifthe“Install Program As Other user” dialog box appears, click [Cancel] to terminate the
installation, log on to Windows using an administrator account, and perform the installation
once again.
5. The screen will indicate “The UM-2G Driver will be installed on your computer.”
Click [Next].
* If any other message appears, proceed as directed by the message.
Windows XP Users
Installing the Driver
Operation of the UM-2G
UM-2G_e.book 14 ページ ２００８年１１月１２日 水曜日 午後１０時６分

15
Getting Connected and Installing Drivers
6. To begin the installation, click [Next].
If the Software Installation dialog box appears, click [Continue Anyway] to proceed with
the installation.
* If you are unable to proceed, click [OK] to halt the installation, and then change the settings as
described in “Driver Signing Options Settings (Windows XP)” (p. 27).
The screen will indicate “Ready to install the driver.”
* If any other message appears, proceed as directed by the message.
7. Set the UM-2G’s [ADVANCED DRIVER] switch to the ON position.
* If the [ADVANCED DRIVER] switch is set to OFF, the installation won’t take place as described in
the following procedure.
8. Use a USB cable to connect the UM-2G to your computer.
Operation of the UM-2G
Operation of the UM-2G
Connect to the
computer’s
USB connector. [ADVANCED DRIVER]
switch ON
UM-2G_e.book 15 ページ ２００８年１１月１２日 水曜日 午後１０時６分

16
Getting Connected and Installing Drivers
1. The message “Found New Hardware” will appear in the lower right corner of the screen,
and the Found New Hardware wizard will appear.
* It may take between ten seconds to several minutes until the Found New Hardware
wizard appears.
If you are asked whether you want to connect to Windows Update, choose No and click
[Next].
2. Choose Install the software automatically (Recommended), and click [Next].
3. If the Hardware Installation dialog box appears, click [Continue Anyway] to proceed
with the installation.
* If you are unable to proceed, click [OK] to halt the installation, and then change the settings as
described in “Driver Signing Options Settings (Windows XP)” (p. 27).
4. The screen will indicate “Completing the Found New Hardware Wizard.”
Click [Finish].
9. When installation is complete, the Driver Setup dialog box will indicate “Installation
has been completed.”
Click [Close] to close the Driver Setup dialog box.
If the System Settings Change dialog box appears, click [Yes] to restart Windows.
This completes the driver installation.
Now proceed to make the following settings.
* You won’t be able to use the UM-2G unless you’ve made these settings.
UM-2G_e.book 16 ページ ２００８年１１月１２日 水曜日 午後１０時６分

17
Getting Connected and Installing Drivers
You’ll need to specify the MIDI device that you’ll be using with your application. (For details
on how to make these settings, refer to the instruction manual that came with your
application.)
* If you’re unable to select the UM-2G device in the device settings of your application, it may be
that a problem has occurred. Refer to “Troubleshooting” (p. 25).
1. Open the Control Panel, click Sounds, Speech, and Audio Devices, and then click
the Sounds and Audio Devices.
* If you’re using the Classic view, double-click the Sound and Audio Devices icon.
2. Click the Audio tab, and in the MIDI music playback area, choose 1(UM-2G).
* If you’re unable to select the above MIDI port, it may be that a problem has occurred. Refer to
“Troubleshooting” (p. 25).
3. Click [OK] to close Sounds and Audio Devices Properties.
4. Start up Windows Media Player, and select and play a MIDI file.
Input/output Device Settings for Your Application
MIDI OUT device 1(UM-2G)
2(UM-2G)
MIDI IN device 1(UM-2G)
2(UM-2G)
Settings for Using the UM-2G with Windows Media Player
UM-2G_e.book 17 ページ ２００８年１１月１２日 水曜日 午後１０時６分

18
Getting Connected and Installing Drivers
Steps to be performed on the UM-2G itself are marked by a symbol.
Do not connect the UM-2G to your computer until you are directed to do so.
*IftheAuthenticate dialog box or Enter password dialog box appears during the installation,
enter your password and click [OK].
* What you actually see on the screen may differ depending on your system.
1. Start up Macintosh without the UM-2G connected.
* Disconnect all USB cables other than those for a USB keyboard and/or USB mouse (if used).
2. Close all currently running software.
3. Insert the included “UM-2G CD-ROM” into your CD-ROM drive.
4. In the CD-ROM, go to the appropriate folder as listed below, and double-click the
UM2GUSBDriver.pkg.
UM-2G\Driver\UM2GUSBDriver.pkg
A message such as “This package contains a program that...” or “This installer package
needs to...” may appear. If so, click [Continue].
5. The screen will indicate “Welcome to the UM-2G Driver Installer.”
Click [Continue].
6. If the screen indicates “Select a destination,” click the drive in which the operating
system is installed to select it, and then click [Continue].
* Select your startup disk as the install-destination drive.
7. The screen will indicate “Easy Install” or “Standard Install.”
Click [Install] or [Upgrade].
Macintosh Users
Installing the Driver
Operation of the UM-2G
UM-2G_e.book 18 ページ ２００８年１１月１２日 水曜日 午後１０時６分

19
Getting Connected and Installing Drivers
8. The screen will indicate “Installing this software requires you to restart your
computer when the installation is done.”
Click [Continue Installation].
9. The screen will indicate “Click Restart to finish installing the software.”
Click [Restart] to restart your Macintosh.
* It may take some time for your Macintosh to restart.
This completes installation of the UM-2G driver.
Next, make MIDI device settings.
* You won’t be able to use the UM-2G unless you’ve made these settings.
1. Set the UM-2G’s [ADVANCED DRIVER] switch to the ON position.
2. Connect the UM-2G to your Macintosh.
3. Open the Applications folder of your Macintosh hard disk. In the Utilities folder,
double-click [Audio MIDI Setup] to open the Audio MIDI Setup dialog box.
The Audio MIDI Setup dialog box will appear.
4. Click the MIDI Devices tab.
5. Confirm that UM-2G appears in the Audio MIDI Setup dialog box.
*IfUM-2G does not appear or if it is grayed out, it means that the UM-2G
is not being recognized properly. Click [Rescan MIDI]. Also try
disconnecting and reconnecting the UM-2G.
* Previous settings from installation of a different version of the driver may
still remain. If this is the case, click on the grayed UM-2G to select it, then
click [Remove Device] to delete the settings.
MIDI Device Settings
Operation of the UM-2G
Operation of the UM-2G
4
7
6
Click MIDI Devices
Click Add Device Click Show Info
UM-2G_e.book 19 ページ ２００８年１１月１２日 水曜日 午後１０時６分

20
Getting Connected and Installing Drivers
6. Click [Add Device] twice. Two new external device will appear.
7. Specify the Device Name of the new external device.
1. Click to select the newly added New external device, and then click [Show Info].
2. In the Device Name field, enter name.
3. Click [Apply].
8. Using your mouse, drag to connect the up/down arrows (which represent the input/
output ports) so that they are connected in the following combination.
4
7
6
Click MIDI Devices
Click Add Device Click Show Info
Use the mouse to
drag a connection
UM-2G_e.book 20 ページ ２００８年１１月１２日 水曜日 午後１０時６分
