Calion Power C5S User manual

English
C5S
V02

Thank you for purchasing the C5S wireless earbuds !
The C5S has newest technology and exceptional audio
quality to reach for all touch control function. The C5S focus
on improving and enhancing user experience by providing a
comfortable and ergonomic in-ear design. For wearing freely
that the earbuds adopt soft in-ear design to fit user perfectly.
With the portable charging, you can enjoy charging anytime and
anywhere. For the best user experience, please read this
manual carefully before use of the C5S earbuds.
Safety Rules
1. For safety, please comply with the rules mentioned in this
manual
2. Keep device away from sharp edges, uneven surfaces, metal
objects, and knock out.
3.Do not open, dismantle or attempt to repair the earbuds.Doing
so may cause accidental fire, electronic board failure, or damage
to the earbuds. All warranty will be cancel.
4. Do not wipe or clean the earbuds with oils or any volatile liquids.
5. Do not use the earbuds in places where potential personal
safety is atrisk or in danger.
brief introduction
1

— C5S Bluetooth headset 1 pair
— Charging Cable 1
— Medium silicone ear cap 1 pair
— Small silicone ear cap 1 pair
Product Information
Packing details
— Instruction manual 1 serving
— Charging storage box 1
— Hanging rope 1
— Packing box 1 set
① charging storage box
② cavity
③battery display
④charging display
⑤microphone
⑥silicone ear cap
⑦silicone plug
⑧ headphone work indicator
2

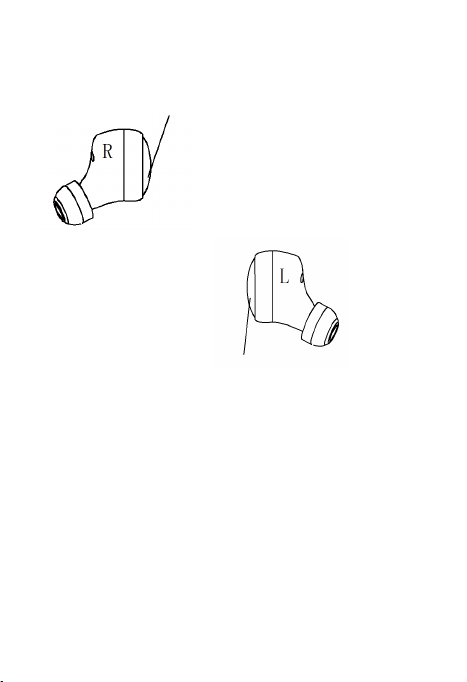

1. Headphone wearing method
R/L is printed on the earphone case, please wear it in the
correct direction, the sound quality will be better!
LED downward
2. Connect to Phone:
A.Take out the earbuds from charging case and remove the PET
insulator. Put the earbuds back in the charging case to activate.
The earbuds will power on automatically once you take them
out of the case
B.Put the L and R earbuds into your ears. The L and R earbud
will content each other and pairing. Next, the prompts of voice
“connected ”will be heard
C.Open Bluetooth on your phone. When the two earbuds has
pair successfully, the prompts of voice"Left channel, Right
channel"will be heard. On the device list, connect to the"Touch
Two C5S and then the voice “second device connected” will be
heard
D.How to use the single ear: The L/R Earbud can use alone.
When you first use this earphone and you want to use the L/R
earphone alone. You must double-click the L/R ear touch surface.
Then you can find the “Touch Two C5S" in the Bluetooth device
connection list. If you have connected your phone with the two
earphones. When you use L/R earphone alone. Put one of the L/R
earphone back into the charging box.
Operation Guide
3

3.Touch Functions:
Previous: Double click on the right ear touch surface.
Volume reduction: Long press of right ear touch surface.
Next: Double click on the left ear touch surface
Volume increase: Long press of left ear touch surface.
4
To turn off the earbuds: In standby mode, press and hold the touch
area for 5S to turn off the earbuds. (Note:The earbuds can be used
individual To turn off a single earphone which does not affect to use
another earphone)
(Note: left and right can be operated separately)
Activate voice assistant: Standby mode, Continuous click
Touch panel three times
Call function: click once on the touch panel to answer
Or hang up the phone.
Reject the call: double click on the touch panel
Play or pause music: Click once in the touch panel

ATTENTION:
PLEASE REMOVETHE PROTECTIVE COVER ON THE EARBUDS
BEFORE OPERATION. PLEASE KEEP AWAY FROM RADIO
INTERFERENCE AND AVOID NOISY ENVIRONMENTS
WHENUSING EABUDS PLEASE REPLAY THE HIGHT QUALITY
FORMAT OF MUSIC OR LOCAL MUSIC OF THE DEVICE
4. Charging Case
A. Put the earbuds into the case exactly, the battery box wil
automatically charge the earphones until they are full.
B. The charging box has a smart switch function.Place the
earbuds in the charging box and cover the case which is
charged . When the charging box is opened, the charging
will be turned off automatically. The earphone will start uppair
and connect back to the mobile phone when you pick up the
earbuds from the open box.Then you can listen to music and
enjoy the intelligence of this product.
C. USB outlet supports 5V/1.5A output, which can provide
emergency charging for mobile phones and other electronic
products
ATTENTION:
REMOVE THE INSULATION COVER BEFORE INITIAL USE.
RECHARGE THE CHARGING CASE IF NOT USED FOR
OVER 90 DAYS. ONLY USE GOOD OUALITY WIRELESS
CHARGING TRANSMITTER AND CHARGING CABLE. THE
EARBUD LED LIGHT WILL TURN BLUE WHEN IT IS FULLY
CHARGED
5. Single Earbud Mode:
The L/R Earbud can used alone to connect to your Phone.
On your phone, enter the Bluetooth device connection list
and remove the"Touch Two C5S "from the list. Redo the
steps for Connect to Phone"but with only the L/R earbud.
5

1. Earbud parameters:
Bluetooth Version: 5.0
Operation Voltage: 3.2V-4 2V
Impedance: 32Ω
Speakersensitivity: 105db
Speaker Bandwidth: 20-20 KHZ
Microphone Sensitivity: -42+-2db
Earbud frequency: 2. 4-2.48GHZ
Compatible : A2DP/HFP/HSP/AVRCPEarbud
working range: 10M
Single eartalk time: 6hrs
Music play : 4-5hrs
Single earbud standby time: 80 hrs
2. Charging case Parameters:
Large capacity battery
DC Charging Volta ge: DC5V
DC charge Current: 1A
DC output Current: Maximum 1. 5A
Troubleshooting Guide
Product Parameter
Put the phone closer to the
main earb ud or keep ifrom
the oute r inter ference signal
The volume is too high or
the envi ronment is to o noisy
Can talk, but red
indicator illuminates
malfunction
Caused by environmental
interference or Sound source
equipment is far away
the reason Solution
Unable to start
Silent after matching
Charging without
prompt
Headset
Automatic shut-down
Headphones
have echo
The call has a noise
The other party’s
voice is small
Low battery
Match operation is incorrect
The battery is low,
Bright red indicator
The headphones are
not put well
Low battery
Charge the headset
Rematch
Clear the headset immediately
Check if the headphones
are in place
Charge the headset
volume adjustment
Or change places
Change place or will
The distance of the
source device is close
Adjust the position of the
headset And adjust the volume
The headset is not
worn correctly
Bad signal,
Intermittent
Too far or outside
interference
6

7
FCC ID:2AXEL-C5S
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
