Thank you for choosing Calorex.
Your Calorex heat pump has been specially designed for pool heating using high quality components
at are carefully chosen to provide maximum eciency and reliability. This manual will help you to
get e best out of your heat pump and advise you on how to maintain it.
2 SD638152 ISSUE 4
PPT16/22 BHC & PPT16BMCY OWNER INSTALLATION MANUAL

i
3.0
i
9.0 PPT8 = 20A
PPT12 = 25A
PPT16 = 30A
PPT22 = 42A
1Ø
PPT8 = 10A
PPT12 = 10A
PPT16 = 15A
PPT22 = 20A
3Ø
H.R.C./ MCB (Type C)
i
4.3
1
12
2
3
4
5
6
7
8
9
10
11
i
2.3
i
3.1
pH CaCO 3
i
4.1
i
11.0

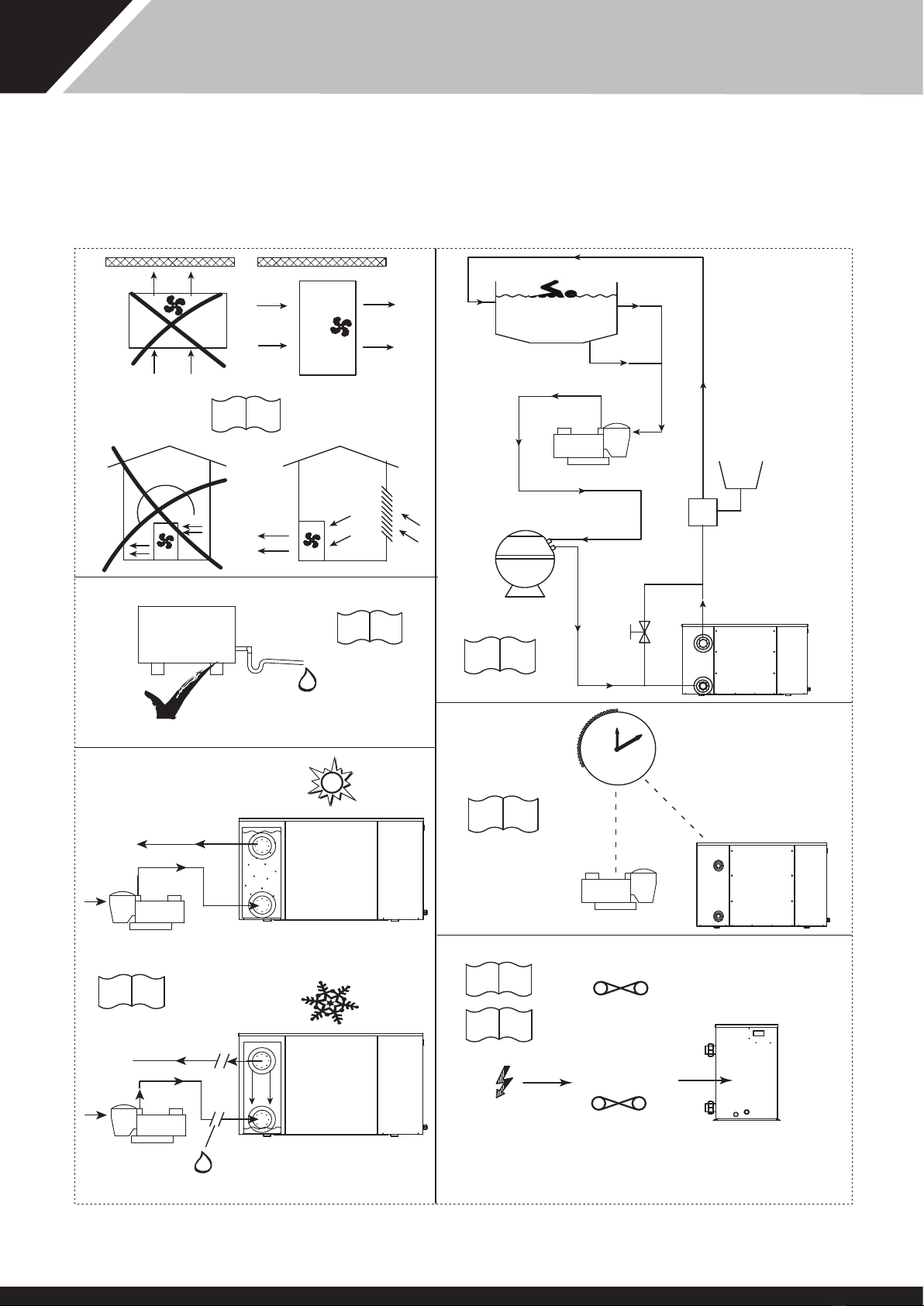

QUICK START GUIDE
QUICK START GUIDE
3
SD6381652 ISSUE 4

HEALTH AND SAFETY WARNING
As e dehumidifier embodies electrical and rotational equipment, ONLY competent persons
should carry out any work on is type of machine.
(SEE GUARANTEE)
QUICK START GUIDE .................................................................3
HEATH AND SAFETY WARNING ..............................................5
1.0 INTRODUCTION ...................................................................5
1.1 FUNCTION.............................................................................6
2.0 INSTALLATION ....................................................................7
2.1 ACCESSORIES ......................................................................7
2.2 SITING....................................................................................7
2.3 AIR FLOW..............................................................................8
3.0 PLUMBING............................................................................9

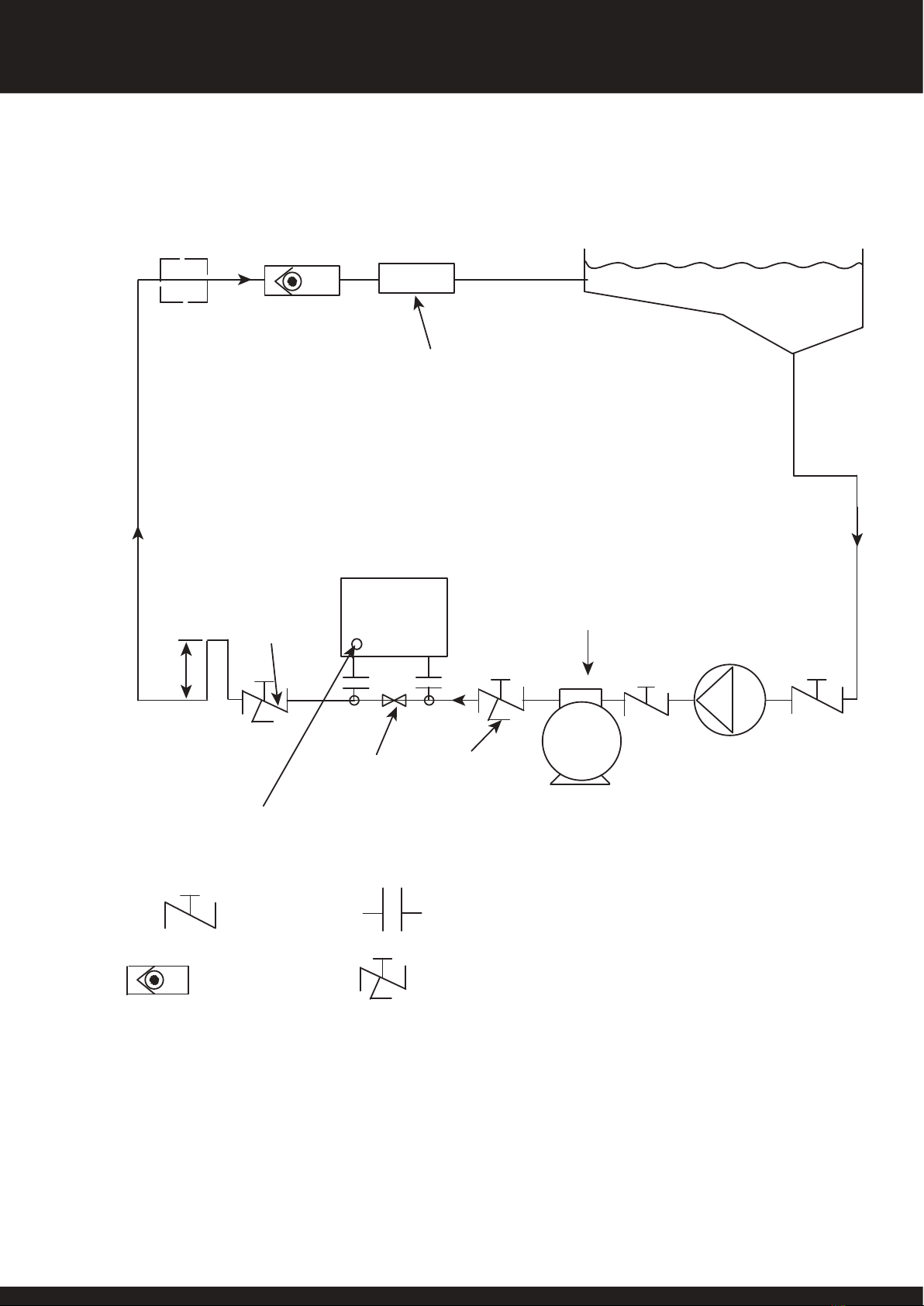

3.1 RECOMMENDED PLUMBING SCHEMATIC ................... 10
3.2 DETERMINING WATER FLOW ......................................... 11
4.0 ELECTROLYTIC CORROSION IN SWIMMING POOLS.. 12
4.1 ELECTRICAL (MACHINE WIRING AND SUPPLY).......... 13

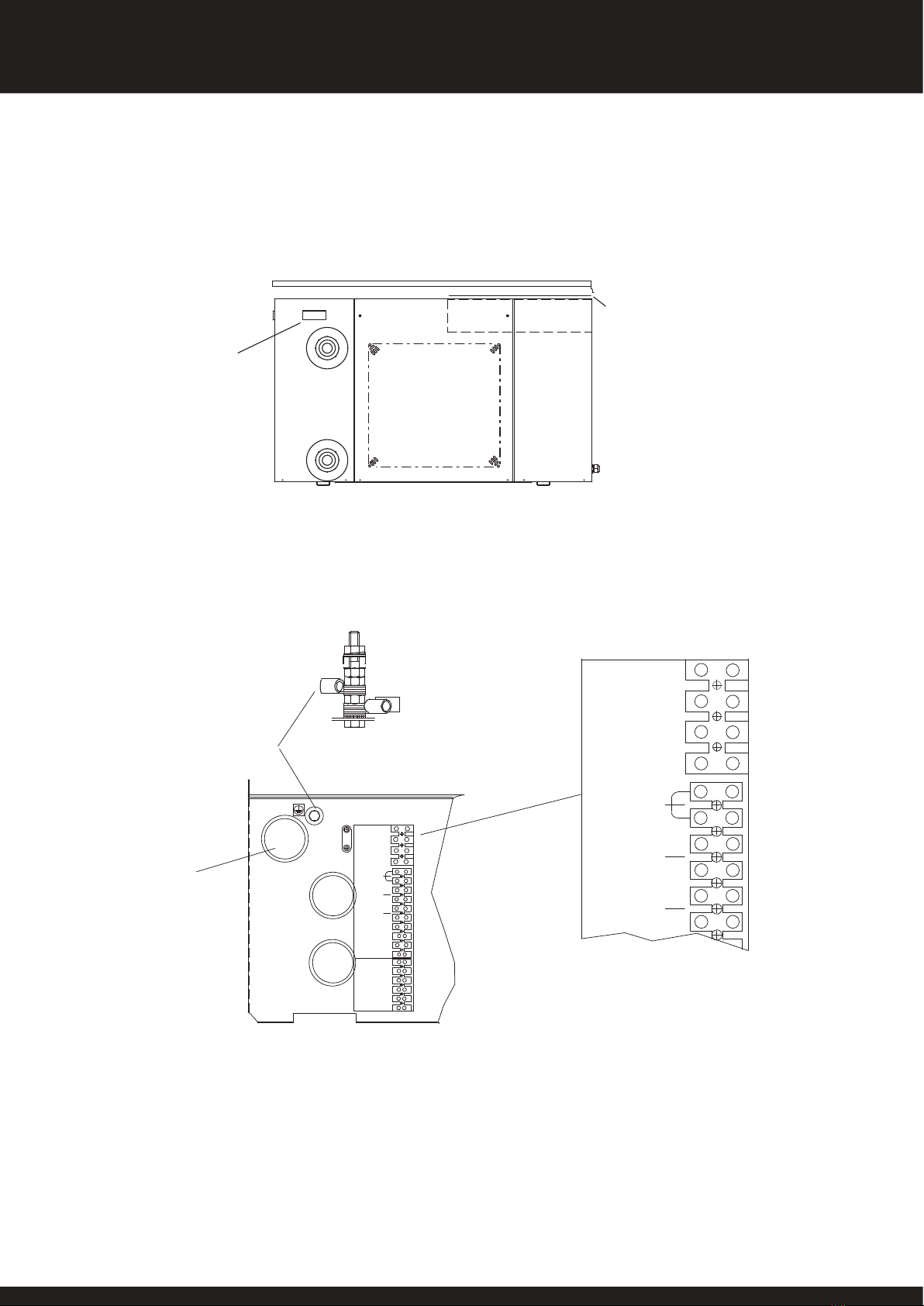

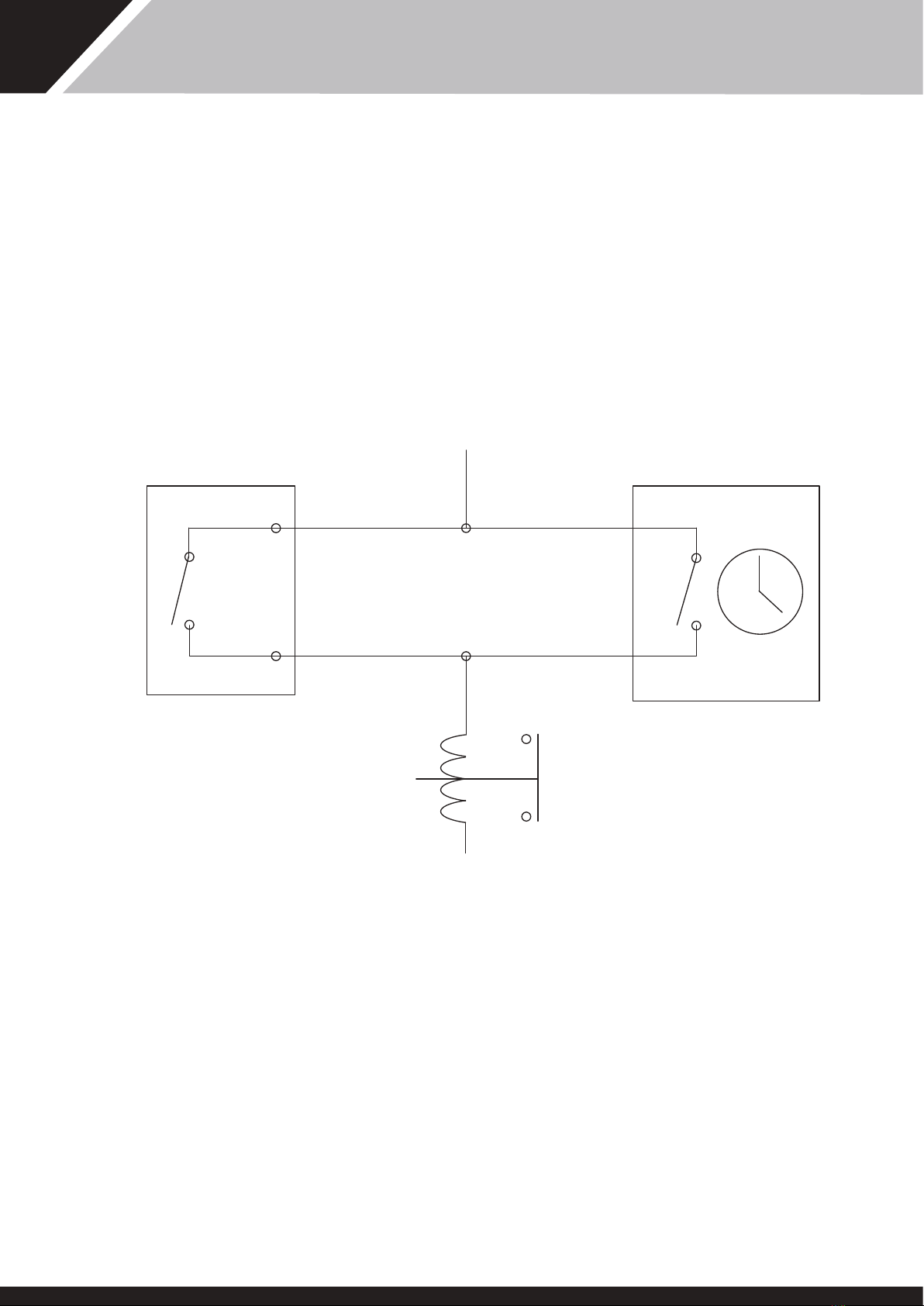

4.2 LOCATION OF MAINS INPUT AND EXTERNAL INTERLOCK
TERMINALS.............................................................................. 14
4.3 ENERGY MANAGEMENT CONTROLLER ....................... 15
5.0 DIGITAL THERMOSTAT .................................................... 16
5.1 CONSOLE LAMPS............................................................. 16

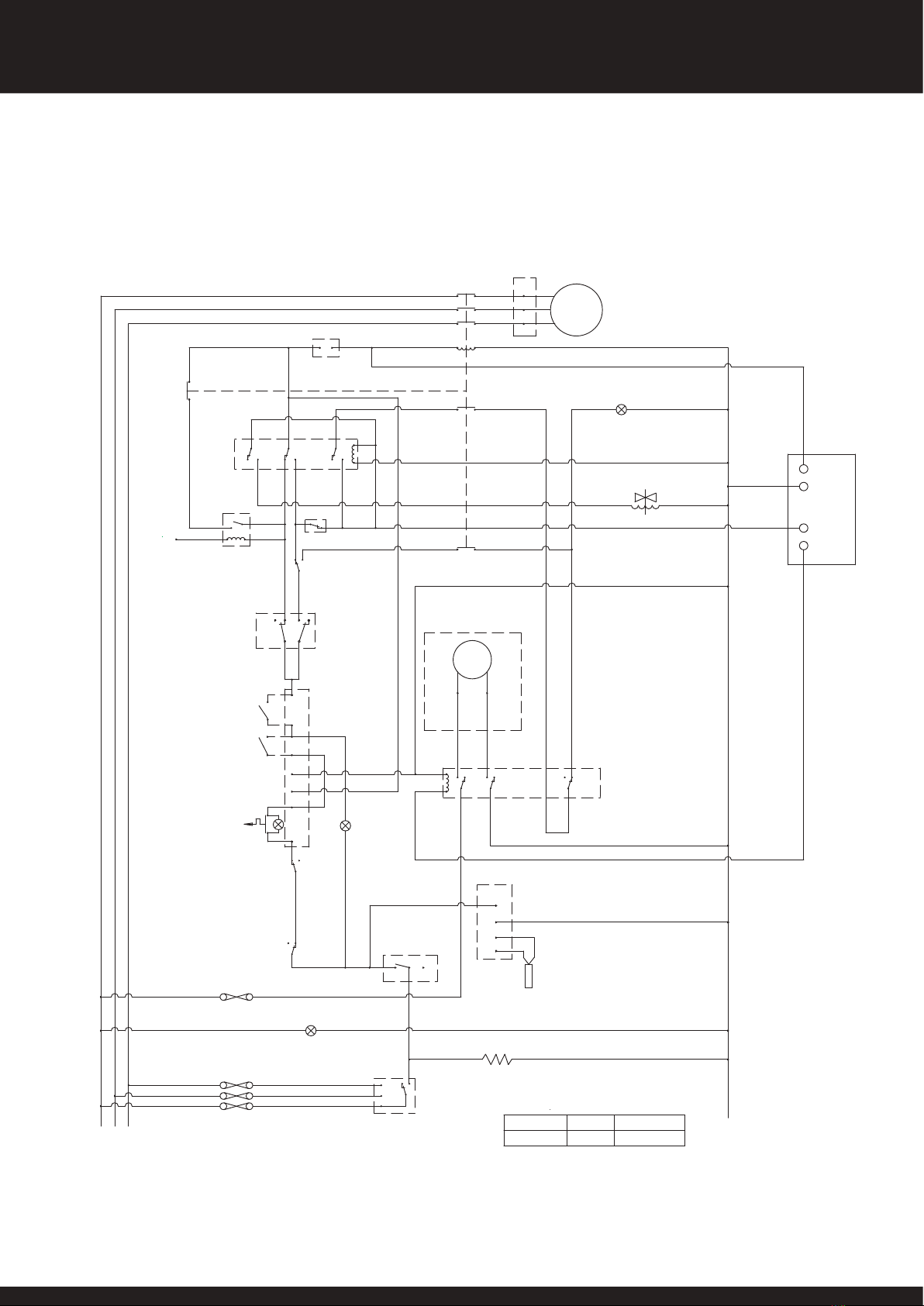

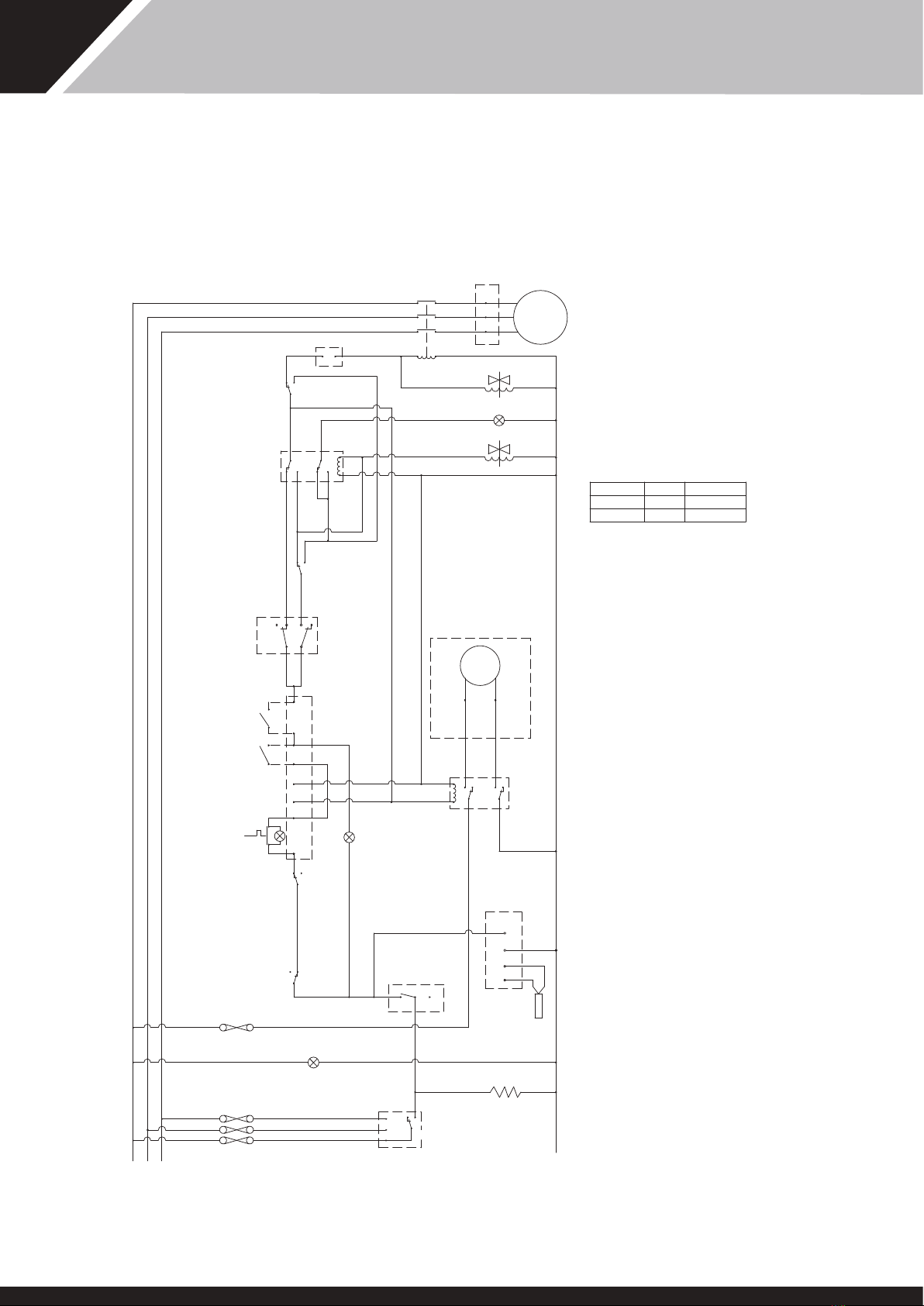

6.0 CIRCUIT DIAGRAMS......................................................... 17
7.0 REGULAR PLANNED MAINTENANCE ........................... 19
8.0 HEAT PUMP MALFUNCTION........................................... 20
8.1 USER CHECK LIST ............................................................ 20
9.0 DATASHEETS ..................................................................... 21
10.0 INSTALLATION DRAWING ............................................. 23
11.0 WINTERISATION PROCEDURE ..................................... 24
11.1 START UP PROCEDURE AFTER WINTERISATION ..... 24
12.0 WARRANTY CONDITIONS............................................. 25
13.0 MACHINE RECORD LOG................................................ 26
Contents
4 SD638152 ISSUE 4
PPT16/22 BHC & PPT16BMCY OWNER INSTALLATION MANUAL

Calorex ‘Propac’ HC air to water heat pumps are for areas of e world where
e ambient temperature can vary from 7ºC to 50ºC. The pool water is
heated when e ambient temperature is low and cooled when e ambient
temperature is high, enabling e user to enjoy e pool roughout e year.
The units are designed for swimming pools, using R134a as a refrigerant and
are ideally suited for operation in a tough climate.
Calorex ‘Propac’ BMC air to water heat pump is designed to operate in
temperatures from -15ºC to 40ºC and is suitable for heating and chilling
swimming pools.
The water heat exchanger is a full flow type, manufactured from titanium tube,
which is a highly corrosion resistant material. The heat pumps are suitable
for use in fresh water and salt water pools. PPT8/12 heat pumps are fitted
wi rotary compressors and PPT16/22 heat pumps are fitted wi scroll
compressors. Bo types of compressor are known for quiet running.
A 6 minute compressor start delay timer is incorporated for compressor
protection. Wi ese features e heat pump is designed to have a long,
trouble free life.
All units have integral safety devices to protect e heat pump from internal
and external faults. Indicator lamps indicate operating mode. An adjustable
digital ermostat controls water temperature.
Danerm Ltd is an ISO9001:2000 certified company.
All Calorex heat pumps are CE approved
1.0 INTRODUCTION
HEALTH AND SAFETY WARNING
This appliance can be used by children from eight years and above and persons wi reduced
physical, sensory or mental capabilities or lack of experience and knowledge if ey have been
given supervision or instruction concerning e use of e appliance in a safe way and understand
e hazards involved. Children should not play wi e appliance. Cleaning and maintenance shall
not be made by children wiout supervision.
Disconnect from e mains supply and wait ree minutes before removing panels and
commencing work on is machine.
HEATH AND SAFETY WARNING
5
SD6381652 ISSUE 4

1.1 FUNCTION
The Calorex Swimming pool heat pump provides ermodynamic heating
by means of a vapour compression cycle, (similar to at employed in a
conventional refrigerator), in addition to acting as an active solar collector.
COEFFICIENT OF PERFORMANCE
The eciency of a Heat Pump is usually called its ‘Coecient of Performance’
- (C.O.P.) which is simply a ratio of heat output to energy input, bo being
expressed in kW. Thus a Heat Pump absorbing 1 kW of electricity, collecting
4kW of energy from e air, and delivering 5kW of heat to e pool water is
said to have a C.O.P. of 5:1.
This ratio will vary according to e temperature of e water and e ambient
air.

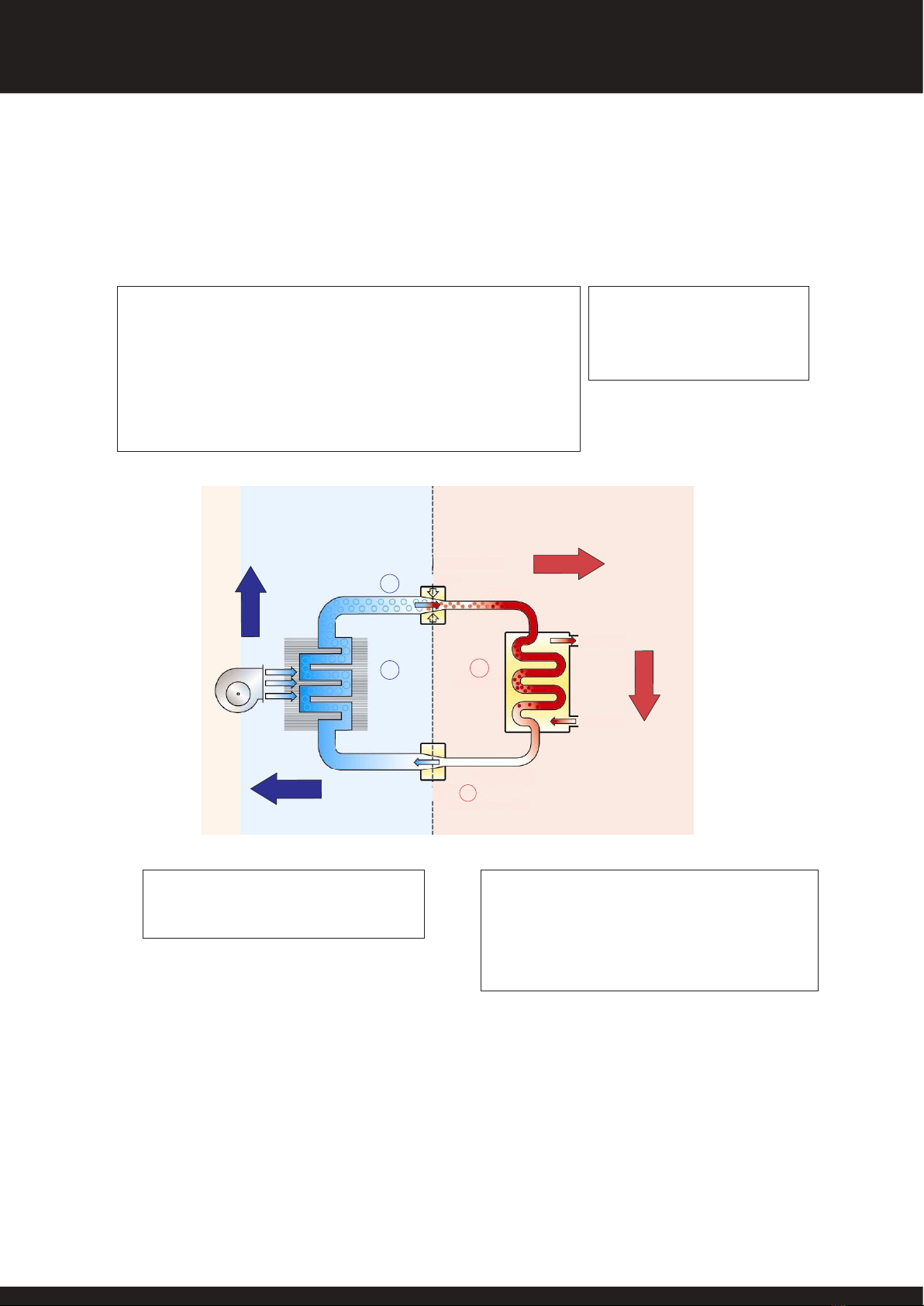

THE HEAT PUMP CYCLE
1. THE EVAPORATOR collects e heat from e outside ambient air, pre-heated by e
sun. In e Calorex swimming pool heat pumps, high volumes of outside air are drawn into
e unit by e fan expelled rough e evaporator fins. The evaporator has liquid refrigerant
passing rough it which is at a considerably lower temperature an e ambient air.
Therefore e air gives up its heat to e refrigerant which en vaporises.This preheated
vapour now travels to -
3. THE CONDENSER where it is surrounded by e pool water.
The heat is given up to e cooler pool water and e now cooler
refrigerant returns to its former liquid state but still under high
pressure from e compressor. This pressure is released by passing
liquid rough-
1. THE COMPRESSOR where it is
compressed and upgraded to a much
higher temperature. The hot vapour now
enters-
4. THE EXPANSION DEVICE and from ere, now at
normal pressure, it is returned to e evaporator and
e cycle starts again.
NOTE THAT WHEN A HEAT PUMP IS CHILLING THE CYCLE IS REVERSED
POOL
WATER OUT
POOL
WATER IN
HOT GAS
HEAT
EXCHANGER
CONDENSED
REFRIGERANT
HIGH PRESSURE SIDE
COMPRESSOR
EXPANSION
VALVE
LOW PRESSURE SIDE
COOL LIQUID
REFRIGERANT
AMBIENT
AIR
COOL GAS
EVAPORATOR
1
2
3
4
6 SD638152 ISSUE 4
PPT16/22 BHC & PPT16BMCY OWNER INSTALLATION MANUAL

2.0 INSTALLATION
a) Ensure heat pump on site is as ordered, i.e. model, electrical supply and
factory fitted options.
b) Inspect unit for damage, in particular inspect e evaporator (finned side)
to ensure at it is undamaged. (Minor indentations in e fins do not affect
performance). If severely damaged, endorse delivery note in presence of e
driver and send a recorded delivery letter to transport company giving details.
Protect unit if installation is delayed.
2.1 ACCESSORIES
The heat pump is supplied wi accessories which aid installation. On delivery
e accessories are in a plastic bag in e heat pump electric box. (See section
4.2 for lid removal).
These accessories are as follows:
4 x rubber feet - Fit ese under e metal feet of e heat pump to help
reduce e effects of vibration.
2 x 50mm female connectors - On delivery e heat pump has 1½” sockets
attached to e water connections for fitting 1 ½” plastic pipes. If 50mm
pipework is preferred undo e readed couplings on e water in/out
connection points and carefully remove e 1 ½” sockets. Then fit e 50mm
sockets in eir place and refit e readed couplings. The heat pump can en
be fitted wi 50mm plastic pipe.
2 x Condensate drain piece - Condensate drain pieces are supplied suitable for
¾” or 20mm pipe. Use whichever piece fits e drain pipe required. Glue e
relevant piece to e driptray outlet and en fit en condensate drain piping.
2.2 SITING
a) Provide a firm level base capable of supporting operational weight of unit;
spread load if mounted on timber floor.
b) Ensure water cannot collect under unit, it is recommend at units are
installed on plins 100mm above finished floor level. This also aids condensate
drainage.
c) Allow adequate clearance to service panels on unit; recommend 500mm
minimum.
d) All Calorex heat pumps are by design as quiet as is practical, however due
consideration should be given to siting e heat pump in order to minimise e
noise coming from e machine, for example by positioning e machine so at
e inlet/outlets are parallel to occupied premises.
e) Ensure loose debris such as leaves, grass cuttings, etc will not block air inlet
grilles.
f) Consider protection from extreme weaer conditions if installed externally,
i.e. lean-to-cover or building.
7
SD6381652 ISSUE 4

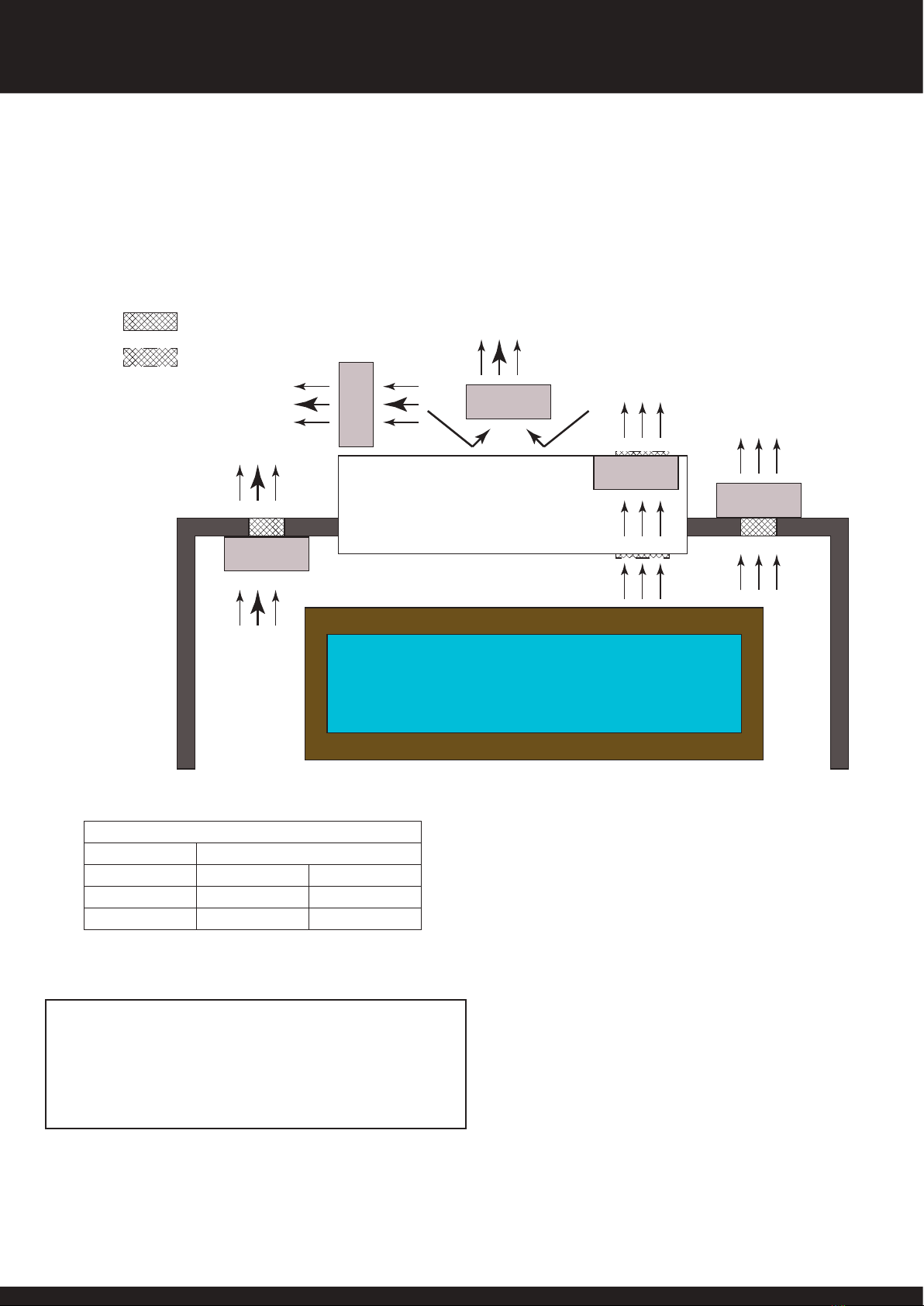

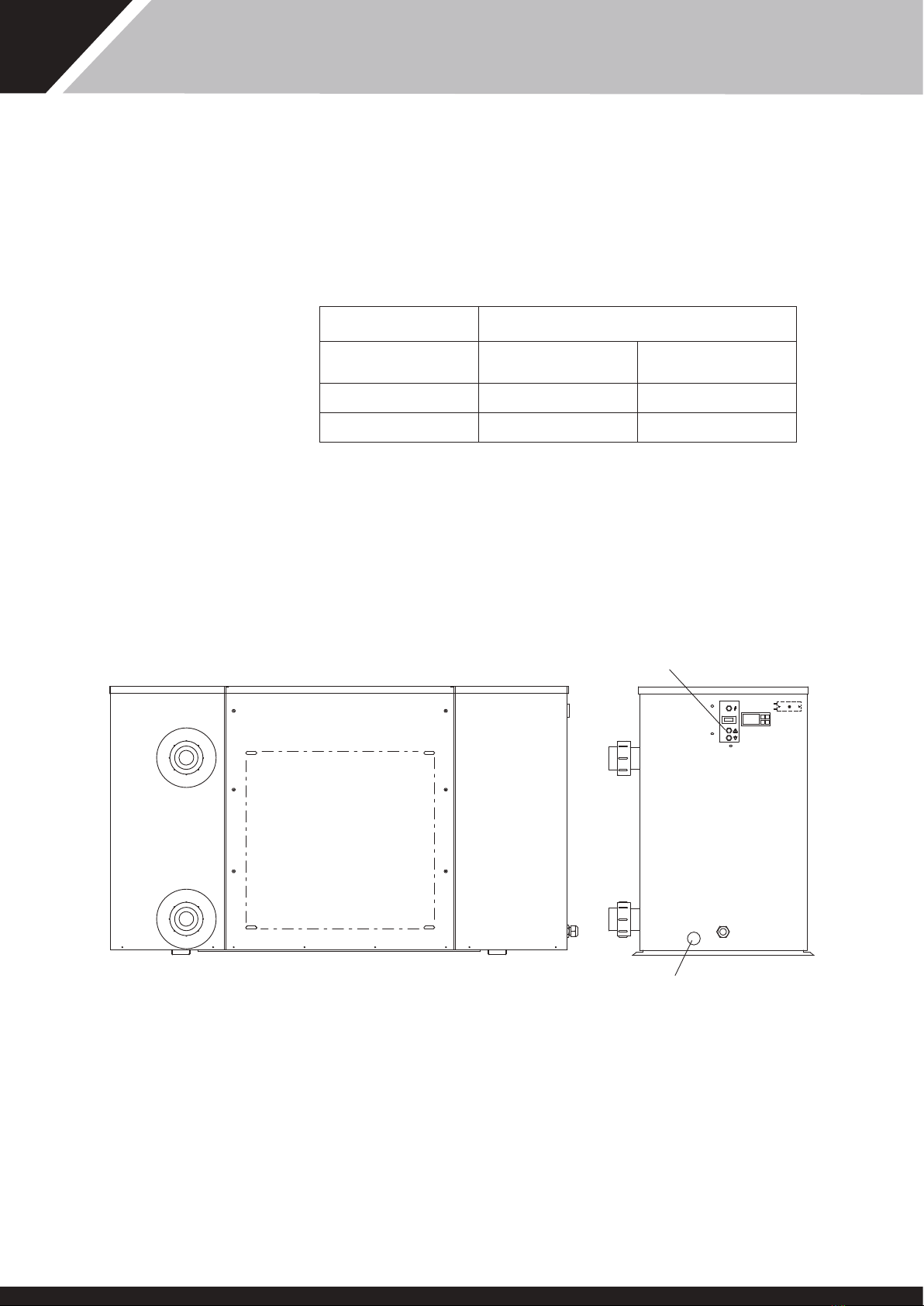

2.3 AIR FLOW
IMPORTANT
If multiple units are installed in an enclosed area en e inlet free areas
required for each unit can be added togeer to form one inlet aperture. BUT
discharge from each unit must be kept separate and must not be incorporated
into one common duct system.
Table 1
Model Minimum Free Area m2
Inlet Discharge
PPT16 0.322 0.173
PPT22 0.322 0.173
Due consideration must be given to air flow i.e. do not obstruct inlet or outlet
and ensure discharge to air cannot recirculate to inlet. (See below).
Required Free Areas to provide air flow to and from heat pumps when installed
in an enclosed area or where required to pass air rough a wall etc.
Free areas is e available area rough which air can pass rough a grille or
louvres.
> 50 cm
SWIMMING POOL/SPA
CALOREX
PLANT ROOM
CALOREX
CALOREX
CALOREX
WALL
CALOREX
SUITABLE OPENING
POSSIBLE POSITIONS OF A CALOREX HEAT PUMP
WALL
SUITABLE OPENING
8 SD638152 ISSUE 4
PPT16/22 BHC & PPT16BMCY OWNER INSTALLATION MANUAL

3.0 PLUMBING
a) Calorex Heat Pumps have water inlet/outlet connections as follows:
All models have fittings which enable e heat pump to be connected to eier
1½” or 50mm pipe work.
b) The heat pump is supplied wi bungs fitted in e water connection fittings
These need to be removed before e heat pump is installed. (See section
3.2).
c) The Calorex Heat Pump must be connected aer e filter in e return pipe
to e pool. If an existing heater is being retained, en e Calorex Heat
Pump should be connected between e filter and e oer heater. (See
section 3.1).
d) Suitable breakable couplings should be installed local to e heat pump.
e) If e heat pump is installed at a lower level an e pool en isolation
valves should be fitted.
f) A drain valve or plug should be fitted to e lower pipe to facilitate drain
down in e winter period.
g) Connections on all models are by 1½” or 50mm Female fittings. The water
in/water out pipes need to be glued into ese connections using a
suitable adhesive.

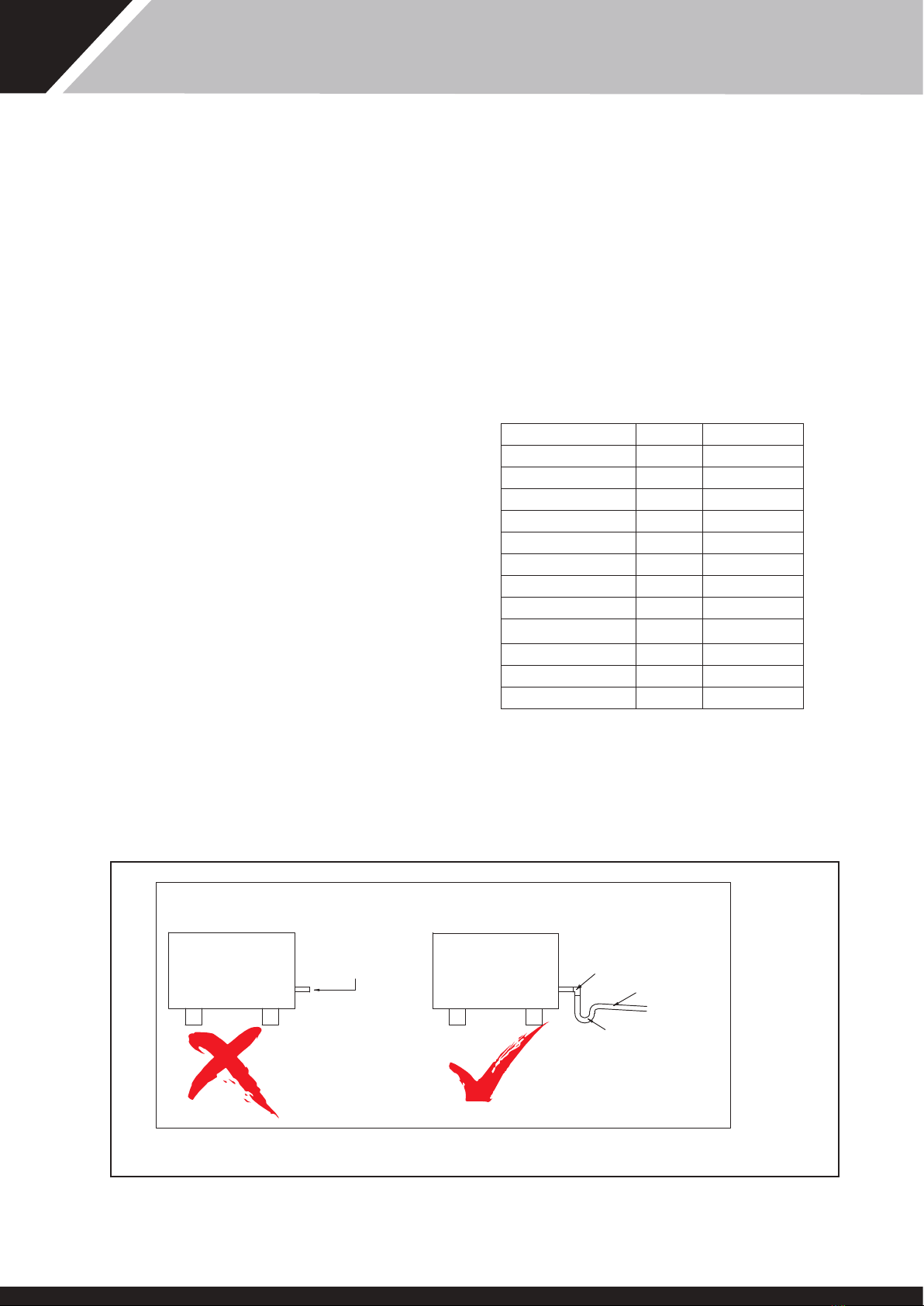

h) The condensate drain at e base of e unit collects condensation from e
evaporator fins. This should run away to waste via ¾” domestic waste
piping. It is erefore necessary to ensure at e Calorex Heat Pump is
placed on a level plin so at e condensate water can run away wi
adequate fall to waste i.e. ½” per foot minimum and must incorporate a “u”
trap as to not overflow e edges of e drip tray inside e heat pump.
See below.
) When e pipework installation is complete e pool pump should be
switched on and e system tested for leaks. Also check e filter gauge to
see at ere is not an excessive increase in back pressure. If everying is
en working normally e water circulating system is ready for use.
j) Water circuit to and from e unit is to be capable of maintaining wiin
specified limits e rate of flow required by e heat pump. (See section 9).
k) All pipework must be adequately supported wi allowance expansion/
contraction especially wi plastic pipework.
l) It is recommended at when installing water systems e last connections
to be made in e system should be breakable connections to avoid any
stresses on e unit connections.
IMPORTANT
1. All Pool Purifying Devices and Chemical Injection Systems to be fitted down
stream of e heat pump (see section 3.1) unless installation is as per filter
dosing. This includes e practice of dosing chemicals direct into skimmer
basket, which results in concentrated corrosive liquids passing over
vulnerable metal components.
2. Water quality must be maintained as follows:
3. Maximum pressure of water in heat pump circuit should not exceed 3.5bar
for PPT16/22 (50 psi).
This type of
installation
should be avoided
Incorrect drainage
for condensate
CORRECT DRAINAGE
FOR CONDENSATE Elbow
'U' trap
Adequate fall
Acidity pH pH 7.2 - 7.8
Total Alkalinity, as CaCO3 ppm 80 - 120
Total Hardness, as CaCO3 ppm 150 - 250
Total Dissolved Solids ppm 1000 Max
Maximum Salt Content ppm 35000 Max
Free Chlorine Range ppm 1 - 2 Domestic
Free Chlorine Range ppm 3 - 6 Commercial
Superchlorination max 30ppm for 24 hrs
Bromine ppm 2 - 5
Baquacil ppm 25 - 50
Ozone ppm 0.9 Max
Maximum Copper Content ppm 1
Aquamatic Ionic Purifier ppm 2 Max
9
SD6381652 ISSUE 4

3.1 RECOMMENDED PLUMBING SCHEMATIC
KEY ISOLATION VALVE BREAKABLE COUPLING
NON RETURN VALVE THREE WAY VALVE
NON RETURN
VALVE
CHEMICAL DOSING
SANITISER OR
DEVICE, IF FITTED
AUX HEATER
IF FITTED
FILTER
PUMP
TO WASTE FOR
WINTERISING
DRAIN DOWN
ANTI RETURN LOOP
TO BE INCORPORATED,
MINIMUM HEIGHT
100mm ABOVE HEAT PUMP
OUTLET PORT
(IF SANITISER FITTED)
100mm
CONDENSATE WATER
TO WASTE
SPARE PORT FOR
WINTERISING
FLUSHING
CONNECTION
TO WASTE
CALOREX
HEAT PUMP
POOL
BYPASS VALVE
(NORMALLY
CLOSED)
10 SD638152 ISSUE 4
PPT16/22 BHC & PPT16BMCY OWNER INSTALLATION MANUAL

3.2 DETERMINING WATER FLOW
The heat pump is fitted wi a water flow switch which inhibits e operation
of e heat pump when e water flow is less an e figure shown in e
table below.
Adjust e flow rate until e flow rate is adequate. The fault light will be
illuminated until an adequate flow rate is achieved.
MODEL Flow rates for water pressure switch
Machine starts working when
flow rate rises above L/hour
Machine stops working if flow
rate drops below L/hour
PPT16 2500 2000
PPT22 1920 1500
PPT16 FLOW RATE 7500 L/hour
PPT22 FLOW RATE 9960 L/hour
REMOVE BUNGS
BEFORE INSTALLING
HEAT PUMP
POOL WATER
IN
POOL WATER
OUT
CONDENSATE DRAIN
FAULT LIGHT
11
SD6381652 ISSUE 4

4.0 ELECTROLYTIC CORROSION IN SWIMMING POOLS
Electrolytic corrosion will occur when dissimilar metals at are in contact wi
each oer create a potential difference between emselves. Sometimes
separated by a conductive substance known as an electrolyte, e dissimilar
metals will create a small voltage (potential difference) at allows e ions of
one material to pass to e oer.
Just like a battery, ions will pass from e most positive material to e more
negative material.
Anying more an 0.3 volts can cause e most positive material to degrade.
A swimming pool wi its associated equipment can create is effect. The pool
water being an ideal electrolyte and components of e filtration circuit, heating
system, steps, lights etc providing e dissimilar metals needed to complete e
circuit.
Whilst ese small voltages are rarely a safety reat, ey can create premature
failure rough corrosion. Not dissimilar to corrosion rough oxidation, electrolytic
corrosion can cause complete failure of a metallic material in a very short period
of time.
In order to prevent is type of corrosion all metallic components in contact wi
swimming pool water should be bonded togeer using 10mm² bonding cable.
This includes non-electrical items such as metal filters, pump strainer boxes,
heat exchangers, steps and handrails. It is highly recommended at bonding be
retrofitted to existing pools, which may not be protected by is system.
12 SD638152 ISSUE 4
PPT16/22 BHC & PPT16BMCY OWNER INSTALLATION MANUAL

4.1 ELECTRICAL (MACHINE WIRING AND SUPPLY)
All electrical work to be carried out in accordance wi l.E.E. standards, latest
issue, or local codes of practice as applicable.
The machine should be installed in line wi EMC2004/108/EC.
Protected supply to incorporate fuses or motor type circuit breakers (Type C)
to specified rating, (see Data Sheet). H.R.C. fuses are recommended. An isolator
which disconnects all poles must be fitted wiin 2m and in sight of machine.†
All units must be correctly eared-grounded. An ear leakage trip of e
Current operating type (30mA) is recommended to be fitted to all pool electrics.
INCONSISTENT ELECTRICAL SUPPLY
The following limits of operation must not be exceeded if Danerm Ltd.
machines are to be guaranteed eier in performance or warranty terms:
This voltage must be made available at e heat pump while running.
† Note e Isolator must have a minimum of 3mm air gap when turned
off.
NOTE: The heat pumps are fitted wi a phase protection relay and will not
run if e phases are not connected in e correct order (phase sequence) or if
e supply voltage is 15% less an e nominal voltage (415V for 3N~ 50Hz).
The lamp on e phase rotation relay (situated in e electric box) is illuminated
when e phases are correctly connected and e voltage is sucient.
IMPORTANT
The user should be made aware at THE WHOLE installation should be
isolated when working on ANY PART.
MINIMUM MAXIMUM
Voltage ree phase 360V 440V
Frequency Hz 47.5 52.5
13
SD6381652 ISSUE 4

4.2 LOCATION OF MAINS INPUT AND EXTERNAL INTERLOCK TERMINALS
THREE PHASE 400V ~3N 50Hz
MAKE MAINS IN EARTH
CONNECTION HERE
CABLE ENTRY
POINT
ELEC. BOX EARTH STUD
CONTROLLER
MANAGEMENT
ENERGY
INTERLOCK
SWITCH
FLOW
WATER
6
5
N
L3
L2
L1
10
8
7
9
FAN L
COIL
VALVE
SOLENOID
COIL
VALVE
REVERSING
FAN N
15
16
18
20
19
17
12
11
14
13
CONTROLLER
MANAGEMENT
ENERGY
INTERLOCK
SWITCH
FLOW
WATER
N
L3
L2
L1
6
5
10
8
7
9
MAINS IN
LIFT COVER OFF
ELECTRIC
BOX
STAT
LOOSEN CAPTIVE
SCREWS (2)
AT THIS END
BRACKET RIVETTED TO COVER
AT THIS END FITS THROUGH
SLOT IN PANEL
TO REMOVE INNER COVER
FROM TOP OF
ELECTRIC BOX UNDO THE 2
SCREWS AND SLIDE
BACKWARDS TO DISENGAGE
TABS.
CHECK THAT THE
CONNECTORS IN THE BACK
OF THE DIGITAL
THERMOSTAT ARE SECURE.
(SEE SECTION 5.1)
14 SD638152 ISSUE 4
PPT16/22 BHC & PPT16BMCY OWNER INSTALLATION MANUAL

4.3 ENERGY MANAGEMENT CONTROLLER
The use of a Calorex Energy management controller can enable great
savings in e running costs of your pool heating system by allowing e
circulating pump to run only at times preferred by e customer, for example
during e Economy 7 period.
A pair of terminals (9 and 10 in e heat pump electric box) are connected
between e heat pump and e Energy management controller.
CUSTOMERS EXTERNAL
PUMP/FILTER TIME CLOCK
N
L
CALOREX HEAT PUMP.
EXTERNAL COMPONENTS TO
BE WIRED TO TERMINAL
BLOCK LOCATED INSIDE
MACHINE ELECTRIC BOX.
9
10
POOL PUMP
STARTER
MAX RATING 3A
½ HP AT 250V
15
SD6381652 ISSUE 4

5.0 DIGITAL THERMOSTAT
An adjustable 2 stage digital ermostat controls and maintains e water
temperature.
Press e P key to display required temperature. To alter required temperature
press e up or down keys. Press P to store e desired setting. Aer 5 seconds
e display reverts to actual water temperature.down keys. Press P to store e
desired setting. Aer 5 seconds e display reverts to actual water temperature.
5.1 CONSOLE LAMPS
RED MAINS LAMP
MAINS SWITCH
AMBER FAULT LAMP
CLEAR DEFROST/
CHILL LIMIT LAMP
RED
IO
AMBER
CLEAR
!
NOT USED
SET POINT AND
PARAMETER
PROGRAMMING BUTTON
INCREASE VALUES
DECREASE VALUES
Out
U
P
TLZ 11
AL
AMBER
RED
CLEAR
IO
CHILL LIMIT RESET.
PRESS RED BUTTON TO
RESET, USE A SCREW
DRIVER OR SIMILAR TOOL.
16 SD638152 ISSUE 4
PPT16/22 BHC & PPT16BMCY OWNER INSTALLATION MANUAL

6.0 CIRCUIT DIAGRAMS
PPT16/22 BHC THREE PHASE 400V~3N 50HZ
(CHILL LIMIT FAULT)
DEFROST LIGHT
U1 U2
TERM'L
BLOCK
11
TERM'L
BLOCK
12
8 (N/O)
(COM) 7
(COM) 6 4 (N/C)
1
2
10 11
2
SENSOR
POOL STAT
MAINS LIGHT
INTERLOCK
TERMINALS
SMART CLOCK
FEED TERMINALS
NEUTRAL
SOFT START
THERMAL
OVERLOAD &
FAULT LIGHT
L3
CRANKCASE
5
6
9
10
N
L
FAN
HEATER
DELAY TIMER
FAULT LIGHT
L2
PHASE ROTATION RELAY
L3
L2
L1
CONTROL FUSES
3A
3A
FAN FUSE
L1
12 (N/C)
11 (COM)
MAINS SWITCH
14 (N/O) 1
(N/O) 3
C (COM)
H (N/C)(N/O) L
C (COM)
H (N/O)(N/C) L
LP SWITCH
BREAKS TO 'H' ON
PRESSURE FALLING
A
B
6 (N/O)
3 (N/C)
(COM) 9
4 (N/O)
1 (N/C)
(COM) 7
RELAY 2
POOL/WATER
2 STAGE STAT
(SHOWN IN HEAT
MODE)
A
B
RELAY 1
1 (N/C)
4 (N/O) 7 (COM)
REVERSING VALVE
C (COM)
H
(N/O)
L (N/C)
CHILL LIMIT SWITCH
BREAKS TO 'H' ON FALLING
PRESSURE OR
TEMPERATURE
C (COM)
H (N/O)(N/C) L
DEFROST
STAT
SHUT OFF VALVE
5
3
1
6 (N/O)
4 (N/O)
2 (N/O)
CONTACTOR
A2 A1
SOFT START
U
V
W
COMPRESSOR
7
8
13
14
FLOW SWITCH
3A
MODEL
PPT16BHC 3A
FUSE RATINGS
FAN FUSE CONTROL FUSES
3APPT22BHC 3A
HP SWITCH
BREAKS TO 'L' ON
PRESSURE RISING
3 (N/C)
6 (N/O)
9 (COM)
17
SD6381652 ISSUE 4

PPT16 BMCY THREE PHASE 400V~3N 50HZ
8 (N/O)
(COM) 7
(COM) 6 4 (N/C)
1
210 11
2
SENSOR
POOL STAT
MAINS LIGHT
HP
SWITCH
BREAKS TO 'L' ON
INTERLOCK
TERMINALS
SMART CLOCK
NEUTRAL
SOFT START
THERMAL
OVERLOAD
& FAULT
LIGHT
L3
CRANKCASE
FEED TERMINALS
5
6
9
10
N
L
FAN
HEATER
DELAY TIMER
FA U LT
LIGHT
L2
PHASE ROTATION RELAY
L3
L2
L1
CONTROL FUSES
3A
3A
FAN
FUSE
PRESSURE RISING
L1
12 (N/C)
11 (COM)
MAINS SWITCH
14 (N/O) 1
(N/O) 3
C (COM)
H (N/C)(N/O) L
C (COM)
H (N/O)(N/C) L
LP SWITCH
BREAKS TO 'H' ON
PRESSURE FALLING
A
B
6 (N/O) 3 (N/C)
(COM) 9
5 (N/O) 2 (N/C)
(COM) 8
RELAY 2
POOL/WATER
2 STAGE STAT
(SHOWN IN HEAT MODE)
A
B
1 (N/C) 4 (N/O)
7
3 6
9
REVERSING VALVE
C (COM)
H (N/O)
L (N/C)
CHILL LIMIT SWITCH BREAKS
TO 'H' ON PRESSURE/
TEMPERATURE FALLING
5
3
1
6 (N/O)
4 (N/O)
2 (N/O)
CONTACTOR
A2 A1
SOFT
START
U
V
W
COMPRESSOR
(CHILL LIMIT FAULT)
DEFROST LIGHT
U1 U2
TERM
BLK 11
TERM
BLK 12
4 (N/O) 1 (N/C)
(COM) 7
2 (N/C) 5 (N/O)
8
53 54 (N/O)
21 22 (N/C)
63 64 (N/O)
1234
DEFROST STAT
7
8
13
14
FLOW SWITCH
71 (N/C)
RELAY 3
NEUTRAL A
B
69
RELAY 3
RELAY 1
FUSE RATINGS
3A
MODEL
PPT16BMCY 3A
FAN FUSE CONTROL FUSES
18 SD638152 ISSUE 4
PPT16/22 BHC & PPT16BMCY OWNER INSTALLATION MANUAL

7.0 REGULAR PLANNED MAINTENANCE
Operations to be carried out during a regular planned maintenance visit are as
follows:
1) Clean e evaporator. (This action may be required more frequently an
regular servicing).
2) Check operation of fan and compressor.
3) Check capacitor tolerances-where fitted.
4) Check condition of all heat exchangers/evaporators.
5) Check refrigeration system parameters.
6) Check operation of control valves.
7) Check for water leaks.
8) Check driptray and internal drain lines for blockages and flush rough if
necessary.
9) Check operation of controls and calibrate if necessary.
10) Check operation of interlocks in use.
11) Final check of overall operation of unit
12) Indicate on Service report any faults found or causes for concern.
13) Recommended servicing frequency: one visit per year.
19
SD6381652 ISSUE 4

8.0 HEAT PUMP MALFUNCTION
WARNING: Isolate heat pump electrically before entering heat pump
or removing panels.
The user check list should be carried out before initiating a service call.
Do not attempt to interfere wi any internal control settings as ese have
been factory calibrated and sealed.
Any sign of abnormal operation such as water dripping should be reported
immediately to e installer.
If in doubt or if advice is required contact e Danerm Group UK Service
Department.
Telephone [phone]
8.1 USER CHECK LIST
Errors associated wi e digital ermostat
LAMP ACTION
UNIT DOES NOT OPERATE
MAINS RED OFF
Check mains supply - external fuses - isolator
FAU LT AMBER OFF
DEFROST/
CHILL LIMIT CLEAR OFF
MAINS RED ON Check unit ON/OFF.
FAU LT AMBER OFF
DEFROST/
CHILL LIMIT CLEAR OFF
Check ermostat is calling for heating or cooling. Wait 6 minutes, fan and compressor should run. If not,
check any external equipment in Interlock circuit is not preventing e machine from starting. Check internal
control fuses.
MAINS RED ON Check water and air flows are not restricted.
FAU LT AMBER ON Check ermal cut out on So Start if fitted.
DEFROST/
CHILL LIMIT CLEAR OFF Check flow rate is adequate. Check Chill limit cut out switch and reset. Check water pump etc. to restore
water flow rough machine.
LAMP FAN ON COMPRESSOR OFF
MAINS RED ON Unit on defrost (heating mode) check air temperature is not below 7°C.
(-15ºC for a BMCY). Check chill limit cut out switch and reset.
FAU LT AMBER OFF
DEFROST/
CHILL LIMIT
CLEAR ON Unit off on chill limit (cooling mode).
LAMP UNIT OPERATES INTERMITTENTLY
MAINS RED ON Check water and air flows are not restricted
FAU LT AMBER ON/OFF and at electrical supply is adequate.
DEFROST/
CHILL LIMIT
CLEAR OFF
SYMBOL DESCRIPTION LAMP ON ACTION
E1-E1/E2-E2 Probe error Probe interrupted, short circuit or outside range. Check connection between probes and
ermostat.
EPr Probe error Internal EEPROM memory error. Switch off heat pump at mains supply for five
minutes en switch back on. If fault persists
contact installer.
20 SD638152 ISSUE 4
PPT16/22 BHC & PPT16BMCY OWNER INSTALLATION MANUAL
