INTRODUCTION
Thanks for choosing the BassCube 821
subwoofer/amplifier. It features a high-performance
woofer, precision internal crossover and amplifier cir-
cuitry and an elegant enclosure design.
The amplifier provides ample power to drive any
4 or 8 ohm satellite, bookshelf, or surround speakers
to room-filling levels.
The Product Development Team at Cambridge
SoundWorks believes there is no better combination of
audiophile-level attention to detail and reasonable cost.
Inspecting For Damage
Examine the speaker system carefully for shipping
damage. If there is any, do not install or use the sys-
tem. Return the speaker to the store where you made
the purchase or call Cambridge SoundWorks at
1-800 FOR-HIFI (1-800-367-4434) for assistance.
After Unpacking
Store the shipping carton and packing material for
future transport needs.
QUICK SETUP
If you have connected amplified subwoofer/satellite
systems before, the Connection Diagram on pages 6-7
may be all you need to get set up and operating.

5
CARTON CONTENTS
A) One Subwoofer/Amplifier Loudspeaker
B) AC Cord
C) Volume Control
D) Hook and Loop fastener (for volume control, if desired)
Both signal cables (listed below) are 2-meters long.
E) Stereo Signal Cable, Red and White RCA Plugs
to Green Miniplug
Plugs into LINE IN A or LINE IN B
Connect to any analog sound source with dual RCA
stereo output jacks.
F) Stereo Signal Cable, Green Miniplug
to Green Miniplug
Plugs into LINE IN A or LINE IN B
Connect to any analog sound source with a stereo
output jack, like Cambridge SoundWorks MusicWorks™,
a portable CD player, or a computer sound card.
A
B
E
C
F
To Signal Source
Signal Cables
To BassCube
D

666

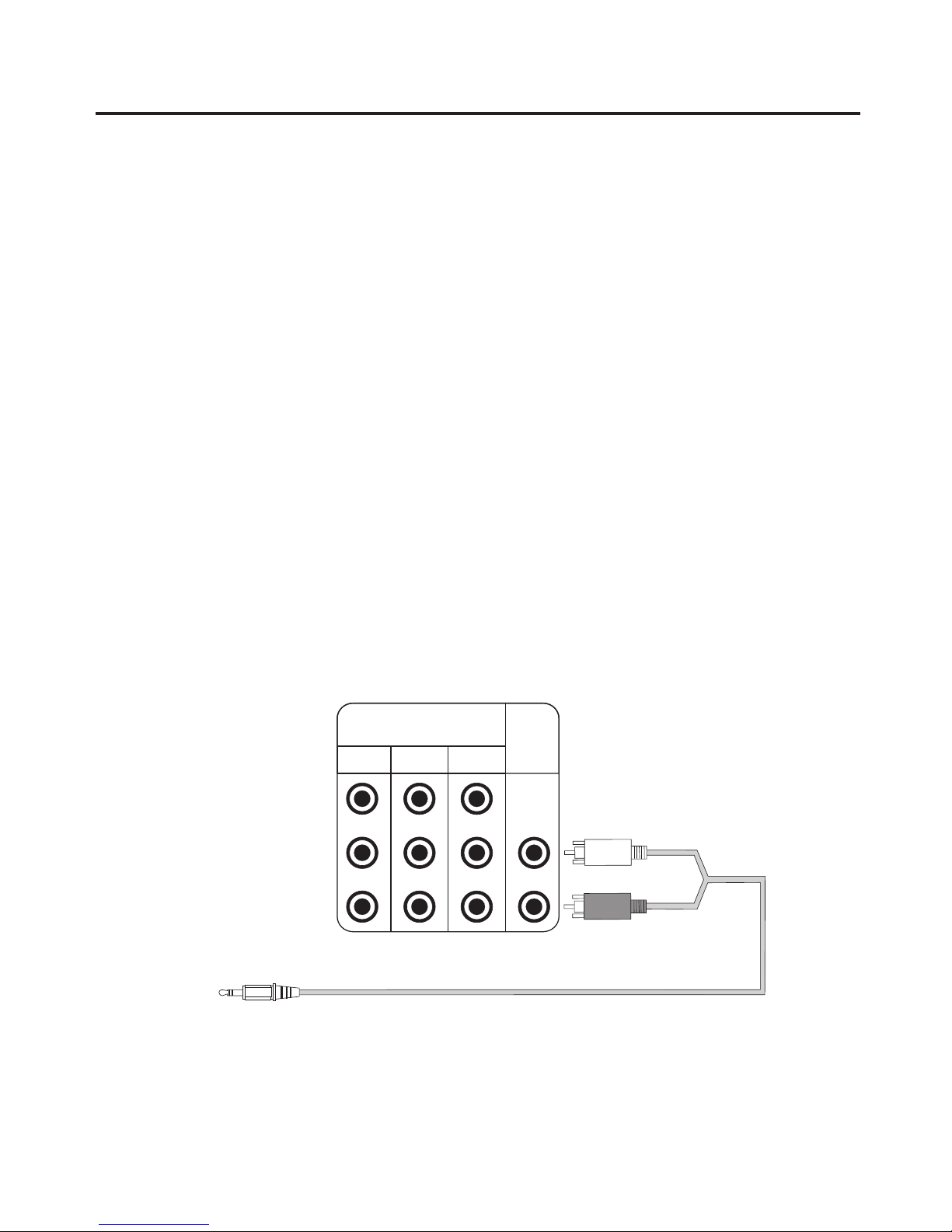

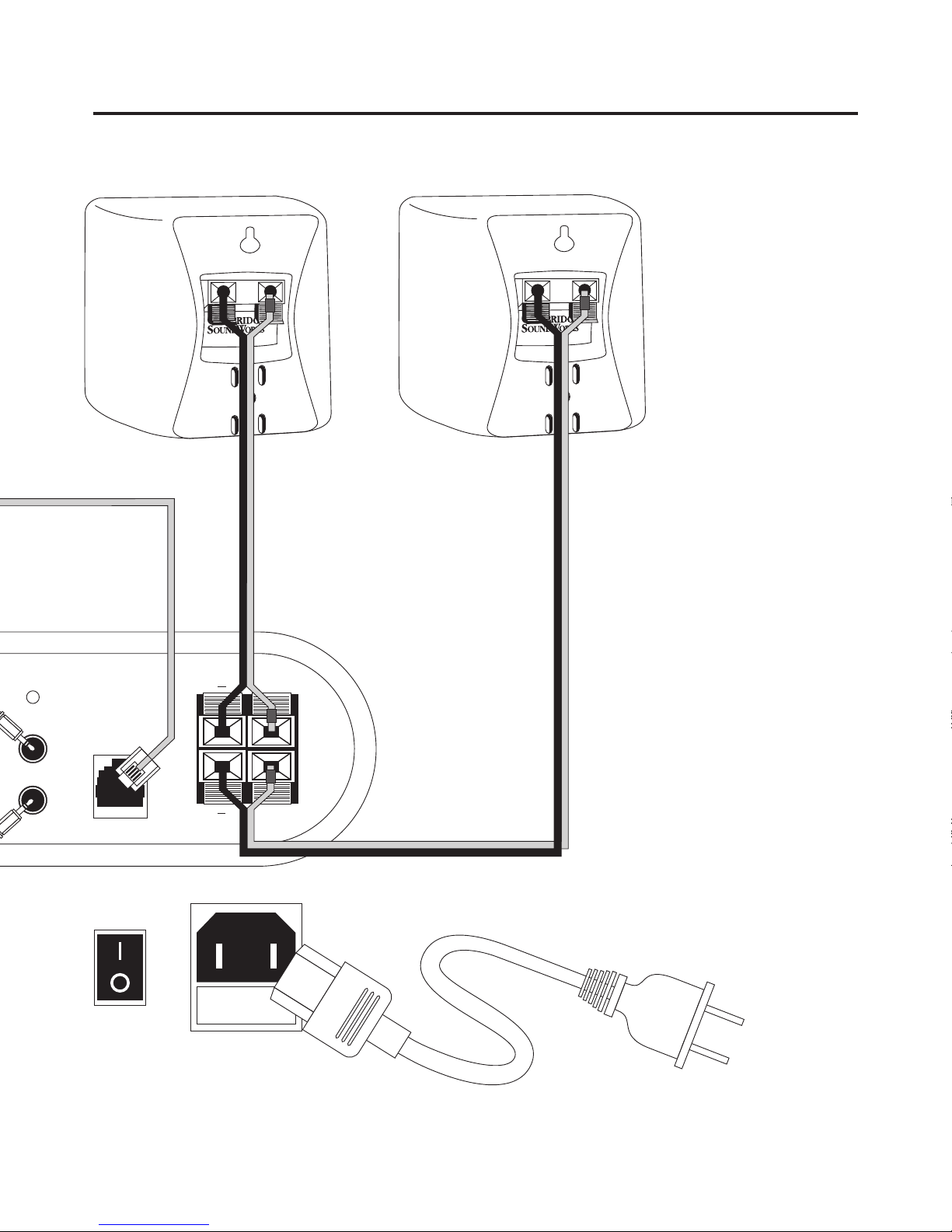

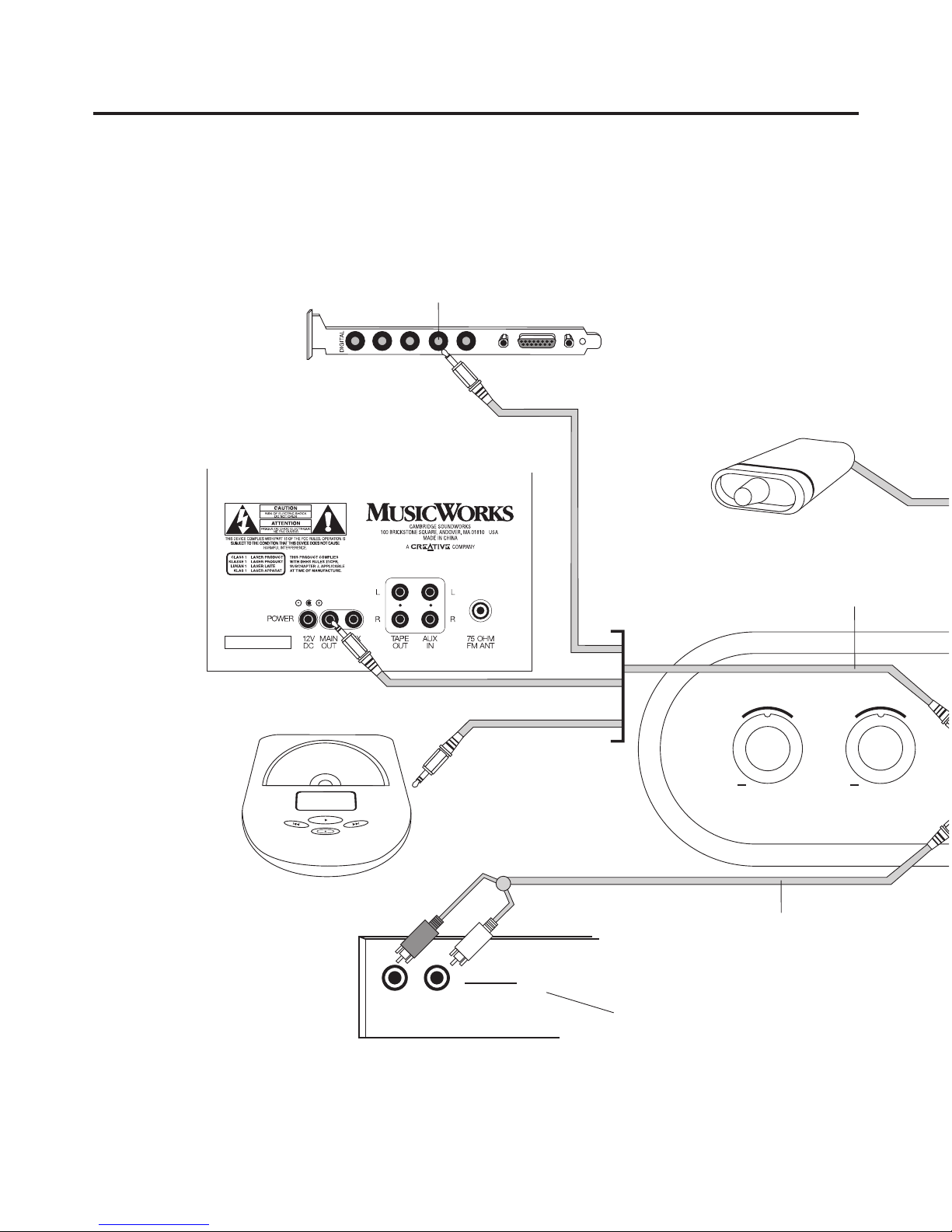

CONNECTION DIAGRAM
+
BASS TREBLE
PO
+
Green plug –to astereo minijack analog out
(MusicWorks, sound card, portable CDplay
LINEOUT
RIGHTLEFT
OUTPUTS
Dual RCA to Minijack –to typical home audio source
or TV ouput
Home Audio source,
DVDPlayer, etc.
IFAnalog Signal Cable
E

7
POWER
120VAC 60Hz
RISK OFFIRE
REPLACEFUSE
ASMARKED
OWER/STANDBYSPEAKERS
LINEIN
A
B
VOLUMECONTROL
L
R
+
+
tput
yer)

888
POSITIONING YOUR SPEAKERS
SUBWOOFER/AMPLIFIER

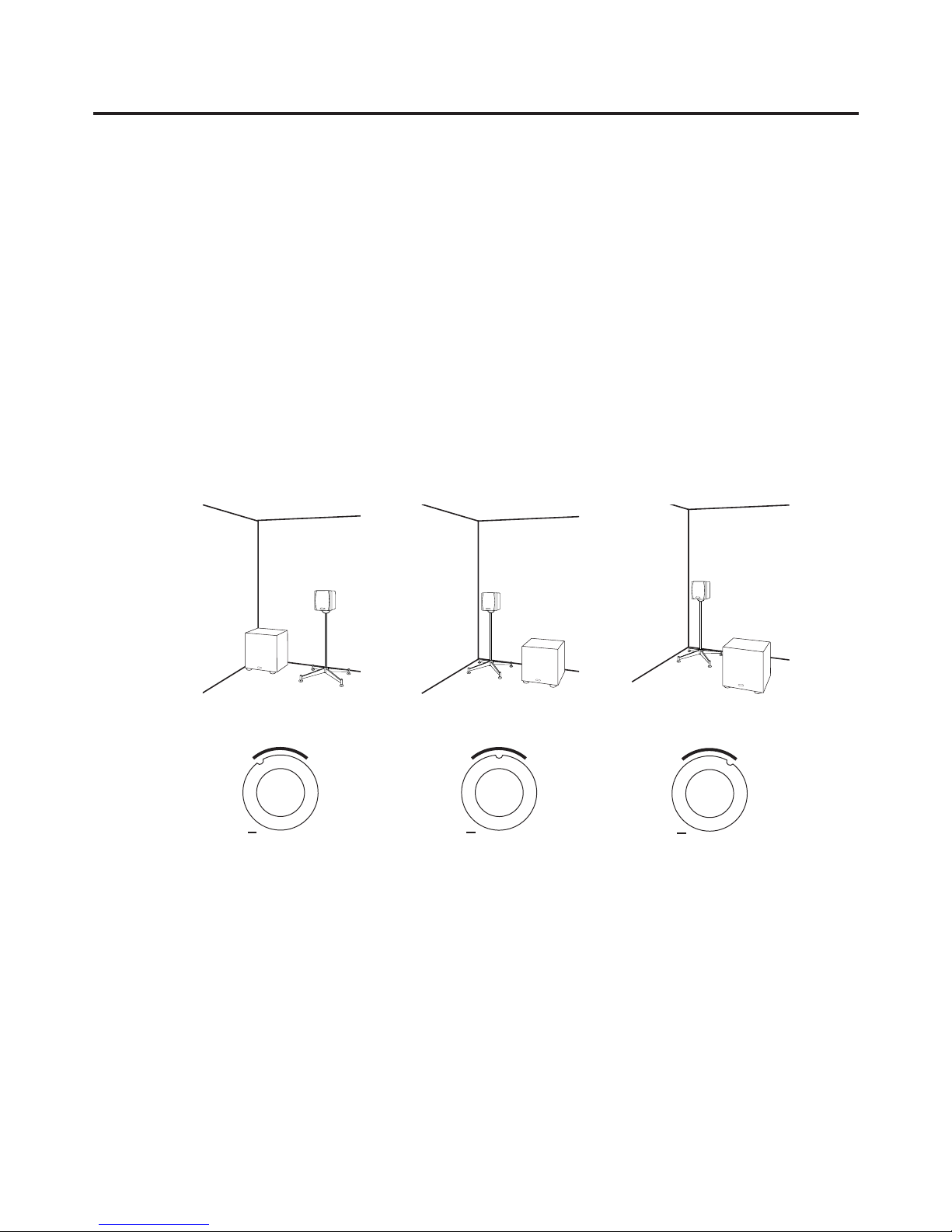

Place the Subwoofer cabinet on the floor, preferably
near a wall. Do not place it on a desktop or shelf.
For maximum bass output, place the subwoofer
near a corner. If the subwoofer is placed away from
the intersection of two room surfaces, the maximum
bass output will be reduced.
Use the Bass Level control to adjust the bass output to
your desired balance. Recommended Bass control
settings for each type of location are shown.
Because all satellite speakers will have different sensi-
tivity, final adjustment should be done by ear even if
the settings do not agree with those shown here.
SATELLITES
Refer to the instructions that came with your
satellite speakers.
+
BASS
+
BASS
+
BASS
Maximum Bass Output Moderate Bass Output Least Bass Output
Suggested
Bass Control
Compensation

+
BASS TREBLE
POWER/STANDBYSPEAKERS
LINEIN
A
B
VOLUMECONTROL
L
R
+
+
+
CONNECTIONS
Volume Control
It is not necessary to connect the Volume Control if your
audio signal source provides an output level adjustment.
The volume control allows use with a source that do not
have volume control, or where the source’s volume con-
trol is inconvenient.
A) If you are using the ST50 Desktop Stand with
Newton Series MC50 or MC100 speakers, slide the
Volume Control onto the support strut on one
of the stands.
If you are not using the ST50 Desktop Stands, we
have included a piece of hook and loop fastner
material so that you may attach the control to any
convenient surface.
B) Insert the Volume Control’s plug into the jack
marked VOLUME CONTROL on the Subwoofer
input panel until it snaps in place.
Signal Connections
The BassCube 821 has two analog inputs.
C) LINE IN A: Connect the 3.5 mm minijack output of
any analog signal source to this 3.5 mm stereo
minijack input.
LINE IN B is a second audio input that blends
with LINE IN A. Connect a second audio source
program here. For a source with a 3.5 mm minijack
output (like a headphone jack or line out jack on a
portable CD player), use a 2-meter signal cable
with a 3.5 mm miniplug at each end. Other sources
may need a cable with a 3.5 mm miniplug and two
RCA plugs or a 3.5 mm stereo miniplug and
3.5 mm stereo minijack.
A
B
C
Line Inputs
Newton Series ST50 Desktop Stand –
recommended for MC50
and MC100 satellites
(optional)
9999

Other Connection Situations
1) Using the BassCube 821 system as a high perform-
ance stereo television sound system.
a) A stereo television with audio signal output typically
has two RCA-type jacks (one red, one white). To
connect to these jacks, use the cable with two RCA
plugs at one end and a 3.5 mm stereo miniplug at
the other end (included). Connect the miniplug to
LINE IN A of the BassCube 821 and the RCA plugs
to your television’s red and white RCA jacks. (Do
not connect to yellow RCA jacks. These are for
video signals.)
b) Some stereo televisions offer a choice of fixed or
variable audio output level. Choose the variable out-
put. The fixed output level bypasses the television’s
remote volume control.
c) Turn off your television’s internal speakers. This
control could be located on the front or back
control panels of your television, or it may be an
“on-screen” menu selection.
VIDEO IN
12 3
AUDIO
OUT
(VARIABLE)
VIDEO
AUDIO
L
(MONO)
R
d) If your television has a variable audio output, you
may not need to connect the BassCube 821’s
volume control. The television’s remote control will
adjust the volume level.
You will need to connect the BassCube 821
volume control if either of these situations occurs:
* Noise is heard even at the television’s minimum
volume setting. In this case, connect the volume
control and set it low enough to make the noise
inaudible, then stow the volume control next to the
subwoofer.
* You find the BassCube 821 is too “sensitive.” For
instance, if the output level is too loud when the
television “volume” setting is below 30%. Connect
the volume control and reduce it’s setting to
increase your television’s volume range. Then stow
the volume control next to the subwoofer.
Signal Cable
One 3.5 mm stereo miniplug to two RCA plugs
To BassCube 821
LINE IN A or LINE IN B
10101010

11
2) Using the BassCube 821 system as a sound system
for a component CD player.
Typically, there are two RCA-type jacks (one red,
one white) on the CD player. To connect to these
jacks, use the stereo signal cable with two RCA
plugs on one end and a 3.5 mm stereo miniplug at
the other end. Connect the miniplug to LINE IN A of
the BassCube 821 and the RCA plugs to your
CD player’s red and white RCA jacks.
RIGHT LEFT
OUTPUTS
Signal Cable
One 3.5 mm stereo miniplug to two RCA plugs
COMPONENT CD OUTPUT

12
Speaker Connections
To connect the speaker cables.
The BassCube 821 will accept your choice of speaker
wire up to AWG#16. We recommend at least AWG#18
for runs up to 12 feet, and AWG#16 for longer runs.
Speaker wire is generally marked in some way to help
identify the “+” and “–” conductors at each end.
Sometimes this is done by printing on the jacket, a rib-
bon stripe molded in, or different color wires. Be cer-
tain to maintain the proper polarity at each connection.
Push back the red speaker output tab on the rear
panel “R” speaker output exposing the wire hole.
Fully insert one of the wires into the wire hole and
release the tab.
Repeat the procedure with the adjacent speaker wire
and the black speaker output tab for the Right channel.
Connect the two wires at the other end of that same
speaker cable to the “+” and “–” connections on the
right-hand satellite speaker. This satellite becomes the
Right channel satellite. Use the same wire for “+” at
both ends.
Repeat the preceding process to connect the other
satellite (making it the Left channel satellite).
POWER
120VAC 60Hz
RISK OF FIRE
REPLACE FUSE
AS MARKED
AC Connection and Placement
Make sure the subwoofer Power switch is in the OFF
position (O).
Plug the supplied power cable first into the subwoofer
back panel AC socket. Then connect it to an AC
power socket.
Place the satellites and subwoofer in their preferred
positions, then switch the Power swith to the ON (I)
position.

OPERATION AND FINAL ADJUSTMENT
1) Use the Volume Control or the signal source control
to vary output level.
2) Defeat or cancel any “tone control” or other sound
adjustments within your audio program source.
Portable CD players may have “bass boost” switch-
es and many computer sound programs have
audio adjustments concealed in drop-down menus.
3) If possible, play a variety of musical CDs with good
deep bass content to judge the best setting of the
Bass and Treble controls.
Auto Standby Mode
When audio signal is absent for 30 seconds or more,
the BassCube 821 amplifier is muted and goes into
Standby Mode. When the signal returns, the amplifier
will unmute. It is normal for the BassCube 821 to
remain slightly warm when in Standby Mode. It may
be left in Standby Mode indefinitely.
Cleaning
The painted surfaces of the satellites and subwoofers
should be wiped with a cloth or brushed clean.
TREBLE
+
+
BASS
13131313

IMPORTANT:Turn offand unplug the
speaker before changingthe fuse.
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
SPECIFICATIONS FUSE REPLACEMENT
Analog Input:
775 millivolts for full output
10 kohms input impedance
Amplifiers:
Satellite: 60 watts continuous at 1 kHz, two channels
driven at less than .1% total harmonic distortion.
Subwoofer: 150 watts continuous at 100 Hz, one chan-
nel driven at less than .3% total harmonic distortion.
System Frequency response:
Satellite: 150 Hz to 20 kHz, +/- 3 dB
Subwoofer: 32 Hz to 150 Hz +/- 3 dB
Drivers:
Nominal 8 inch subwoofer driver
AC Voltage:
120VAC, 60Hz
Dimensions (H x W x D) and Weights
Subwoofer
11 1/8" x 10" x 10"
263mm x 255mm x 255mm
14 pounds, 8 ounces
6.6 kg
Fuse Replacement
The fuse holder is located in the power connector
at the base of each speaker. The fuse is a 2.5A
MDL type.
To replace the fuse:
1. Unplug the AC cord from the AC power source,
then remove the AC power cord from the speaker’s
power connector.
2. Remove the fuse cap with a small, flat blade screw-
driver (see diagram 2).
3. Remove the fuse from the fuse cap
(see diagram 3).
4. Replace the fuse inside fuse cap with another met-
ric 5X20mm size fuse (see diagram 4).
5. Replace the fuse and cap in the power connector
(see diagram 5).
6. Connect the AC power cord to the speaker.
7. Connect the power cord to an AC power outlet.
2. 3.
5.4.
14141414

15

P81-1910
CAMBRIDGE SOUNDWORKS, INC.
26 Dartmouth Street, Westwood, MA 02090
Telephone: [phone]
Fax: [phone]
A Company
