Campmaster CM21X2AV User manual

Important. Read these instructions for
use carefully. Familiarise yourself with the
appliance before connecting it to its gas
cartridge. Keep these instructions for future
reference.
FOR OUTDOOR USE ONLY.
Before Assembly
1. Remove all packaging prior to assembly.
2. Ensure the control is turned OFF.
3. Check the O-ring seal is in place and in
good condition.
4. Check there are no obstructions around the
burner and aeration holes.
5. Check for gas in the gas cartridge by shaking
it before connecting it to the stove.
Assembly
1. Ensuring the gas cartridge is kept upright,
attach the stove by carefully screwing it to
the gas cartridge. Be sure not to cross thread
the stove and gas cartridge.
2. Secure the stove hand tight only, do not
over tighten.
3. Check for leaks by applying a soapy water
solution to the connection. A stream of
bubbles indicates a leak which must be
stopped before lighting and using the stove.
4. Before resting a pot or pan on the stove,
ensure the pot support s are folded out. leg
Operating
1. Open the control valve (turning
anticlockwise) one full turn.
2. Repeatedly press the piezo push button
until the stove ignites. If the push button is
not working a lit match may be used.
3. If the stove does not light within 5 seconds,
turn the control to OFF and leave for 5
minutes before retrying.
4. Once alight the desired heat output can be
obtained by adjusting the control as
required.
5. Ensure the pot/pan is positioned centrally
on the stove. Offsetting the pot/pan may
result in tipping hazard.
Disassembly
1. After use allow the stove to cool before
moving or handling.
2. When cool, to disconnect the stove from the
gas cartridge, hold the gas cartridge firmly,
turn the stove in an anticlockwise direction
until the stove separates from the gas
cartridge.
3. When the stove separates from the gas
cartridge a small amount of gas may
escape. If the escaping gas does not stop
immediately, quickly reattach the stove.
4. Store the stove in the carry bag provided.
Safety Information
1. ONLY use outdoors in a well ventilated area.
2. ONLY use on a horizontal surface.
3. DO NOT use this appliance if it is leaking,
damaged, or does not operate properly.
4. DO NOT light or use indoors.
5. DO NOT obstruct the flow of gases into or
out of the stove.
6. DO check for leaks BEFORE operating. If
you smell gas, hear a hissing sound while
the control is OFF, or see a stream of bubbles
while leak testing with soapy water,
DO NOT USE THE STOVE.
7. DO NOT put your head, or any part of your
body above the stove while it is operating.
8. This appliance shall be used away from
flammable materials.
9. DO NOT bring combustible materials within
300mm of the sides or 1200mm above the
stove while it is operating.
10. DO NOT disconnect the stove from the gas
cartridge while it is operating, warm from
recent use or near any naked flame or
ignition sources.
11. To isolate the gas supply in the event of a
leak (smell of gas) prior to lighting, unscrew
the gas cartridge.
12. DO NOT leave the stove unattended while it
is operating.
13. DO NOT allow children to light or use the
stove. ALWAYS supervise children whilst
they are in the vicinity of the stove.
14. DO NOT use, assemble or disassemble the
stove in any other way than that described
within these instructions.
15. DO NOT use a vessel of greater than mm200
diameter on this appliance.
16. DO NOT modify this appliance.
17. DO NOT move the stove whilst in use or
immediately after use. Allow it to cool down
before moving.
18. DO NOT offset the pot/pan during use. The
pot/pan must remain centrally located on
the stove during use.
CAUTION - DO NOT block the combustion air
inlet. These air holes must remain open
and clear for safe operation.
Check that seals between the appliance and gas
cartridge are in place and in good condition
before connecting the gas cartridge. Do not use
this appliance if it has worn or damaged seals.

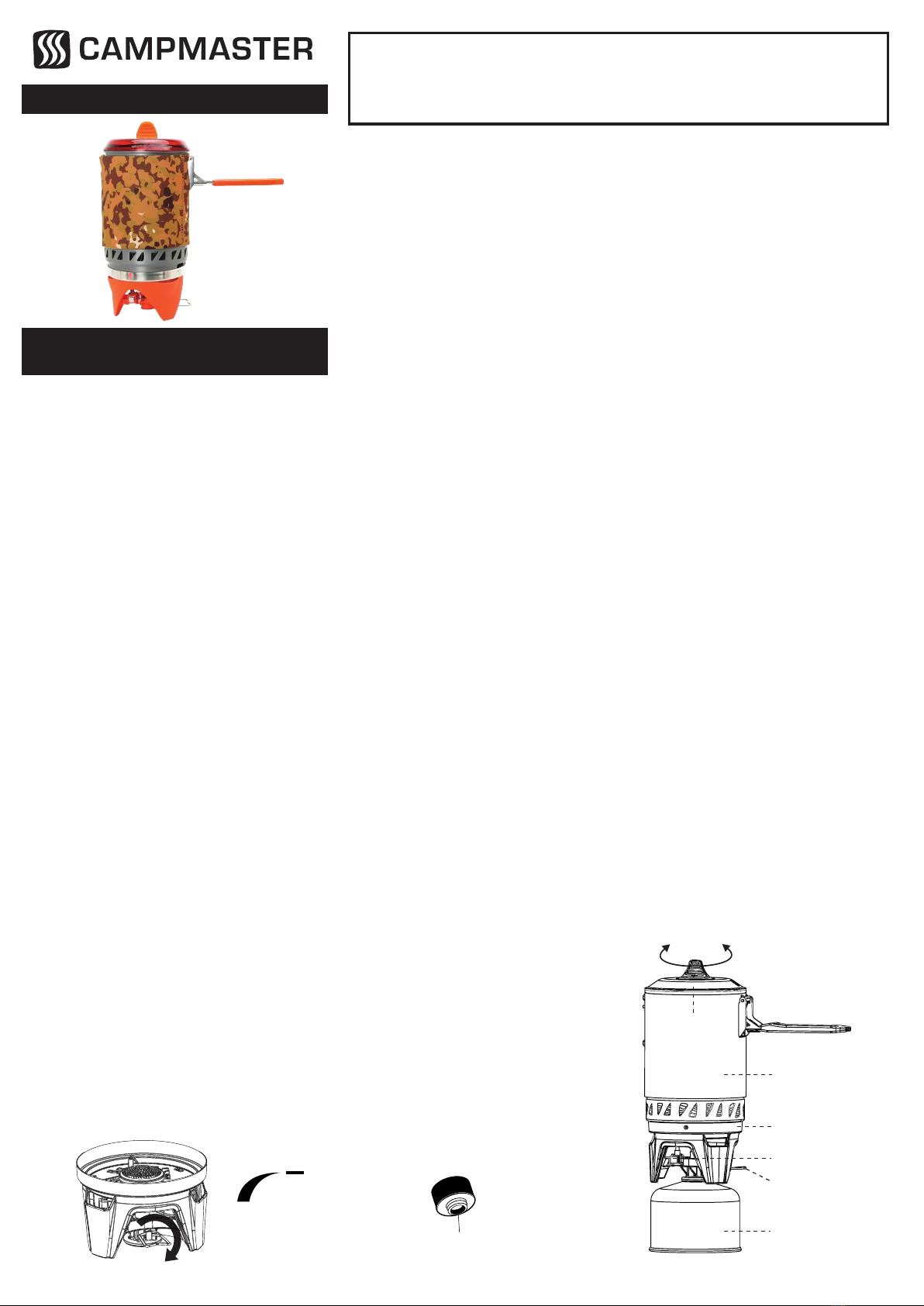

CM21X2AV BUTANE STOVE
USER MANUAL
Open
Close
O-Ring
Control valve
Piezo Push Button
Screw on gas canister
Base
Container
Close
Rotate the container
clockwise to lock the
container onto the base,
and anti-clockwise to
remove the container.
WARNING: This is a premium, high power stove with excellent boiling
performance. Keep the lid on the container at all times and do not over fill the
container to prevent spillage of boiling liquids. Avoid using in extremely windy
conditions or use an additional wind shield to avoid damage to parts.
General Information
Abnormal operation which may require service
can be identified by a gas valve which is difficult
to turn, black soot or an irregular burner
flame which is yellow or unstable.
To ensure maximum life from your appliance it
should always be stored in a dry place, out of
direct sunlight.
The gas cartridge shall be changed in a well-
ventilated location, preferably outside away
from people and any sources of ignition, such
as naked flames, pilot flames, electric heaters or
similar equipment.
Always disconnect the container from the
base before washing the container.
Technical Information
Injector Size : 0.19mm
Gas Consumption : 80 g/h
Gas Type : 74% Butane / 26% Propane
AGA Certification : AGA7614
Model No.: CM21X2AV
This appliance has been certified to comply with
the requirements of the Australian Standard
AS2658 : 2008.
Note: Other than the jet and o-ring, there are no
serviceable parts on this appliance.
Regulatory Information
This appliance shall on be ONLY used with a 230
gram 74% butane / 26% propane mix threaded gas
cartridge certified to EN417.
IT MAY BE HAZARDOUS TO ATTEMPT TO
FIT OTHER TYPES OF GAS CONTAINERS.
ONLY USE IN WELL VENTILATED AREAS. CARBON
MONOXIDE HAZARD—USING THIS APPLIANCE
IN AN ENCLOSED SPACE MAY CAUSE DEATH. DO
NOT USE IN CARAVANS, TENTS, MARINE CRAFT,
CARS, MOBILE HOMES OR SIMILAR LOCATIONS.
If there is a leak from your appliance (smell of
gas and you cannot stop the gas flow, remove
the appliance to a well ventilated location away
from any ignition source. Check for leaks using
soapy water. Do not try to detect leaks using a
flame. This appliance must only be serviced by
an authorised person.
Lid

CM21X2A-20200314
1 YEAR EXPRESS WARRANTY
