Campomatic CP95XB User manual

Freestanding Cooker
CP95XB
INSTRUCTION MANUAL
:
WWW.CAMPOMATIC.COM

2

................................................................................................4
.................................6
........................................................................................7
.....................................................................................................8
...........................................................................................................8
....................................................................8
........................................................................................................9
............................................................10
................................................................10
......................................................................11
........................................................11
............................................................................................11
......................................................................................................12
...........................................12
.............................................12
............................12
..................................................................12
..........................................................................................................13
..........................................................................................15
...........................................................................................15
...................................................................15
..............................................................................................15
.........................................................................................................16
....................................................................................16
...................................................................................................17
.................................................................................................17
...........................................................17
..........................................................................................18
...............................................................................19
...........................................................................................19
......................................................................19
....................................................................................................20
........................................................................................20
............................................................................21
.........................................................21
...........................................................................................21
................................................................................................21
.........................................................................................21
2.INSTRUCTIONS FOR DISPOSAL OUR ENVIRONMENTAL CARE
3.INSTALLING THE APPLIANCE

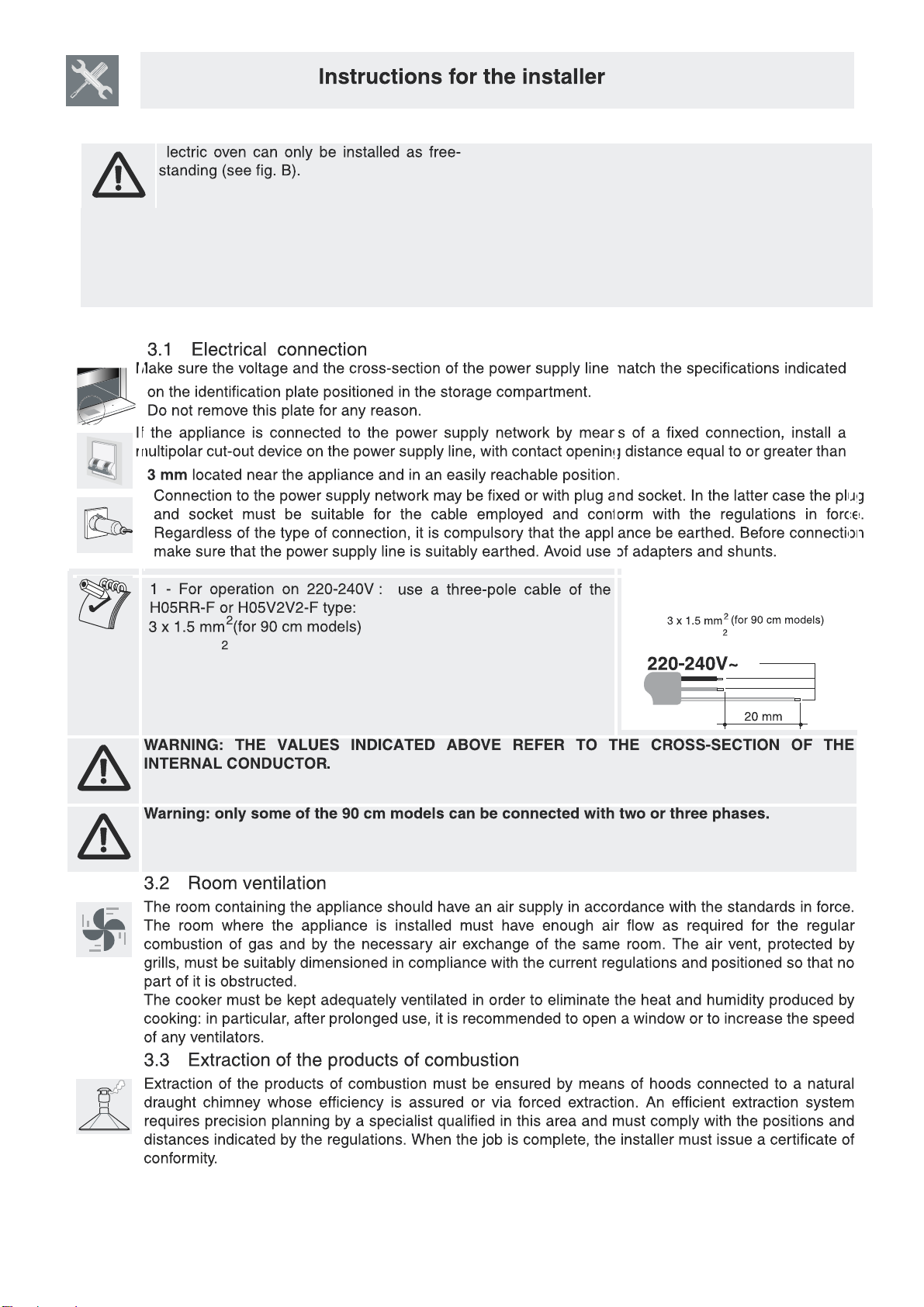

3.1 Electrical connection
3.2 Room ventilation
3.3 Extraction of the products of combustion

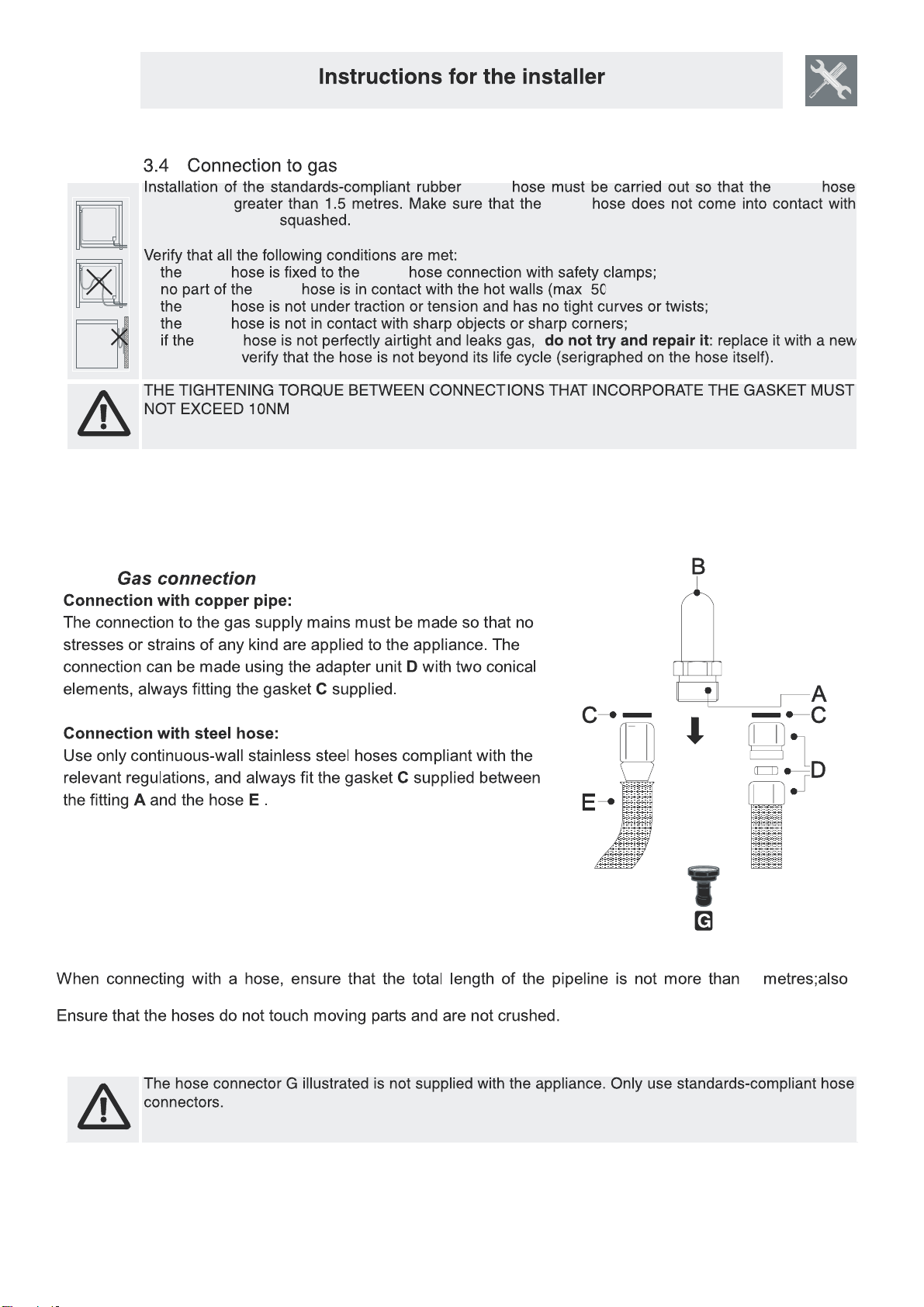

3.4 Connection to gas

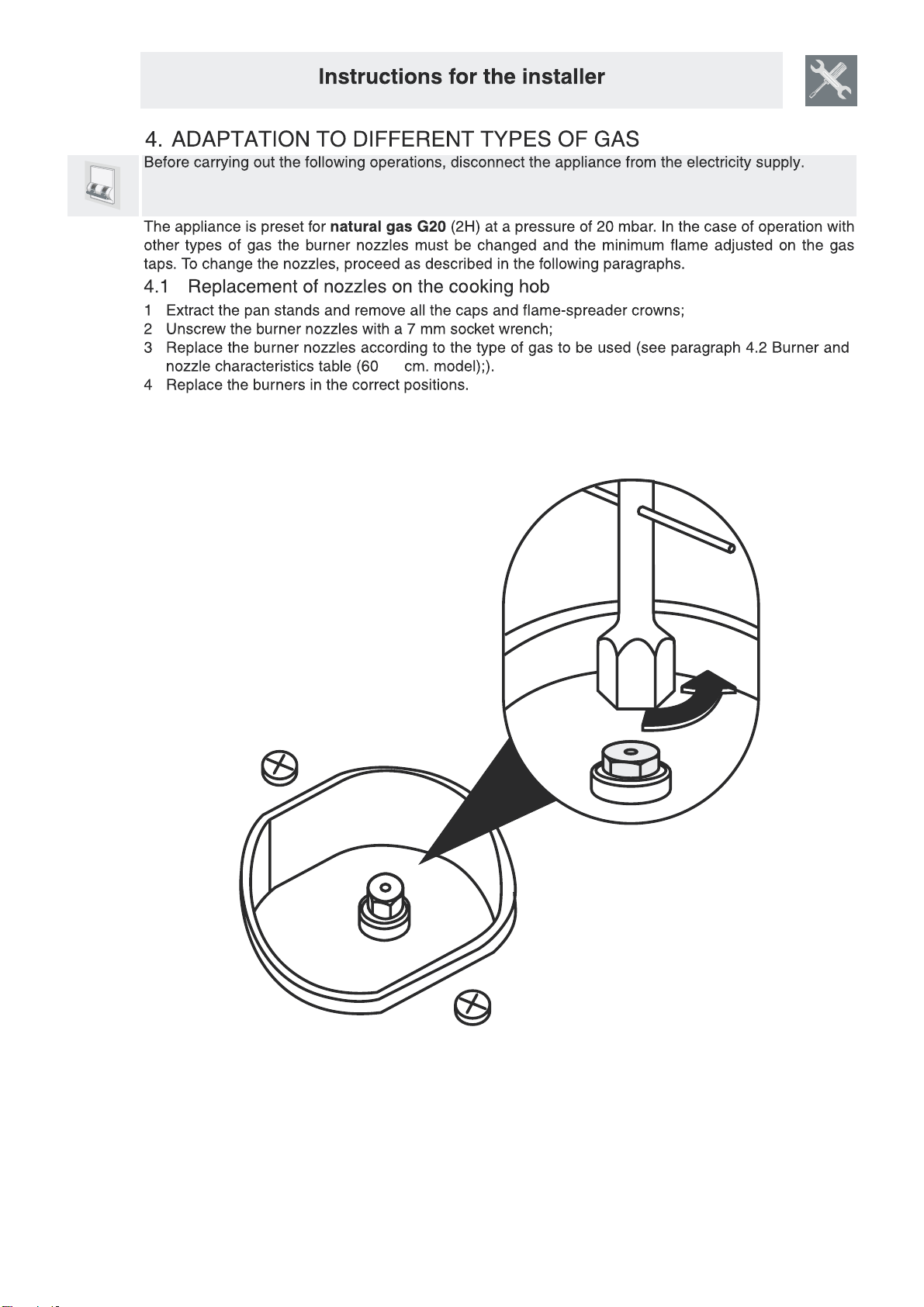

4. ADAPTATION TO DIFFERENT TYPES OF GAS
4.1 Replacement of nozzles on the cooking hob
4.2 burner and nozzle characteristics table
4.4 Oven burner adjustment
4.3 Arrangement of the burners on the cooking hob
5. FINAL OPERATIONS
5.1 Regulation of the hob burners minimum for natural gas
5.2 Regulation of the hob burners minimum for Liquid gas
5.3 Positioning and levelling the appliance (depending on the model)
5.4 Adjustment of the oven burner minimum
6. CONTROL PANEL
7. USING THE COOKING HOB
7.1 Lighting the hob burners
7.2 Practical hints for using the hob burners
7.3 Cooker pan diameters
8. USING THE OVEN
8.1 Warnings and general advice
8.2 Using the gas oven
8.3 Using the electric grill
8.4 Storage compartment (only on some models

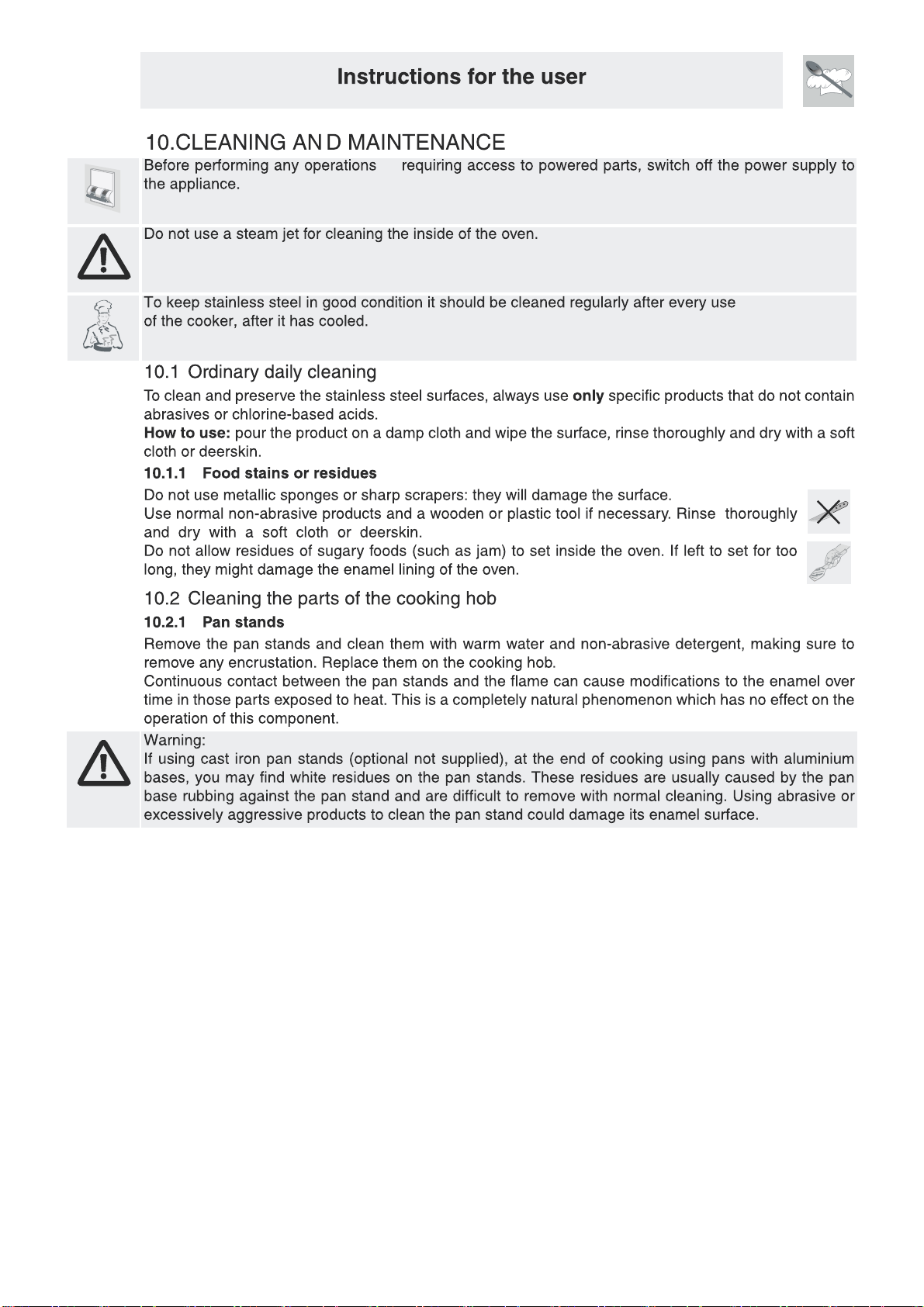

10. CLEANING AND MAINTENANCE
9. AVAILABLE ACCESSORIES
10.1 Ordinary daily cleaning
10.2 Cleaning the parts of the cooking hob
10.3 Cleaning the oven
10.4 Cleaning the door glazing
11. EXTRAORDINARY MAINTENANCE
11.1 Lubrication of gas oven taps and thermostat
11.2 Changing the light bulb
11.3 Removing the doors
11.4 Removing the doors seal
1.INSTRUCTIONS FOR USE
3

TO REPLACE IT.
4

1）Appliance type:Class 2
2)Warning the user against the use of cooking vessels on the hotplate that overlap its edges.
3)This appliance shall be installed in accordance with the regulations in force and only used in
a well ventilated space.Read the instructions before installing or using this appliance.
5

6

B) Free-standing installationA) Built-in appliance
1
The cooker is supplied with an anti-tilting chain to prevent the
appliance from tilting forward and accidental damage to the gas
pipe. Take the expansion with hook and make an adequate hole in
the wall behind, at the same height as the chain fixing area. Insert
the plug into the hole and then screw in the hook until it is firmly
fixed to the wall. Fix the chain to the hook. Adjust to level of the
cooker inserting the feet provided.
`
7

(for 60 cm modesl)
3 X 1.0 mm
(for 60 cm modesl)
3 X 1.0 mm
Warning:
1)Piror to installation ensure that the local distribution conditions(nature of the gas and gas
pressure)and the adjustment of the appliance are compatible;
2)The adjustment conditions for this appliance are stated on data plate;
3)This appliance is not connected to a combustion products evacration device.It shall be
installed and connected in accordance with current installation regulations.Particular attention
shall be given to the relevant requirements regarding ventilation.
E
8

Gas
3.4.2
degree C).
It’s necessity of changing the flexible tube when the national conditions require it.
1.5
steel steel
length is no
steel
moving parts or is
steel steel
steel
steel
steel
steel
steel hose
9

10

1
2
3
4
2
3.Auxiliary
1.Rapid
4.M-A
4.4
4.3
4.4.1
tics table
Semi-rapid
Type of burner G30 (LPG)
Input kW (g/h) Injector (mm)
Rapid
Auxiliary
Grill Gas
Oven Gas 3.8 (276.3)
2.2 (160.0) 0.72
0.95
M-A 4.0 (290.8) 1.0
0.85
0.65
0.5
3.0 (218.1)
1.75 (127.2)
1.0 (72.7)
G30 : 28-30mbar
By default, the appliance comes with nozzles suitable for LPG.
11

4.4.2
℃
MIN
150
180 210 240
MAX
12

10
20
90
110
120 40
50
30
60
70
80
100
10
20
90
110
120 40
50
30
60
70
80
100
℃
MIN
150
180 210 240
MAX
MIN
150
180 210 240
MAX

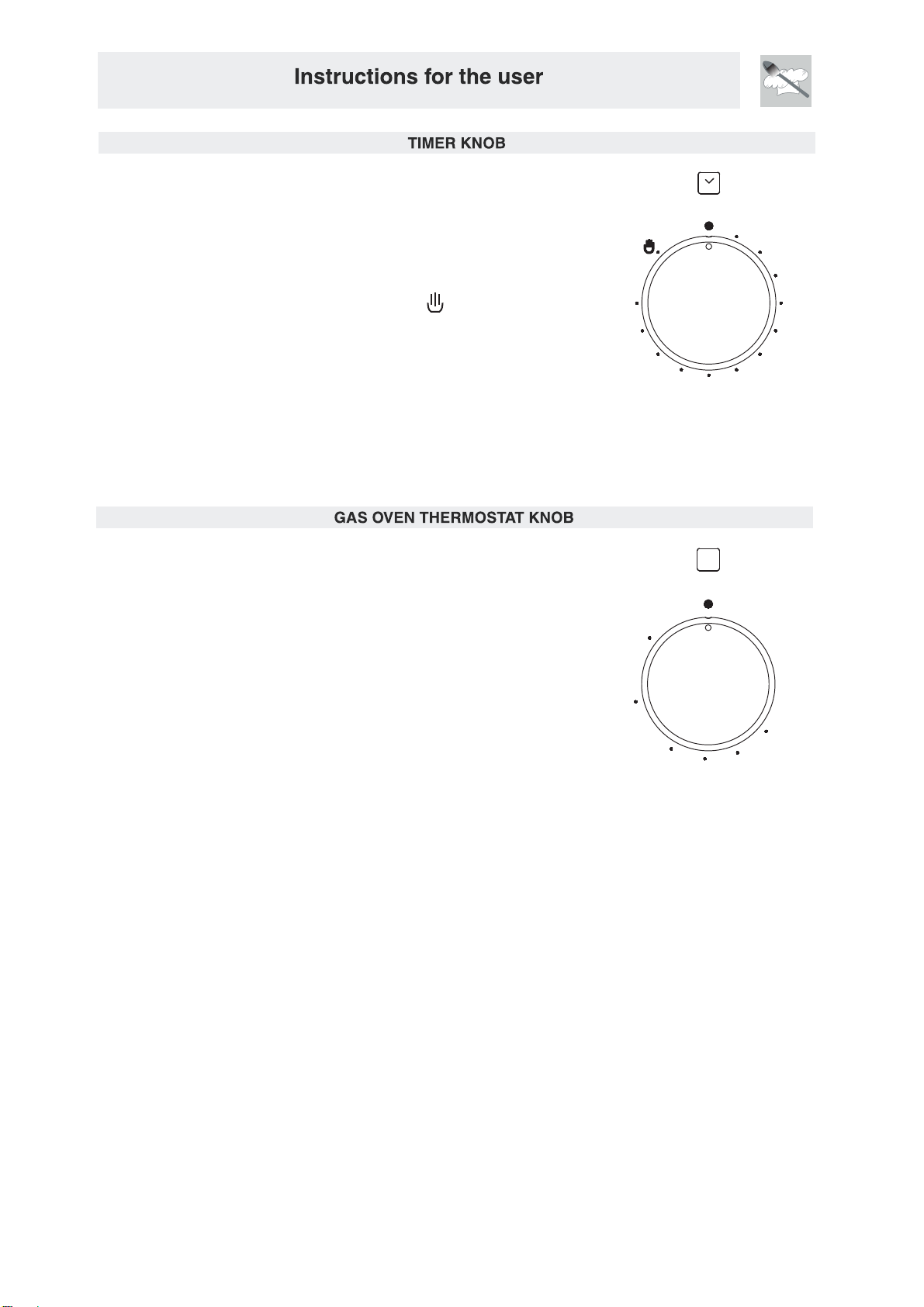

Mechanical Timer
Timer Knob
Function Switch
Front Left-Hand Burner
Front Right-Hand Burner
Central Burner
Rear Left-Hand Burner
Rear Right-Hand Burner
Oven Thermostat Knob
Top Gas Grill
Cooking Temperature Selection Knob
Cooking Mode Selection Knob
Control Knob Cooktop Burners
℃
13

.
The Mechanical Timer automatically controls when the oven shuts off.
This knob allows the gas burner inside the oven to be lit. The cooking
temperature is selected by turning the knob counterclockwise to the
disired setting, between Min. and Max.
To learn how to light the gas oven, see paragraph 8.3 Using the
gas oven.
It cannot automatically switch the oven on, only off. Turn the timer knob
to between 10 minutes and 120 minutes.
At the end of the selected time period, the timer will sound and
automatically turn off the oven.
To operate the oven manually, set the timer to .
10
20
90
110
120 40
50
30
60
70
80
100
℃
MIN
150
180 210 240
MAX
14

Caution:Glass lids may shatter when heated.Turn off all the burners before shutting the lid
φmax Saucepan (mm)
Burner φmin Saucepan (mm)
Rapid
Semi-rapid
Auxiliary
M-A 210
150
130
90
260
260
180
7.3 Cooker pan diameters
Container table (use flat-bottomed saucepans)
160
15

8.2.1
8.2
,
8.2.2
The use of a gas cooking appliance results in the production of heat and moisture in the room in
which it is installed.Ensure that the kitchen is well ventilated:keep natural ventilation holes open
or install a mechanical ventilation device(mechanical extractor hood).
Prolonged intensive use of the appliance may call for additional ventilation,for example opening
of a window, or more effective ventilation,for example incressing the level of mechanical
ventilation where present
℃
MIN
150
180 210 240
MAX
16

8.4
8.3
17

18

19

20
