Campomatic FR-410 User manual

REFRIGERATOR
INSTRUCTION MANUAL
■Thank you for selecting this refrigerator.
■Before using the refrigerator, please read this manual carefully.
Code: 318-27-1
FR-410

1

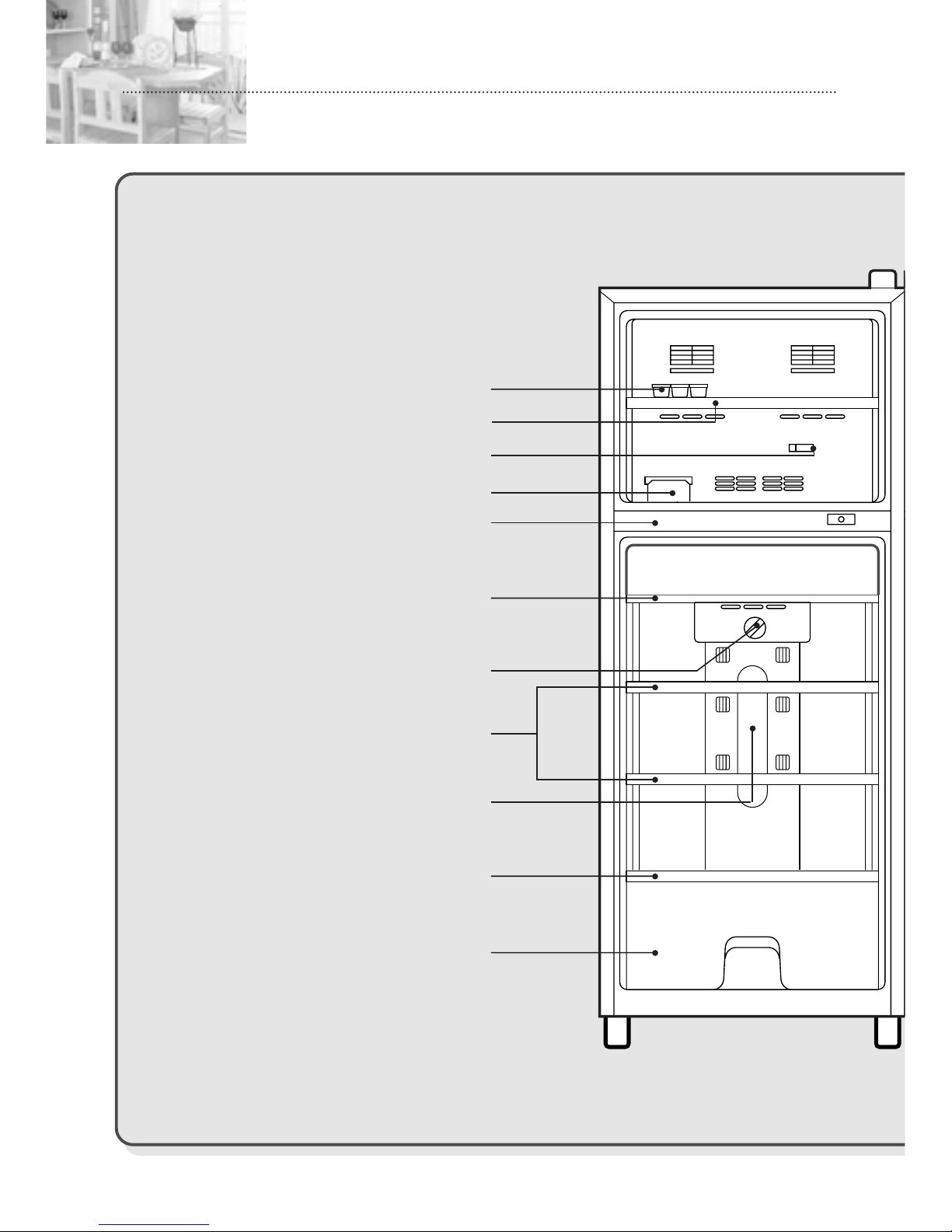

FEATURE CHART
!
#
@
$
^
%
&
*
(
)
1
! ICE TRAY
@ F SHELF (MOVABLE)
# FREEZER TEMPERATURE
CONTROL KNOB
$ ICE BOX
% CHILLED CASE DOOR
^ CHILLED CASE
& REFRIGERATOR
TEMPERATURE
CONTROL SWITCH
* R SHELF (MOVABLE)
( LAMP COVER
) VEGETABLE CASE COVER
1 VEGETABLE CASE

2
8
7
6
3
5
4
2
2 FREEZER POCKET(SMALL)
3 FREEZER
POCKET(MIDDLE)
4 EGG CASE
5 UTILITY
POCKET(SMALL/LARGE)
6 UTILITY
POCKET(SMALL/SMALL)
7 BOTTLE
POCKET(LARGE/LARGE)
8 BOTTLE
POCKET(MIDDLE/LARGE)

Take a moment to know all the features designed for the convenience
of the user.
■Ice Tray
Fill 3/4 of the ice tray with water, as the volume expands when the water is
frozen. Place the tray in the freezer compartment. To release ice cubes, twist
the ice tray slightly. Ice cubes will be easier to remove if it is held for a short
while under running water.
■Movable refrigerator and freezer shelves
Storage shelves should be adjusted depending on the height of the food
stored. To do this, pull the shelves slightly forward.
■Defrost-drain Vessel
Since dust accumulated on the drain case decreases the evaporation
efficiency, you should clean the drain case at regular intervals.
3
Here are the features of your new refrigerator.

4

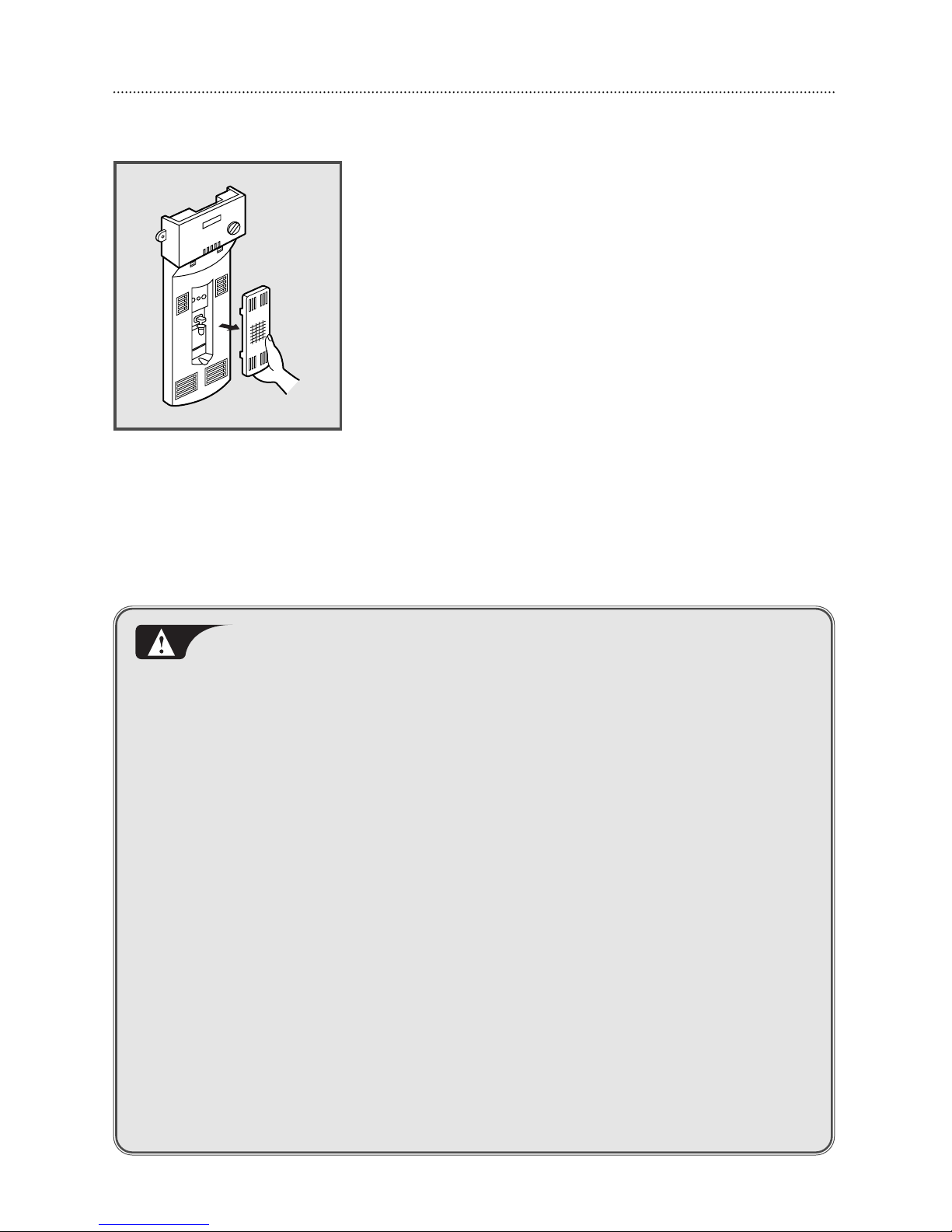

■Lamp cover
To remove the lamp cover
1. Push up the bottom end of lamp cover gently,
then pull out.
2. Reverse procedure to join together.
■Vegetable case
May be used for fruit and vegetable storage. Both
the vegetable case and its cover shelf are
removable for easy cleaning. Simply slide forward
to remove.
■Utility Pocket (Top)
The Egg Case in this pocket can be turned upside down for the storage of
small size goods.
■For lock installed refrigerators only.
CAUTION
When you put or take out food from the refrigerator, be careful not to
hit your head on the lock as there is a protrusion on the door of your
refrigerator.
1. Check your voltage before inserting the power supply cord into the socket.
2. Contact the earthing conductor to this unit with an attachment earthing
screw.
3. Do not spill liquid on this unit.
4. Do not use flammable spray, such as painting, near this unit.
5. Do not place ignitable material, such as benzine, L.P. gas, alcohol etc.,
into this unit.
6. Take precautions against leakage of any gas equipment near this unit.
7. Keep children from hanging on the door of this unit.
8. Do not reinsert the power supply cord within 5 minutes after releasing it from
the socket. If not, there may be problems with the compressor.

5
METHODS OF SAFE INSTALLATION
1. SAFE INSTALLATION PLACE FOR YOUR REFRIGERATOR
•Place the refrigerator on
a strong and level floor.
Unstable installation can
produce noise and
vibration.
NO
NO
•Place your refrigerator
where there is no heat
source nearby.
High atmosphere
temperature will lower
cooling efficiency and
increase your electricity
bill.
•Place the refrigerator in
an area where the
humidity level is low.
Splashing water on the
refrigerator or installing
the unit in a humid area
may cause short circuit
and rust.
•Avoid places that are
exposed to coal gas or
smoke, or discoloring
may occur on the
refrigerator.
At least 6cm
At least 6cm
At least 30cm
Carpet
Wooden Board,
Rubber Mat
•For good ventilation,
keep enough space
between the sidewalls
and your.
This helps to cool
efficiently and lowers the
electricity bill.
•Putting the refrigerator
on the carpet may cause
temperature rise and
result in the discoloring
of the carpet due to the
compressor heat.
In such a case, place a
hard wooden board or a
rubber mat between the
carpet and the unit.

6

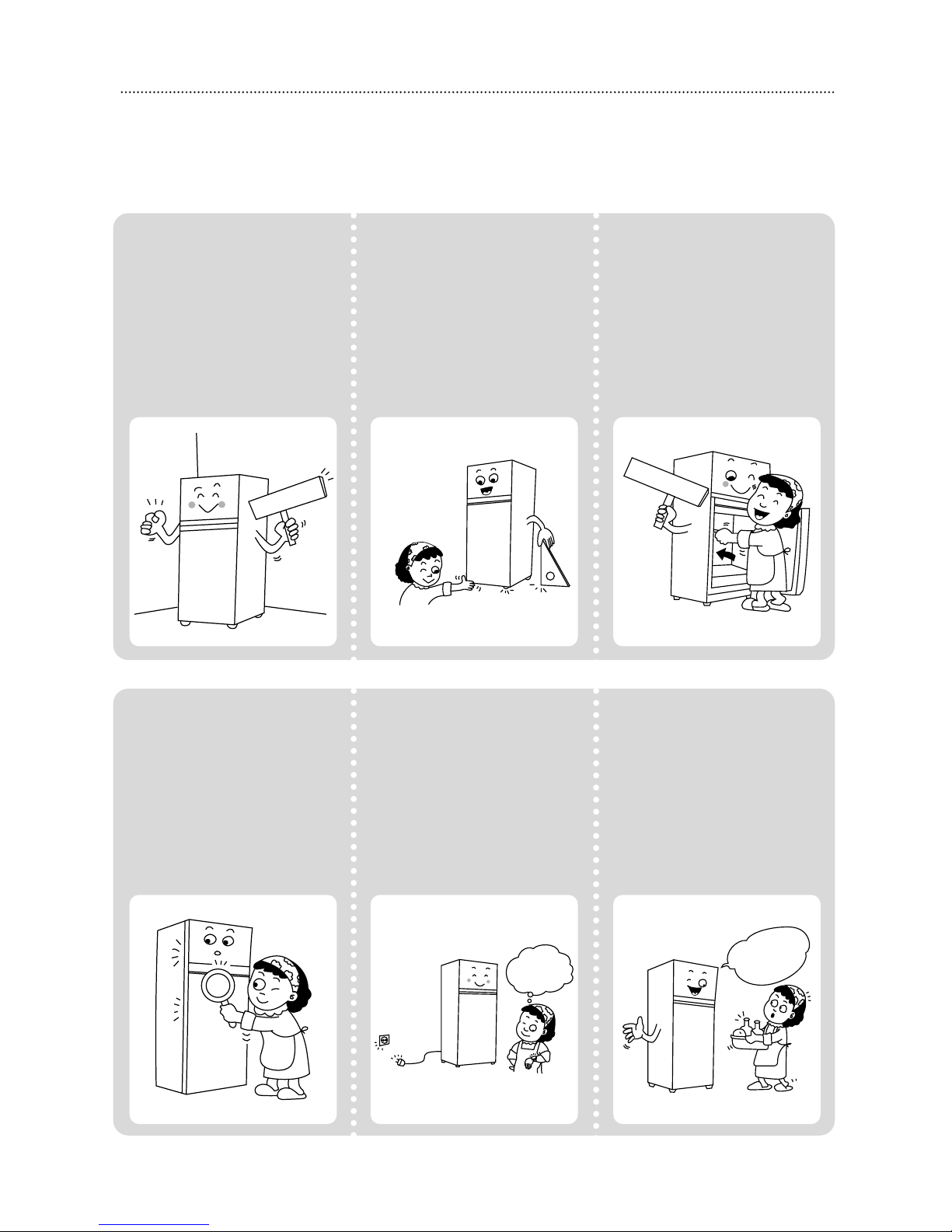

2. INSTALLATION STEPS
•Select a safe place to
install your refrigerator.
Safe installation
place
Maintain ~
Level
Components to their
original places
•Level the refrigerator by
using the adjustable feet. •Install the parts in their own place.
•Check if the doors are
completely closed.
Check
Check
Plug in after
about hour
Put food after
2~3 hours
•Check the voltage.
Then wait about an hour
before plugging the
power cord into the
outlet.
•Put food in the
refrigerator after running
the refrigerator for 2~3
hours.

7

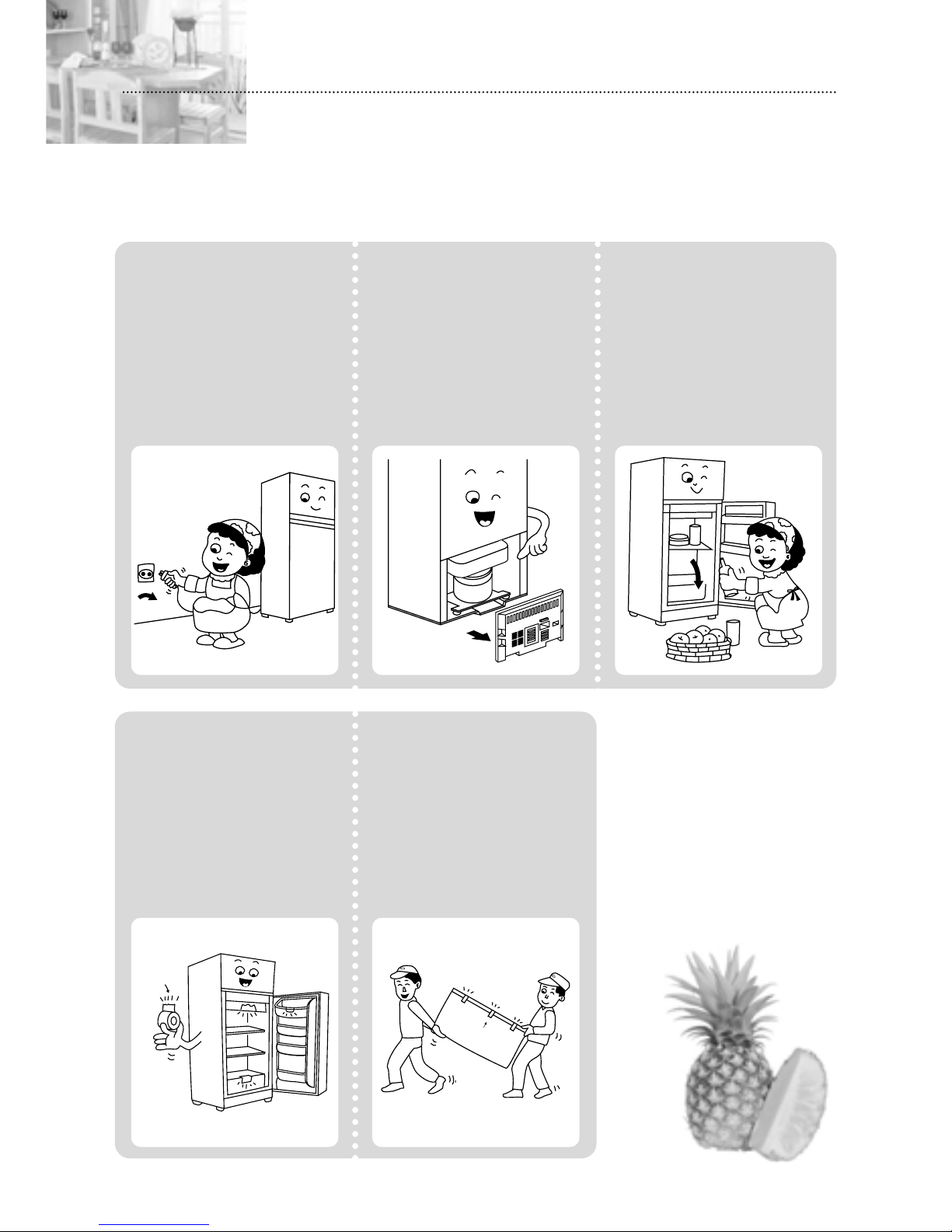

3. WHAT YOU NEED TO KNOW BEFORE MOVING
OR RELOCATING THE REFRIGERATOR!
•Unplung the power cord. •Detach the grille and the
defrost-drain vessel from
the refrigerator with ⊕
driver and then remove
water from the defrost-
drain vessel located at
the rear of the
refrigerator.
•Take food out of the
refrigerator.
•Fasten the interior
components with
adhesive tape.
Adhesive
Tape
Adhesive Tape
•Have two people carry
the refrigerator to move
safely.
•Fasten the doors with
adhesive tape to prevent
from opening while
moving.

8
4. CLEANING YOUR REFRIGERATOR
•Before you clean the
refrigerator, unplug the
power cord. To clean,
use a soft piece of cloth.
Wash with warm, soapy
water rinse and dry.
Soft cloth
Soft cloth
•The refrigerator may
smell during the initial
operation, but the odour
will fade away when the
refrigerator is cooled
sufficiently.
•Use a soft cloth for
cleaning the interior and
exterior of the
refrigerator.
•Do not sprinkle water
directly on the
refrigerator itself.
Water
Components to their
original places
•Put the parts back in
their original positions
after cleaning.

9

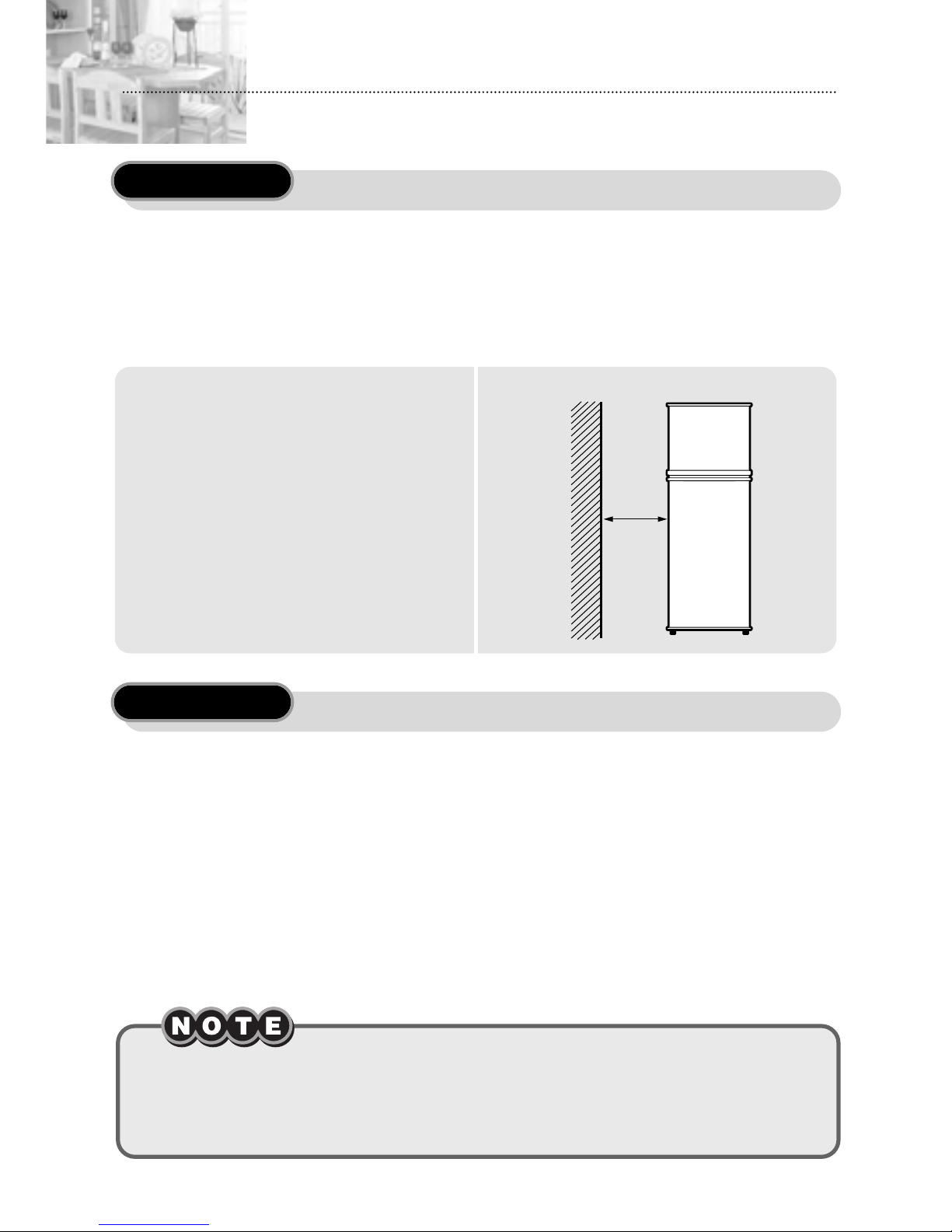

HOW TO INSTALL
Location
6cm
the wall
Install the refrigerator in a convenient location away from extreme heat and
cold. Allow at least 6cm clearance between the refrigerator and side wall so
that the door may open for a fully usable interior and the refrigerator may
have good air circulation. The refrigerator is not designed for recessed
installation.
■ Select a strong and level floor.
■Keep 6cm of space between
the refrigerator and the walls.
Leveling
Level the refrigerator so that it rests solidly on the floor without rocking.
There are two leveling feet at each front corner. Turn to the left to raise a
corner, to the right to lower it. Use shims under the rear corners, if
necessary.
■If you want the refrigerator door to close naturally, adjust the leveling feet so
that the front of the refrigerator is raised by 5mm.
■If you want the refrigerator to remain motionless when open, adjust the leveling
feet so that all four corners are leveled with each other.
All packing materials used to ensure safety during transport should be
removed. You must remove the transport safty packing and wipe off any
possible adhesive tape residues with a petroleum-based cleaner or similar
solvent.

10
HOW TO OPERATE
Temperature is controlled by thermostat automatically.
The Temperature Control inside the refrigerator controls the degree of
cooling for each compartment.
1. Clean the refrigerator thoroughly. Wipe the outside with a dry cloth, and the inside
with a damp cloth.
2. Set the temperature control knob at normal position.
3. Connect the power supply cord.
Freezer Temperature Control
The control has four settings form
MIN to WINTER. The WINTER
mode is available only if atmosphere
temperature is below 10°C.
Refrigerator Temperature Control
The control has the four settings from
MIN to WINTER. The WINTER mode
is available only if atmosphere
temperature is below 10°C.
TEMP. CONTROL
MIN MED MAX WINTER
WINTER
MAX
MED MIN
TEMP. CONTROL
Starting your new refrigerator
1. TEMPERATURE CONTROL

11
To control temperature
Many factors may influence the internal temperature of the refrigerator
and freezer compartments.
■The temperature and humidity of the surrounding environment.
■The opening frequency of the doors and the amount of warm food placed in
the refrigerator.
■The combination of food and containers stored in the refrigerator.
For these reasons, you may want to adjust the control to suit the season and
your needs.
■Turn the temperature control in the refrigerator and freezer compartments
toward WINTER for colder temperature and toward MIN for warmer
temperature.
■Allow approximately 12 hours or overnight for the temperature to stabilize.
Then check to see if further adjustments are necessary.
To turn off the refrigerator
Disconnect the power supply cord. Remove icing case and food. Leave
doors ajar for ventilation and dehumidification of both compartments.

12
2. DEFROSTING THE REFRIGERATOR
You will never have to defrost your refrigerator as it is designed to
defrost itself completely and automatically.
3. RADIANT HEAT
With the Refrigerating System in operation, it is likely that the cabinet will feel
warm at the front edges and sides. This does not indicate trouble.
It is due to the hot-line used in this type of Refrigerating System which consists of
piping hot gas from the (motor-driven) compressor along the front edges, the
sides of the cabinet and the center partition to prevent dewing. This has nothing
to do with the storage temperature inside.
During spells of hot, humid weather and in rainy season,
moisture may develop on the cabinet, just as water
condenses around a cold glass of water. It is not an
abnormal condition; wipe off the moisture with a dry cloth.
This can also happen when the refrigerator is not installed
in an appropriate place.
CAUTION
To avoid the risk of electric shock or death, unplug the power cord
before replacing a burned out light bulb or cleaning the inner
parts.

13
WHAT TO DO...
When not operating for a long time
■Remove the power supply cord.
■Dry your refrigerator by opening the door for 2-3 days.
When you get ready to move
■Securely fasten movable interior parts (or remove and pack them separately)
■DO NOT lay down your refrigerator horizontally, or the compressor may be
damaged.
Before you call for service, please check the following points first.
If the refrigerator is not operating:
■Is the power supply cord unplugged?
■Is the home fuse or circuit out of order?
If the refrigerator is warmer than usual:
■Has the door been opened frequently or for a long period?
■Are there any hot food or anything that has been stored without cooling?
■Is the clearance between the refrigerator and the wall given sufficiently?
If there are unusual sounds:
■Is the refrigerator placed on a levelled floor?
■Are there any foreign objects behind the refrigerator?
■Are dishes on refrigerator shelves vibrating?
CAUTION
Improper use of the grounding plug can result in electric shock. If a
grounding adapter is used, make sure the receptacle box is fully
grounded.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a simmilary qualified person
in order to avoid a hazard.
POWER CORD REPLACEMENT
