Tranquility Barrel Sauna Assembly Instructions

Tranquility Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Canadian Timber Collection Tranquility Barrel Sauna
Assembly Instructions
3. Mark the centre of the cradles horizontally.
On the end with the porch, measure 26” (66cm)
from the end of the stave to the cradle, and on
the back side, measure 5” (13cm) in from the
end of the stave as shown. Secure stave into
each of the cradles using 2 ½” (64mm) screws.
Before you begin the installation of your Timber Barrel Sauna, Please read these instructions fully.
Make sure the placement for your sauna is level with a slight slope to the back for drainage.
Fig.1
Fig 2a
Fig 2b
1

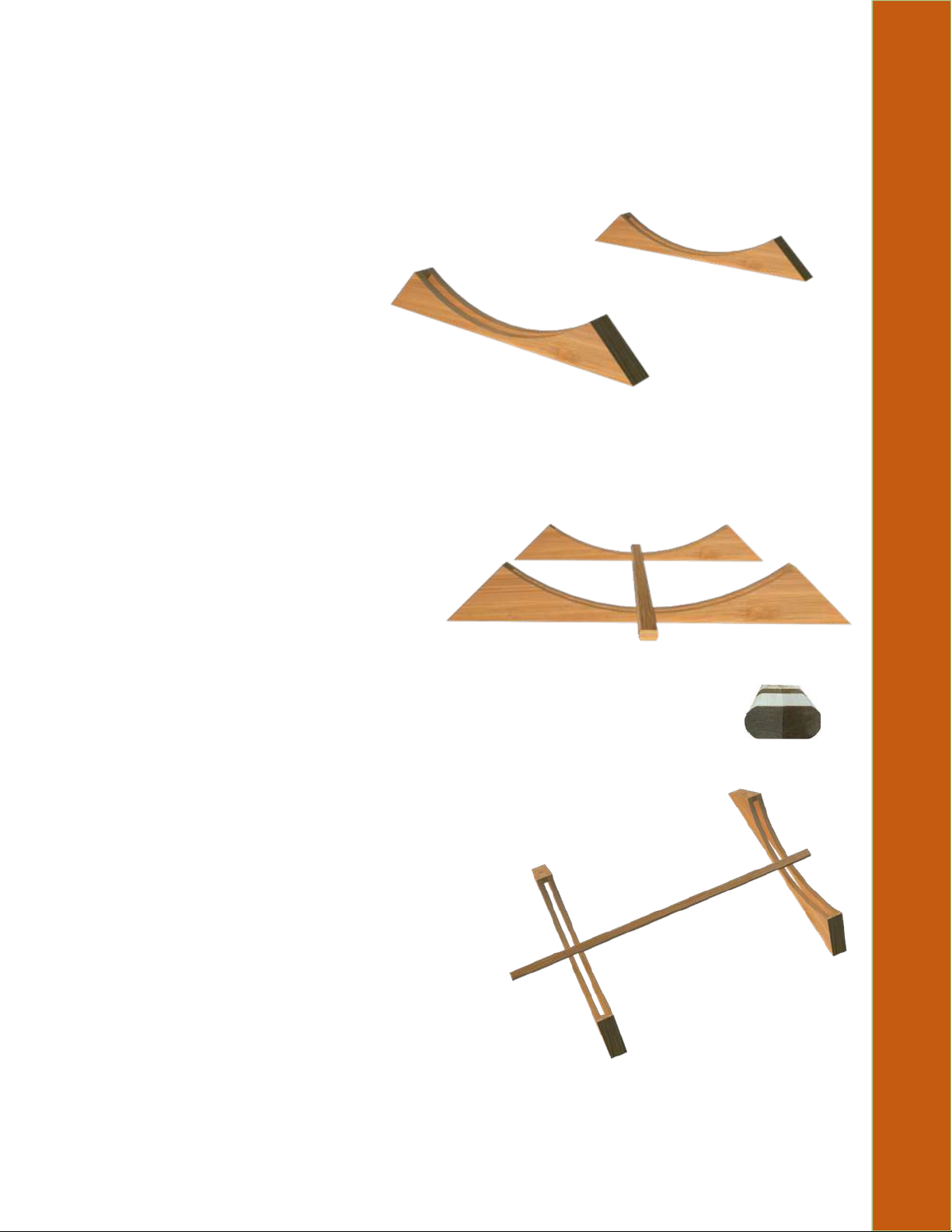

2. Lay the first bottom stave in the center of the
cradles.
This stave will have convex edges on
both sides as in Fig.1
1. Start by laying out the cradles.
*Always ensure that you have the correct screw length so that there will be enough thread to hold, and
especially, so that the screw does not go all the way through the material and come out the other side.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
2
5. Place the back wall into the dado grooves
closest to back of sauna.
Make sure the back wall panel is centered with
the middle stave.
Use the rubber mallet to tap the back wall into
the groove.
4. Start laying down the wall staves.
Keep the dado grooves in line with the correctly
positioned bottom stave.
Make sure the staves are flush.
* Note there will be right and left staves!
6. Repeat this process to install the door panel
on the front wall.
Make sure the door is centered with the middle
stave.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
3
Fig.2

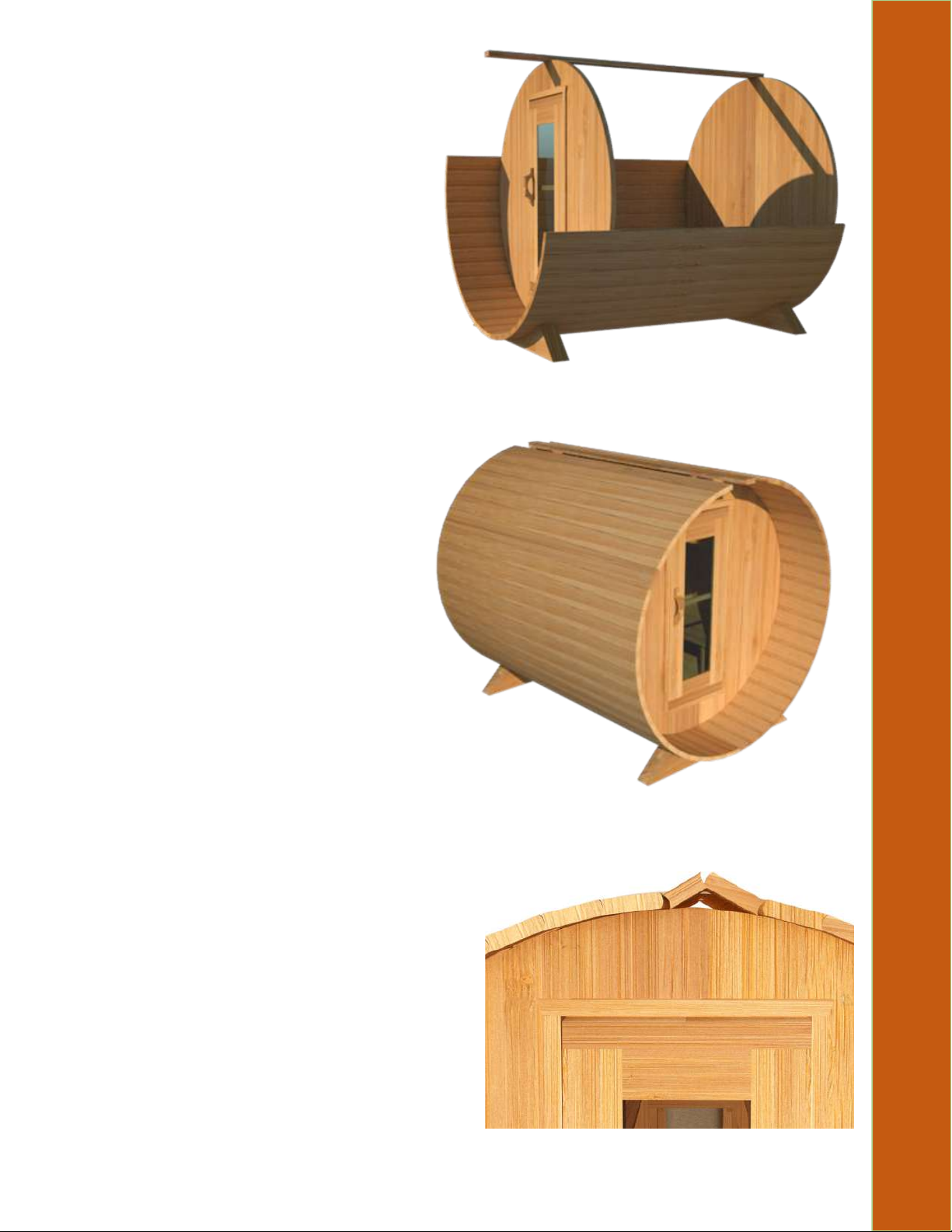

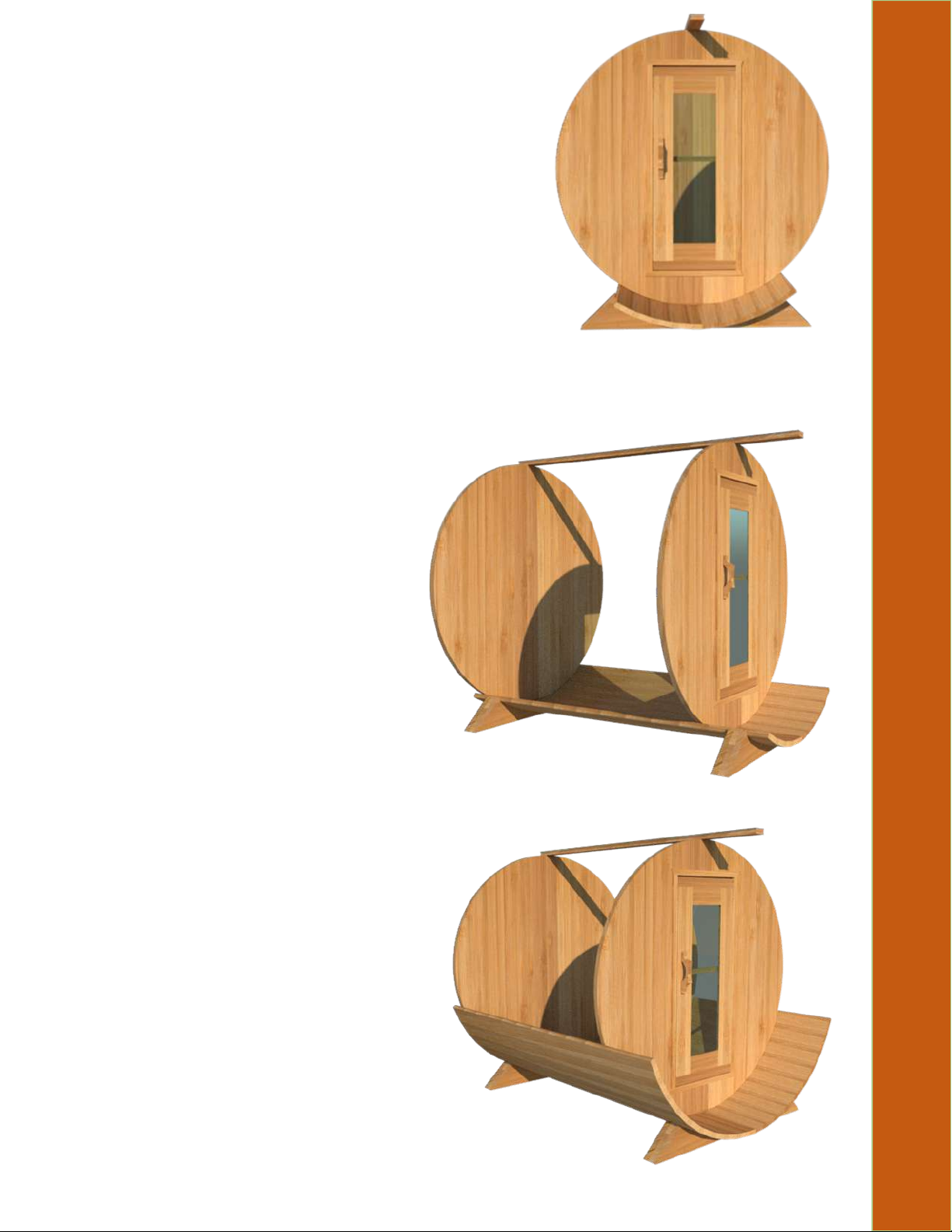

7. Use the top stave to go from the front wall to
back wall to help stabilize the sauna.
* The top stave has 2 concaved edges as in Fig.2
8. Using your carpenters level and rubber mallet,
level up the front and back walls.
9. Install the front half moon side wall.
Screw into place at the top and bottom with
A 2 ½” (64mm) screw.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
4
10. Repeat on opposite side.
11. Repeat for the back wall half moon panels.
12. Once both ends are on, start installing more
wall staves.
Use the rubber mallet to tap into place.
Install a few staves at a time, alternating sides.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
5
13. To make the installation of the staves easier,
Secure every 2nd stave on the bottom of the
sauna with the provided 2 ½” (64mm) nails to
hold staves in place.
14. Continue to add staves on both sides to the
top.
15. When you reach the top, you will find that
the last wall stave doesn't look like it fits
properly, this is normal.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
6
16. Assemble the steel bands by sliding the rod
with a nut on one end through the other and
secure with a second nut.
17. Slide the band over the front of the sauna
about
2” (5cm) from the edge of the staves.
18. Repeat the process for the back of the
sauna.
For the middle bands, toss one end over the
sauna while pushing the other underneath.
Line up one band where the front wall is located
and the other band centered between the front
wall and the back band.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
7

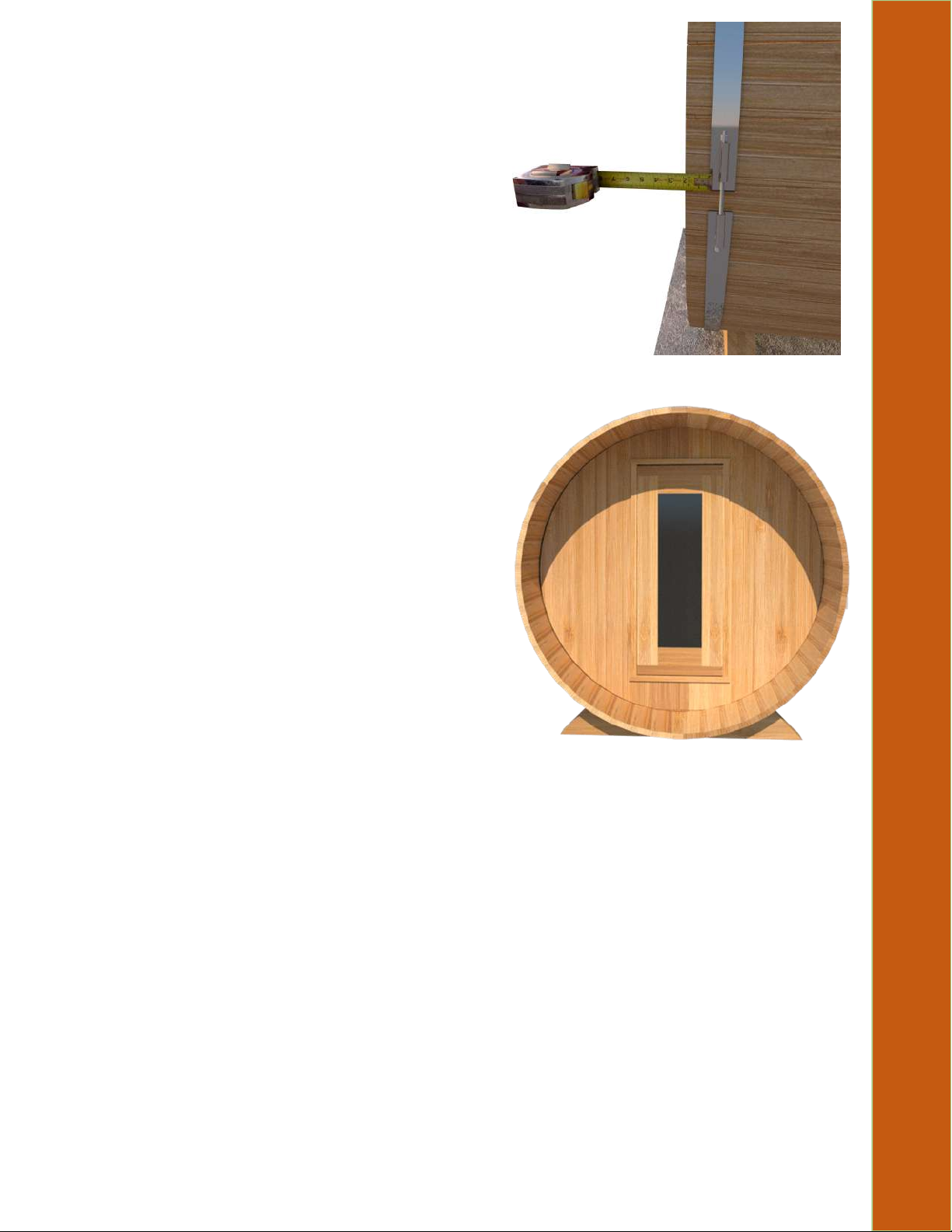

19. Measure all around the sauna to ensure the
measurement of the bands are consistent.
.
Snug up bands with the cordless drill.
20. Use the rubber mallet to tap the staves out
and in as needed to get the last wall stave and
top stave to sit properly together.
Tap up (from the inside of the sauna so you
don’t break the ends) or down, by hammering
on the band to attain a uniform circle shape.
When the wall staves take on the proper shape,
tighten the steel bands a little more snug.
Continue to use the rubber mallet to finesse the
staves into place until they look just about
perfect.
Tighten all bands as tight as possible.
* Don’t be worried about making them too tight,
you cannot overtighten!

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
8

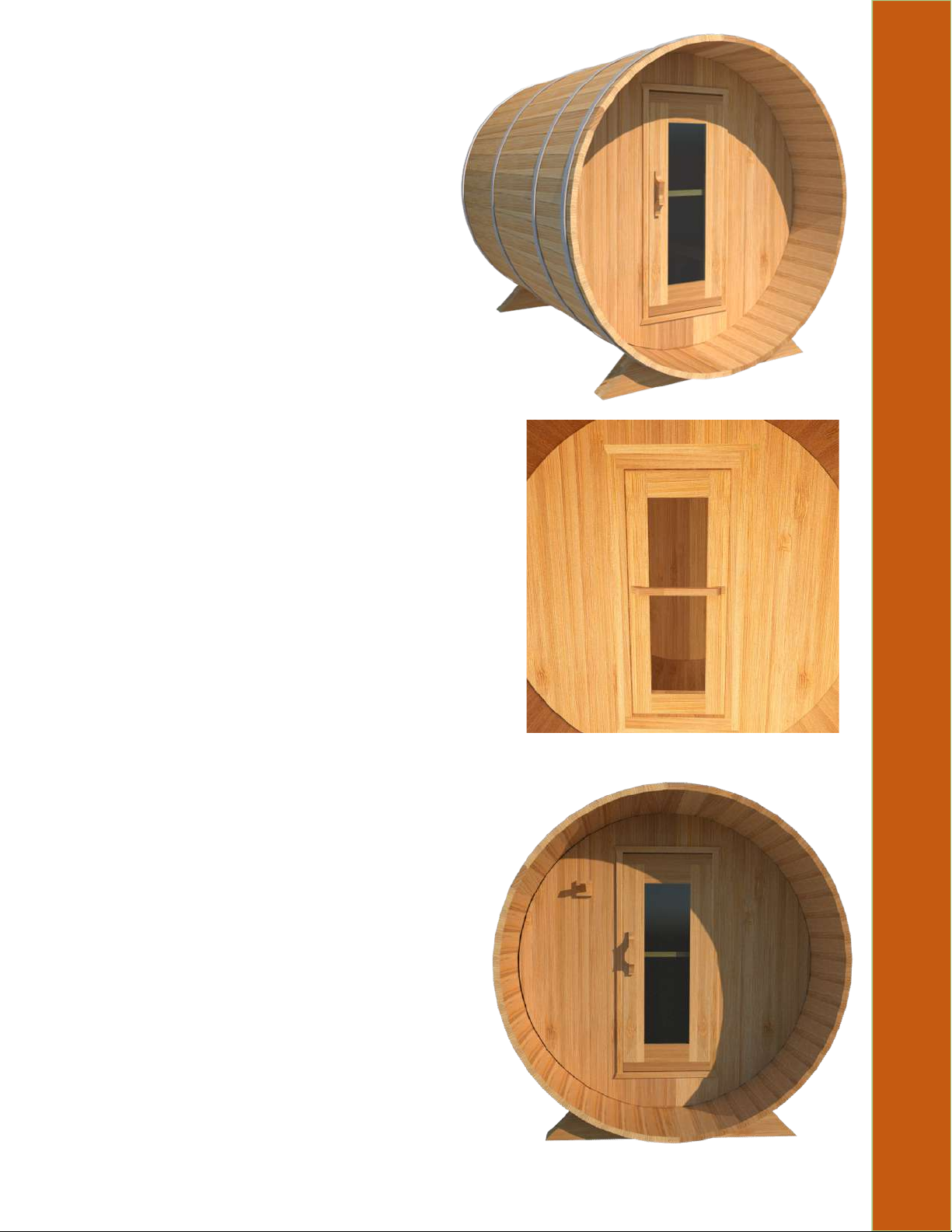

21. Center outer the door handle (small) on
outside of the door and secure with 2” (51mm)
screws using the
pre-drilled holes.
*Magnets are very strong and may require
some force to pull the door open the first time.
22. Repeat this process for the inside handle
installing it at desired height centered
horizontally on door.
* If the Changeroom option is ordered, install
the inside and outside handles in the same
manner.
23. Install towel hanger at desired height on
outer wall using 1 ½” (38mm) screws.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
9

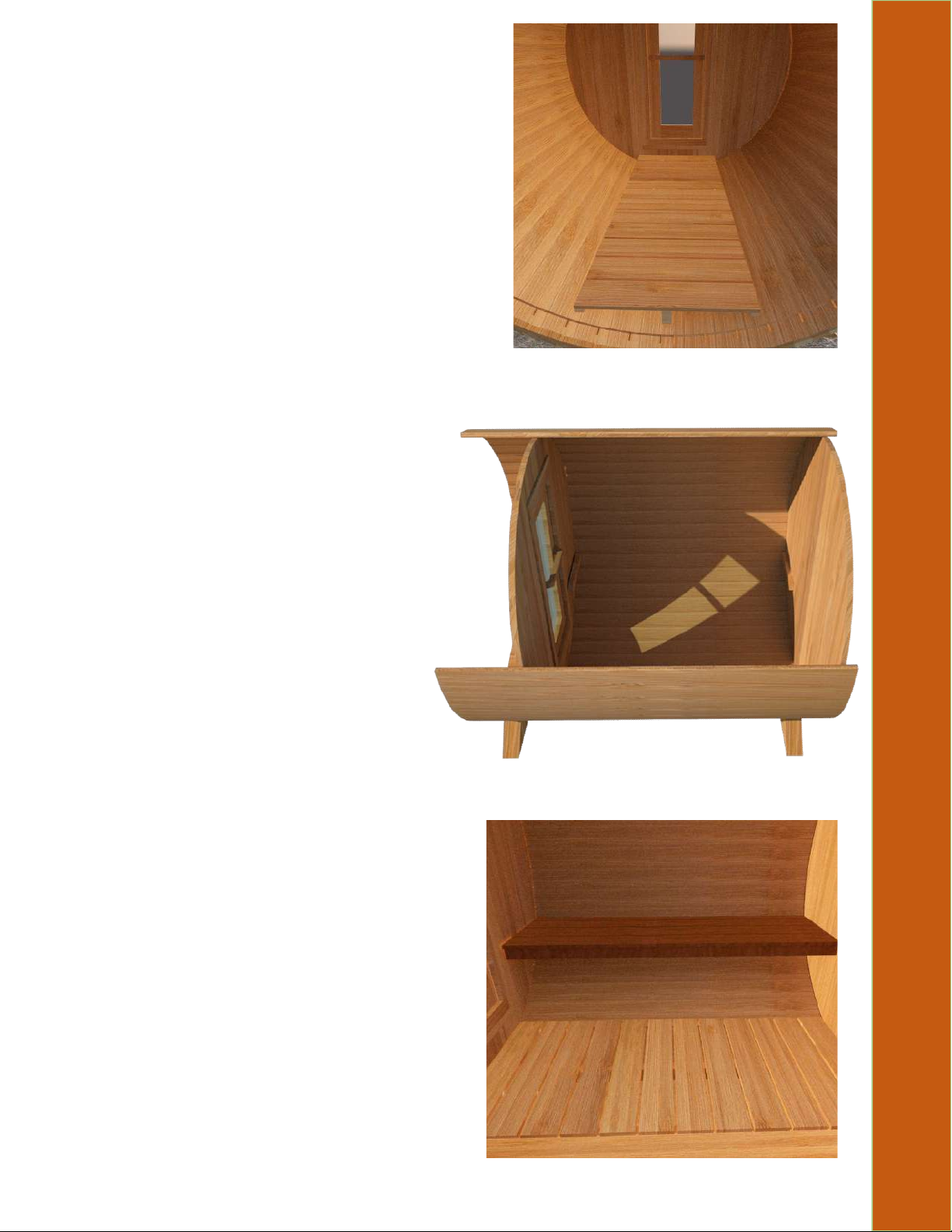

24. Start the assembly of your sauna benches by
installing the flat floor.
Ensure the flat floor is centered in the sauna and
that it is level, you can use the door frame to
help get it level.
* Note that the back wall has been removed for
illustration purposes only.
25. To begin, Bring in one of the sauna benches.
26. Place the bench on the wall brackets and
then push up against the back wall.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
10
27. Secure benches to wall supports by attaching
with 1 ½” (38mm) screws.
Ensure to screw in between the bench seat slats
so that the screws are not visible.
Repeat at opposite end.
28. Space out the bench supports under the
crossers on the bottom of the benches.
Screw the bench supports from the bottom up
using
3- 1 ½” (38mm) screws in each support.
29. Secure the support leg to the floor using a
2 ½” (64mm) screw in each support.
Repeat for the other support.
Repeat above steps for opposite bench.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
10
30. To start on the assembly of the porch benches,
center the porch flat floor under the door.
31. To install the porch seats, screw the leg into
the end of the seats with 2 ½ ” (64mm) screws.
32. Flip the porch seat over and put in place. Use
a level or carpenters square sure the porch seat
is level.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
10

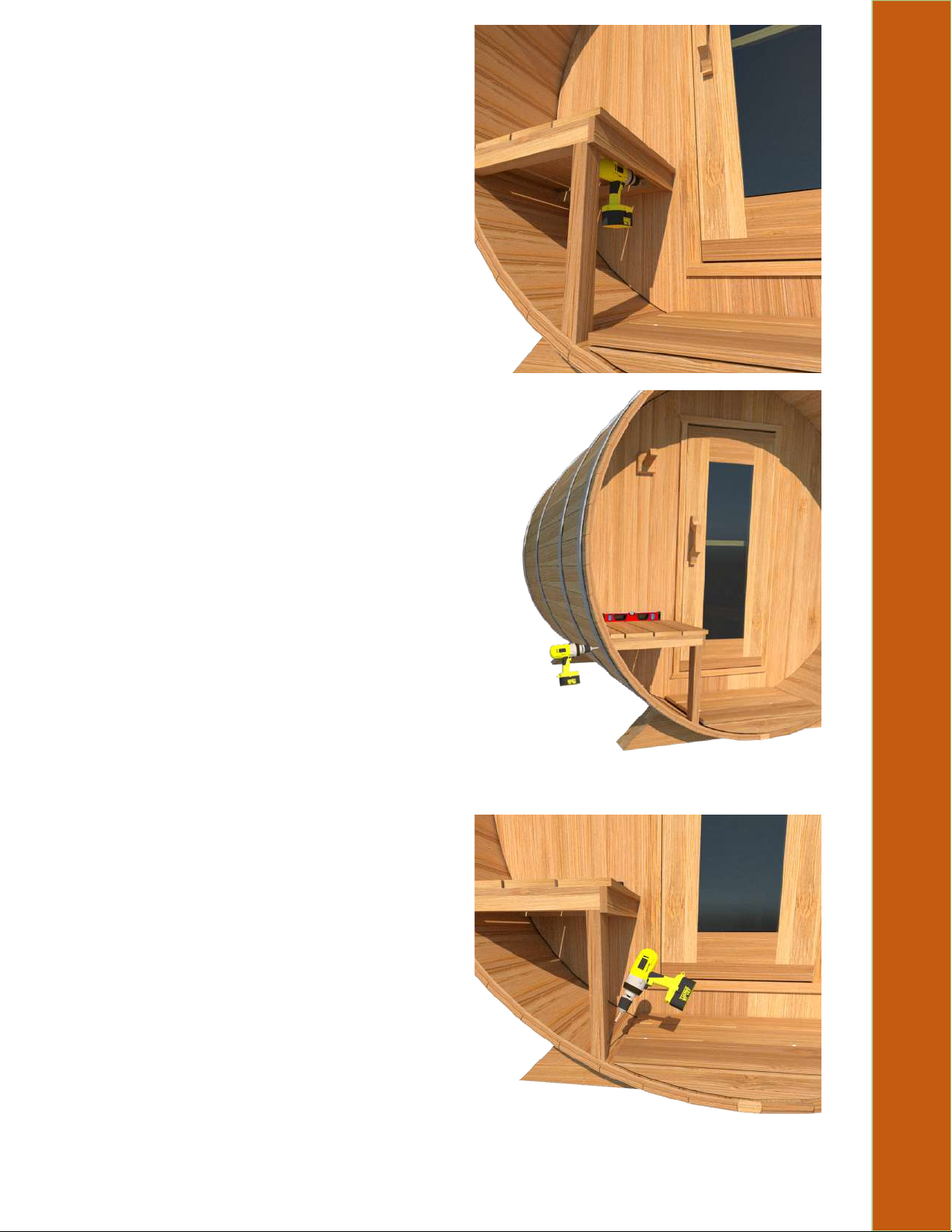

33. Secure the porch seat support to the front wall
of the sauna using (3) - 2 ½” (64mm) screws.
34. Screw the front of the porch seat into the wall
from the outside using a 2 ½” (64mm) screw.
*Ensure not to screw into the seams of the staves
35. Secure the leg to the floor using a 2 ½”
(64mm) screw.
Repeat on other porch bench ensuring they are
level with each other.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
11
Installing the Electric Heater
Using the template provided, drill four 9/64"
holes to fasten the heater to the wall.
Install the two ¼" x 1 ½" (6mm x 38mm) hex
head lag screws (supplied with the heater) into
the upper two holes.
Tighten these screws until their heads are about
1/4" (6mm) from the wall.
The following installation instructions are for the
Helo Cup (Saaku) electric heater.
Always refer to the original sauna heater manual
for confirmation.
Always Read all instructions carefully.
Measure the proper distances for the heater
template according to the heater manufacturers
instructions.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
12

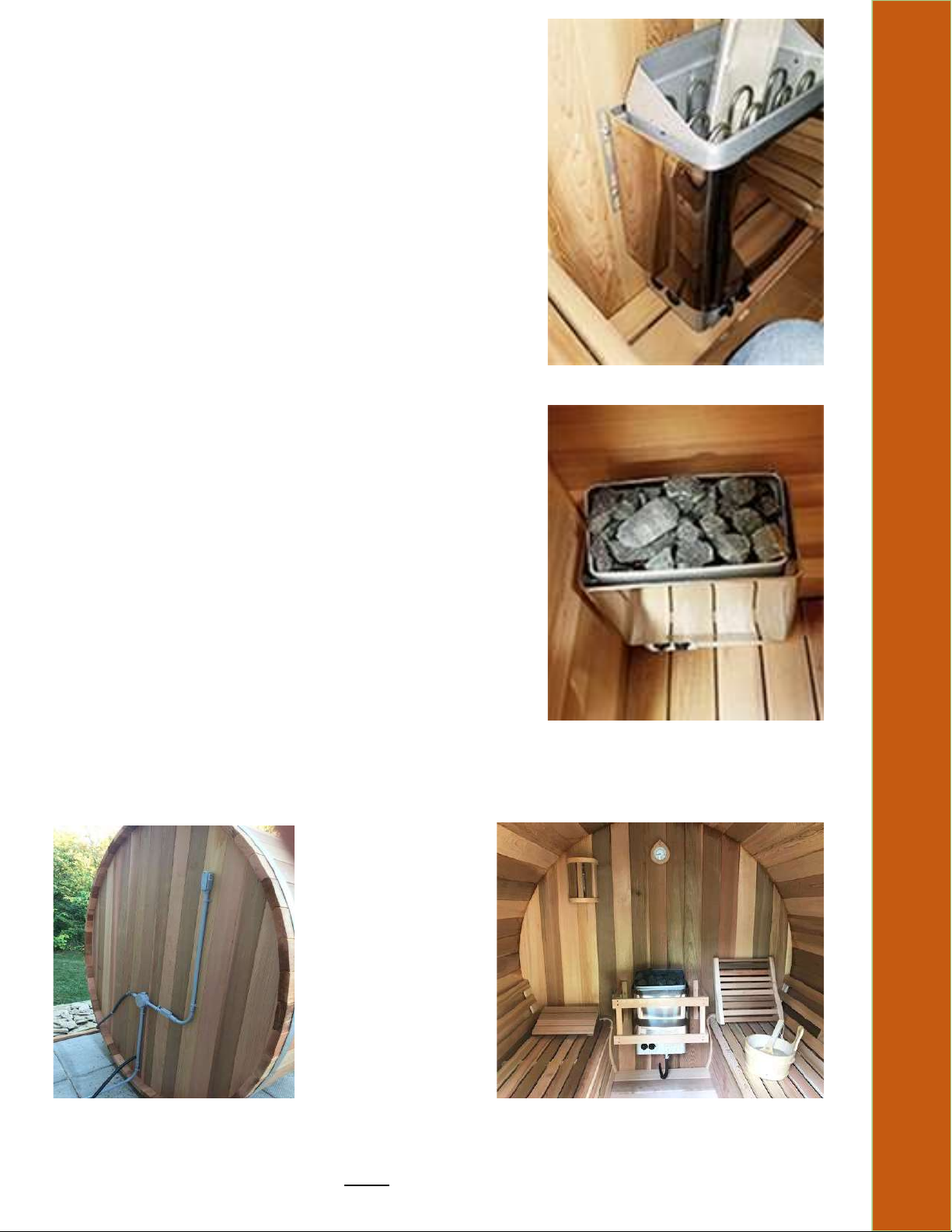

Hang the heater on the two upper screws.
Install the two ¼" x 1" (6mm x 25mm)hex head
lag screws (supplied with the heater) into the
two lower mounting holes.
Tighten all 4 hex head lag screws to lock the
heater in place.
Rinse the rocks with water before placing in the
heater.
Carefully place the rocks loosely so that the air
can circulate through the heater.
Packing the rocks too tightly may cause the
heater high limit switch to trip.
The rocks must fully cover the heating elements.
*Operate the heater for an hour with the sauna door fully open to burn off any residual coating from the
manufacturing process before using.
*The wiring for the electric heater most times enters the sauna underneath the heater as shown in the above 2 pictures.
•All wiring should be installed according to the heater manufacturers instructions and by a licensed electrician.
•Do NOT use a G.F.I breaker

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
13
Locate the pieces for your heater guard.
The heater guard contains 2 Assembled side
pieces,2 heater guard supports and hardware.
Stand the 2 Assembled side pieces of the heater
guard on edge with pre-drilled holes on the
bottom.
Screw heater guard support to either side using
(2) – 1 ½” (38mm) screws per side.
Assemble remaining heater guard support to the
2 ends in the same manner as previous step.
Place assembled heater guard around electric
heater and screw to wall using (4) 2 ½” (64mm)
screws.
*Make sure heater guard is level before
securing.
Wash the layer of rock dust off of the sauna rocks before using them.
When your sauna is set up and working you should “break-in” the sauna before using it for the first time by
turning on the heater to its highest setting and operate it for about 1 hour.
This is recommended to burn off any oils and impurities from manufacturing, and it also “cures” the woodwork.
After about ¾ hour, slowly pour about one litre of cold water on the rocks.
It should all turn to steam and not come out of the bottom of the heater. If it does, you’re pouring too fast.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
14
Installing the Harvia M3 Wood Burning Heater
The Acrylic Dome cannot be exposed to high temperatures for more than 6 hours at a time.
Maximum Temperatures at the acrylic dome not to exceed 100 degrees Celsius (212 degrees Fahrenheit).
For Safety and warranty purposes, Please respect all minimum distances for the heater installation in saunas
with an acrylic dome as referred to in this assembly manual.
Prior to installation, remove the protective film from the stainless steel pieces.
Install floor protecting sheet against back wall
centered between benches.
Install the wall shield centered on the back wall
using 1 ½” (38mm) screws.
Using 2 people, place the Harvia M3 centered
between the benches on the floor plate.
* The heater can be positioned a little more to
the back of the floor plate so more of the floor
plate is out the front to help keep debris and
ash of the sauna floor.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com 15

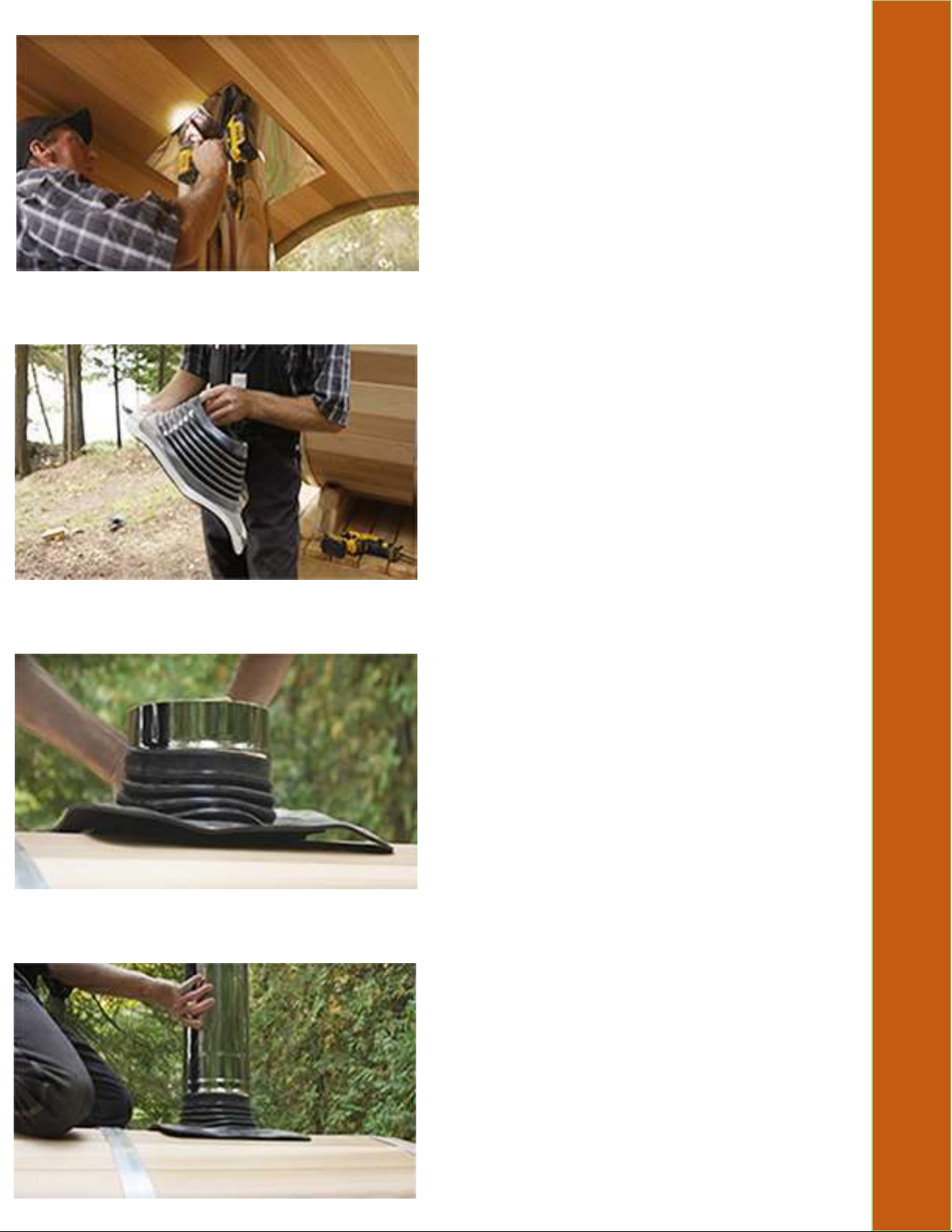

Start a hole inside your circle with a drill bit or other
method, then use a reciprocating saw to cut out the
circle as neat as possible.
In your preferred method, draw a circle ¼” (6mm) larger
than the diameter of the extension pipe.
Once the extensions are connected close to the roof of
the sauna, locate the center of the pipe and use a pen or
pencil to mark the roof.
* Once you have your mark, remove the extensions so
they are out of your way when cutting.
Place a piece of the pipe through the hole to make sure
it fits before moving on to the next steps.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com 16

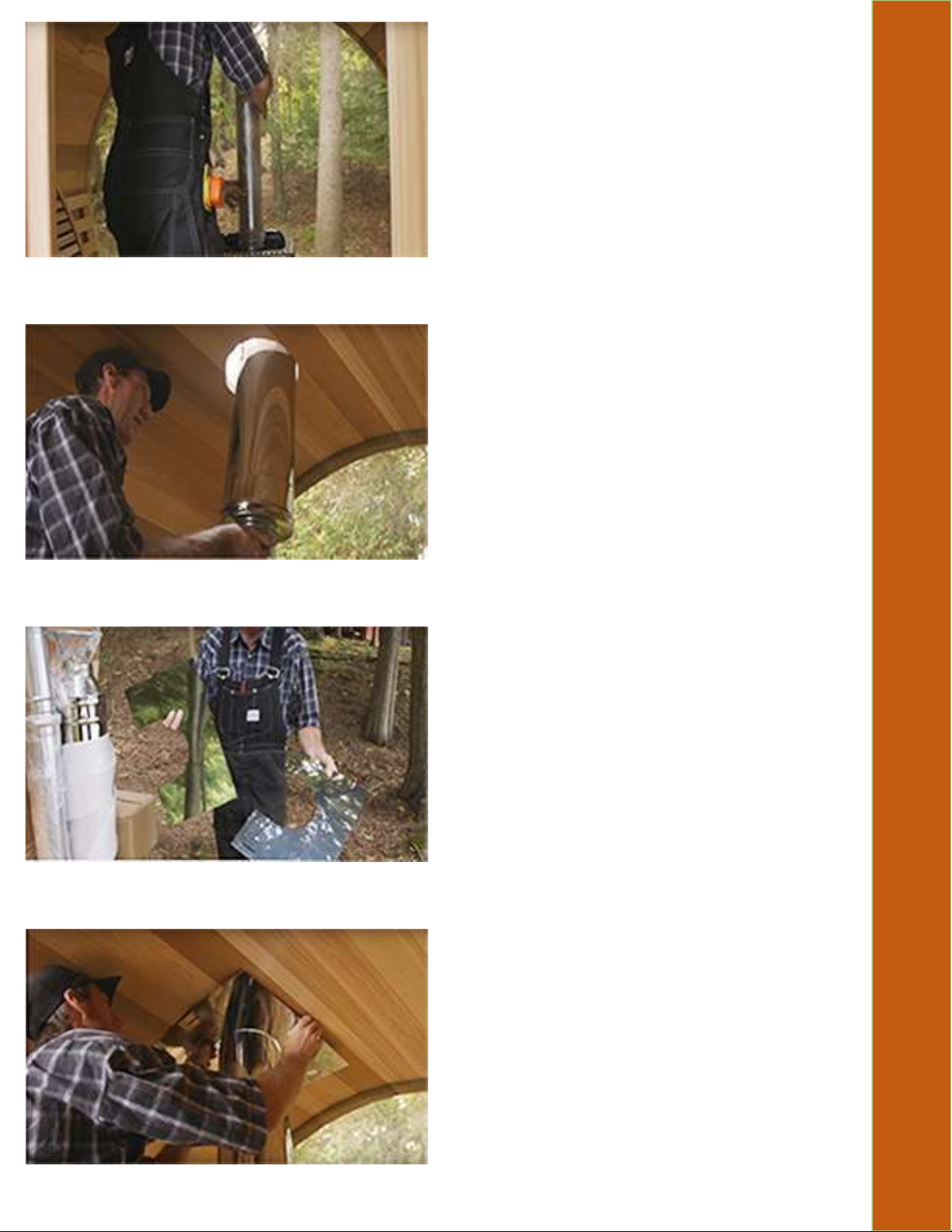

Slip the larger stove pie through the hole in the roof and
then connect it to the extension pipe out of the stove.
Attach the first extension piece to the stove adapter on
top of the Harvia M3.
Locate the 2 inner Flange pieces.
Get a helper to hold the chimney centered in the hole
while you place the 2 flange pieces around the pipe.

Harmony Timber Barrel Sauna Assembly
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com 17
Locate the rubber outer flange.
With the pipe centered, secure the flange pieces to the
roof with the provided 1” (25mm) screws in the 2 slotted
grooves.
Slip it snugly over the chimney pipe as shown.
Slide the top chimney piece over the bottom chimney
pipe.
