Thank you for choosing this product.
We are proud to offer the ideal product for
you and the best complete range of home
appliances for your daily routine.
Please read and follow these
instructions carefully and operate the
machine accordingly. This booklet provides
important guidelines for safe use,
installation, maintenance and some useful
advice for best results when using your
machine. Keep all documentation in a safe
place for future reference or for any future
owners.
Please check that the following items are
delivered with the appliance:
•Instruction manual
•Guarantee card
•Energy label
Check that no damage has occurred to the
machine during transit. If it as, call for
service by Customer Service Centre.
Failure to comply with the above can
compromise the safety of the appliance.
You may be charged for a service call if a
problem with your machine is caused by
misuse or by incorrect installation.
To contact the Service, ensure that you
have the unique 16-character code
available, also called the "serial number".
This code is a unique code for your
product, printed on the sticker that can be
found inside the door opening.
WEEE contains both polluting substances (which
can cause negative consequences for the
environment) and basic components (which can
be re-used). It is important to have WEEE
subjected to specific treatments, in order to
remove and dispose properly all pollutants, and
recover and recycle all materials. Individuals can
play an important role in ensuring that WEEE
does not become an environmental issue; it is
essential to follow some basic rules:
lWEEE should not be treated as household
waste;
lWEEE should be handed over to the relevant
collection points managed by the municipality or
by registered companies. In many countries, for
large WEEE, home collection could be present.
In many countries, when you buy a new
appliance, the old one may be returned to the
retailer who has to collect it free of charge on a
one-to-one basis, as long as the equipment is of
equivalent type and has the same functions as
the supplied equipment.
1. GENERAL SAFETY RULES

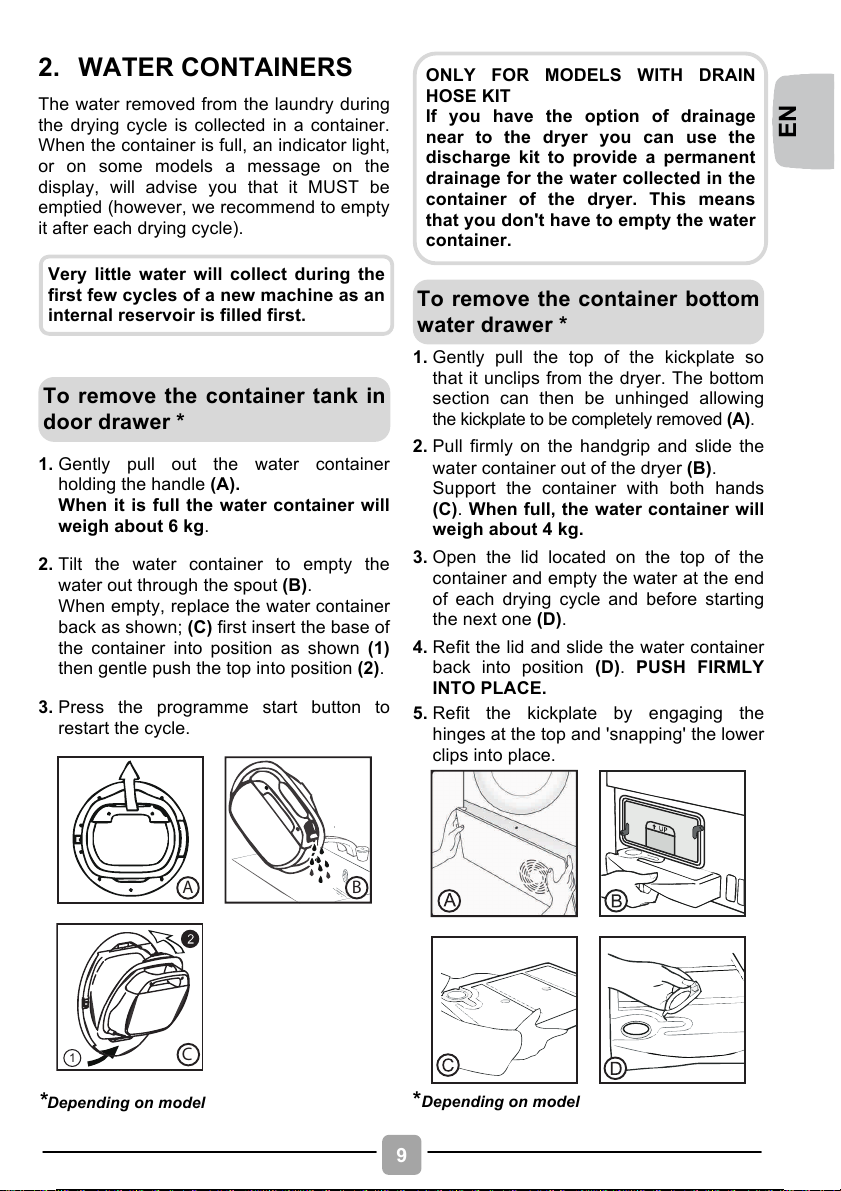

2. WATER CONTAINERS
3. DOOR, FILTER AND CONDENSER
4. PRACTICAL HINTS
5. REMOTE CONTROL (WI-FI)
6. QUICK USER GUIDE
7. CONTROLS AND PROGRAMMES
8. TROUBLESHOOTING AND WARRANTY
This appliance is marked according to
the European directive 2012/19/EU
on Waste Electrical and Electronic
Equipment (WEEE).
Contents
Environmental conditions
4 / 263 / 244 / 26

!
4

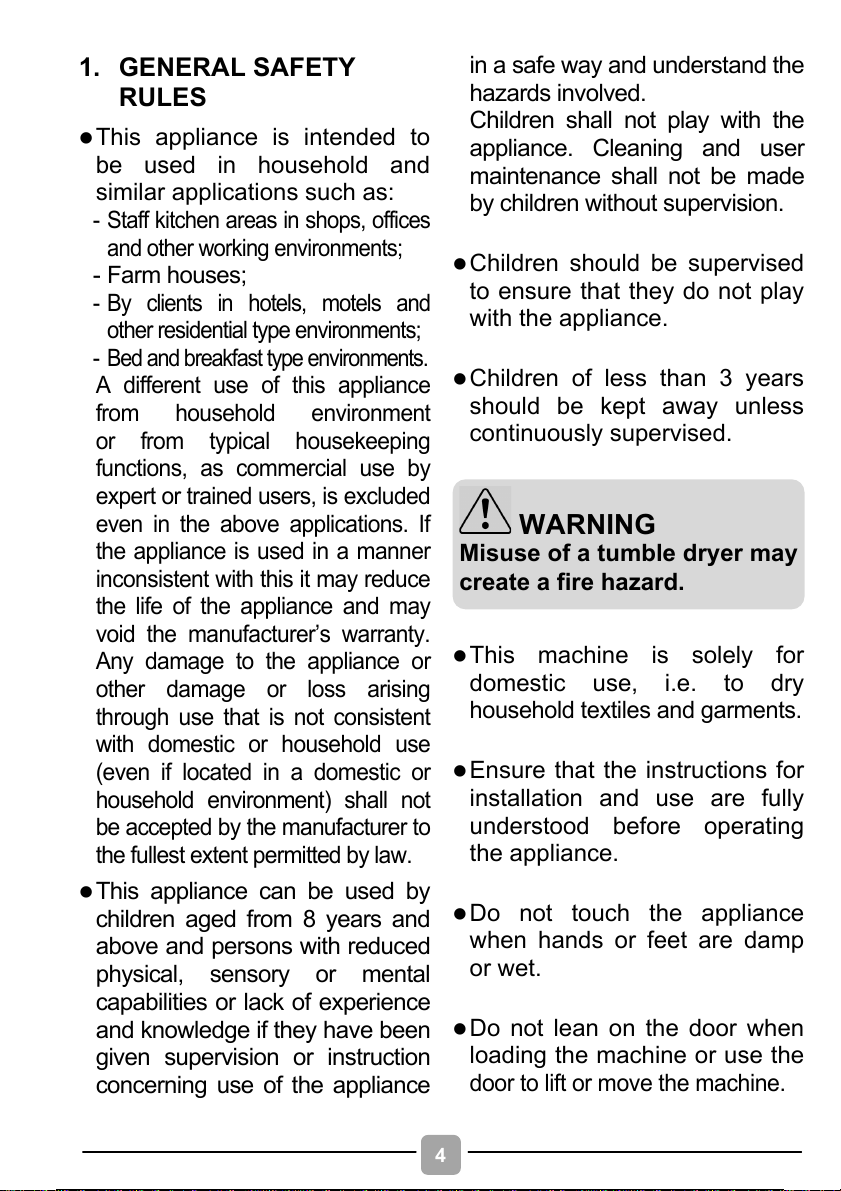

1. GENERAL SAFETY
RULES
lThis appliance is intended to
be used in household and
similar applications such as:
- Staff kitchen areas in shops, offices
and other working environments;
- Farm houses;
- By clients in hotels, motels and
other residential type environments;
- Bed and breakfast type environments.
A different use of this appliance
from household environment
or from typical housekeeping
functions, as commercial use by
expert or trained users, is excluded
even in the above applications. If
the appliance is used in a manner
inconsistent with this it may reduce
the life of the appliance and may
void the manufacturer’s warranty.
Any damage to the appliance or
other damage or loss arising
through use that is not consistent
with domestic or household use
(even if located in a domestic or
household environment) shall not
be accepted by the manufacturer to
the fullest extent permitted by law.
lThis appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
lChildren should be supervised
to ensure that they do not play
with the appliance.
lChildren of less than 3 years
should be kept away unless
continuously supervised.
lThis machine is solely for
domestic use, i.e. to dry
household textiles and garments.
lEnsure that the instructions for
installation and use are fully
understood before operating
the appliance.
lDo not touch the appliance
when hands or feet are damp
or wet.
lDo not lean on the door when
loading the machine or use the
door to lift or move the machine.
WARNING
Misuse of a tumble dryer may
create a fire hazard.
5 / 264 / 245 / 26

!
EN
5
lDo not continue to use this
machine if it appears to be faulty.
lThe tumble dryer is not to be
used if industrial chemicals
have been used for cleaning.
l Lint and fluff must not be allowed
to collect on the floor around the
outside of the machine.
lAlways remove the plug before
cleaning the appliance.
lThe drum inside may be very
hot. Always allow the dryer to
complete the cool down period
before removing the laundry.
lThe final part of a tumble dryer
cycle occurs without heat (cool
down cycle) to ensure that the
items are left at a temperature
that ensures that the items will
not be damaged.
lDo not install the product in a
low temperature room or in a
room where there is a risk of
frost occurring. At temperature
around freezing point the
product may not be able to
operate properly: there is a risk
of damage if the water is
allowed to freeze in the
hydraulic circuit (valves, hoses,
pumps). For a better product
performance the ambient room
temperature must be between
5-35°C. Please note that
operating in cold condition
(between +2 and +5°C) might
simply some water condensation
and water drops on floor.
WARNING
Do not use the product if the
fluff filter is not in position or
is damaged; fluff could be
ignited.
WARNING
Where the hot surface
symbol is located the
temperature rise during
operation of the tumble
dryer may be in excess of 60
degrees C.
WARNING
Never stop a tumble dryer
before the end of the drying
cycle unless all items are
quickly removed and spread
out so that the heat is
dissipated.
Installation
6 / 265 / 246 / 26

!
6
lIn cases where the dryer is
installed on top of a washing
machine, a suitable stacking kit
must be used according to the
configuration of your appliance:
− Stacking kit "standard size":
for washing machine with
minimum depth of 44 cm;
−Stacking kit "slim size": for
washing machine with
minimum depth of 40 cm.
−Universal stacking kit with
sliding: for washing machine
with minimum depth of
47 cm.
The stacking kit shall be
obtainable from service. The
instructions for installation and
any fixing attachments, are
provided with the stacking kit.
lNEVER install the dryer up
near curtains.
lThe appliance must not be
installed behind a lockable door,
a sliding door or a door with a
hinge on the opposite side to
that of the tumble dryer, in
such way that a full opening of
the tumble dryer door is restricted.
lFor your safety, the appliance
must be correctly installed. If
there is any doubt about installation,
call Service for advice.
lOnce the machine is in place
the feet should be adjusted to
ensure that the machine is
level.
lThe technical details (supply
voltage and power input) are
indicated on the product rating
plate.
lMake sure that the electrical
system is earthed, complies
with all applicable law and that
the (electricity) socket is
compatible with the plug of the
appliance. Otherwise, seek
qualified professional assistance.
Electrical connections and
safety instructions
WARNING
The appliance must not be
supplied through an external
switching device, such as a
timer, or connected to a circuit
that is regularly switched on
and off by a utility.
7 / 266 / 247 / 26

!
EN
7
lDo not use adapters, multiple
connectors and/or extensions.
lThe plug should be accessible
for disconnection after the
appliance has been installed.
lDo not plug the machine in and
switch it on at the mains until
the installation is completed.
lIf the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent
or similarly qualified persons in
order to avoid a hazard.
lAdequate ventilation must be
provided in the room where the
tumble dryer is located to
prevent gases from appliances
burning other fuels, including
open fires, being drawn into
the room during operation of
the tumble dryer.
lInstall the rear of the appliance
close to a wall or vertical surface.
lThere should be a gap of at
least 12 mm between the
machine and any obstrubtions.
The inlet and outlet air should
be kept clear of obstruction.
lMake sure carpets or rugs do
not obstruct the base or any of
the ventilation openings.
lPrevent items from falling or
collecting behind the dryer as
these may obstruct the air inlet
and outlet.
lExhaust air must not be
discharged into a flue which is
used for exhausting fumes
from appliances burning gas or
other fuels.
lCheck regularly that the air
flowing around the dryer is not
restricted, avoiding accumulation
of dust and lint.
lCheck frequently the fluff filter
after use, and clean, if necessary.
* Air inlet.
**Air outlet.
lAlways refer to the laundry
care labels for directions on
suitability for drying.
Ventilation
The Laundry
8 / 267 / 248 / 26

!
8
lFabric softeners, or similar
products, should be used as
specified by the fabric softener
instructions.
lDo not dry unwashed items in
the tumble dryer.
lClothes should be spin dried or
thoroughly wrung before they
are put into the tumble dryer.
lClothes that are dripping wet
should not be put into the dryer.
lGlass fibre curtains should
NEVER be put in this machine.
Skin irritation may occur if other
garments are contaminated with
the glass fibres.
lItems that have been soiled
with substances such as cooking
oil, acetone, alcohol, petrol,
kerosene, spot removers,
turpentine, waxes and wax
removers should be washed in
hot water with an extra amount
of detergent before being dried
in the tumble dryer.
l Remove all objects from pockets
such as lighters and matches.
lLighters and matches must not
be left in pockets and NEVER
use flammable liquids near the
machine.
lMaximum load drying weight:
see energy label.
l To consult the product technical
specification please refer to the
manufacturer website.
WARNING
Foam rubber materials can ,
under certain circumstances,
when heated become ignited
by spontaneous combustion.
Items such as foam rubber
(latex foam), shower caps,
waterproof textiles, rubber
backed articles and clothes
or pillows fitted with foam
rubber pads MUST NOT be
dried in the tumble dryer.
WARNING
Do not tumble dry fabrics
treated with dry cleaning fluids.
9 / 268 / 249 / 26

!
EN
9
2. WATER CONTAINERS
The water removed from the laundry during
the drying cycle is collected in a container.
When the container is full, an indicator light,
or on some models a message on the
display, will advise you that it MUST be
emptied (however, we recommend to empty
it after each drying cycle).
1. Gently pull out the water container
holding the handle (A).
When it is full the water container will
weigh about 6 kg.
2. Tilt the water container to empty the
water out through the spout (B).
When empty, replace the water container
back as shown; (C) first insert the base of
the container into position as shown (1)
then gentle push the top into position (2).
3. Press the programme start button to
restart the cycle.
AB
1C
*Depending on model
1. Gently pull the top of the kickplate so
that it unclips from the dryer. The bottom
section can then be unhinged allowing
the kickplate to be completely removed (A).
2. Pull firmly on the handgrip and slide the
water container out of the dryer (B).
Support the container with both hands
(C). When full, the water container will
weigh about 4 kg.
3. Open the lid located on the top of the
container and empty the water at the end
of each drying cycle and before starting
the next one (D).
4. Refit the lid and slide the water container
back into position (D). PUSH FIRMLY
INTO PLACE.
5. Refit the kickplate by engaging the
hinges at the top and 'snapping' the lower
clips into place.
*Depending on model
Very little water will collect during the
first few cycles of a new machine as an
internal reservoir is filled first.
To remove the container tank in
door drawer *
ONLY FOR MODELS WITH DRAIN
HOSE KIT
If you have the option of drainage
near to the dryer you can use the
discharge kit to provide a permanent
drainage for the water collected in the
container of the dryer. This means
that you don't have to empty the water
container.
To remove the container bottom
water drawer *
10 / 269 / 2410 / 26

!
10

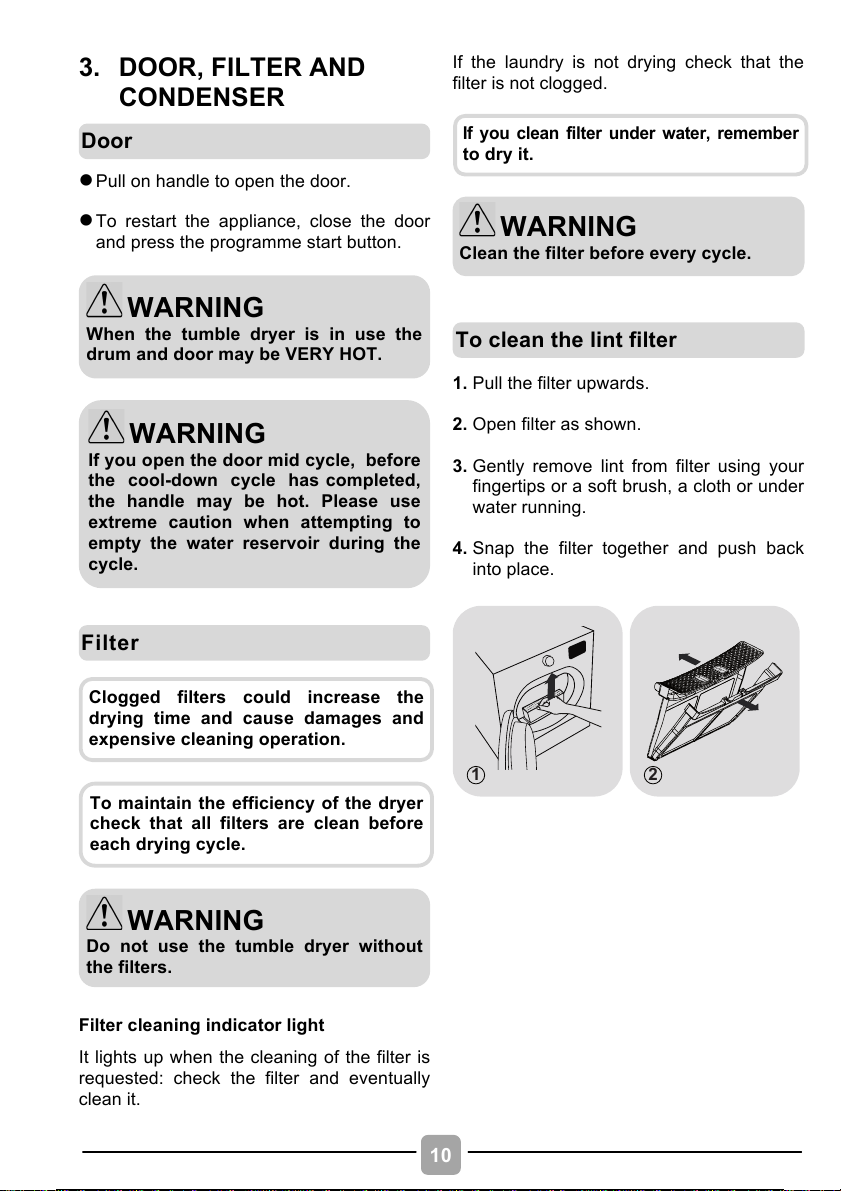

3. DOOR, FILTER AND
CONDENSER
lPull on handle to open the door.
lTo restart the appliance, close the door
and press the programme start button.
Filter cleaning indicator light
It lights up when the cleaning of the filter is
requested: check the filter and eventually
clean it.
If the laundry is not drying check that the
filter is not clogged.
1. Pull the filter upwards.
2. Open filter as shown.
3. Gently remove lint from filter using your
fingertips or a soft brush, a cloth or under
water running.
4. Snap the filter together and push back
into place.
1
2
Door
WARNING
When the tumble dryer is in use the
drum and door may be VERY HOT.
WARNING
If you open the door mid cycle, before
the cool-down cycle has completed,
the handle may be hot. Please use
extreme caution when attempting to
empty the water reservoir during the
cycle.
Filter
Clogged filters could increase the
drying time and cause damages and
expensive cleaning operation.
To maintain the efficiency of the dryer
check that all filters are clean before
each drying cycle.
WARNING
Do not use the tumble dryer without
the filters.
.
.
If you clean filter under water, remember
to dry it.
WARNING
Clean the filter before every cycle.
To clean the lint filter
11 / 2610 / 2411 / 26

!
EN
11
1. Remove the kickplate.
2. Turn the locking levers clockwise and pull
out the condenser.
3. Pull out the condenser unit.
4. Gently remove any dust or fluff with a
cloth, then wash the unit by holding it
under a running tap turning it so that
water flows between the plates, to
remove any dust or fluff.
5. Refit the condenser ensuring it is in the
correct way (as indicated by the arrow)
and pushed firmly into place.
6. Lock the levers by turning them anti-
clockwise. Be sure that condenser unit
fixed to the basement tightly.
7. Refit the kickplate.
1
2
4 5
7
6
3
To clean the condenser
12 / 2611 / 2412 / 26

!
12

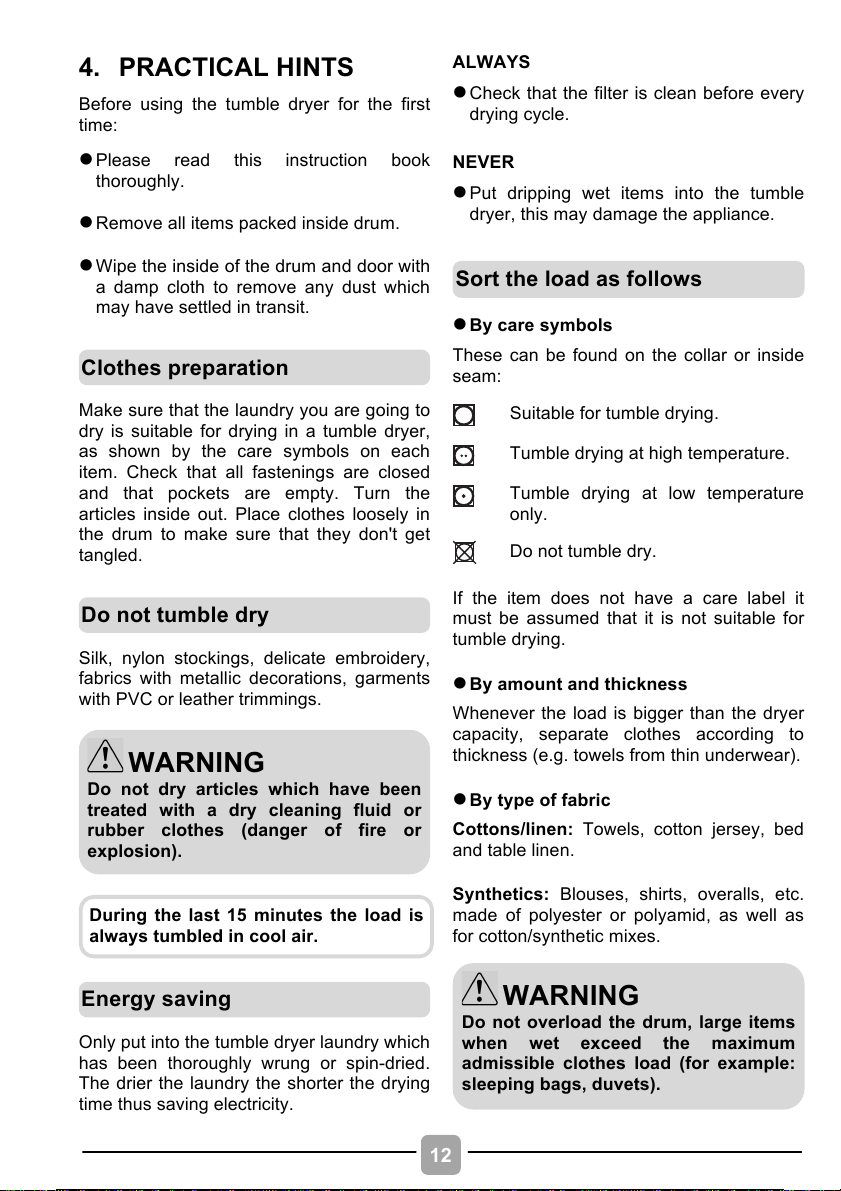

4. PRACTICAL HINTS
Before using the tumble dryer for the first
time:
lPlease read this instruction book
thoroughly.
lRemove all items packed inside drum.
lWipe the inside of the drum and door with
a damp cloth to remove any dust which
may have settled in transit.
Make sure that the laundry you are going to
dry is suitable for drying in a tumble dryer,
as shown by the care symbols on each
item. Check that all fastenings are closed
and that pockets are empty. Turn the
articles inside out. Place clothes loosely in
the drum to make sure that they don't get
tangled.
Silk, nylon stockings, delicate embroidery,
fabrics with metallic decorations, garments
with PVC or leather trimmings.
Only put into the tumble dryer laundry which
has been thoroughly wrung or spin-dried.
The drier the laundry the shorter the drying
time thus saving electricity.
ALWAYS
lCheck that the filter is clean before every
drying cycle.
NEVER
lPut dripping wet items into the tumble
dryer, this may damage the appliance.
lBy care symbols
These can be found on the collar or inside
seam:
Suitable for tumble drying.
Tumble drying at high temperature.
Tumble drying at low temperature
only.
Do not tumble dry.
If the item does not have a care label it
must be assumed that it is not suitable for
tumble drying.
lBy amount and thickness
Whenever the load is bigger than the dryer
capacity, separate clothes according to
thickness (e.g. towels from thin underwear).
lBy type of fabric
Cottons/linen: Towels, cotton jersey, bed
and table linen.
Synthetics: Blouses, shirts, overalls, etc.
made of polyester or polyamid, as well as
for cotton/synthetic mixes.
Clothes preparation
Do not tumble dry
WARNING
Do not dry articles which have been
treated with a dry cleaning fluid or
rubber clothes (danger of fire or
explosion).
During the last 15 minutes the load is
always tumbled in cool air.
Energy saving
Sort the load as follows
WARNING
Do not overload the drum, large items
when wet exceed the maximum
admissible clothes load (for example:
sleeping bags, duvets).
13 / 2612 / 2413 / 26

!
EN
13

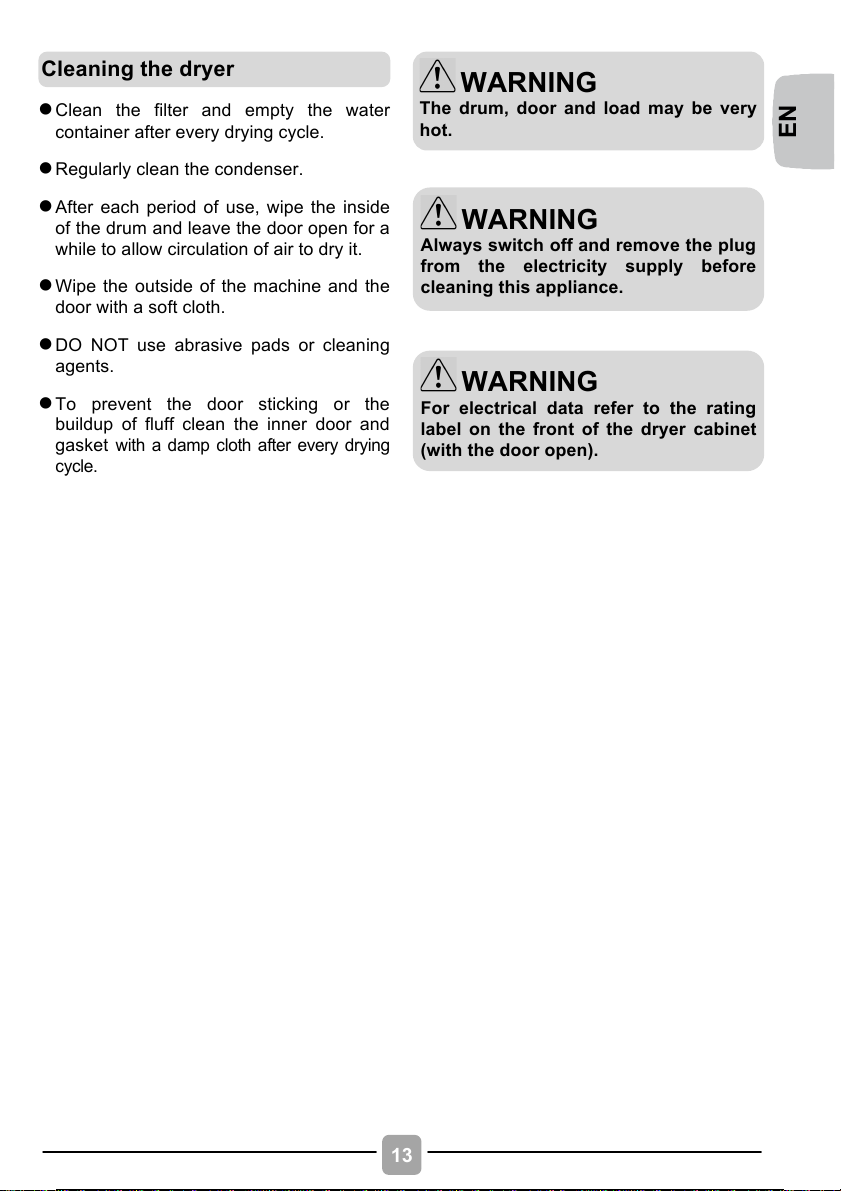

lClean the filter and empty the water
container after every drying cycle.
lRegularly clean the condenser.
lAfter each period of use, wipe the inside
of the drum and leave the door open for a
while to allow circulation of air to dry it.
lWipe the outside of the machine and the
door with a soft cloth.
lDO NOT use abrasive pads or cleaning
agents.
lTo prevent the door sticking or the
buildup of fluff clean the inner door and
gasket with a damp cloth after every drying
cycle.
Cleaning the dryer
WARNING
The drum, door and load may be very
hot.
WARNING
Always switch off and remove the plug
from the electricity supply before
cleaning this appliance.
WARNING
For electrical data refer to the rating
label on the front of the dryer cabinet
(with the door open).
14 / 2613 / 2414 / 26

!
14

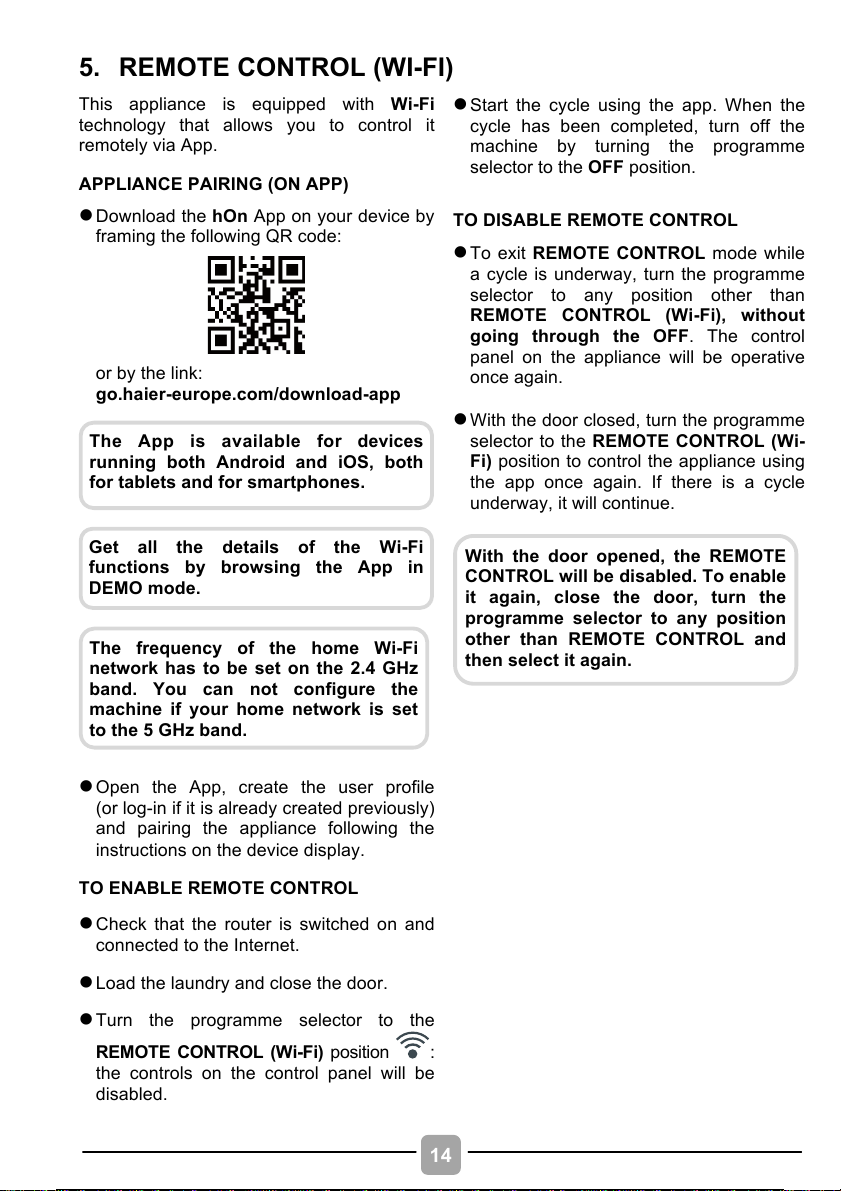

5. REMOTE CONTROL (WI-FI)
This appliance is equipped with Wi-Fi
technology that allows you to control it
remotely via App.
APPLIANCE PAIRING (ON APP)
lDownload the hOn App on your device by
framing the following QR code:
or by the link:
go.haier-europe.com/download-app
lOpen the App, create the user profile
(or log-in if it is already created previously)
and pairing the appliance following the
instructions on the device display.
TO ENABLE REMOTE CONTROL
lCheck that the router is switched on and
connected to the Internet.
lLoad the laundry and close the door.
lTurn the programme selector to the
REMOTE CONTROL (Wi-Fi) position :
the controls on the control panel will be
disabled.
lStart the cycle using the app. When the
cycle has been completed, turn off the
machine by turning the programme
selector to the OFF position.
TO DISABLE REMOTE CONTROL
lTo exit REMOTE CONTROL mode while
a cycle is underway, turn the programme
selector to any position other than
REMOTE CONTROL (Wi-Fi), without
going through the OFF. The control
panel on the appliance will be operative
once again.
lWith the door closed, turn the programme
selector to the REMOTE CONTROL (Wi-
Fi) position to control the appliance using
the app once again. If there is a cycle
underway, it will continue.
The App is available for devices
running both Android and iOS, both
for tablets and for smartphones.
Get all the details of the Wi-Fi
functions by browsing the App in
DEMO mode.
The frequency of the home Wi-Fi
network has to be set on the 2.4 GHz
band. You can not configure the
machine if your home network is set
to the 5 GHz band.
With the door opened, the REMOTE
CONTROL will be disabled. To enable
it again, close the door, turn the
programme selector to any position
other than REMOTE CONTROL and
then select it again.
15 / 2614 / 2415 / 26

!
EN
15
6. QUICK USER GUIDE
1. Open the door and load the drum with
laundry. Ensure that garments do not
hinder closure of the door.
2. Gently close the door pushing it slowly
until you hear the door 'click' shut.
3. Turn the programme selector dial to
select the required drying programme
(see the table of programmes).
4. Press the programme start button. The
dryer will start automatically.
5. If the door is opened during the
programme to check the laundry, it is
necessary to press programme start
to recommence drying after the door
has been closed.
6. When the cycle is nearing completion
the machine will enter the cool down
phase, the clothes will be tumbled in
cool air allowing the load to cool down.
7. Following the completion of the cycle
the drum will rotate intermittently to
minimize creasing. This will continue
until the machine is switched OFF or the
door is opened.
Power input / Power current fuse amp/
Supply voltage: see rating plate.
Maximum load: see energy label.
Energy class: see energy label.
7. CONTROLS AND
PROGRAMMES
A
FG
C
DEB
H
A
PROGRAMME SELECTOR with
OFF position
B
START/PAUSE button
C
DELAY START button
D
TIME CYCLE SELECTION button
E
MEMO button
F
DRYING SELECTION button
G
SUPER EASY IRON button
H
DISPLAY
C+D
CHILD LOCK
Do not open the door during the
automatic programmes in order to
obtain a proper drying.
Technical data
16 / 2615 / 2416 / 26

!
16
lRotating the programme selector in both
directions it's possible to select the
desired drying programme.
lTo cancel the selections or switch off the
appliance rotate the programme selector
on OFF (remember to unplug the appliance).
- Language setting
lAfter connecting the machine to the
network and turning it on, press the
button "F" or "G" to see on the display
the available languages. ENGLISH is
always the first language shown.
lSelect the desired language pressing the
START/PAUSE button.
- Change the language
If you want to change the setting language
you will have to press simultaneously "F"
and "G" buttons for about 5seconds.
ENGLISH will appear on the display, and
you will be able to choose a new language.
lTo start the selected cycle with the preset
parameters, press START/PAUSE. When
the programme is running, the display will
show the time to elapse.
lMoreover, if you want to modify the
chosen programme, press the desired
options buttons, modify the default
parameters and then press START/
PAUSE button to start the cycle.
lAfter switching on the appliance, wait a few
seconds for the programme to start running.
PROGRAMME DURATION
lWhen a programme is selected the
display automatically shows the cycle
duration, which can vary, depending on
the options selected.
lOnce the programme has started you will
be kept informed constantly of the time
remaining to the end of the drying cycle.
lThe appliance calculates the time to the
end of the selected programme based
upon a standard loading, during the cycle,
the appliance corrects the time to the
humidity level of the load.
PROGRAMME END
l"END" ("End" on some models) will
appear in the display at the end of the
programme, it is now possible to open the
door.
lAt the end of the cycle, turn off the
appliance by turning the programme
selector to the OFF position.
WARNING
Don’t touch the buttons while inserting
the plug because the machines
calibrates the systems during the first
seconds: touching the buttons, the
machine couldn’t work property. In
this case, remove the plug and repeat
the operation.
PROGRAMME SELECTOR with
OFF position
First starting
START/PAUSE button
Close the porthole BEFORE pressing
the START/PAUSE button.
Only the options compatible with the
set programme can be selected.
The programme selector must
ALWAYS be put in the OFF position at
the end of the drying cycle before a
new one can be selected.
17 / 2616 / 2417 / 26

!
EN
17
PAUSING THE MACHINE
lKeep the START/PAUSE button pressed
for about 2seconds (the name of the
programme and the residual time display
will flash, showing that the machine is
paused).
lPress the START/PAUSE button again to
re-start the programme from the point it
had been paused at.
CANCELLING THE SET PROGRAMME
lTo cancel the programme, turn the
programme selector to the OFF position.
If there is a break in the power supply
whilst the machine is operating, when
the power is restored, by pressing the
START/PAUSE button, the machine will
restart from the beginning of the phase it
was in when the power was lost.
lThis button allows to delay the start of the
programme from 30 minutes (1 hour on
some models) to 24 hours in 30 minutes
intervals (1 hour on some models).The
delay selected is shown on the display.
lAfter pressing the START/PAUSE button
the time showed decrease minute after
minute.
lIt's possible transform a cycle from
automatic to programmed, up to 3
minutes after the start of the cycle.
lThe progressive pressure increases the
time in 10 minute intervals. After this
selection to reset the automatic drying
functioning is necessary to switch off the
dryer.
lIn case of incompatibility, all indicator
lights flash quickly for 3 times.
This button allows you to store the options
set on a cycle.
MEMORY:
select the programme and the desired
options, then press the button MEMO for 3
seconds (before starting the cycle). The
writing MEMO (all the digit on some
models) will blink for 2 seconds and the
options connected to the cycle selected will
be set.
RECALL:
after the selection of the cycle press the
button MEMO for recall the stored options
(not the cycle).
lThis button allows to set the desired
dryness level editable option up to 3
minutes after the starting of the cycle:
Ready to Iron: it leaves the garments
slightly wet to facilitate ironing.
Dry Hanger: to get garment ready to
be hang.
Dry wardrobe: for laundry that can be
directly stored.
Extra-dry: to get completely dry
garments, ideal for full load.
lThis appliances is equipped with Drying
Manager function. On automatic cycles,
each level of intermediate drying, prior to
the reaching the selected one, is
indicated by flashing the light indicator
corresponding to the degree of drying
reached.
DELAY START button
Opening of the porthole with delayed
start set, after re-closing the porthole,
press start again to resume the counting.
TIME CYCLE SELECTION button
MEMO button
The delay start function can't be
memorized.
DRYING SELECTION button
18 / 2617 / 2418 / 26

!
18

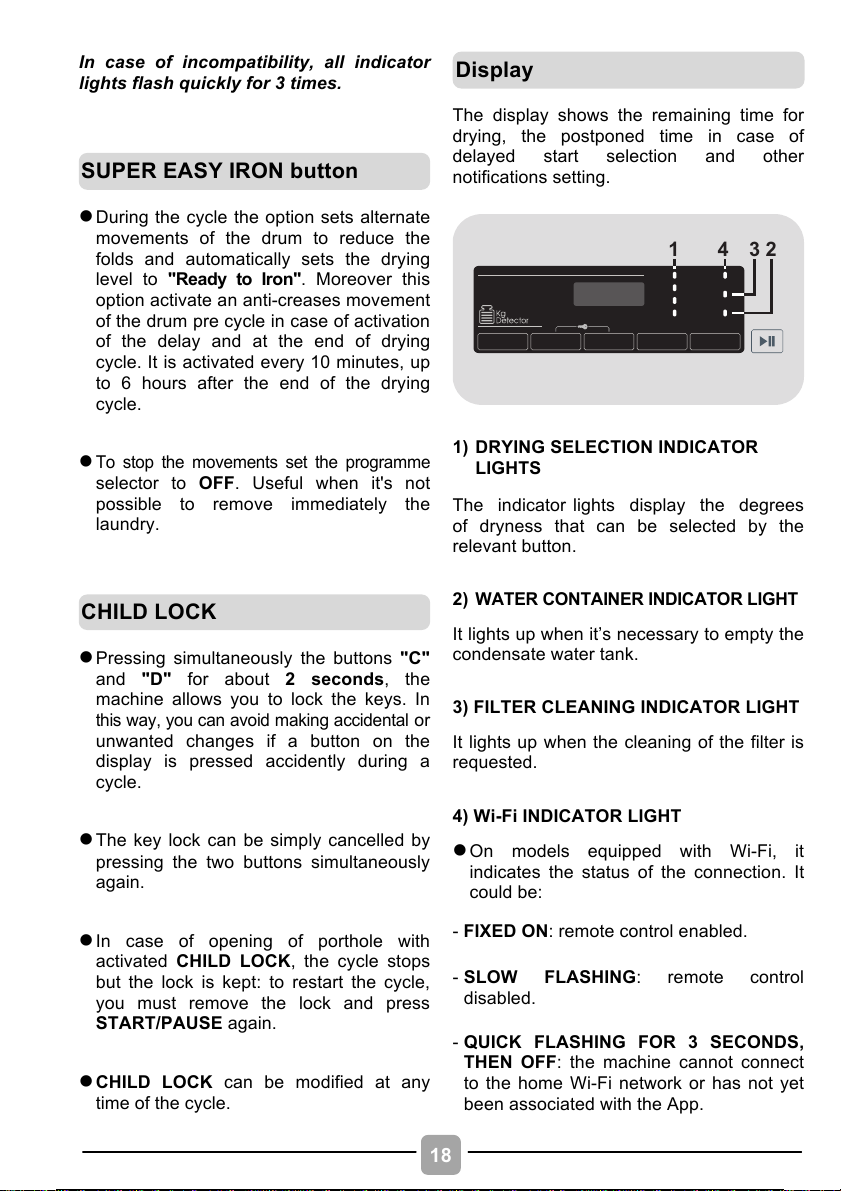

In case of incompatibility, all indicator
lights flash quickly for 3 times.
lDuring the cycle the option sets alternate
movements of the drum to reduce the
folds and automatically sets the drying
level to "Ready to Iron". Moreover this
option activate an anti-creases movement
of the drum pre cycle in case of activation
of the delay and at the end of drying
cycle. It is activated every 10 minutes, up
to 6 hours after the end of the drying
cycle.
l To stop the movements set the programme
selector to OFF. Useful when it's not
possible to remove immediately the
laundry.
lPressing simultaneously the buttons "C"
and "D" for about 2 seconds, the
machine allows you to lock the keys. In
this way, you can avoid making accidental or
unwanted changes if a button on the
display is pressed accidently during a
cycle.
lThe key lock can be simply cancelled by
pressing the two buttons simultaneously
again.
lIn case of opening of porthole with
activated CHILD LOCK, the cycle stops
but the lock is kept: to restart the cycle,
you must remove the lock and press
START/PAUSE again.
lCHILD LOCK can be modified at any
time of the cycle.
The display shows the remaining time for
drying, the postponed time in case of
delayed start selection and other
notifications setting.
1432
1) DRYING SELECTION INDICATOR
LIGHTS
The indicator lights display the degrees
of dryness that can be selected by the
relevant button.
2) WATER CONTAINER INDICATOR LIGHT
It lights up when it’s necessary to empty the
condensate water tank.
3) FILTER CLEANING INDICATOR LIGHT
It lights up when the cleaning of the filter is
requested.
4) Wi-Fi INDICATOR LIGHT
lOn models equipped with Wi-Fi, it
indicates the status of the connection. It
could be:
- FIXED ON: remote control enabled.
- SLOW FLASHING: remote control
disabled.
- QUICK FLASHING FOR 3 SECONDS,
THEN OFF: the machine cannot connect
to the home Wi-Fi network or has not yet
been associated with the App.
SUPER EASY IRON button
CHILD LOCK
Display
19 / 2618 / 2419 / 26

EN
19

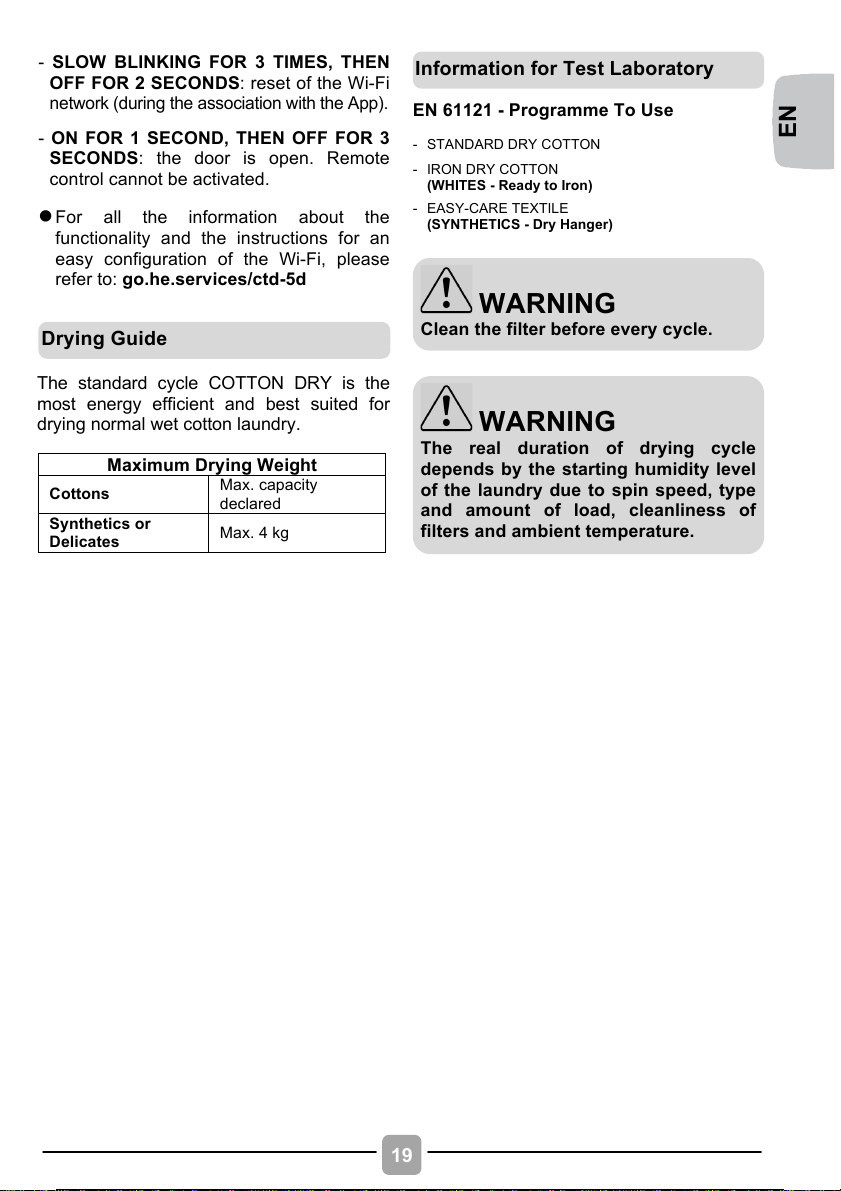

-SLOW BLINKING FOR 3 TIMES, THEN
OFF FOR 2 SECONDS: reset of the Wi-Fi
network (during the association with the App).
-ON FOR 1 SECOND, THEN OFF FOR 3
SECONDS: the door is open. Remote
control cannot be activated.
lFor all the information about the
functionality and the instructions for an
easy configuration of the Wi-Fi, please
refer to: go.he.services/ctd-5d
Maximum Drying Weight
Cottons
Max. capacity
declared
Synthetics or
Delicates
Max. 4 kg
EN 61121 - Programme To Use
-STANDARD DRY COTTON
-IRON DRY COTTON
(WHITES - Ready to Iron)
-EASY-CARE TEXTILE
(SYNTHETICS - Dry Hanger)
Drying Guide
Information for Test Laboratory
WARNING
Clean the filter before every cycle.
WARNING
The real duration of drying cycle
depends by the starting humidity level
of the laundry due to spin speed, type
and amount of load, cleanliness of
filters and ambient temperature.
The standard cycle COTTON DRY is the
most energy efficient and best suited for
drying normal wet cotton laundry.
20 / 2619 / 2420 / 26
