Candy CCGM9025PX User manual

FREE STANDING OVEN
90x60 Gas & Electrical Oven
90x60cm Cuisinière à Table Gaz et Four Électrique
USER MANUAL
MANUEL D’INSTRUCTIONS FR
GB
CCGM9025PX
CCGM9055PX

2
Dear User,
Our objective is to make this product provide you with the best output
which is manufactured in our modern facilities in a careful working envi-
ronment, in compliance with total quality concept.
Therefore, we suggest you to read the user manual carefully before us-
ing the product and, keep it permanently at your disposal.
Note: This user manual is prepared for more than one model. Some of
the features specied in the Manual may not be available in your appli-
ance.
All our appliances are only for domestic use, not for commercial use.
* Mark the products as option.
“THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE
REGULA TIONS FORCE AND ONLY USED IN A WELL VENTILATED SPACE. READ
THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE”
“Conforms with the WEEE Regulations."
GB

3
CONTENTS
Important Warnings 4
Introduction Of The Appliance 7
Important Warnings 8
Electrical Wiring Scheme 9
Gas Hose Passage Way 10
Chain Lashing Illustration 11
Installation Of Your Oven 11
Technical Features Of Your Oven 12

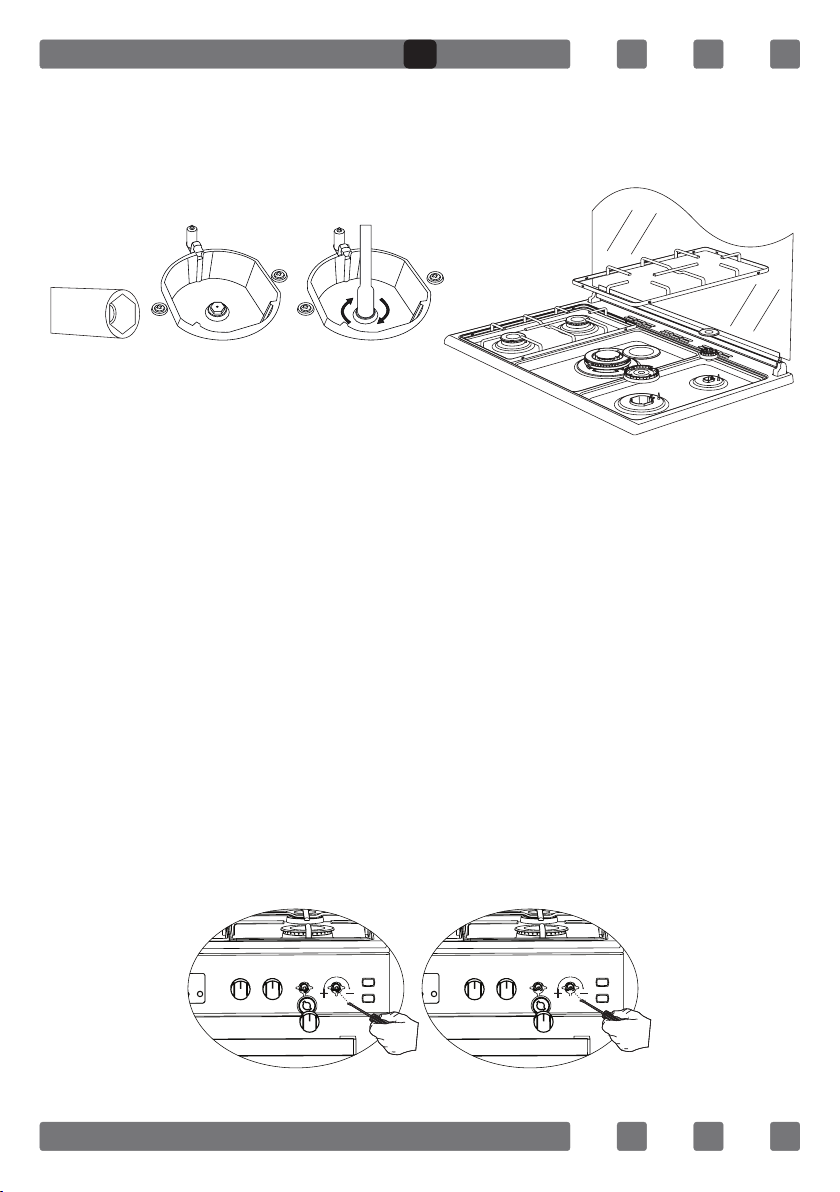

Reduced Flame Gas Cock Adjustment 13
Reduced Gas Flow Rate Setting For Hob Taps 13
Description Of Oven 14
Description Of The Control Panels 15
Using The Burner Groups 15
Installation Of The Oven Feet 16
Splash Back and Telescopic Leg 17
Using Oven Section 18

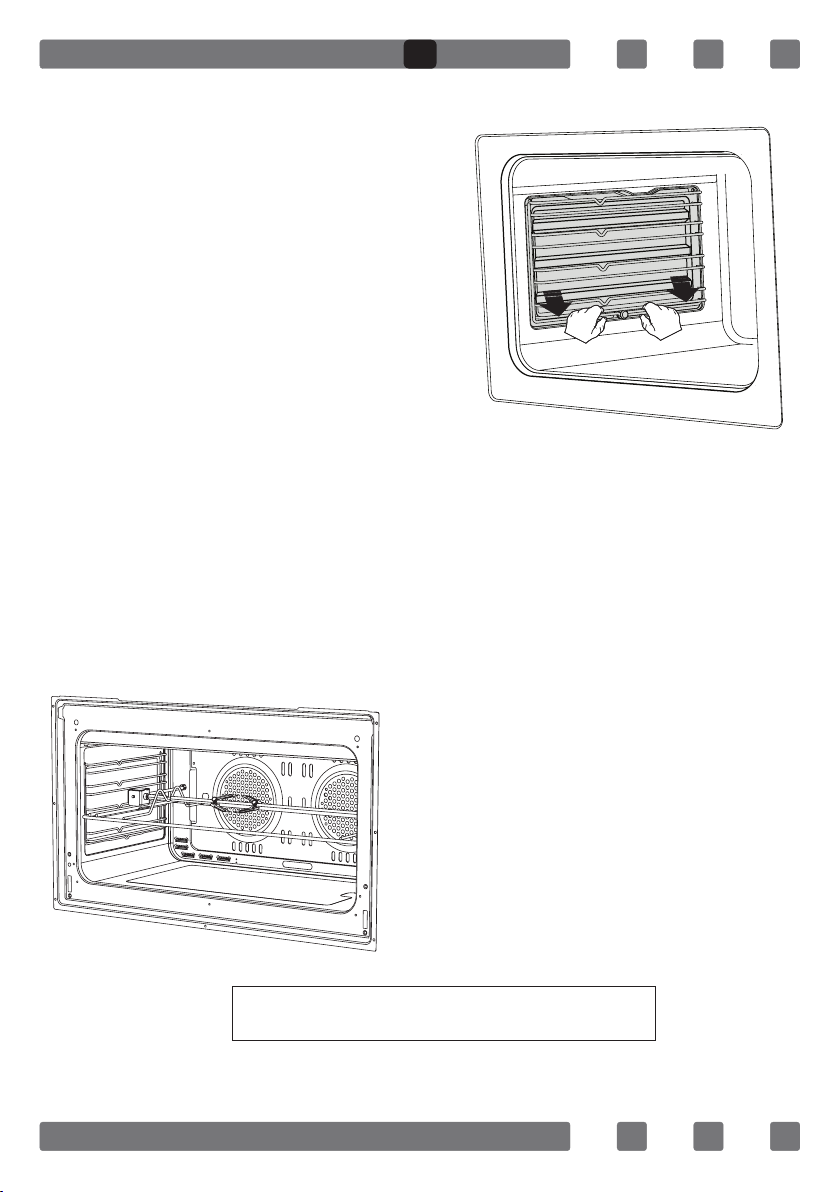

Catalytic Walls 19
Chicken Roasting 19
Cleaning And Maintenance Of The

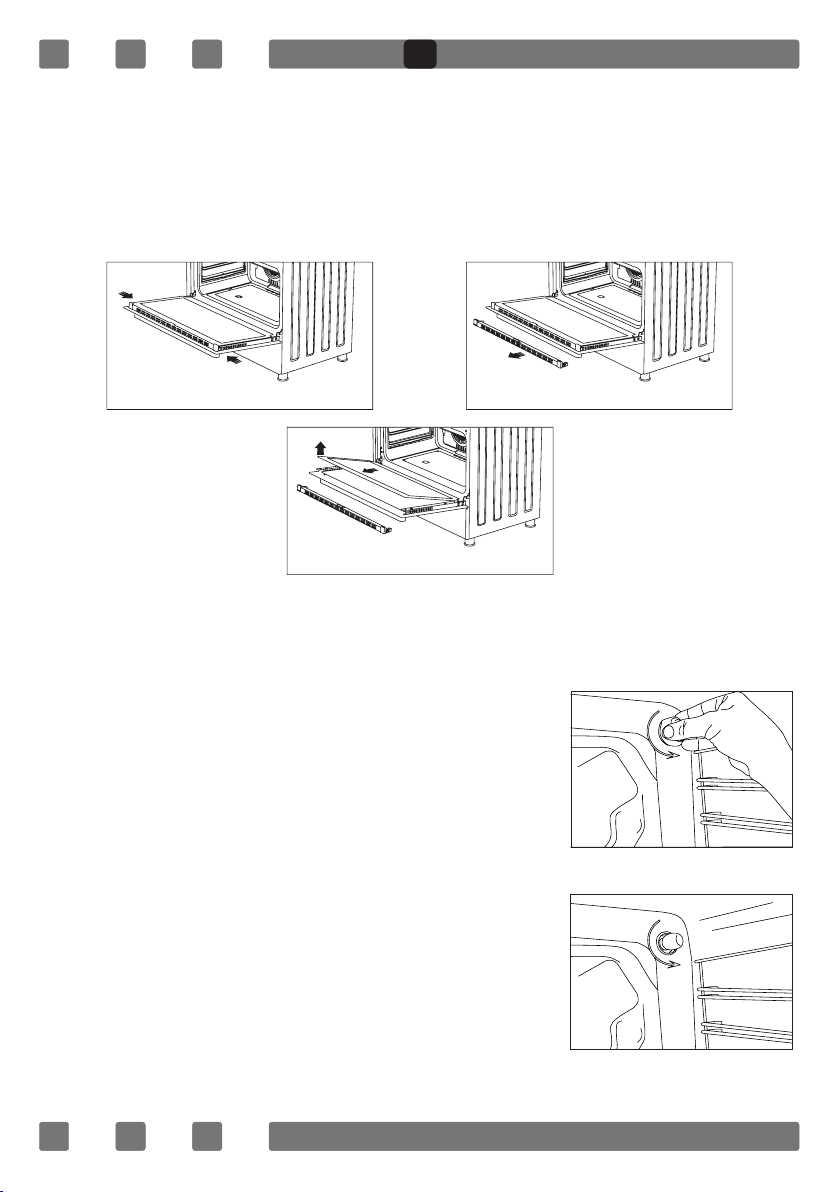

Oven’s Front Door Glass 20
Changing The Oven Lamp 20
Maintenance And Cleaning 21
Installation Of The Oven Door 22
Accesories 23
Removal Of The Lower And Upper Burner And
Installation Of The Injector To The Gas Oven 24
If Your Oven Does Not Operate 25
Environmentally-Friendly Disposal and
Package Information 25
GB

4
IMPORTANT WARNINGS
1.WARNING: To avoid electrocution, ensure that the electri-
cal circuit of the product is open before replacing the lamp.
2.WARNING:Before touching the connection terminals,
all supply circuit should be disconnected.
3.WARNING:While operating the grill, the reachable sec-
tions can be hot. Keep the children away.
4.WARNING:Any inadvertent cooking made with fats and
oils can be dangerous and cause re.
5.WARNING:Risk of re; do not store the food materials
on the cooking surface.
6.WARNING:If the surface is cracked, unplug the device
to prevent any risk of electric shock.
7.WARNING:During usage the reachable sections can be
hot. Keep the small children away.
8.WARNING:The appliance and its reachable sections
become hot during usage.
9.The setting conditions of this appliance is indicated
on the label. (Or data tag)
10.This appliance is not connected to a combustion
product discharge system.This appliance shall be con-
nected and installed as per the applicable installation
legislation. Consider the requirements related with ven-
tilation.
11.Using a gas hob will release humidity and combus-
tion products in the room where it resides. Especially
during when the appliance in use, ensure that the kitch-
GB

5
en is well ventilated and retain the natural ventilation
holes or install a mechanical ventilation system. (Hood
on top of the oven) Sustained usage of the appliance
may require additional ventilation. For example open-
ing a window or if available, increasing the ventilation
level of a mechanical ventilation system.
12.The reachable sections can become hot when the
grill is used. Keep the small children away.
13.WARNING:The appliance is intended for cooking only.
It must not be used for other purposes like room heating.
14.There are additional protective equipment to pre-
vent inadvertent touching to the oven doors. This equip-
ment should be installed if there are children.
15.“This appliance should be installed as per regula-
tions and in well-ventilated location only. Read the in-
structions before installing or operating the appliance.”
16.“Before placing the appliance check the local con-
ditions (gas type and gas pressure) and ensure that the
settings of the appliance is appropriate.”
17.“These instructions are applicable for countries of
which symbols are indicated on the appliance. If the
country symbol is not available on the appliance, in
order to adapt the appliance to the conditions of such
country, the technical instructions should be read.”
18.“Do not operate the system for more that 15 sec-
onds. If the burner does not ignite at the end of 15
seconds stop the operation of the system and open the
GB

6
section door and/or wait for at least 1 minute before
igniting the burner.
19.Do not use steam cleaners to clean the appliance.
20.Before opening the oven door clean the remnants
on it. Before closing the oven door, let it cool.
21.NEVER try to extinguish a re with water, rst dis-
connect the mains supply and then using, for example
a lid or blanket, cover the re.
22.Do not use hard and abrasive cleaning agents or
hard metal scrapers to clean the oven door glass as
they may scratch and shatter the surface.
23.After placing a dish, ensure that the door is rmly
closed.
24.Unless continuous supervision is provided, the
children of age 8 or below should be kept away.
25.Pay attention for not to touch the heating elements.
26.This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or in-
struction concerning use of the appliance in a safe way
and understand the hazards involved.
GB

7

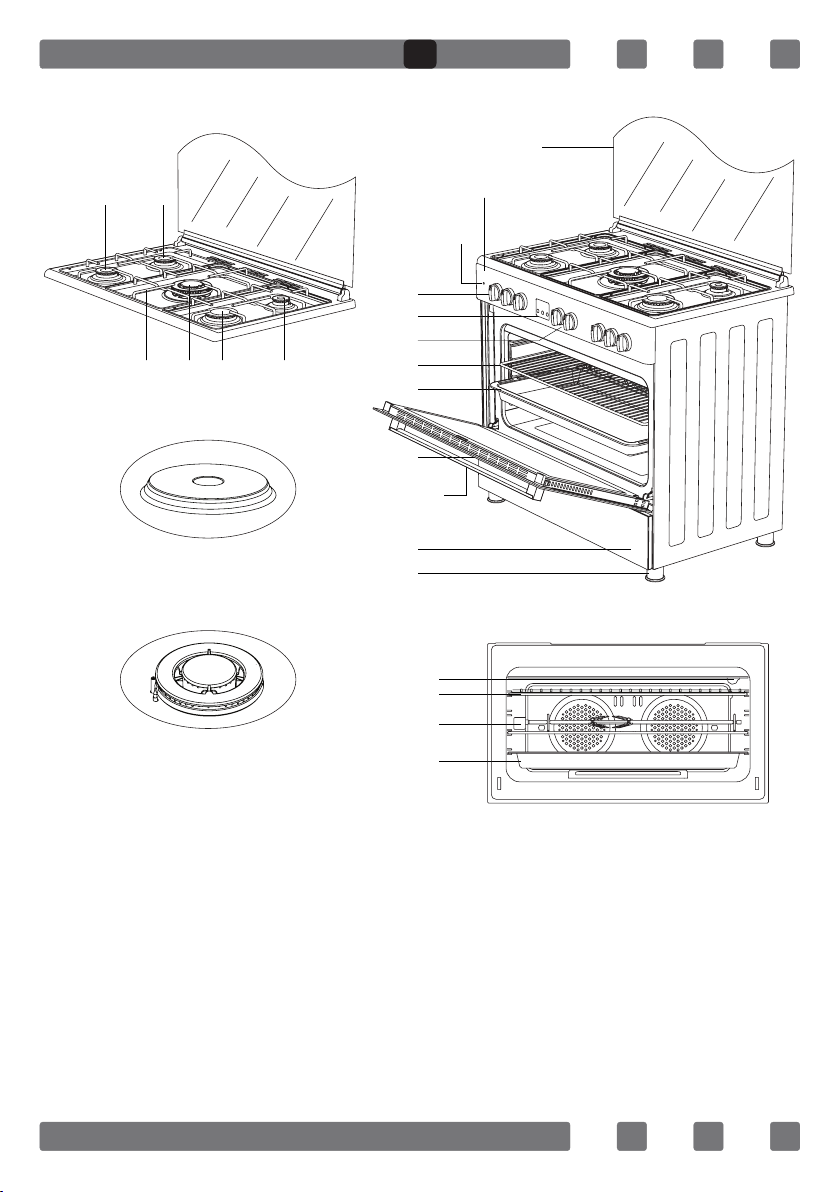

INTRODUCTION OF THE APPLIANCE
21
22
23
24
1
3 4 5 6
2
7*
8*
10
9
11
18
12
13
14
15
16
19
20
17
1. Middle Burner
2. Middle Burner
3. Trivet
4. WOK Burner
5. Large Burner
6. Auxiliary Burner
7. Hot Plate
8. WOK Burner
17. Door
18. Handle
19. Lower Cabinet Door
20. Telescopic Leg
21. Lamp
22. Grill
23. Chicken Roasting
24. Deep Tray
9. Glass Door
10. Control Panel
11. Led Lamp
12. Oven Control Knobs
13. Digital Timer
14. Hob Control Knobs
15. Wire Grill
16. Deep Tray
GB

8
IMPORTANT WARNINGS
Electrical Connection and Security
1. Your cooker is adjusted in compliance with 220-240V, 50/60Hz for
mono phase or 220-240V / 380-415V, 50/60Hz for three phase and 16
or 32 Ampere electric supply. If the mains is different from these values,
contact your authorized service.
2. Electrical connection of the oven should only be made by the sockets
with earth system installed in compliance with the regulations. If there
is no proper socket with earth system in the place where the oven will be
installed, immediately contact a qualied electrician. Manufacturer shall
never be responsible from the damages that will arise because of the
sockets connected to the appliance with no earth system.
3. Electrical cable should not touch the hot parts of the appliance.
4. For disconnection from the supply mains having a contact separation
in all poles that provide full disconnection, must be incorporated in xed
wiring in according with the wiring rules.
Gas Connection and Security
1. Before your appliance is connected to the gas supply, ensure that
the gas category and pressure specications shown in the data plate cor-
responds with your gas supply. If necessary call authorized service for
adjusting to gas category.
2. This appliance shall be installed in accordance with the regulations
in force and only used in a well ventilated space. Read the instructions
before installing or using this appliance. In the interest of safety this
appliances must be installed and / or serviced by a competent person as
stated in the gas safety regulations current editions.
3. The appliance must not be installed in a room without a window or
other controllable opening. If is installed in a room without a door which
opens directly to the outside, a permanent opening is required. The air
circulation should be 2 m3/h per kW of burners.
4. The gas connection should be performed from the right or left. For
this reason, change the hose nozzle, plug and the seals.
5. Please use exible hose for gas connection.
6. If you make a connection with a exible metal hose, locate a seal
between the main gas pipes.
7. The inner diameter of the exible hose, which the butane hose nozzle
is connected, should be 6mm for the house-type gas tubes. The inner
GB

9
diameter of the exible hose, which the natural hose nozzle is connect-
ed, should be 15mm.The hose should tightly be tted to the hose nozzle
by squeezing with a clamp. The hose should be replaced before its last
expiry date.
8. Caution! Make the oven connection to the gas inlet valve, the hose
length must be short and be sure that there is no leakage. The exible
hose used should not be longer than 125 cm for safety.
9. RE-INSPECT THE GAS CONNECTION.
10. When placing your oven to its location, ensure that it is at the coun-
ter level. Bring it to the counter level by adjusting the feet if necessary.
DO NOT MAKE GAS HOSE and ELECTRICAL CABLE OF YOUR OVEN GO THROUGH
THE HEATED AREAS, ESPECIALLY THROUGH THE REAR SIDE OF THE OVEN. DO
NOT MOVE GAS CONNECTED OVEN. SINCE THE FORCING SHALL LOOSEN THE
HOSE, GAS LEAKAGE MAY OCCUR.
ELECTRICAL WIRING SCHEME
220-240V~50/60Hz 220-240V~50/60Hz
400V 3N~50/60Hz 400V 2N~50/60Hz
Earth
Terre
Erdung
Earth
Terre
Erdung
Earth
Terre
Erdung
Earth
Terre
Erdung
L3
L2
L1
L2 L1
L1
Live
Phase
Neutral
Neutre Neutral Neutre Neutral Neutre
FUSE SWITCH (25A/40A)
JUNCTION BOX
3x4mm²
3x4mm²
610mm
H05 VV-F 3G 4mm² H05 VV-F 5G 1.5mm² H05 VV-F 4G 1.5mm² H05 VV-F 3G 1.5mm²
CONSUMER UNIT
Neutral
Neutre
GB

10
GAS HOSE PASSAGE WAY
1. Connect the appliance to the gas piping tap in shortest possible route
and in a way that ensure no gas leakage will occur.
2. In order to carry on a tightness and sealing safety check ensure that
the knobs on the control panel are closed and the gas cylindir is open.
3. While performing a gas leakage check, never use any kind of lighter,
match, cigarette or similar burning substance.
4. Apply soap bubble on the connection points. If there is any kind of
leakage then it will cause bubbling.
5. While inserting the appliance in place ensure that it is on the same
level with the worktop. If required adjust the legs inorder the make level
with the worktop.
6. Use the appliance on a level surface and in a well ventilated environ-
ment.
Figure 1 Figure 2
