Candy CATL 7080 WKI User manual

1
FUZZY LOGIC CONTROL
FULLY AUTOMATIC WASHING MACHINE
Model: CATL 7080 WKI
CATL 7088 LVSI
INSTRUCTION MANUAL
-------------------------------------------
Please read instructions carefully before using

2
.IMPORTANT SAFEGUARDS………… 。。……………… … ..
1. This product belongs to Class I appliances. Please pay attention to electricity
safety when using: This machine uses a single-phase two-pole grounded power
outlet, the outlet must be reliably grounded, and the grounding terminal should not
be connected with gas pipelines, water pipes and other utilities.
2. If the washing machine is connected to the power supply via a socket board or a
portable power unit, the socket board or the portable power unit must be placed in
a place that is not wet and cannot be easily splashed by water.
3. Do not use a socket with other electrical appliances, do not use when the plug
and socket are loose.
4. If there is any dust on the mounting surface of the power plug and the insert,
carefully wipe it with a dry cloth.
5. When the washing machine is in normal use, the power cord plug should be
easily accessible by hand. When power is cut off, moved, unused or cleaned, be
sure to unplug the power plug and turn off the water tap. Note: Please do not plug
or unplug the power cord with wet hands.
6. Do not excessively bend, stretch, twist, strap, or overload the power cord.
7. The connection mode of this unit's power cord is Y connection. If the power cord
or power plug is damaged, it must be replaced by our special service point or
full-time personnel of our after-sales service department to avoid danger.
8. The washing machine cannot be installed in the bathroom and other wet places,
absolutely cannot use water to wash, do not put wet clothes on the control board
of the washing machine.

3
9. Please avoid direct sunlight to the washing machine, do not be near heat
sources such as heating.
10. Do not place the machine on a carpet. Do not place the machine with a drain
function on a place where there is no floor drain.
11. This product needs to be connected to water. New water pipes must be used
as much as possible. Old water pipes cannot be reused.
12. The machine applies water pressure 0.03MPa ~ 0.85MPa.
13. Make sure that the faucet and inlet pipe fittings are reliably installed and that
the inlet pipe fittings and the inlet pipe are securely plugged into place.
14. Do not put any hot, heavy items (such as pots with hot water, etc.) on the
washing machine.
15. Unattended children or physically handicapped persons must not use this
machine.
16. Never put kerosene, gasoline, banana water, alcohol or other flammable
substances or laundry with such substances in or near the laundry tub.
17. Do not wash waterproof clothing or easy-to-float clothing such as raincoats,
bicycle covers, down products, elastic cotton products, etc. to avoid abnormal
vibration or damage to clothing during washing or dehydration.
18. Do not open the door cover when the washing machine is in the process of
dehydration.
19. When the washing machine is working, do not put your hand into the drum of
the washing machine in operation. Even if the rotation speed is very slow, it is
dangerous. Take special care not to let children climb the washing machine to

4
avoid danger.
20. Never disassemble, repair, or modify this unit by yourself.
21. User manual must have such below warning.
a). This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
b). If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
c). The new hose-sets supplied with the appliance are to be used and that old
hose-sets should not be reused.

5

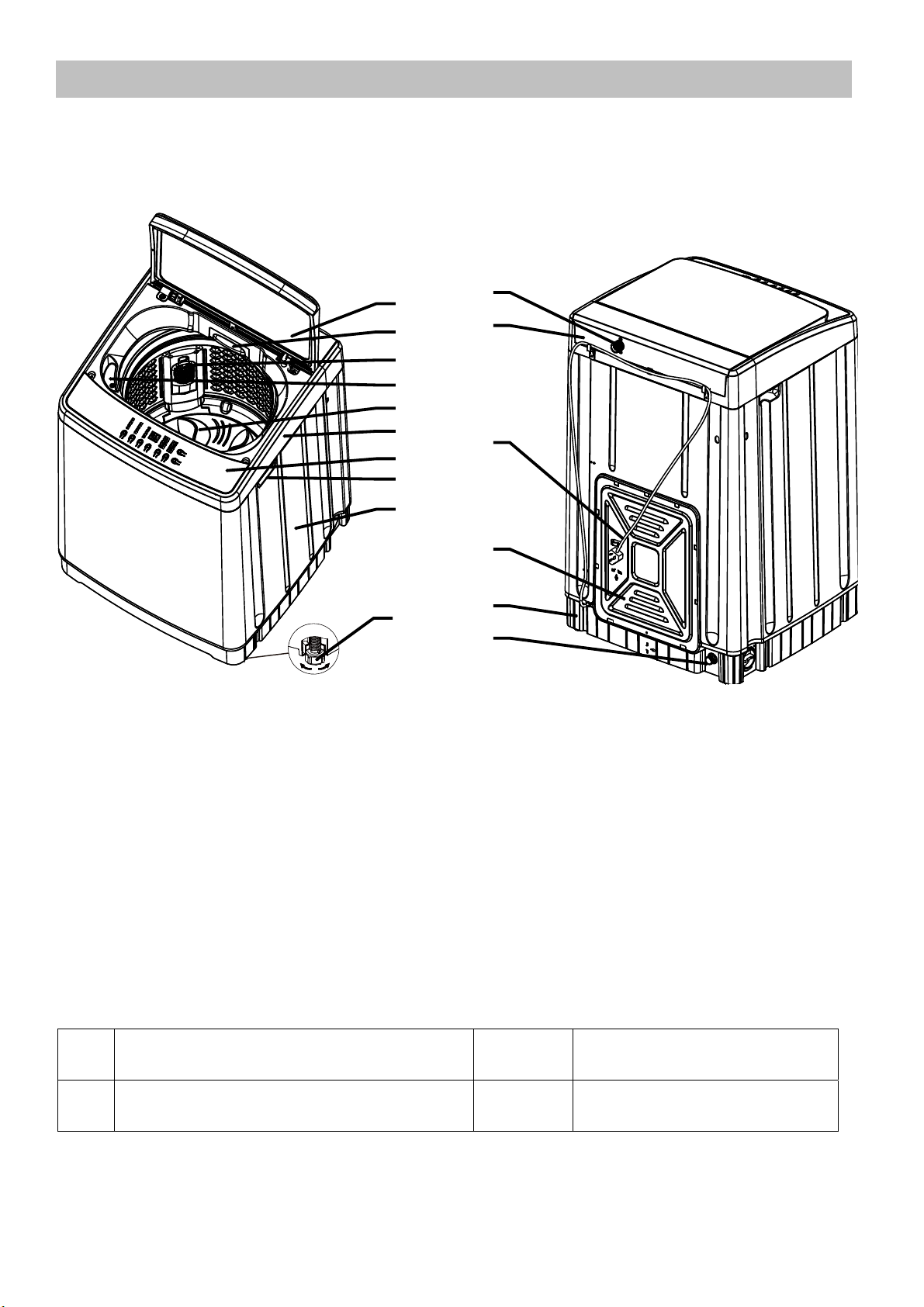

PARTSDESCRIPTIONANDLOADINGLIST
1、Parts description
11
12
13
14
15
16
1
2
3
4
5
6
7
8
10
9
1.Toplid 9.Housing
2.Washingpowderbox 10.Adjustmentfoot
3.Filter 11.Inletvalves
4. Bleaching agents injection port 12. Rear control panel
5.Impeller 13.Powercord
5.Toploader 14.Rearcoverplate
6.Controlpanel 15.Base
7. Key board 16. Drain connection
8. Housing handle

2、Loading list（Follow export sales actual requirement）
No. Packing list Quantity Remarks
1 Automatic washing machine 1

6
2 Inlet pipe 1
3 Bottom lid board 1
4 User manual 1
5 Drain pipe parts 1 Some models have been
installed randomly
6 Self-tapping screws 2
USINGADVICE
1. Low-bubble detergent is recommended during the use of this machine.
2. It is recommended to use the washing machine in an environment of 0°C to
40°C. Too low or high ambient temperature may cause the unit to malfunction.
3. If the washing machine is stored in an environment below 0°C, it must be left in
the room temperature environment for about 4 hours before it can be used to
prevent the machine from icing and damaging the machine.
4. The washing and dehydration capacity of a washing machine refers to the
maximum weight of a standard laundry in a washable, dehydrated and dry state,
which is different from the actual laundry. The thickness, size, and type of the
washing cloth will affect the actual washing capacity. The loading amount of the
washing should be properly inverted in the washing process.
5. The amount of washing below 1.0kg should not choose high-grade water level,
so as not to splash during the washing process.
INSTALLATIONMETHOD
1、Installation notes:

7
a. Choose to place the washing machine in a dry place without direct sunlight.
b. There should be a floor drain at the place where the washing machine is placed,
and the water flow is unobstructed. At the same time, the floor drain should be
flush with or slightly lower than the place where the washing machine is placed, so
as to prevent the damage caused by the water leakage of the washing machine.
c. The washing machine should be placed on a flat, solid floor and keep a distance
of more than 5cm from the wall to prevent noise from colliding with the wall during
dehydration.
d. Do not place the washing machine on a sloping, uneven surface; do not place
the washing machine on an unstable stand or on the floor. When using it, remove
the bottom foam and plastic pin holder to avoid damaging the washing machine.
e. The washing machine should be placed as smoothly as possible. If necessary,
adjust the supporting feet (adjustment feet) on the front of the washing machine to
keep the washing machine level.

8

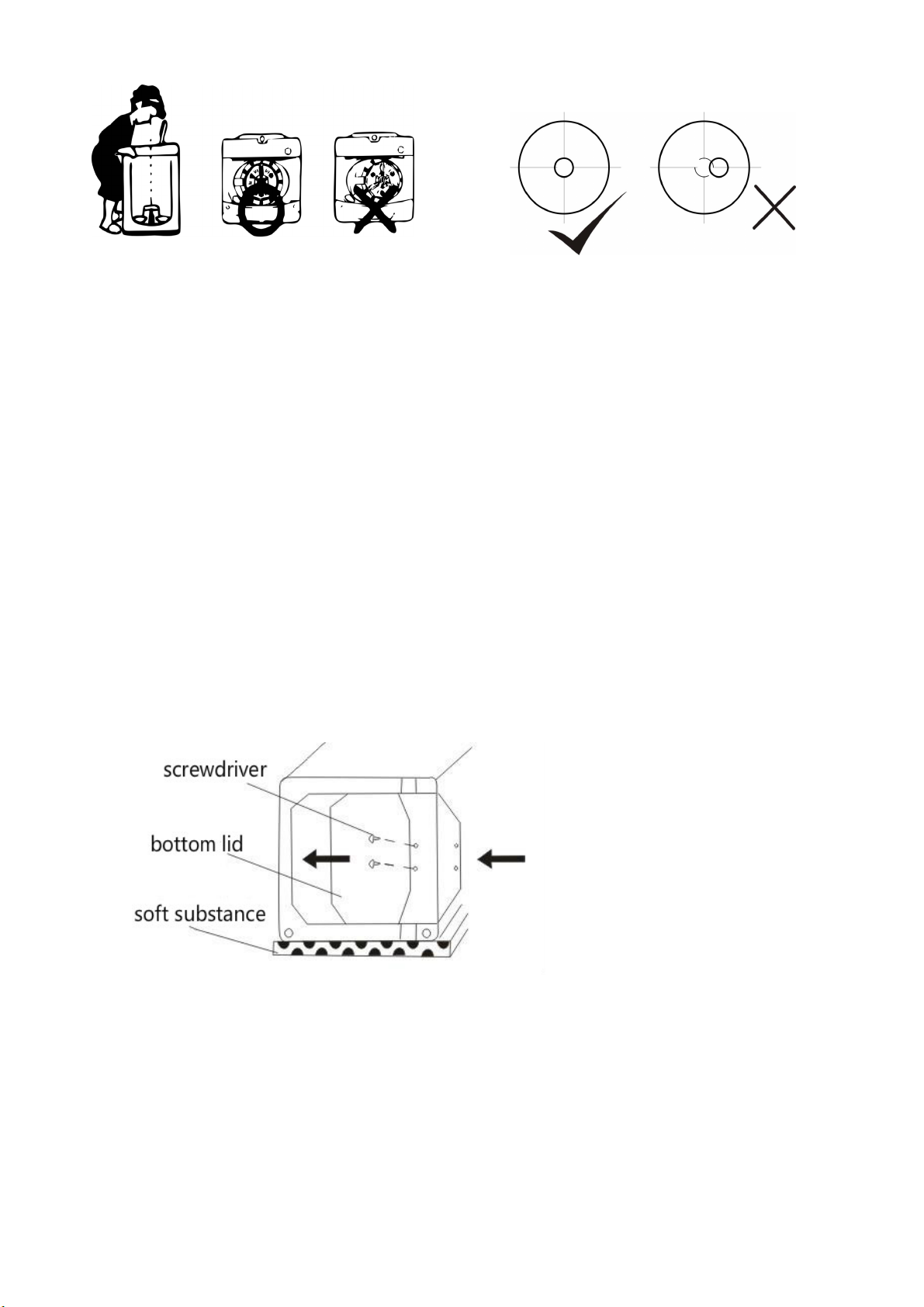

2、Install the bottom cover:
a.The bottom cover is placed between the top of the washing machine box and
the foam. Take it out when unpacking.
b. Place the washing machine gently on the side of the soft object (be careful not
to touch the housing).
c. Insert the bottom cover along the mounting slot on the base until it is seated.
d. Fasten the bottom cover to the base with screws (in the accessory bag).
e. Gently lift the washing machine and let it rest.

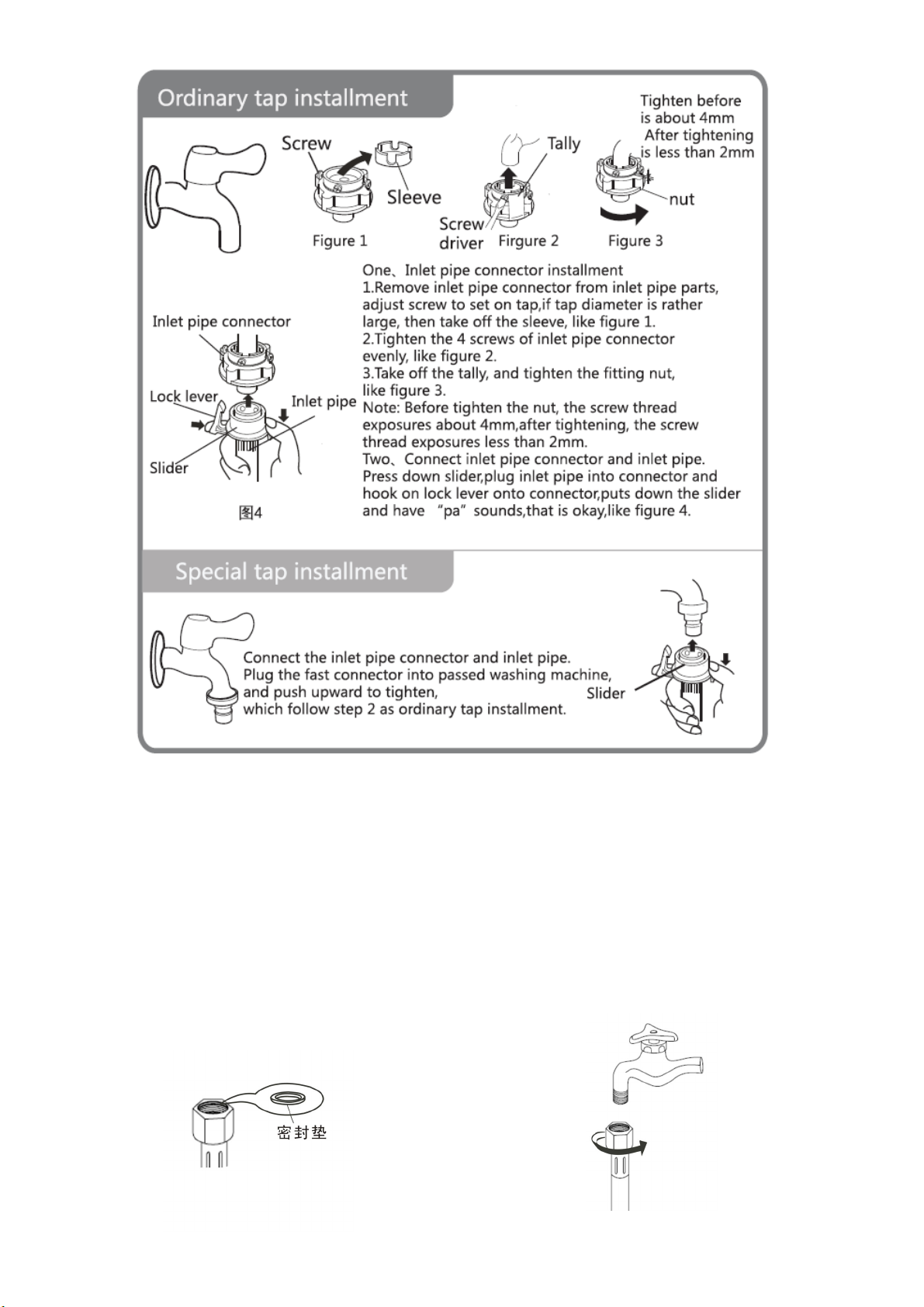

3、Connection of the inlet/drain hose
1) Connection between water inlet and tap (Please select according to the
actual water inlet pipe)
Common water inlet pipe
（1）Check the level of the
washin
g
machine visuall
y
.
（2）、If you have a spirit level, set the
bubble in the spirit level.

9
Double thread water inlet
a. To ensure that there is a sealing pad in the joint of the water inlet and the
installation is smooth.
b. According to the diagram, the water inlet is aligned with the tap and the nut
on the water inlet is tightened.
Sealing gasket

10
2) Connection between water inlet and Washing machine
a. Before connecting, please check whether the
sealing gasket in the water inlet nut has fallen
off or not.
b. Put water inlet nut on inlet valve joint.
c. Tighten the water inlet nut.
4、Connection of the drain hose (some model drains have been installed
before leaving the factory)
1. Press down the fix ring,
and hitch it over the drain
hose.
2. Press down the fix ring,
and then push it to the
drain outlet. Clasping the
fix ring to make sure they
are connected well.
3. Draw the drain hose to the
outlet. Do not let the height
of the drain hose exceed
90cm from the bottom of
the machine.
BEFOREWASHINGINSTRUCTIONS
1. Check before washing:
Is the inlet pipe connected? Is the faucet valve open?
Is the power cable plugged in? Is the power outlet grounded reliably?
Is the washing machine stable?
Is the drain put down? And no entanglement?
Gasket
Inlet valve joint
Nut

11
Is the drain pipe hung? The hanging height of the drain pipe shall not be greater
than 0.9m, is it too high?
2. Pretreatment of laundry:
Check whether there are special requirements for washing and whether it can be
washed or machine washed.
Be sure to remove hard objects such as keys, pins, coins, hairpins, and sand.
Greasy or faded clothes should be cleaned separately.
If there is a zipper or a hard jewelry on the clothing, please pull the zipper and
turn it from inside out.
Take long knots on the clothes and tie them tightly. The buttons are fastened.
Some clothes (such as lace, nylon socks, and chemical fiber hollow weaving)
should be placed in the laundry net. (Laundry net please bring your own)
If there is a lot of dusty clothing, please remove the dirt, especially dirty parts,
and spray the detergent in advance. This will make it easier to remove stubborn
stains.

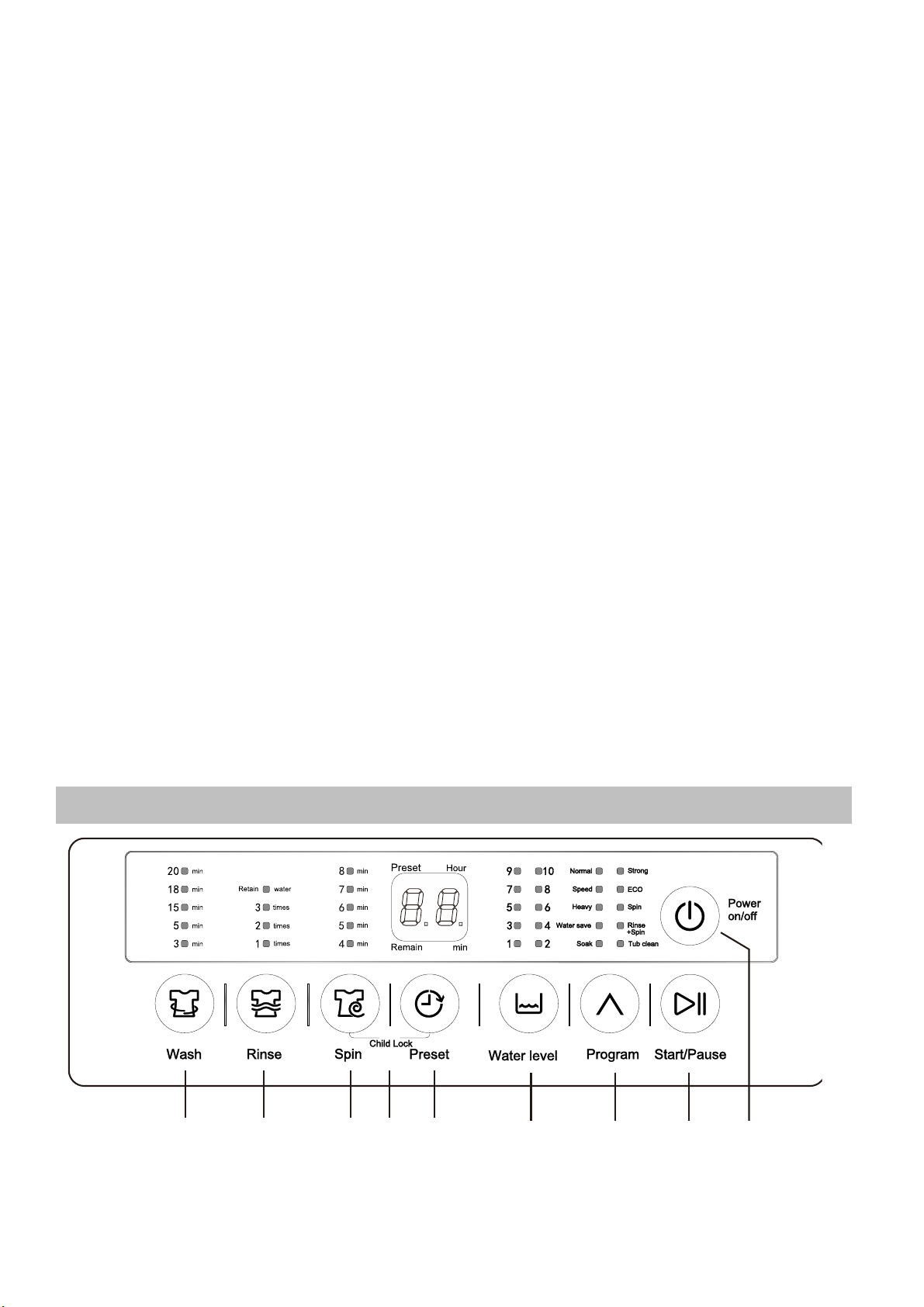

CONTROLPANEL
1
2
3
4
5
6
7
8
9

12
1.INDICATORSTATUSMEANING 
Aflashinglightindicatesthattheprogramisrunning.
Thelightisontoshowthestatustoberunorselected.
ThedigitaldisplayflashesquicklyanddisplaysE1~E7andE9,indicatingabnormality.
  Whentheprogramisset,thedigitaldisplayshowsthetotalrunningtime.
  Thedigitaldisplayshowsthetotaltimeofpresetduringtheprocedure.
  Thedigitaldisplayshowsremainingtimeaftertheprogramstart.
2. BUTTON INSTRUCTIONS
1) “ON/OFF” BUTTON
Press the Power “ON/OFF” button to turn on the power or cut off the power.
2). “START/PAUSE” BUTTON
After turning on the power, press the “Start/Pause” button to start or pause the washing machine.
3) “PROGRAM” BUTTON
Normal: routine washing procedure.
Speedy: to wash the slight dirty clothes.
Heavy: washing of larger, thicker clothes.
Water-saving: water saving washing procedure.
Save water program is the recommended program designed to minimize water
consumption for normally soiled clothing at rated washer capacity.
Soak: soak for a while before washing.
Strong: washing procedure with strong water flow
ECO: washing procedure of saving water and electricity.
Spin: procedure for dehydration of clothing only.
Rinse+ Spin: procedure for rinsing and dehydration of clothing only.
Tub-clean: washing machine tub cleaning.
4) “WATER LEVEL” BUTTON
According to how much washing clothes, you can press “water level” button to select the

13
appropriate water level; smart program when the washing machine to determine the weight of the
clothes and automatically set the water level according to the results.
5) “PRESET” BUTTON
The preset time can be set.
6) “CHILD LOCK” BUTTON
After the program starts, press the buttons of 【Spin】and 【Preset】for 1.5 seconds. After
one buzzing, the washing machine enters the "Child Lock" state. Repeated operation can release
the Child Lock state.
7) “SPIN” BUTTON
The dehydration time can be set. After the machine is turned on, select the button separately
to realize the spin function.
8) “RINSE” BUTTON
The times of rinsing can be set.
9) “WASH” BUTTON
The time of washing can be set.
OPERATIONMETHOD
1. General operation method
1) Press the ON/OFF button to turn on the power.
2) Press the Program button to select the appropriate fully automatic program.
After turn on the power, the washing machine is automatically set to "Normal" program. If
you need to select other full-automatic programs, you can press the "Program" button until the
corresponding program light is on.
Press theProgram button in the program setting state, and the automatic program will
cycle according to the following rules:
Normal Speedy Heavy Water-saving Soak
Tub Clean Rinse + Spin Spin ECO Strong
3) Press the “Water Level” button to select the appropriate water level.

14
After turning on the power, if there is water in the washing tub, the washing machine cannot
enter the blur function. The default is the 5 water level of the Normal program.
After turning on the power, press the "Start/Pause" button directly and the default intelligent
program can automatically judge the water level.
4) Press the “Start/Pause” button to boot the system.
After the system starts, if you need to change the setting program, you can press the "
Start/Pause" button to pause the system operation, then press other buttons to set, and finally
press the "Start/Pause" button, the system will run according to the newly set program.
5) Close the top cover and the washing machine enters the running state.
Do not open the top cover during the operation of the washing machine, especially during
the dehydration process to avoid accidents.
6) When the laundry is over, it will automatically beep and power off.
2. Self programming operation method
1) Press the ON/OFF button to turn on the washing machine and press the “Program” button
to select the appropriate program.
2) Press the "Wash", "Rinse" and "Spin", "Water level" and "Preset" function buttons to set the
appropriate washing time, rinsing times, spinning time, appropriate water level and appropriate
appointment time, and whether there is "water retention" function.
3) Press the “Start/Pause” button to boot the system.
4) Close the top cover and the washing machine enters the running state.
3. "Water retention" operation method
1) After turning on the power, the default setting of the machine is no water retention function,
and the "water retention" indicator is off. If you want to start this function, you can press the
"Rinse" button from the program operation to the last drainage to make the "water retention" light
on. If it is not necessary, you can press the "Rinse" button again to turn off the "water retention"
light.
2) After selecting the water retaining function, when the program runs to the last drainage, the
"water retention" light flashes, and an alarm is given every five minutes to prompt the user to
contain water. When the user is ready to receive the water container, press the "Rinse" button,
and the "water retention" light is off to start drainage. In this drainage process, press the "Rinse"
button to switch between drainage and stop drainage.
3) If the user does not press the "Rinse" button when draining the water for the last time, the "
water retention" light will be flashing all the time, and an alarm will be given every five minutes to

15
prompt the user to deal with the problem. The next step will not continue until the "Rinse" button
is pressed.
4. "Preset" operation method
1) After turning on the power, the user wants to start the preset program. After setting the
program, water level, process and other options, the user can press the "preset" button to select
the required preset time, and then press the "start" button to start the program. After the "preset"
is activated, the digital display shows the remaining time of the preset (in hours), and the "." light
flashes and lights up.
2) After "preset" is started, other buttons are invalid except "ON/OFF" button.
3) After "preset" is started, please close the upper cover of washing machine, otherwise the
program will pause and alarm.
4) After the "Preset" is started, if you want to change the running program or cancel the preset,
you need to cut off the power supply and reset.
MAINTENANCE
1. Clean the filter .
Pull the filter out by
pressing and holding
the hook.
Remove the filter
from the filter
cover.
Turn the filter bag
from inside out,
and wash in water
to remove the lint.
Reinstall the
filter
2. Clean the inlet valve filter.
The inlet valve filter is easy to be blocked by impurities and hinders water intake.
Please clean it regularly (usually about 2 months).

16
3. The whole machine is clean.
Clean the surface of the washing machine and the water in the barrel with a
clean soft cloth. Open the cover for a period of time (about 1 hour) and air dry.
Close the cover again.
Do not spray water directly on the washing machine, or use a thinner, detergent,
kerosene, volatile oil, alcohol, etc.
Specially dirty places can be wiped with a soft cloth dampened with mild soapy
water.
TROUBLESHOOTING
1. Common non-fault phenomenon
When the washing machine is used for the first time, there may be a small
amount of water flowing out of the drain pipe. This is the residual water when the
factory performance is tested.
In the process of washing or rinsing, water inflow sometimes occurs. This is due
to the automatic replenishment of the water level.
Washing machine setup When the rinsing program is started, no water is
injected. The default rinsing program for the washing machine starts with drainage
and dehydration.
After the dehydration starts, the dehydration barrel stops when it is time, which is
the intermittent dehydration set to achieve the dehydration effect.
In the middle of dehydration, water rinsing phenomenon sometimes occurs
because the balance of the clothes is automatically corrected when the clothes are
dehydrated.
Delayed dehydration after the water is finished. This is the default setting of the

17
washing machine.
Thebutton operation is invalid during the laundry process. This is the default
setting of the washing machine. It needs to be paused before it can be operated.
1. Common default and solution：
Problem Display Cause Solution
Totally no
working
No display The power plug is not plugged
in and the power switch is not
pressed.
Plug in the power plug and press
the power switch.
No display The outlet has no electricity or
the fuse is broken.
Ask an electrician to check the
socket or fuse.
No display The power outage causes the
program to disappear and the
operator must operate it again
after power on.
Turn on the machine after power on
and operate various buttons as
required.
There is no
display when
the voltage is
too low, or the
fuse may be
open when the
voltage is too
high.
The voltage is too low or too
high.
Unplug the power plug and wait
until the voltage is normal
Poor
drainage
E1 The outlet of the drain pipe is
too high or blocked, resulting in
the water not being discharged
after 7 minutes
After checking the drain and
rectifying the fault, open the cover,
close it, and re-enter the drain.
Not
dehydrated
E2 No close the upper cover when
washing (pause and alarm) or
dehydration (cover and alarm)
Close the cover.
Dehydration
touch the
shell
E3 Because the laundry unevenly
touches the shell when it is
unbalanced during the
dehydration, the washing
machine will automatically
correct it, and if it is still invalid
after two times, it will alarm.
Open the top cover, place the
clothes manually and close the
cover.

18
Insufficient
water
injection
E4 The faucet is not on, the water
is stopped or the water
pressure is low. After 30
minutes, the water level is less
than the set water level.
Open the tap or wait until the water
pressure is normal before use.
Open the cover, close the cover,
and re-enter the water inlet
process.
Water level
sensor
abnormal
E6 Water level sensor failure,
open circuit or short circuit,
then automatically alarm.
Please have professional
maintenance personnel overhaul.
Water intake
or automatic
drainage
E7 Computer board, inlet valve, or
water level sensor is abnormal.
Turn off the power after the water is
finished. Please have professional
service personnel repair it.
Memory
chip failure
E9 Can't read and write Turn off a machine
Foam
anomaly
EA Excessive foam in dehydration Open the cover and close it.
Motor or
frequency
transformer
failure
F1-F3,F7 Frequency transformer
Failure.
Restart the machine after shutdown
for 10 seconds. If the fault has not
been solved, please repair it by
professional personnel.
F5-F6 Over voltage, overload or
inverter failure
Reduce the washing weight and
restart the machine. If the fault is
still not solved, please ask
professional personnel for
maintenance.
Unable to
start or not
boot
No display Computer board failure Please have professional
maintenance personnel overhaul.
Note: After you check the items and remove the trouble, restart the washing
machine. If there is still an abnormality, please unplug the power plug and
call our customer service phone as soon as possible.

19
SPECIFICATIONSHEET
Model CATL 7080 WKI, CATL 7088 LVSI
Power 220~240V/50Hz
Rated washing / dehydration
volume（kg）
8.0kg
Rated input power（W）Washing: 500W Spinning: 500W
Water pressure（MPa）0.03~0.85MPa
Water proof class IPX4
Noisy Washing：62dB(A) Spinning：72dB(A)
Product size（mm）600x595x955
Packing size（mm）650x650x1015
Product net weight（kg）34
Product gross weight（kg）38.5
WIRINGDIAGRAM
1234
1234
W
GND VCC H1 H2 H3
U
V
6 5 3 2 1
Softener
valve
Drain
Water
motor
Drain
Pump

20
PROGRAMTIMETABLE
Progr
am Washing
Rinse
Spinning Total
time
The first rinsing The second rinsing The third rinsing
Norm
al
W
at
er
inl
et
Wa
shi
ng
20
min
s
Drai
nag
e
spi
nni
ng
W
at
er
inl
et
Wa
shi
ng Drai
nag
e
spin
ning
4
min
s
W
at
er
inl
et
Washi
ng 3
mins
/
Drai
nag
e
spi
nni
ng about
51mi
ns
4
min
s
3mi
ns
5
min
s
Spee
dy
W
at
er
inl
et
Wa
shi
ng
3
min
s
Drai
nag
e
spi
nni
ng
3
min
s
W
at
er
inl
et
Wa
shi
ng
2
min
s
/
Drai
nag
e
spi
nni
ng
3
min
s
about
15mi
ns
Hea
vy
W
at
er
inl
et
Wa
shi
ng
18
min
s
Drai
nag
e
Spi
nni
ng
4
min
s
W
at
er
inl
et
Wa
shi
ng
5
min
s
Drai
nag
e
spin
ning
4
min
s
W
at
er
inl
et
Washi
ng 5
mins
Dra
ina
ge
spi
nni
ng
4
min
s
W
at
er
inl
et
Wa
shi
ng
5
min
s
Drai
nag
e
Spi
nni
ng
6
min
s
about
67
mins
Water
-savin
g
W
at
er
inl
et
Wa
shi
ng
18
min
s
/
Drai
nag
e
spi
nni
ng
4
min
s
about
26
mins
Soak
W
at
er
inl
et
Soa
kin
g
30
min
s
Wa
shi
ng
20
min
s
Drai
nag
e
spi
nni
ng
3
min
s
W
at
er
inl
et
Wa
shi
ng
5mi
ns
Drai
nag
e
spin
ning
3
min
s W
at
er
inl
et
Washi
ng5mi
ns
Drai
nag
e
spi
nni
ng
5mi
ns about
81mi
ns
