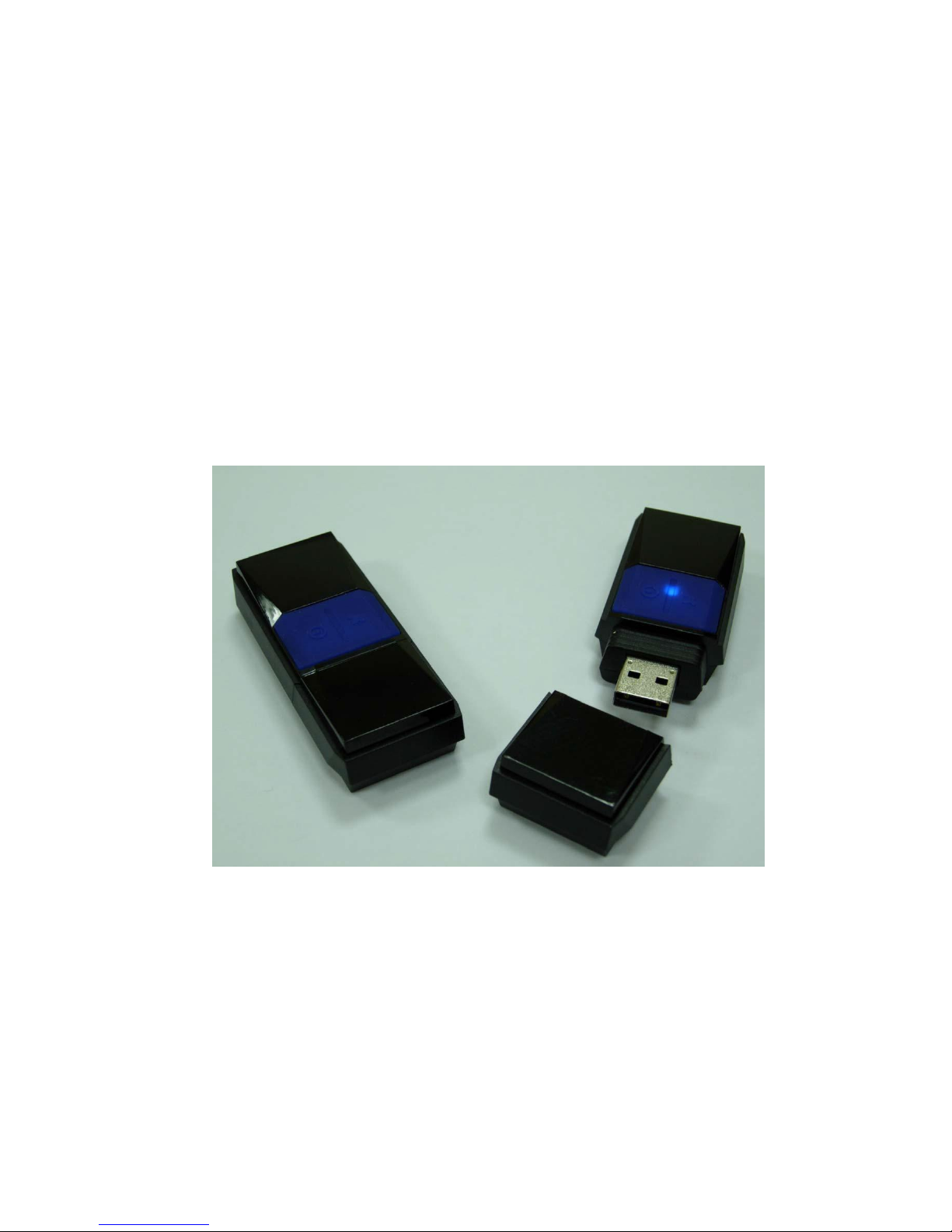

CanMore GT 740 FL User manual

1
USB® GPS Dongle 48 channels
With Data Logger
Function
Hardware User’s
Manual

2
General description of what GPS is and how it works
¾GPS (Global Positioning System) is the only system today able to show you your exact position on the Earth anytime, in any weather,
anywhere. GPS satellites, 24 in all, orbit at 11,000 nautical miles above the Earth. They are continuously monitored by ground
stations located worldwide. The satellites transmit signals that can be detected by anyone with a GPS receiver. Using the receiver,
you can determine your location with great precision.
¾The satellites are positioned so that we can receive signals from six of them nearly 100 percent of the time at any point on Earth. You
need that many signals to get the best position information. Satellites are equipped with very precise clocks that keep accurate time to
within three nanoseconds- that's 0.000000003, or three billionths of a second. This precision timing is important because the receiver
must determine exactly how long it take s for signals to travel from each GPS satellite. The receiver uses this information to calculate
its position.
¾Although GPS was designed for military use, many thousands of civil jams make use of it. The satellites actually broadcast two
signals, one is only formilitary use, and one can be used by both military and civilians. Since GPS is passive (you only need to receive
the signal), there are no restrictions on who can use the signal available to civilians.
¾GPS technology can be used in variety of fields besides providing navigation for vehicles on the sea, in the air and on the ground.
GPS applications also include keeping track of where a fleet of trucks, trains, ships or planes are and how fast they are moving;
direction emergency vehicles to the scene of an accident; mapping where a city's assets are located ; and providing precise timing for
endeavors that require large-scale coordination
Caution
Read before you start to use:
¾Global position system (GPS) is obtained by American Ministry of National Defense, and they got the full responsibility about the
preciseness and the maintenance. Any changes may cause the capacity and preciseness of GPS differed.
¾If you use this device inside of buildings, tunnels, or any huge objects beside you, the GPS signals might be cut-off or disturbed.
Please do not consider that the receiver is malfunction.
¾The receiver operating temperature is located between –20°C and + 60°C. For safety and lifetime of Li-polymer battery usage, do not
place this device over two hours with overheated environment...

3
1. Introduction
The GPS USB Dongle Receiver is a total solution of GPS receiver with SIRF IV serial ; 48 channels all-in-view tracking technology.
This GPS USB Dongle Receiver can communicate with other electronic devices by USB interface.
The GPS USB Dongle Receiver is designed as an ultra low power consumption device, and high position accuracy. It will update the
satellite position every second. This GPS USB Dongle Receiver auto-locating feature is capable of automatically determining a navigation
solution without intervention. However, acquisition performance could be interfered and do cold start if the receiver were initialized with
occurrence of the following events:
1) First in use, please pressed on both sides to open stick

Pic.1 Pic.2

4
2) The GPS receiver is not in use for more than 3 months or transportation over distances further than 500 kilometers.
3) Charge Li-Polymer battery.
2. Features and Functions
1) SIRF IV serial simultaneous time-frequency search bins. Signal detection better than -163dBm
2) Cold start < 34 seconds at –147dBm
3) Hot start < 1sec. under open sky.
4) 5m CEP accuracy.
5) Signal reacquisition 1 sec.
6) Acquire and track 48 satellites simultaneously
7) USB Version 2.0
8) High capacity Li-Polymer rechargeable battery.
9)Data tag (start, stop point) can be set by user
10) SAGPS .
11) include g-sensor .( static 5 minutes system get into sleep mode.)

5
Check the Package Content
Before you start using, please check out if your package includes the following items. If any item is damaged or
missed, please contact your reseller at once.
• GPS USB Dongle receiver/Data Logger Device X 1
• CD manual ,driver within Photo tracker product key X 1
• Holder Lanyard
Safety
• Do not allow children to play with the GPS receiver, it contains small parts that could become detached and create a choking hazard.
• Observe all signs that require an electrical device or RF radio product to be switched off in the designated areas.
• This device contains a Li-Polymer battery. Please keep it away from fire anytime
• (Including discarding the device) or the battery may explode.
• The embedded battery must be properly disposed or may be recycled, contacts your local recycling centers for disposal methods.
BASIC OPERATIONS
Charging the battery
For the first use, the battery should be charged for about 4 hour to assure a full charge. Afterward, it takes about 2 hours to fully
re-charge. Plug the charging jack of car charger or AC adapter into power jack and connect the charger properly to
cigar-lighter or a main power outlet. When is in charging, the Yellow LED will be lighted up. When the battery is fully charged,

6
the Yellow LED will be turned off. Unplug car charger or AC adapter from power jack.
Power ON/OFF
Slid power switch to ON/OFF the power.
Connect to your PC
1) Plug USB connector(1) into Laptop USB port, see Fig 1.1
Fig
1.1

7
2) Install USB driver, users can find the USB driver on the attached DVD (file name: GPS USB Dongle driver), the USB driver can be
installed for Microsoft Windows, XP, Vistar , Linux and Mac system. User can easily install USB driver, the USB driver can automatically
install the driver when user execute it.
3) Turn on Laptop/UMPC, please identify which COM port has been used (occupied) by USB GPS Dongle. The ways how to check COM
port has been used by GPS USB Dongle are as following ; Double clicks “Control panel ( C )“ Double clicks “System” Click
“hardware” Click “Hardware Manager” Double clicks “COM Port”, then user can find which COM port has been occupied by GPS
USB Dongle.
4) Connect the GPS USB Dongle and then make sure baud rate set at 38400 bps (The baudrate of production is 38400) in your
application program.
5) Load your GPS mapping or routing software, along with the corresponding maps of the areas that you are occupying or plan to travel.
Start the application. Make sure the application is set for the COM port that your Laptop/UMPC device will use for serial communication.
Now you should be ready to use your GPS application as directed by the user documentation that came with the software. More
configurations may be necessary.
6) eMap will search GPS satellites automatically, users’ current position will be showed in the eMap after 3 satellites has been
searched.( In firstly use of this GPS USB Dongle, we strongly recommend you to bring your GPS USB Dongle receiver outdoor or open
sky at least 15~20 minutes for sure 3D position fixed and almanac updated.). See Fig 1.1
7) How to identify GPS USB Dongle working status, please read the following description LED Indicator.

8

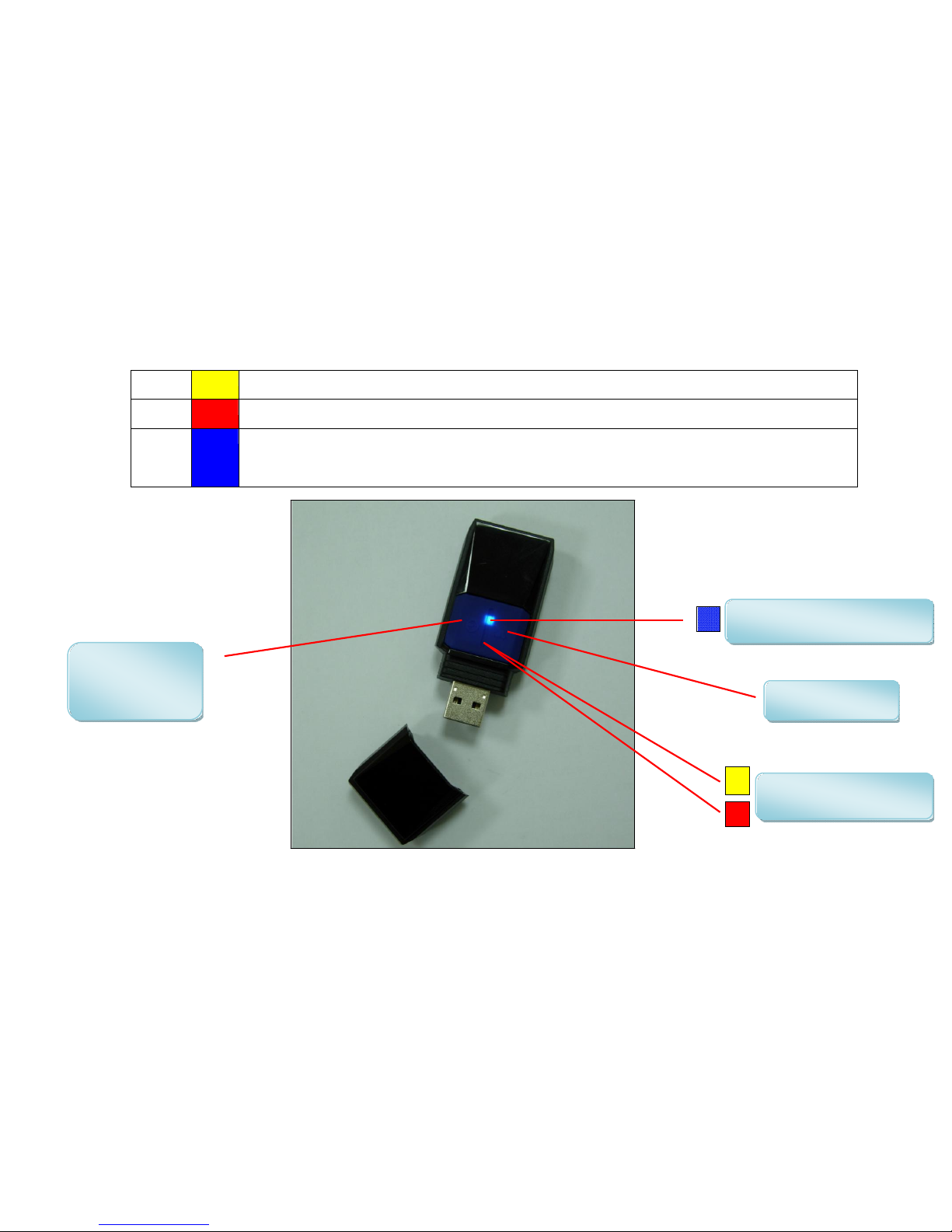

LED Display
1
Yellow LED indicates battery is in charging.
2
Red LED Flashing 1sec. ON/1 sec. OFF indicates slow battery power.
3
z The blue light on---------device is on but position is not fixed.
z Flashing 1sec. ON/2 sec. OFF----------position is fixed.
z Flashing fast---------Data tag to set point successful
3 GPS/Data Tag Setting Status
(push for 1~2 second)
Power Switch
ON / OFF need
to press 3
second.
Data Tag Setting
1 Charger/Power Status
2
Concerning of Poor GPS Signal

9

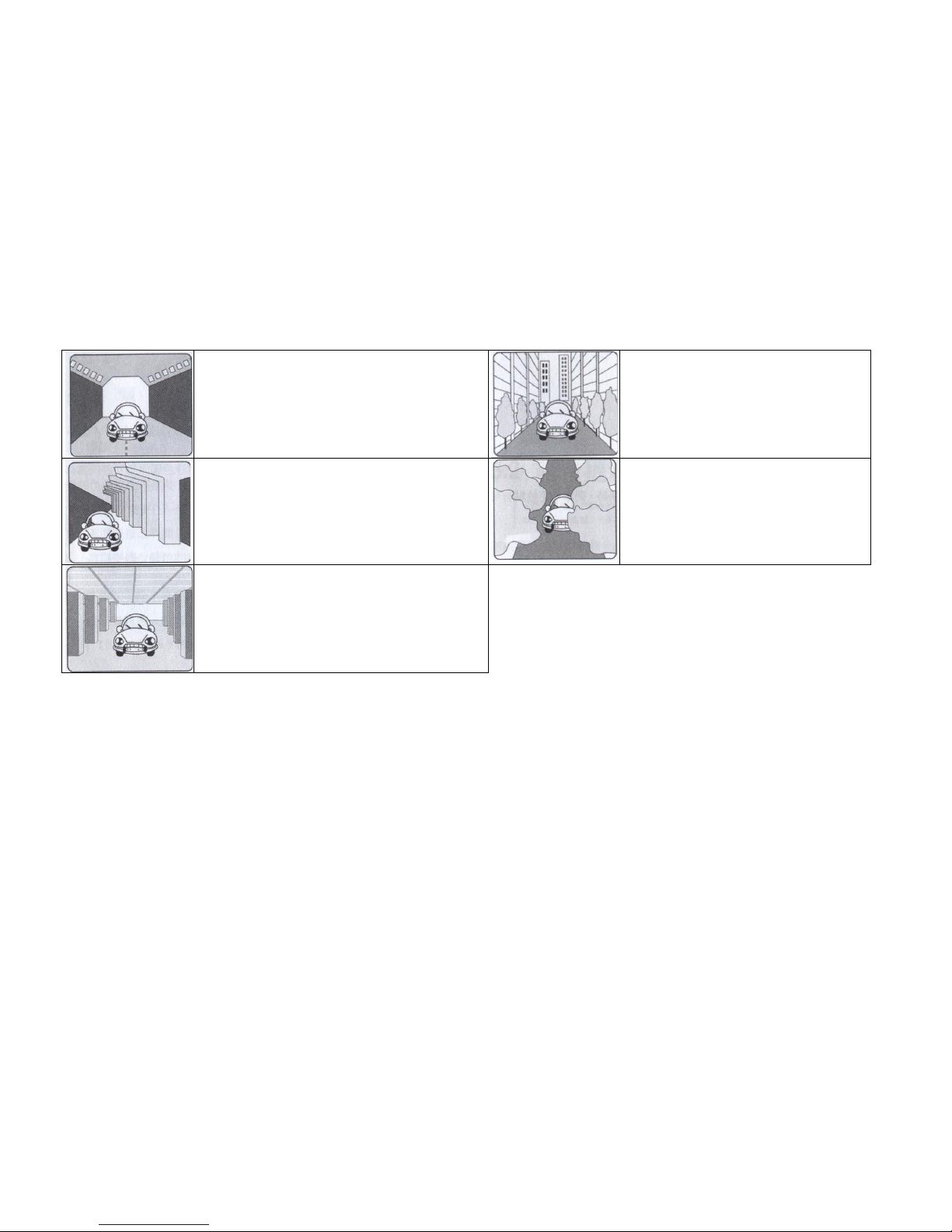

It is possible unable to receive GPS signal or signal low in these places:
¾Inside the tunnel, GPS signal is blocked.
¾Beside some buildings, GPS signal
is low or disturbed.
¾Covers above, GPS signal are blocked.
¾Inside forests, or too many covers,
GPS signal is low or disturbed.
¾Inside buildings, GPS signal is blocked.
ƒIf you use the USB GPS Receiver inside the car, some anti-sunlight windscreen film will make the GPS signal degraded or signal
blank.
ƒGPS satellite is owned by America military; sometimes they will tune-down the accuracy by some reason. In such cases, the GPS
position may not fixed exactly.
★Note:
Directly pluging GPS USB Dongle into the USB port may degrade GPS performance due to RF interference from notebook or UMPC.
Please turn on the device and the position will be fixed quickly, then input your laptop directly. It will be better performance.

1
0
Used equipment must be disposed of in compliance with current environmental protection regulations.
You should return it to your reseller or dispose of it in an approved recycling centre.
DECLARATION:We hereby declare that this product complies with essential requirements and other related
requirements, of the 1999/5/EC R&TTE directive and particularly with article 3 sections 1a, 1b and 3.
