Overview
This document provides instructions for installation and initial configuration of the Canoga
Perkins model L357 ESU (Ethernet Service Unit). The EdgeAccess L357 Ethernet Service Unit
is a managed Ethernet and Fast Ethernet Compliant device that supports native 10Mbps,
100Mbps and 1000Mbps Transparent LAN extension circuits. The L357 offers 10/100/1000 auto
sensing or software configurable User Interface and a variety of optical network interfaces. The
L357 is modular and hot swappable with a common form factor to mount in Canoga Perkins’
Carrier Class Universal Chassis System (UCS) as well as a variety of Customer Premise
Enclosures (CPE).
Parts List
1 x L357-xxxx
1 x UCS 1000 or UCS 1002 chassis
1 x UCS 1001 chassis
1 x UCS 1230 BAM (Bus Access Module)
1 x Model 1020-xxxx (management access CPE) or 1030-xxxx (unmanaged CPE)
1 x EIA-232 serial cable (straight)
1 x EIA-232 to DB9 converter (Canoga Perkins p/n CRJ-D9F-10)
Step 1: Unpacking
Unpack the L357 and check the unit for damage. If the unit is damaged, contact Canoga Perkins’
Tech Support line, [phone], and ask for an RMA.
Step 2: Module Set Up
Before installation into a chassis or enclosure, you must verify the application in which the L357
will be used, i.e. 10Mbps, 100Mbps or 1000Mbps Ethernet, managed or non-managed etc. The
application may require setting the dip switches located at the rear of the L357. If the unit is to be
installed in the UCS 1030 enclosure, set the L357 to the desired configuration using Table 1 as a
reference. Otherwise, the L357 can be configured through software to the desired configuration
when installed in the UCS 1000, 1001, 1002 or 1020.
Figure 1. L357 Switches and Default Setting

Canoga Perkins Corporation, 20600 Prairie Street, Chatsworth, CA 91311-6008
Phone: [phone], FAX [phone] www.canoga.com
P/N 6942590 Rev A Page 2 of 8
UTP port configuration
Pin number (on PCB) Function Switch position
1 (SW1) On (Default)
2 (SW1) Autonegotiate On (Default)
1 (SW1) On
2 (SW1) 10Mbps Off
1 (SW1) Off
2 (SW1) 100Mbps On
1 (SW1) Off
2 (SW1) 1000Mbps Off
Table 1. UTP port configuration
UTP and fiber port configuration
Pin number (on PCB) Function On Off
3 (SW1) User Port Duplex Full Duplex
(Default) Half Duplex
4 (SW1) SideBand Management Enabled Disabled (Default)
5 (SW2) Link Loss Forwarding
Extension port to User port Enabled Disabled (Default)
6 (SW2) Link Loss Forwarding
User port to Extension port Enabled Disabled (Default)
7 (SW2) Not Used N/A N/A
8 (SW2) Not Used N/A N/A
Table 2. UTP and fiber port configuration
Step 3: Module Installation
Several options for installation are available for the L357. For applications requiring multiple
modules in the same location, depending on the size and quantity requirements, the UCS 1000,
UCS 1001 or 1002 chassis may be used. The L357 is also hot-swappable module and it can be
inserted any time without interruption of service to other modules in the chassis.
Chassis or Enclosure Maximum number of L357s
UCS 1000* 19 (AC Power) 21 (DC Power)
UCS 1001 4
UCS 1002* 9
UCS 1020 1
UCS 1030 1
*Note: Due to power requirements, the maximum number of L357s installable in the chassis
may be different if other modules are installed. Consult Canoga Perkins’ Tech Support for
further assistance.
Insert the L357 in an available slot in the 1230 or UCS 1002 making sure that the unit is lined-up
with the card guides. The module should slide into the slot with ease and make contact with the
rear connector without excessive force. Tighten the thumbscrew after insertion. The same steps
apply when installing in the UCS 1020 or 1030. See Figures 2 to 5.

Canoga Perkins Corporation, 20600 Prairie Street, Chatsworth, CA 91311-6008
Phone: [phone], FAX [phone] www.canoga.com
P/N 6942590 Rev A Page 3 of 8

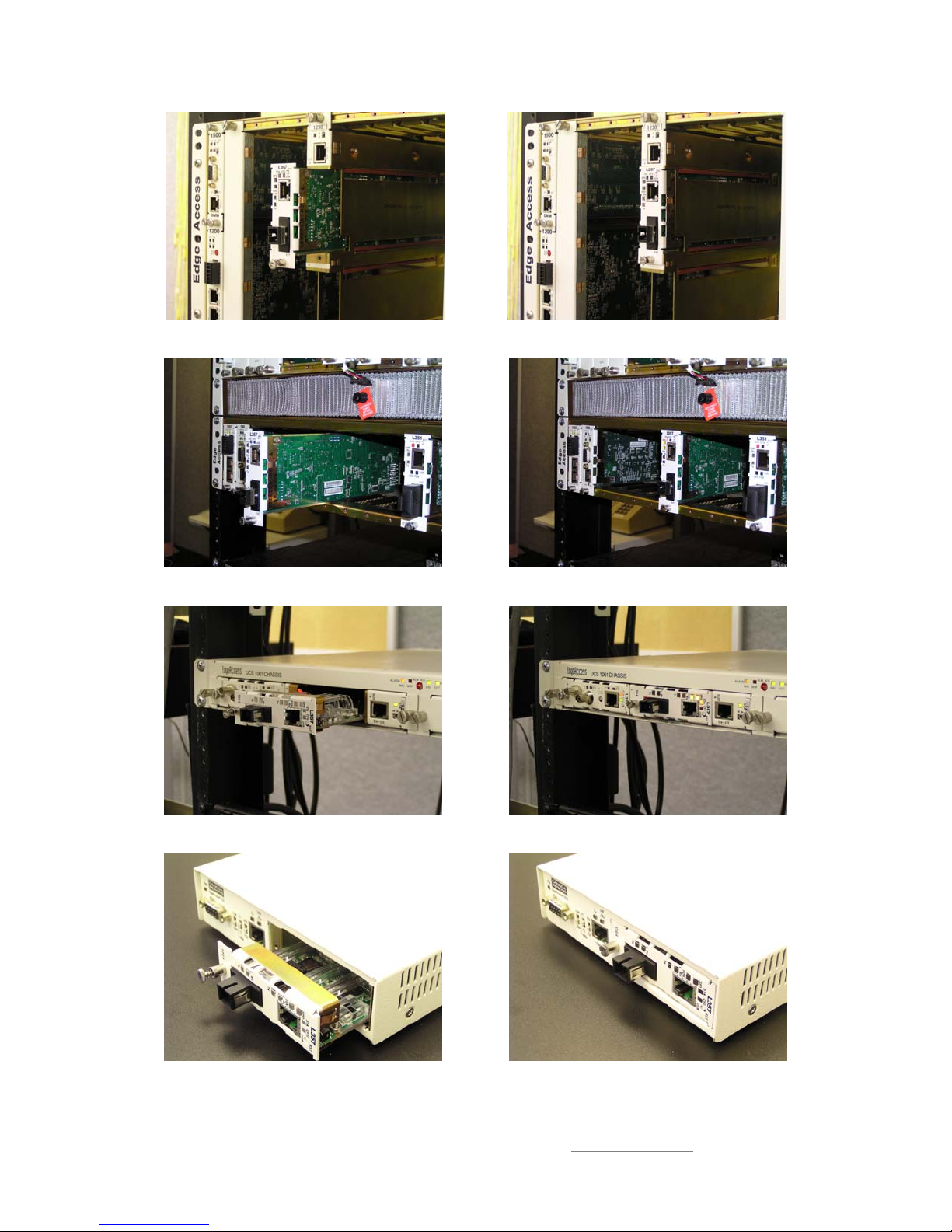

Figure 2. L357 in UCS 1230 and UCS 1000 chassis
Figure 3. L357 in UCS 1002 chassis
Figure 4. L357 in UCS 1230 and UCS 1001 chassis
Figure 5. L357 in UCS 1020 management access customer premise enclosure

Canoga Perkins Corporation, 20600 Prairie Street, Chatsworth, CA 91311-6008
Phone: [phone], FAX [phone] www.canoga.com
P/N 6942590 Rev A Page 4 of 8
Figure 6. L357 in UCS 1030 customer premise enclosure
Step 4: Applying Power
When installing the module in an enclosure, power up the device by inserting a power cord to an
AC outlet. During the boot-up process, which may take up to 40 seconds, the LEDs will turn
amber and the STA LED will flash amber until the boot-up process is complete. If the switches
are set to the default setting, the STA LED will light up red, SPD amber and FDX green after the
boot-up process. All other LEDs on the module are off.
Step 5: Management Access
To access the user interface of the L357, a VT100 session must be created through
HyperTerminal or a comparable VT100 terminal. When accessing the management interface
through, connect a DB-9 EIA-232, straight cable from your PC or laptop (COM 1 or any open
COM port) to the EIA-232 port of the UCS 1020 or DMM. Accessing the management interface
through the 1230 BAM requires a DB-9 to RJ cable available through Canoga Perkins, p/n CRJ-
D9F-10.
Create a HyperTerminal session from your laptop or terminal through the
Programs/Accessories/Communications/HyperTerminal menu.
Figure 7. Accessing HyperTerminal

Canoga Perkins Corporation, 20600 Prairie Street, Chatsworth, CA 91311-6008
Phone: [phone], FAX [phone] www.canoga.com
P/N 6942590 Rev A Page 5 of 8
Assign an icon and a name for the session.
Figure 8. Connection Properties
After a name and icon is assigned, the COM port properties menu will appear. Configure the
connection settings to the values listed:
•Bits per second: 19200bps
•Data bits: 8
•Parity: None
•Stop bits: 1
•Flow control: None
•Terminal emulation: VT100
If the HyperTerminal screen is scrolling up, make sure that “Terminal Emulation” in the
Properties menu is set to VT100. If the screen shows random symbols instead of letters, verify
that the terminal speed is set to 19200bps.
In the log-in screen, type the default Username “admin” and the Password “admin” to access the
user interface. The MAIN MENU will appear and will allow you to make necessary
configuration changes based on your selection. Refer to the user manual for more detailed
information.

Canoga Perkins Corporation, 20600 Prairie Street, Chatsworth, CA 91311-6008
Phone: [phone], FAX [phone] www.canoga.com
P/N 6942590 Rev A Page 6 of 8
Canoga Perkins Corp. EdgeAccess Ethernet Media Converter 30-Nov-2005
Model L357-1564 V02.00 F19 Standalone 09:28:40
--------------------------------------LOGIN SCREEN------------------------------
Please Enter Login Username : admin
Please Enter Login Password : *****
------------------------------------Messages------------------------------------
Alarm Outputs: None
Figure 9. Log In screen
Canoga Perkins Corp. EdgeAccess Ethernet Media Converter 30-Nov-2005
Model L357-1564 V02.00 F19 Standalone 09:29:26
---------------------------------------MAIN MENU--------------------------------
1) System Configuration
2) Diagnostics
3) Link Status
4) System Alarms
5) Layer 2 Statistics
6) System Log
7) Utilities
8) Software Upgrade
9) Change Password
10) Manage Logged In Users
11) Logout
Select [1-11]:
------------------------------------Messages------------------------------------
Alarm Outputs: None
Figure 10. Main Menu screen
Step 6: Module Configuration
From the Main Menu, type “1,” enter, then “2,” enter, to access the Functional Configuration
screen. The Functional Configuration screen allows the user to change the USR port settings. To
change the settings, simply type the number of the setting you wish to change and use the space
bar to toggle through the selections. Use the ESC button to cancel your selection or to return to
the earlier screen.
The USR port can be set to Disabled/10M Half/10M Full/100M Half/100M Full/Autonegotiate.
Use the Tab button to move the highlight to the next column if SideBand Management is on, or
press Enter to accept the changes.

Canoga Perkins Corporation, 20600 Prairie Street, Chatsworth, CA 91311-6008
Phone: [phone], FAX [phone] www.canoga.com
P/N 6942590 Rev A Page 7 of 8
Canoga Perkins Corp. EdgeAccess Ethernet Media Converter 30-Nov-2005
Model L357-1564 V02.00 F19 Standalone 09:31:28
----------------------------------FUNCTIONAL CONFIGURATION----------------------
Local Remote
Chassis/Slot Standalone Offline
User Port Speed/Duplex Link Down
Switch Settings:
User Port Speed/Duplex Autonegotiate
Side Band Mgmt Disabled
LLF Extension to User Disabled
LLF User to Extension Disabled
1) Configuration Option Control Software
2) User Port Setting 100M/Full
3) Ext Port Setting 1000M/Full
4) RMTF Disabled
5) Link Loss Echo Disabled
6) Link Loss Fwd Disabled
Select [1-6]:
------------------------------------Messages------------------------------------
Alarm Outputs: None
Figure 11. Functional Configuration screen
Step 7: Cable Connection
Once the changes are made to the modules, the UTP (Unshielded Twisted Pair) or fiber optic
cables can be installed. Remember that the USR port is the port connected to your local/client
device and the EXT port is the port facing the network/trunk. Connect the fiber to the EXT port.
Figure 12. Fiber optic and UTP cable connection
Step 8: IP Address/Subnet Mask/Default Gateway Set-up
From the System Configuration menu, type “5” then “enter” to access the IP/VLAN
Configuration screen. To configure the IP address, select “5,” press “enter,” and type the IP
address you wish to assign to the unit. Press enter to accept the changes. The Subnet Mask and
Default Gateway must be entered at this point as well.

Canoga Perkins Corporation, 20600 Prairie Street, Chatsworth, CA 91311-6008
Phone: [phone], FAX [phone] www.canoga.com
P/N 6942590 Rev A Page 8 of 8
Canoga Perkins Corp. EdgeAccess Ethernet Media Converter 30-Nov-2005
Model L357-1564 V02.00 F19 Standalone 09:34:10
----------------------------------SYSTEM CONFIGURATION--------------------------
1) Hardware Configuration
2) Functional Configuration
3) Trap Configuration
4) Alarm Output Configuration
5) IP/SNMP Agent Configuration
6) Security Configuration
7) Account Configuration
8) System Info Configuration
Select [1-8]:
------------------------------------Messages------------------------------------
Alarm Outputs: None
Figure 13. System Configuration screen
Canoga Perkins Corp. EdgeAccess Ethernet Media Converter 30-Nov-2005
Model L357-1564 V02.00 F19 Standalone 09:35:14
-------------------------------IP/SNMP AGENT CONFIGURATION----------------------
Local Remote
Offline
MAC Address 00 40 2A 00 92 CA
Management Port DOWN
1) Ethernet IP Address 165.237.028.086
Subnet Mask 255.255.255.000
Default Gateway 000.000.000.000
2) SLIP/PPP IP Address 000.000.000.000
3) Serial Port Config VT100
4) BOOTP Disabled
5) Telnet Security Disabled
6) Host Table
7) Trap Table
Select [1-7]:
------------------------------------Messages------------------------------------
Alarm Outputs: None
Figure 14. IP/SNMP Agent Configuration screen
This concludes the initial set up of the L357 ESU. For detailed information on other functions of
the L357 ESU, consult the user manual or contact Canoga Perkins’ Tech Support line at (818)
718-6300.
