Canon LEGRIA HF R56 User manual

PUB. DIE-0450-000A
HD Camcorder
Instruction Manual
C
COPY

2
Introduction
Important Usage Instructions
COPYRIGHT WARNING:
Unauthorized recording of copyrighted materials may infringe on the rights of copyright
owners and be contrary to copyright laws.
To reduce the risk of electric shock, do not expose this product to dripping or splashing.
The Mains plug is used as the disconnect device. The Mains plug shall remain readily operable
to disconnect the plug in case of an accident.
While using the compact power adapter, do not wrap it or cover it with a piece of cloth,
and do not place it in confined narrow spaces.
CA-110E identification plate is located on the bottom.
Only for European Union and EEA (Norway, Iceland and Liechtenstein)
These symbols indicate that this product is not to be disposed of with your
household waste, according to the WEEE Directive (2012/19/EU), the Bat-
tery Directive (2006/66/EC) and/or national legislation implementing those
Directives.
If a chemical symbol is printed beneath the symbol shown above, in accor-
dance with the Battery Directive, this indicates that a heavy metal (Hg = Mercury, Cd = Cad-
mium, Pb = Lead) is present in this battery or accumulator at a concentration above an
applicable threshold specified in the Battery Directive.
This product should be handed over to a designated collection point, e.g., on an authorized one-
for-one basis when you buy a new similar product or to an authorized collection site for recy-
cling waste electrical and electronic equipment (EEE) and batteries and accumulators. Improper
handling of this type of waste could have a possible impact on the environment and human
health due to potentially hazardous substances that are generally associated with EEE. Your
cooperation in the correct disposal of this product will contribute to the effective usage of natu-
ral resources.
For more information about the recycling of this product, please contact your local city office,
waste authority, approved scheme or your household waste disposal service or visit
www.canon-europe.com/weee, or www.canon-europe.com/battery.
COPY

3
REGIONS OF USE
LEGRIA HF R56 and LEGRIA HF R57 are in compliance (as of November 2013) with the radio
signal regulations of the regions listed below. For details on other regions where they can
be used, make inquiries with the contacts listed at the end of this instruction manual.
Statement on EC directive
REGIONS
Australia, Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hong Kong S.A.R., Hungary, Iceland, Ireland, Italy, Latvia,
Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, New Zealand, Norway, Poland,
Portugal, Romania, Russia, Singapore, Slovakia, Slovenia, Spain, Sweden, Switzerland,
United Kingdom
Hereby, Canon Inc., declares that this WM217 is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Please contact the following address for the original Declaration of Conformity:
CANON EUROPA N.V.
Bovenkerkerweg 59, 1158 XB Amstelveen, The Netherlands
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
Model
ID0020: LEGRIA HF R56 / LEGRIA HF R57
Complies with
IDA Standards
DB007671
This product is installed with the
WLAN module which is certified to
standards set by IDA Singapore.
COPY

4
Trademark Acknowledgements
• SD, SDHC and SDXC Logos are trademarks of SD-3C, LLC.
• Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States
and/or other countries.
• App Store, iPad, iPhone, iTunes and Mac OS are trademarks of Apple Inc., registered in the U.S. and other
countries.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
• “AVCHD”, “AVCHD Progressive” and the “AVCHD Progressive” logo are
trademarks of Panasonic Corporation and Sony Corporation.
• Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby
Laboratories.
• Google, Android, Google Play, YouTube are trademarks of Google Inc.
• Facebook is a registered trademark of Facebook, Inc.
• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
• The Twitter name and marks are trademarks of Twitter, Inc.
• Wi-Fi is a registered trademark of the Wi-Fi Alliance.
• Wi-Fi Certified, WPA, WPA2, and the Wi-Fi Certified logo are trademarks of the Wi-Fi Alliance.
• WPS as used on the camcorder’s settings, onscreen displays and in this manual signifies Wi-Fi Protected
Setup.
• The Wi-Fi Protected Setup Identifier Mark is a mark of the Wi-Fi Alliance.
• Other names and products not mentioned above may be trademarks or registered trademarks of their
respective companies.
• This device incorporates exFAT technology licensed from Microsoft.
• “Full HD 1080” refers to Canon camcorders compliant with high-definition video
composed of 1,080 vertical pixels (scanning lines).
• This product is licensed under AT&T patents for the MPEG-4 standard and may be used
for encoding MPEG-4 compliant video and/or decoding MPEG-4 compliant video that was encoded only (1) for
a personal and non-commercial purpose or (2) by a video provider licensed under the AT&T patents to provide
MPEG-4 compliant video. No license is granted or implied for any other use for MPEG-4 standard.
COPY

5
Exciting Features and New Functions
C
Wi-Fi Functions
(A113)
Baby Mode (A58)
Using Baby mode, you will not
miss out on baby’s precious
moments. The camcorder’s
settings are optimized to capture
the beauty of baby’s skin. You
can also add stamps to the video
to keep track of baby’s growth.
Baby mode is for AVCHD movies
only.
Enjoy the freedom of Wi-Fi* by
using convenient Wi-Fi functions
such as the following.
• You can use a smartphone as a
remote control and record mov-
ies from a distance (A116).
• You can wirelessly connect the
camcorder to your home net-
work and upload your record-
ings to CANON iMAGE
GATEWAY (A124). This will
allow you to even share your
videos on YouTube and Face-
book. You can share your videos
on YouTube and Facebook also
directly from an iOS device
(A122).
• Enjoying your recordings with
family and friends has just
become easier because you can
use the Web browser on a
smartphone or computer to view
the camcorder’s recordings
(A121).
* Wi-Fi is a connection method for
devices to connect wirelessly and is
certified by the Wi-Fi Alliance.
AVCHD and MP4
Recording (A54)
You can choose to record movies
in AVCHD or MP4 format. Record
movies in AVCHD and play them
back with fantastic picture quality.
Alternatively, record movies in
MP4 for uploading to the Web and
transferring to mobile devices.
Depending on the video quality,
you can also record at 50 frames
per second. With video at 50
frames per second, your videos
will achieve a level of realistic
movement that will impress your
audience.
COPY

6
Smart AUTO (A40)
Smart AUTO automatically selects the best
scene mode for the scene you want to
shoot. You get spectacular recordings
every time without worrying about settings.
Video Snapshot
(A68)
Cinema-Look Filters
(A59)
Shoot or capture short scenes
and arrange them into a video
clip set to your favorite
background music.
Use professional cinema-look
filters to create unique movies
with distinctive looks.
Face Detection
(A69) Image Stabilization
The camcorder automatically
detects people’s faces and
adjusts the focus and other
settings accordingly for beautiful
results.
Dynamic IS (A144)
compensates for camcorder
shake when you shoot video
while walking. Powered IS
(A139) will produce stable
shots when you zoom in on
distant subjects (full telephoto).
Intelligent IS (A41) selects the
type of image stabilization for the
recording situation.
COPY

7
Enjoying Your Recordings on Other Devices
Connect the camcorder
to an HDTV (A98).
Transfer recordings to
your computer (A101).
Upload your MP4 movies
and photos to the Web
(A112).
CCopy the camcorder’s
entire memory onto an external
hard drive (A106).
Copy your recordings to
an external video recorder
(A110).
COPY

8
C

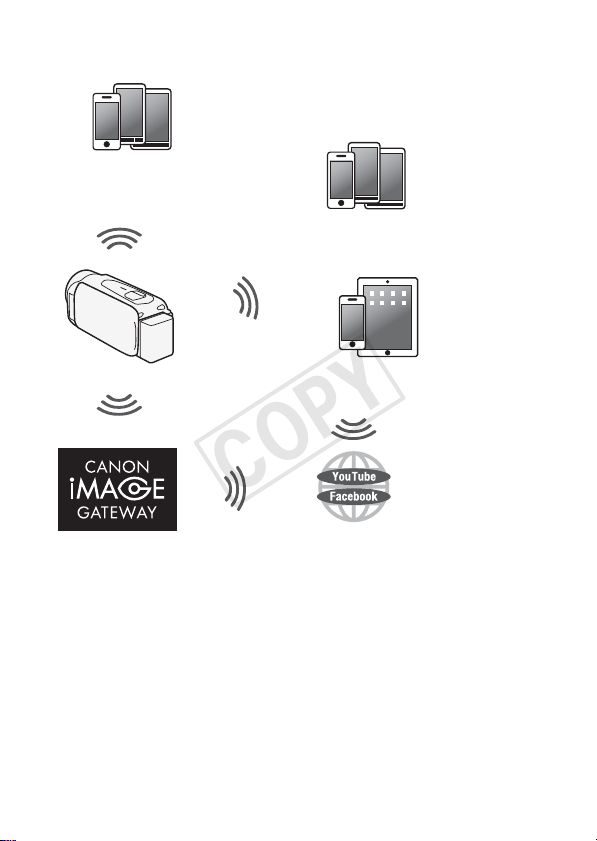

Enjoying Your Recordings Using the Camcorder’s Wi-Fi Functions
Connect the camcorder to an
access point on your home
network and then share your
recordings on CANON iMAGE
GATEWAY (A124). From
there, you can make online
albums to enjoy your
recordings.
Save your recordings on an
iPhone or iPad and play them
back (A122).
After connecting the
camcorder to an iOS device or
CANON iMAGE GATEWAY, you
can upload your recordings to
other Web sites.
Use your iOS/Android device to remotely
control the camcorder (A116).
Use the Web browser on your
iOS/Android device to view the
recordings on the camcorder (A121).
COPY

Table of contents 9
Introduction
5 Exciting Features and New Functions
13 About this Manual
15 Getting to Know the Camcorder
15 Supplied Accessories
16 Names of Parts
Preparations
19 Getting Started
19 Charging the Battery Pack
22 Using a Memory Card
22 Memory Cards Compatible for Use with the Camcorder
23 Inserting and Removing a Memory Card
25 First Time Settings
25 Basic Setup
27 Changing the Time Zone
27 Initializing the Memory
29 Basic Operation of the Camcorder
29 Using the Touch Screen
30 Using the Menus
34 Operating Modes
Table of contents
COPY

10 Table of contents
Basic Shooting and Playback
35 Basic Recording
35 Shooting Video
38 Taking Photos
39 AUTO Mode
41 Zooming
44 Basic Playback
44 Playing Back Video
48 Viewing Photos
51 Deleting Recordings
Advanced Shooting
54 Selecting the Movie Format (AVCHD/MP4)
54 Selecting the Video Quality
56 CSelecting the Memory (Built-in Memory/
Memory Card) for Recordings
56 CDual Recording and Relay Recording
57 Shooting Modes
58 Baby Mode
59 Cinema Mode and Cinema-Look Filters
60 Special Scene Modes
62 Programmed AE Mode: Adjusting Settings to Match Your
Needs
63 Decoration: Adding a Personal Touch
68 Video Snapshot
69 Face Detection and Tracking
71 Faders
72 Adjusting the Exposure
73 Adjusting the Focus
75 White Balance
76 Frame Rate
77 Tele Macro
78 Audio Scenes
79 Using Headphones
COPY
