Direct Print User Guide

ENGLISH
Introduction
— Confirm Your Printer Model and the Section that Applies to You
Operations differ according to your printer model.
According to the procedure below, confirm the section and page
you should read in this user guide.
Connect the camera to the printer with an appropriate cable
and confirm the icon displayed in the camera's LCD monitor.
• For instructions on camera and printer connection methods,
please refer to page 8.
• If one of the aforementioned icons does not appear, the connected printer
cannot be used.
• When the printer is ready for printing, the button lights in blue. The
button blinks during printing.
Confirming the section that applies to you
Icons displayed in the camera's LCD monitor

1
* Please also refer to the user guide that came with your printer.
Confirm your printer
model.
Read the page
below.
Printer model Refer to the sections
indicated
SELPHY CP
series
Page 10
" Printing with SELPHY CP
Series Printers using
PictBridge"
PIXMA/
SELPHY DS
series
Page 29
" Printing with Bubble Jet
Printers (PIXMA series/
SELPHY DS series) using
PictBridge"
Non-Canon
printers*
Page 47
" Printing with Non-Canon,
PictBridge Compliant Printers"
SELPHY CP
series
Page 48
" Printing with SELPHY CP
Series Printers using Canon
Direct Print"
Bubble Jet
printers
Page 64
" Printing with Bubble Jet
Printers using Bubble Jet
Direct"

2
Trademark Acknowledgements
• Names and products in this guide may be registered trademarks or
trademarks of their respective companies.
• Copyright © 2005 Canon Inc. All rights reserved.
For the latest information regarding connections between Canon
printers and cameras, please refer to the following URL:
http://web.canon.jp/Imaging/BeBit-e.html
http://www.canon.com/pictbridge/
PictBridge Compliance
This camera complies with the industry standard “PictBridge”*.
This allows you to also connect your camera to non-Canon
PictBridge compliant printers and print images with simple
operations using the camera buttons.
* PictBridge: PictBridge is an industry standard for direct printing that
allows you to print images without using a computer by directly
connecting digital cameras and digital camcorders (hereafter “camera”)
to a printer, regardless of the devices’ brand and model.
Disclaimer
• No part of this guide may be reproduced, transmitted, transcribed, stored
in a retrieval system, or translated into any language in any form, by any
means, without the prior written permission of Canon.
• Canon reserves the right to change the specifications of the hardware
described herein at any time without prior notice.
• While every effort has been made to ensure that the information contained
in this guide is accurate and complete, no liability can be accepted for any
errors or omissions.
• Canon makes no warranties for damages resulting from corrupted or lost
data due to a mistaken operation or malfunction of the camera, the
software, the memory cards, personal computers, peripheral devices, or
use of non-Canon memory cards.

3
Table of Contents
Direct Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Allows for Printing without the Use of a Computer . . . . 6
Various Printing Operations Can Be Performed . . . . . . . 6
You Can Also Perform the Following Printing Operations . .7
Using Canon SELPHY CP Series Printers . . . . . . . . . . 7
Using Canon Printers (PIXMA series/SELPHY series)
with PictBridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connecting the Camera to the Printer. . . . . . . . . . . . . . . . . 8
Disconnecting the Camera and the Printer. . . . . . . . . . . . . 9
Printing with SELPHY CP Series Printers using PictBridge . . .10
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Easy Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Print after Changing the Print Settings . . . . . . . . . . . 11
Selecting Print Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting the Date and the File Number Printing Option . 13
Setting the Print Effect . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting the Number of Copies . . . . . . . . . . . . . . . . . . 14
Setting the Printing Area (Trimming) . . . . . . . . . . . . . 15
Selecting the Paper Settings . . . . . . . . . . . . . . . . . . . 17
Printing Multiple Images on a Sheet of Paper . . . 19
Printing by Specifying the Print Size
(ID Photo Print) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Printing Images in the Fixed Size . . . . . . . . . . . . . 22
Printing Movies (Movie Print) . . . . . . . . . . . . . . . . . . . 23
Printing with DPOF Print Settings . . . . . . . . . . . . . . . . . 25
List of Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

4
Printing with Bubble Jet Printers (PIXMA series/
SELPHY DS series) using PictBridge . . . . . . . . . . . . . . . . . 29
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Easy Print. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Print after Changing the Print Settings . . . . . . . . . . . .30
Selecting Print Settings. . . . . . . . . . . . . . . . . . . . . . . . . . .32
Setting the Date Printing Option . . . . . . . . . . . . . . . . .32
Setting the Print Effect . . . . . . . . . . . . . . . . . . . . . . . . .33
Setting the Number of Copies . . . . . . . . . . . . . . . . . . .34
Setting the Printing Area (Trimming) . . . . . . . . . . . . .34
Selecting the Paper Settings . . . . . . . . . . . . . . . . . . . .37
Printing Multiple Images on a Sheet of Paper . . . .39
Printing with DPOF Print Settings . . . . . . . . . . . . . . . . . .41
List of Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Printing with Non-Canon, PictBridge Compliant Printers . . . 47
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Printing with SELPHY CP Series Printers using
Canon Direct Print. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Easy Print. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Print after Changing the Print Settings . . . . . . . . . . . .48
Selecting Print Settings. . . . . . . . . . . . . . . . . . . . . . . . . . .50
Selecting the Number of Copies . . . . . . . . . . . . . . . . .50
Setting the Print Style (Image, Borders and Date) . . .50
Setting the Printing Area (Trimming) . . . . . . . . . . . . .52
Printing by Specifying the Print Size (ID Photo Print) . .55
Printing Movies (Movie Print) . . . . . . . . . . . . . . . . . . . .58
Printing with DPOF Print Settings . . . . . . . . . . . . . . . . . .60
List of Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

5
Printing with Bubble Jet Printers using Bubble Jet Direct . .64
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Setting the Print Style . . . . . . . . . . . . . . . . . . . . . . . . . 65
Settings that Can Be Set with the Camera . . . . . . . . . . . . . . . . . 67
SELPHY CP Series Printers using PictBridge . . . . . . 67
Bubble Jet Printers (PIXMA series/SELPHY DS series)
using PictBridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
SELPHY CP Series Printers using Canon Direct Print
Bubble Jet Printers using Bubble Jet Direct . . . . . . . 70

6
Direct Print
Allows for Printing without the Use of a Computer
Connect your camera to the printer with the appropriate cable.
Image selection and printing is operated from the camera.
Various Printing Operations Can Be Performed*
Multiple pictures can be printed at once. (DPOF print setting*)
Prints to cover the entire
surface of the paper.
Or, prints with a border.
Add the date.
Specify which portion of
the image to print.
(Trimming)
03/04/2005
* Some settings may not be selectable for Non-Canon printers.

7
You Can Also Perform the Following Printing Operations
An image can be trimmed, laid out and printed
as ID photos. (ID photo print (p. 20 or p. 55))
Movie frames can be extracted at fairly
regular intervals and printed on a single
sheet of paper. (Movie print (p. 23 or p. 58))
Using Canon SELPHY CP Series Printers
107-J006
6"25
12"50
18"75
1"25
7"50
13"75
20"00
2"50
8"75
15"00
21"25
3"75
10"00
16"25
22"50
5"00
11"25
17"50
23"75
* Depending on the printer used, the print size may be fixed before printing.
Compositions of multiple
images you specify of the same
dimensions can be printed on a
single sheet of paper (p. 19 or
p. 39). (This function is not
available on some printers.)
Moreover, the DPOF print
setting* function allows you to
separately print different images
by specifying the number of
frames to be printed per image.
* DPOF print settings
This function allows you to preset the images and the number of
copies using the camera button controls. The settings are recorded
to a memory card.
Please refer to the Camera User Guide for instructions on setting
procedure. This guide explains how to print images with DPOF
print settings.
DPOF=Digital Print Order Format
Using Canon Printers (PIXMA series/SELPHY series)
with PictBridge

8
Connecting the Camera to the
Printer
Connect the camera to the printer. For instructions on printer and
camera operation methods, refer to their respective user guides.
Set one of the following into the camera.
• Compact power adapter (sold separately)
• Fully charged battery
• New batteries
Place paper, ink cassette/cartridge, etc. into the
printer.
Connect the camera to the printer with the
appropriate interface cable supplied with the camera.
Some printers require specific connection cables which differ
from the above cable. Please refer to the printer’s user guide.
Turn the printer’s power on.
Set the camera to Playback mode and turn the
power on.
Depending on the camera model, the camera’s power will
automatically turn on when the printer’s power is turned on.
The following operations are not available during a camera/printer
connection.
• Movie playback.
• Language settings that use the SET button and the MENU button.
• Resetting the camera’s settings to default.
DIGITAL terminal
This illustration shows the PowerShot SD500 DIGITAL ELPH/
DIGITAL IXUS 700 as an example.
Camera: Connect the cable to
the DIGITAL terminal.
Printer: Refer to the printer’s
user guide.

9
Disconnecting the Camera and the
Printer
Detach the cable from the printer.
Pull out the cable while holding the connector plug. Do not
pull out by the cable.
Turn the camera’s power off.
Detach the cable from the camera.
Pull out the cable while holding the connector plug. Do not
pull out by the cable.

10
Printing
Easy Print
You can print images by pressing only one button after connecting
the camera to the printer.
1
Make sure that displays in
the upper left corner of the
LCD monitor.
2
Display the images you wish to print and press the
button.
If you wish to change the print settings, see Print after
Changing the Print Settings (p. 11).
Printing with SELPHY
CP Series Printers using
PictBridge

11
Print after Changing the Print Settings
You can change the print settings before printing.
1
Make sure that displays in
the upper left corner of the
LCD monitor.
If displays on the LCD monitor,
please refer to Printing with
SELPHY CP Series Printers using
Canon Direct Print (p. 48).
2
Display the images you wish
to print and press the SET
button.
The print order screen appears.
Depending on the printer model,
some setting options may not
display.
3
Select print settings as needed.
4
Select [Print] and press the SET button.
• The image will start to print and, when it is completely
finished, the display will revert to the standard playback
mode.
• If you press the MENU button, the display will revert to the
standard playback mode and printing will not take place.
Sets the date
and the file number
for printing (p. 13).
Sets the print
effect (p. 14)
Sets the number of copies (p. 14).
Sets the trimming portion (p. 15).
Sets the paper size, type and layout
(p. 17).
Starts the printing process.
Print Order Screen

12

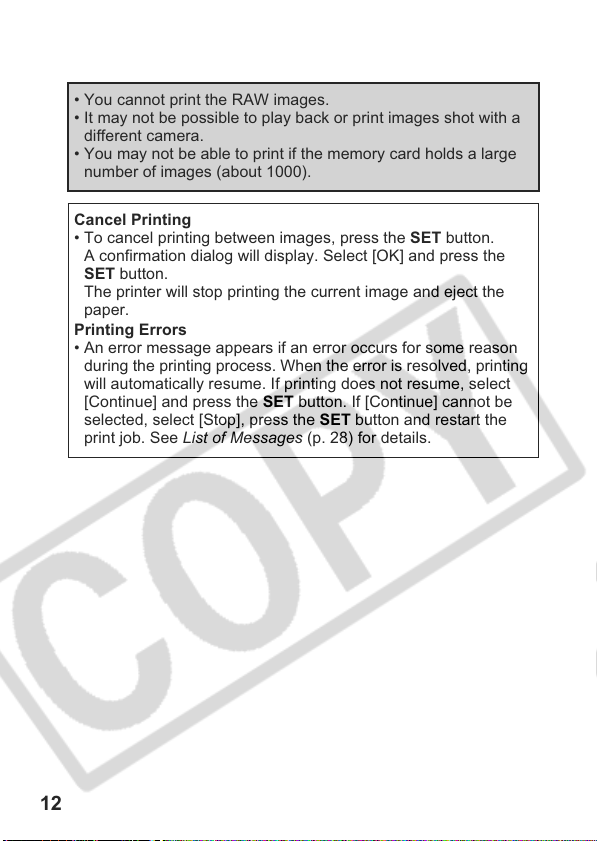

• You cannot print the RAW images.
• It may not be possible to play back or print images shot with a
different camera.
• You may not be able to print if the memory card holds a large
number of images (about 1000).
Cancel Printing
• To cancel printing between images, press the SET button.
A confirmation dialog will display. Select [OK] and press the
SET button.
The printer will stop printing the current image and eject the
paper.
Printing Errors
• An error message appears if an error occurs for some reason
during the printing process. When the error is resolved, printing
will automatically resume. If printing does not resume, select
[Continue] and press the SET button. If [Continue] cannot be
selected, select [Stop], press the SET button and restart the
print job. See List of Messages (p. 28) for details.

13
Selecting Print Settings
Setting the Date and the File Number Printing
Option
Depending on the camera model, the screens that will be
displayed will vary. Please also refer to the user guide that came
with your printer.
Default Setting
• The Default option is a fixed setting of the printer.
• The [Date/File No.], [Print Effect], paper setting [Paper Size],
[Paper Type] and [Page Layout] options are available.
1
Select [ ], then select the
date and the file number
printing option.
You can set the date and the
file number printing as
follows:
If you select an image which has had the shooting date embedded
in it using a camera with the Postcard Print mode, [ ] will be set to
[Off]. If you select [Date], [File No.] or [Both], the date/file number
will be printed on the embedded information which is also printed.
Date Prints only the date.
File No. Prints only the file number.
Both Prints both the date and the
file number.
Off Prints neither date nor file
number.
Default Prints using the default
setting.

14

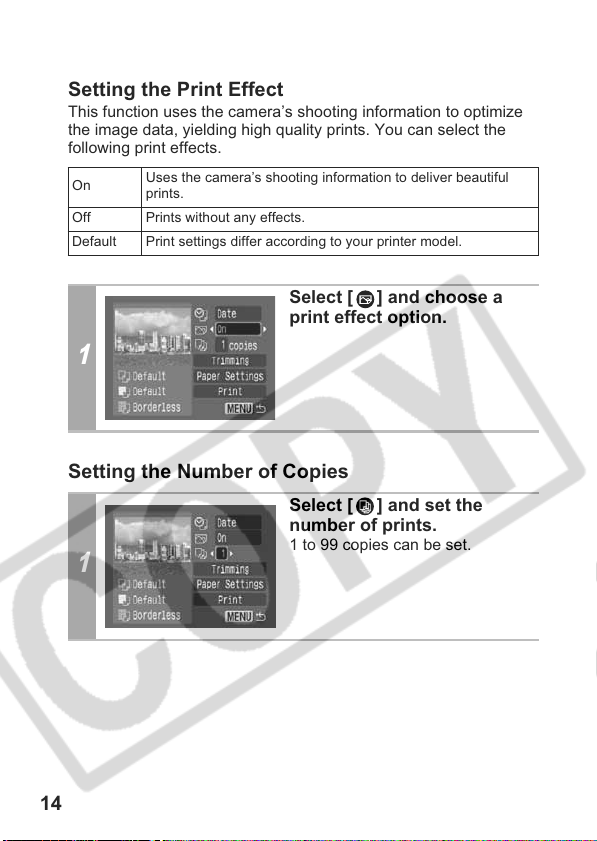

Setting the Print Effect
This function uses the camera’s shooting information to optimize
the image data, yielding high quality prints. You can select the
following print effects.
Setting the Number of Copies
On Uses the camera’s shooting information to deliver beautiful
prints.
Off Prints without any effects.
Default Print settings differ according to your printer model.
1
Select [ ] and choose a
print effect option.
1
Select [ ] and set the
number of prints.
1 to 99 copies can be set.

15
Setting the Printing Area (Trimming)
You can specify a portion of the image for printing.
Please set [Paper Settings] (p. 17) before setting the trimming
settings. If [Paper Settings] is changed after having made the
trimming settings, you must select the settings again.
1
Select [Trimming] and press
the SET button.
The trimming frame will appear at
the center of the image. If a
trimming setting has already been
selected for the image, the frame
will appear around the previously
selected portion.
The trimming setting screen differs
depending on the camera model.
Ensure that the screen appears
before selecting settings.
Trimming Frame

16
2
Trim the image.
Changing the Size of the Trimming Frame
• Press the zoom lever or the zoom button to adjust the size of
the trimming frame.
• The trimming frame can be changed to a minimum selection
of approximately half the displayed image (in width and
height) or a maximum selection that is virtually the same size
as the image.
• Expanding the trimming frame beyond its maximum size
cancels the trimming setting.
• When printing an image that has been magnified using the
trimming option, the image quality may become coarser and
grainier depending on the level of magnification.
Moving the Trimming Frame
• Move the trimming frame using the omni selector or the up,
down, right and left buttons.
Rotating the Trimming Frame
• You can rotate the trimming frame by pressing the DISP. (or
DISPLAY) button.
3
Press the SET button to close the setting menu.
Pressing the MENU button cancels the settings.
• The trimming setting only applies to one image.
• The trimming setting is canceled with the following operations.
• When you set the trimming settings for another image.
• When you close the Print mode (when you turn the camera
power off, change the camera mode, or detach the
connection cable).
• The date or part of the date in images shot in [Date Stamp]
mode with a camera that has the Postcard Print mode may not
be printed properly depending on the trimming setting.

17

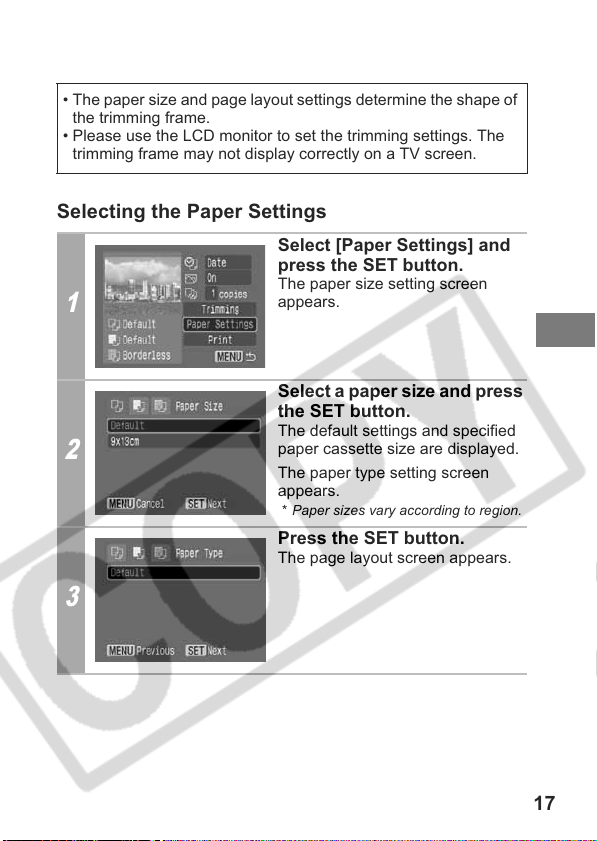

Selecting the Paper Settings
• The paper size and page layout settings determine the shape of
the trimming frame.
• Please use the LCD monitor to set the trimming settings. The
trimming frame may not display correctly on a TV screen.
1
Select [Paper Settings] and
press the SET button.
The paper size setting screen
appears.
2
Select a paper size and press
the SET button.
The default settings and specified
paper cassette size are displayed.
The paper type setting screen
appears.
* Paper sizes vary according to region.
3
Press the SET button.
The page layout screen appears.

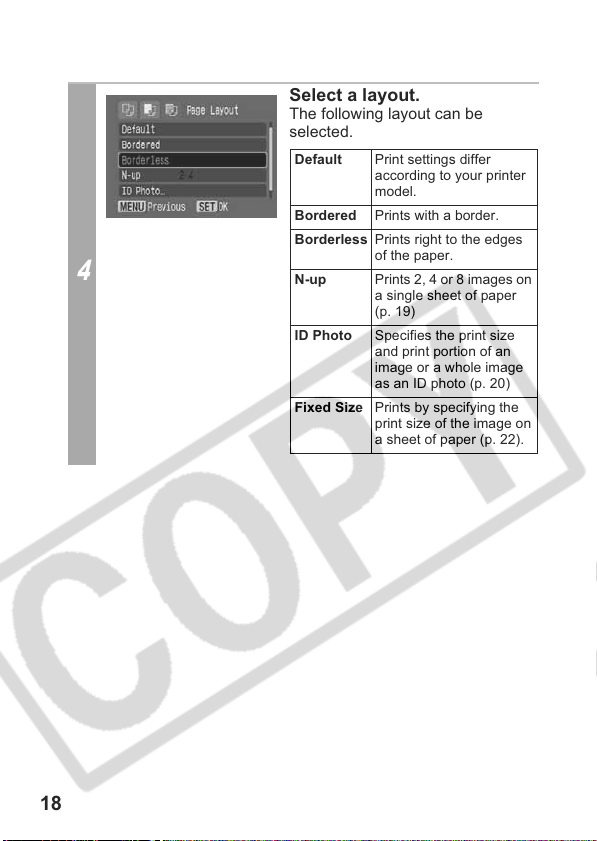

18
4
Select a layout.
The following layout can be
selected.
Default Print settings differ
according to your printer
model.
Bordered Prints with a border.
Borderless Prints right to the edges
of the paper.
N-up Prints 2, 4 or 8 images on
a single sheet of paper
(p. 19)
ID Photo Specifies the print size
and print portion of an
image or a whole image
as an ID photo (p. 20)
Fixed Size Prints by specifying the
print size of the image on
a sheet of paper (p. 22).
