Features of the EOS-1D X Mark III
New AF algorithm and face detection / head detection AF
Chapter 1
AF Configuration Tool
Presets
Chapter 2
AF Configuration Tool
Parameters
Chapter 3
AF point selection
Chapter 4
Viewfinder shooting AF
Chapter 5
Live View shooting AF
Chapter 6
Utilizing the AF and other useful
functions
New AF Setting Operability

CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview
CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview

Features of the EOS-1D X Mark III

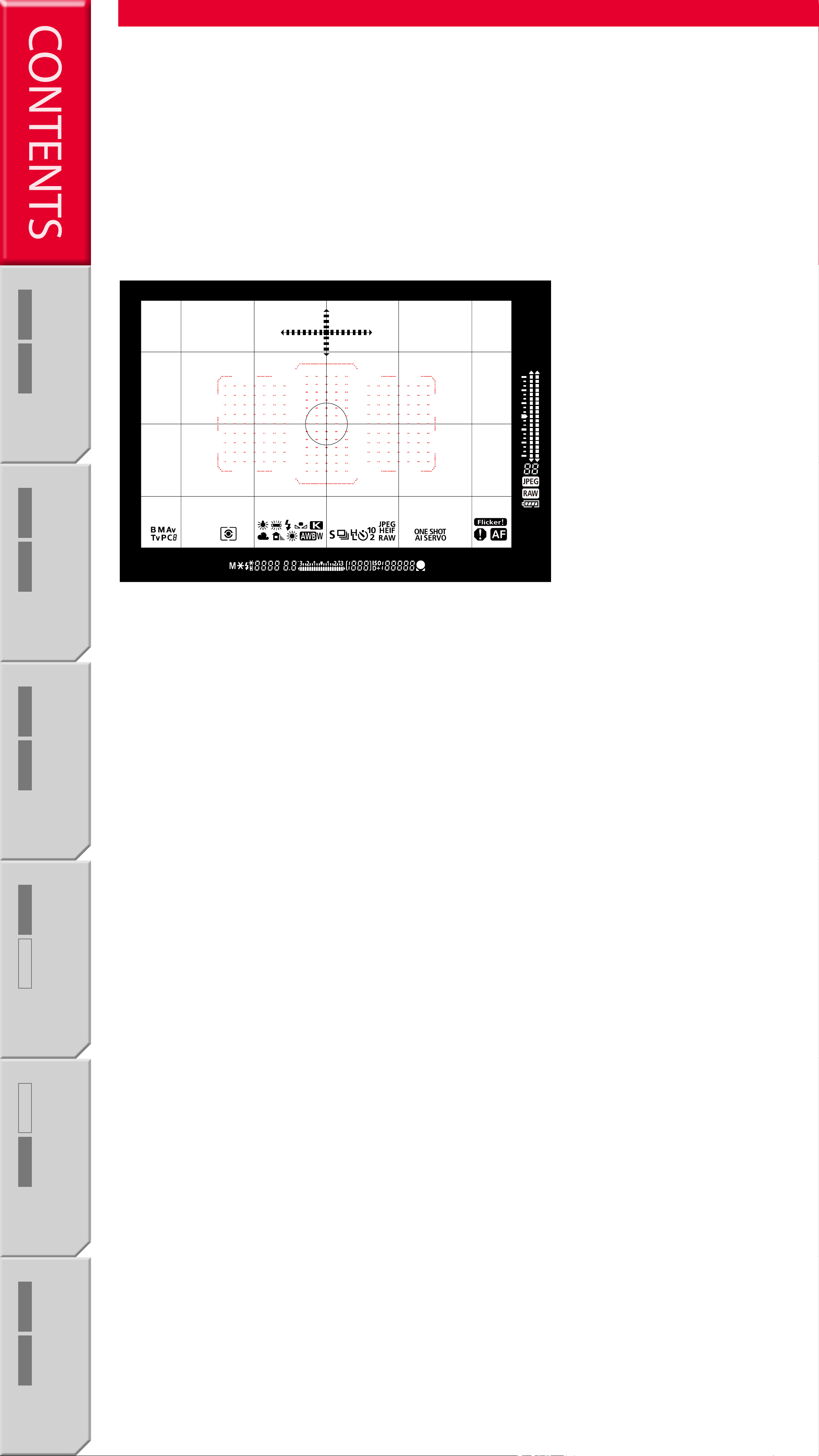

New AF Custom Functions for
control of up to 191-Point AF
The EOS-1D X Mark III is equipped with a newly-developed
High-res AF sensor, offering up to 191 AF points when
shooting with the viewfinder. Also, during Live View
shooting, the subject tracking is smoother thanks to the
wide AF area of Dual Pixel CMOS AF and the 525 AF area
zones.
The new algorithm incorporated in the “AI Servo AF IV”
makes tracking the subjects with a higher level of precision
in both viewfinder shooting and Live View shooting
possible.
You can also set AI Servo AF features using the “AF
Configuration Tool.” Choose from four different presets,
with the correct settings already set, meaning you don’t
need to deal with all the trouble that comes from adjusting
individual parameters to match the subject or scenes.

CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview
CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview

Improved AF algorithm
AI Servo AF IV
The camera analyzes the subject and
optimizes the settings. Supports a variety
of scenes with automatic settings.
The main feature of the AF system on the EOS-1D X Mark
III is the use of the new AI Servo AF IV, with a new advanced
algorithm that has improved stability and automation. The
“AF Configuration Tool” in previous camera allowed users
to to select [Case 1] to [Case 6] according to the subject
and shooting scene, with the EOS-1D X Mark III, the cases
are consolidated into just four, and a new automatic [Case
A] setting has been included. Using [Case A], the camera
determines the shooting scene and automatically sets the
appropriate[Trackingsensitivity]and[Accel./decel.tracking]
setting. This makes it possible to accurately focus on a
wide range of subjects and shooting scenarios by simply
setting [Case A]. The AF control algorithm for moving
subjectshasbeenimproved.AFaccuracyhasbeenimproved
even in scenes with heat haze*" or when "shooting a
subject moving away at high speed," both situations where
predictive computation was previously difficult and AF has
been unreliable so far.
AI Servo AF IV now includes a high level of AF accuracy
and tracking ability for a variety of subjects with different
movement characteristics.
* During viewfinder shooting.

CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview
CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview

“AI Servo AF IV” makes it possible to
focus precisely for subjects over an
even wider variety of conditions
Hints & Tips
AF on the EOS-1D X Mark III is equipped with an
improved focus tracking algorithm, “AI Servo AF IV”.
It supports focus tracking over an even greater variety
of subject movement than before.

CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview
CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview

Face Detection and
Head Detection AF
By using deep learning technology, accurate
tracking is achieved with head detection
even when a face cannot be detected
In previous cameras when [Face Priority] was selected with
an auto selection AF mode (Zone AF, Large Zone AF, or
Auto Selection AF), the AF point was automatically selected
by adding information for the color of the human face
and subject to the AF information. With the EOS-1D X
Mark III AF system, the tracking function based on subject
detection has been improved. By analyzing a database of
sports photographs using deep learning technology, a new
head detection algorithm was created. Accurate face/head
tracking is now possible even when part of the face cannot
be detected (such as if the face is hidden by movement of
subject, if the face is hidden by sunglasses, mask, hair, or
if the face is in a dark area). Face detection is performed
at the same time, and even if the face is hidden, it switches
smoothly so that accurate focusing is possible. Face
detection and head detection can be used in the same
way for viewfinder shooting and Live View shooting, plus
with Live View shooting, you can also use Eye Detection
AF.
If you want to use Head
Detection AF, setting
[Subject tracking
settings] to [AF priority
(People): Enable] is
recommended.



Effective for face detection and
head detection
Head detection is especially eective for
continuous shooting of scenes where faces
of the subject appear and disappear,
such as sports photography.
CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview
CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview


Operability of the new
Smart controller
Quick AF point and AF operations without
releasing your nger from the
 
button


CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview
CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview

With the EOS-1D X Mark III, in addition to the existing
Multi-controller you can also select AF points using a
Smart controller  so that a greater number of AF points
can be selected easily.
The newly includedSmart controller  is a new camera
control that uses a pointing device that optically detects
finger movements on the

button. When you slide
your finger across theSmart controller the selected AF
point moves smoothly according to the movement. After
selecting the desired AF point, you can start AF by simply
pressing the button. With existing Multi-controller
operation, after selecting the AF point, you need to move
your finger and operate the

. As a result, Smart
controller  has made focusing with AF even quicker and
smoother.

CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview
CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview

New AF Setting Operability
All AF-related menu functions are now in a
separate menu
The [AF1] tab* includes
the “AF Configuration Tool”
The [AF1] tab is important when shooting moving subjects
using the AI Servo AF on the EOS-1D X Mark III. It is possible
to set AI Servo AF characteristics by selecting the settings
that match the scene from the “AF Configuration Tool”.
* During Live View shooting it is the [AF3] tab.
Displays the tab position
Tab name
AF-related setting items
in the AF menu tab

CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview
CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview


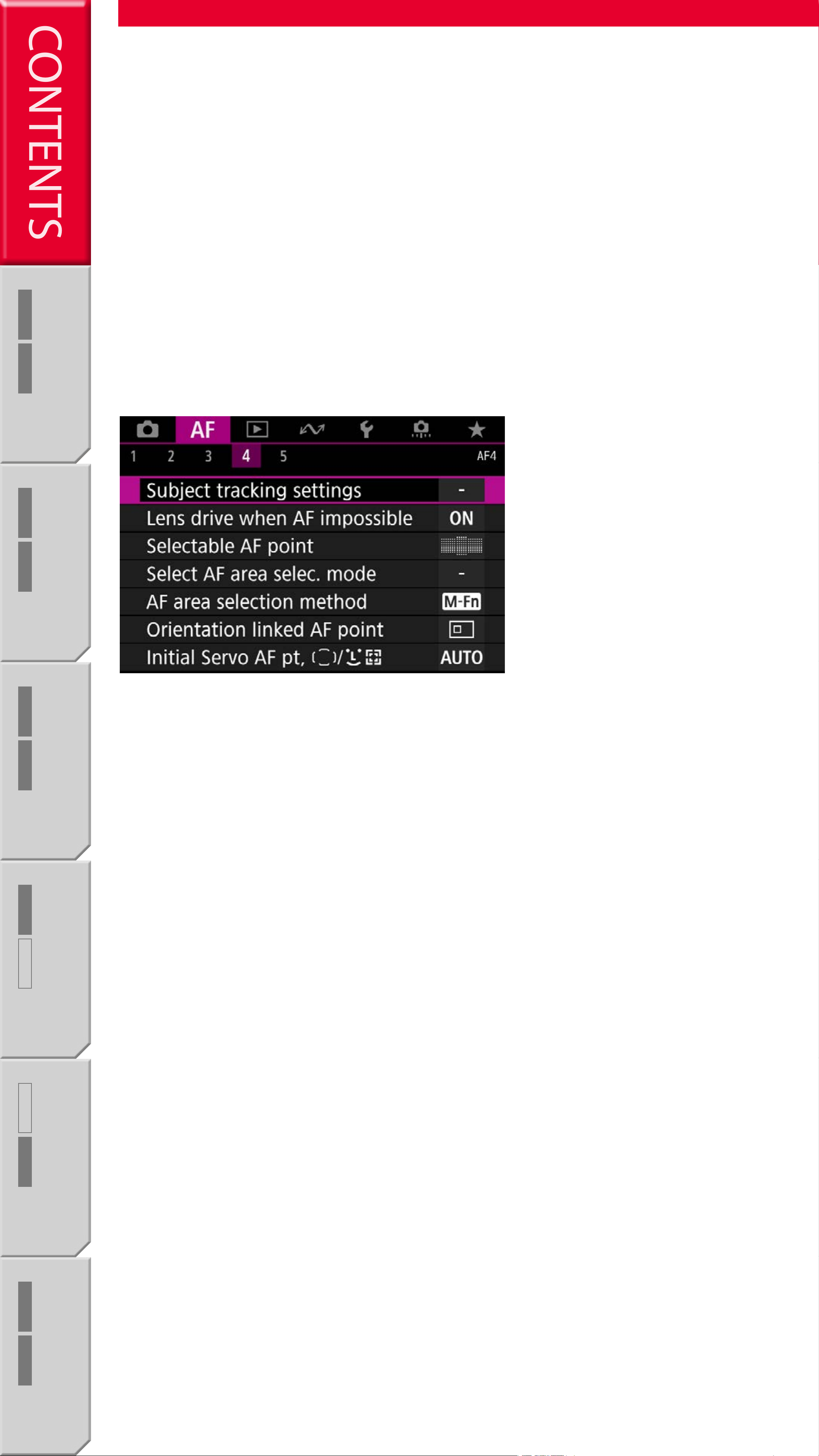

“AF tabs” other than “AF Conguration
Tool” (using the optical viewnder)





CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview
CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview


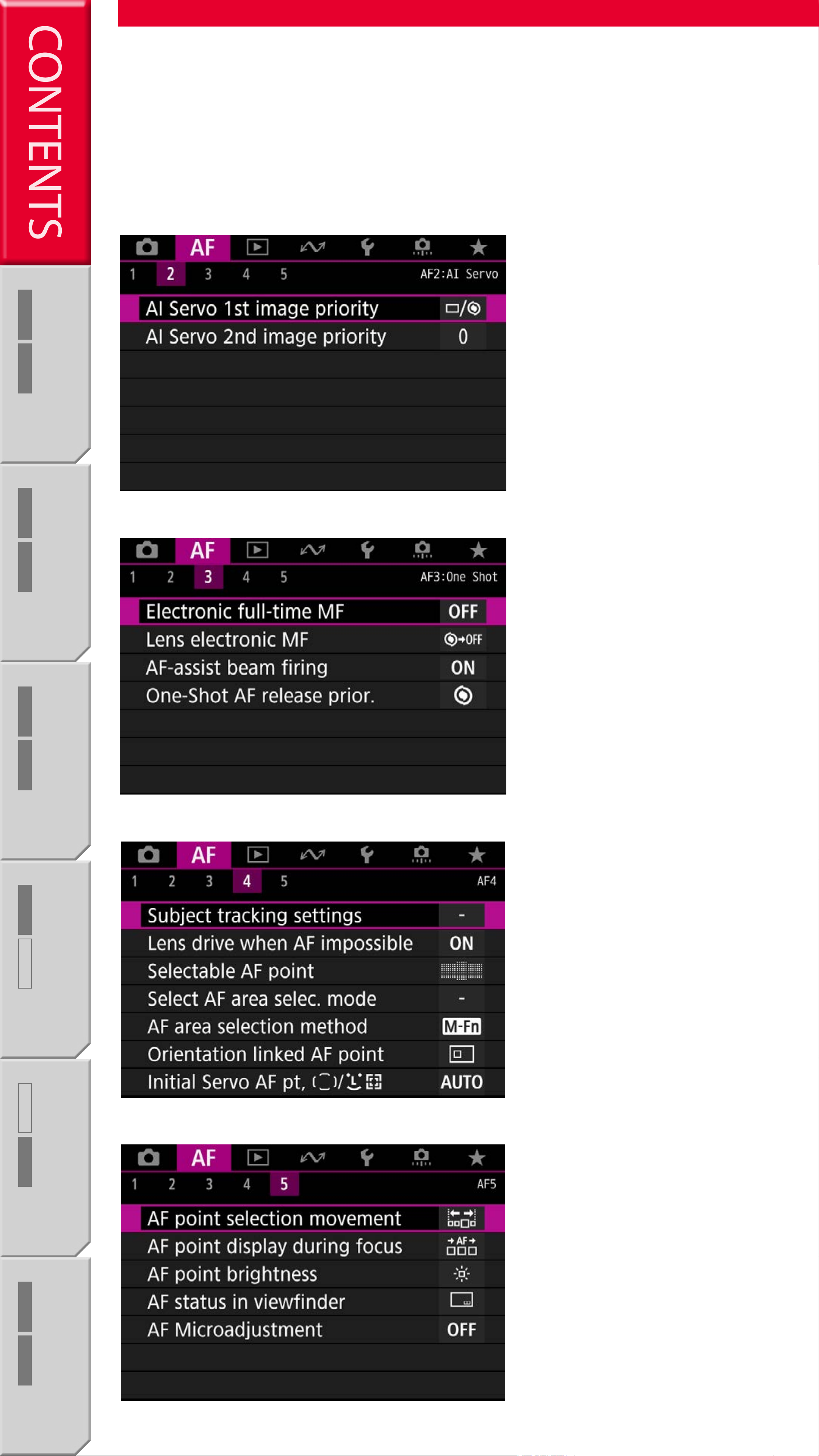

“AF tabs” other than “AF Conguration
Tool” (in Live View)





CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview

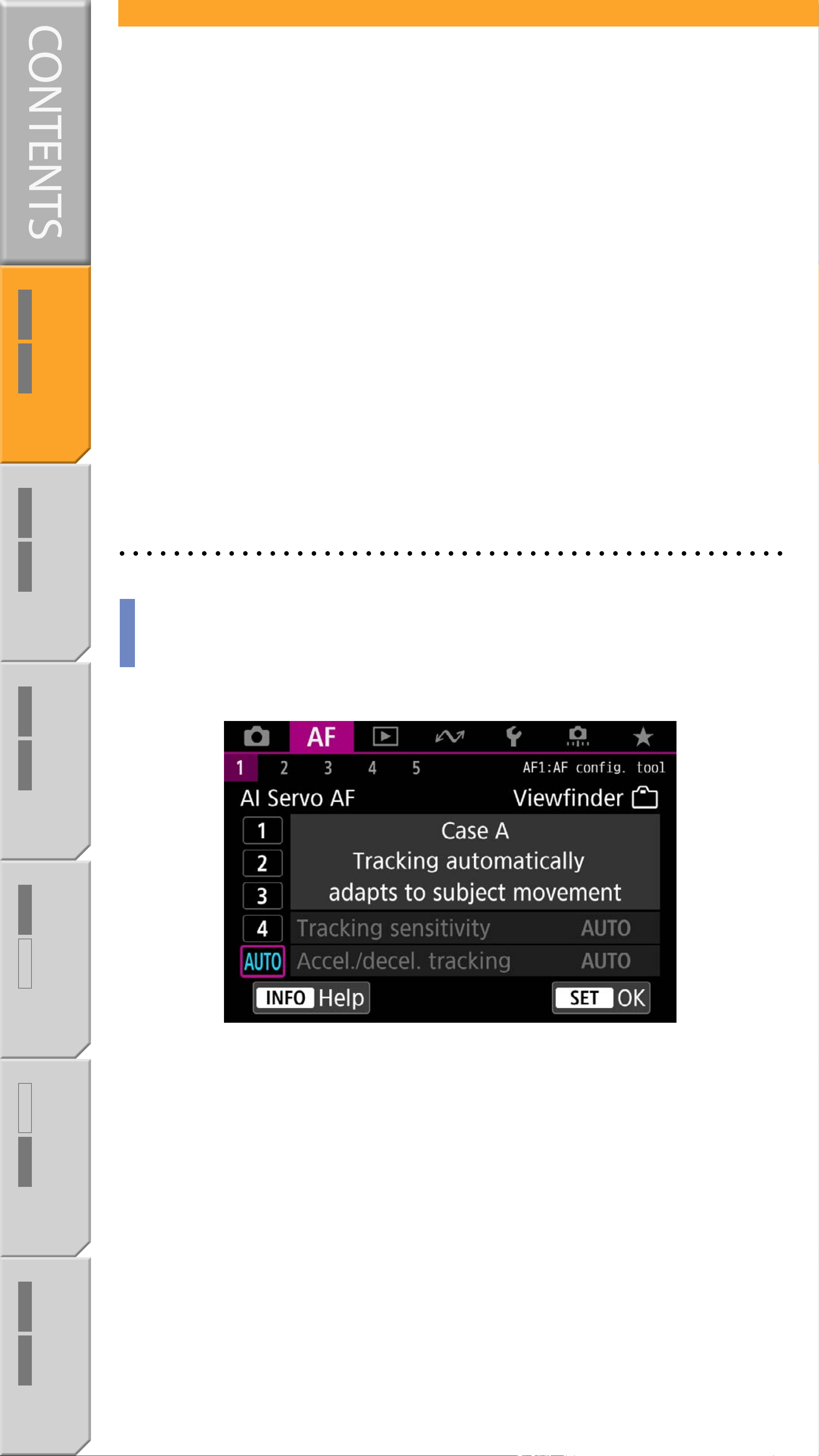

Chapter 1

Case A
When you want to switch the
tracking sensitivity automatically
according to changes in the
subject’s movement.
Case 1
Versatile multi-purpose setting.
Case 4
Focus track subjects that
accelerate or decelerate quickly.
Case 3
Focus instantly on subjects that
move into the AF points.
Case 2
Continue to focus-track even
when the subject momentarily
moves from the AF points.
AF Configuration Tool
[Presets]
AF Configuration Tool
[Presets]

CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview

Case 4
Case 3
Case 2
Case 1
Case A
AF Configuration Tool
[Presets]
A combination of parameters to best suit the characteristics
of subject movement have been used to create the presets
from [Case 1] – [Case 4]. By selecting the case setting, the
different AI Servo AF and Servo AF settings can be selected
to suit the subject. The “AF Configuration Tool” must be
set for viewfinder and Live View shooting.
The best parameters for
different subjects and
shooting scenes are
combined into presets from
[Case 1] - [Case 4].
With [Case A], the camera
automatically determines and
sets those parameters.
When you want to switch the
characteristics automatically
according to changes in the
subject movement.
Versatile multi-purpose
setting.
Continue to track subjects,
ignoring possible obstacles.
Instantly focus on subjects
suddenly entering AF points.
For subjects that accelerate
or decelerate quickly.

CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview

Select from [Case 1] to [Case 4] or
[Case A] according to the scene.
Different presets to match the characteristics of the type
of subject movement, and the shooting conditions, can
be selected from [Case 1] - [Case 4] or [Case A]. By simply
selecting one of these cases, suitable settings for the AI
Servo AF and it’s Servo AF characteristics that match the
scene will be used.
These four presets are combinations of the following two
parameters,[Trackingsensitivity]and[Accel./decel.tracking]
(see P. 30 – 38 for more details ). In addition, in [Case A],
asthecameraanalyzestheshootingsceneandautomatically
sets [Tracking sensitivity] and [Accel./decel. tracking], this
setting covers a wide range of shooting scenarios.
[Case 1] to [Case 4] and [Case A] must be set separately
for viewfinder shooting and Live View shooting.

CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview

First, use [Case 1], which covers
most scenes, and try [Case 2] to
[Case 4] when seeking a more
effective AF setting.
Hints & Tips
The AF operation may become unstable if the [Tracking
sensitivity] or [Accel./decel. tracking] parameter is set to
an extreme value (+2 or -2). Therefore, as with previous
cameras, it is recommended that to begin with you start
with [Case 1], the standard setting that covers many scenes.
In addition, in cases where AF tracking is difficult with
[Case 1], select [Case 2] to [Case 4] and adjust the
parameters.
If you're unsure which preset to use, or if you want to
shoot even more scenes with one setting, selecting [Case
A] is the most effective.
AF may become
unstable with extreme
parameter settings.
Try using [Case 1] first
for most scenes.

CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview

Case A
When you want to switch the
tracking characteristics
automatically to match changes
in the subject movement.
In [Case A], the camera determines the
scene and automatically sets [Tracking
sensitivity] and [Accel./decel. tracking]
settings.
Applicable to various subjects with
dierent movement characteristics
The “AF Configuration Tool” offers four [Case] settings
and [Case A]. Select [Case 1] to [Case 4] when the
movement characteristics and shooting scene are constant,
and you want to shoot with fixed parameters, or if you
want to use it in the same way as the 1D X Mark II. In
[Case A], the camera analyzes the scene, and the [Tracking
sensitivity] and [Accel./decel. tracking] are set each time
according to differences in the shooting scene such as
characteristics of the subject's movement and if obstacles

CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview

are entering the frame. Therefore, with normal shooting,
it is possible to shoot a very wide range of subjects and
scenes using the [Case A] setting. When the characteristics
of the subject's movement can easily change or when the
characteristics are difficult to envision, [Case A] is
recommended.

CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview


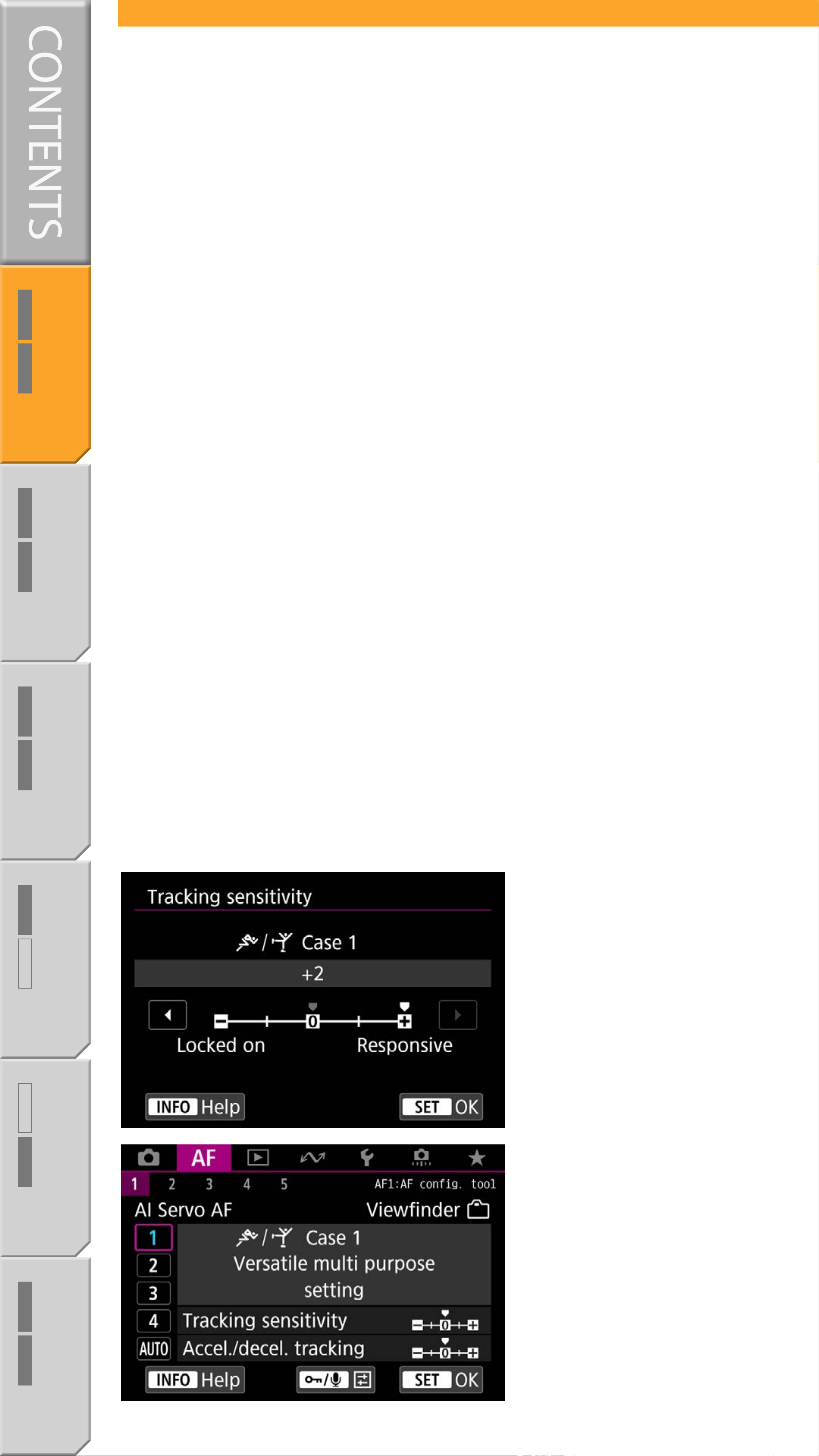

Parameter default settings
Tracking sensitivity 0
Accelerate / decelerate Tracking 0
Case 1
Versatile multi-purpose setting
[Case 1] can handle various types of
subject movement. It is a basic setting
that can perform focusing with a high
level of accuracy.
Precise and accurate focusing is
possible for a wide range of subjects
The “AF Configuration Tool” [Case 1] is the basic AI Servo
AF and Servo AF setting on the EOS-1D X Mark III. As its
name indicates, it is highly versatile and achieves a high
level of tracking performance in a wide variety of scenarios.

CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview

Equipped with AI Servo AF IV, the EOS-1D X Mark III has
improvedflexibilityinhandlingavariety ofmovingsubjects,
and superior prediction of movement for more accurate
focusing. Even with a variety of difficult elements such as
fast movement, sudden changes in speed, and obscuring
of the subject by obstacles, it is able to capture the subject.
Therefore, the standard setting [Case 1] supports a wide
range of movement, making it possible to AF track subjects.
Further improvements to AI Servo AF IV, high-precision
servo AF has been achieved even in scenes where predictive
computations were difficult, such as scenes where heat
haze occurs or when subjects move away from the camera
at high speeds. For this reason, the EOS-1D X Mark III can
handle a wider range of cases with [Case 1] than the EOS-
1D X Mark II. Shooting with [Case 1] is highly recommended
as you will be able to obtain satisfying results, when
shooting a variety of sports and moving subjects.
When more specific settings for individual cases are desired,
please try [Case 2] – [Case 4] to match shooting conditions.

CONTENTS
Chapter 1
Finder Liveview
Chapter 2
Finder Liveview
Chapter 3
Finder Liveview
Chapter 4
Finder Liveview
Chapter 5
Finder Liveview
Chapter 6
Finder Liveview

[Case 1]
[Case 1] can be used to great advantage when shooting
moving subjects, making it possible to accurately capture
fast subjects.
