Canon Ixus Z70 User manual

Canon
IXUS Z70<^
GLPH 37oZ
S English
Deutsch
Q Fran9ais
D Itaiiano

Handling Precautions
1. This camera is not resistant to water, and should not
be used outdoors if it is raining or snowing. If it is
accidentally dropped In water, contact an authorized
Canon service facility. Keep the camera out of salt
spray and excessive humidity. If used at the beach,
clean It thoroughly afterward with a dry cloth.
2. Store the camera in a cool, dry, dust-free place. Be
sure to keep the camera out of direct sunlight, and
away from "hot spots" such as the trunk or rear
window shell of a car. Avoid places where mothballs
are used, and use a desiccant In excessive humidity.
3. Do not attempt to disassemble the camera yourself,
since there is high-voltage circuitry inside.
4. The battery may explode or cause burns if
disassembled, recharged, shorted, exposed to high
temperatures, or disposed of in a fire.
5. Use a blower brush to remove dust and sand from
the lens and Inside the camera. Do not apply any
fluids to the lens or body. Take the camera to an
authorized Canon service facility for a more
thorough cleaning if necessary.
6. Film passing through X-ray examinations at an
airport may be exposed and ruined even when
loaded in the camera. Request a different method of
inspection to avoid damage.
7. Color reproduction may be adversely affected if the
film Is left In the camera for a long time. Always
develop exposed film promptly.
If you use the flash continuously (30 times or more)
while no film Is in the camera, the camera may stop
to prevent the flash unit from overheating. If this
happens, turn the camera off and wait a few minutes
before turning it back on again.
132

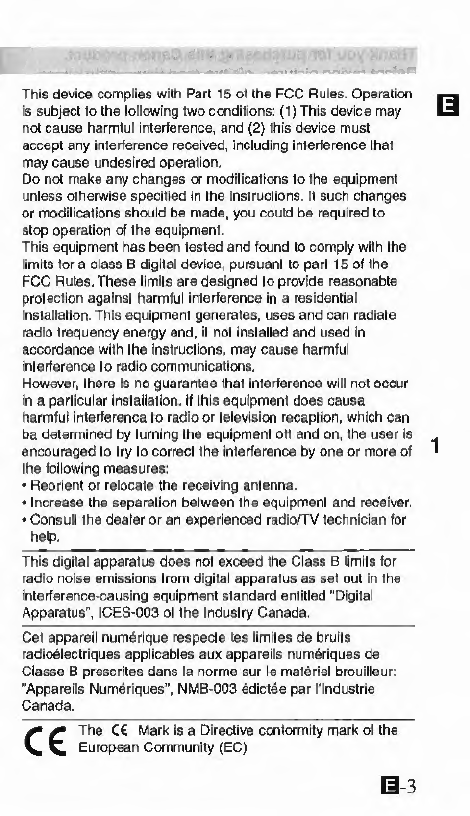

This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two oonditions: (1) This device may
not cause harmful interference, and (2) fhis device must
accept any interference received, including interference that
may cause undesired operation.
Do not make any changes or modifications to the equipment
unless otherwise specified in the instructions. If such changes
or modifications should be made, you could be required to
stop operation of the equipment.
This equipment has been tested and found to comply with the
limits fora class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful Interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and. If not Installed and used In
accordance with the Instructions, may cause harmful
Interference to radio communications.
However, there Is no guarantee that inierference will not occur
In a particular Installation. If this equipment does cause
harmful Interference to radio or television reception, which can
be determined by turning the equipment off and on, the user ie
encouraged to try to correct the Inierference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radlo/TV technician for
help.
This digital apparatus does not exceed the Class B limits for
radio noise emissions from digital apparatus as set out in the
interference-causing equipment standard entitled ‘ Digital
Apparatus". ICES-003 Of the Industry Canada.
Cet apparell numdrique respects les limltes de bruits
radioeiectriques applicables aux appareils numdriques de
Classe B prescrites dans la norms sur Is materiel brouilleur:
“Appareils Numeriques", NMB-003 edictee par I'lndustrie
Canada.
^ ^ The C€ Mark is a Directive conformity mark of the
^ ^ European Community (EC)

Thank you for purchasing this Canon product.
Before taking pictures, please read these instructions
carefully for a thorough understanding of how the
camera operates.
Table of Contents
These instructions are divided into four sections:
Introduction, Basic Operations, Advanced Operations,
and Additional Information. When first using the
camera, be sure to read the instructions from the
Introduction,
I Convention
i The following convention is used in these Instructions:
» Warnings you should observe when using the
camera.
i Additional Information on using the camera.

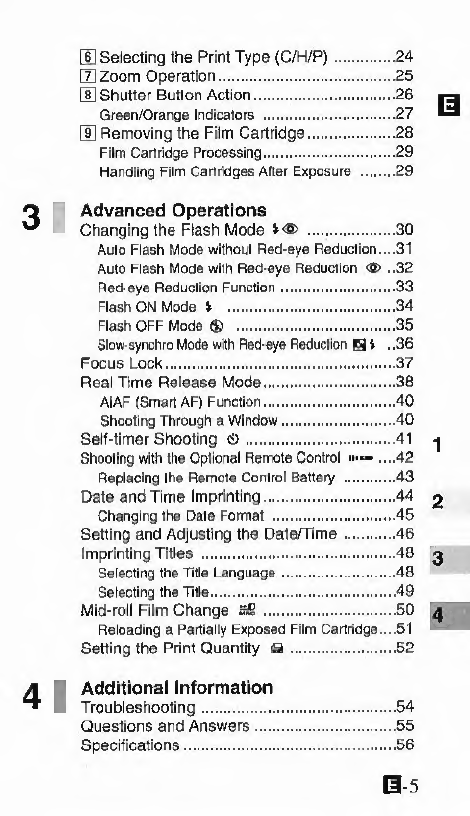

Introduction
Handling Precautions.2
Table of Contents.4
ADVANCED PHOTO SYSTEM Features.6
Advanced Photo System Quick Reference ....8
Quick Reference.10
Nomenclature.12
Attaching the Strap.14
Basic Operations
[U Loading the Battery.15
H) Loading the Film Cartridge.16

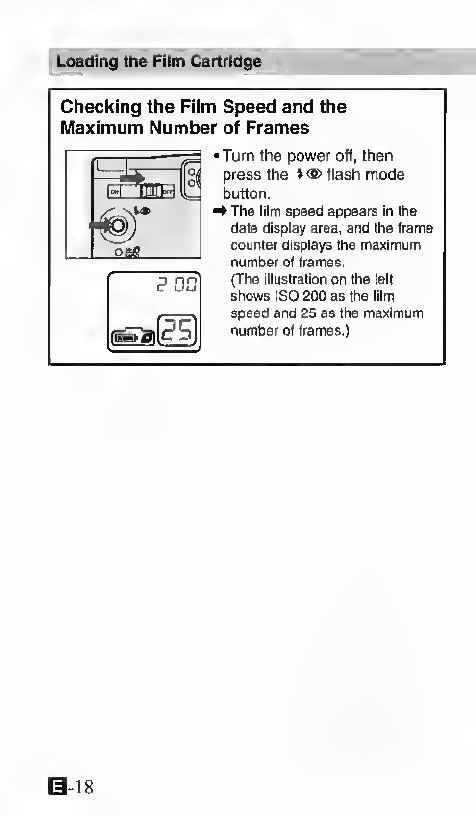

Checking (he Film Speed and the Maximum
Number of Frames.18
ISTurning the Power On.19

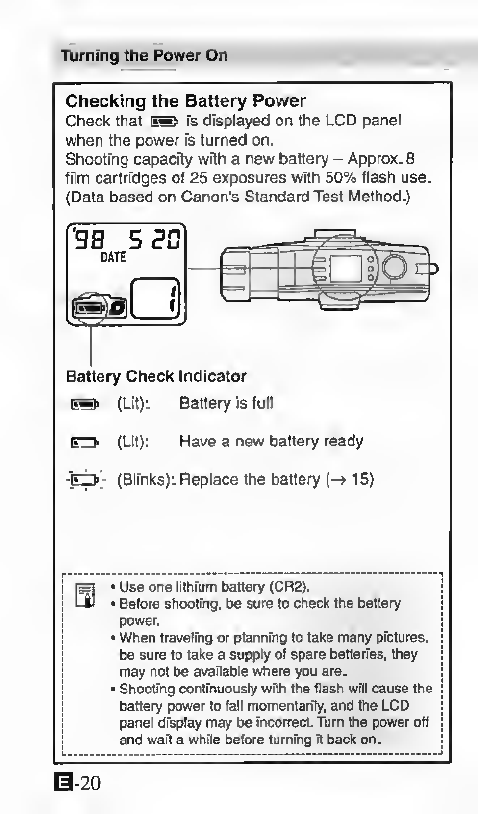

Checking the Battery Power.20
Et Holding the Camera.21
E Viewfinder .22
Parallax Compensation lor Close-ups.23
114

S] Selecting the Print Type (C/H/P).24
[2 Zoom Operation.25
U] Shutter Button Action.26
Green/Orange Indicators .27
[S Removing the Film Cartridge.28
Film Cartridge Processing.29
Handling Film Cartridges After Exposure .29
B
Advanced Operations
Changing the Fiash Mode KS> .30
Auto Flash Mode without Red-eye Reduction....31
Auto Flash Mode with Red-eye Reduction 'S> ..32
Red-eye Reduction Function.33
Flash ON Mode V .34
Flash OFF Mode ® .35
Slow-synchro Mods with Red-eye Reduction S i -.36
Focus Look.37
Real Time Release Mode.36
AIAF (Smart AF) Function.40
Shooting Through a Window.40
Self-timer Shooting «S).41
Shooting with the Optional Remote Control ....42
Replacing the Remote Control Battery .43
Date and Time Imprinting.44
Changing the Date Format .45
Setting and Adjusting the Date/Time.46
Imprinting Titles .48
Selecting the Title Language.48
Selecting the Tlile.49
Mid-roll Film Change afi.50
Reloading a Partially Exposed Film Cartridge....51
Setting the Print Quantity S . 52
1
2
3
Additional Information
Troubleshooting.54
Questions and Answers.55
Specifications.56
@5

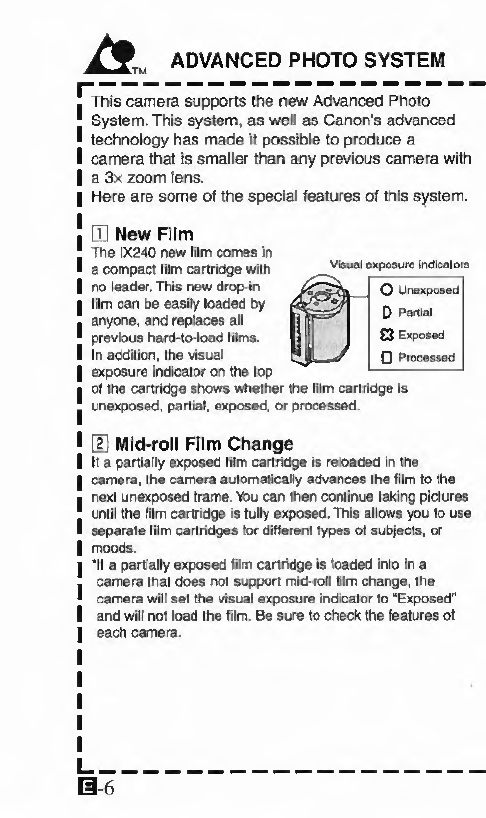

ADVANCED PHOTO SYSTEM
This camera supports the new Advanced Photo
System. This system, as well as Canon's advanced
technology has made it possible to produce a
camera that is smaller than any previous camera with
a 3x zoom lens.
Here are some of the special features of this system.
[II New Film
The 1X240 new nim comes in
a compact lilm carliidge with
no leader. Thb new drop-in
film can be easily loaded by
anyone, and replaces all
previous hard-lo-load lilms.
In addKion, the visual
exposure indicalor on the top
of the cartridge shows whether the Him cartridge Is
unexposed, panial, exposed, or processed.
[H Mid-roll Film Change
If a partially exposed lilm cartridge is reloeded in the
camera, the camera automatically advartcas the film to the
next unexposed frame. Ybu can Own continue taking pictures
until the lilm cartridge Is fully exposed. This allows you to use
separate film cartridges for ditlerent types of subjects, or
moods.
*11 a partially exposed tarn cartridge is loaded into in a
camera that does rwt support mid-nd film change, the
camera will sal the visual exposure indicator to ‘Exposed*
and wilt not load the film. Be sure lo check the features of
each camera.
O UrisxpsBecl
D Partial
S3 Exposed
□ Processed
L-
13-6

Features

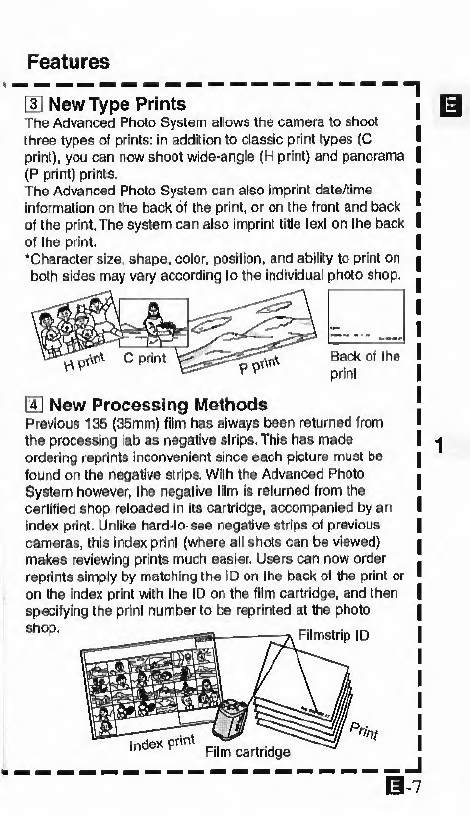

[2 New Type Prints
The Advanced Photo System allows the camera to shoot
three types of prints: in addition to classic print types (C
print), you can row shoot wide-angle (H print) and panorama
(P print) prints.
The Advanced Photo System can also Imprint date/time
information on the baok of the print, or on the front and back
of the print. The system can also Imprint title text on the back
of the print.
'Character size, shape, color, position, and ability to print on
both sides may vary according to the individjal photo shop.
Back of the
print
Q] New Processing Methods
Previous 135 (35mm) film has always been returned from
the processing lab as negative strips. This has made
ordering reprints inconvenient since each picture must be
found on the negative strips. With the Advanced Photo
System however, the negative film Is returned from the
certified shop reloaded in Its cartridge, accompanied by an
Index print. Unlike hard-to-see negative strips of previous
cameras, this Index print (where all shots can be viewed)
makes reviewing prints much easier. Users can now order
reprints simply by matching the ID on the back of the print or
on the index print with the ID on the film cartridge, and then
specifying the print number to be reprinted at the photo
shop.

Advanced Photo System Quick Reference

For further details, refer to the page Indicated.
1
Simple film cartridge loading. <-> 16)
• Unlike previous 135 (35rrm) film, there is no need to
open the back cover and pull the film leader across.
Choose the print type with the print type
selection lever. (-»24)
You can choose irom three print types.
• C print: Classic print
• H print; Wide-angle print
• P print: Panorama print
3
A variety of data (IX information) is recorded
magnetically on the film surface.
• All the Information dascrlbed at left can be recorded on
the film,
• The exposure Information is used In the printing process
to produce better quality prints.
Exposed film cartridges can be processed for
• printing at Advanced Photo System certified
shops. (-»29)
^ After developing, the shop will return your pictures,
along with an index print, and the film cartridge with
the film Inside.
• When ordering reprints from a certified shop, just match
the ID on the back of the print or on the index print
sheet with the ID on the film cartridge, and specify
which prints you want. g

Quick Reference
Open the film cartridge
compartment cover.
• Tc open, lift the crank ®
and rotate left <D.
Insert the film cartridge
and close the film
compartment cover.
(^ 16 )
• Check that the visval
exposure Indicator Is
O (unexposed), or D
(partial).
Slide the main switch to
the ON position to turn
the camera on. (-»19)
^ The lens and flash are set
for shooting.
S-io

Por further details, refer to the page indicated.
Select the print type
with the print type
selection lever. (-> 24)
■ ♦ The viewfinder field
changes.
6 Press the zoom buttons
to change the subject
size as desired. (-»25)
7
Place the AF frame over
the subject and press
the shutter button.
H 2 6 )
^The flash fires auto-
malicsily in low light or
backlit conditions.
8 When the film cartridge
has finished and the
film has rewound,
remove the cartridge
from the camera. (-> 28)
• Check that O on the LCD
panel is blinking then open
the film cartridge
compartment cover.

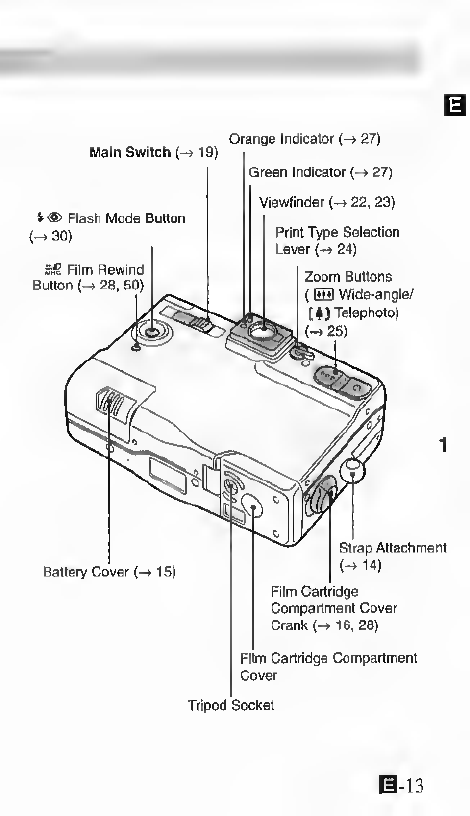

Nomenclature
is shorthand for "See page
LCD PaneJ (->14)
& Print Qjanllty Button
(-> 52, 53)
Set Button
(-. 45, 46, 53)
Select Button
46,48, 53) —I
Shutter Button
(-26) -1
leiB o Remote Control/
Sell-limer Button (-> 41,42)
Title Button (— 48, 49)
Date Button (- 44, 46)
Light Metering
Window
\ (Remote Control Signal
Receptor
Red-eye Reduction Lamp
{-> 32, 33)
Viewfinder Window
li-12
AF Light Emilter/Receplor

Main Switch (-« 19)
Flash Mode BuHon
(- 30)
SR Film Rewind
Button (-»28, 50)
Orange Indicator (- ♦ 27)
Green Indicator {-* 27)
Viewfinder (-»22, 23)
Print Type Selection
Lever 24)
Zoom Buttons
(Sni Wide-angle/
[ ♦ ) Telephoto)
’ 23 ^ H25)
Battery Cover 15)
Strap Attachment
(-*14)
Film Cartridge
Compartment Cover
Crank (-*16, 28)
Film Cartridge Compartment
Cover
Tripod Socket
11-13

NomandaturtfAttacMng Strap
LCD Panel
® Flash OFF Indicalor—
Title Selection Indicator
Date Imprinting/ f’Xt'r
Title Indleator/Print ' "mj
Quantity Indicator
Slow-synchro- J qJ
Indicator
i Flash ON Indicator
- Two-sided Date Imprinting
Selection Indicator
Remote Control/
_r Self-timer
^ Indicator
n
Red-eye
Reduction
Indicator
8.198
Battery Check Indicalor-
F^me Counter
Film Cartridge Indicator
Only the necessary indicators will be displayed on the
LCD panel.
Attaching the Strap
Before using your camera, attach the strap provided.
Be careful not to drop the carrtera.
Pass the strap through the
strap attachment on the left
side of the camera.
• Follow step d) before step <|).
■ Use the push-button projection
to press the Select (-»46), Set
(-> 45), print quantity button
(-»52) and the film rewind
buttons (-» 28 ).
Push-button prcqectron

[D Loading the Battery
Battery: One lithium battery (CR2)
1
Open the battery cover.
• While pressing the tMit
mark on the battery cover,
slide the battery cover off.
Load the new battery.
• Insert the battery with the +
and-terminals positioned
correctly.
# liB> le displayed on the
LCD panel.
3
Close the battery cover.
• Slide the battery cover
closed.
^ If-." blinks In the LCD
panel, after you change
the battery, you will need
to reset the date to the
correct date and lime (->
46).
‘After removing the battery to replace it, do not touch |
any of the switches on the camera. This will allow the |
I date and time settings to be retained for |
I approximately five seconds. I

Loading the Film Cartridge
I
Open the film cartridge
compartment cover.
• Lift ihe film cartridge
compartment cover crank
0 and rotate left (D to open
Ihe cover on the bottom of
the camera.
Load a film cartridge.
• Load with the visual
exposure Indicator end
facing outwards.
3
Close the film cartridge
compartment cover.
• Close until It clicks.
^ 0 on the LCD panel
lights up.
11-16

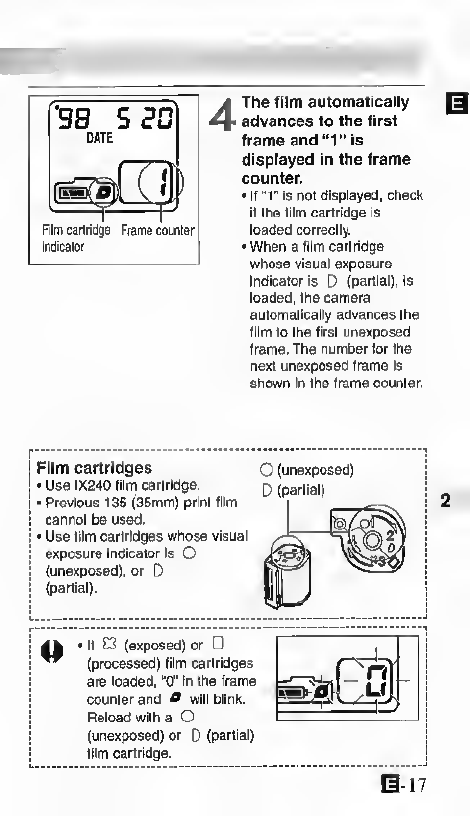

The film automatically
advances to the first
frame and “1” Is
displayed In the frame
counter
• If'r Is not displayed, check
if the film cartridge is
loaded correctly.
• When a film cartridge
whose visual exposure
Indicator Is D (partial), Is
loaded, the camera
automatically advances the
film to the first unexposed
frame. The number for the
next unexposed frame Is
shown In the frame counter.
Film cartridges
• Use IX240 film cartridge.
• Previous 135 (35mm) print film
cannot be used.
• Use film cartridges whose visual
exposure Indicator Is O
(unexposedj, or D
(partial).
O (unexposed)
D (partial)
• If C3 (exposed) or □
(processed) film cartridges
are loaded, “O" in the frame
counter and O will blink.
Reload with a O
(unexposed) or D (partial)
film cartridge.
11-17

Loading the Film Cartridge
Checking the Film Speed and the
Maximum Number of Frames
• Turn the power off, then
press the V<3> flash mode
button.
^ The film speed appears in tha
date display area, and the frame
counter displays the maximum
numoer of frames.
(The illustration on the left
shows ISO 200 as the film
speed and 25 as the maximum
number of frames.)

[U Turning the Power On
Slide the main switch to the
ON position.
•* The lens and flash are set for
shooting.
^ The flash mode Is set to auto
flash (full auto mode).
4 k • Do not press on the lens.
^ • Be careful not to push the flash Into the camera while
shooting. The flash will not fire and the power to the
camera will be turned off.
Q| • The lens first sets to the wide-angle (23mm) position,
Turning the power off
11-19

Turning the Power On
E
1-20
