Introdu tion
The NEW F-1 is the base of a completel new Integrated Functional S stem. It is based on
the original F-1 but utilizing man advances in electronics, precision machining and precision
optics made since the original F-1 was developed ten ears ago.
The following considerations should be kept in mind when repairing the New F-1:
1. To maintain complete interchangeabilit between the camera bod and the s stem
accessories, repair personnel must understand the interfaces (mechanical
and electronic) between the bod and accessories. The must also be familiar with
repair standards, checking, adjustment and tools maintenance procedures.
2. Preventive maintenance (lubrication, adjustment and parts replacement) are
necessar to insure the reliabilit of the NEW F-1.
Spe ial Repair Instru tions
1. Man of the electrical contacts in the camera are molded into plastic insulators.
When making solder connections, the soldering time should be kept as short as
possible.
2. 3% silver solder should be used to solder the IC's.
3. Man bearing balls are used in the winding mechanism. Be careful during assembl
and disassembl to insure that no balls get lost in surrounding mechanisms.
4. When the rewind crank is not installed, if the rewind shaft is pushed down past a
certain point it becomes impossible to open the back cover without removing
certain parts that normall need not be removed. This results in lost time.
5. Be sure that the elastic connectors used to connect the flexible and rigid circuit
boards are kept clean and free of contamination.
6. The water and moisture proofing complicates man repair procedures. Take care
that the are correctl performed
7. If the tungsten cable is kinked or fra ed, repair is difficult and time-consuming. It is
much more cost efficient to be careful to not damage the cable than to repair or
replace it.
8. The correct adjustment of the AV AE shutter speed indicator output resistor (RM
TV2) and the TV AE aperture determination resistor (RAE) are basic to maintaining
s stem interchangeabilit .

Canon NEW F-1 Service manual
Page 4
1. Swit h position and nomen lature
Name Operation
SW1 Metering Switch ON: Metering activated
SW2 Release Switch ON: Starts Release sequence
SW4 Count Switch OFF: Shutter exposure timing starts
SW5 Winding Complete Switch OFF: Winding complete
SW6 Stop-down (S.D.) Switch ON: Stopped-down (ganged with SWll1)
SW7 Self Timer Switch ON: Self timer activated
SW8 Batter Check Switch ON: Batter Check
SWll Lens A-M Switch. ON: Lens set to "a" mark
SW1l' Stop-down switch OFF: Lens stopped down
SW12 Bulb switch OFF: "Bulb" shutter speed
SW14 Timer Switch ON: Timer Activated
SW15 Lamp Switch ON: Viewfinder illumination on
SW16 X S nc Switch ON: 1st curtain open; OFF: Winding complete
SW16' Safet Switch ON: Mirror up; OFF: Mirror down
SW17 Film End Switch ON: No film on take-up spool
SW18 2nd Curtain Switch OFF: When 2nd curtain starts

Canon NEW F-1 Service manual
Page 5
1) SW12 and SW18 Relationship
2) SW16 and SW16' Relationship
1st curtain
X contact must turn off after the 2nd curtain
closes and before winding is complete.
3) SW11, SW6 and SW11’ Relationship
Lens "A" Lens "M"
Max. S.D. Max. S.D.
SW11 ON OFF
SW6,1
1'
ON OFF ON OFF
Max: Open aperture S.D.:
Stopped down

Canon NEW F-1 Service manual
Page 6

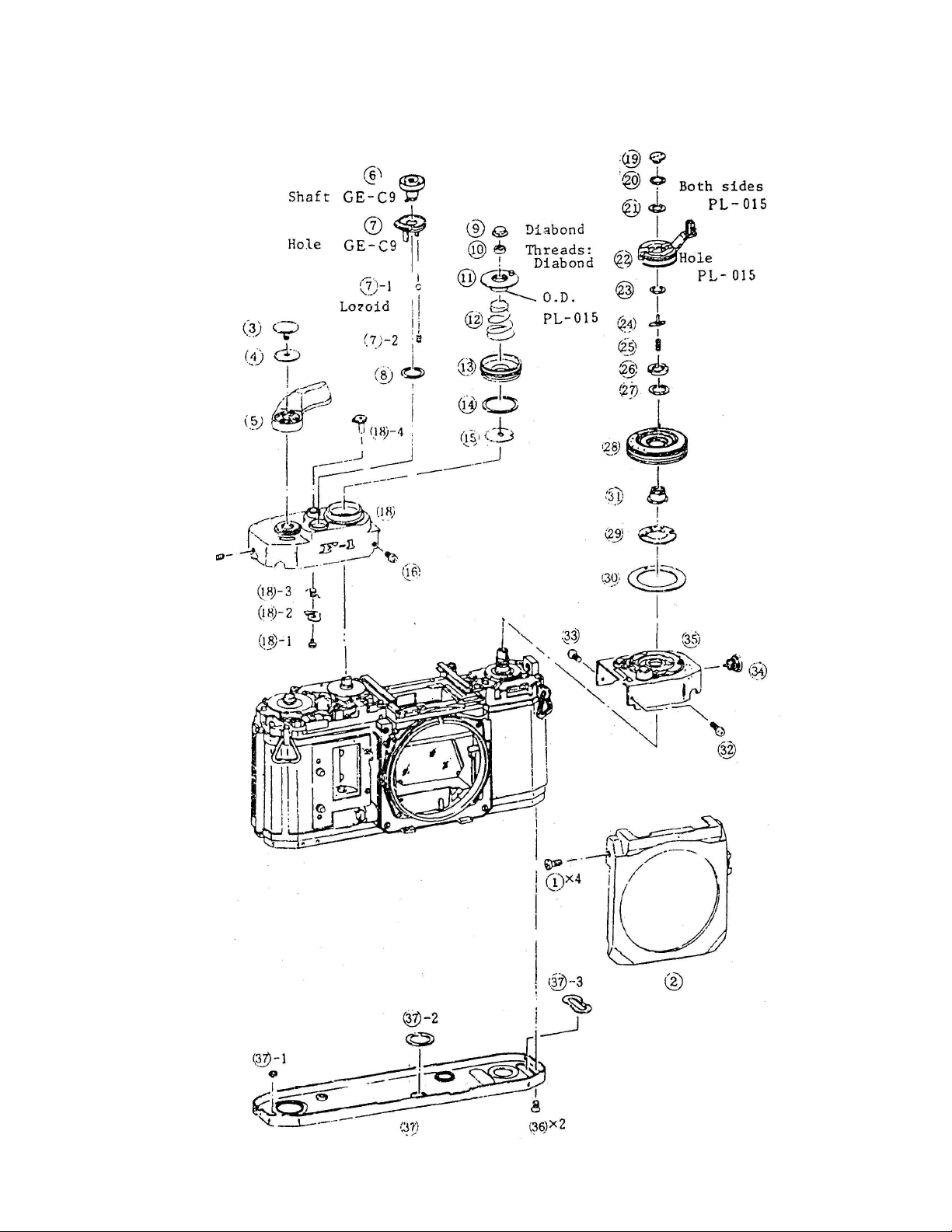

2. Covers
Numbers 1-37

Canon NEW F-1 Service manual
Page 7
Disassembly Notes Assembly and Adjustment Notes
1. Remove the smooth face screw (3)
and shutter button (6) with tool
(CY9-6131-000).
2. Be careful not to lose detent
ball (7)-2 inside the camera.
3. The shutter dial cap (9) is glued in place.
4. Seals (8)(14)(29) and (30) are
available in more than one thick
ness to insure correct sealing.
5. When the rewind crank (22) is not
installed, don't push the rewind
shaft all the wa down into its
holder. (If it is, time will be
lost in unnecessar work, because
of the click spring.)
6. Press the opening safet stopper
while removing the left top cover
7. (35).
Assembly and Adjustment Notes
1. Put Diabond into the winding
lever shaft hole before final
installation of the screw (3).
2. Lubricate the shutter button
shaft (6) and the interior or
the release lock (7) with GE-C9
[See Water-resistant treatment
(XIX)].
3. Put Lozoid in the detent groove
of the release lock (7).
4. Place teflon washer (8) under the lock lever
(7). Use a washer that is 0.3mm thicker than
the "A" dimension shown below. (Water
resistance)
A = l.l-(a-b) mm
Washer t = A +0.3mm
5. The teflon washer (14) used under the shutter
dial should be 0.1mm thicker than the "B"
dimension shown below. (Water resistance)
B .= 0.5-(a-b)
Washer t = B +0.1mm
6. When installing the shutter dial, align the notch
in (15) and the pin in the shutter dial ring (13)
with the hole in the top cover. The shutter
must be set to "A" before the dial is installed.
Note: Numbers in parentheses in the text correspond to circled
numbers one page 6. Disassemble in normal order and reassemble in
reverse order.

Canon NEW F-1 Service manual
Page 8
Assembly and Adjustment Notes
7. Adjust the rewind crank (22) slip torque b changing the friction washer (21).
Torque Limits: 35 to 55 gcm.
8. Lubricate both sides of friction spring (20) with PL-015.
9. Hold the rewind fork. Raise the rewind crank knob and turn in
the rewind direction. The clutch should engage within one half
turn,

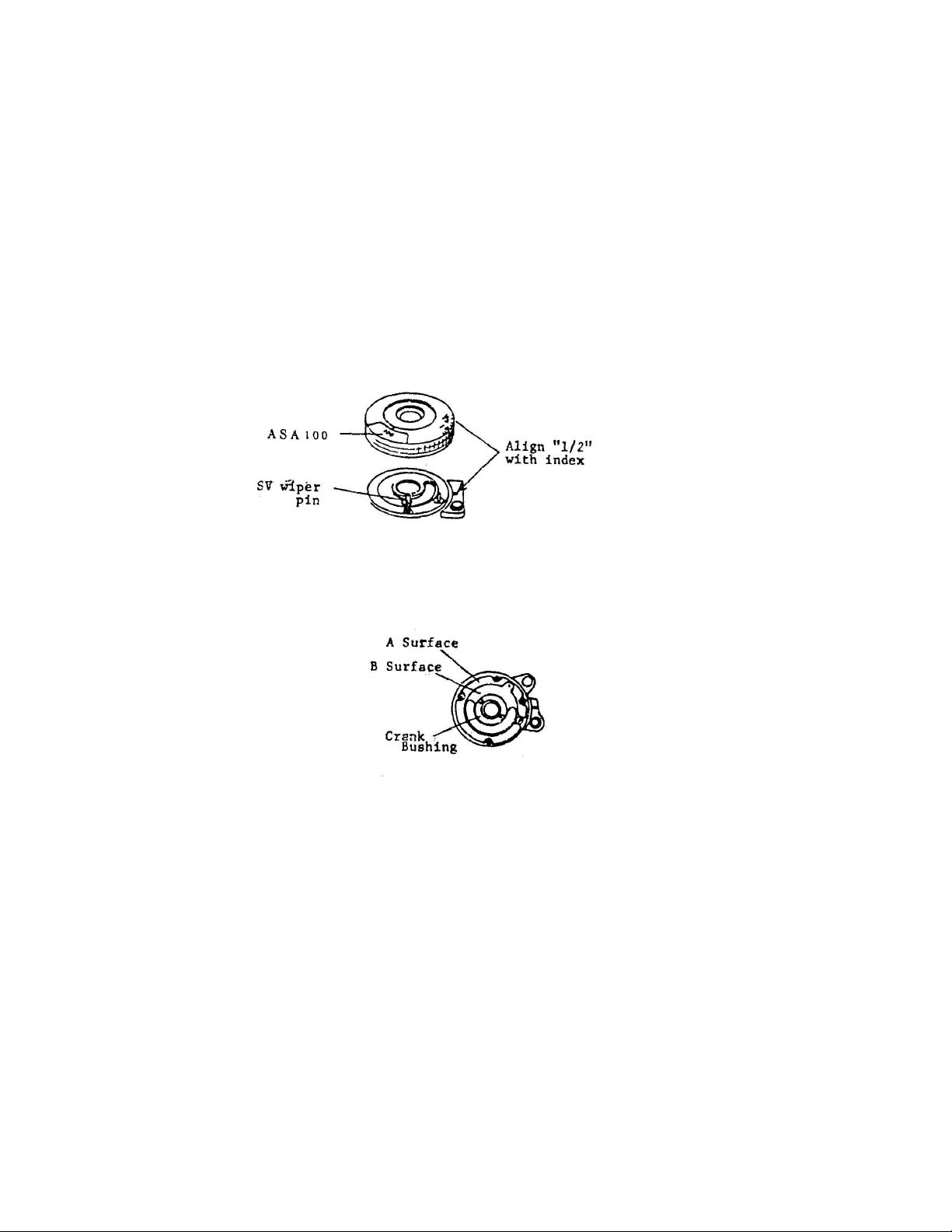

10. To install the ASA Dial, set the SV wiper wiper pin as shown and align the "1/2"
on the exposure compensation dial with the index.
11. Check the difference in height between the rewind crank bushing and the "A"
and "B" surfaces. Install a slightl thinner washer as indicated below.
11.1. Washer (30) "A" Difference Check at four points.
Ex: Difference Washer "t"
0.15mm --- 0.1mm
0.2mm --- 0.2mm
0.1mm --- No washer
11.2. Washer (29) “B” Difference
Ex: Difference Wacher “t”
0.55mm --- 0.5mm
0.4mm --- 0.4mm
0.35mm --- No washer
Note: Numbers in parentheses in the text correspond to circled numbers
on page 6. Disassemble in normal order and reassemble in reverse
order.

Canon NEW F-1 Service manual
Page 9
Assembly and Adjustment Notes

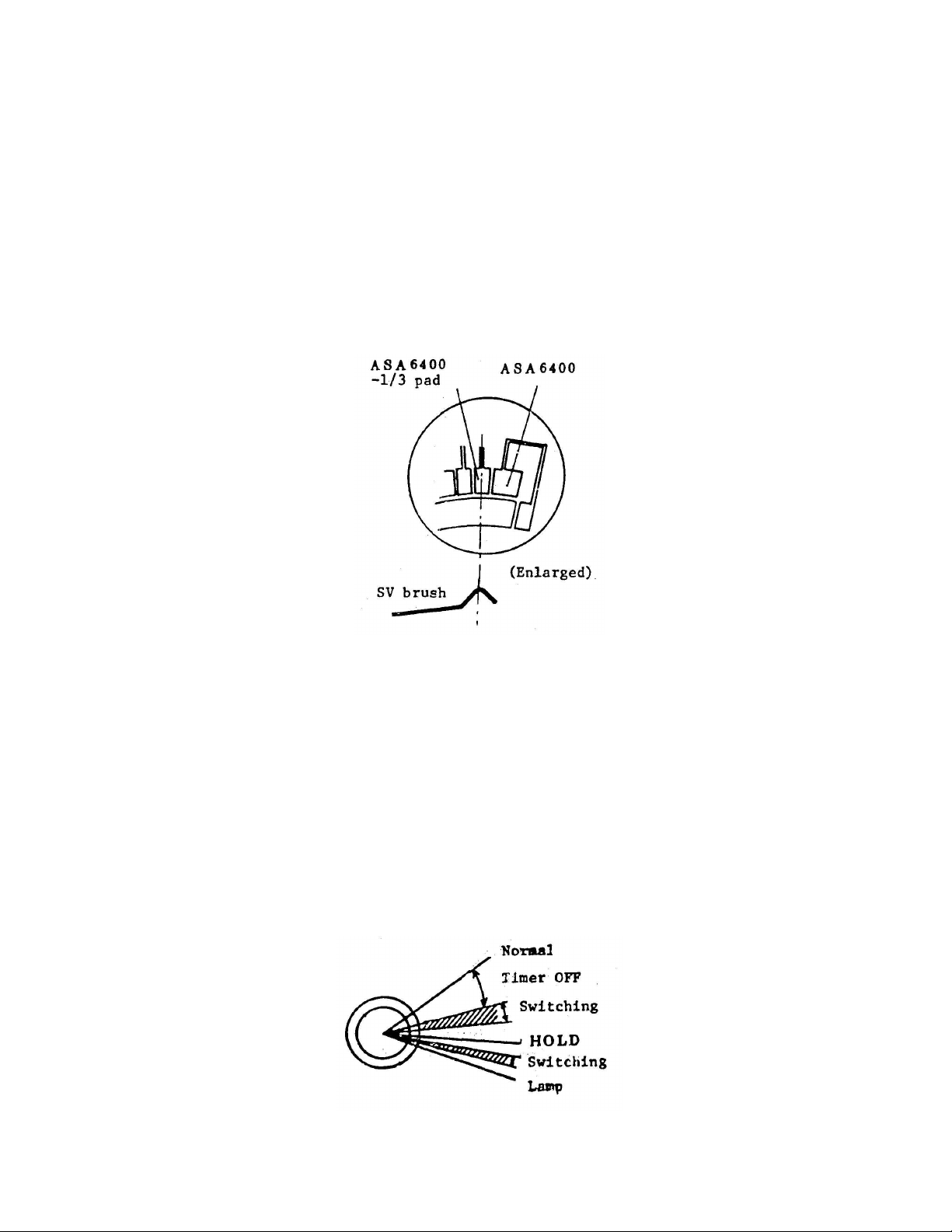

12. SV Brush Adjustment
12.1. Set the SV (ASA.) dial to ASA 6400 -1/3.
12.2. Set the exposure compensation dial at "1".
12.3. Check the position of the brush through the P.C. terminal hole.
Note: Shining the light source (a penlight or the illuminator D or M) through the
loupe makes the brush position easier to see.
12.4. Look at the underside of the SV board to check if the brush
if the brush is positioned as shown on the ASA 6400 -1/3 pad.
Note: It must sta on the pad at both extremes of dial pla .
12.5. Set the dial to ASA 6400 and check that the meter doesn't
var suddenl either up or down.
12.6. If the adjustment is not correct adjust the SV board eccentric.
13. After installing the top cover (35), check the operation of the NORMAL-TIMER-LAMP
switch.
It should switch from one function to the next as shown.

Canon NEW F-1 Service manual
Page 10
3. Front panel unit atta hment and removal
Disassembly Notes
To remove the front panel unit, remove the
following parts.
1Remove the top covers, mount
apron and bottom cover.
2Bod coverings (front)
3Beeper plate
4Removing the Mg2 latch lever
makes the AE joint gear easier
to remove.
5AE Joint Gear
Position the main diaphragm lever so the
gear can be removed.
6Tripod Socket
7Diaphragm Stricker lever
8Batter Chamber Cover
9Pentaprism rails
10 Unsolder eleven leads to main
circuit board.
11 X s nc contact ellow cord
12 Batter Check contact
Assembly and Adjustment Notes
1AE Joint Gear and AE Coupler
Installation
1.1 Lubricate the joint gear and
coupler shafts with Astro-Oil-
MIL-G.
1.2 Align the raised portion of
the coupler gear with the
mounting screw as shown.
1.3 Align the mark on the joint
gear with the positioning
hole as shown.
2Front Panel Unit Installation
2.1 Lubricate the marked parts of the
mirror charge and signal levers (in the
bod ) with Lozoid.
2.2 Wind until the curtain edge is
approximatel in the center of
the frame.
2.3 In this semi-wound condition,
do not move the signal lever
(Fig. 1) or Intermediate signal
lever (Fig. 4, next page).
Note: Numbers in parentheses in the text correspond to circled
numbers on page 6. Disassemble in normal order and reassemble in
reverse order.

Canon NEW F-1 Service manual
Page 11
Disassembly Notes
13. If the SV board is to be removed,
remove the white cord from the P.C.
Terminal.
If the SV board is not going to be
removed, lift the front panel and
unsolder to white cord from the front
panel (SW16’) end.
14. Remove the plastic foam light shields
from the batter box area.
15. If the moisture seal rubber around the
main circuit board is damaged, replace
it.
Assembly and Adjustment Notes
2.4 In the order shown in figure 2, set the
levers as shown in figure 3.
Fig. 2 Fig. 3
3.1. With the levers positioned as in figure
3, install so the are between the mirror
charge and signal levers (Fig. 1. page
6).
Caution: If this operation is not done
correctl , winding timing will
be incorrect and the shutter
will not cock.
3.2. While performing the above step, it is
possible that the signal lever will get
pushed out of position. Check that the
levers are positioned as shown below.
(Another method is to hold the
intermediate signal lever toward the
mount side while installing the unit.)
3.3. While holding the bod 1st curtain
latch lever out of the wa , position the
1st curtain start lever toward the rear.
3.4. Put Arontite R on the threads of the
mirror striker lever screw before
installing it.
Note: Numbers in parentheses in the text correspond to circled numbers on page 6.

Canon NEW F-1 Service manual
Page 12
4. Front body
Numbers 1-16

Canon NEW F-1 Service manual
Page 13
Disassembly Notes
1. To remove the main circuit board (6), the
lower bod flex must be moved slightl .
2. When the batter cover is removed,
temporaril replace the earth (grounding)
screw.
Assembly and Adjustment Notes
1. Appl electrolub to the connector portions
of the main circuit board (6) and lower
bod flex.
2. Clean the elastic connectors (2) and (7)
with electrolub.
3. Install cushion II (4) as shown below.
Assembly and Adjustment Notes
4. Clean the connector portions of the resistor
board (R Board) (9) and main circuit board
(6) (rear side) and appl electrolub.
5. Install the resistor board (9) into the bod .
Put diabond on the rear of the board
around the mounting holes.
6. Batter Chamber Unit (10) Post
Installation Checks
6.1. Without a batter installed, the
swinging release rod (p/6 the batter
chamber unit) must overlap the
release pin below it b at least 1/2 the
pin diameter.
6.2. When the minus contact of the
batter box is pressed down and then
released slowl , the
rod must return completel and
smoothl .
7. Install cushion I (11) as shown below.
Push it in until it is flush against the main
circuit board and diabond it to the bod .
Note: Numbers in parentheses in the text correspond to circled numbers on
page 12. Disassemble in normal order and reassemble in reverse order.

Canon NEW F-1 Service manual
Page 14
Assembly and Adjustment Notes
8. Attach the light shield (12) and seal (13) as shown.
9. Pentaprism Contact Installation
9.1. Don't interchange the
position of the left and right
contacts, or reverse either of
them.
9.2. Solder the leads as quickl
as possible. Excessive heat will
loosen the contact pins.
10. Main Flex Installation
10.1. Solder the main flex (16) at the following positions.
10.2. To prevent the main flex from interfering with the top cover screw holes, fix it with
double-sided tape.
10.3. The brown leads to SW12 are interchangeable.
See section 9 (Upper Bod )
for the correct bending of
the flex.
Note: Numbers in parentheses in the text correspond to circled numbers
on page 12. Disassemble in normal order and reassemble in reverse order.

Canon NEW F-1 Service manual
Page 15
Assembly and Adjustment Notes
11. Front Panel Lead Soldering
11.1. Put flux on the main circuit board solder lands.
11.2. Solder from the bottom up.
11.3. Dress extra lead toward the bottom as shown.
Note: The thick white lead goes to the
P.C. terminal.
Note: Numbers in parentheses in the text correspond to circled numbers on page 12.
Disassemble in normal order and reassemble in reverse order.

Canon NEW F-1 Service manual
Page 16
5. Upper Body (Winding side)
(6) can be displaced without removing (1) - (5)

Canon NEW F-1 Service manual
Page 17
Disassembly Note
1. Shutter Speed Selector
1.1. To remove the shutter speed selector
(6), unsolder the black lead from SW4
and remove four screws [(6)-1 x 2 and
(6)-2 x 2].
Notes:
1. One of the (6)-1 screws is partiall
hidden b flex (5) and hard to remove.
2. Be careful not to damage the main flex.
1.2 To remove the selector (6) completel ,
unsolder the black and brown leads and
disengage the tungsten cable.
1.3 To temporaril remove (6) without
removing the tungsten cable:
1) Set the shutter to the "B" position and
remove the screws. Carefull lift the
selector off.
2) Place the selector out of the wa but
where the cable will remain taut and
not become kinked.
2. Mounting screw (9)-2 for the winding
base is under main switch (8).
3. The entire 2nd curtain brake assembl
(17) can be removed without
disassembling it b removing three
screws (15) and collar (16). Disengage
the brake lever from the
master gear and (17) can be removed.
Assembly and Adjustment Notes
1. The shutter speed selector (6) TV double
brushes must be aligned both verticall
and radiall , so the will both make
contact with the correct pad.
2. Clean the TV resistor board (2) and install
it so that break in the pattern is at the
upper right with the shutter at "A".
Pattern break
3. Shutter Speed Selector (6)
3.1 Installation
1) Lubricate the (Upper) Rewind button lock-
out lever with Lozoid 72090.
3.2 Post-Installation Checks
1) Check that the see-saw lever works
smoothl .
2) There should be less than 0.2mm
difference in the height of the fixed cam
and see-saw lever.

Canon NEW F-1 Service manual
Page 18
Assembly and Adjustinent Notes
4. Winding Unit (9) Installation
4.1. Lubricate the winding coupler
joint with MIL-G.

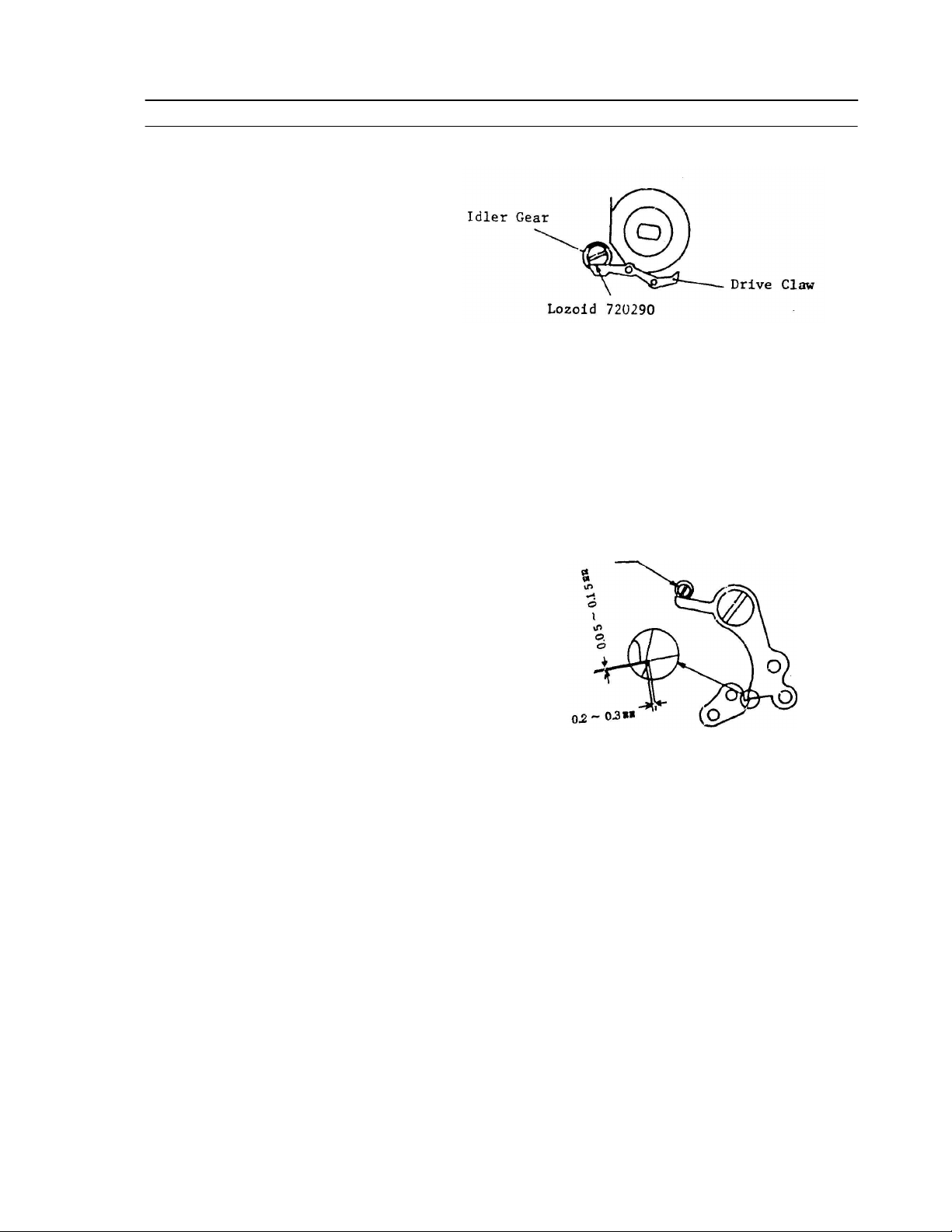

4.2. Lubricate the friction surfaces
of the idler gear and frame
counter drive claw with Lozoid
72090.
4.3. Install with the frame counter drive claw pulled out of the wa .
5. Put a little Arontite L in the Ke screw (10) hole in the sprocket shaft (12) and install the
screw.
6. 2nd Curtain Cam Follower (13)-3 Installation
6.1. In the wound condition, the gap between the 2nd Curtain Cam Follower and the
hook should be 0.05 to 0.15mm. Adjustment: The follower is available in several
sizes.
6.2. Lubricate the pivot shaft with astro-oil.
6.3. The end pla of the follower should be less
than 0.15mm, and it must return b the spring
pressure.
6.4. The mesh of the follower and the hook should
be 0.2 to 0.3mm. Adjustment: Eccentric
6.5. Lubricate the mesh surfaces of the follower
and hook with astro-oil.
7. 2nd Curtain Release Lever
7.1. Lubricate the shaft with astro-oil.
7.2. Thrust pla should be under 0.05mm and end pla under 0.2mm. Use washers to
adjust the pla .
8. 2nd Curtain Brake Assembl (17)
8.1. While holding the brake lever out of the wa (toward the prism rails), slip the
brake assembl (17) into place under the master gear.
8.2. Tighten the screws starting with the one at the front (mount) side.
Note: Numbers in parentheses in the text correspond to circled numbers on page 16.
Disassemble in normal order and reassemble in reverse order.

Canon NEW F-1 Service manual
Page 19
6. Tungsten able adjustment
Assembly and Adjustment Notes
1. Put the knotted end of the cable into the slot in the indicator pulle . Charge the
pulle one revolution and temporaril install a pin to hold it.
2. Check that the cable lies correctl in the pulle .
3. Set the shutter dial at "B". Information
pulle
4. Thread the cable as shown in figure 1.
5. Remove the pin from the indicator pulle and find the spot
where the "B" appears in the finder. Temporaril fix the end as shown in figure 2.
At the point on the shutter dial pulle where the slot is a ver small knot must now
be formed.
6. Tie the knot as shown below.
7. Insert the knot into the slot.
8. Put c anobond on the knot slot. Do not get bond on the cable or in the pulle
groove.
9. Check the entire range of shutter speeds. If the are not correctl aligned in the
information window, adjust the nut on, the information pulle verticall until the
are. After adjustment, stake the nut with black diabond.
10. Check that the right-side viewfinder information disappears when the dial is moved
from 1/2000 to "A".
Check that the right-side viewfinder information appears when the dial is moved
from "A" to 1/2000 and remains visible through the entire shutter-speed range
from 1/2000 to "B".

Canon NEW F-1 Service manual
Page 20

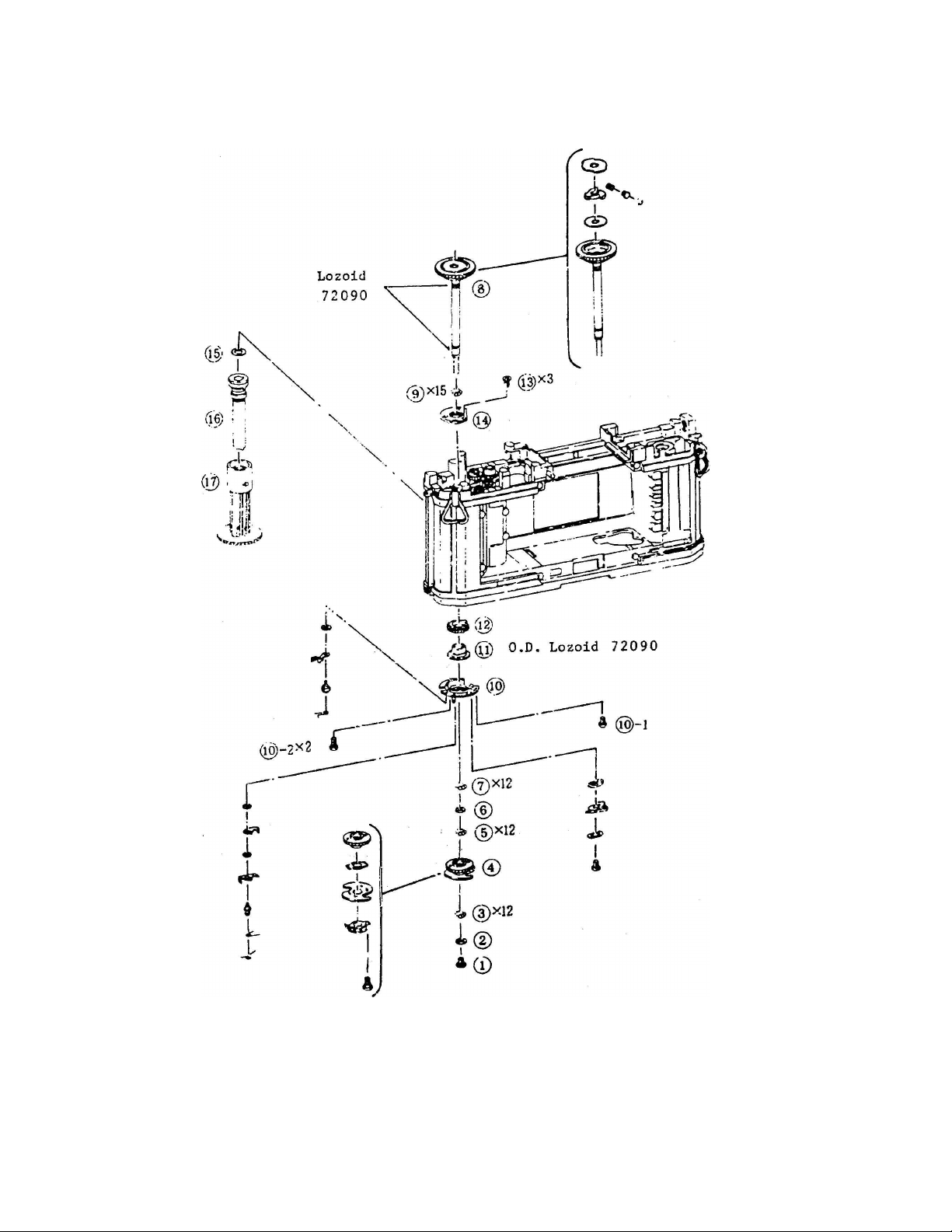

7. Spool
Steel Balls 3,5,7,9 Lozoid 72090
