1
Chapter 1: Getting Started
What is Bubble Jet Direct?
Bubble Jet Direct is a product feature that allows you to print photos directly from
a compatible Canon camera without the use of a computer.
The PowerShot cameras connect to the Bubble Jet printer through the cable
supplied with the printer.

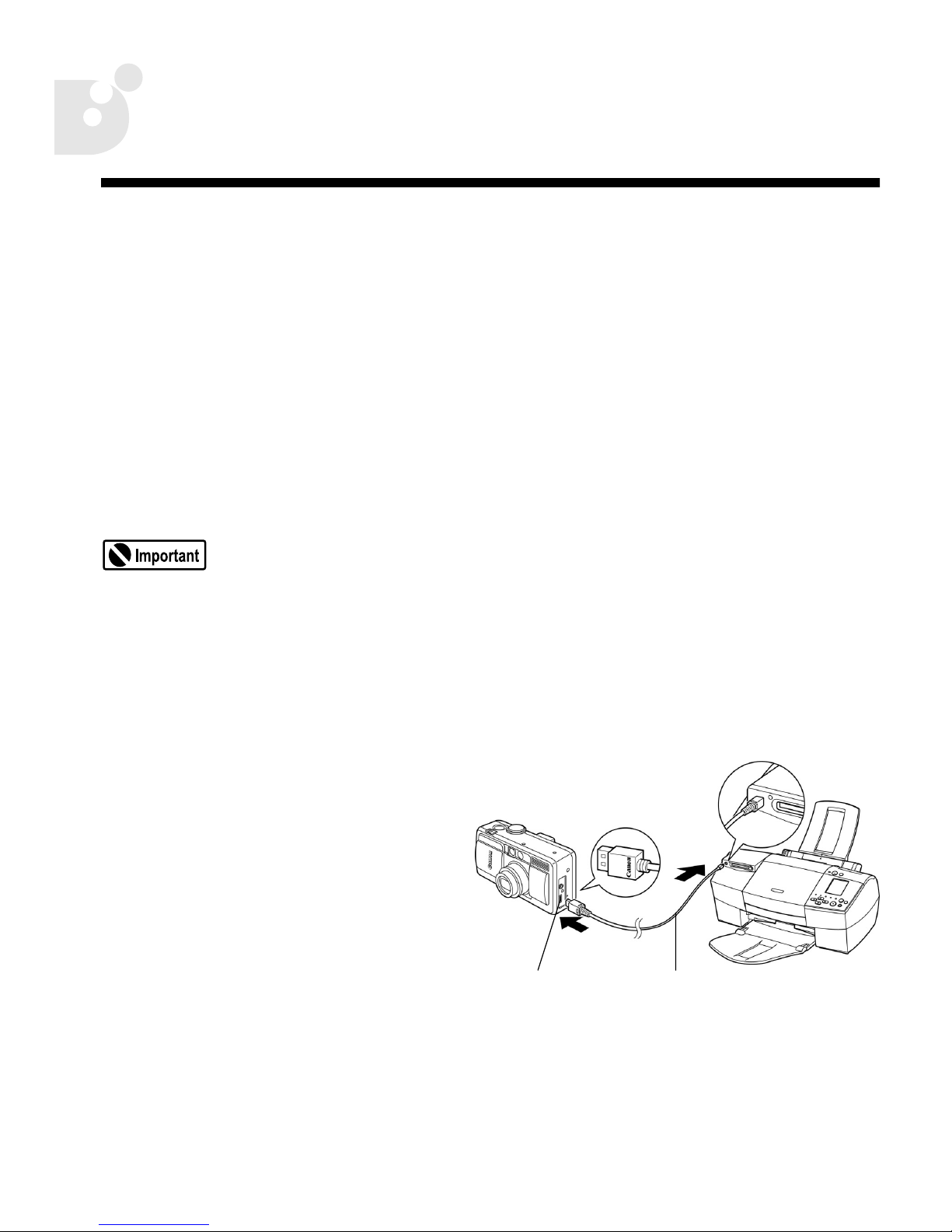

Connecting the Camera to the Printer
1.
Turn on the printer.
2. Make sure the digital camera is turned off.
3.
Open the protective terminal
cover on the side of the
camera to locate the cable
jack. Then connect the camera
to the printer as shown,
making sure the “Canon” logo
on the cable faces the front of
the camera (lens side).
When printing photos from your camera on your Bubble Jet
printer, using the camera’s optional AC adapter to power the
camera is preferred. If you choose to use the battery pack, always
make sure it is fully charged, or the printing may stop when the
charge on the camera battery diminishes.
DIGITAL
Terminal
Digital Camera
Connection Cable
bubbleJetDirect.book Page 1 Tuesday, April 30, 2002 12:33 PM

2
Getting Started
4.
S200/S330/G2 Black Users Only: Set the camera’s Mode dial to .
5.
Turn on the digital camera.
6.
The symbol appears on the camera LCD monitor, and the power/mode
indicator is lit (green) when the printer is properly connected to the camera.
Disconnecting the Camera from the Printer
1.
To remove the camera cable, disconnect the cable on the printer side and turn
off the digital camera.
2.
When the printer is disconnected, the symbol disappears from the LCD
monitor, and the camera reverts to standard replay mode.
When connecting the PowerShot S30/S40/
S330 camera to a Bubble Jet printer:
•
Use the DIF-B100 direct interface cable
provided with the printer. When you insert
the cable, make sure the symbol on the
cable connector faces the rear of the camera.
When connecting the PowerShot S200/
G2 Black camera:
•
Use the DIF-B250 direct interface cable
provided with the printer. When you insert
the cable, make sure the symbol on the
cable connector faces the rear of the camera.
See the Quick Start Guide for your Bubble Jet printer for instructions
on installing paper and ink cartridges in the printer.
Direct Interface
Cable DIF-B100
Direct Interface
Cable DIF-B250
When you detach the cable from the camera, hold the plug, and
do not pull by the cable.
bubbleJetDirect.book Page 2 Tuesday, April 30, 2002 12:33 PM

3
Chapter 2:
Camera Overview
The following digital cameras are shown and described in this chapter:
•
Canon PowerShot S30/S40 digital camera
•
Canon PowerShot S200/S330 Digital Elph camera
•
Canon PowerShot G2 Black digital camera
bubbleJetDirect.book Page 3 Tuesday, April 30, 2002 12:33 PM

4
Camera Overview
PowerShot S30/S40 Camera Front View
See the PowerShot S30/S40 Camera User Guide for more information.
A/V OUT
(Audio/Video Out)
Terminal
Terminal Cover
DIGITAL
Terminal
ZOOM Lever
bubbleJetDirect.book Page 4 Tuesday, April 30, 2002 12:33 PM

Camera Overview
5

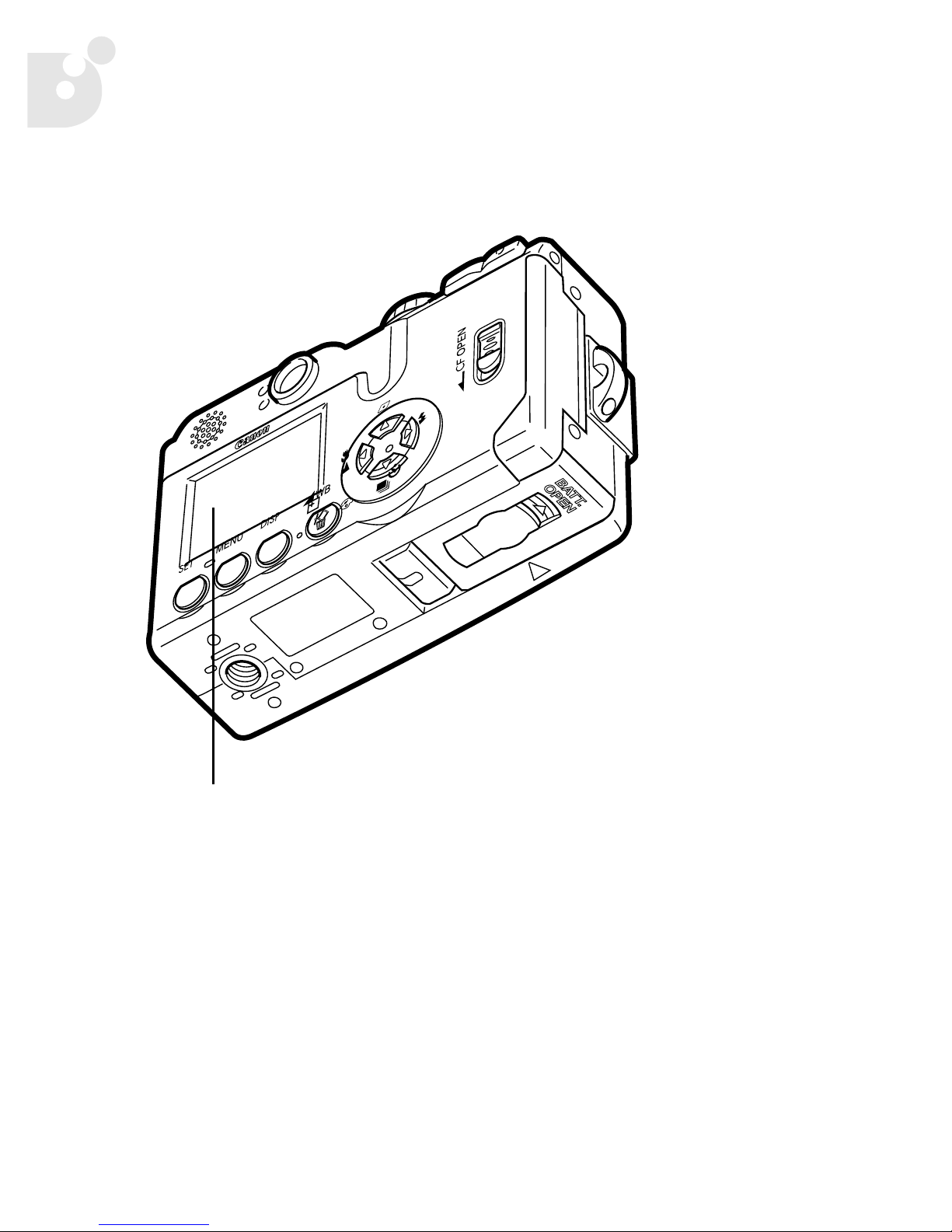

PowerShot S30/S40 Camera Back/Bottom View
See the PowerShot S30/S40 Camera User Guide for more information.
LCD Monitor
bubbleJetDirect.book Page 5 Tuesday, April 30, 2002 12:33 PM

6
Camera Overview
PowerShot S30/S40 Camera Controls
See the PowerShot S30/S40 Camera User Guide for more information.
MENU Button
JUMP Button Multicontroller
DISPLAY Button
LCD Monitor
bubbleJetDirect.book Page 6 Tuesday, April 30, 2002 12:33 PM

Camera Overview
7
PowerShot S200/S330 Camera Front View
See the PowerShot S200/S330 Camera User’s Guide for more information.
Terminal Cover
S330 A/V OUT
Terminal
S330
DIGITAL
Terminal
S200 DIGITAL
Terminal
bubbleJetDirect.book Page 7 Tuesday, April 30, 2002 12:33 PM

8
Camera Overview
PowerShot S200/S330 Camera Back/Bottom View
See the PowerShot S200/S330 Camera User’s Guide for more information.
LCD Monitor
bubbleJetDirect.book Page 8 Tuesday, April 30, 2002 12:33 PM

Camera Overview
9

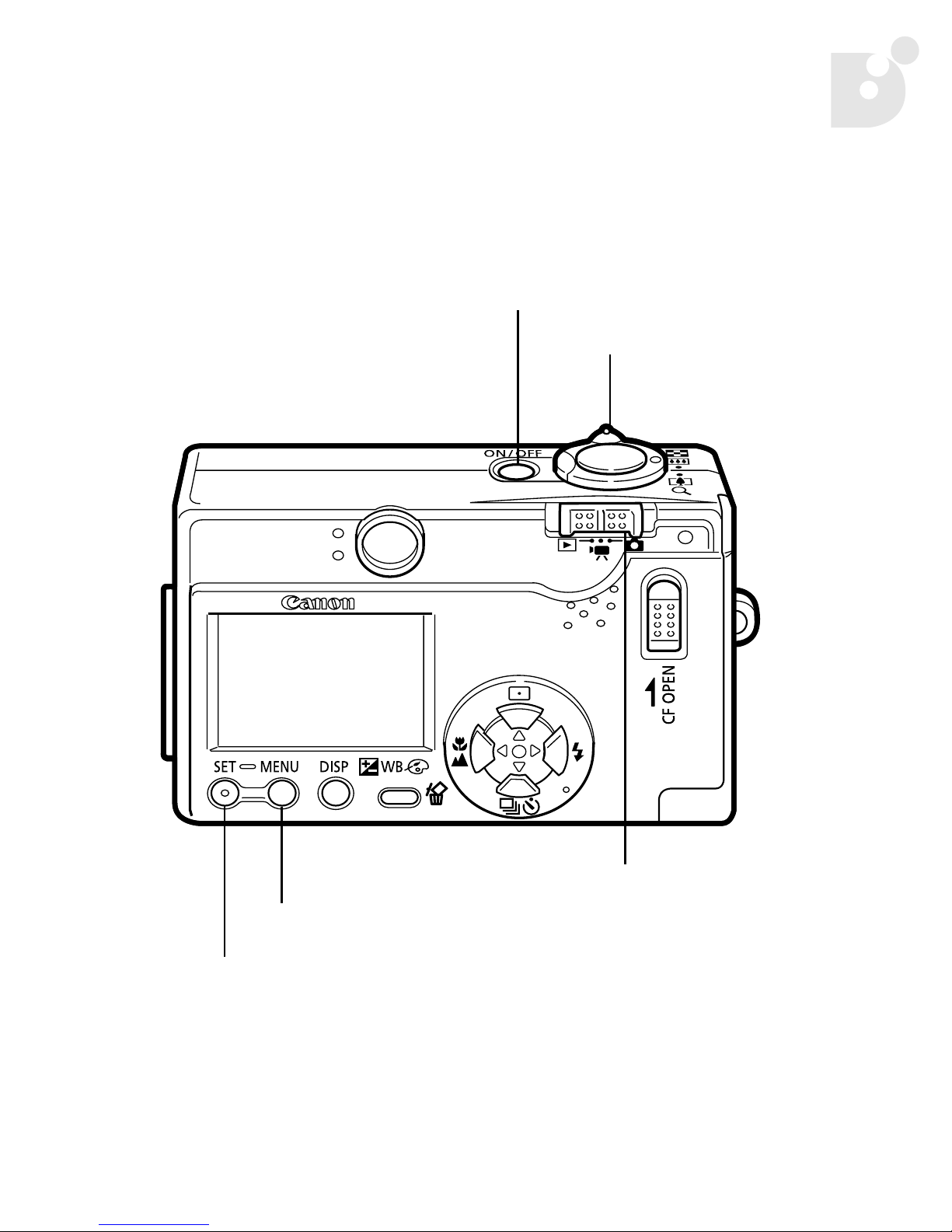

PowerShot S200/S330 Camera Controls
See the PowerShot S200/S330 Camera User’s Guide for more information.
ON/OFF Button
SET Button
ZOOM Lever
Mode Switch
MENU Button
bubbleJetDirect.book Page 9 Tuesday, April 30, 2002 12:33 PM

10
Camera Overview

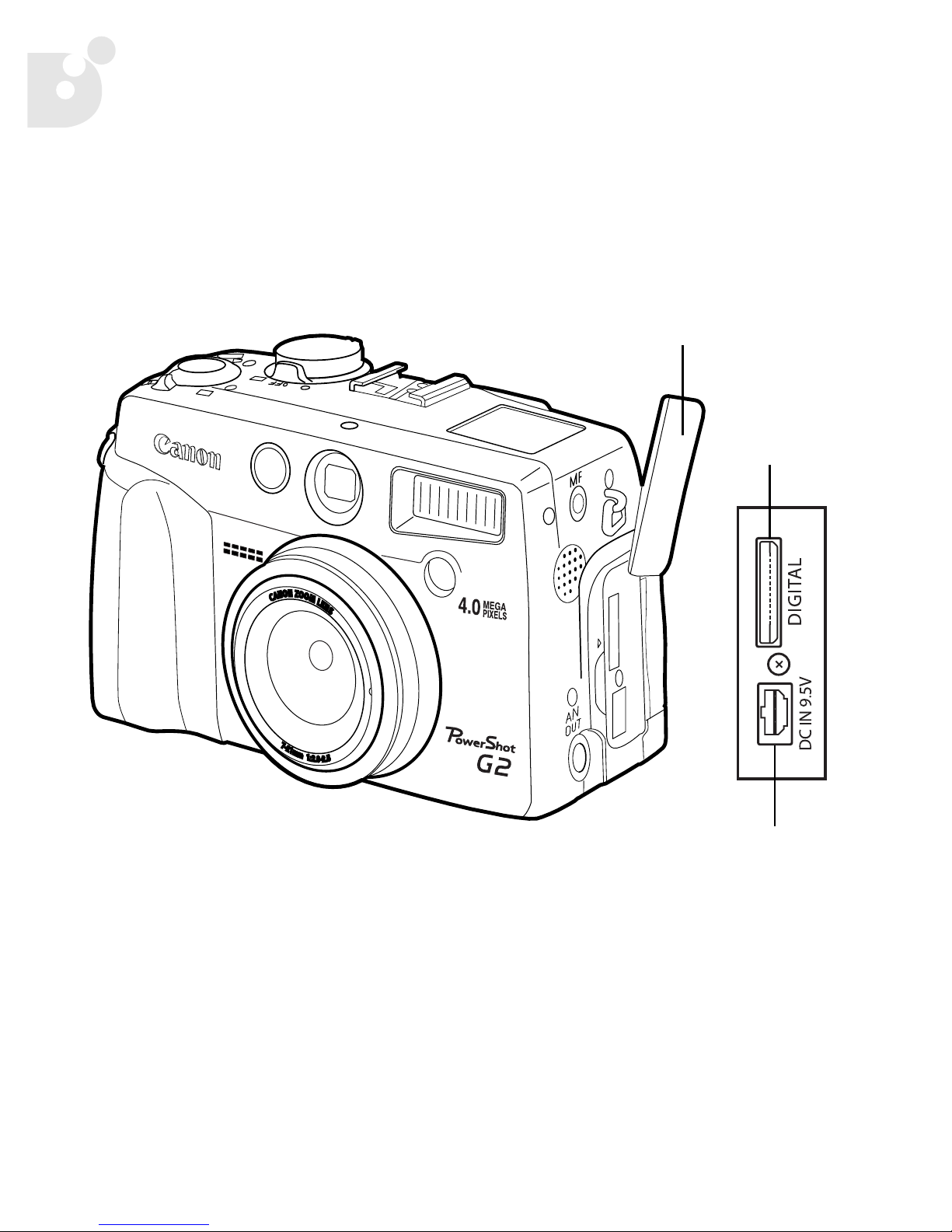

PowerShot G2 Black Camera Front View
See the PowerShot G2 Black Camera User’s Guide for more information.
DC IN 9.5V
DIGITAL
DIGITAL
Terminal
Terminal Cover
DC IN Terminal
bubbleJetDirect.book Page 10 Tuesday, April 30, 2002 12:33 PM

Camera Overview
11

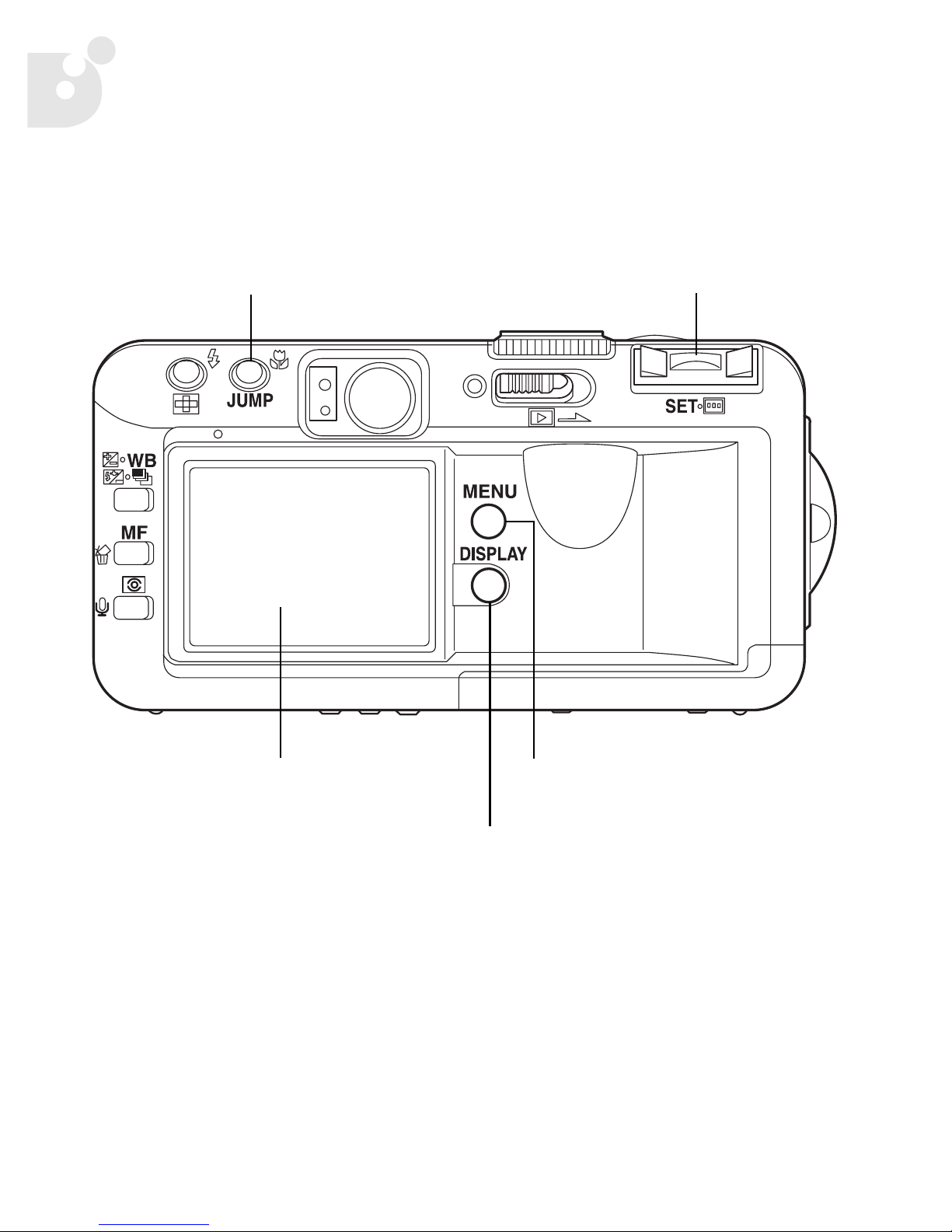

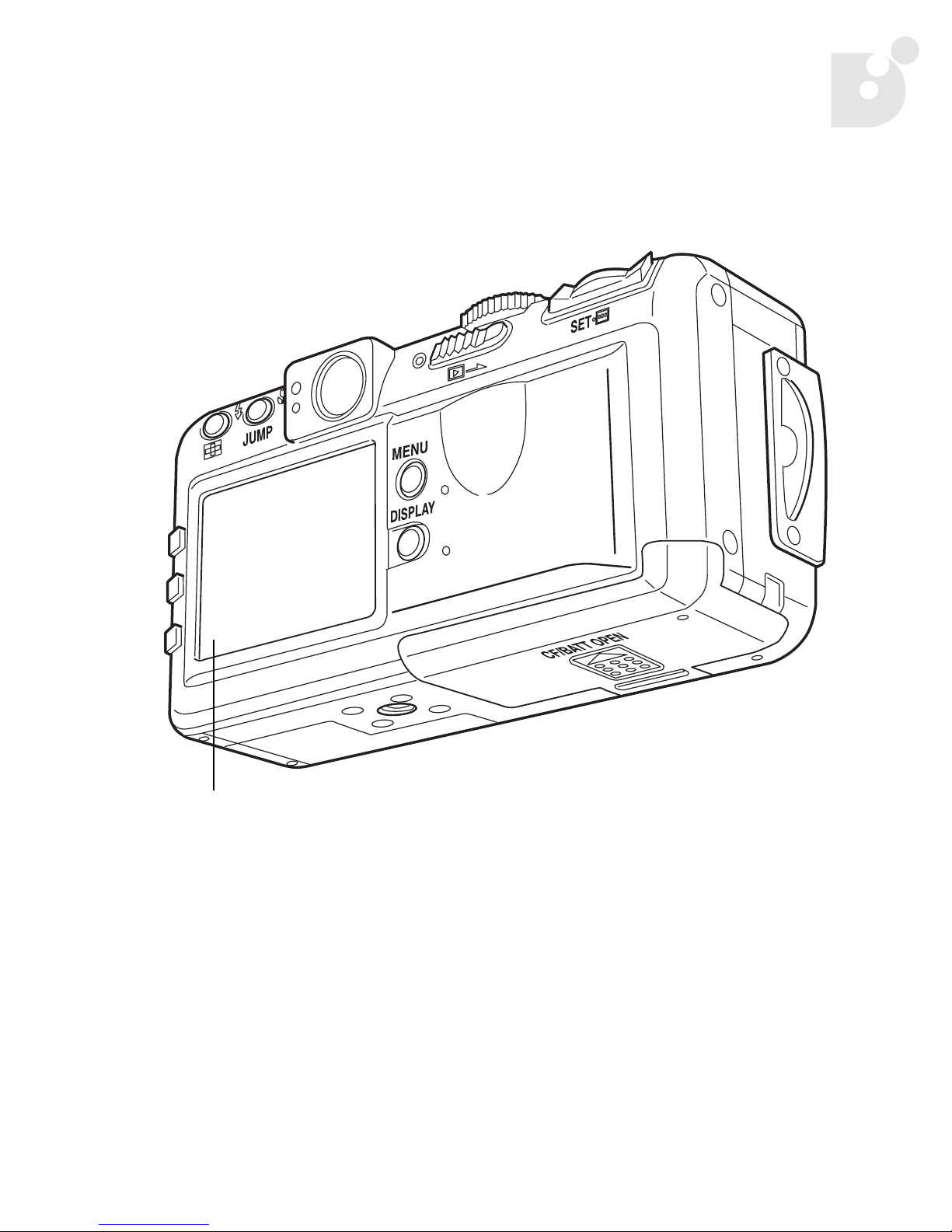

PowerShot G2 Black Camera Back/Bottom View
See the PowerShot G2 Black Camera User’s Guide for more information.
SET
MENU
JUMP
DISPLAY
WB
CF OPEN
BATT.OPEN
LCD Cover
SET Button
DISPLAY Button
MENU Button
bubbleJetDirect.book Page 11 Tuesday, April 30, 2002 12:33 PM

12
Camera Overview

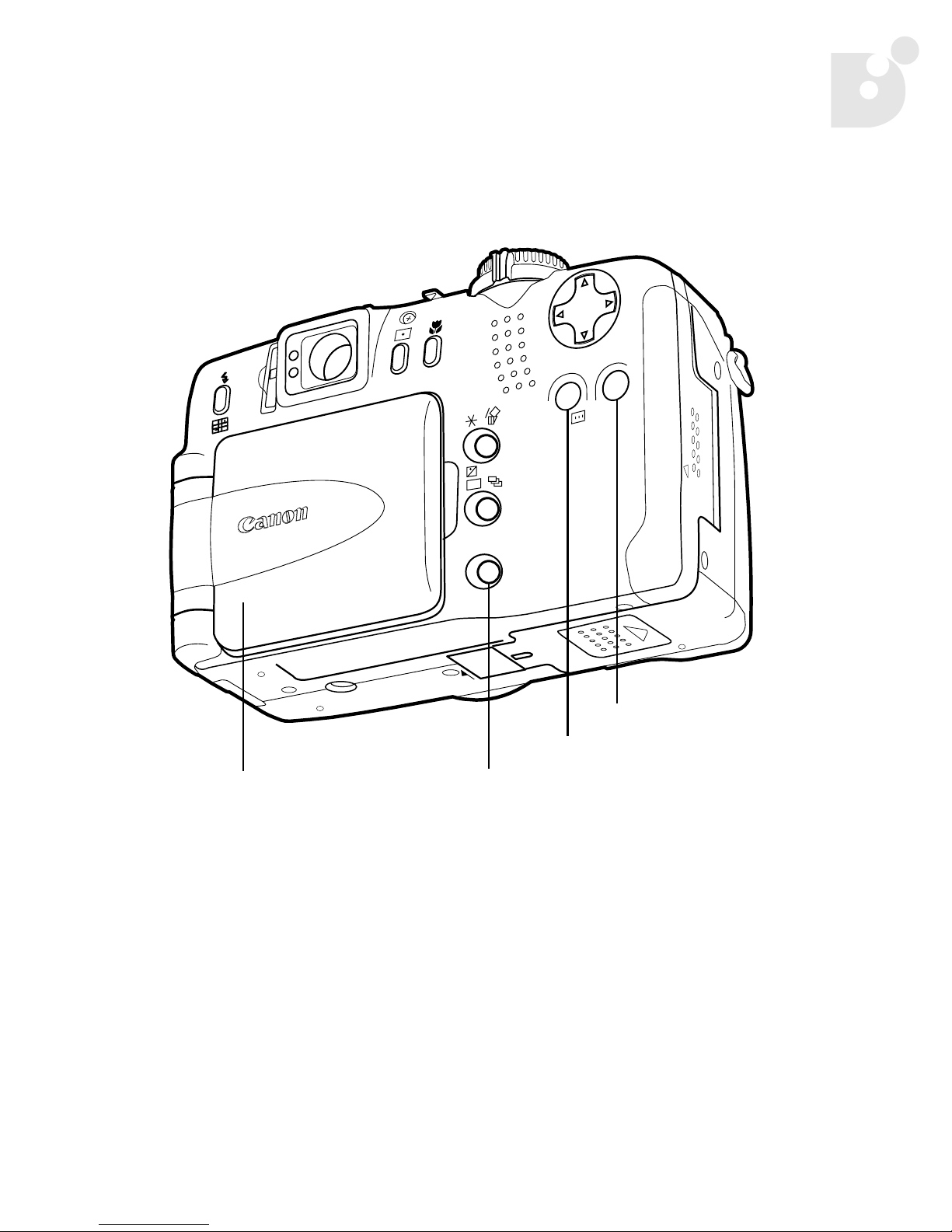

PowerShot G2 Black Camera Controls
See the PowerShot G2 Black Camera User’s Guide for more information.
DISPLAY
WB
SET
MENU
JUMP
Mode Dial
ZOOM Lever
LCD Monitor
bubbleJetDirect.book Page 12 Tuesday, April 30, 2002 12:33 PM

13
Chapter 3:
Printing Your Photos
Use these procedures to print your photos from the PowerShot camera.
Printing a Photo
A photo can be printed when displayed in single replay mode or selected in index
replay mode.
1.
Choose a photo using the (left) or (right)
arrow on the camera, then press SET .
2.
Select the number of copies to print:
a. In replay mode, press SET and select the
[ Copies ] option using the (up) or (down)
arrow on the camera.
b. Specify the desired number of copies
(from 1 to 99) using the (left) or (right)
arrow on the camera.
For the PowerShot S200/S330 cameras:
In the procedures in this chapter, the buttons on the
back of the camera are represented with these symbols:
///.
Depending on the camera you are using, images may appear
slightly different than those shown in this section.
bubbleJetDirect.book Page 13 Tuesday, April 30, 2002 12:33 PM

14
Printing Your Photos
3.

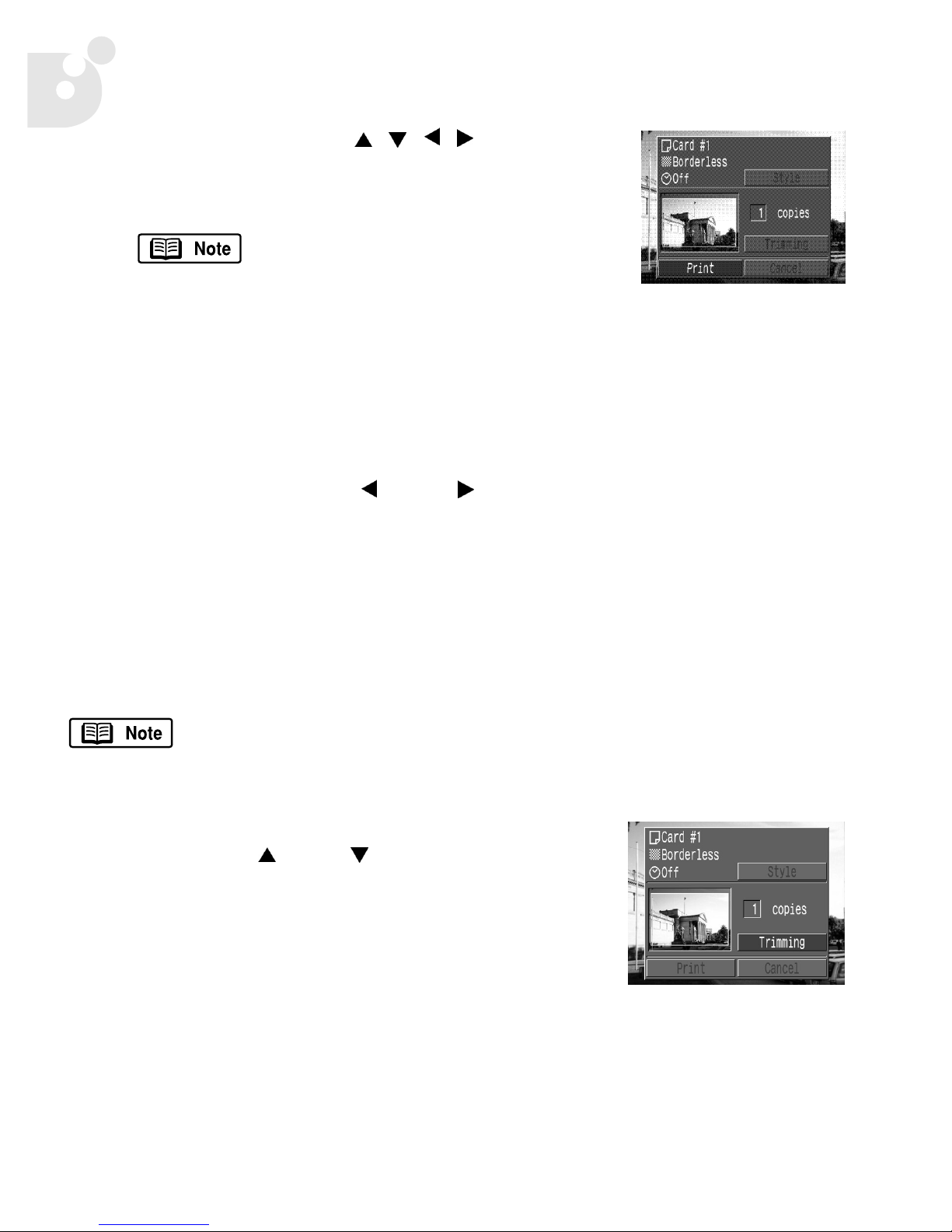

You can select from among the following print styles while your PowerShot
camera is in replay mode and connected to a Bubble Jet printer:
a. In the Print Setting menu, choose [ Style ] using
/ / / and press SET .
b. Choose [ Paper ], [ Borders ] or [ Date ]
using the (up) or (down) arrow.
c. Set the selection using the (left) or
(right) arrow.
Paper
Select the paper size from the following:
[Card #1], [Card #2], [Card #3], [LTR] or [A4].
For the usable paper type, refer to “Chapter 4: Media Types
for Digital Cameras” on page 21.
Borders Borderless Prints right to the edges of the paper.
Bordered Prints with a border.
Date
Prints the photo’s creation date.
bubbleJetDirect.book Page 14 Tuesday, April 30, 2002 12:33 PM

Printing Your Photos
15
d. Set the [ Paper ], [ Borders ] or [ Date ] settings.
e. Press the MENU button.
The setting is complete, and the Print Order
menu resumes.
If [ Borderless ] or [ Multiple ] is selected as the
print style, the center portion of the recorded
photo (the photo displayed on the LCD monitor)
is printed at an enlarged size. As a result, the
photo’s top, bottom and sides may be cropped
slightly. If you have not specified a trimming
setting, a frame appears around the area of the
photo to be printed, allowing you to check the
portion to be cropped.
6.
If desired, you can crop your photo. See “Cropping the Photo” below, then
continue with Step 7 below.
For the PowerShot S30/S40/G2 Black cameras:
•
Set the trimming (see page 16).
For the PowerShot S200/S330 cameras:
•
Set the printing area (see page 18).
Paper Borders Date
Choose [Card #1],
[Card #2], [Card #3],
[LTR] or [A4].
Choose [Borderless] or
[Bordered].
Choose [On] or [Off].
Print Area Frame
bubbleJetDirect.book Page 15 Tuesday, April 30, 2002 12:33 PM

16
Printing Your Photos
7. Choose [Print] using / / / and press SET.
8. The photo starts printing, and when it is completely
finished, the display reverts to standard replay mode.
Cancelling Printing
To cancel printing:
1. To cancel printing, press SET. A confirmation message appears.
2. Select [OK] using the (left) or (right) arrow and press SET.
Cropping the Photo
You can specify the portion of a photo that gets printed.
Trimming the Photo with the PowerShot S30/S40/G2 Black
Cameras
1. In replay mode, press SET and choose [Trimming]
using the (up) or (down) arrow. Press SET.
The trimming frame appears at the center of the
photo. If a trimming setting has already been
selected, the frame appears around the previously
selected portion.
You cannot print movies or photos
recorded in the RAW format.
Prior to trimming:
Set the print style (Paper, Borders and Date) before choosing the
trimming area.
bubbleJetDirect.book Page 16 Tuesday, April 30, 2002 12:33 PM
