Handling Precautions
1. This camera is not resistant to water, and should not be
used outdoors if it is raining or snowing. If it is
accidentally dropped in water, contact an authorized
Canon service facility. Keep the camera out of salt
spray and excessive humidity. If used at the beach,
clean it thoroughly afterward with a dry cloth.
2. Store the camera in a cool, dry, dust-free place. Be sure
to keep the camera out of direct sunlight, and away
from “hot spots” such as the trunk or rear window shelf
of a car. Avoid places where mothballs are used, and
use a desiccant in excessive humidity.
3. Do not attempt to disassemble the camera yourself,
since there is high-voltage circuitry inside.
4. The battery may explode or cause burns if
disassembled, recharged, shorted, exposed to high
temperatures, or disposed of in a fire.
5. Use a blower brush to remove dust and sand from the
lens and inside the camera. Do not apply any fluids to
the lens or body. Take the camera to an authorized
Canon service facility for a more thorough cleaning if
necessary.
6. Film passing through X-ray examinations at an airport
may be exposed and ruined even when loaded in the
camera. Request a different method of inspection to
avoid damage.
7. Color reproduction may be adversely affected if the film
is left in the camera for a long time. Always develop
exposed film promptly.
Convention
The following convention is used in these instructions:
O Warnings you should observe when using the camera.
|=|| Additional information on using the camera.
■ ) is shorthand for “See page

Handling Precautions

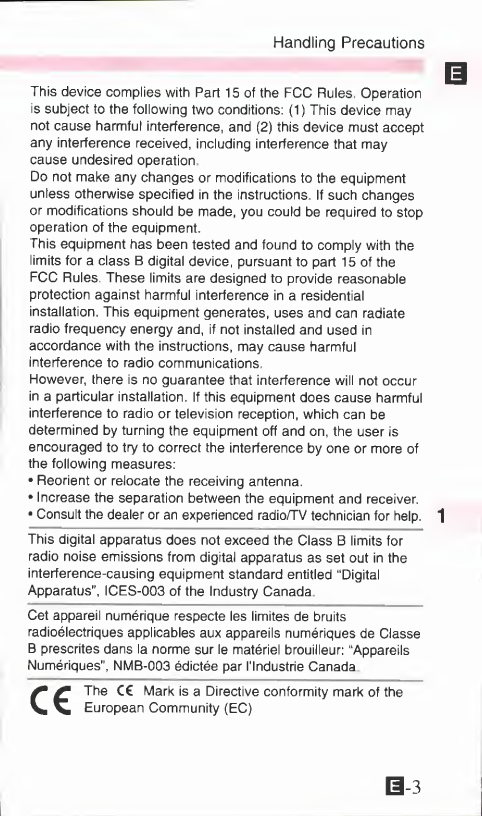

This device complies with Part 15 of the FCC Rules Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation
Do not make any changes or modifications to the equipment
unless otherwise specified in the instructions If such changes
or modifications should be made, you could be required to stop
operation of the equipment.
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to part 15 of the
FCC Rules These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
Flowever, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
This digital apparatus does not exceed the Class B limits for
radio noise emissions from digital apparatus as set out in the
interference-causing equipment standard entitled “Digital
Apparatus", ICES-003 of the Industry Canada
Cet appareil numerique respecte les limites de bruits
radioelectriques applicables aux appareils numeriques de Classe
B preserves dans la norme sur le materiel brouilleur: “Appareils
Numeriques", NMB-003 edictee par I'lndustrie Canada
The C€ Mark is a Directive conformity mark of the
European Community (EC)
S3

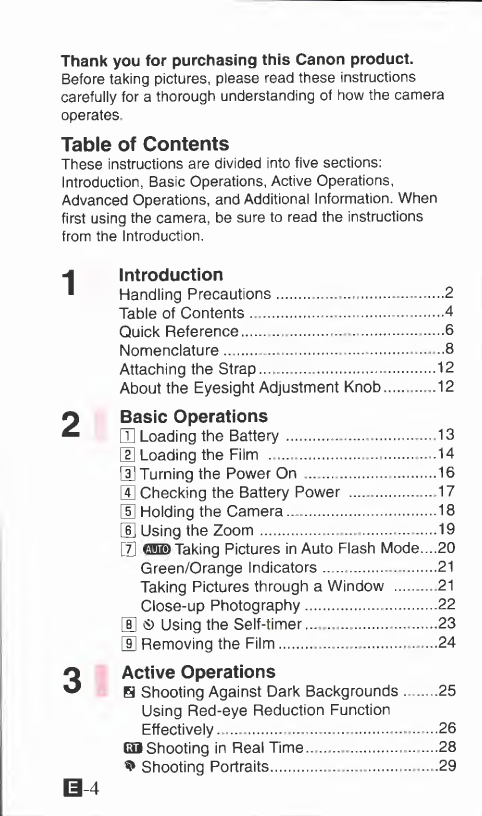

Thank you for purchasing this Canon product.
Before taking pictures, please read these instructions
carefully for a thorough understanding of how the camera
operates
Table of Contents
These instructions are divided into five sections:
Introduction, Basic Operations, Active Operations,
Advanced Operations, and Additional Information. When
first using the camera, be sure to read the instructions
from the Introduction.
1
2
3
Introduction
Handling Precautions. 2
Table of Contents. 4
Quick Reference.6
Nomenclature .. 8
Attaching the Strap...,. 1 2
About the Eyesight Adjustment Knob..12
Basic Operations
E Loading the Battery.13
[|Ijoading the Film .14
ll|jf|urning the Power On .16
4” Checking the Battery Power . 17
H] Holding the Camera.18
llBjsing the Zoom.19
§fp GO© Taking Pictures in Auto Flash Mode....20
Green/Orange Indicators .. ..21
Taking Pictures through a Window . 21
Close-up Photography.22
[U 0 Using the Self-timer... . .23
[9] Removing the Film..24
Active Operations
0 Shooting Against Dark Backgrounds . .....25
Using Red-eye Reduction Function
Effectively. .. . .. 2 6
GO Shooting in Real Time.28
* Shooting Portraits. 29
B4

4
5

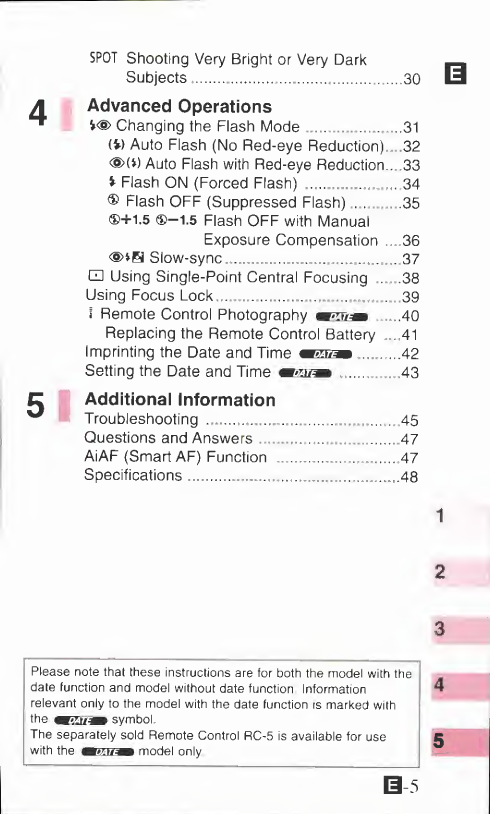

SPOT Shooting Very Bright or Very Dark _
Subjects. .....30 la
Advanced Operations
V<i> Changing the Flash Mode .31
(W Auto Flash (No Red-eye Reduction) . .32
<§>(*) Auto Flash with Red-eye Reduction . .33
% Flash ON (Forced Flash) .34
® Flash OFF (Suppressed Flash).35
®-i-l.5 ®—1.5 Flash OFF with Manual
Exposure Compensation ... 36
<§>*H Slow-sync. 3 7
Q Using Single-Point Central Focusing ... .38
Using Focus Lock.. 3 9
I Remote Control Photography ... ..40
Replacing the Remote Control Battery . 41
Imprinting the Date and Time .. . ...42
Setting the Date and Time 4 3
Additional Information
Troubleshooting . 4 5
Questions and Answers. 4 7
AiAF (Smart AF) Function . ... .47
Specifications . 4 8
1
2
Please note that these instructions are for both the model with the
date function and model without date function Information
relevant only to the model with the date function is marked with
the symbol
The separately sold Remote Control RC-5 is available for use
with the model only
4
5
05

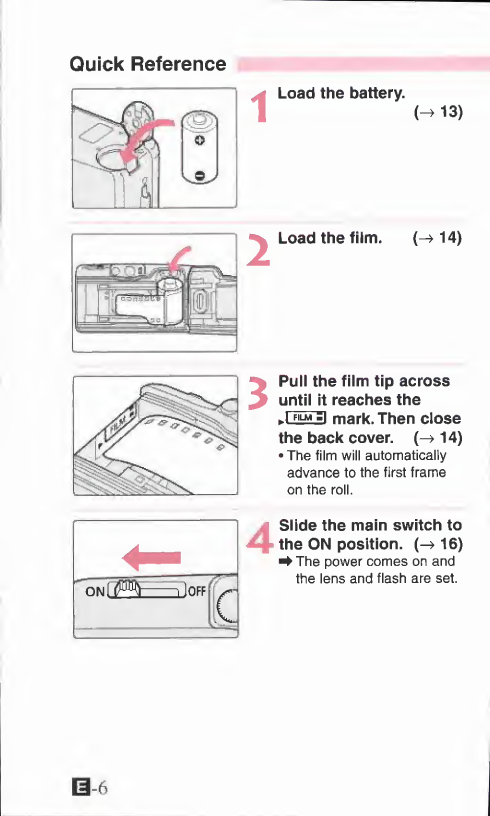

Quick Reference
3
Pull the film tip across
until it reaches the
ri F ILM =1 mark. Then close
the back cover. 14)
•The film will automatically
advance to the first frame
on the roll.
'oNllWl-1 1 o f f(
r
c
4
Slide the main switch to
the ON position. 16)
^ The power comes on and
the lens and flash are set.
Eft

Quick Reference
5
Turn the best shot dial
to GQ2D. (^20)
Use the [»•] or
button to select the size
of your subject. 19)
Position the AF frame
over the subject and
take the picture. (-> 20)
^ In low-light, the flash fires
automatically.
When you have finished
the film and it has
rewound, remove the
film. (-> 24)
• Check that 0 is flashing on
the LCD panel and that the
frame counter has returned
to “0”, and then open the
back cover.
• Remove the film and close
the back cover.
07

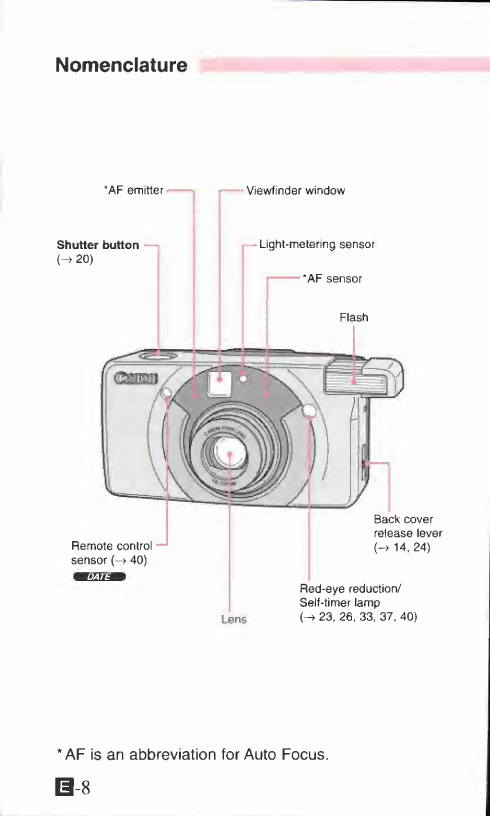

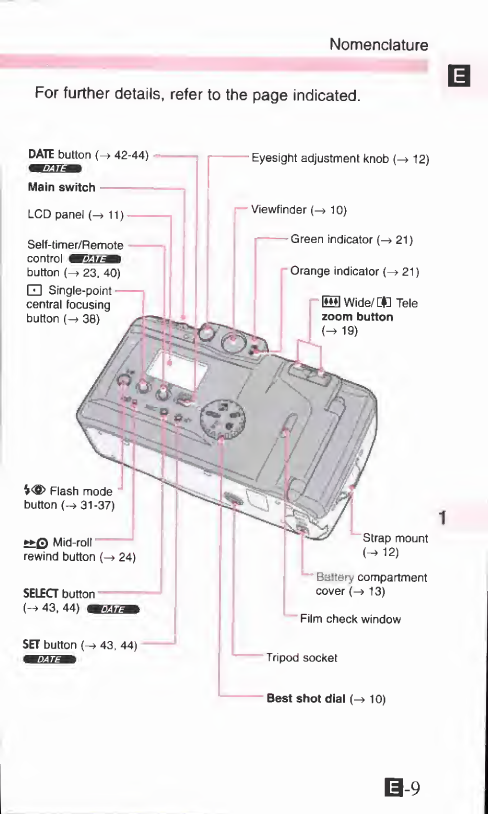

Nomenclature
*AF emitter Viewfinder window
Shutter button Light-metering sensor
(-> 20 )
*AF sensor
Flash
Remote control
sensor (-»40)
Back cover
release lever
(-» 14, 24)
Red-eye reduction/
Self-timer lamp
(-> 23, 26, 33, 37, 40)
* AF is an abbreviation for Auto Focus.
E-8

Nomenclature
For further details, refer to the page indicated.
(-» 42-44) Eyesight adjustment knob (-> 12)
Viewfinder (-» 10)
Green indicator (-> 21)
Orange indicalor (-> 21)
Wide/Cfi Tele
zoom button
(->19)
Strap mount
H12)
compartment
cover (->13)
Film check window
Main switch
LCD panel (->11)
V<$> Flash mode
button (-> 31-37)
►► © Mid-roll
rewind button (-* 24)
SELECT button
(-> 43, 44)
SET button (-> 43, 44)
Self-timer/Remote
control
button (-> 23, 40)
GD Single-point
central focusing
button (-> 38)
Tripod socket
1
Best shot dial (-» 10)
0-9

Viewfinder Frames
AF frame
Picture frame Close-up area marks (—> 22)
For ordinary shooting, compose When the shooting distance is
your picture within this frame between 0.6 and 1 m (2 and 3 3
ft.), compose your picture in the
area within these marks ( )
Best Shot Dial
B-io

Nomenclature
LCD Panel
% Flash ON (forced flash)
indicator
® Flash OFF
(suppressed flash) indicator
Red-eye reduction
indicator
Slow-sync (nighttime
portrait) indicator
Manual exposure
compensation
Self-timer indicator
Battery level
indicator
<8>®H+i.5
toi i ssi
Film winding indicator
Single-point
central AF
Frame counter
Film indicator
% Flash ON (forced flash)
indicator
® Flash OFF
(suppressed flash) indicator
Date and time
Red-eye reduction
indicator
Slow-sync (nighttime
portrait) indicator
88 B8:'88date
ms, “
Single-point
central AF
Date and time
imprinting
Manual exposure
compensation
Frame counter
Self-timer/ —
Remote control indicator
Battery level indicator
Film indicator
Film winding indicator
(Normally, only the required information is displayed.)

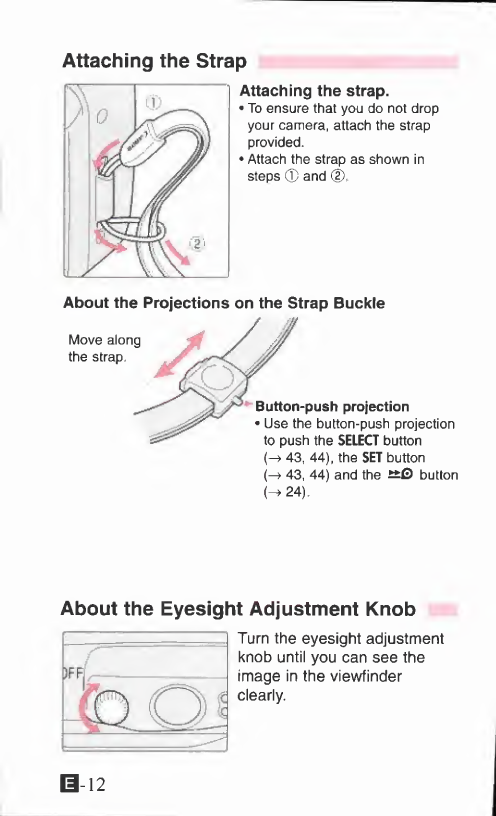

Attaching the Strap
Attaching the strap.
• To ensure that you do not drop
your camera, attach the strap
provided.
• Attach the strap as shown in
steps © and d)
About the Projections on the Strap Buckle
Button-push projection
• Use the button-push projection
to push the SELECT button
(-» 43, 44), the SET button
(-> 43, 44) and the button
H 24)
About the Eyesight Adjustment Knob
Turn the eyesight adjustment
knob until you can see the
image in the viewfinder
clearly.

CD Loading the Battery
Applicable Battery: One lithium battery
(CR123A/DL123A)
1
Open the battery
compartment cover.
• Slide the release lever in
the direction indicated by
the arrow to open the cover.
2
Load the new battery.
• Ensure that the + and -
terminals are positioned
correctly
Close the battery
compartment cover.
• Push the cover closed until
you hear a clicking sound
^The [ ™ ji appears on the
LCD panel.
^ The date display on the
LCD panel changes to
"." Set the date and
time. (-> 43) mum
1
2
0-13

12] Loading the Film
I O p en the back cover.
• Push the back cover
release lever down.
Load the film.
Position the film
correctly between the
film guides.
Pull the film out to the
-i fim =i (film leader
position indicator).
• Make sure that there is no
slack in the film when you
pull it out.
• If the edge of the film leader
goes beyond the orange
mark, rewind some of the
film back into the cartridge.
& 14

Loading the Film
5
Close the back cover.
• The film will automatically
advance to the first frame
on the roll
6 “ 1 ” is displayed on the
frame counter.
• If the frame counter shows
a blinking “0", the film did
not load correctly. Load the
film again.
Use only film that carries the DX mark. The camera
will automatically detect and set the film speed.
A film speed of ISO 400 is recommended.

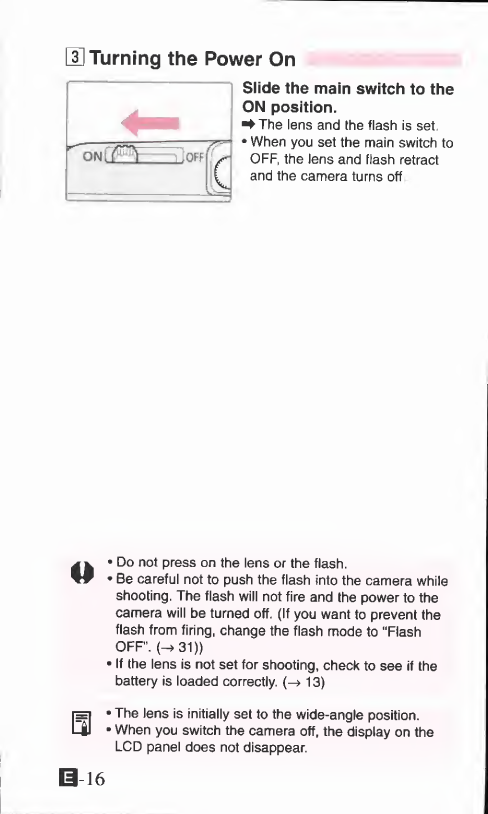

U] Turning the Power On
Slide the main switch to the
ON position.
■ f The lens and the flash is set
• When you set the main switch to
OFF, the lens and flash retract
and the camera turns off
f v • Do not press on the lens or the flash.
• Be careful not to push the flash into the camera while
shooting. The flash will not fire and the power to the
camera will be turned off. (If you want to prevent the
flash from firing, change the flash mode to "Flash
OFF". (->31))
• If the lens is not set for shooting, check to see if the
battery is loaded correctly. (-> 13)
ra • The lens is initially set to the wide-angle position.
IZU • When you switch the camera off, the display on the
LCD panel does not disappear.
S-16

[4] Checking the Battery Power
Check that the Es)' icon appears on the LCD panel
when you switch the camera on
\ss& (on) The battery is fully charged.
[Sl 3 (on) Prepare new battery
SHI 1 (blinking) Load the new battery (—» 13)
A new battery will generally provide enough
charge to shoot approx. 12 rolls of 24-exposure
film (based on Canon’s Standard Test Method at
normal temperatures and with 50% flash use). At
low temperatures (—10°C/14°F), the battery life is
approximately one third of the normal figure.
r=i • If you are travelling or plan to take a lot of pictures,
Ijl take a supply of spare batteries. The correct batteries
may be difficult to obtain at your destination
• When you take consecutive shots using the flash, the
battery power may drop off temporarily and prevent
the LCD panel from displaying information correctly. If
this occurs, switch the camera off and wait a few
minutes before switching it back on again.
0-17

% Holding the Camera
To ensure a clear sharp picture, hold the camera firmly
so that it does not move when you take a picture.
•Hold the camera with both hands and brace your
elbows lightly against your body.
• Rest the camera against your forehead, look through
the viewfinder and then slowly and gently press the
shutter button.
U
light-
metering
AF ©miller
AF sensor F ash
Lens
• When you hold the camera,
take care to keep your hair,
your fingers and the strap
away from the lens, AF
emitter/sensor, light¬
metering sensor and fl^sh.
• Dust or soiling on the AF
emitter/sensor causes
focusing difficulties. Wipe
soiled areas clean before
taking pictures.
• Hold the camera still until
you hear the sound of the
film winding on, indicating
that the camera has finished
taking the picture.
0-18

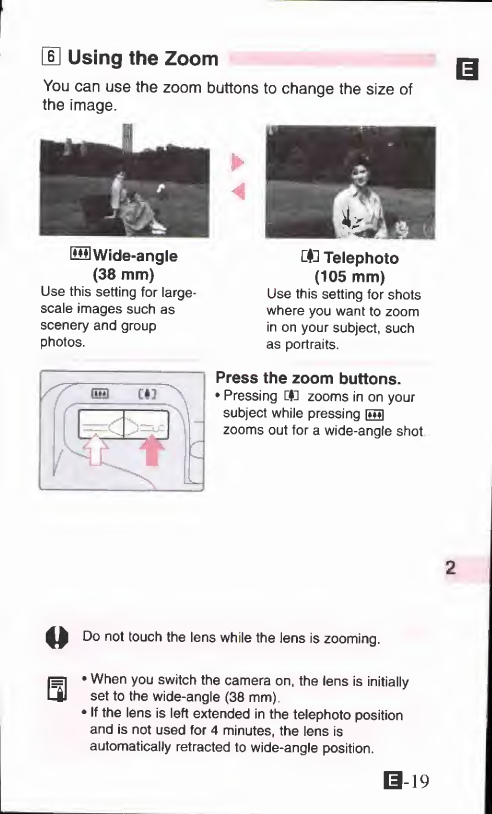

LE Using the Zoom
You can use the zoom buttons to change the size of
the image.
[^Wide-angle
(38 mm)
Use this setting for large-
scale images such as
scenery and group
photos.
►
◄
Hill Telephoto
(105 mm)
Use this setting for shots
where you want to zoom
in on your subject, such
as portraits.
Press the zoom buttons.
• Pressing zooms in on your
subject while pressing [m]
zooms out for a wide-angle shot
U Do not touch the lens while the lens is zooming.
0 * When you switch the camera on, the lens is initially
set to the wide-angle (38 mm)
• If the lens is left extended in the telephoto position
and is not used for 4 minutes, the lens is
automatically retracted to wide-angle position.

a Ho Taking Pictures in Auto Flash Mode
In this mode, the AiAF function (-» 47) ensures that
the subject stays in focus even when it is not exactly in
the center of the viewfinder The flash also fires
automatically in low light or backlit conditions.
Set the focus.
■ Position the AF frame over
your subject and press the
shutter button halfway
^ When the subject is in
focus, the green indicator
lights
• When the flash fires
automatically, the orange
indicator lights. 21)
• Keep the shutter button
pressed halfway down
Compose the shot and
take the picture.
• Press the shutter button
down fully.
• Press the shutter button
slowly and gently.
^The photograph is taken.
There is a very short delay between the shutter button
^9 being pressed and the shutter releasing. In general,
you should continue to hold the camera still until you
hear the sound of the film winding on, which indicates
that the shot has been taken.
i=i You can take a picture using the Realtime Release
L|l mode, in which the shutter is released instantly, if you
set the dial to GO (-* 28).
0-20
