Canon PowerShot S230 DIGITAL ELPH User manual

Quick Start Guide
This guide explains basic operations for first-time use, how to
use the direct print function, and how to install the software
and download images to a computer. For more information
about usage precautions and detailed instructions, please
refer to the other related manuals. (p. 2)
You must install the software bundled on the Canon Digital Camera
Solution Disk before connecting the camera to the computer.
Please refer to the Troubleshooting section of the Software Starter Guide if
you have trouble installing the software or downloading images.
ENGLISH

2
Content
Preparing the Camera............................. 3
Shooting ................................................. 4
Reviewing an Image ............................... 5
Selecting Menus and Settings................. 6
List of Menu Options and Messages....... 7
Printing Images by Connecting
the Camera Directly to a Printer ......... 12
Downloading Images to a Computer
(Windows)........................................... 16
Downloading Images to a Computer
(Macintosh) ......................................... 23
For detailed instructions, see
the other manuals below.
▼
Camera User Guide
Printer User Guide
(Included with your Canon
printer)
Software Starter
Guide

3
1
2

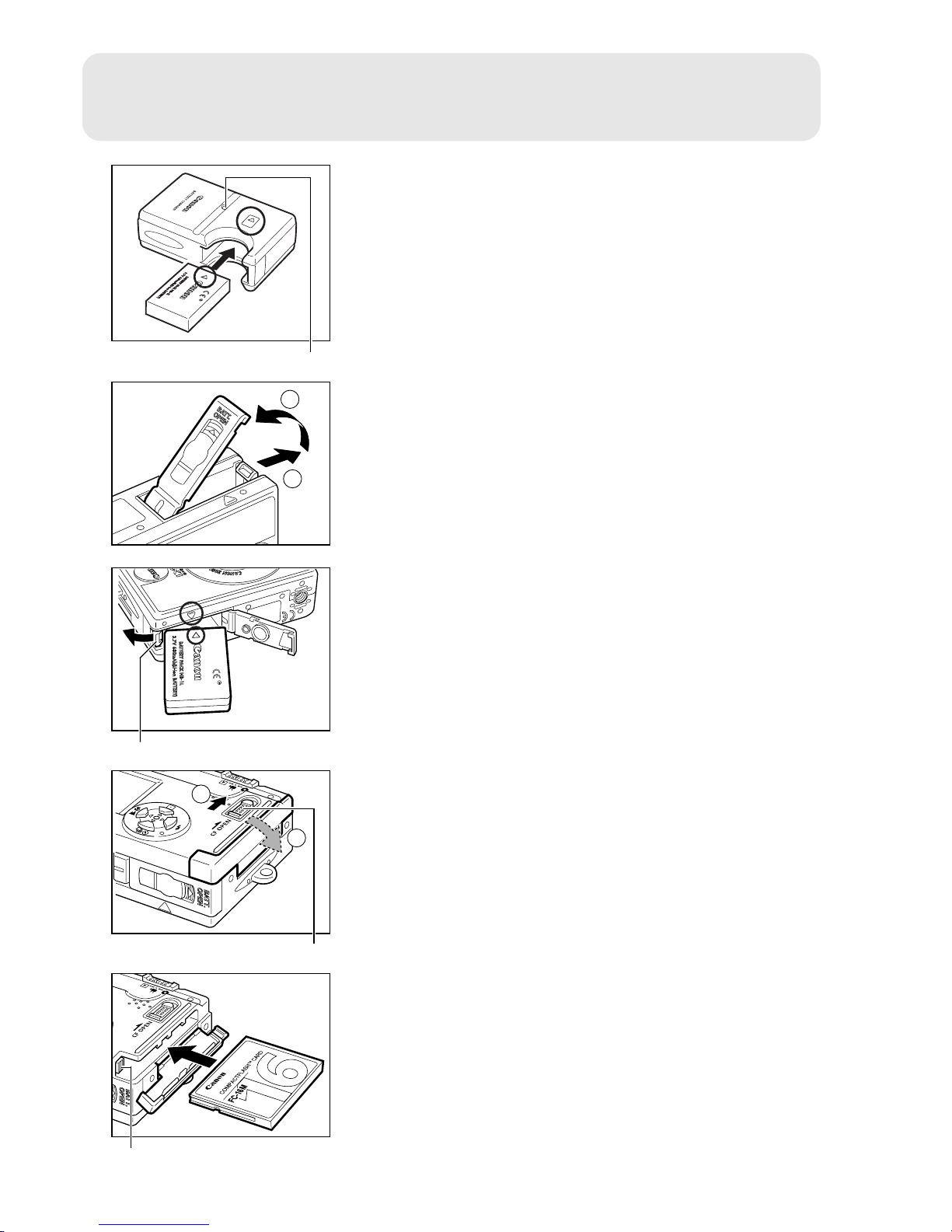

Preparing the Camera
1
Charge the battery pack.
• Charge the battery pack using the supplied
battery charger. The charging is complete when
the charge indicator turns from red to green.
• Charging the battery pack takes approximately
130 minutes.
2
Slide the battery cover in the direction
of the arrows.
3
Install the battery pack and close the
battery cover.
• Press the battery lock while inserting the battery
pack.
4
Open the CF card slot cover.
• Slide the lock up to open the CF card slot cover.
5
Install the CF card and close the CF card
slot cover.
• Insert the CF card with its label facing upward
until the CF card eject button fully extends.
Charge indicator
Battery lock
1
2
CF card eject button
Lock

4
Shooting

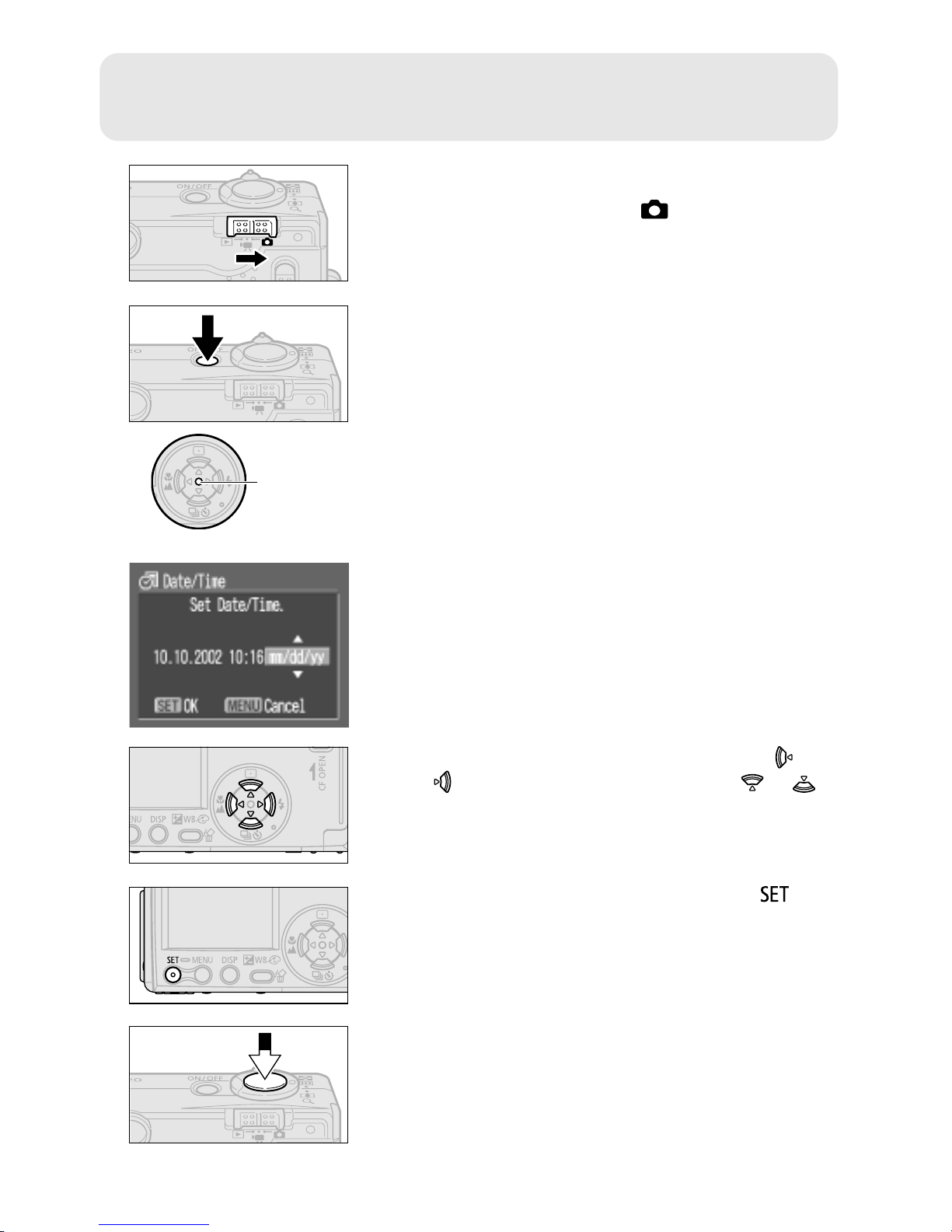

1
Selecting a shooting mode.
• Slide the mode switch to .
2
Turn on the power.
• Press the ON/OFF button until the power lamp on
the back of the camera lights.
3
Set the date and time. (First time the
camera is powered on)
• The Set Date/Time menu will appear on the LCD
monitor.
• Select the items you wish to set using the or
button and set the value using the or
button.
• To put the settings into effect, press the
button.
4
Focus.
• Aim the camera and lightly press the shutter
button halfway. Two beeps will sound when the
autofocus is set.
power lamp

5
5
Shoot.
• Press the shutter button all the way. One beep
will sound when the shot is complete.
• The recorded image appears in the LCD monitor
for approximately 2 seconds.
Reviewing an Image
Displays the recorded images on the LCD monitor.
1
Selecting a replay mode.
• Slide the mode switch to .
2
Turn on the power.
• Press the ON/OFF button until the power lamp
lights.
• The last recorded image will appear in the display.
3
Use the or button to select the
image.
To Immediately Delete the Displayed Image
1. Press the button while the image is displayed.
2. Confirm that [Erase] is selected and press the
button.

6

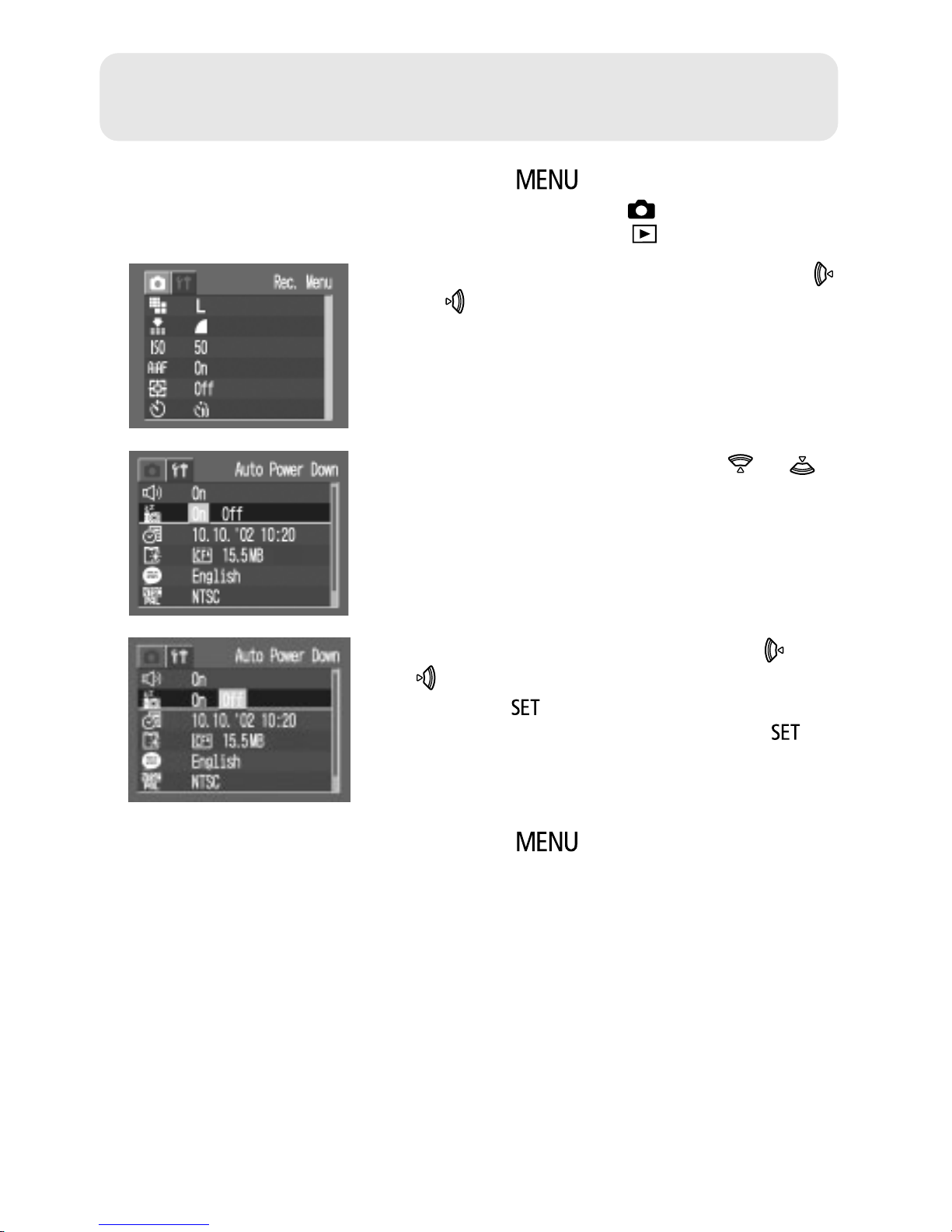

Selecting Menus and Settings
1
Press the button.
• In Shooting mode, the [ (Rec.)] menu appears.
In Replaying mode, the [ (Play)] menu appears.
2
Switch between menu tabs using the
or button.
3
Select a menu item using the or
button.
4
Select setting contents using the or
button.
• Press the button for items followed by an
ellipsis (...) then select a setting. Press the
button again to confirm the setting.
5
Press the button to close the
menu.

7
List of Menu Options and Messages
Rec. Menu
Some items may not appear in certain Shooting modes.
Resolution (Stills) Sets the number of pixels used to record
images to CF cards.
•(Large)* 2048 x1536 pixels
•(Medium 1) 1600 x1200 pixels
•(Medium 2) 1024 x 768 pixels
•(Small) 640 x 480 pixels
Resolution (Movies) Sets the number of pixels used to record
movies to CF cards.
•640 x 480 pixels
•320 x 240 pixels*
•160 x 120 pixels
Compression Sets the relative compression ratio used to
record images to CF cards.
•Superfine
•Fine*
•Normal
ISO Speed Sets the sensitivity at which images are
recorded.
•50*
•100
•200
•400
•AUTO
AiAF Sets whether or not the camera
automatically selects one of nine AF frames
or a fixed center AF frame.
•On*
•Off
Item Menu Screen Settings Content
*Default setting

8
Item Menu Screen Settings Content
*Default setting

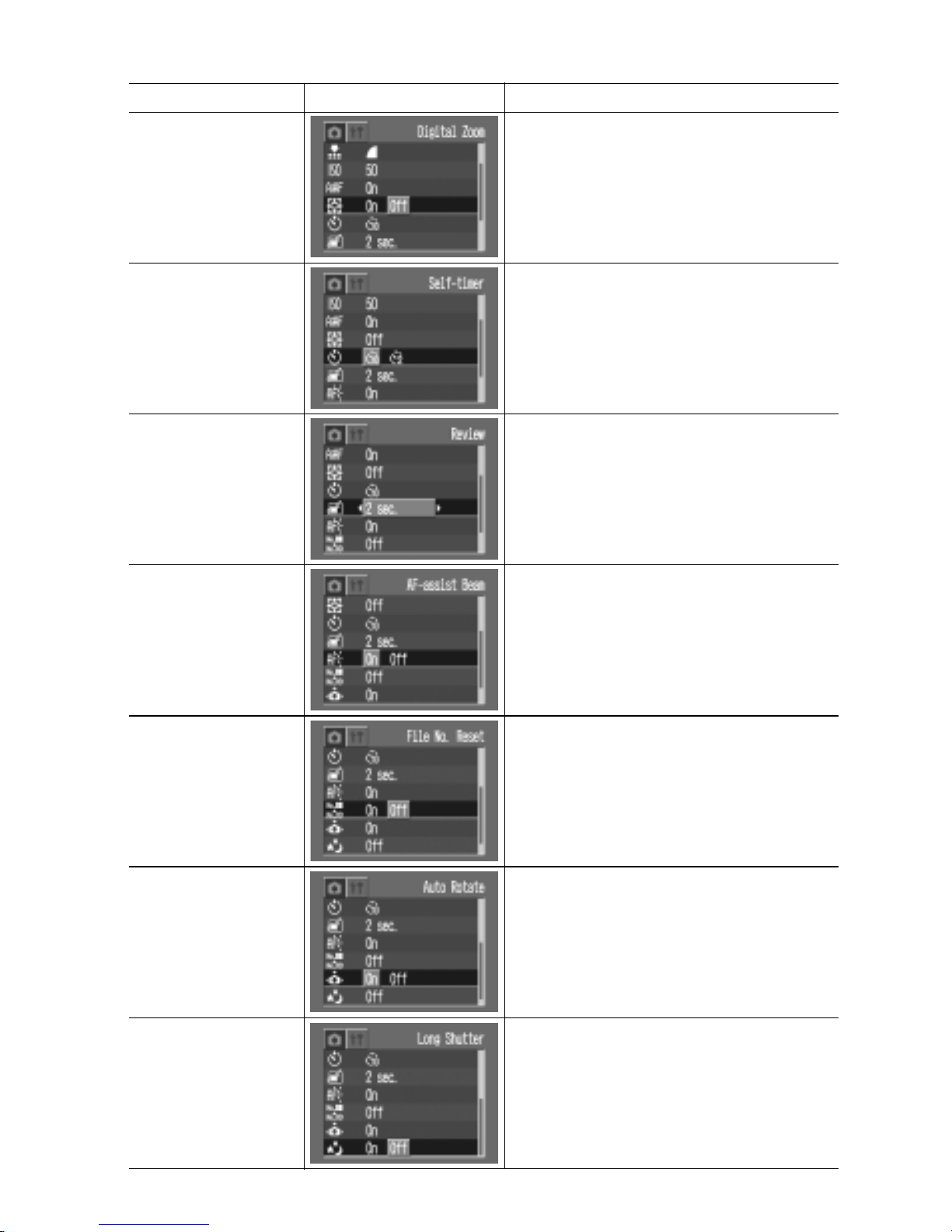

Digital Zoom Sets whether or not the optical zoom is
supplemented by digital processing.
•On
•Off*
Self-timer Sets the duration before the selftimer
releases the shutter.
•10 seconds*
•2 seconds
Review Sets the duration images display on the LCD
monitor after the shutter button releases.
•Off
•2*-10 seconds (1-second increments)
AF-assist Beam Sets the AF-assist Beam to on or off.
•On*
•Off
File No. Reset Sets how file numbers are assigned to
images when new CF cards are inserted.
•On
•Off*
Auto Rotate Sets whether or not images shot with the
camera on end are automatically rotated in
the display.
•On*
•Off
Long Shutter Sets the shutter speed to slow settings.
•On
•Off*

9
Item Menu Screen Settings Content
Protect Protects images from accidental erasure.
Rotate Rotates images clockwise 90º or 270º in the
display.
Erase all Deletes all images from a CF card (except
for protected images.)
Slide Show Plays images in automated slide shows.
Print Order Selects images and the number of print
copies for output to a DPOF-compatible
printer or a photo developing service.
Transfer Order Selects the images that will be transferred
to your email software.
Play Menu

10
Item Menu Screen Settings Content
*Default setting

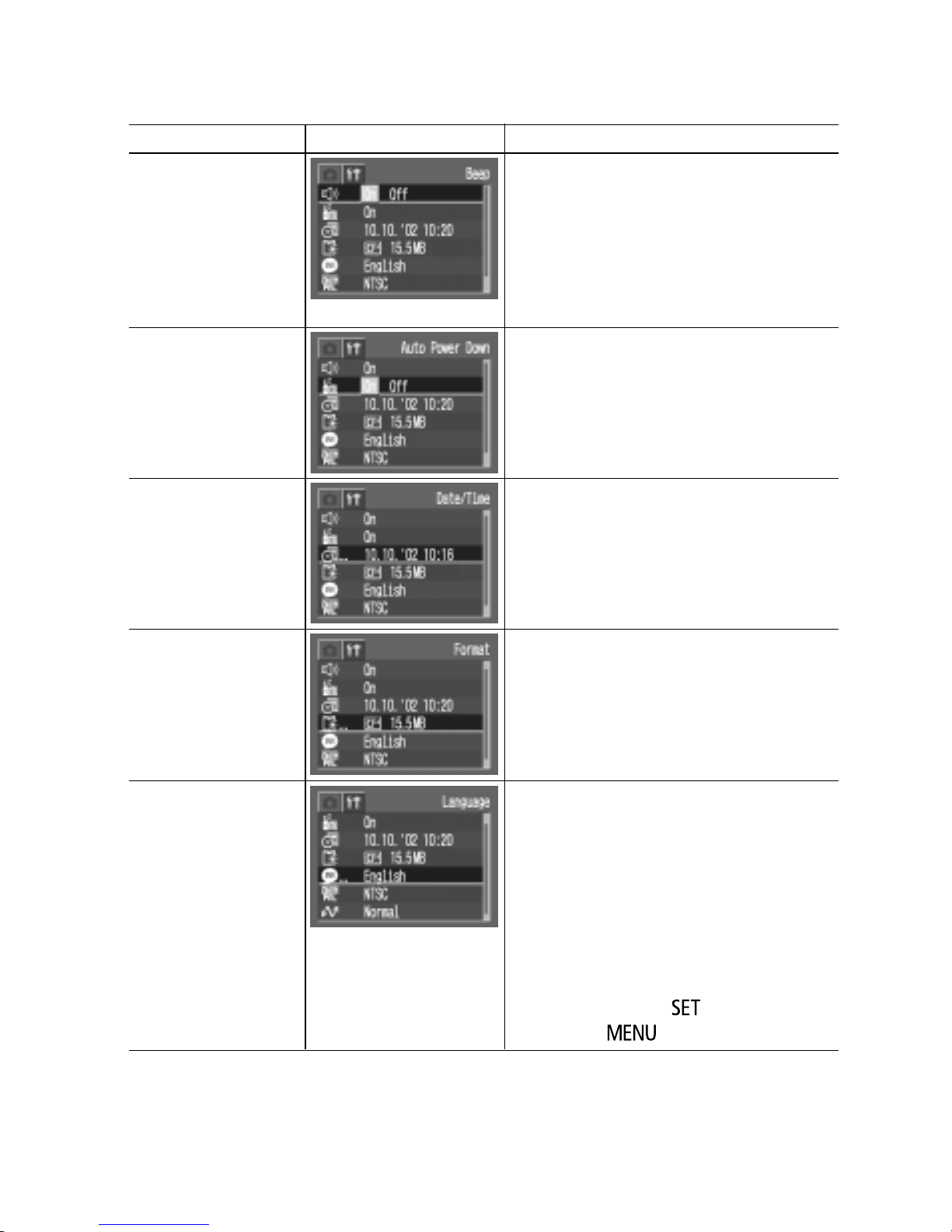

Set up Menu
Beep Sets whether or not a beep sounds when
the shutter button is pressed or a menu
operation is performed.
•On*
•Off
A beep still sounds to warn of errors even
when Off is selected.
Power Save Sets whether or not the camera
automatically powers down after a set
period of time elapses without something
being pressed.
•On*
•Off
Date/Time Sets the date and time and the date format.
Format Formats (initializes) CF cards.
Language Sets the language used in menus and
messages on the LCD monitor.
•English* •Italiano
•Deutsch •Norsk
•Français •Svenska
•Nederlands •Español
•Dansk •Chinese
•Suomi •Japanese
You can also change the language in replay
mode by holding the button and
pressing the button.

11
Item Menu Screen Settings Content
Video System Sets the video output signal standard.
•NTSC
•PAL
Communication Sets the camera and computer
communication settings.
•Normal*
•PTP

12
Printing Images by Connecting
the Camera Directly to a Printer
Printing with a Direct Print Compatible Printer
By connecting the camera with a single cable to a direct print function compatible
printer (optional), you can easily print your images with simple operations.
1
Load the ink cassette and the
paper cassette into the printer.
2
Connect the power cord to the printer.
• With the CP-10 printer, the printer’s power turns on automatically.
3
Connect the camera to the printer and press the printer's ON/
OFF button to turn on the power. Set the camera's mode
switch to and turn on the power.
•appears on the camera’s LCD monitor.
• If you cannot use the camera's compact power adapter*, please use a fully
charged battery pack.
To DIGITAL
Terminal
Camera’s Compact Power
Adapter*
To Power
Outlet
To Power
Outlet
Ink cassette
Paper cassette
Direct Interface Cable DIF-200
(Included with the printer) * Included with the optional AC Adapter Kit ACK500

13
4
Choose an image using the or
button and press the button.
5
Choose [Print] using the / / /
buttons and press the button.
• The image will start to print and, when it is
completely finished, the display will revert to
standard replay mode.

14
Printing with a Direct Print Function
Compatible Bubble Jet Printer
By connecting the camera with a single cable to a direct print function compatible BJ
printer (optional), you can easily print your images with simple operations.
1
Prepare the printer.
• For more information, please see the Quick
Start Guide that came with your BJ printer.
2
Turn the BJ printer's power on.
3
Connect the camera to the BJ printer.
Set the camera's mode switch to
and turn on the power.
• Connect the camera to the printer using
the cable supplied with your BJ printer.
• The icon appears on the BJ printer's operation panel.
•appears on the camera's LCD monitor.
Camera icon
Power button

15
4
Choose an image using the or
button and press the button.
5
Choose [Print] using the / / /
buttons and press the button.
• The image will start to print and, when it is
completely finished, the display will revert to
standard replay mode.
• We recommend the use of the AC Adapter Kit ACK500 (optional) as the camera's
power source.
• Images cannot be printed through the BJ printer operation panel during the
camera connection.
• Please use the following procedures when you detach the cable from the printer
and the camera.
1. Detach the cable from the printer.
2. Turn off the camera power.
3. Detach the cable from the camera.

16
Downloading Images to a
Computer (Windows)
System Requirements
Computer Model IBM PC/AT compatible
OS Windows 98 (First or Second Edition)
Windows Millennium Edition (Windows Me)
Windows 2000
Windows XP
CPU Windows 98 / Windows Me / Windows 2000 :
Pentium 150MHz or better
Windows XP : Pentium 300MHz or better
RAM Windows 98 / Windows Me / Windows 2000 : 64MB or more
Windows XP : 128MB or more
Interface USB: Only preinstalled Windows 98 / Windows Me / Windows 2000 /
Windows XP
• All procedures performed with a connection to a USB 2.0 compliant board are not
guaranteed.
Installing the Software
• Do not connect the camera to the computer before the software is installed.
• The USB driver will start its installation procedures after the camera has been
connected to the computer.
• Users of Windows 2000 and Windows XP Professional must first log in as an
Administrator (computer system administrator) to install programs.
• Close any programs that are running.
1
Place the Canon Digital Camera Solution Disk into your
computer’s CD-ROM drive.
• The installer panel will display automatically.

17
• If the installer panel does not appear automatically, use the following
procedures to display it.
Windows XP
1.Click [My Computer] in the [Start] menu.
2.Right-click the CD-ROM icon and select [Open].
3.Double-click the [SETUP.exe] icon.
Windows 2000, Windows Me and Windows 98
1.Double-click [My Computer] on the desktop.
2.Right-click the CD-ROM icon and select [Open].
3.Double-click the [SETUP.exe] icon.
* If the "exe" extension does not show, see the computer's manual for instructions
on showing file name extensions.
2
Click [Software Installation], and follow the onscreen
instructions by clicking [Next] or [Yes].
• In the next steps, you will select the installation destination, the software to be
installed and the name of your camera model.
3
Review the installation settings and click [Next].
Installer panel
The items displayed
here differ according to
the software installed.

18
USB port
USB cable
• The installation starts.
• If you installed the WIA driver or the TWAIN driver, the following message will
appear once the installation is complete. Click [OK].
4
When the installation is over, select “Yes, I want to restart my
computer now.” in the screen below and click [Finish].
• Remove the Canon Digital Camera Solution Disk once the installation is complete
and before you connect the camera to the computer so that the proper driver can
be installed.
Connecting the Camera to the Computer
1
Connect one end of the USB
cable to the computer’s USB
port.

19
Installing the Driver
■Windows XP
1
Install the driver.

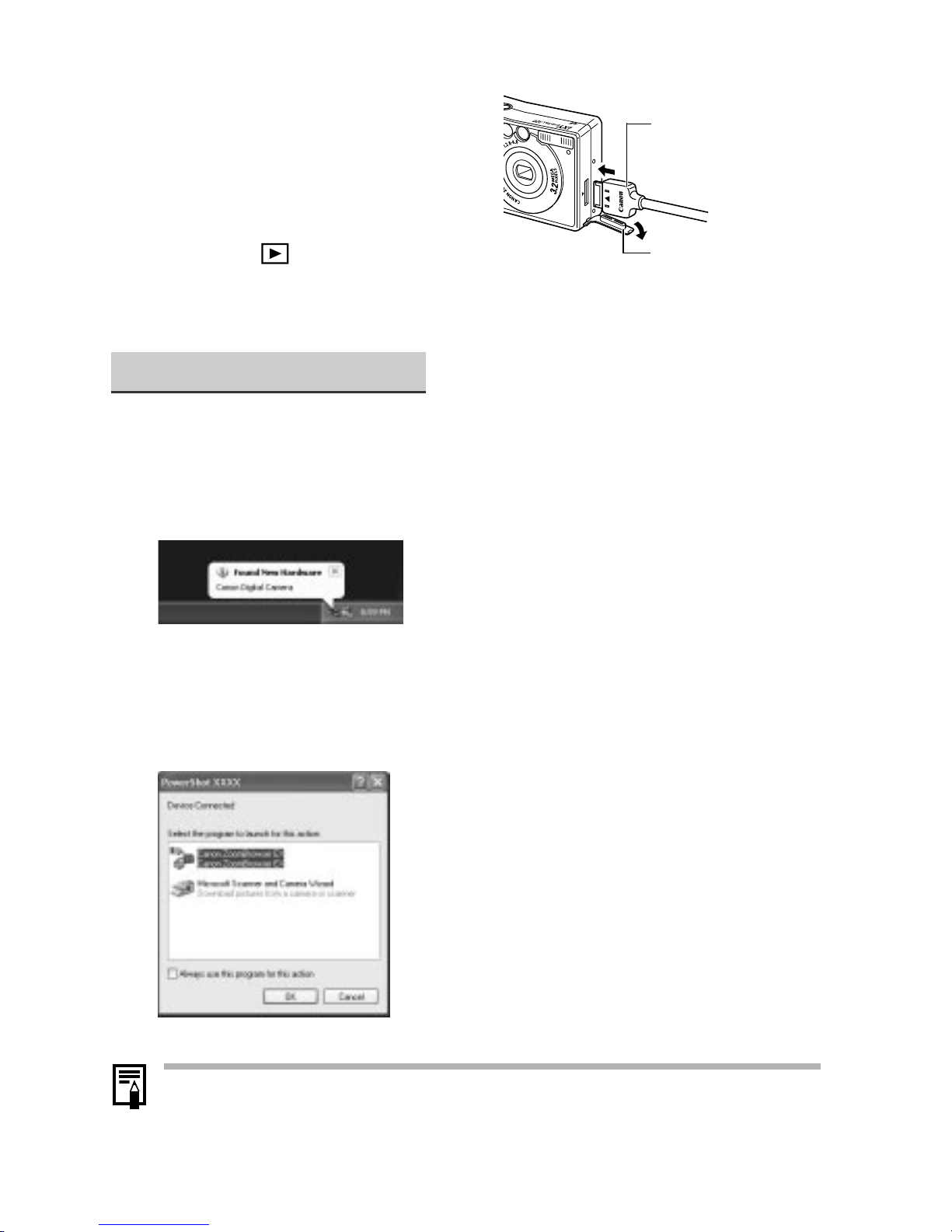

• After a few moments, the following dialog will appear at the bottom right of
the screen and the WIA driver will automatically install.
• After installation, the Event dialog will appear, allowing you to select an
application program to start.
2
Select an application to start.
• Select [Canon ZoomBrowser EX] and click [OK].
• With Windows XP, the Event dialog does not appear the first time the camera is
connected after computer start-up. If this happens, see Downloading and Saving
Images from the Camera on page 20.
2. USB cable
Insert the connector
until it clicks.
1. Terminal cover
2
Connect the USB cable to the
camera’s Digital terminal.
• Open the terminal cover and
connect the cable.
3
Set the camera's mode
switch to and turn on the
power.

20
■Windows 2000/ Windows Me/ Windows 98
1
Install the driver.
• After a few moments, the Add New Hardware Wizard will appear and
automatically install the TWAIN driver (for Windows 98 and Windows 2000) or
the WIA driver (for Windows Me).
• After installation, the Event dialog will appear, allowing you to select an
application program to start.
2
Select an application to start.
• Select [Canon ZoomBrowser EX] and click [OK].
• ZoomBrowser EX starts; the Camera Window opens and displays the camera
images as thumbnails (small images).
Downloading and Saving Images from the Camera
1

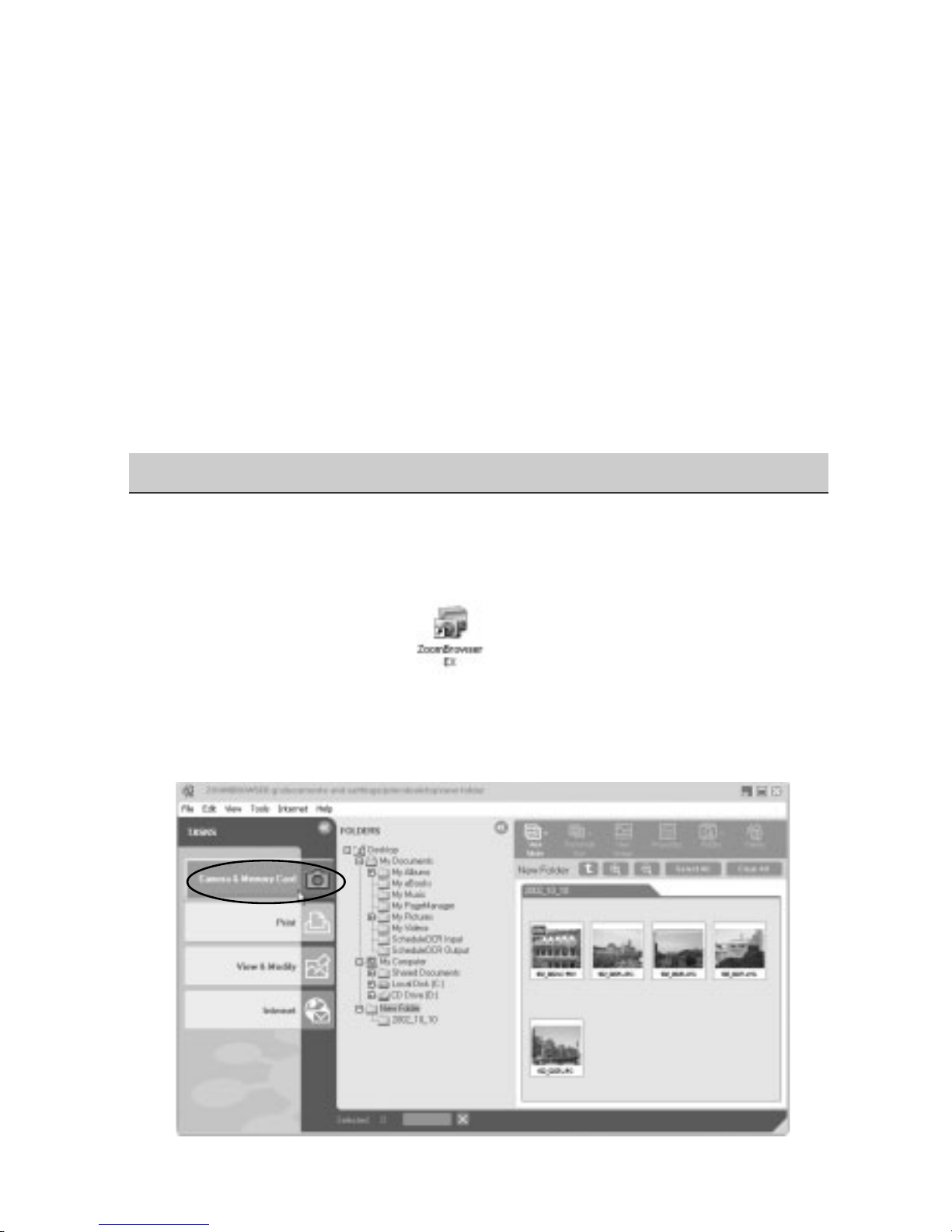

Start ZoomBrowser EX.
• Double-click the [ZoomBrowser EX] icon on the desktop.
2
Click [Camera & Memory Card] and [Browser & Download
Images].
