Canon REBEL SL1 EOS 100D User manual

CaHOH

,,,_i_i!i_i_i_iiiii!ii!i!ii!_;ii_i!i!i_i_ilii_ ,_,_ili_i_iiii_!i!i_!_!i_i_Ji!_i_i_iiiii_iiii_
Customizing the
Camera
You can customize various camera functions to suit
your picture-taking preferences with Custom Functions.
Custom Functions can be set and used only in Creative
Zone modes.

Setting Custom Functions _"
......iii i!ii
Select [Custom Functions (C.Fn)].
Underthe[t'4] tab, select[Custom
Functions (C.Fn)], thenpress
<SET>.
Custom Function number Select the Custom Function
number.
Press the <<> <1_> keys to select
the Custom Function number, then
press <SET>.
,iiii!!ii!!!!ii iiiii
Change the setting as desired.
Press the <A> <¥> keys to select
the desired setting (number), then
press <SET>.
Repeat steps 2 and 3 if you want to
set other Custom Functions.
At the bottom of the screen, the
current Custom Function settings are
indicated below the respective
function numbers.
Exit the setting.
Press the <MENU > button.
The screen for step 1 will reappear.
Under [_,4: Clear settings], select [Clear all Custom Func. (C.Fn)] to
clear all the Custom Function settings (p.227).
298

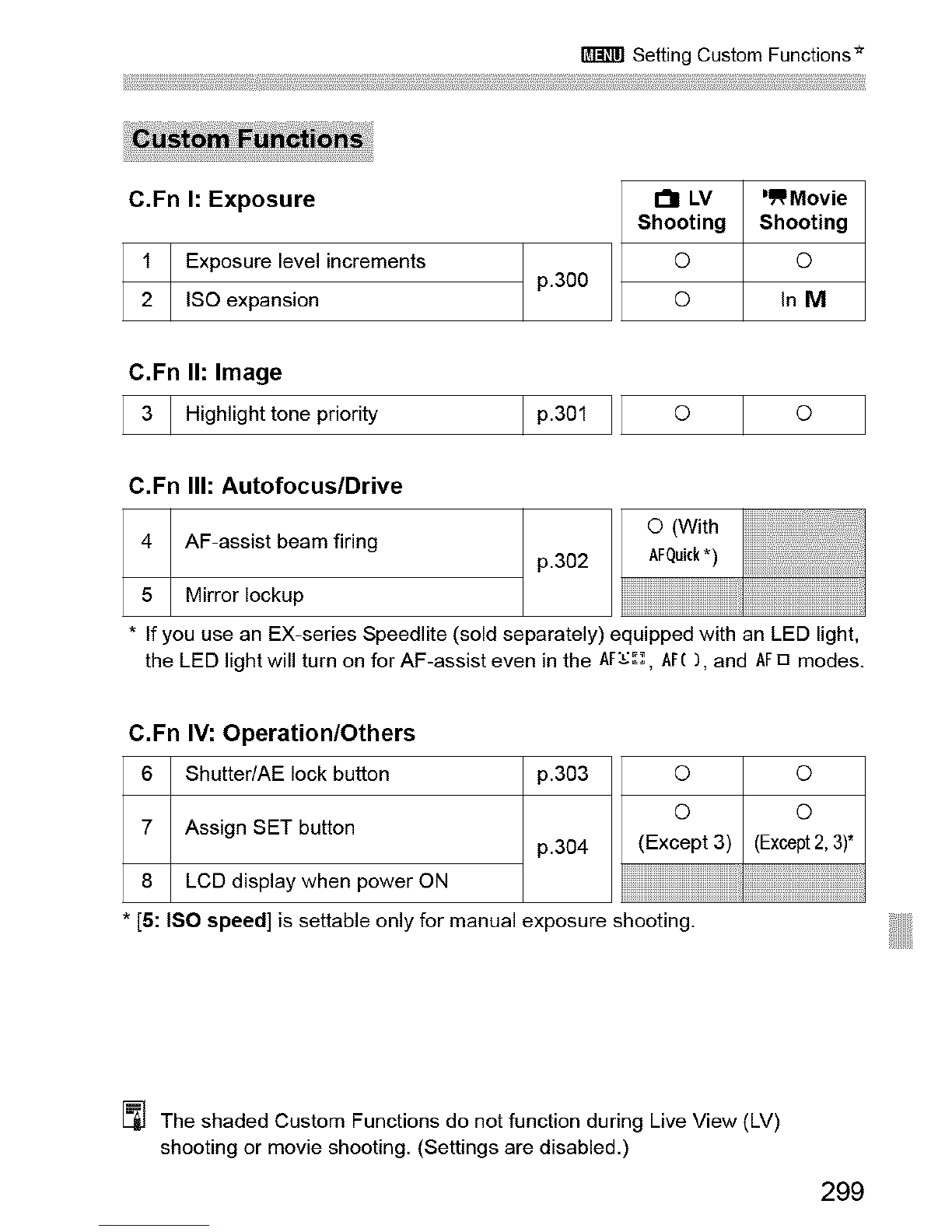

Setting Custom Functions*
C.Fn I: Exposure
1 Exposure level increments O
p.3O0
2 ISO expansion O
'_Movie
Shooting
O
In M
C,Fn I1: Image
I3IHighlighttonepriority Ip30111o I
C,Fn II1: Autofocus/Drive o(With
4 AF-assist beam firing p.302 AFQuick*)
5 Mirror Iockup
* If you use an EX-series Speedlite (sold separately) equipped with an LED light,
the LED light will turn on for AF-assist even in the AF_:_ AF(), and AFu modes.
C.Fn IV: Operation/Others
6 Shutter/AE lock button p.303 O
O O
7 Assign SET button p.304 (Except 3) (Except2, 3)*
8 LCD display when power ON
* [5: ISO speed] is settable only for manual exposure shooting.
[_ The shaded Custom Functions do not function during Live View (LV)
shooting or movie shooting. (Settings are disabled.)
299

Custom Function Settings _
Custom Functions are organized into four groups based on the function
type: C.Fn I: Exposure, C.Fn I1:Image, C.Fn II1:Autofocus/Drive, C.Fn
IV: Operation/Others.
0: 1/3-stop
1: 1/2-stop
Sets 1/2-stop increments for the shutter speed, aperture, exposure
compensation, AEB, flash exposure compensation, etc. This is
effective when you prefer to control the exposure in less fine
increments than 1/3-stop increments.
J_ With setting 1,the exposurelevel will bedisplayed inthe viewfinder and on
the LCD monitor as shown below.
=@ =,p_= o=
0: Off
1: On
When you set the ISO speed, you will be able to set "H"
(equivalent to ISO 25600) for still photos and "H" (equivalent to
ISO 12800) for movies. Note that if [C.Fn-3: Highlight tone
priority] is set to [1: Enable], "H" cannot be set.
300

Custom Function Settings *
0: Disable
1:Enable
Improves the highlight detail. The dynamic range is expanded from
the standard 18% gray to bright highlights. The gradation between
the grays and highlights becomes smoother.
, With setting 1,the Auto Lighting Optimizer (p.130) is automatically set to
[Disable] and the setting cannot be changed.
With setting 1, noise (grainy image, banding, etc.) may become slightly
more pronounced than with setting 0.
[_] With setting 1, the settable range will be ISO 200 - ISO 12800 (up to ISO
6400 for movies).
Also, the <D+> icon will be displayed on the LCD monitor and in the
viewfinder when highlight tone priority is enabled.
301

Custom Function Settings*

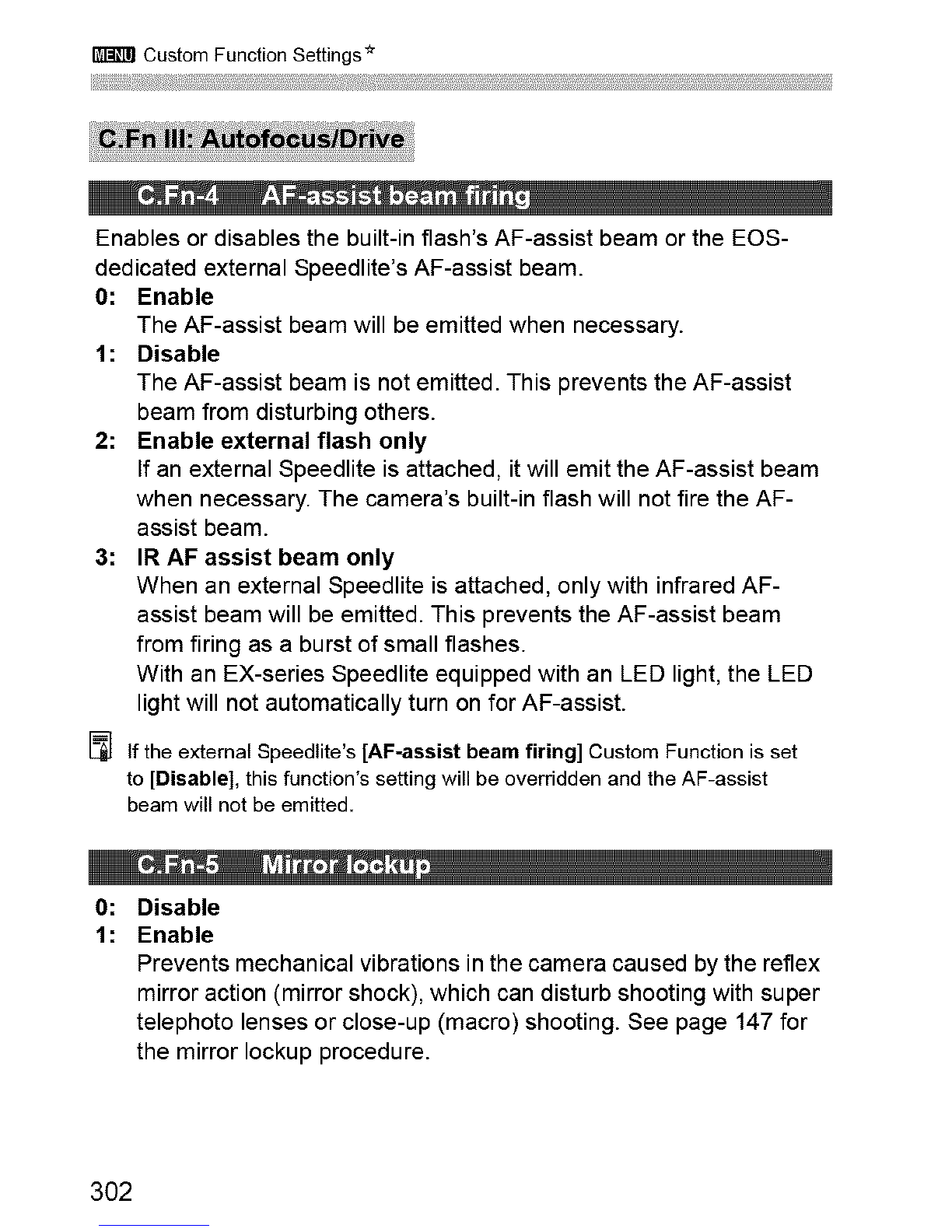

Enables or disables the built-in flash's AF-assist beam or the EOS-
dedicated external Speedlite's AF-assist beam.
0: Enable
The AF-assist beam will be emitted when necessary.
1: Disable
The AF-assist beam is not emitted. This prevents the AF-assist
beam from disturbing others.
2: Enable external flash only
If an external Speedlite is attached, it will emit the AF-assist beam
when necessary. The camera's built-in flash will not fire the AF-
assist beam.
3: IR AF assist beam only
When an external Speedlite is attached, only with infrared AF-
assist beam will be emitted. This prevents the AF-assist beam
from firing as a burst of small flashes.
With an EX-series Speedlite equipped with an LED light, the LED
light will not automatically turn on for AF-assist.
Ifthe external Speedlite's[AF-assist beam firing] Custom Functionis set
to [Disable], this function's settingwill be overridden andthe AF-assist
beam wilt notbe emitted.
0: Disable
1: Enable
Prevents mechanical vibrations in the camera caused by the reflex
mirror action (mirror shock), which can disturb shooting with super
telephoto lenses or close-up (macro) shooting. See page 147 for
the mirror Iockup procedure.
302

Custom Function Settings *

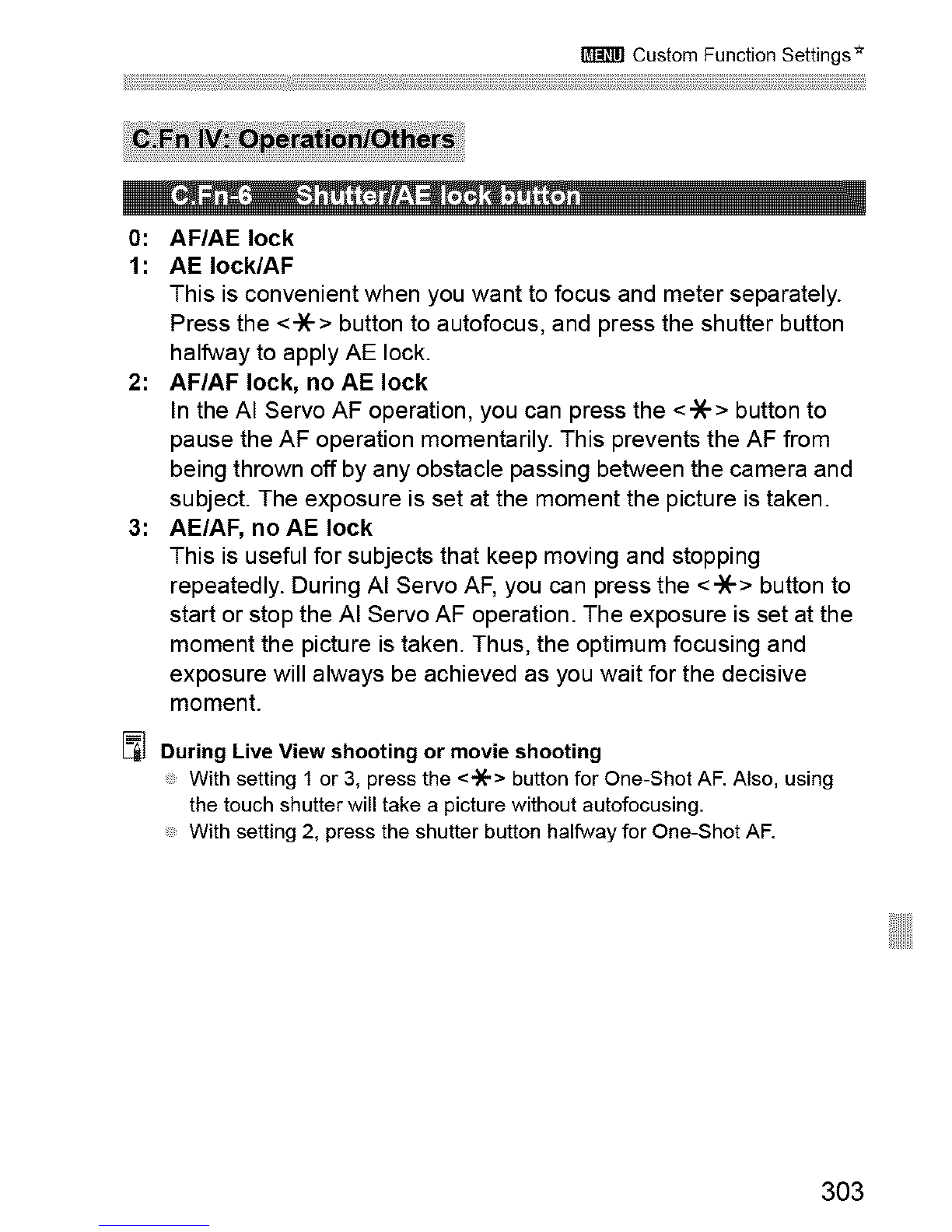

0: AF/AE lock
1: AE Iock/AF
This is convenient when you want to focus and meter separately.
Press the <-X-> button to autofocus, and press the shutter button
halfway to apply AE lock.
2: AF/AF lock, no AE lock
In the AI Servo AF operation, you can press the <-X-> button to
pause the AF operation momentarily. This prevents the AF from
being thrown off by any obstacle passing between the camera and
subject. The exposure is set at the moment the picture is taken.
3: AE/AF, no AE lock
This is useful for subjects that keep moving and stopping
repeatedly. During AI Servo AF, you can press the <-X-> button to
start or stop the AI Servo AF operation. The exposure is set at the
moment the picture is taken. Thus, the optimum focusing and
exposure will always be achieved as you wait for the decisive
moment.
[_ During LiveView shooting or movie shooting
With setting 1or 3, press the <")('> buttonfor One-ShotAF.Also, using
thetouch shutter will take apicture without autofocusing.
With setting2, press the shutter buttonhalfway for One-Shot AF.
303

Custom Function Settings*

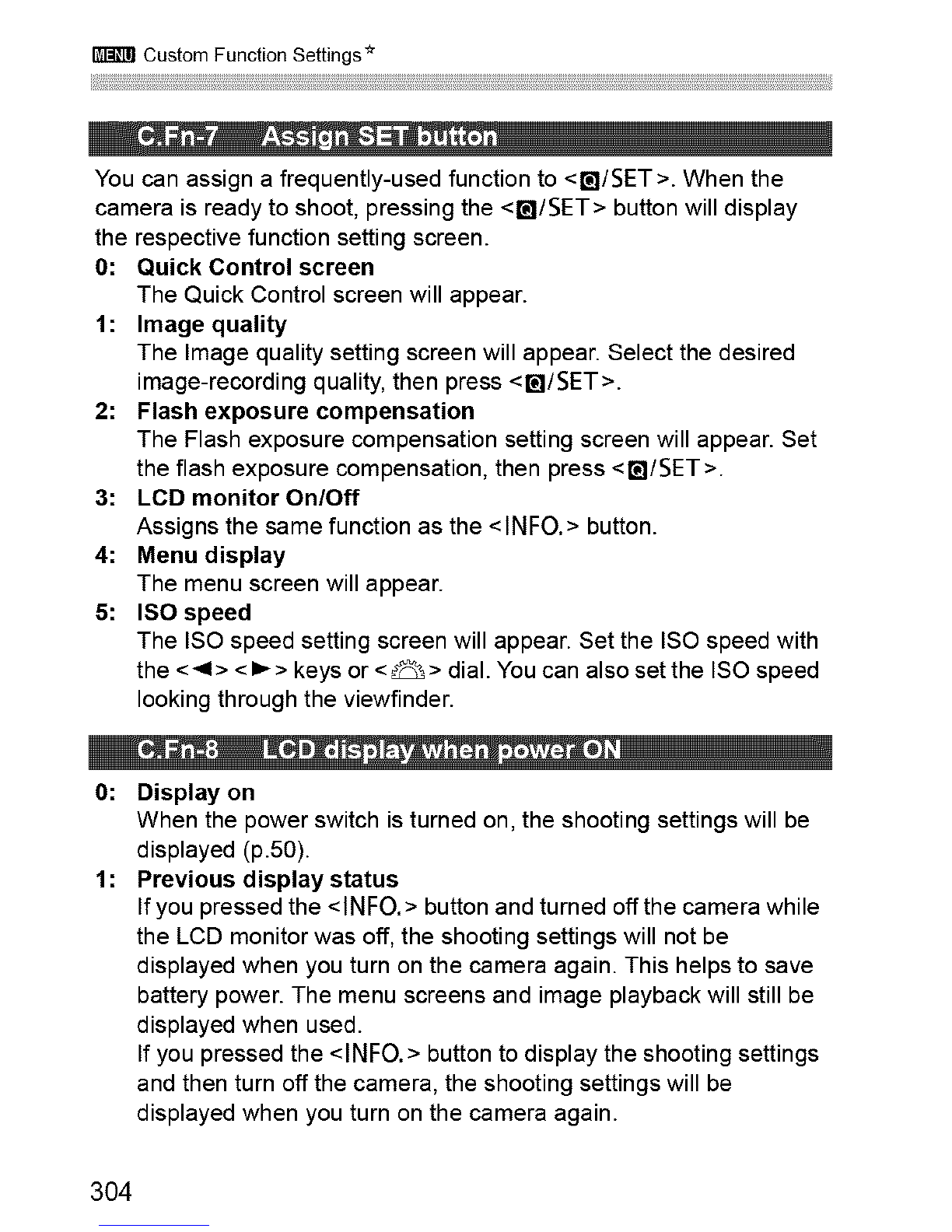

± o, =l •l_.l I
You can assign a frequently-used function to <B/SET>. When the
camera is ready to shoot, pressing the <_I/$ET> button will display
the respective function setting screen.
0: Quick Control screen
The Quick Control screen will appear.
1: Image quality
The Image quality setting screen will appear. Select the desired
image-recording quality, then press <I_I/$ET>.
2: Flash exposure compensation
The Flash exposure compensation setting screen will appear. Set
the flash exposure compensation, then press <I_I/$ET>.
3: LCD monitor On/Off
Assigns the same function as the <INFO.> button.
4: Menu display
The menu screen will appear.
5: ISO speed
The ISO speed setting screen will appear. Set the ISO speed with
the <'4 >< I_ > keys or <_>dial. You can also set the ISO speed
looking through the viewfinder.
0: Display on
When the power switch is turned on, the shooting settings will be
displayed (p.50).
1: Previous display status
If you pressed the <INFO.> button and turned off the camera while
the LCD monitor was off, the shooting settings will not be
displayed when you turn on the camera again. This helps to save
battery power. The menu screens and image playback will still be
displayed when used.
If you pressed the <INFO.> button to display the shooting settings
and then turn off the camera, the shooting settings will be
displayed when you turn on the camera again.
3O4

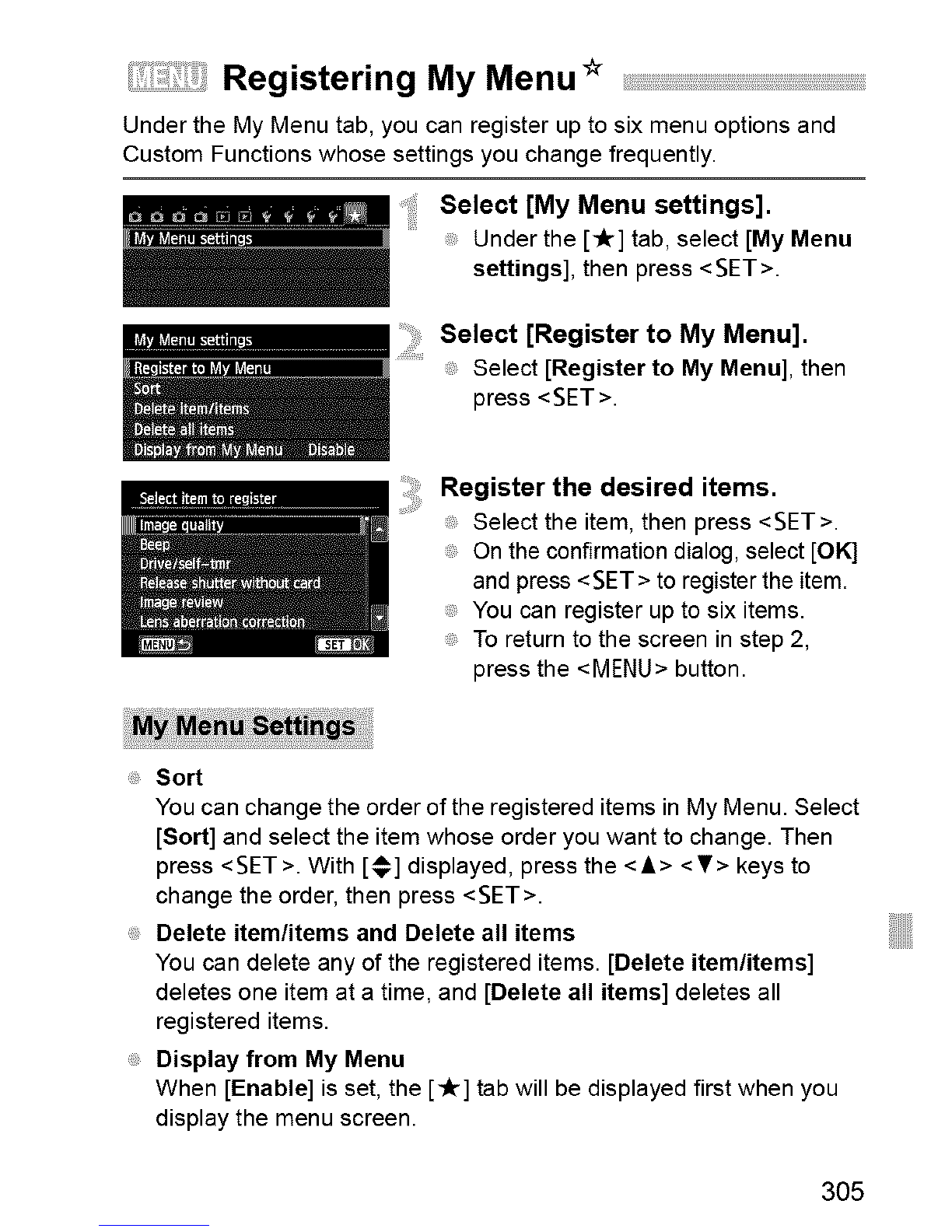

Registering My Menu "_
Under the My Menu tab, you can register up to six menu options and
Custom Functions whose settings you change frequently.
Select [My Menu settings].
Under the [_-] tab, select [My Menu
settings], then press <SET>,
Select [Register to My Menu].
Select [Register to My Menu], then
press <SET >.
Register the desired items.
Select the item, then press <SET>.
On the confirmationdialog, select [OK]
and press <SET> to register the item.
You can register up to six items.
To return to the screen in step 2,
press the <MENU> button.
Sort
You can change the order of the registered items in My Menu. Select
[Sort] and select the item whose order you want to change. Then
press <SET>. With [_] displayed, press the <&> <¥> keys to
change the order, then press <SET>.
Delete item/items and Delete all items
You can delete any of the registered items. [Delete item/items]
deletes one item at a time, and [Delete all items] deletes all
registered items.
Display from My Menu
When [Enable] is set, the [_] tab will be displayed first when you
display the menu screen.
305

Reference
This chapter provides reference information for camera
features, system accessories, etc.
[_] Certification Logo
Under the [ft4] tab, if you select [Certification Logo Display]
and press < SET >, some of the Iogos of the camera's certifications
will appear. Other certification Iogos can be found in this
Instruction Manual, on the camera body, and on the camera's
package.

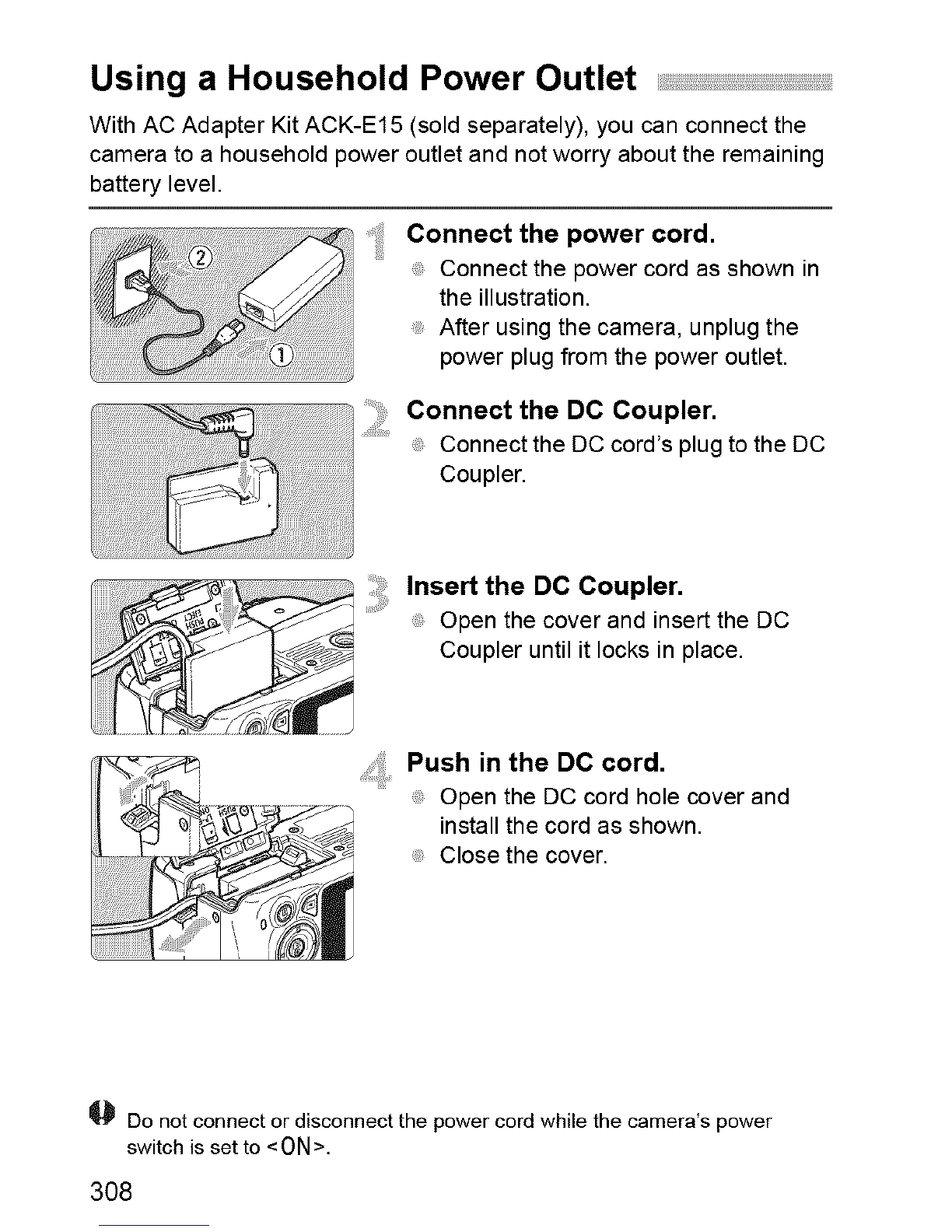

Using a Household Power Outlet
With AC Adapter Kit ACK-E15 (sold separately), you can connect the
camera to a household power outlet and not worry about the remaining
battery level. ......iiiiii!i!i
Connect the power cord.
Connect the power cord as shown in
the illustration.
After using the camera, unplug the
power plug from the power outlet.
Connect the DC Coupler.
Connect the DC cord's plug to the DC
Coupler.
Insert the DO Coupler.
Open the cover and insert the DC
Coupler until it locks in place.
Push in the DC cord.
Open the DC cord hole cover and
install the cord as shown.
;; Close the cover.
Do not connect or disconnect the power cord while the camera's power
switch is set to <ON>.
308

Remote Control Shooting
This remote controller enables you to take pictures wirelessly up to
approx. 5 meters/16.4 feet from the camera. You can either shoot
immediately or use a 2-sec. delay.
Remote control
Set the self-timer to <_®> (p.110).
Point the remote controller toward the camera's remote control
sensor and press the transmit button.
The camera will autofocus.
When focus is achieved, the self-timer lamp will light up and the
picture will be taken.
Fluorescent or LED lighting may cause camera misoperation by triggering
the shutter inadvertently. Try to keep the camera away from such light
sources.
Remote Controller RC-I/RC-5 (sold separately) can also be used.
Remote control shooting is also possible with an EX-series Speedlite
equipped with a remote-release function.
The Remote Controller can also be used during movie shooting (p.181).
Remote Controller RC-5 cannot be used to take still photos in the movie
shooting mode. 309

Remote Control Shooting
Remote Switch RS-60E3 (sold separately) comes with an approx. 60
cm/2.0 ft cord. When connected to the camera's remote control
terminal, it can be pressed halfway and completely, just like the shutter
button.
When you use the self-timer, bulb, or Remote Switch and do not look
through the viewfinder, stray light entering the viewfinder can cause the
image to look dark. To prevent this, use the eyepiece cover (p.29)
attached to the camera strap.
During Live View shooting and movie shooting, attaching the
eyepiece cover is unnecessary.
Detach the eyecup.
Push the bottom of the eyecup to
detach.
Attach the eyepiece cover.
Slide the eyepiece cover down into
the eyepiece groove to attach it.
After taking the picture, detach the
eyepiece cover and attach the
eyecup by sliding it down into the
eyepiece groove.
310

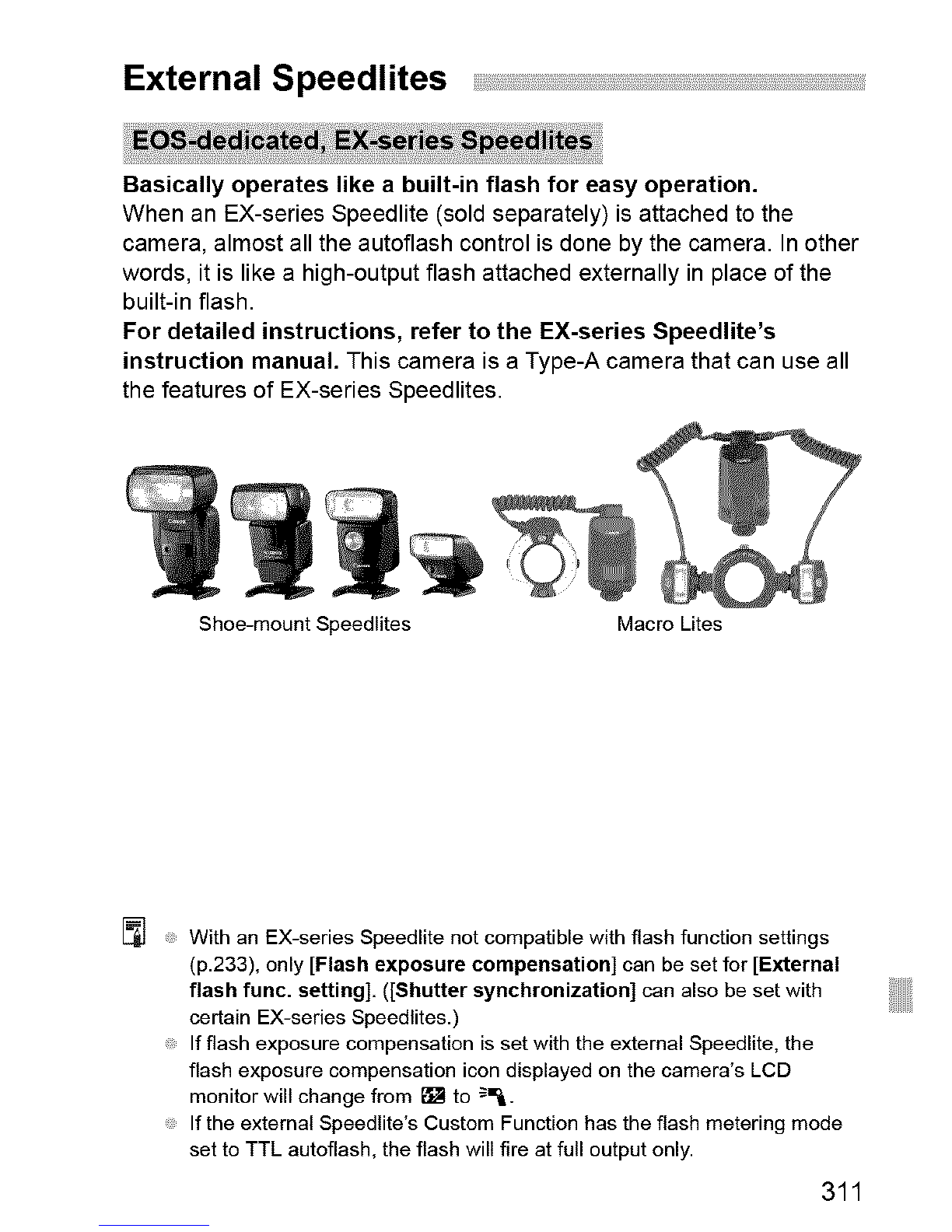

External Speedlites
i_!;i!¸_i_i_:i_;_i_;_i_;_i_;_i_;_i_;_i_;_i_;_i_;_i_;__i__;!il,i_iii_i_!_i_ii_iiii_i;__i_iii_iii_i_!_i_i!_i_i!_i_i!_i_i!_i_i!_;!,_;!,_,i_il::_ii_!ii_!ii_!ii_i_ii!i_i!_;;_:_,'_;_i_;_i_;_i_;_i_;__;_i,_!i__',_!i!_iJ
Basically operates like a built-in flash for easy operation,
When an EX-series Speedlite (sold separately) is attached to the
camera, almost all the autoflash control is done by the camera. In other
words, it is like a high-output flash attached externally in place of the
built-in flash.
For detailed instructions, refer to the EX-series Speedlite's
instruction manual, This camera is a Type-A camera that can use all
the features of EX-series Speedlites.
Shoe-mount Speedlites Macro Lites
[_] With an EX-series Speedlite not compatible with flash function settings
(p.233), only [Flash exposure compensation] can be set for [External
flash func. setting]. (]Shutter synchronization] can also be set with
certain EX-series Speedlites.)
If flash exposure compensation isset with the external Speedlite, the
flash exposure compensation icon displayed on the camera's LCD
monitor wilt change from _ to _=_.
If the external Speedlite's Custom Function has the flash metering mode
set to TTL autoflash, the flash will fire at full output only.
311

External Speedlites
With an EZIEIEGIMLITL-series Speedlite set in TTL or A-TTL
autoflash mode, the flash can be fired at full output only,
Set the camera's shooting mode to <i> (manual exposure) or
<AM> (aperture-priority AE) and adjust the aperture setting before
shooting.
When using a Speedlite that has manual flash mode, shoot in the
manual flash mode.
Sync Speed
The camera can synchronize with compact, non-Canon flash units at
1/200 sec. or slower shutter speeds.
Use a sync speed slower than 1/200 sec.
Be sure to test the flash unit beforehand to make sure it synchronizes
properly with the camera.
Cautions for Live View Shooting
Anon-Canon flash will not fire during Live View shooting.
lh If the camera is used with a flash unit or flash accessory dedicated to
another camera brand, the camera may not operate properly and
malfunction may result.
, Do not attach a high-voltage flash unit on the camera's hot shoe. It may
not fire.
312

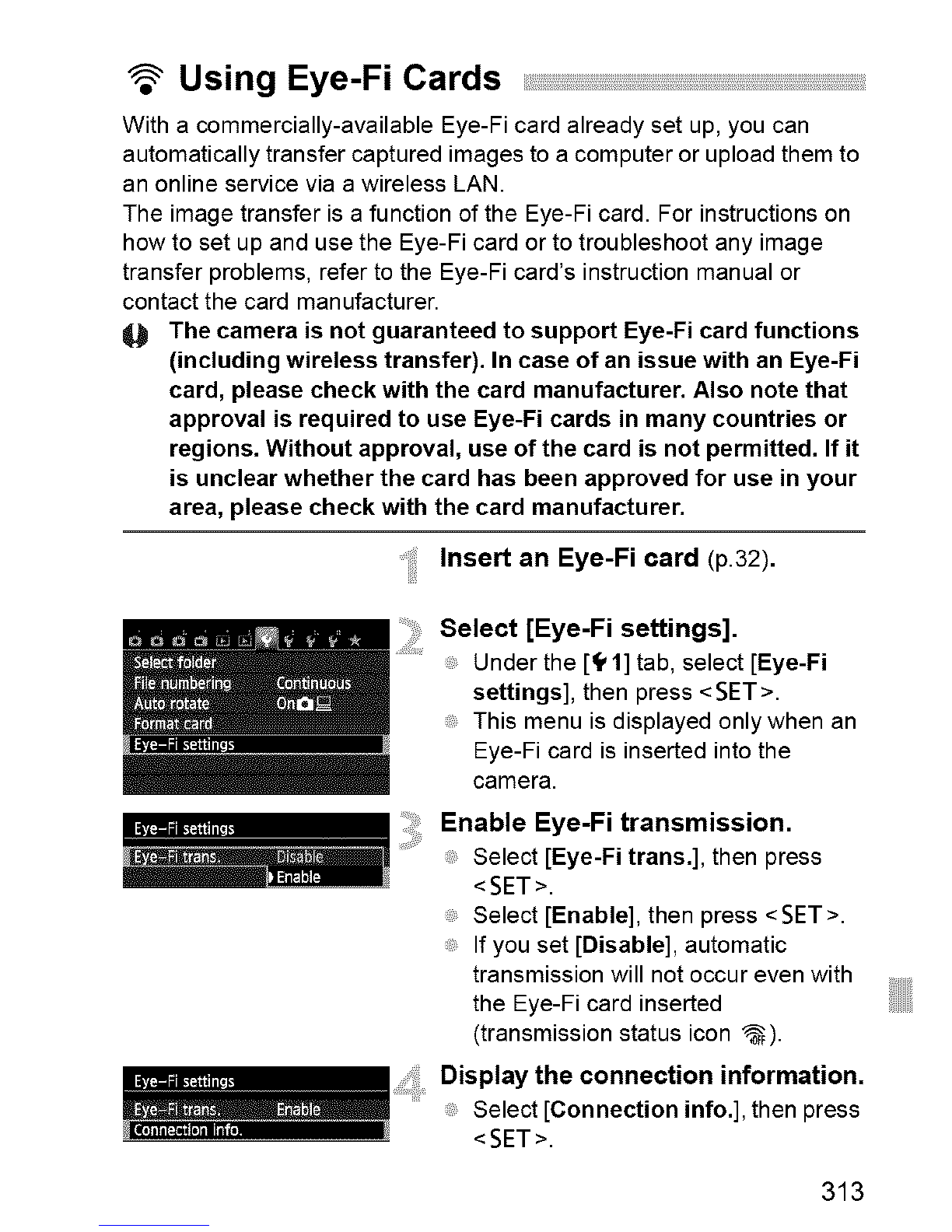

Using Eye-Fi Cards
With a commercially-available Eye-Fi card already set up, you can
automatically transfer captured images to a computer or upload them to
an online service via a wireless LAN.
The image transfer is a function of the Eye-Fi card. For instructions on
how to set up and use the Eye-Fi card or to troubleshoot any image
transfer problems, refer to the Eye-Fi card's instruction manual or
contact the card manufacturer.
The camera is not guaranteed to support Eye-Fi card functions
(including wireless transfer). In case of an issue with an Eye-Fi
card, please check with the card manufacturer. Also note that
approval is required to use Eye-Fi cards in many countries or
regions. Without approval, use of the card is not permitted. If it
is unclear whether the card has been approved for use in your
area, please check with the card manufacturer.
Insert an Eye-Fi card (p.32).
Select [Eye-Fi settings].
Under the [_'1] tab, select [Eye-Fi
settings], then press <SET>,
This menu is displayed only when an
Eye-Fi card isinserted into the
camera.
Enable Eye-Fi transmission.
Select [Eye-Fi trans.], then press
<SET>.
Select [Enable], then press <SET>.
If you set [Disable], automatic
transmission will not occur even with
the Eye-Fi card inserted
(transmission status icon _).
.... Display the connection information.
Select [Connection info,], then press
<SET>.
313

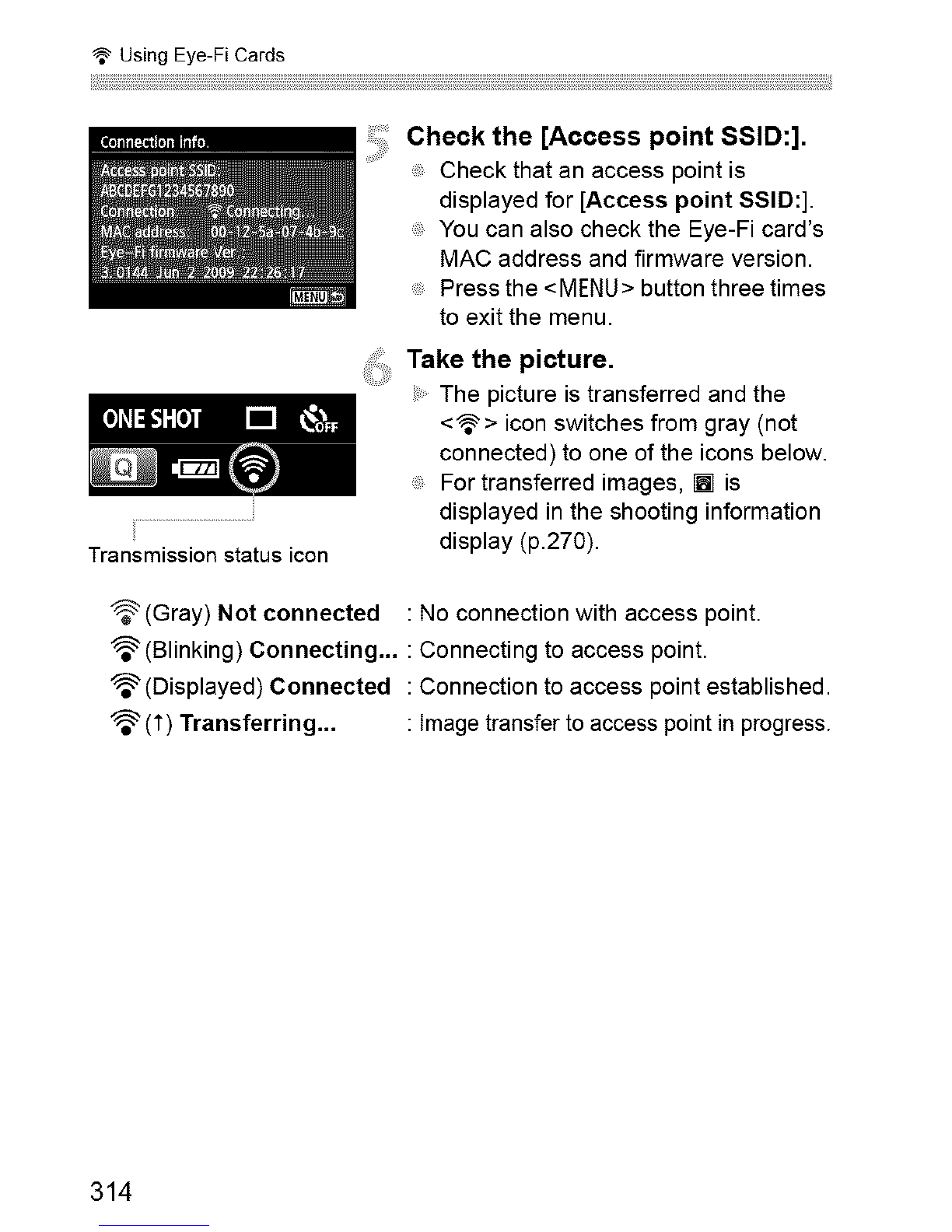

Using Eye-Fi Cards
Transmission status icon
i!i!i!!iiZii! i:iiii ; i
Check the [Access point SSID:],
Check that an access point is
displayed for [Access point SSlD:].
You can also check the Eye-Fi card's
MAC address and firmware version.
Press the <MENU> button three times
to exit the menu.
Take the picture.
The picture is transferred and the
<_" > icon switches from gray (not
connected) to one of the icons below.
For transferred images, [] is
displayed in the shooting information
display (p.270).
_'(Gray) Not connected : No connection with access point.
"_(Blinking) Connecting,,, : Connecting to access point.
"_(Displayed) Connected : Connection to access point established.
"_ (t) Transferring,,, : Image transfer to access point in progress.
314

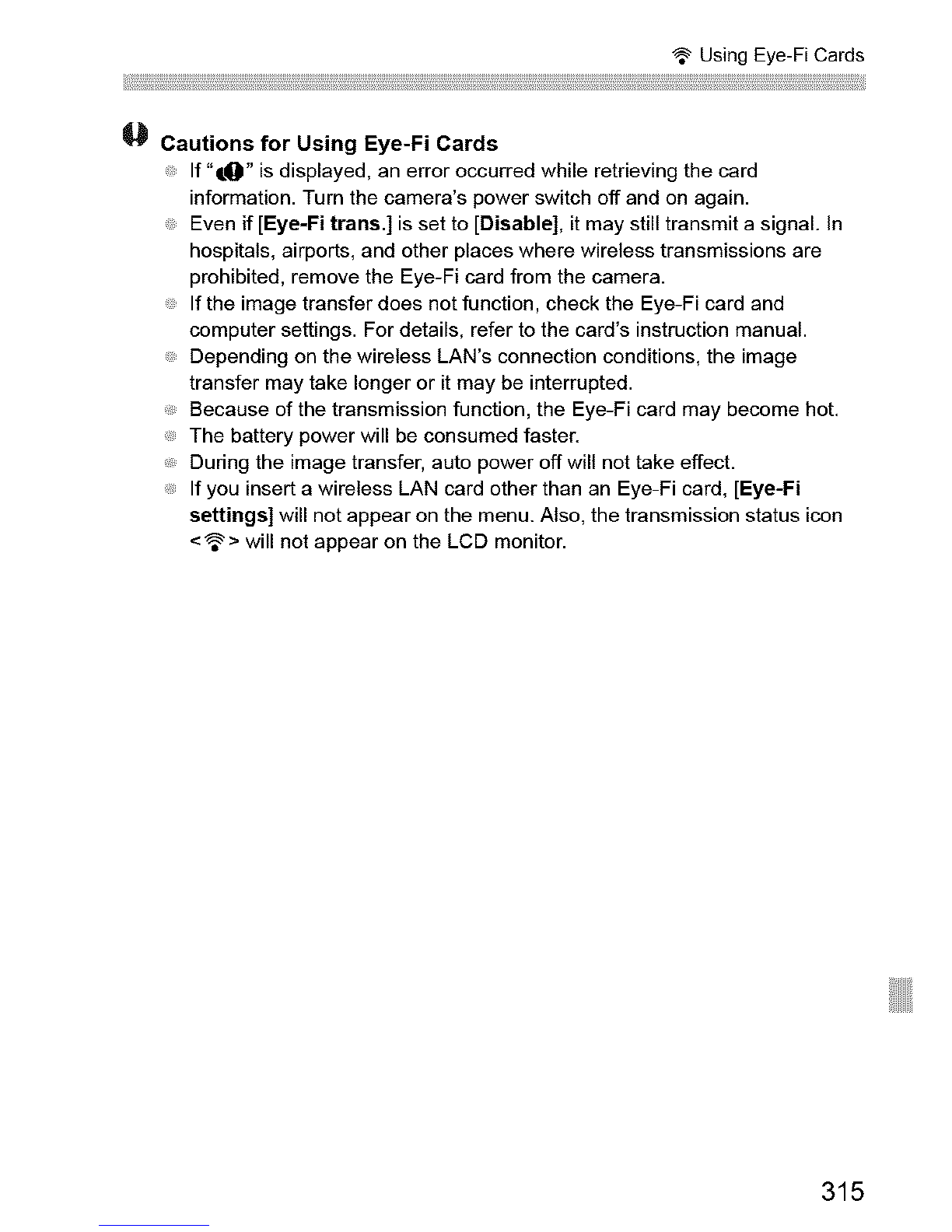

_" Using Eye-Fi Cards
Cautions for Using Eye-Fi Cards
If "tO" is displayed, an error occurred while retrieving the card
information. Turn the camera's power switch off and on again.
Even if [Eye-Fi trans.] isset to [Disable], it may still transmit a signal. In
hospitals, airports, and other places where wireless transmissions are
prohibited, remove the Eye-Fi card from the camera.
If the image transfer does not function, check the Eye-Fi card and
computer settings. For details, refer to the card's instruction manual.
Depending on the wireless LAN's connection conditions, the image
transfer may take longer or it may be interrupted.
Because of the transmission function, the Eye-Fi card may become hot.
The battery power will be consumed faster.
During the image transfer, auto power off will not take effect.
If you insert a wireless LAN card other than an Eye-Fi card, [Eye-Fi
settings] will not appear on the menu. Also, the transmission status icon
<_> will not appear on the LCD monitor.
315
