Canon CanoScan D1230UF User manual

For Windows
ScanGear Toolbox 2.6
for CanoScan Color Image Scanners
User’s Guide
ScanGear Toolbox 2.6
for CanoScan Color Image Scanners
User’s Guide

2
Table of Contents
ScanGear Toolbox Features .............................................................................. 3
Operating Requirements.................................................................................. 4
Installing/Uninstalling the Program .................................................................. 5
Installing ................................................................................................ 5
Uninstalling ............................................................................................ 6
Starting and Closing ScanGear Toolbox 8
Starting ScanGear Toolbox ..................................................................... 8
Closing ScanGear Toolbox ...................................................................... 8
ScanGear Toolbox Functions 9
The Toolbar ............................................................................................ 9
Scanning 10
Scanning Instructions ........................................................................... 10
Scan Settings Dialog ............................................................................ 12
Easy Scan 14
Easy Scan Instructions .......................................................................... 14
Easy Scanning Settings ......................................................................... 16
Operating Instructions for Each Function 21
Fax ....................................................................................................... 21
Mail ..................................................................................................... 22
Copy .................................................................................................... 24
Save ..................................................................................................... 26
Scan (1-3) ............................................................................................ 27
Linking Drivers/Application Programs 28
Linkable Drivers/Application Programs ................................................. 28
Linking Instructions .............................................................................. 29
Setting the Scanner’s Start Button 30
Index ............................................................................................................ 32
• CanoScan and ScanGear are trademarks of Canon Inc.
• Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation in the U.S.
and other countries.
Copyright c 2001 Canon Inc. All rights reserved.

3
ScanGear Toolbox Features
ScanGear Toolbox is an application program that makes Canon scanners even more
convenient and easy to use. It simplifies tasks such as copying and emailing images.
With ScanGear Toolbox, you can scan without having to adjust the driver settings each time.
The copy function, for example, allows you to scan and send an image directly to a printer in a
few simple steps. There is also the Easy Scan function, which is convenient for scanning
repeatedly using the same settings.
ScanGear Toolbox comes with four preset function buttons-copy, fax, mail and save-and three
programmable scan buttons that can be linked to other application programs, such as image
editing software.
This program can handle films (depending upon the scanner model and options) in addition to
photos and documents.
ScanGear Toolbox can be started with the scanner’s Start Button or the Film Scan Button on
the top of an optional Film Adapter Unit (depending upon the scanner model and options).

4
Operating Requirements
To operate, ScanGear Toolbox requires one of the following operating systems to be installed
on the computer. Please note that some scanner models will not work with all the operating
systems listed.
• Windows 95*
• Windows 98
• Windows Millenium Edition (Windows Me)
• Windows NT Workstation 4.0* (Windows NT)
• Windows 2000 Professional (Windows 2000)
*Cannot be used with scanners using the USB interface.
You will also require sufficient free hard disk space for scanning images.

5
Installing/Uninstalling the Program
This section explains how to install ScanGear Toolbox from the CanoScan Setup CD-ROM
supplied with your scanner. To install a copy of the program that has been downloaded, please
see the instructions on the web site for the downloaded file.
• You must log on as the Administrator to install or uninstall the program into Windows
NT or Windows 2000.
• It is advisable to install the driver software for your scanner and printer before
installing ScanGear Toolbox.
Installing
• The following installation procedures are not required if you have already installed
ScanGear Toolbox according to the instructions in the Quick Start Guide supplied with
your scanner.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1.
Set the CanoScan Setup CD-ROM that was supplied with your scanner
into the CD-ROM drive.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
2.
In the CD-ROM’s main menu, click the [Install the Software] button.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
3.
Confirm that a check mark appears beside [ScanGear Toolbox] in the
[Install] window.
• If there is no check mark, click the box to insert one.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
4.
Click the [Start Installation] button and follow the onscreen
instructions.
• The installation will begin. When it finishes, ScanGear Toolbox will be added to
the Windows Start menu.

6
Uninstalling
The instructions for removing ScanGear Toolbox from your computer are explained using
examples from Windows Me.
Uninstalling from the Start Menu
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1.
Click the Windows [Start] menu and select [Programs], [Canon
ScanGear Toolbox 2.6] and [Uninstall ScanGear Toolbox 2.6].
Uninstalling from the Add/Remove Programs Properties Window
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1.
Click the Windows [Start] menu and select [Settings] and [Control
Panel] to open the Control Panel.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
2.
Double-click the [Add/Remove Programs] icon.

7
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

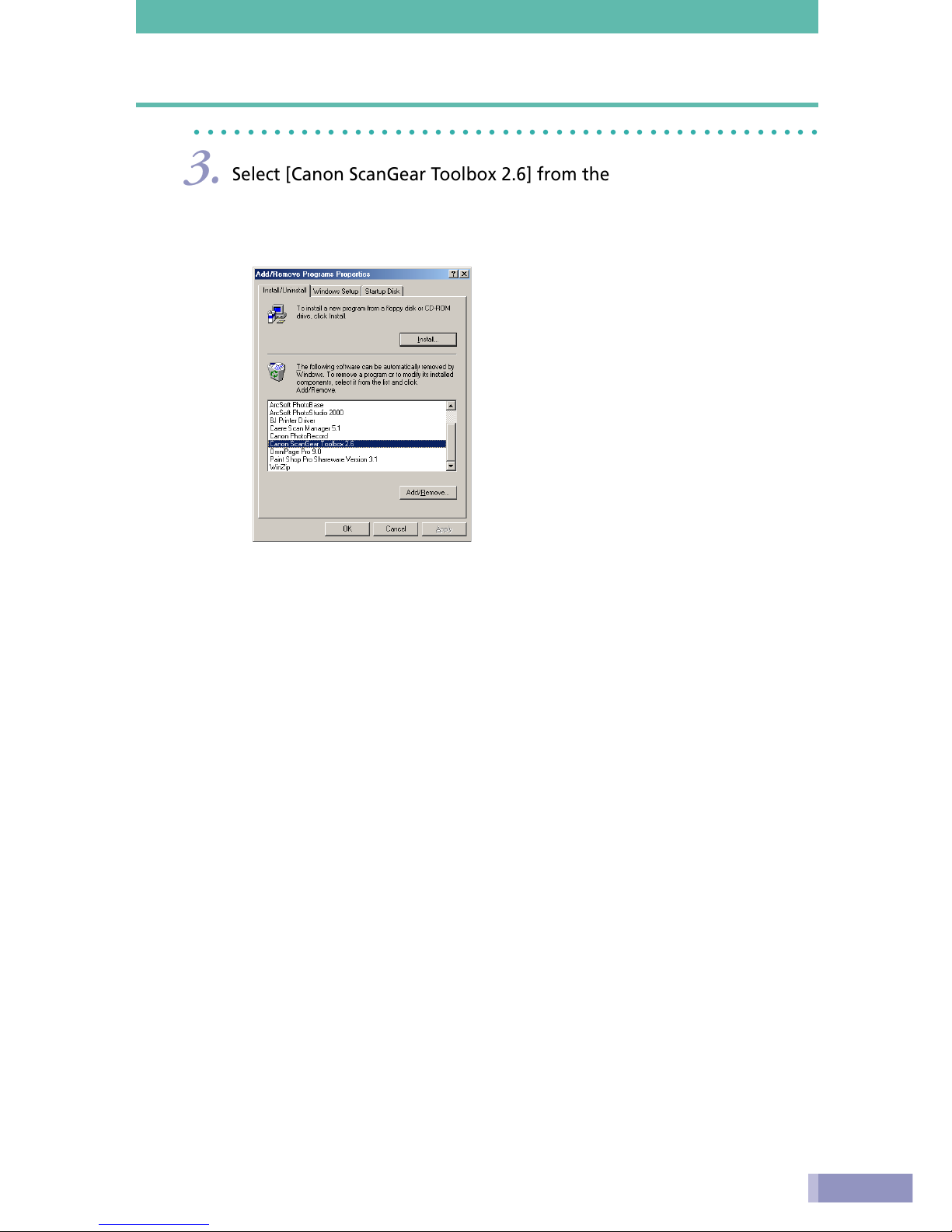

3.
Select [Canon ScanGear Toolbox 2.6] from the list and click the [Add/
Remove] button. ([Change/Remove] button for Windows 2000).
• Follow the onscreen instructions to complete the procedures.

8
Starting and Closing ScanGear Toolbox
Starting ScanGear Toolbox
Using the Scanner’s Start Button
Start ScanGear Toolbox by pressing the Start Button on the front of the scanner or the
Film Scan Button on the top of the Film Adapter Unit.
• The availability of the scanner’s Start Button or Film Adapter Unit’s Film Scan Button
will depend upon the scanner model in use.
• ScanGear Toolbox starts in platen mode when the scanner’s Start Button is pressed. If
you have a Film Adapter Unit equipped scanner, pressing its Film Scan Button will start
ScanGear Toolbox in film mode.
Starting ScanGear Toolbox Manually
Start ScanGear Toolbox with the following method if your scanner is not equipped with
a Start Button or Film Adapter Unit.
Click the Windows [Start] menu and select [Programs], [Canon ScanGear Toolbox 2.6]
and [ScanGear Toolbox 2.6].
• The ScanGear Toolbox toolbar will appear.
Closing ScanGear Toolbox
You can close ScanGear Toolbox with clicking (close box) at the upper right of the
toolbar.
Starting in Platen Mode
Starting in Film Mode

9
The following conditions are required for the buttons shown above to display and function.
Fax: A fax modem must be connected and its software installed.
Mail: A mail program that supports MAPI (p. 22) must be installed.
Copy: A printer must be connected and an appropriate driver installed.
Scan (1-3): The application programs provided on the CanoScan Setup CD-ROM must be
installed.
• Images sent to applications are limited to the Color (24 bit), Grayscale (8 bit) or Black
and White (1 bit) formats. ScanGear Toolbox does not support the Color (36/42/48
bit) or Grayscale (12/14/16 bit) modes.
• In film mode, the fax and mail functions are not available. OCR programs installed
from the CanoScan Setup CD-ROM are also not supported in this mode.
ScanGear Toolbox Functions
The Toolbar
Scanner
Select your scanner.
Mode
Select whether the scan is performed from the platen (platen
mode) or the Film Adapter Unit (film mode).
This option will not display with a scanner that does not
support a Film Adapter Unit.
Fax Button
Scans an image and sends it to the fax driver.
Mail Button
Scans an image and attaches it to a mail message.
Copy Button
Scans an image and sends it to a printer.
Save Button
Scans an image and saves it to a file.
Scan (1-3) Buttons
Scans an image and sends it to a linked
application program.
Easy Scan Button
Use these buttons to set
the settings for Easy
Scan (p. 14).
Link Button
Links the driver or
application program used
by each of the function
buttons (p. 29).

10
Scanning
Scanning Instructions
You can start a scan without starting the driver software simply by clicking a button on the
ScanGear Toolbox toolbar and specifying the scan conditions.
Try a Real Example
Use ScanGear Toolbox’s copy function when you wish to print a scanned image on a
printer.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1.
Press the Start Button on the front of the scanner.
ScanGear Toolbox will start.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
2.
Click the [Copy] button on the toolbar.
The Scan Settings dialog will appear.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
3.
Set the [Image type], [Image quality] and [Paper size], and click the
[OK] button.
The printer driver settings dialog will display.

11
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
4.
Set the paper settings and other desired settings and click the [OK]
button.
The scanner will start scanning the image and the printer will print it.
• If you select a function button other than fax or copy, the category allowing you to
select between the [Expert scanning] and [Quick and easy scanning] options will
appear in the dialog shown in Step 3. If you select [Expert scanning], the scanner
driver (ScanGear CS-U) will start and allow you to set the various settings for
scanning.

12
Scan Settings Dialog
Platen Mode
Determines whether or not the scanner
driver starts (only applicable to the mail,
save and scan (1-3) functions.
If [Expert scanning] is selected, the scanner driver
will start after you close the dialog. If [Quick and
easy scanning] is selected, the scan will start
directly after simple step settings.
Image type
Select Color, Grayscale or Black and White.
Image quality
Select a dpi setting from among 75/100/150/
180/200/300/360/400/600/720/1200.
Paper size
Sets the paper size.
Select from among A4, A5(P), A5(L), B5, Letter,
Executive, Statement(P), Statement(L), Businnes
card, L(P), L(L), LL(P), LL(L), Postcard(P), Postcard
(L) and Custom.
With the fax function, only the A4, B5 and
Letter sizes are supported.
Width and Height
Displays the paper size. When the
Custom paper size is selected, you
can input values in the boxes and
specify sizes not included among
the preset sizes.

13

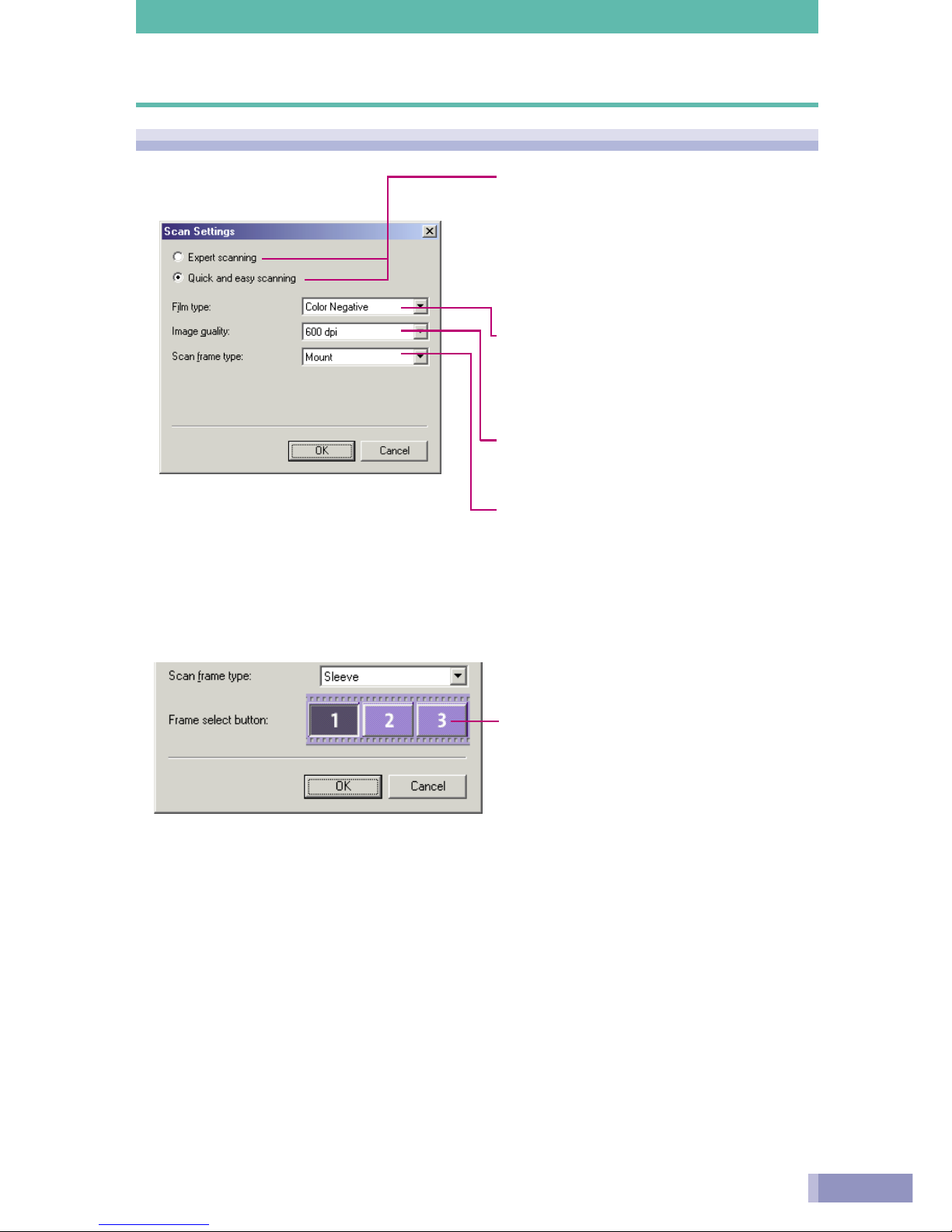

Determines whether or not the scanner
driver starts (only applicable to the save
and scan (1-3) functions.
If [Expert scanning] is selected, the scanner driver
will start after you close the dialog. If [Quick and
easy scanning] is selected, the scan will start
directly after simple step settings.
Film type
Select from among Color Negatives, Color
Positives, Monochrome Negatives, and
Monochrome Positives. ScanGear Toolbox only
supports 35 mm film (strips or slides).
Image quality
Select a dpi setting from 150/300/600/720/
1200/2400.
Scan frame type
(Your scanner model and optional equipment
will determine whether or not this category
appears.)
Select Sleeve or Mount.
Film Mode
Frame select button
You can select the frame(s) for scanning. If
more than one is selected, the selected function
(fax, copy, etc.) will be repeated as many times
as the number of frames selected. Please note
that with consecutive scans, the spaces
between frames on the film may be scanned
and produce vertical lines on the scanned
images. This occurs because the spaces
between frames vary slightly between films and
may cause the scan area to extend beyond the
image in the frame. If this occurs, place the
objective frame in the first position and scan
one frame at a time.
When 35 mm film is scanned without starting
up the driver software, the scanned image will
encompass slightly less than the entire image in
the frame.
If [Sleeve] is selected in the Scan frame type, then you can set the [Frame select button].

14
Easy Scan
Easy Scan Instructions
It is convenient to use the Easy Scan function when you wish to scan repeatedly with the same
settings.
Setting the Initial Settings
Once you set the Easy scan settings, you can scan several images using the same
settings with this function.
Copy (Print) Example
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1.
Press the Start Button on the front of the scanner.
ScanGear Toolbox will start.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
2.
Click the [Easy Copy] button.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
3.
After the confirmation dialog, the [Easy Copy Settings] dialog will
appear.
• Set the [Image type], [Image quality], [Paper size] and [Number of copies]
settings and click the [OK] button.

15
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
4.
The [Easy Copy] button on the toolbar will remain depressed.
Scanning with the Easy Scan Function
Copy Example
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1.
Click the [Copy] button or press the scanner’s Start Button.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
2.
The image will be scanned and sent to the printer.
• You can scan additional images simply by changing the item on the scanner
and repeating Step 1.
• Easy Scan can be performed as long as the [Easy] button remains depressed on the
toolbar.
• To cancel Easy Scan, click the [Easy] button again (when it appears to be depressed on
the toolbar). The button will return to its original state.
▲
Easy Scan Function Off
Easy Scan Function On

16
Easy Scan Settings
Platen Mode
In platen mode, the following dialog will appear when you click the [Easy] button under
each function while it is in the Off state. This can be used to set the settings for the
Easy Scan function. Once you have selected the settings, click the [OK] button. The
settings will be effective and the [Easy] button will remain depressed.
Fax/Copy Dialog
Image type
Select Color, Grayscale or Black and White.
Image quality
Fax: Select Standard (100 dpi) or Fine
(200 dpi)
Copy: Select Draft, Standard, High Quality
or Super-High Quality.
Paper size
Sets the paper size.
Select from among A4, A5(P), A5(L), B5,
Letter, Executive, Statement(P),
Statement(L), Business card, L(P), L(L), LL(P),
LL(L), Postcard(P), Postcard (L) and Custom.
With the fax function, only the A4, B5 and
Letter sizes are supported.
Width and Height
Displays the paper size. When the Custom
paper size is selected, you can input values
in the boxes and specify sizes not included
among the preset sizes.
Number of copies (Copy function only)
Sets the number of prints.

17
Image type
Select Color, Grayscale or Black and White.
Image quality
Select a dpi setting from among 75/100/
150/180/200/300/360/400/600/720/1200.
Paper size
Sets the paper size.
Select from among A4, A5(P), A5(L), B5,
Letter, Executive, Statement(P),
Statement(L), Business card, L(P), L(L), LL(P),
LL(L), Postcard(P), Postcard (L) and Custom.
Width and Height
Displays the paper size. When the Custom
paper size is selected, you can input values
in the boxes and specify sizes not included
among the preset sizes.
Save folder
Sets the folder into which images are
saved. You can select a folder by clicking
the [Browse] button.
File name
Sets the root name under which images
are saved. When the file is saved, a number
and file extension corresponding to the file
format will be added to the root name.
Example: Save0001.bmp.
Starting number
Sets the first four-digit number that will be
assigned to a root name. The number
automatically rises by one with each
successive image.
File Format
Sets the file format for the saved image.
Select from among Windows bitmap (BMP),
JPEG (JPG), Portable Network Graphics
(PNG) and Tagged Image File Format (TIF).
Mail/Save/Scan (1-3) Dialog

18
Film Mode
In film mode, the following dialog will appear when you click the [Easy] button under
each function while it is Off. This can be used to set the settings for the Easy Scan
function. Once you have selected the settings, click the [OK] button. The settings will be
effective and the [Easy] button will remain depressed.
Copy Dialog
Film type
Select from among Color Negatives, Color
Positives, Monochrome Negatives, and
Monochrome Positives. ScanGear Toolbox
only supports 35 mm film (strips or slides).
Image quality
Select from among Draft, Standard, High
Quality or Super-High Quality.
Scan frame type
(Your scanner model and optional
equipment will determine whether or not
this category appears.)
Select Sleeve or Mount.
Frame select button
These buttons will appear if [Sleeve] is
selected in the Scan frame type category.
Select the frame(s) for scanning. If more
than one is selected, the selected function
(fax, copy, etc.) will be repeated as many
times as the number of frames selected.
Copy layout
When more than one frame is selected,
you can set the paper size and print size to
position the image(s) on the page. Please
see P. 2 0 for details.

19
Save/Scan (1-3) Dialog
Film type
Select from among Color Negatives, Color
Positives, Monochrome Negatives, and
Monochrome Positives. ScanGear Toolbox
only supports 35 mm film (strips or slides).
Image quality
Select a dpi setting from 150/300/600/720/
1200/2400.
Scan frame type
(Your scanner model and optional
equipment will determine whether or not
this category appears.)
Select Sleeve or Mount.
Save folder
Sets the folder into which images are
saved. You can select a folder by clicking
the [Browse] button.
File name
Sets the root name under which images
are saved. When the file is saved, a number
and file extension corresponding to the file
format will be added to the root name.
Example: Film0001.bmp.
Starting number
Sets the first four-digit number that will be
assigned to a root name. The number
automatically rises by one with each
successive image.
File Format
Sets the file format for the saved image.
Select from among Windows bitmap
(BMP), JPEG (JPG), Portable Network
Graphics (PNG) and Tagged Image File
Format (TIF).

20
Copy Layout
When ScanGear Toolbox’s copy function is selected in film mode with multiple frames
selected, the images are automatically laid out on a single page. Adjust the layout in
the Copy Settings dialog.
Paper Size
Select one of the following printing paper sizes.
A4, A5, B5, Letter and Statement
Print Size
Select one of the following print sizes.
L, LL, Postcard, 8 crops, Fit to Paper
The print sizes correspond to the following.
Width x Height
L 89 x 127 mm /3.5 x 5 in.
LL 127 x 178 mm/5 x 7 in.
Postcard 100 x 150 mm/4 x 6 in.
8 crops 155 x 206 mm/6 x 8 in.
Layout Conditions
The number of images that can be laid out on one page depends upon the print size
and paper selection. The following chart shows the alternatives.
Print Size (number of images)
Paper Size L LL Postcard 8 crops
A44221
A5211-
B52111
Letter 4 2 2 1
Statement 2 1 1 -
