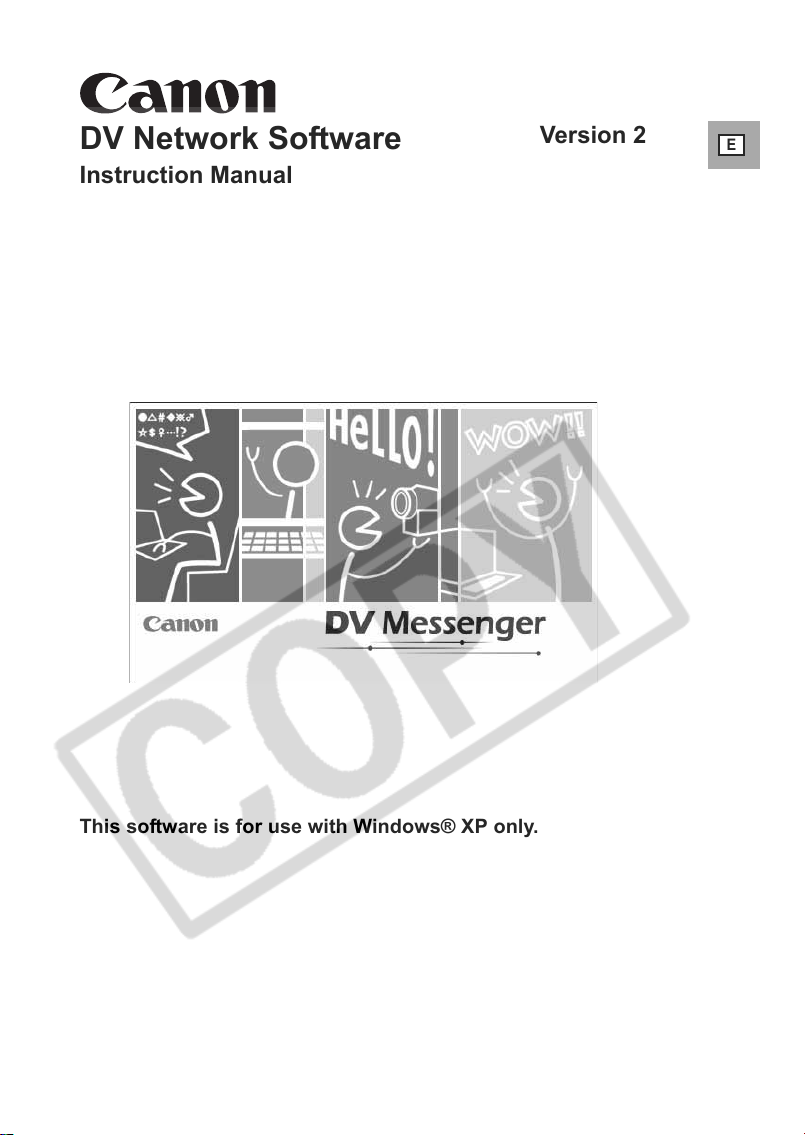

E
Version 2
DV Network Software
Instruction Manual
This software is for use with Windows® XP only.

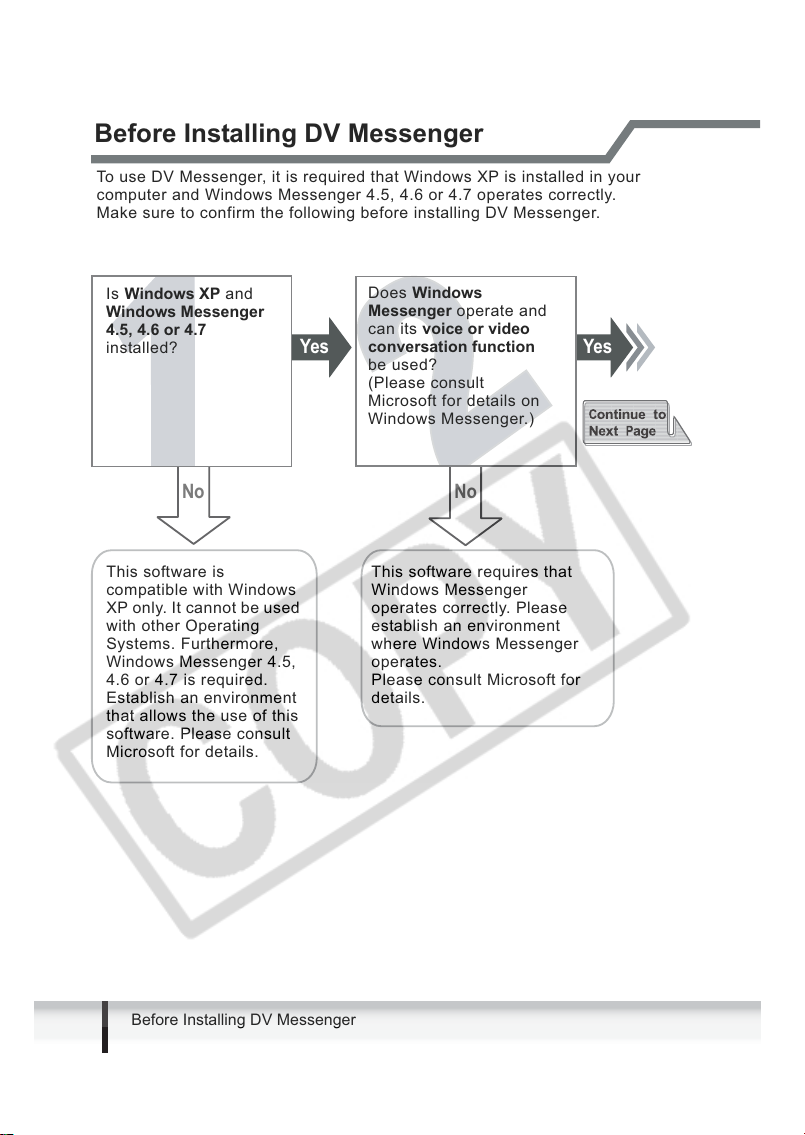

2Before Installing DV Messenger
Before Installing DV Messenger
To use DV Messenger, it is required that Windows XP is installed in your
computer and Windows Messenger 4.5, 4.6 or 4.7 operates correctly.
Make sure to confirm the following before installing DV Messenger.
Is Windows XP and
Windows Messenger
4.5, 4.6 or 4.7
installed?
Does Windows
Messenger operate and
can its voice or video
conversation function
be used?
(Please consult
Microsoft for details on
Windows Messenger.)
This software is
compatible with Windows
XP only. It cannot be used
with other Operating
Systems. Furthermore,
Windows Messenger 4.5,
4.6 or 4.7 is required.
Establish an environment
that allows the use of this
software. Please consult
Microsoft for details.
This software requires that
Windows Messenger
operates correctly. Please
establish an environment
where Windows Messenger
operates.
Please consult Microsoft for
details.
Yes Yes
No No

3
Before Installing DV Messenger
E
Are you using a router for
Internet connection?
(Some modems are
equipped with a router
function. For details, refer
to the manual of the
modem.)
Is your router UPnP
compatible?
This software requires an UPnP
compatible router. It cannot be
used with other routers. For
details, consult your Internet
service provider, telephone
carrier or router manufacturer,
or refer to the manual of the
router.
Follow now the instructions in this manual
and install DV Messenger.
Yes
Yes
NoNo
Yes

4Read Carefully Before Using
Read Carefully Before Using

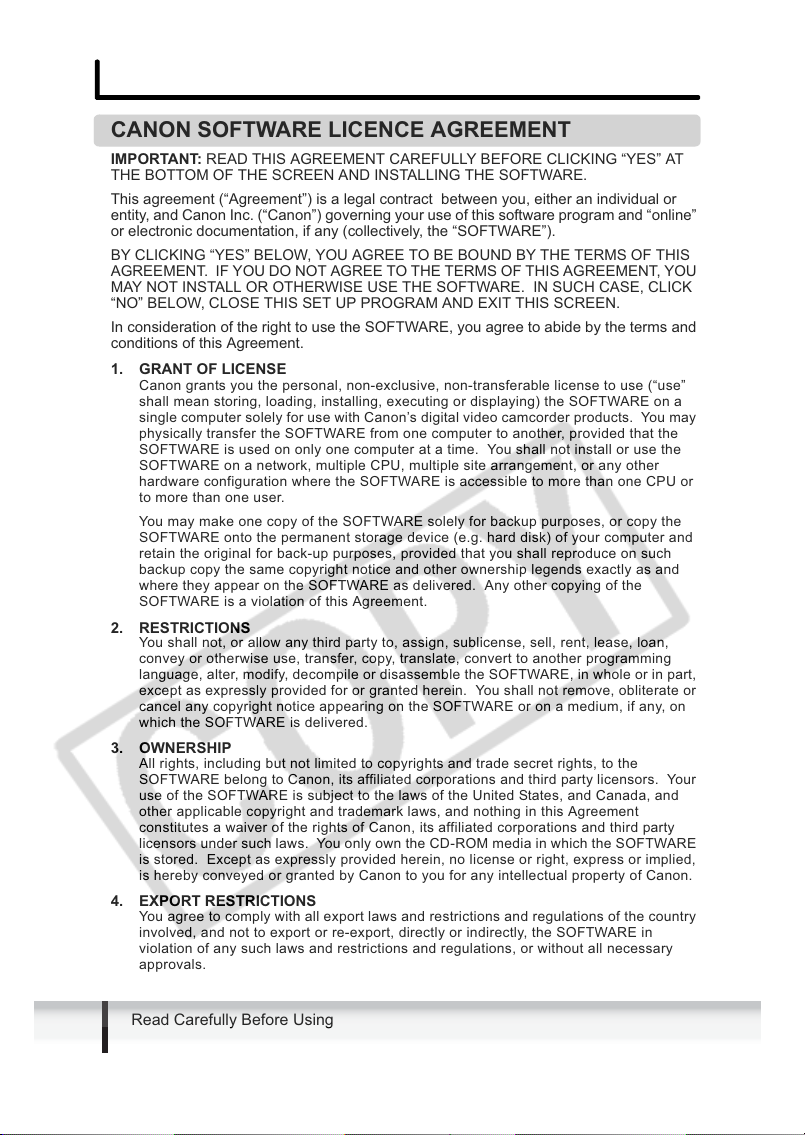

CANON SOFTWARE LICENCE AGREEMENT
IMPORTANT: READ THIS AGREEMENT CAREFULLY BEFORE CLICKING “YES” AT
THE BOTTOM OF THE SCREEN AND INSTALLING THE SOFTWARE.
This agreement (“Agreement”) is a legal contract between you, either an individual or
entity, and Canon Inc. (“Canon”) governing your use of this software program and “online”
or electronic documentation, if any (collectively, the “SOFTWARE”).
BY CLICKING “YES” BELOW, YOU AGREE TO BE BOUND BY THE TERMS OF THIS
AGREEMENT. IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, YOU
MAY NOT INSTALL OR OTHERWISE USE THE SOFTWARE. IN SUCH CASE, CLICK
“NO” BELOW, CLOSE THIS SET UP PROGRAM AND EXIT THIS SCREEN.
In consideration of the right to use the SOFTWARE, you agree to abide by the terms and
conditions of this Agreement.
1. GRANT OF LICENSE
Canon grants you the personal, non-exclusive, non-transferable license to use (“use”
shall mean storing, loading, installing, executing or displaying) the SOFTWARE on a
single computer solely for use with Canon’s digital video camcorder products. You may
physically transfer the SOFTWARE from one computer to another, provided that the
SOFTWARE is used on only one computer at a time. You shall not install or use the
SOFTWARE on a network, multiple CPU, multiple site arrangement, or any other
hardware configuration where the SOFTWARE is accessible to more than one CPU or
to more than one user.
You may make one copy of the SOFTWARE solely for backup purposes, or copy the
SOFTWARE onto the permanent storage device (e.g. hard disk) of your computer and
retain the original for back-up purposes, provided that you shall reproduce on such
backup copy the same copyright notice and other ownership legends exactly as and
where they appear on the SOFTWARE as delivered. Any other copying of the
SOFTWARE is a violation of this Agreement.
2. RESTRICTIONS
You shall not, or allow any third party to, assign, sublicense, sell, rent, lease, loan,
convey or otherwise use, transfer, copy, translate, convert to another programming
language, alter, modify, decompile or disassemble the SOFTWARE, in whole or in part,
except as expressly provided for or granted herein. You shall not remove, obliterate or
cancel any copyright notice appearing on the SOFTWARE or on a medium, if any, on
which the SOFTWARE is delivered.
3. OWNERSHIP
All rights, including but not limited to copyrights and trade secret rights, to the
SOFTWARE belong to Canon, its affiliated corporations and third party licensors. Your
use of the SOFTWARE is subject to the laws of the United States, and Canada, and
other applicable copyright and trademark laws, and nothing in this Agreement
constitutes a waiver of the rights of Canon, its affiliated corporations and third party
licensors under such laws. You only own the CD-ROM media in which the SOFTWARE
is stored. Except as expressly provided herein, no license or right, express or implied,
is hereby conveyed or granted by Canon to you for any intellectual property of Canon.
4. EXPORT RESTRICTIONS
You agree to comply with all export laws and restrictions and regulations of the country
involved, and not to export or re-export, directly or indirectly, the SOFTWARE in
violation of any such laws and restrictions and regulations, or without all necessary
approvals.

E
5
Read Carefully Before Using
5. SUPPORT AND UPDATE
Neither Canon, nor its subsidiaries, dealers or distributors will be responsible for
providing maintenance or support for use of the SOFTWARE. No updates, fixes or
support will be made available for the SOFTWARE.
6. LIMITED WARRANTY AND DISCLAIMER OF LIABILITY
It is your responsibility to choose, maintain and match the hardware and software
components of your computer system. Thus, Canon does not guarantee uninterrupted
service or correction of errors or that the functions or performance of the SOFTWARE
will meet your requirements. TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, CANON AND ITS SUPPLIER PROVIDE THE SOFTWARE “AS IS”
WITHOUT WARRANTY OR CONDITION OF ANY KIND, EITHER EXPRESS, IMPLIED
OR STATUTORY. The CD-ROM storing the SOFTWARE, if any, is warranted only
against defective material under normal use for a period of ninety (90) days after
purchase from an authorized Canon dealer as evidenced by your sales receipt. Your
sole remedy for a defective CD-ROM shall be replacement of the same without charge
when returned by you at your expense to your point of purchase and proven to be
defective upon inspection. The Replacement CD-ROM will be warranted for the
remainder of the original ninety-day (90) warranty period of the defective CD-ROM.
This limited warranty does not apply if the failure of the CD-ROM resulted from
accident, abuse, or misapplication of the SOFTWARE and shall not extend to anyone
other than the original user of the SOFTWARE.
EXCEPT AS SPECIFICALLY SET FORTH HEREINABOVE, CANON, CANON’S
SUBSIDIARIES, DISTRIBUTORS AND DEALERS DISCLAIM ALL WARRANTIES, OR
CONDITIONS, EXPRESS, IMPLIED OR STATUTORY, INCLUDING BUT NOT LIMITED
TO, WARRANTIES OR CONDITIONS AS TO DESIGN, QUALITY, MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, OR SYSTEM INTEGRATION.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT
SHALL CANON, CANON'S SUBSIDIARIES AND AFFILIATES, THEIR DISTRIBUTORS
AND DEALERS BE LIABLE FOR ANY LOSS OR DAMAGES WHATSOEVER
(WHETHER KNOWN, FORESEEABLE OR OTHERWISE), INCLUDING WITHOUT
LIMITATION, ANY CONSEQUENTIAL, INCIDENTAL, DIRECT, INDIRECT, SPECIAL,
PUNITIVE, OR OTHER DAMAGES WHATSOEVER (INCLUDING, DAMAGES FOR
LOSS OF PROFITS, BUSINESS INTERRUPTION, LOSS OF CONFIDENTIAL OR
OTHER BUSINESS INFORMATION, LOSS OF PRIVACY, ARISING OUT OF OR IN
ANY WAY RELATED TO THE USE OF OR INABILITY TO USE THE SOFTWARE, THE
PROVISION OF OR FAILURE TO PROVIDE SUPPORT SERVICES, OR OTHERWISE
UNDER OR IN CONNECTION WITH ANY PROVISION OF THIS AGREEMENT, EVEN
IN THE EVENT OF FAULT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY,
BREACH OF CONTRACT OR BREACH OF WARRANTY OF CANON OR ANY
SUPPLIER, OR OTHERWISE EVEN IF CANON, CANON'S SUBSIDIARIES OR
AFFILIATES, THEIR DISTRIBUTORS OR DEALERS HAVE BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
NEITHER CANON, NOR ANY OF CANON'S SUBSIDIARIES, DISTRIBUTORS OR
DEALERS SHALL HAVE ANY OBLIGATION TO INDEMNIFY YOU AGAINST ANY
CLAIM OR SUIT BROUGHT BY A THIRD PARTY ALLEGING THAT THE SOFTWARE
OR USE THEREOF INFRINGES ANY INTELLECTUAL PROPERTY OF SUCH THIRD
PARTY. TO THE FULL EXTENT PERMITTED BY APPLICABLE LAW, YOU HEREBY
RELEASE CANON, ITS SUPPLIER, CANON'S SUBSIDIARIES AND AFFILIATES,
THEIR DISTRIBUTORS OR DEALERS FROM ANY AND ALL LIABILITY ARISING
FROM OR RELATED TO ALL CLAIMS CONCERNING THE SOFTWARE OR ITS USE.
SOME STATES, PROVINCES OR LEGAL JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OF IMPLIED WARRANTIES, OR THE LIMITATION OR EXCLUSION OF
LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR PERSONAL
INJURY OR DEATH RESULTING FROM NEGLIGENCE ON THE PART OF THE
SELLER, SO THE ABOVE DISCLAIMERS AND EXCLUSIONS MAY NOT APPLY TO
YOU.

6Read Carefully Before Using

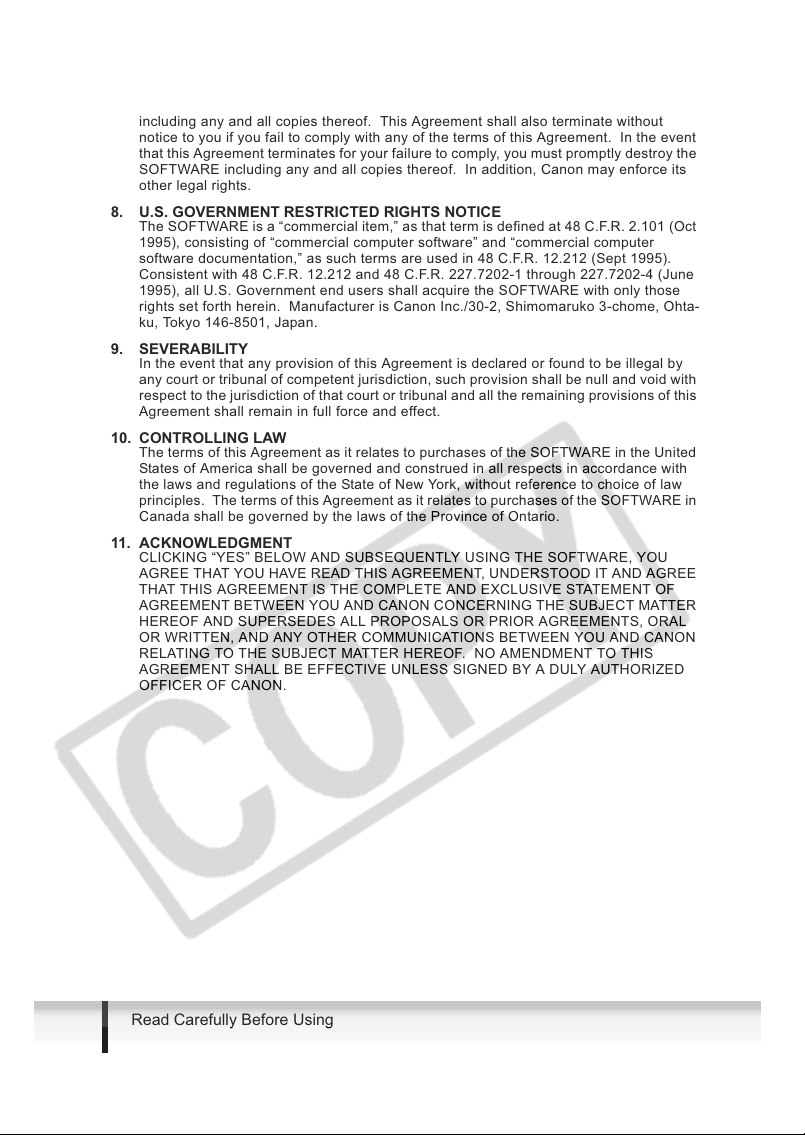

7. TERM
This Agreement is effective upon your acceptance hereof by clicking “YES” below and
remains in effect until expiration of all copyright interests in the SOFTWARE unless
earlier terminated. You may terminate this Agreement by destroying the SOFTWARE
including any and all copies thereof. This Agreement shall also terminate without
notice to you if you fail to comply with any of the terms of this Agreement. In the event
that this Agreement terminates for your failure to comply, you must promptly destroy the
SOFTWARE including any and all copies thereof. In addition, Canon may enforce its
other legal rights.
8. U.S. GOVERNMENT RESTRICTED RIGHTS NOTICE
The SOFTWARE is a “commercial item,” as that term is defined at 48 C.F.R. 2.101 (Oct
1995), consisting of “commercial computer software” and “commercial computer
software documentation,” as such terms are used in 48 C.F.R. 12.212 (Sept 1995).
Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4 (June
1995), all U.S. Government end users shall acquire the SOFTWARE with only those
rights set forth herein. Manufacturer is Canon Inc./30-2, Shimomaruko 3-chome, Ohta-
ku, Tokyo 146-8501, Japan.
9. SEVERABILITY
In the event that any provision of this Agreement is declared or found to be illegal by
any court or tribunal of competent jurisdiction, such provision shall be null and void with
respect to the jurisdiction of that court or tribunal and all the remaining provisions of this
Agreement shall remain in full force and effect.
10. CONTROLLING LAW
The terms of this Agreement as it relates to purchases of the SOFTWARE in the United
States of America shall be governed and construed in all respects in accordance with
the laws and regulations of the State of New York, without reference to choice of law
principles. The terms of this Agreement as it relates to purchases of the SOFTWARE in
Canada shall be governed by the laws of the Province of Ontario.
11. ACKNOWLEDGMENT
CLICKING “YES” BELOW AND SUBSEQUENTLY USING THE SOFTWARE, YOU
AGREE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTOOD IT AND AGREE
THAT THIS AGREEMENT IS THE COMPLETE AND EXCLUSIVE STATEMENT OF
AGREEMENT BETWEEN YOU AND CANON CONCERNING THE SUBJECT MATTER
HEREOF AND SUPERSEDES ALL PROPOSALS OR PRIOR AGREEMENTS, ORAL
OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN YOU AND CANON
RELATING TO THE SUBJECT MATTER HEREOF. NO AMENDMENT TO THIS
AGREEMENT SHALL BE EFFECTIVE UNLESS SIGNED BY A DULY AUTHORIZED
OFFICER OF CANON.

E
7
Contents
Contents
Before Installing DV Messenger .............................................................................. 2
Read Carefully Before Using .................................................................................... 4
Read This First .......................................................................................................... 9
About This Manual .............................................................................................. 10
System Requirements .............................................................................................11

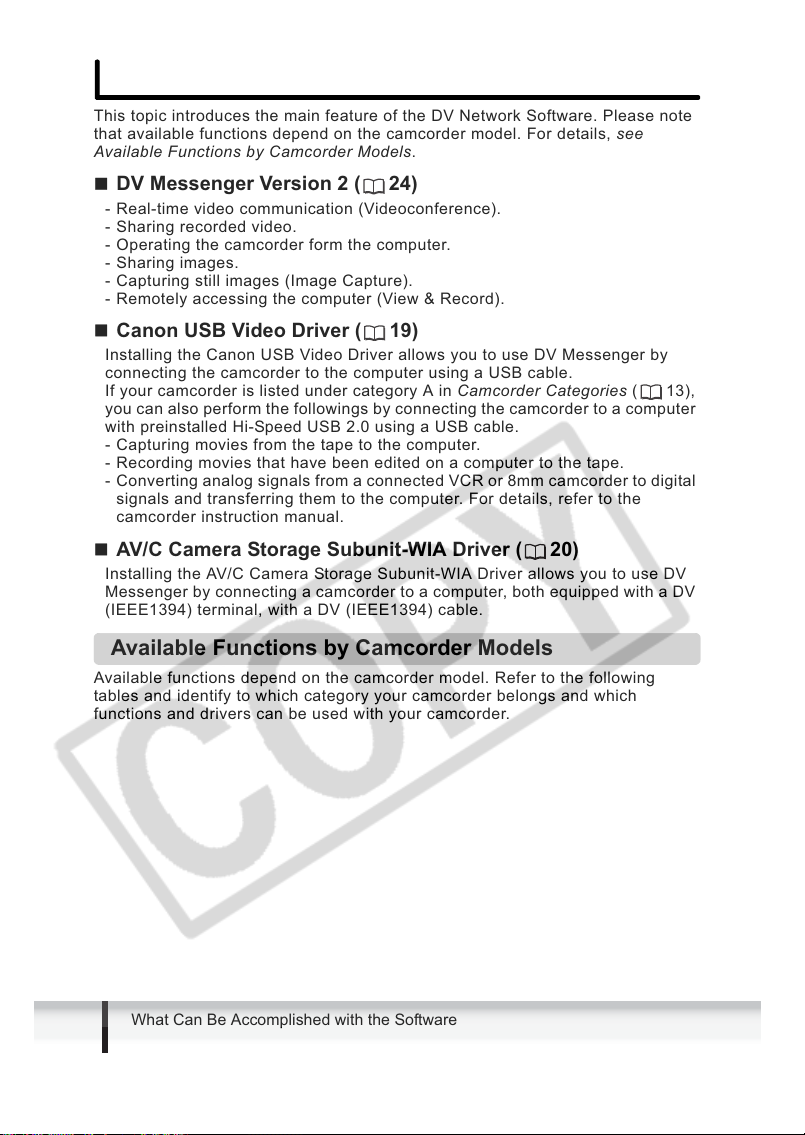

What Can Be Accomplished with the Software .................................................... 12
Available Functions by Camcorder Models ........................................................ 12

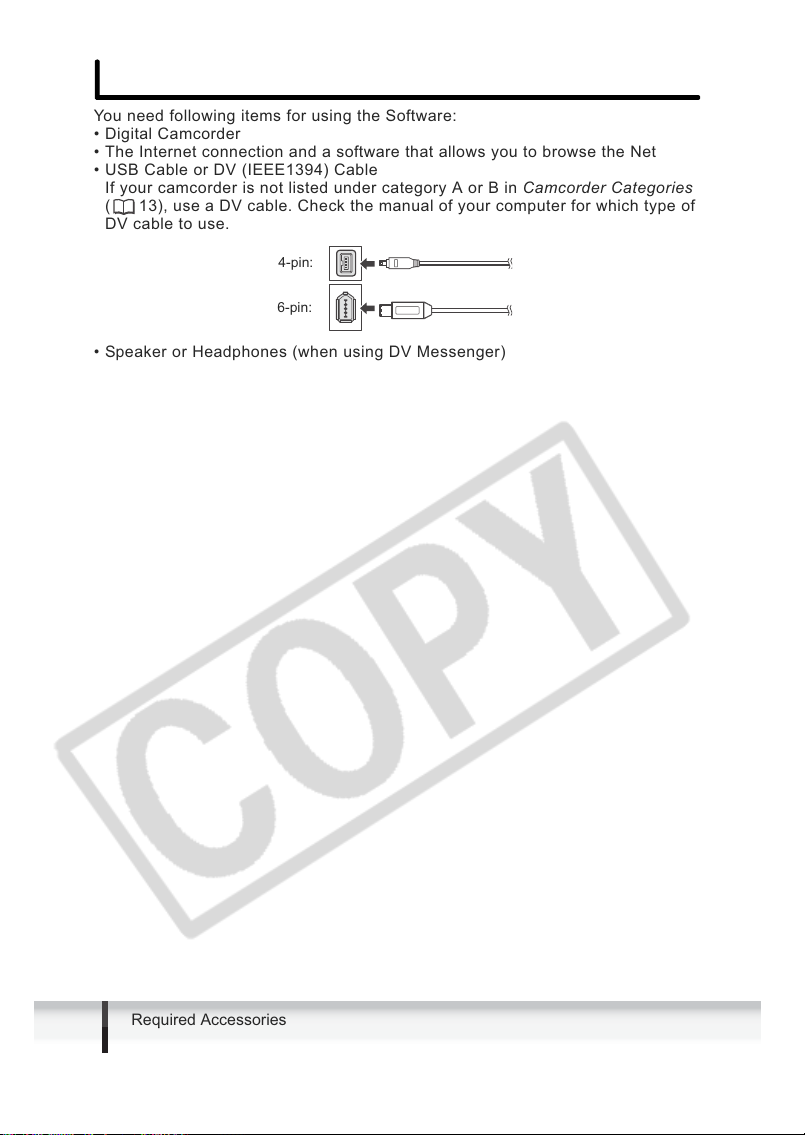

Required Accessories ............................................................................................ 14
Read Carefully ......................................................................................................... 15

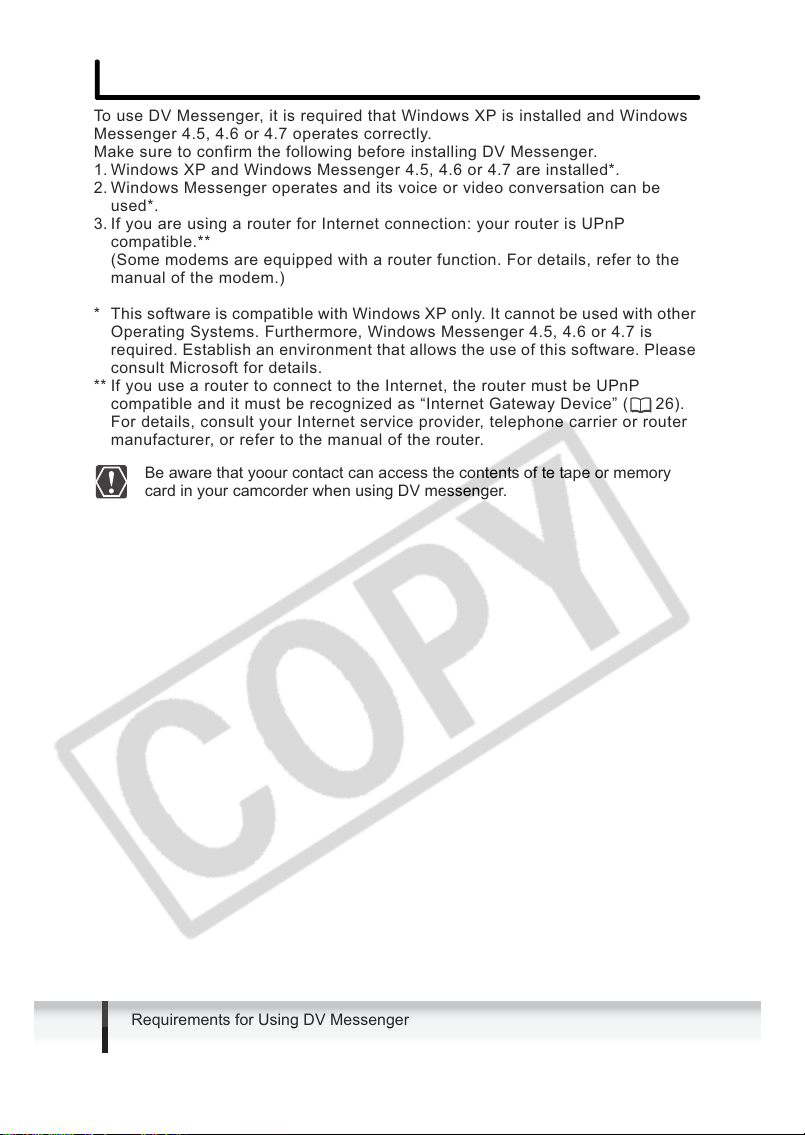

Requirements for Using DV Messenger ................................................................ 16
Installing the Software ............................................................................................ 17

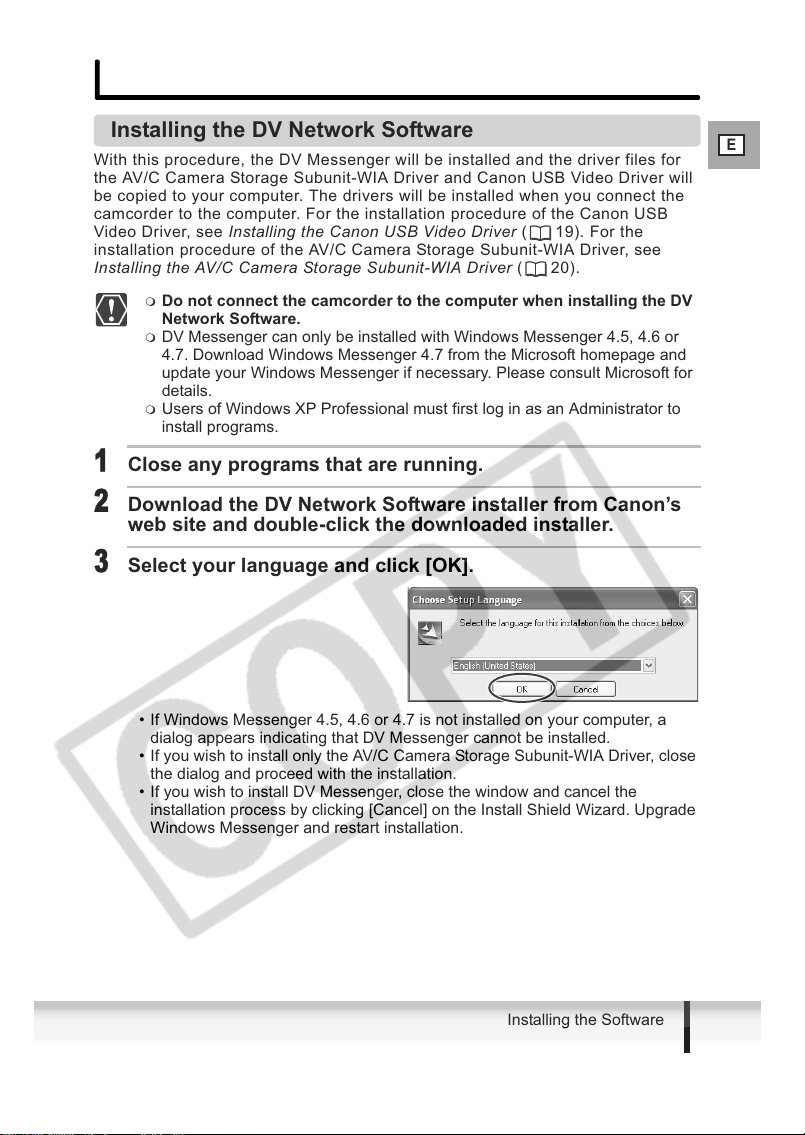

Installing the DV Network Software .................................................................... 17
Installing the Canon USB Video Driver .............................................................. 19
Installing the AV/C Camera Storage Subunit-WIA Driver ................................... 20
Connecting the Camcorder to a Computer ........................................................... 23
Connecting the Camcorder Using a USB Cable ................................................. 23
Connecting the Camcorder Using a DV Cable .................................................. 23
DV Messenger
Preparations for DV Messenger ............................................................................. 24
Checking the Camcorder Connection ................................................................. 24
Setting the UPnP Router .................................................................................... 26
Videoconferencing .................................................................................................. 32
Starting DV Messenger ....................................................................................... 32
Preparing the Camcorder for Communication .................................................... 34
Starting a Videoconference ................................................................................. 37
Ending DV Messenger ........................................................................................... 40
Disconnecting DV Messenger ............................................................................ 40
Ending DV Messenger ........................................................................................ 40
Screen Displays ...................................................................................................... 41
DVM Panel .......................................................................................................... 41
Taskbar ............................................................................................................... 44
DV Messenger Icon Menu .................................................................................. 45
Changing the Mode of the Camcorder .................................................................. 46
Camcorder with NETWORK Mode ..................................................................... 46
Camcorder without NETWORK Mode ................................................................ 46
Operating Camcorders with DV Messenger ......................................................... 48
Operating the Camera Functions ........................................................................ 49
Operating the Tape Playback Functions ............................................................. 51
Sharing Images (File Transfer) ............................................................................... 53
Selecting Images for Sharing .............................................................................. 53
Transferring Images ............................................................................................ 55
Using the Image Capture Function ........................................................................ 57
Setting of Image Capture .................................................................................... 57
Changing the Capture Mode ............................................................................... 59
Capturing with Your Camcorder .......................................................................... 60
Capturing with Your Contact’s Camcorder .......................................................... 61
Using the View & Record Function ....................................................................... 62
Setting of View & Record .................................................................................... 62

8Contents
Starting View & Record ....................................................................................... 63
Connecting with View & Record ......................................................................... 64
Additional Functions .............................................................................................. 66
Changing the Background of Windows Messenger ............................................ 66
Option Settings ................................................................................................... 67
Uninstalling DV Messenger .................................................................................... 68
Canon USB Video Driver
Capturing/Recording Movies ................................................................................. 69
Capturing movies from the tape to the computer ................................................ 69
Recording movies to the tape ............................................................................. 70
Uninstalling the Canon USB Video Driver ............................................................ 71
AV/C Camera Storage Subunit-WIA Driver
Uninstalling the AV/C Camera Storage Subunit-WIA Driver ............................... 73
Troubleshooting
DV Messenger .................................................................................................... 75
Canon USB Video Driver .................................................................................... 86
AV/C Camera Storage Subunit-WIA Driver ......................................................... 87
Uninstallation of the Canon USB Video Driver and AV/C Camera Storage
Subunit-WIA Driver ............................................................................................. 87

E
9
Read This First
Read This First
Disclaimer
• While every effort has been made to ensure that the information contained in
this guide is accurate and complete, no liability can be accepted for any errors
or omissions. Canon reserves the right to change the specifications of the
hardware and software described herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any other language in any form, by any
means, without the prior written permission of Canon.
• Canon makes no warranties for damages resulting from corrupted or lost data
due to mistaken operation or malfunction of the camcorder, the software,
memory cards (MultiMediaCards or SD Memory Cards), personal computers, or
peripheral devices, or due to use of a memory card not formatted by a Canon
camcorder.
• Microsoft® and Windows® are either registered trademarks or trademarks of
Microsoft Corporation in the United Stated and/or other countries.
• Adobe, Acrobat and Reader are trademarks of Adobe Systems Incorporated.
• Other names and products not mentioned above may be registered trademarks
or trademarks of their respective companies.
• AV/C Camera Storage Subunit is a standard for downloading and uploading
files using an AV device equipped with the IEEE1394. The driver complies with
the “AV/C Camera Storage Subunit Version 1.0” by the IEEE1394 Trade
Association.
• WIA stands for Windows Image Acquisition. WIA is a driver software for
downloading images from digital devices onto a computer. WIA is preinstalled
on Windows XP.
© Canon Inc. 2005 All rights reserved.
Safety Precautions
Do not play the supplied CD-ROM(s) in any CD player that does not support data
CD-ROM(s). Playing the CD-ROM(s) in an audio CD player (music player) could
damage the speakers. It is also possible to suffer from hearing loss from listening
with headphones to the loud sound of a CD-ROM played on a music CD player.

10 Read This First
About This Manual
• In this manual, DV Messenger Version 2 is abbreviated as “DV Messenger”.
• In this manual, the operating modes of camcorders are described as following:
- CAMERA mode: Mode for recording video and sound to tape.
- PLAY (VCR) mode: Mode for playing back video and sound recorded on a
tape.
- CARD PLAY mode: Mode for playing back images recorded on a memory
card.
- NETWORK mode: Mode for connecting to the computer for using DV
Messenger.
• The explanations in this manual refer to camcorders equipped with the
NETWORK mode on the POWER switch of the camcorder. If your camcorder is
not equipped with the NETWORK mode, refer to the instructions in parenthesis
(Camcorder without NETWORK mode:).
Camcorder with NETWORK mode Camcorder without NETWORK mode
• Please note that the screens used in this manual may change.

E
11
System Requirements
System Requirements
System Requirements for Capturing/Recording Movies Using
an Editing Software:
Proper operation is not guaranteed on a dual CPU PC or on a user-built PC.
Proper operation is not guaranteed on any particular system, even if it meets
the requirements outlined above.
Do not connect two or more camcorders to the computer at the same time.
The connection may not work correctly.
A CD-ROM drive is required to install the software.
USB connection:
Connect the USB cable directly to one of the computer’s main USB ports.
The interface may not function correctly if the camcorder is connected via a
USB hub.
The connection may not operate correctly if you are using other USB
devices, excluding USB mice or keyboards, at the same time. If this occurs,
disconnect the other devices from the computer and try reconnecting the
camcorder.
Not all operations performed with a connection to a USB 2.0 compatible
board can be guaranteed.
DV (IEEE1394) connection:
Connect the camcorder directly to the computer using a DV (IEEE1394)
cable. The connection may not operate correctly if the camcorder is
connected via a repeater or other IEEE1394 devices, or if more than one
IEEE1394 device is connected to the computer.
Do not connect another IEEE1394 device while the AV/C Camera Storage
Subunit-WIA Driver is operating. The connection may not operate correctly.
OS: Microsoft Windows XP Home Edition or Professional
(Installation of Service Pack 1 recommended)
Proper operation is not guaranteed on Windows XP that has
been upgraded from a previous version.
CPU: Pentium 500 MHz or better (800 MHz or better recommended)
RAM: 128 MB or more (256 MB or more recommended)
Interface: USB (1.1/2.0) or IEEE1394 (OHCI compliant)
Free Hard Disk Space: • DV Messenger: 100 MB or more
• Canon USB Video Driver: 1 MB or more
• AV/C Camera Storage Subunit-WIA Driver: 1 MB or more
Display: 800 u600 pixels/High Color (16 bit) or better
Others: Windows Messenger Version 4.5, 4.6 or 4.7, sound function,
Internet connection*
* Using a standard dial-up connection is possible, but we
recommend using a broadband connection to the Internet.
OS: Microsoft Windows XP Home Edition or Professional
(Installation of Service Pack 1 or 2 required)
Proper operation is not guaranteed on Windows XP that has
been upgraded from a previous version.
CPU: Pentium4 1.3 GHz or better, or Pentium M 1.0 GHz or better,
or Celeron 2.0 GHz or better
Interface: Preinstalled Hi-Speed USB 2.0
USB Cable: Supplied USB Cable

12 What Can Be Accomplished with the Software
What Can Be Accomplished with the Software
This topic introduces the main feature of the DV Network Software. Please note
that available functions depend on the camcorder model. For details, see
Available Functions by Camcorder Models.
DV Messenger Version 2 ( 24)
- Real-time video communication (Videoconference).
- Sharing recorded video.
- Operating the camcorder form the computer.
- Sharing images.
- Capturing still images (Image Capture).
- Remotely accessing the computer (View & Record).
Canon USB Video Driver ( 19)
Installing the Canon USB Video Driver allows you to use DV Messenger by
connecting the camcorder to the computer using a USB cable.
If your camcorder is listed under category A in Camcorder Categories ( 13),
you can also perform the followings by connecting the camcorder to a computer
with preinstalled Hi-Speed USB 2.0 using a USB cable.
- Capturing movies from the tape to the computer.
- Recording movies that have been edited on a computer to the tape.
- Converting analog signals from a connected VCR or 8mm camcorder to digital
signals and transferring them to the computer. For details, refer to the
camcorder instruction manual.
AV/C Camera Storage Subunit-WIA Driver ( 20)
Installing the AV/C Camera Storage Subunit-WIA Driver allows you to use DV
Messenger by connecting a camcorder to a computer, both equipped with a DV
(IEEE1394) terminal, with a DV (IEEE1394) cable.
Available Functions by Camcorder Models
Available functions depend on the camcorder model. Refer to the following
tables and identify to which category your camcorder belongs and which
functions and drivers can be used with your camcorder.

E
13
What Can Be Accomplished with the Software
Camcorder Categories
Please refer to the Canon homepage for latest camcorder models.
Available Functions and Drivers by Categories
When sharing images, an image file exceeding 20 MB will not be displayed.
AOPTURA500
BOPTURA Xi OPTURA30 OPTURA40
OPTURA300 OPTURA400
CELURA60 ELURA65 ELURA70
D
ELURA40 MC ELURA50 GL2
OPTURA10 OPTURA20 OPTURA200 MC
ZR45 MC ZR47MC KR ZR50 MC
ZR65 MC ZR70 MC ZR85
ZR90 ZR200 ZR300
E
ELURA ELURA2/ELURA2 MC ELURA10
ELURA20 MC GL1 OPTURA100 MC
OPTURA Pi XL1S ZR10
ZR20 ZR25 MC ZR30 MC
ZR40 ZR60 ZR80
ZR100
FNon-Canon camcorder
Camcorders
Categories
Functions
ABCDEF
DV Messenger Version 2
Real-time video ( 32)
communication
Sharing recorded video ( 51)
Camcorder operation ( 49)
Sharing images ( 53)
Image Capture ( 57)
View & Record ( 62)
Canon USB Video Driver
USB Connection ( 19)
Capturing/Recording ( 69)
movies

14 Required Accessories
Required Accessories
You need following items for using the Software:
• Digital Camcorder
• The Internet connection and a software that allows you to browse the Net
• USB Cable or DV (IEEE1394) Cable
If your camcorder is not listed under category A or B in Camcorder Categories
( 13), use a DV cable. Check the manual of your computer for which type of
DV cable to use.
• Speaker or Headphones (when using DV Messenger)
4-pin:
6-pin:

E
15
Read Carefully
Read Carefully
If you leave the camcorder turned on for a long time, heat generation may cause
damage to the camcorder. Turn off the camcorder after use.
Tapes may be damaged if left in the camcorder for a long time. Do not leave tapes
in the camcorder to prevent damage.
If you leave the camcorder turned on for a long time (e.g. when using the View &
Record or Image Capture (interval mode) function), observe the following fire
precautions.
- Do not use the camcorder in hot or humid places.
- Do not leave the camcorder exposed to direct sunlight.
- Do not cover the camcorder with blankets or clothes.
- Do not leave the camcorder in a box or tight spaces.
- Do not leave the camcorder outdoors.

16 Requirements for Using DV Messenger
Requirements for Using DV Messenger
To use DV Messenger, it is required that Windows XP is installed and Windows
Messenger 4.5, 4.6 or 4.7 operates correctly.
Make sure to confirm the following before installing DV Messenger.
1. Windows XP and Windows Messenger 4.5, 4.6 or 4.7 are installed*.
2. Windows Messenger operates and its voice or video conversation can be
used*.
3. If you are using a router for Internet connection: your router is UPnP
compatible.**
(Some modems are equipped with a router function. For details, refer to the
manual of the modem.)
* This software is compatible with Windows XP only. It cannot be used with other
Operating Systems. Furthermore, Windows Messenger 4.5, 4.6 or 4.7 is
required. Establish an environment that allows the use of this software. Please
consult Microsoft for details.
** If you use a router to connect to the Internet, the router must be UPnP
compatible and it must be recognized as “Internet Gateway Device” ( 26).
For details, consult your Internet service provider, telephone carrier or router
manufacturer, or refer to the manual of the router.
Be aware that yoour contact can access the contents of te tape or memory
card in your camcorder when using DV messenger.

E
17
Installing the Software
Installing the Software
Installing the DV Network Software
With this procedure, the DV Messenger will be installed and the driver files for
the AV/C Camera Storage Subunit-WIA Driver and Canon USB Video Driver will
be copied to your computer. The drivers will be installed when you connect the
camcorder to the computer. For the installation procedure of the Canon USB
Video Driver, see Installing the Canon USB Video Driver ( 19). For the
installation procedure of the AV/C Camera Storage Subunit-WIA Driver, see
Installing the AV/C Camera Storage Subunit-WIA Driver ( 20).
Do not connect the camcorder to the computer when installing the DV
Network Software.
DV Messenger can only be installed with Windows Messenger 4.5, 4.6 or
4.7. Download Windows Messenger 4.7 from the Microsoft homepage and
update your Windows Messenger if necessary. Please consult Microsoft for
details.
Users of Windows XP Professional must first log in as an Administrator to
install programs.
1 Close any programs that are running.
2 Download the DV Network Software installer from Canon’s
web site and double-click the downloaded installer.
3 Select your language and click [OK].
• If Windows Messenger 4.5, 4.6 or 4.7 is not installed on your computer, a
dialog appears indicating that DV Messenger cannot be installed.
• If you wish to install only the AV/C Camera Storage Subunit-WIA Driver, close
the dialog and proceed with the installation.
• If you wish to install DV Messenger, close the window and cancel the
installation process by clicking [Cancel] on the Install Shield Wizard. Upgrade
Windows Messenger and restart installation.

18 Installing the Software
4 When the [InstallShield Wizard] appears, click [Next].
5 Select the software you wish to install and click [Next].
• If your camcorder is not listed under
category A or B in Camcorder
Categories ( 13), remove the check
mark next to [Copy Canon USB Video
Drivers].
• If your camcorder is listed under
category E or F in Camcorder
Categories ( 13), remove the check
mark next to [Copy AV/C Camera
Storage Drivers].
6 Read the license agreements and click [Yes].
7 When the confirmation window appears, click [Yes].
8 Confirm the target folder and click [Next].
If a dialog appears asking you whether
you wish to create a shortcut of DV
Messenger on the desktop, click [Yes].

E
19
Installing the Software
9 Click [Finish].
• The computer restarts and installation
is complete.
Installing the Canon USB Video Driver
Installing the Canon USB Video Driver allows you to use DV Messenger by
connecting the camcorder to a computer using a USB cable.
To use the Canon USB Video Driver for using DV Messenger, your
camcorder has to be listed under category A or B in Camcorder Categories
( 13).
To use the Canon USB Video Driver for capturing/recording movies, your
camcorder has to be listed under category A in Camcorder Categories
( 13), and the camcorder has to be connected to a computer with Hi-
Speed USB 2.0.
Before installing the driver following the procedure below, install the DV
Network Software first to copy the driver files to the computer.
Close any programs that are running before installing the driver.
Do not turn off the camcorder until the driver installation is complete. And do
not interrupt the installation.
Users of Windows XP Professional must first log in as an Administrator to
install programs.
1 Connect the power adapter to the camcorder.
2 If your camcorder is listed under category A in Camcorder
Categories ( 13):
Set the camcorder to PLAY (VCR) mode.
If your camcorder is listed under category B in Camcorder
Categories ( 13):
Set the camcorder to NETWORK mode.
3 Connect the camcorder to the computer using the USB
cable ( 23).
• The driver installation starts automatically.
• A window appears allowing you to select an application program to start. Click
[Cancel] to close the window.

20 Installing the Software
4 Restart the computer.
5 Check if the driver has been installed correctly.
From the [start] menu, select [My
Computer] and check if the [Canon
USB Video] icon appears. If the icon
does not appear, the installation has
not been completed properly. Uninstall
( 71) and reinstall the driver.
Installing the AV/C Camera Storage Subunit-WIA Driver
If you have installed the AV/C Camera Storage Subunit-WIA driver contained
on the DV NETWORK SOLUTION DISK Version 1, make sure to install the
driver provided with the DV Network Software when installing DV Messenger
Version 2 (you do not need to uninstall the prior driver for this procedure).
Before installing the driver following the procedure below, install the DV
Network Software first to copy the driver files to the computer.
Close all programs that are running before installing the driver.
Do not turn off the camcorder until the driver installation is complete. And do
not interrupt the installation.
Users of Windows XP Professional must first log in as an Administrator to
install programs.
1 Connect the power adapter to the camcorder.
2 Set the camcorder to NETWORK or CARD PLAY mode.
(Camcorder without NETWORK mode: Set the camcorder to
CARD PLAY mode.)
3 Connect the camcorder to the computer using the DV cable
( 23).
• The driver installation starts automatically.
• Depending on the setting of your computer, a video editing program may start.
In such case, close this program.
• If the installation is complete, the Scanner and Camera Wizard or a dialog for
selecting an application appears. Click [Cancel] to close the dialog.
4 Restart the computer.
