CANOPY RHT9SS User manual

INSTALLATION INSTRUCTION

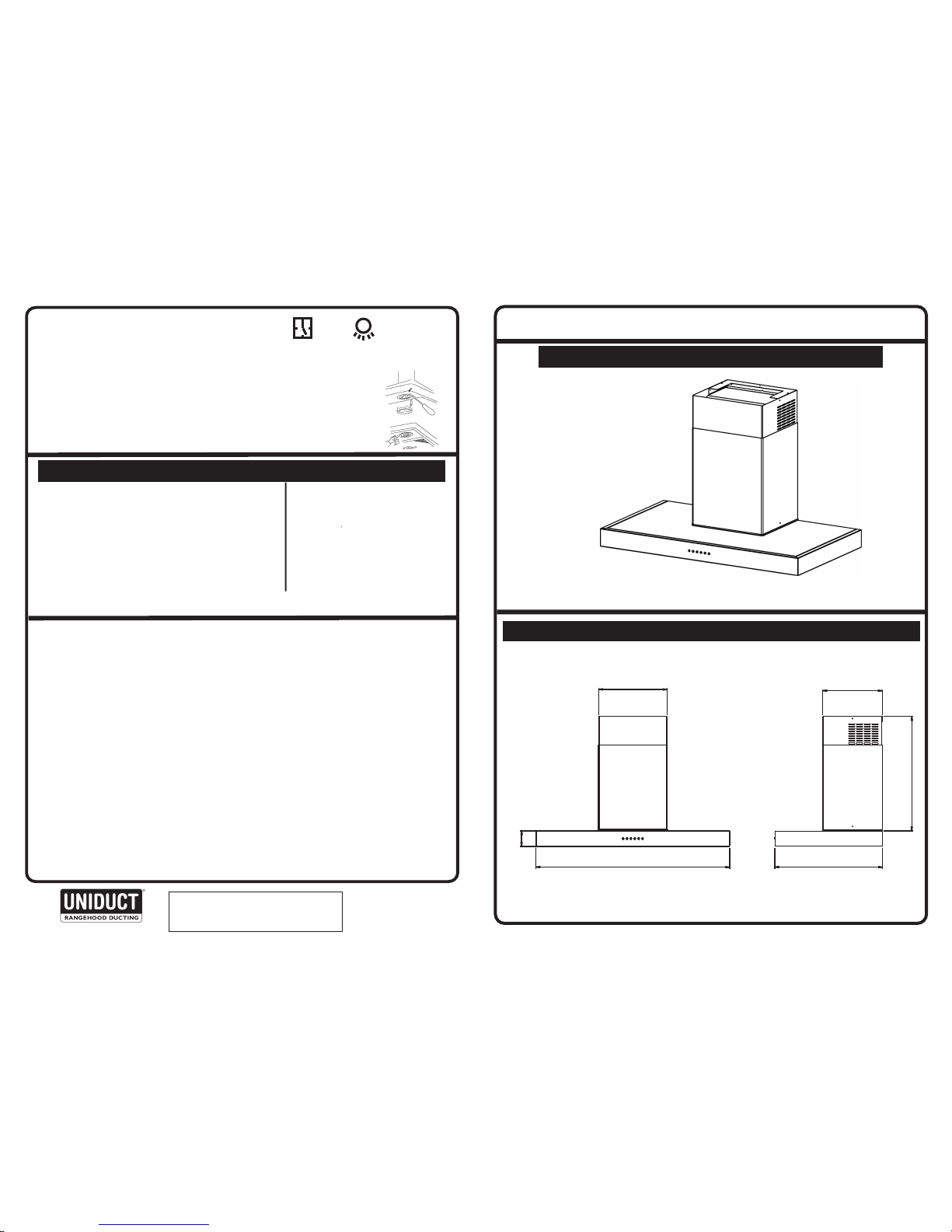

PRODUCT DIMENSIONS
CANOPY RANGEHOOD
TELESTO MODEL NUMBER RHT9SS.
PLEASE READ THE ENTIRE INSTRUCTION BEFORE INSTALLING THE CANOPY
All Dimensions are in mm
O/I II III
Fan On / Off Mid Speed High Speed Delay Switch Light On / Off
BULB
INSTALLATION OPTION ACCESSORIES
Electrical Rating:
386W (1.6A)
Max. at 230-240V 50Hz
MANUFACTURED IN NEW ZEALAND BY:
ROBINHOOD LIMITED
P.O. BOX 51 201, PAKURANGA,AUCKLAND, N.Z.
TEL: [phone] • FAX: [phone]
ISO9001 Certified
RECOMMENDED UNIDUCT DUCTING
SYSTEMS FOR RANGEHOODS
320mm
900mm
72mm
500mm
280mm
Ducted - 530 to 830mm Recirc - 630 to 830mm
104775 issue D
ECN 06 072
CONTROL
PANEL
Delay switch - Fan will remain on at low, mid or high speed for 5 mins. before
switching off automatically.
LIGHT REPLACEMENT
a) Switch off the power to rangehood.
b) Use a small bladed screwdriver to prise off the light cover.
c) Use a cloth to remove the bulb. Do not touch the bulb with fingers.
d) Replace with a new bulb using a cloth. Do not touch the bulb with fingers.
“Snap” the cover back in place.
e) Halogen bulb 12Volt/20Watt required.
DUCTED RECIRCULATED
Use manufacturer Product Code. Use manufacturer Product Code.
1688 1744 Recirculation Kit
Extra lengths or bends may be required depending on the
length required & whether there is any structural material
in the run, eg rafters.
For optimal efficiency, use smooth ducting for reduced noise
and increased airflow. Flexible ducting should only be used
as a last resort.
For other Accessories, Parts or Service, please contact your local supplier or approved service agent
MAINTENANCE
Particular care should be taken with grease filter which must be periodically cleaned
(at least every two months). Remove the grease filters and wash them either by hand
or in the dishwasher using mild detergent. Caution: Never use products containing
abrasives (e.g. scouring pads, steel wool, abrasive liquid cleaner etc.) Use lukewarm
water and a mild detergent to clean stainless steel components. In high humidity and
coastal environments, cleaning should be carried out more frequently.
WARNINGS
•Care should be taken when removing filters in order to prevent the filter falling and
causing damage to the hob top.
•This appliance is not intended for use by young children or infirm persons without supervision.
•Young children should be supervised to ensure that they do not play with the appliance.
•Upon installation the appliance must be positioned so that the plug is accessible.
•There should be adequate ventilation of the room when the rangehood is used at the same time
as appliances burning gas or other fuels.
•You must read the details concerning the method and frequency of cleaning.
•There is a fire risk if cleaning is not carried out in accordance with the instructions.
•Do not flambé under the rangehood.
•Exhaust air must not be discharged into an existing flue used for exhausting fumes from
appliances burning gas or other fuels.
•The recomended minimum distance between the hob surface and the lowest part of the range-
hood is 600mm. This should be increased to at least 650mm if installed over a gas hob.
We recommend 700mm.
•Attention should be given to ensure that any applicable regulations concerning the discharge
of exhaust air is fulfilled.
•If the supply cord of this equipment is damaged, it must only be replaced by the manufacturer
or it’s service agent, or a similarly qualified person in order to avoid a hazard.

WARNING
Allelectrical workmustbe doneinaccordance withlocaland/or nationalelectricalcodes as
applicable. For safety, this product must be earthed. If you are unfamiliar with methods of
installing electrical wiring, employ the services of a qualified electrican.
Turn off power at service entrance before installing wiring or servicing this product.
The canopy is heavy, Please ensure adequate care when installing thecanopy
toprevent personalinjury.
Thecanopy mustbeinstalledonto asolidwall orsolidstuds.
lbs lbs
PRE-INSTALLATION
INSTALLATION OF UNIT
Thank you for purchasing a quality stainless canopy rangehood.
We have a high standard of quality control and each rangehood is tested and
approved before it leaves the factory.
IMPORTANT : Please read prior to installation and operation.
• Always switch the power off prior to installing, servicing or cleaning the appliance.
NOTE: Stainless steel is very easily
damaged during installation if abraded or knocked by tools.
Read the instructions before starting the assembly.
Remove the filters to allow access to wall mounting holes.
The unit is designed for 2400mm ceilings.
The chimney is telescopic and is designed for hood
installation between 600 to 800mm above the
cooking surface.
COOKING
SURFACE
914 mm
INSTALLATION
HEIGHT 700mm
CEILING
HEIGHT
2400mm
DUCTED
RECIRCULATED
Before drilling any holes check the wall and ceiling are clear of any electrical cables,
pipes etc. Fixing to a solid stud is recommended.
CEILING
BRACKET
FIX SAFETY
SCREW AFTER
MOUNTING
CANOPY
KEYHOLES
IN REAR OF
CANOPY
(SHOWN
DOTTED)
4
5
5
FIX TO SOLID
FRAMING
3
2
1
910mm
100
1 Fix the mounting washers in position, check with a spirit level across the washers to ensure
they are level.
6
104775 issue D
ECN 06 072
CUT CORNICE
TO CLEAR COVER IF PREFERRED
160mm DIA HOLE
• Never use the appliance without the filters.
• Please read the notes on general cleaning, especially the filters.
• Exhaust air must not be discharged into a heating flue or wall cavity, unless the
cavity is designed for that purpose.
• Areas where the rangehood is installed that also have gas, oil or coal fired heaters,
must be well ventilated to prevent a partial vacuum in the room. This includes
gas hobs. (A partial vacuum in the room could result in too high a concentration
of gas in the air).
Ascertain the desired installation height of the canopy.
NOTE: Installation height ranges from 600 to 800mm
Optimum installation height is 700mm (650 mm for gas)
above the hob.
DUCTING: Ducting accessories are not supplied.
The air outlet from the motor requires 150mm round
ducting which requires 160mm diameter hole
in the ceiling.
This appliance must be positioned so that the electrical
plug is accessible.
INSTALLING DUCTING
NOTE: All ducting must comply with local requirements and building codes.
2 Mark the position of the decorative chimney at ceiling and wall, cut the cornice moulding away
if required, to enable the chimney to fit flush against the wall and ceiling.
3 Mark and cut the hole in the ceiling to fit the ducting (160mm dia.)
This is position centrally above the canopy and 100mm from the wall
INSTALLING CEILING BRACKET
4 Using the screws supplied, fix the ceiling bracket to the wall, checking that it is aligned
with the hood.
FINALASSEMBLY
5 Remove protective plastic covering from all parts including the filters. Fit the canopy on the
mounting washers. Plug in power cord to the supply and check the function of the hood.
Fix the safety screw, connect and secure the ducting using the cable ties.
6 A rubber extrusion has been provided to hide any irregularities between the chimney and the
canopy / ceiling, to fit push over the top & bottom visible edges of the chimney. This edge
maybe shape so take care. If desired this extrusion may be omitted.
Assemble the telescope chimney to accurately suit the dimensions required and fix using the
screws supplied to the canopy and ceiling bracket
