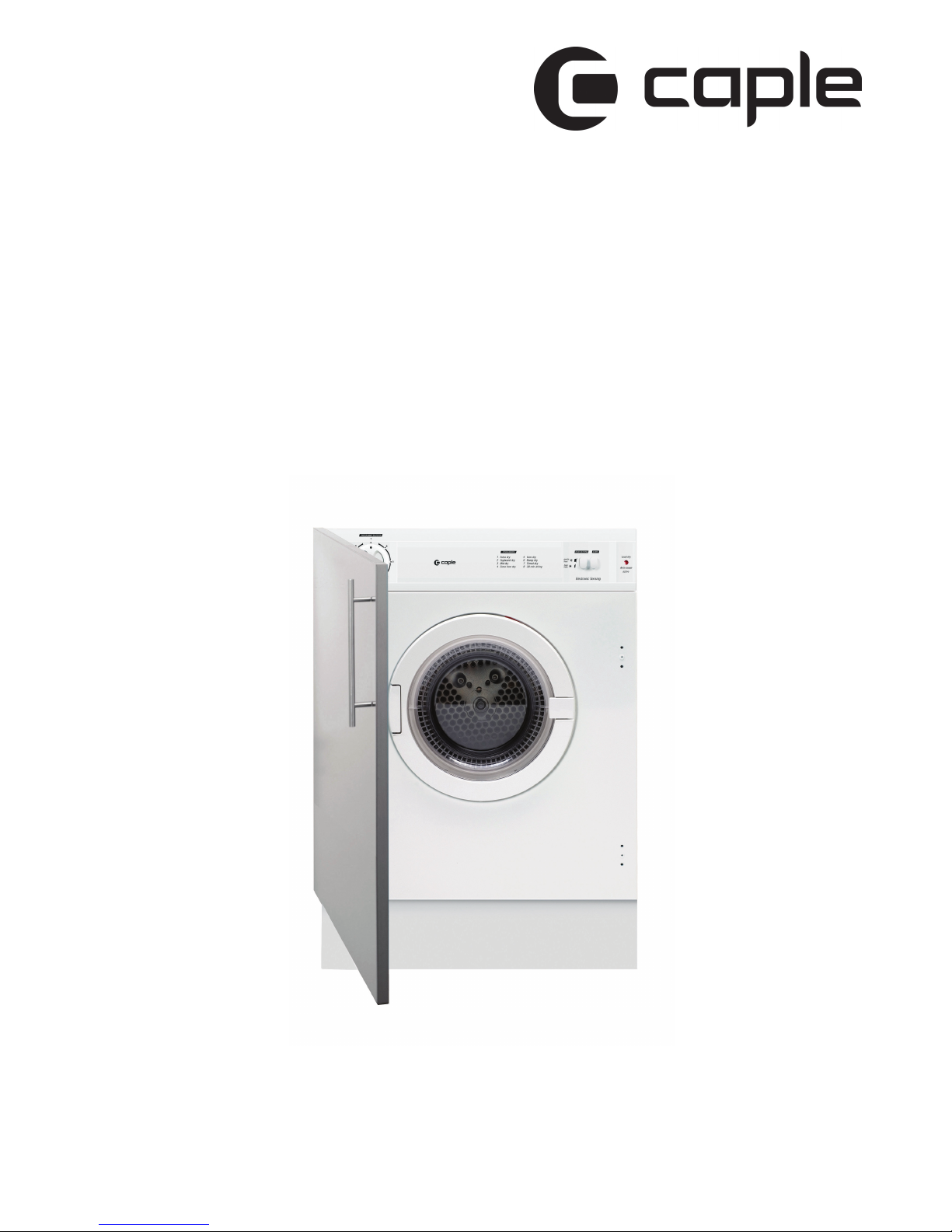

Caple TDI111 User manual

Instruction manual for integrated tumble dryer
Model code: TDI111
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk

Contents
Important user information
Installation
The filter
Operating instructions
Drying your laundry
Door and decor door reversal
Technical data and troubleshooting guide

IMPORTANT USER INFORMATION
These notes are provided in the interest of safety.
You must read them before installing or
using the appliance.
–This tumble dryer is intended for NORMAL
DOMESTIC USE ONLY.
SECTION 1: BEFORE USE
* Safety warnings
These notes are provided in the interest of safety.
You must read them before installing or using the
appliance. - This appliance can be used by children
aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not
be made by children without supervision. Children
of less than 3 years should be kept away unless
continuously supervised.
- Adequate ventilation must be provided to avoid
back flow of gases into the room from appliances
burning other fuels, including open fires.
- Exhaust air must not be discharged into a flue
which is used for exhausting fumes from appliances
burning gas or other fuel.

–Please note it is not recommended that the dryer is
placed directly next to ovens or cookers as the
performance of the dryer may be affected.
–A carpet must not obstruct the ventilation openings in
the base of the dryer.
–Do not stack the tumble dryer on top of other
appliances without the correct stacking kit.
–Any electrical work required to install the appliance
should be carried out by a qualified person.
–It is important to clean the lint filter after each drying
cycle or the restrictions to airflow will extend drying
times and could cause the safety cut-out to trip.
–Under no circumstances should anything other than
the recommended articles be placed in the tumble dryer.
–The tumble dryer should be serviced by an appointed
service organisation and only genuine parts used.
–It is dangerous to alter or modify the product in any
way other than fitting authorized accessories.
–We recommend that the appliance is unplugged each
time after use. It should always be disconnected from
the electricity supply for long periods (i.e. weekends, if
it is to be left unattended for holidays etc.)
–The rear of the dryer gets quite hot during use.
Position the dryer so that the back is not
accessible while in operation, but ensure that
the sides have a space available to allow
airflow.

-–The special mains cable and plug assembly must only
be replaced with a genuine part by the
manufacturer or his service agents in order to avoid
a hazard.
-It is important to clean fluff from the window of
the dryer and around the door seal after each
drying cycle. Failure to do so could result in water
leaking.
WARNING: If you need to stop the tumble dryer
before the end of a drying cycle, ensure that the load
and appliance are cooled by utilizing the cooldown
period denoted on the control panel. Once the load is
removed, all items need to be quickly spread out so
that any residual heat is dissipated.
Remove all objects from pockets such as lighters and
matches.
DO NOT use a two-way adaptor, or extension lead.
The dryer must be connected to its own socket.
DO NOT block the air inlets at the base and side of
your dryer.
DO NOT allow fluff to accumulate around the tumble
dryer. Risk of fire
DO NOT exceed the recommended maximum load.
DO NOT dry unwashed items in the tumble dryer
DO NOT place articles in the dryer if anything other
than a water solution has been used in the cleaning
process.

DO NOT attempt to dry dripping wet articles.
DO NOT use the tumble dryer if you suspect that it
is damaged in any way. Under no circumstances
should you attempt to repair the appliance yourself.
Repairs carried out by inexperienced persons may
cause serious injury.
- Consult your local appointed service engineer and
insist on genuine spare parts.
-The dryer must be installed by a Registered
Installer. - Any electrical work required to install the
appliance should be carried out by a qualified
person.
-The tumble dryer should be serviced by an
appointed service organisation and only genuine
parts used.
- It is recommended that the dryer be serviced
annually by a person competent to service tumble
dryers.
-Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out by
inexperienced persons may cause serious injury.
Consult your local appointed service engineer and
insist on genuine spare parts.
- The special mains cable and plug assembly must
only be replaced with a genuine part available from
the manufacturer or service agent.

-Keep the packing materials from your machine
away from children to avoid hazards.
-Keep pets away from your machine.
-Your machine is designed for use in a
domestic environment. The warranty will be
invalid if you use it for commercial purposes.
-It could be possible for a child or pet to gain
access to the tumble dryer through the porthole
door. Therefore please check the drum before using
the appliance.
-Any packaging that is removed from the
machine should be kept away from children.
DO NOT - use a two-way adaptor, or extension lead.
The dryer must be connected to its own socket.
DO NOT - block the air inlets at the front and back
of your dryer.
DO NOT - exceed the recommended maximum load.
DO NOT - place articles in the dryer if anything other
than a water solution has been used in the cleaning
process.
DO NOT - dry unwashed items in the tumble dryer.
DO NOT - attempt to dry dripping wet articles.
DO NOT - use the tumble dryer if you suspect that it
is damaged in any way.

Installation
The tumble dryer is fully compatible with any 600mm deep kitchen units and complies with
stringent EEC regulations.

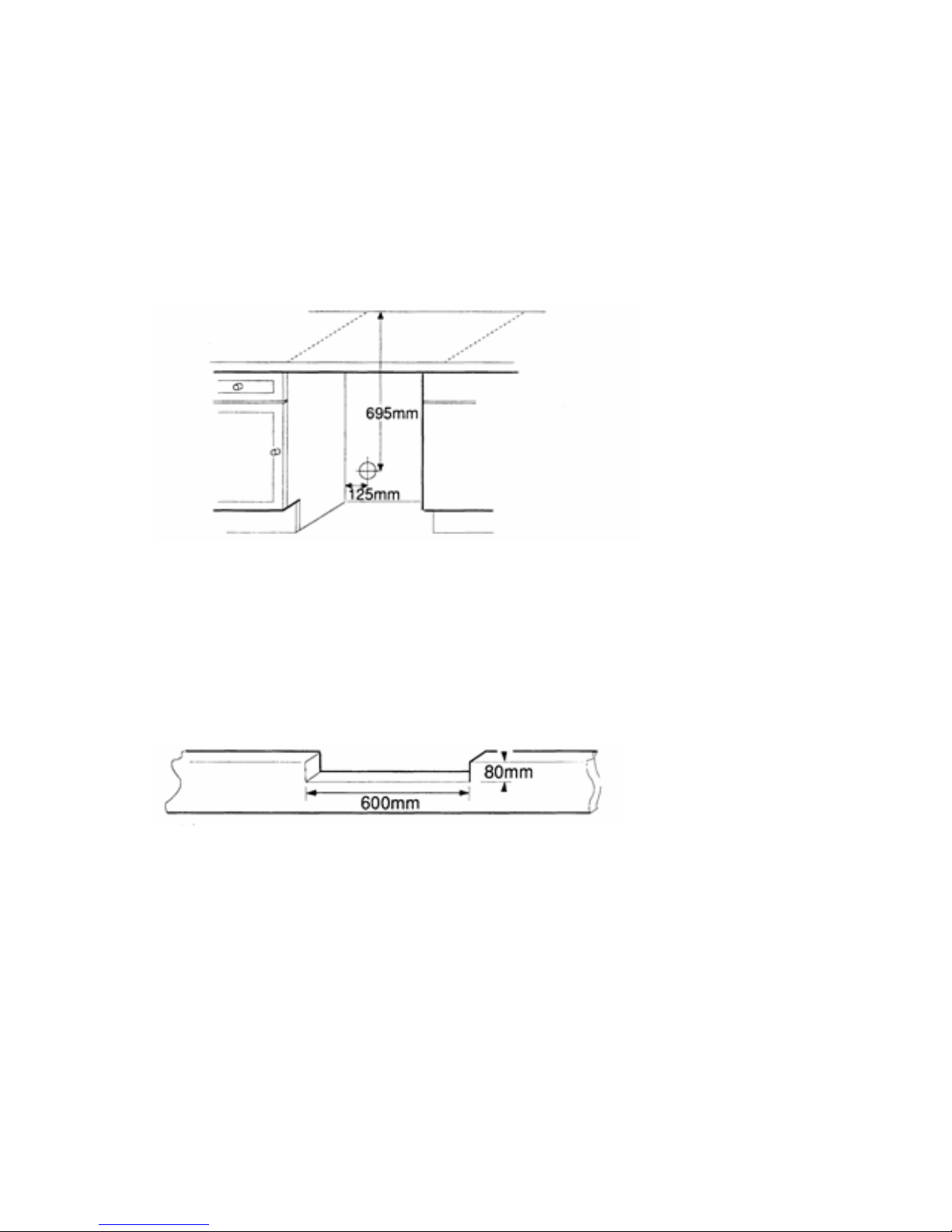

Your dryer is provided with a vent hose which will extend to approx 2.4m (8ft). We strongly
recommend that this is vented through the wall with the attachment provided. The position of
the hole (100mm diameter) for the vent directly behind the tumble dryer is shown in the
diagram.
If the through the wall vent is to be positioned anywhere other than behind the dryer, the vent
hose should be positioned at floor level and through adjacent side panel to a relevant position.
The plinth must be cut out to accommodate the air vent grill at the bottom front of the tumble
dryer (see the dimensions below).
IMPORTANT
The air vent at the front of the appliance must never be covered or blocked in any way as this
will cause the dryer to overheat.
This appliance must not be installed behind a lockable door, a sliding door or a door with
hinges on the opposite side to that of the tumble dryer.
The dryer should not be placed directly next to ovens or cookers, as the performance of the
dryer may be affected.
Electrical connections: We strongly recommend that any electrical work is carried out by a
qualified person complying with the IEE 17th addition of the electrical regulations.

2
3
4
5
6
7
8
heat
setting
electronic sensing
programme selector
load dry
gentle
high
heat
heat
reverse
tumble
7kg
read the instructions
1
2
3
4
5
6
7
8
anti-crease
active
1extra dry
2cupboard dry -
3mid dry
4extra iron dry
5iron dry
6damp dry
7timed dry
830 min airing
programmes
standard cotton
programme
TDI111
made in UK
start
IMPORTANT
Please remember that the tumble dryer must be capable of being switched off (disconnected from the
supply), when fitted in position.
The filter
Control panel guide
1.PROGRAMME SELECTOR: Choose the final dryness of the load by selecting the
desired dryness setting (see the programme chart).
The dryer will stop automatically when the chosen dryness is
achieved. Note: the use of an iron dry programme will use 30%
less energy than a cupboard dry programme.
2. HEAT SETTINGS: High - For fabrics insensitive to higher temperatures,
such as cotton.
Low - For temperature sensitive clothes.
3. START BUTTON: Press to start the drying cycle.
The filter is found, as seen from the diagram, by opening the door and must
always be in position when drying items in the appliance.
To allow the dryer to operate efficiently it should be cleaned after each drying
cycle. Do not be alarmed by the amount of fluff deposited on the mesh. It is not
due to excessive wear caused by the dryer but more an indication of it’s efficient
operation. All fabric loses fluff when drying but it goes unnoticed into the air. In
a tumble dryer it simply collects in the filter. Simply pull out the filter, remove the
fluff and reposition it back into the dryer.
1
4
23

NEON cycle is completed and clothes can be removed. To
reduce creasing of clothes, anti−crease will automatically
start once the drying cycle is complete.
PROGRAMME DESCRIPTIONS
1. extra dry
2. cupboard dry − standard cotton programme
3. mid dry
4. extra iron dry
5. iron dry
6. damp dry
7. timed dry
8. 30 mins airing
Program 1 - Extra dry: clothes are dry enough to be put away
Program 2 - Cupboard dry: clothes are dry enough to be put away
Program 3 - Mid dry: depending upon fabric, clothes are generally dry enough to be put away
Program 4 - Extra iron dry: clothes are almost dry but can be easily ironed
Program 5 - Iron dry: clothes are slightly damp and ready to be ironed
Program 6 - Damp dry: clothes are damp and ready to be ironed
Program 7 - 30 minute timed drying program
Program 8 - 30 minute timed `airingE program; useful for freshening up clothing.
Programs 1−7 can be operated on either full heat or half heat setting and have a 12 minute
cool−down period at the end of the cycle
Program 8 operates without the heater (regardless of the heat switch setting), circulating air
through the dryer at the ambient temperature.
BEFORE DRYING
Check the care labels inside the garments

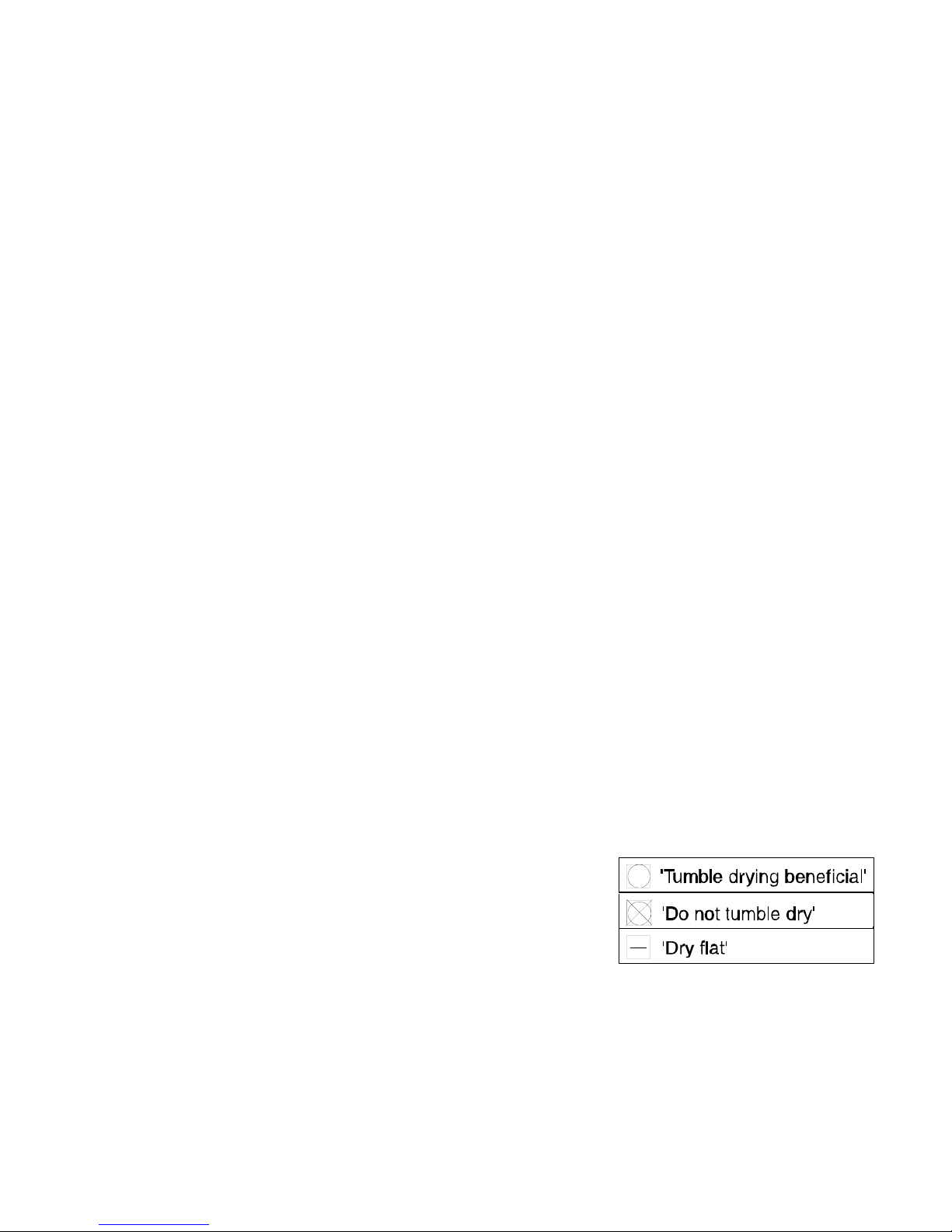

Care labels you may find on your fabrics
Do not tumble dry woolen or wool mixture articles unless the article is labelled to be suitable
due to possibility of shrinkage.
Place delicate articles, e.g. tights and scarves, inside a pillowcase.
Sort out the clothes into groups of similar fabrics and colours.
Check the care label inside the garment.
PLEASE NOTE: THE DRYER WILL CONTINUE TO RUN IN ANTI-CREASE MODE UNTIL
THE DOOR IS OPENED
Drying you laundry
4. ANTI−CREASE ACTIVE When lit constantly, the neon indicates that the drying
