Caple CAFF42 User manual

Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk

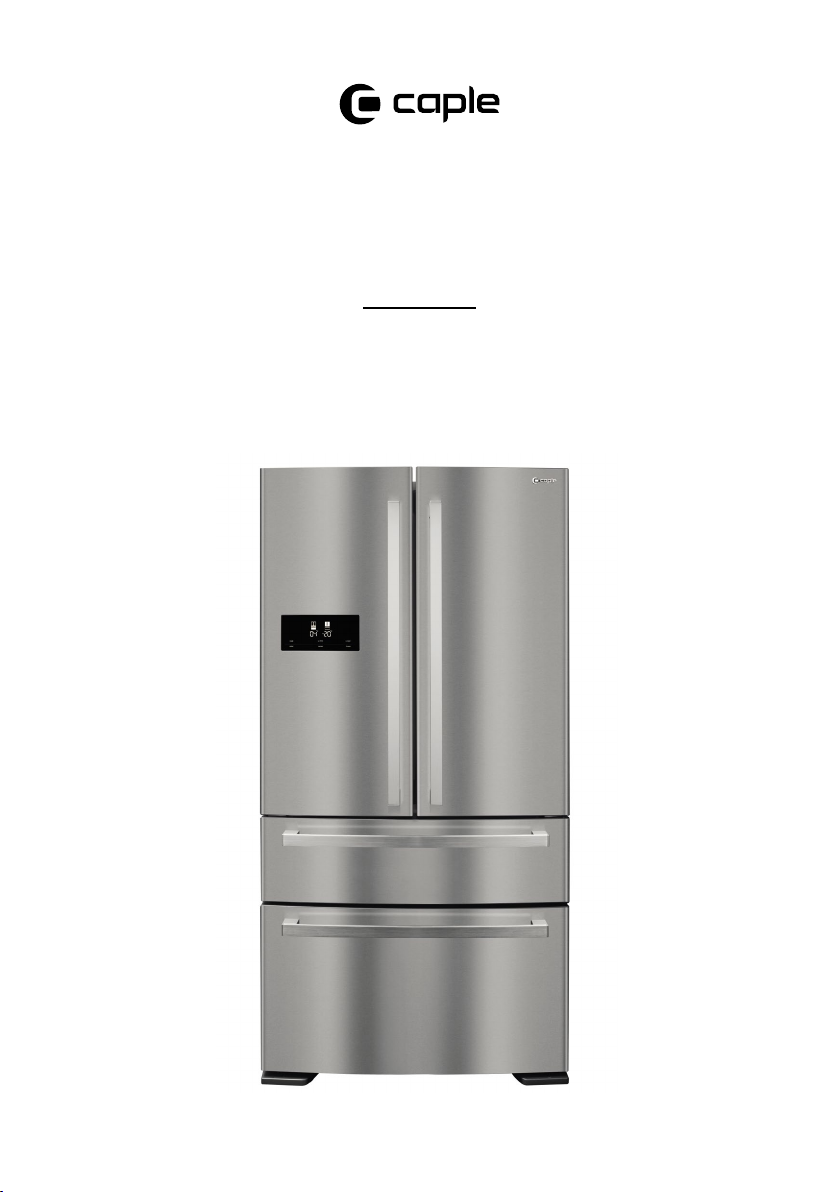

Free Standing Fridge Freezer
Instruction Manual
CAFF42

2Instruction manual CAFF42 Please keep this instruction manual for future reference
CONTENTS
Warnings 3
Environmental Protection 13
General Features 14
Electrical Connection 15

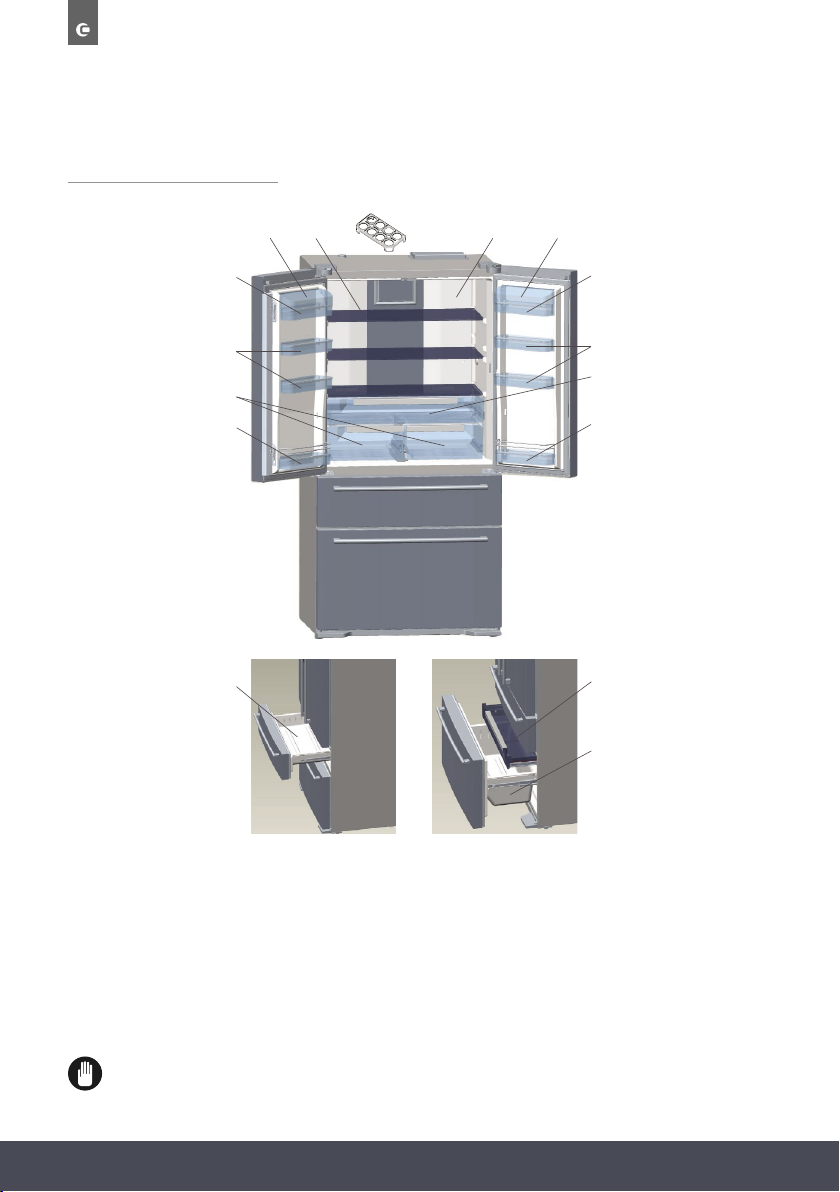

Product Overview 16

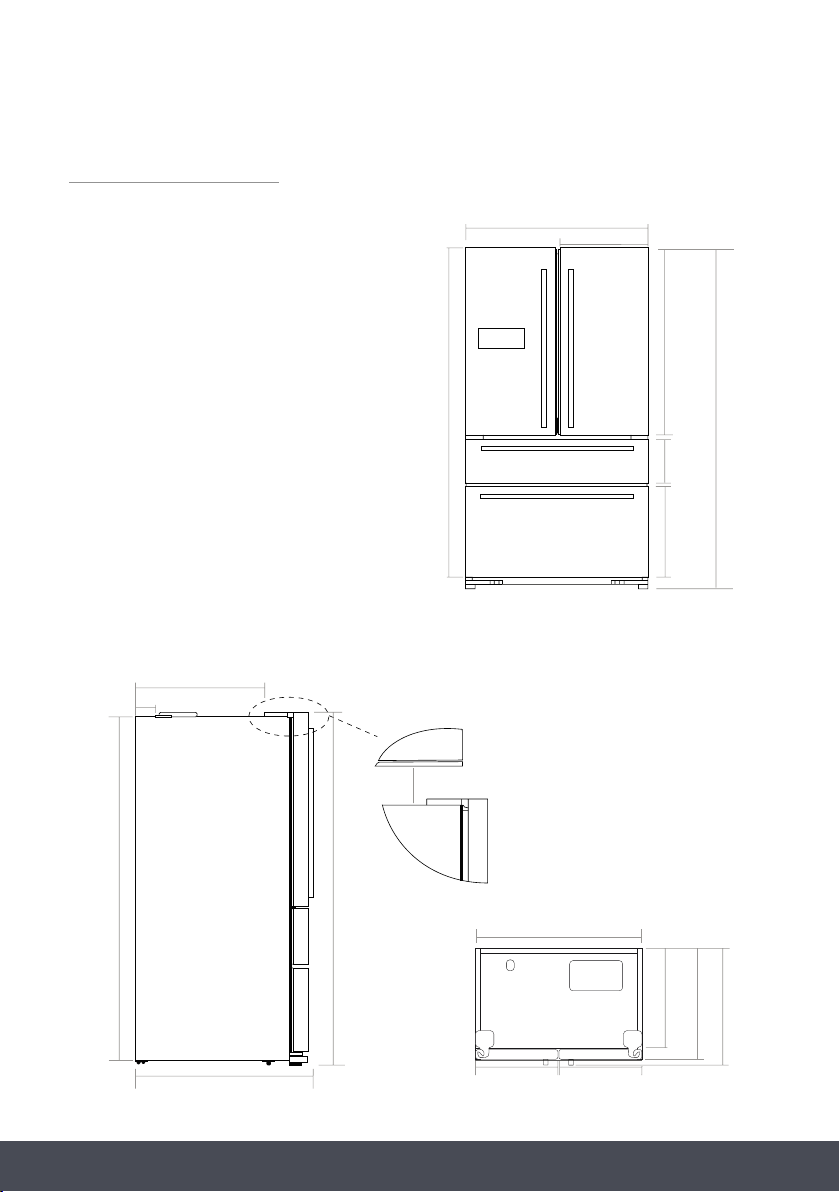

Dimensions 17
Using The Appliance 19

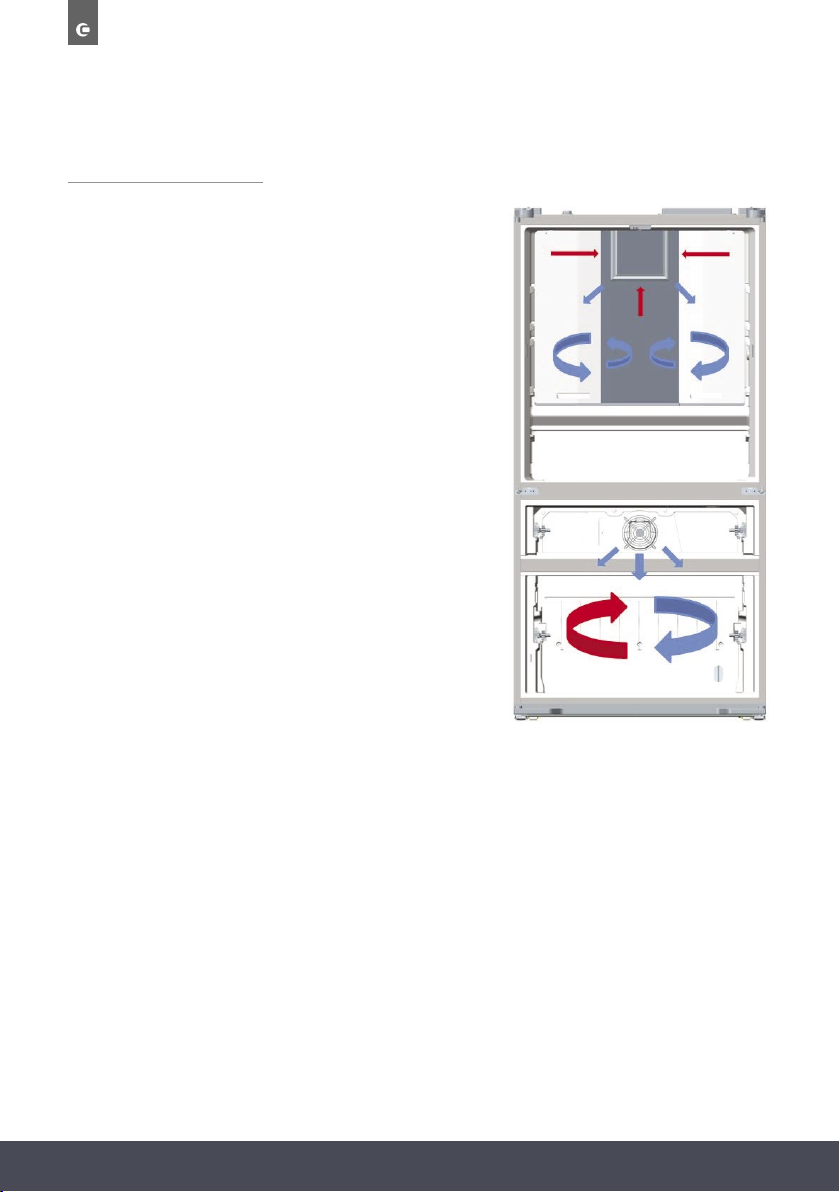

Frost Free Technology 20
Display and Control Panel 21
Accessories 26
Chill Drawer and Humidity Controlled Drawer 27
Food Storage 29
Cleaning And Maintenance 37
Replacing LED Lighting 38
Transport And Repositioning 39
Troubleshooting 40
Energy Saving Tips 44
Caple Contact Details 48

3Instruction manual CAFF42Please keep this instruction manual for future reference
SAFETY INSTRUCTIONS
Read these instructions carefully and completely before
using your appliance. They provide you with important
information regarding the safe installation, use and
maintenance of the appliance as well as useful advice
for getting the best out of your fridge freezer. Keep this
booklet in a safe place for future reference and pass on
to any future owner.
-This appliance is produced in accordance with all
applicable local and international standards
and regulations.
-This appliance is intended to be used in household and
similar applications such as:
› Staff kitchen areas in shops, offices and other
working environments.
› Farm Houses.
› By clients in hotels, motels and other residential type
environments.
› Bed and breakfast type environments.
-This appliance may only be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, if
they are supervised whilst using it. They may only use
it unsupervised if they have been shown how to use it
in a safe manner. They must be able to recognise and
understand the dangers of misuse.

4Instruction manual CAFF42 Please keep this instruction manual for future reference
SAFETY WITH CHILDREN:
-This appliance can be used by children aged from 8
years and above.
-Children less than 8 years of age should be kept away
unless continuously supervised or they have been
shown how to use it in a safe manner. Children must
be able to understand and recognise the possible
dangers caused by incorrect operation.
-Children should be supervised in the vicinity of
the appliance.
-Never allow children to play with the appliance.
-Cleaning and user maintenance should not be carried
out by children without supervision.
-Children aged from 3 to 8 years are allowed to load
and unload refrigerating appliances.
-Materials used for packaging (nylon, staplers,
Styrofoam etc.) may cause harmful effects to children,
they should be disposed of immediately.
-Children can injure themselves on an open door. Do
not let children sit on the open door, lean against it or
swing on it.

5Instruction manual CAFF42Please keep this instruction manual for future reference
TECHNICAL SAFETY:
-Maintenance and repair work must be made only
by authorised Caple service technicians. Installation
and repair work that is carried out by unauthorised
technicians may endanger you.
-While the appliance is under warranty, repairs should
only be undertaken by a Caple authorised service
technician. Otherwise the warranty will be invalidated.
-It is dangerous to alter or modify the specifications of
the appliance in any way. The requirements for this
appliance are stated on the rating label.
-Risk of injury due to electric shock. Any contact with
live connections or tampering with the electrical or
mechanical components of the appliance will endanger
your safety and may lead to the
appliance malfunctioning.
-To maintain the efficiency and safety of your appliance,
we recommend you always use original spare parts
and to call only our authorised Caple Service agents in
case of need.
-Multi-socket adapters and extension leads should
not be used to connect the appliance to the mains
electricity supply.
-The electrical system of this appliance may be used
safely only when it is correctly connected to an
efficient earthing system in compliance with the safety
standards currently in effect.

6Instruction manual CAFF42 Please keep this instruction manual for future reference
-Insert the plug into a socket with an efficient ground
connection. If the socket has no ground contact or the
plug does not match, we recommend you consult a
qualified electrician for assistance.
-The appliance must be connected with a properly
installed fused socket. The power supply (AC) and
voltage at the operating point must match with the
details on the rating plate of the appliance.
-Consult a qualified electrician or service person if the
Grounding instructions are not completely understood,
or if you have doubts on whether the appliance is
properly grounded.
-The incorrect grounding may cause breakdown and
electric shock.
-We do not accept responsibility for any damages that
occur due to ungrounded usage.
-If the socket does not match the refrigerator plug, it
must be replaced by the manufacturer, a service agent
or similarly qualified persons in order to avoid
a hazard.
-A specially grounded plug has been connected to the
power cable of your refrigerator. This plug should be
used with a specially grounded socket of 13 amperes.
If there is no such socket in your house, please have
one installed by an authorised electrician.

7Instruction manual CAFF42Please keep this instruction manual for future reference
INSTALLATION WARNINGS:
-
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
WARNING: In order to avoid any hazards resulting
from the instability of the appliance, it must be fixed in
accordance with the instructions:
-Prior to installation, ensure that the local distribution
conditions (electricity voltage and frequency) and the
requirements of the appliance are compatible.
-During installation the appliance must be completely
disconnected from the mains electricity supply.
-Do not operate the appliance before it is fully installed.
-The appliance must be installed by an
authorised technician.
-In order to avoid any hazards resulting from the
instability of the appliance, it must be fixed in
accordance with the following instructions.
-This appliance is not intended for use at altitudes
exceeding 2000m.
-Your appliance must be at least 50cm away from
stoves, gas ovens and heater cores, and at least 5cm
away from electrical ovens.
-If your fridge freezer is placed next to a deep fridge,
there must be at least 2cm between them to prevent
humidity forming on the outer surface.
-Do not cover the body or top of fridge with lace. This
will affect the performance of your fridge.

8Instruction manual CAFF42 Please keep this instruction manual for future reference
-Clearance of at least 100mm is required at the top of
your appliance. Do not place anything on top of
your appliance.
-Caple is not responsible for any damage that may
be caused by defective placement and installation by
unauthorised persons.
-When unpacking the appliance, make sure that it is not
damaged during transportation.
-Check the appliance for any damage.
-In the case of any defect; do not use the appliance and
contact your retailer or Caple Service immediately.
-
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
WARNING: When positioning the appliance, ensure
the supply cord is not trapped or damaged. If the supply
cord is damaged, it must be replaced by a Caple service
technician or similarly qualified persons in order to
prevent a hazard.
-Never touch the power cord/plug with wet hands. This
may cause a short circuit or electric shock.
-
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
WARNING: The plug must be accessible after
installation. Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
-Protect your appliance against atmospheric effects. Do
not expose it to effects such as sun, rain, snow etc.

9Instruction manual CAFF42Please keep this instruction manual for future reference
DURING USE:
-
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
WARNING: Do not damage the refrigerant circuit.
-Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
-Place drinks with high alcohol content vertically in
the fridge compartment and make sure their tops are
tightly closed.
-If you know you will not be using the appliance for a
while switch it off from the main supply and unplug it.
-
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
-Do not place your appliance on a carpeted surface as
this will prevent adequate ventilation.
-When the appliance is not in use, we recommend you
turn it off, and isolate it from the electrical supply.
-This appliance must be used in the vertical position on
a flat surface.
-
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
-The manufacturer will not be held liable for any
damages that might arise out of incorrect or improper
use of the appliance.
-Do not touch frozen goods with wet hands. Your hands
may freeze to the frozen food.

10 Instruction manual CAFF42 Please keep this instruction manual for future reference
-Do not eat ice-cream or ice cubes immediately after
they are removed from the freezer compartment.
Frozen food can cause frost burn to the lips
and tongue.
-Do not re-freeze partially or fully thawed food. This
may cause health issues such as food poisoning.
Defrosted food may only be re-frozen after it has
been cooked.
-Do not place glass bottles or cans containing
carbonated drinks in the freezer compartment as they
will burst when the contents freezes.
-If using the appliance to quickly cool drinks, do not
leave bottles inside the freezer compartment for more
than 1 hour, otherwise they could burst.
CLEANING AND MAINTENANCE:
-Clean the appliance thoroughly before use.
-Always switch off the appliance from the mains
isolating the electrical supply before any cleaning or
maintenance.
-
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.

11Instruction manual CAFF42Please keep this instruction manual for future reference
TRANSPORT:
-Always transport the appliance in its original packaging
and in an upright position.
-If your appliance uses R600a as a refrigerant, you
should take care during transportation and installation
to prevent the cooler elements from being damaged.
R600a is an environmentally friendly and natural
gas, but it is explosive. In the event of a leak due to
damage of the cooler elements, move your fridge away
from open flames or heat sources and ventilate the
room where the appliance is located for a few minutes.
-Never use the door handles for lifting.
-The appliance is heavy and could cause injury, it must
be transported by two people..

12 Instruction manual CAFF42 Please keep this instruction manual for future reference
DISPOSAL OF OLD APPLIANCE:
-Old fridges and fridges contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
-If your old fridge or fridge has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
-Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
7
RI5505 Fridge Freezer Instruction Manual.indd 7RI5505 Fridge Freezer Instruction Manual.indd 7 05/02/2020 14:3005/02/2020 14:30
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
- The appliance is heavy and could cause injury, it must
be transported by two people.
DISPOSAL OF OLD APPLIANCE:
- Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
- If your old fridge or freezer has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
- Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly

13Instruction manual CAFF42Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice. This
appliance is marked according to the European directive on Waste Electrical and Electronic
Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The symbol on the product indicates that
this product may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our website
www.caple.co.uk
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date
of purchase, model and serial number (placed on the inside of the appliance storage drawer).
Registration can also be completed online by visiting www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together
withproof of purchase. If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.

14 Instruction manual CAFF42 Please keep this instruction manual for future reference
GENERAL FEATURES
When the doors are closed, please check if there are any gaps between door gasket and the
body. If there are any gaps, please contact Caple service immediately.
When the freezer door is closed, a vacuum is formed. Do not force the door open immediately.
Please wait until the pressure has stabilised.
Air circulation of the fridge and freezer compartments are not mixed with other compartments
thanks to the frost-free technology. This technology stops odours passing through
compartments, and also allows vegetables to stay fresh for longer.
The fan will often run independently even if the compressor is not running. This maintains a
better air circulation, and is energy efficient.
Hidden LEDs and hidden air holes give the refrigerator a more appealing appearance.
Through a specific air flow design, fans give out cold air from multiple outlets on all shelf levels,
maintaining a more consistent temperature throughout.
The display edges and corners form a smooth surface against the door and ensure a perfect
appearance. Thanks to the touch control panel, temperature controls can be adjusted easily.
The interior LED light turns on gradually instead of sudden light. The LED lights up to
100%brightness within a few seconds after the door is opened.
Telescopic rails used in the chill drawerensure that it operates easily and quietly.
The chill drawer is fitted with soft close runners to prevent it from slamming shut. This function
eliminates the risk of the draw staying partially open.
Finger print proof doors never leave finger prints thanks to a special layer coated over the
stainless steel door.

15Instruction manual CAFF42Please keep this instruction manual for future reference
ELECTRICAL CONNECTION
For your safety please read the following information
WARNING:
This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse
in the plug.
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
IMPORTANT:
Do not use the appliance without the fuse cover in position.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
The mains lead of this appliance has been fitted with a BS 1363A 13A fused plug. To change a
fuse in this type of plug, follow the steps below:
1. Remove the fuse cover and fuse.
2. Fit replacement 13A fuse, ASTA approved to BS 1362 type, into the fuse cover.
3. Replace fuse cover.
The mains lead of this appliance has been fitted with a BS 1363A 13A fused plug.
To change a fuse in this type of plug, follow the steps below:
1. Remove the fuse cover and fuse.
2. Fit replacement 13A fuse, ASTA approved to BS
1362 type, into the fuse cover.
3. Replace fuse cover.

16 Instruction manual CAFF42 Please keep this instruction manual for future reference
PRODUCT OVERVIEW
This presentation is only for information about the parts of the appliance. Parts may vary
according to the appliance model.
1. Fridge compartment
2. Egg holder
3. Fridge compartment shelves
4. Door top shelf covers
5. Door top shelves
6. Door shelves
7. Door bottle shelves
8. Chill drawer
9. Humidity controlled drawers
10. Freezer top drawer
11. Freezer bottom drawer
12. Freezer hidden drawer
PRODUCT OVERVIEW
This presentation is only for information about the parts of the appliance. Parts may vary
according to the appliance model.
1. Fridge compartment
2. Egg holder
3. Fridge compartment shelves
4. Door top shelf covers
5. Door top shelves
6. Door shelves
7. Door bottle shelves
8. Chiller Compartment
9. Crisper Drawers
10. Freezer top drawer
11. Freezer bottom drawer
12. Freezer hidden drawer
2 1 4
34
5
6
9
77
8
6
5
10 12
11

17Instruction manual CAFF42Please keep this instruction manual for future reference
DIMENSIONS
DIMENSIONS
910 mm
452 mm
1019 mm
1850 mm
1789 mm
249 mm
495mm
100mm
555mm
86mm
1825 mm
1850mm
763mm
910mm
452mm 452mm
666mm
763mm
1010mm
1925mm
75mm
910 mm
1024mm
347mm
23mm
1146 mm
744mm
DIMENSIONS
910 mm
452 mm
1019 mm
1850 mm
1789 mm
249 mm
495mm
100mm
555mm
86mm
1825 mm
1850mm
763mm
910mm
452mm 452mm
666mm
763mm
1010mm
1925mm
75mm
910 mm
1024mm
347mm
23mm
1146 mm
744mm
› In order for the product to work
efficiently, there must be space
around it for air circulation.
If you are going to place the
product in a recessed area on
the wall, the gap should be
100mm between top surface
and ceiling and 50mm between
walls and side panels.
› The distance between the
appliance and back wall must
be a minimum of 75mm.

18 Instruction manual CAFF42 Please keep this instruction manual for future reference
DIMENSIONS
910 mm
452 mm
1019 mm
1850 mm
1789 mm
249 mm
495mm
100mm
555mm
86mm
1825 mm
1850mm
763mm
910mm
452mm 452mm
666mm
763mm
1010mm
1925mm
75mm
910 mm
1024mm
347mm
23mm
1146 mm
744mm
DIMENSIONS
910 mm
452 mm
1019 mm
1850 mm
1789 mm
249 mm
495mm
100mm
555mm
86mm
1825 mm
1850mm
763mm
910mm
452mm 452mm
666mm
763mm
1010mm
1925mm
75mm
910 mm
1024mm
347mm
23mm
1146 mm
744mm

19Instruction manual CAFF42Please keep this instruction manual for future reference
USING THE APPLIANCE
› Before using your fridge freezer, wipe all parts with a solution of warm water and a
teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to
the fridge freezer after cleaning.
› Remove all transport tapes and foam protection pieces. Clean the interior with a cloth
dampened in lukewarm soap and water. Rinse with clean water and dry.
› Use the adjustable front legs to make sure your appliance is level and stable. You can adjust
the legs by turning them clockwise (or in the opposite direction). This should be done before
placing food in the fridge.
› Your fridge freezer may have an odour when it is operated for the first time. This is normal
and the odour will fade when your fridge freezer starts to cool.
WARNING:
Connect to the electrical socket but do not switch the power to the refrigerator on for at least
12 hours. The coolant within the product needs time to settle after it has been transported and
put into position, failure to do this will affect the cooling performance of your appliance.

20 Instruction manual CAFF42 Please keep this instruction manual for future reference
Fridge-freezers with Frost-free technology have a different
operating system to static fridge-freezers.
In normal (static) fridge-freezers, the humidity entering the
fridge-freezer due to opening the door, and the humidity
inherent in the food, causes frost build-up in the fridge and
freezer compartments.
To defrost the frost and ice in the freezer compartment, you
are required to periodically switch off the fridge, place the
frozen food in a separate cooled container, then remove the
ice gathered in the freezer compartment. The situation is
completely different in Frost free fridges-freezers.
A built-in fan blows dry and cold air evenly throughout the
fridge and freezer compartments. The cold air disperses
uniformly, ensuring all your food is cooled equally, thus
preventing humidity and ice build-up.
In the refrigerator compartment, air blown by the fan,
located at the top of the refrigerator compartment, is
cooled while passing through the gap behind the air duct.
At the same time, the air is blown out through the holes in the air duct, evenly spreading cool
air throughout the refrigerator compartment.
There is no air passage between the freezer and refrigerator compartments, therefore
preventing the mixing of odours. Therefore, your Frost-free fridge-freezer allows ease of use, in
addition to its huge capacity and stylish appearance.
FROST FREE TECHNOLOGY
