Caple CAFF45GM User manual

CAFF45GM
Caple 4 door Freestanding Fridge Freezer
Technical Manual

CAFF45GM
Caple 4 door Freestanding Fridge Freezer

CAFF45GM
Caple 4 door Freestanding Fridge Freezer

CAFF45GM
Caple 4 door Freestanding Fridge Freezer

CAFF45GM
Caple 4 door Freestanding Fridge Freezer

CAFF45GM
Caple 4 door Freestanding Fridge Freezer

CAFF45GM
Caple 4 door Freestanding Fridge Freezer
Item
Part Number
Description
2A
37026056
TOP HINGE RIGHT 910 SERVICE RV2
2B
37026055
TOP HINGE LEFT 910 SERVICE RV2
7
37024764
SCREW TT M5*16 YSB-F
9A
37022373
MIDDLE HINGE RIGHT 910 RV1
9B
37022374
MIDDLE HINGE LEFT 910 RV1
11
42170935
MIDDLE/HINGE SREW CAP(SMALL)VSG.GRAY
15A
37022462
BOTTOM HINGE RIGHT GR/910 RV1
15B
37022464
BOTTOM HINGE LEFT GR/910 RV1
16
47010443
ADJUSTABLE FOOT M10X40(GRAY)
18
42125774
ICE TRAY COMMON
19A
47008961
F GLASS SHELF/910
19B
47010779
FREEZER BOTTOM WIRE SHELF/910(ALKALZINK)
20
42166059
F.GLASS SHELF PRF/910(EXT)DRKHOT 333
25
35003482
SCREW 40*13 YSB-R-C-INOX
32
35000744
SCREW KA 40*18 YSB-C-INOX
37
47015238
COOLER GLASS SHELF AQUASAFE SRGF/910 RV2
41A
42111087
CRISPER 910-RIGHT(TRANS-WH-GRAY)
41B
42111088
CRISPER 910-LEFT(TRANS-WH-GRAY)
42
37029727
CRISPER PRF SRGF/910 DARKINX
58
42052644
KICK PLATE HOLDER GK(S.W.)
60
42166054
KICK PLATE/910 DARK
62
42130996
ICE TRAY COVER/366 RV1(S.W.)
70
35001678
SCREW KA 40*14 YSB-R-F-INOX
87
35003056
FRONT WHEEL GR.
88
42126562
TOP HINGE C./910 RIGHT(DARKGRAMATVER)RV3
88A
42126561
TOP HINGE C./910GR RIG(DARKGRAMATVER)RV3
88B
42126564
TOP HINGE C./910 LEFT(DARKGRAMATVER)RV3
131
35001721
SCREW KA 40*14 YSB-C-INOX
151
42073883
BURÇ ÜST 910(ELUXGRAY)
151
42128088
BUSHING/345P(LXG) RV1
153A

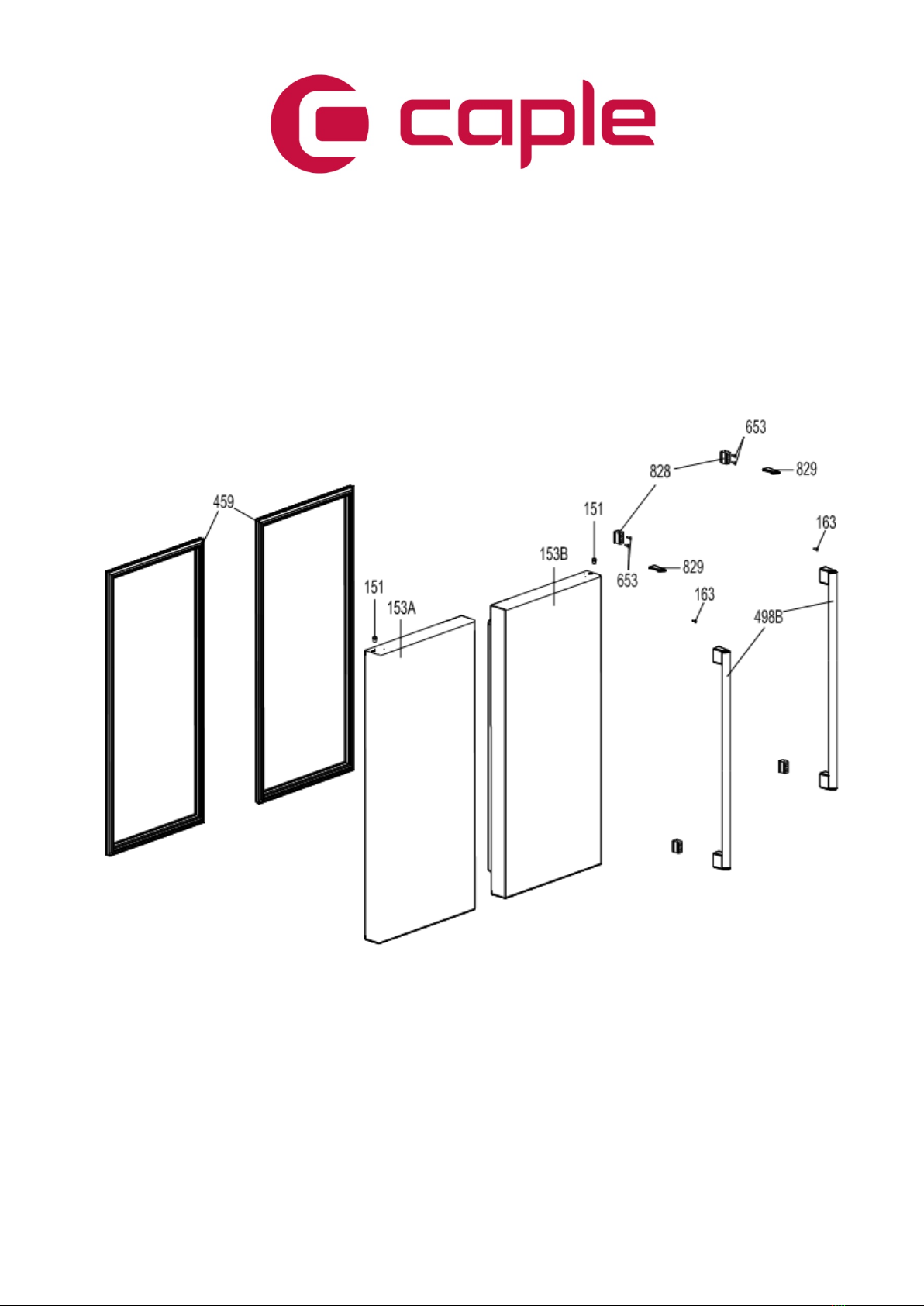

22037405
F DOOR ASSY/910-FD-LEFT-(DARKGRAY)
153B
22037404
F DOOR ASSY/910-FD-FLX(DARKGRAY)
154
47013813
LOGO CAPLE YENI TIP-4
155A
22037402
R DOOR ASSY/910-FD-FLX-SOL(DIFIX-KGRAY)
155B
22037403
R DOOR ASSY/910-FD-FLX-RIGHT(DIFIX-DGRAY
156
42111073
SHELF COVER/910
157
42166055
DOOR SHELF/910 GR.(TRA.-DARKINXPRF)
157
42191819
DOOR SHELF/910 GR.(TRA.-DARKINXPRF)

CAFF45GM
Caple 4 door Freestanding Fridge Freezer
Item
Part Number
Description
159
42163485
EGG HOLDER (TRANS.-NAT) RV1
160
47010425
DOOR SHELF 910
163
37012110
SCREW M4*10 YHB-F
164
42183204
DOOR HANDLE SCREW CAP(BND.GRAY)
171
42116228
DOOR CATCHER RIGHT GR/910 (NAT)
173
42116229
DOOR CATCHER LEFT GR/910 (NAT)
174
37014382
BOTTOM STOPPER/HC
187
42073916
BUSHING BOTTOM/910(LXG)
195
35007969
SCREW ST 3.5*13 OZEL1-C
200
32028959
DISP.PAN.GR/916(BLACK)EN HOTST 11-4
201
22061608
MAIN CONDANSER GR.915A+
201
37022210
CONDANSER COMPLETE/915A+
203
42118033
SPACER(NAT)
205
35009792
SCREW ST 4.8*13 YSB-T-C
207
42155463
RUBBER CONDANSER MUTUAL ANTIVIBRASYON
208
40017915
CONDANSER HOLDER(2)
209
32027387
SUP.CAB.GR.ZBH1122CY/5UF/2,5M/UK
210
32007439
POWER CORD(2.5m-ENG)
211
32020696
OVER L.GR.ZBH1122CY/B68-120/QP3-12A
211B
42177882
COMP.COVER/JIAXIPERA/24.01.59
212
32010690
CAPACITOR 5UF/400V P2-TIRNAK(6,3*0,8)
213
37022312
TRUSS ST 4*12 SPECIAL14-C
214
42099227
EVAPORATING TRAY GR/915(KAR)
215
37029010
DRYER(XH9,0.40MM,10GR,I.C.=3,1)
216
20020023
COMP FIXING BRACKET
217
32019159
COMP.ZBH1122CY/5MF/B68-120/QP3-12A/JIAX
218
37018198
COMP BASEMENT /910
218A
32032716
VALVE GR BI-STABLE I.C.=2,15(R600A)/520T
219
32027294
EARTH WIRE/WASHER
222
37023688
SCREW TT M4*6 YSB-T-F
225
35002664
SERVICE TUBE(105*6*0,7)TYPE B
226
35000752
DRYER VACUUM TUBE
227
42157011
FRONT/BACK WHEEL PP40KA
228
35000738
REAR WHELL PIN
232
35002921
SCREW M4*10 YSB-F
242
32029410
MB/BDA10-9/916/R207/V19-23335288
244
42164516
MAINBOARD COVER GR 910/FR(GRAY)
332A
42111078
CRISPER GR 910-RIGHT(TRANS-GRAY)

CAFF45GM
Caple 4 door Freestanding Fridge Freezer
Item
Part Number
Description
332B
42111079
CRISPER GR 910-LEFT(TRANS-GRAY)
333
42033005
CRISPER ROLLER/540(S.W.)
333B
42087619
CRISPER ROLLER/910(NAT)
334
42033070
CRISPER ROLLER HOLDER/540(NAT)
339
42173932
CHILLER SHELF GR/910(TRANS-WH-GRI)RV2
342
42111084
CHILLER SHELF /910(TRANS-WH-GRI)
400A

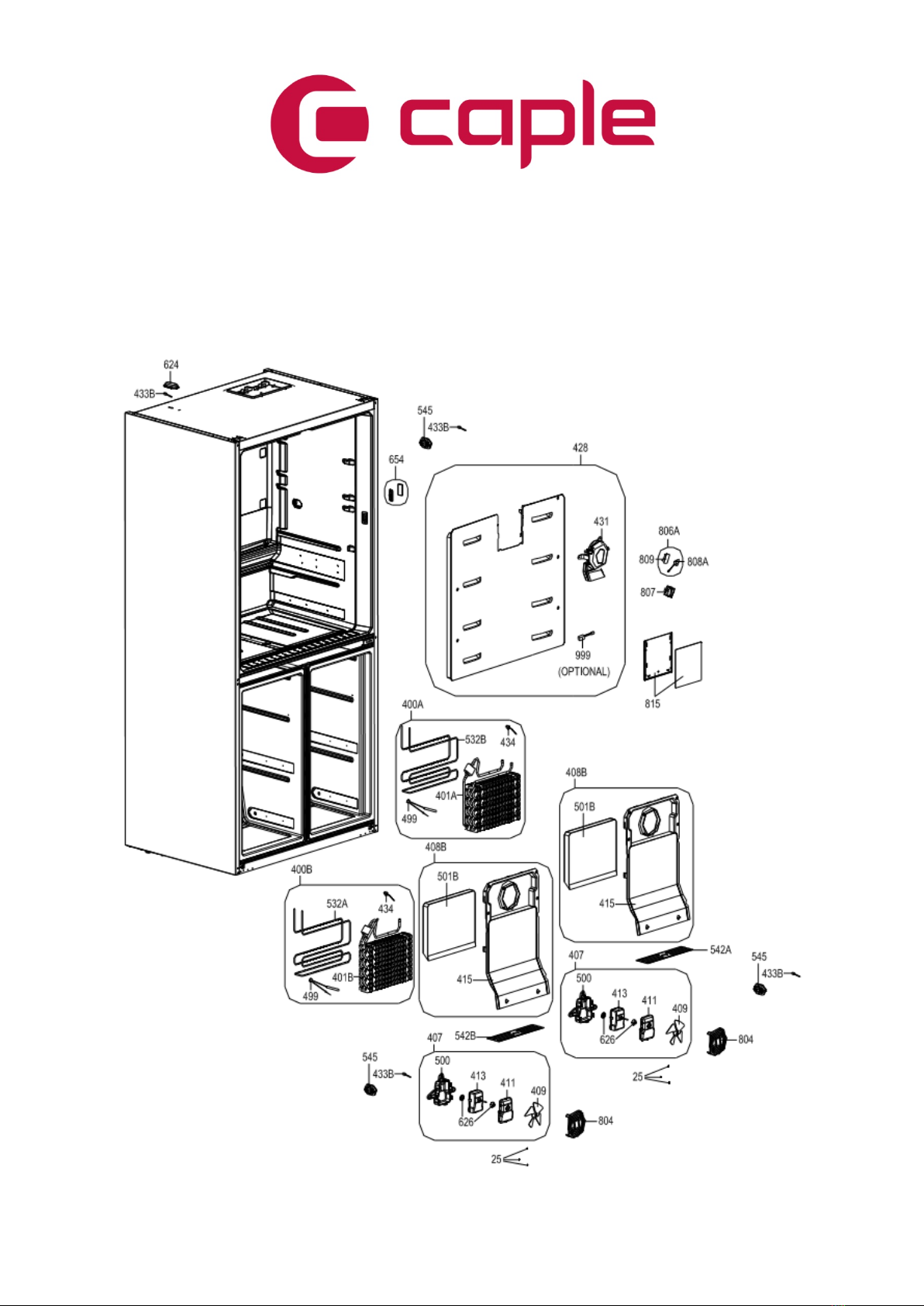

22031575
FINEVAPGR/915A+-CORDE(2ROWFEWFINTHER
401A
37025584
FIN EVAPORATOR/915A+AKUSZ(2SIRASEYFI.REZ
401B
37025585
FIN EVAPO/915A+AKUSZ(2SISEYFI.REZS-T1/RV
407
20676833
F FAN MOTOR GR/590UHS(NAT)
408B
42074178
F MULTIFLOW LEFT GR/910 (S.W)
409
42030263
PROPELLER/590(F.FAN MOTOR)BLACK
411
42031847
F FAN MOTOR COVER/590UHS(NAT)
413
32006707
EVAP FAN MOTOR/391-321-590
415
42074176
F MULTI FLOW COVER/910 (S.W)
428
42162194
R MULTI FLOW GR.916 NEW MI
429
42108053
R MULTI FLOW 916 NEW
431
32028874
TUR.FAN MOT.DC(92*92*25)T92T12MS5A7-5NDC
432
47011757
MOTOR FAN KAU.916-NEW
433B
32010909
SENSOR/STANDARD/R6K/70MM/SINGLE
449
42033244
R MULTIFLOW CAP/ 640(S.W.)
459
42077845
F DOOR GASKET/910(VFGRI)
460
42077799
R DOOR GASKET/910(VF GRAY)
498A
42148857
D.HANDLE FLX GR TOP-S(868)CLSIX
498B
42148858
D.HANDLE FLX GR BTTM-S(413)CLSIX
499
32028176
TERMAL FUSE SINGLE
500
42031850
F FAN MOTOR BOX
501B
52064812
F MULTI FLOW INSULATION 2ROWS/910
510
37003078
SCREW M,YHB,5x14,F,ST,A3K,TT
532B
32026886
FIN EVAP RES/2ROWS 80W 910/SHORT
542A
32017168
CASE RESISTANCE F LEFT/20W 910
542B
32017167
CASE RESISTANCE F RIGHT/20W 910
545
42053050
SENSOR COVER/566(S.W.)
588
37022711
SCREW ST 4.2*14 SPECIAL 17-C
618
37010180
SCREW 30*8 YSB-F-INOX
624
42163920
EMK SENSOR COVER GRAY RV
626
42030205
FREEZER FAN MOTOR RUBBER/590UHS
639
37014368
SCREW ST 4.2*12 OZEL8-C

CAFF45GM
Caple 4 door Freestanding Fridge Freezer
Item
Part Number
Description
642
42052437
WHEEL /GK
643
37014537
SCREW TT M5*25 YSB-F
651
37017354
CHILLER RAIL INTERNAL 350 910
652
37017355
CHILLER RAIL INTERNAL 350 910
653
37010281
SCREEW M4*15 YSB-F
653B
42040299
STORAGE BOX RAIL DUBEL/465
654
22033972
REED SWITCH GR/590UHS(WHITE) RV1
704
42074085
CRISPER UPPER SHELF CLAMP 910 (S.W.)
710
32013579
NIGHT SENSOR
713
42111074
CRISPER-CHILLER SHELF GR/910
714
42111085
CRISPER-CHILLER SHELF BOTTOM/910
718
37029729
CHILLER PRF SRGF/910 DARKINX
720
42111082
BOTTOM BASK./910
721
42166057
CRISPER TRIM 910GR.(EXT)DARKPRF
722
42166056
BOTTOM BASK.GR/910(TRANS-WH-GRAY)DARK
724
42111089
TOP CRISPER/910 (TRANS-GRAY)
725
42166058
TOP CRISPER GR/910 (TRANS-WH-GRAY)DARK
753
37017352
CRIS.RAIL OUT (RIGHT)910
753B
42074180
FRZ.BASKET ROLLER RAIL/TOP-RIGHT(910)
753C
42074190
FRZ.BASKET ROLLER RAIL/BOTTOM-RIGHT(910)
754
37017353
CRIS.RAIL OUT (LEFT)910
754B
42074186
FRZ.BASKET ROLLER RAIL/TOP-LEFT(910)
754C
42074188
FRZ.BASKET ROLLER RAIL/BOTTOM-LEFT(910)
800
42110561
TRIZ BAR CABINET GR.910(S.W.)RV1
801
37021419
CHILLER RAIL ASSEMBLY SHEET/FRONT
802
37017960
CHILLER RAIL ASSEMBLY SHEET/BACK
803
37018662
ABOVE CRISPER SHELF PIN 910
804
37021374
FREEZER AIR DUCT GRILLE(AC)910(ALKAZINK)
806A
42163013
SOG. LED CAP GR/485 PP SPIKED/2835
808A
32030848
LED STRIP/2835*3/R42MM/12V/485E
807
42148693
R LED OUT COVER /485(S.W) SNAP FIT
809
42148692
REF LED COVER/485 PP SNAP FIT
816
42074076
CRISPER MIDWALL GR.910 (S.W)
817
42074077
CRISPER MIDWALL 910 (S.W)
818
37021279
TELESCOPIC RAIL/RIGHT
819
37021280
TELESCOPIC RAIL/LEFT
820
42097727
BOTTOM HINGE COVER/910 LEFT MATVER
821
42097728
BOTTOM HINGE COVER/910 RIGHT MATVER

CAFF45GM
Caple 4 door Freestanding Fridge Freezer
Item
Part Number
Description
822
32023118
TRIZ BAR GR.910(S.W PLSBND.GRAYSAC)RV1
826B
32016728
LED STRIP/3528*15/9*295MM/12V/910/COOLDI
828
37026946
DOOR HANDLE SUPPORT PART 910 GLXY(SHEET)
829
42146858
DOOR HANDLE FLX CAP(CLS)
831
42074039
HINGE SOCKET HOUSING 910(S.W)
832
42081639
HINGE HOUSING COVER/910 (S.W)
833
32017147
LED STRIP/R INSIDE DOOR GR/910
834
42132624
INSIDE DOOR LED COVER 910 (MILKY) PS
835
42137248
F GLASS SHELF STOPPER RV1/910
1026
40007341
COMP.RUBBER-DANFOSS
47008408 DOOR MAGNET

1
CUSTOMER
SUPPORT
WHITE GOODS
916 - FRENCH DOOR
SEPTEMBER 2015
CIRCUIT DIAGRAM

CAFF45GM Service Manual

A) Cooler Compartment
B) Fridge / Freezer Compartment
B1. Zone-1 / B2. Zone-2
1) Fridge compartment shelves
2) Chiller (breakfast) compartment
3) Crispers
4) Cheese-Butter shelf covers
5) Cheese, butter shelf
6) Door shelves
7) Eggcups
8) Door bottle shelves
9) Iceboxes
10) Freezer / Cooler top baskets
11) Freezer / Cooler bottom baskets
12) Adjustable feet

1. Fridge Compartment Temperature indicator
2. Left Freezer Compartment Temperature indicator
3. Right Freezer Compartment Temperature indicator
4. Super cooling light
5. Super freezing light
6. Qdrink alarm counter
7. Vita Store mode
8. Economy mode
9. Holiday mode
10. Qdrink light
11. Night sensor
Display and control panel
12. Child lock
13. Dealer-Demo mode
14. Low voltage warning
15. Alarm –Service Recall (SR)
16. Screensaver button
17. Zone 2 (Right freezer) button
18. Mode button
19. Cooler button
20. Qdrink mode button
21. Zone 1 (Left freezer)button
The values on the screen indicate temperature values specified by the consumer.
Standby display is protected against faulty contact. Therefore, you must touch any key on the
display before you take any action. After 2 seconds, as in this case, beep-beep tone will be
open to display for use. If you wait 20 seconds at the end of the process, display will go back
to the same protection case.

Previous Displays
1. Fridge Compartment Temperature indicator
2. Left Freezer Compartment Temperature indicator
3. Right Freezer Compartment Temperature indicator
4. Super cooling light
5. Super freezing light
6. Qdrink alarm counter
7. Vita Store mode
8. Economy mode
9. Holiday mode
10. Qdrink light
11. Night sensor
12. Child lock
13. Dealer-Demo mode
14. Low voltage warning
15. Alarm
16. Screensaver button
17. Zone 2 (Right freezer) button
18. Mode button
19. Cooler button
20. Qdrink mode button
21. Zone 1 (Left freezer) button
22.Door Light On
23.Door Light Off

Beverage cooling (QDRINK)
[q.drink] button should be pressed to activate beverage cooling mode. Each press will
increase the time for 5 minutes up to 30 minutes, and then it returns to zero.
You can view the time zone you want to set on "Qdrink alarm counter" section. Qdrink mode
only lets the refrigerator release an audible alert after a specific period.
Important: It should not be confused with cooling.
You must adjust the time according to the temperature of the bottles before you put them in
zone1 and/or zone2 compartments. For example, you can set the time as “5 minutes” in the
beginning.After this time, if the cooling is insufficient, you might set another 5 or 10 minutes.
While using this mode, you must check the temperature of the bottles regularly. When the
bottles are cool enough, you must take them out of the appliance. If you forget bottles in
Q.DRINK mode, bottles may explode.
Economic mode (ECO)
It ensures that your refrigerator runs within ideal temperatures. In order to activate ECO
mode, you should just press [mode] button until “eco ” and “ e” light is on.
Holiday mode (H)
It is represented by an umbrella and sun. If you will go to holiday for a long time and during this
time if you will not use cooler compartment, you may activate this mode. To switch the appliance
to holiday mode, you should just press [mode] button until “holiday symbol and H” light comes
on.
Quick freezing (SF SUPERFREEZE)
You should press on [zone1] or [zone2] buttons until "sf" letters are displayed on the display.
Once “sf” letters are viewed, a beep sound will be released if you press no button and the
mode will be selected. You can use this mode to freeze prepared meals or freeze large
amounts of food quickly. Quick freezing mode will automatically be deactivated after 24
hours or once the freezer compartment temperature sensor feels sufficient temperature.
For quick freezing, zone1 compartment should be selected preferably.
Quick cooling (SC SUPERCOOL)
Press cooler button until “sc” letters are viewed on the display. Once “sc” letters are viewed,
a beep sound will be released if you press no button and the mode will be selected. You can
use this mode to cool prepared meals or cool large amounts of food quickly. Quick cooling
mode will be automatically cancelled after 4 or 6 hours depending on the environmental
temperature or when the cooler compartment reaches a sufficiently low temperature.

Door Lights On/Off (DOOR LIGHT ON/OFF)
Illumination system hidden in the door handles of the product should be used based on
demand. In order to activate illumination system on the door handles, you need to press
[mode] button for 3 seconds. For deactivation, press [mode] button for 3 seconds again.
In case of "ON" position, door illuminations will always be on. Door light on/off is an optional
feature which applies to the refrigerators having the feature.
Cooler (COOLER)
It is used for temperature setting of cooler compartment. By pressing [cooler] button, you can
set the values of cooler part to 2, 3, 4, 5, 6, 7, 8 Celsius temperature values.
Freezer / Cooler 1 (ZONE 1)
It is temperature setting button for bottom-left compartment. By pressing [zone 1] button
freezing value of bottom-left part can be set as -16, -17, -18, -19, -20, -21, -22, -23, -24
Celsius temperature values. If you do not want to use bottom-left part as cooler, press
[zone1] button for 3 seconds to switch to this mode, and set to 2, 3, 4, 5, 6, 7, 8 Celsius
temperature values.
Freezer / Cooler 2 (ZONE 2)
It is temperature setting button for bottom-right compartment. By pressing [zone 2] button
freezing value of bottom-right part can be set as -16, -17, -18, -19, -20, -21, -22, -23, -24
Celsius temperature values. If you do not want to use bottom-right part as cooler, press
[zone 2] button for 3 seconds to switch to this mode, and set to 2, 3, 4, 5, 6, 7, 8 Celsius
temperature values.
Child lock (KEY SYMBOL)
In order to activate child lock, you need to press [cooler]+[zone 2] buttons simultaneously
for 5 seconds. When the child lock is active, other buttons will be deactivated, and therefore
changing the settings you have made will be prevented. In order to deactivate child lock, you,
again, need to press [cooler]+[zone 2] buttons simultaneously for 5 seconds.
Night sensor
When you press night sensor [mode] and [s.saver] buttons for 3 seconds, your refrigerator’s
lights will be OFF in case of sufficient illumination, therefore you will save energy.
Screensaver (SCREEN SAVER)
When you press [s.saver] button for 3 seconds, you save energy by utilizing digital indicator
panel with its lights off. In order to deactivate the mode, repress [s.saver] button for 3 seconds.

Alarm - Service Recall
•Once an alarm light comes on, you should contact a service.
•If you press [s.saver] button when there is an alarm and an exclamation mark on
the display, the alarm sound will turn off, however the exclamation mark will stay
on the digital indicator panel until error is fixed.
Compartment On-Off mode
•You can wholly cancel compartments you do not need nor want by checking through
indicator panel.
•In order to turn off Zone 2 and cooler at the same time, hold [mode] and [zone 2] buttons
pressed simultaneously for 5 seconds, and all figures indicating the part turned off will
disappear on the digital indicator panel.
•In order to turn off Zone 1 compartment, hold [mode] and [zone 1] buttons pressed
simultaneously for 5 seconds, and all figures indicating the part turned off will disappear on
the digital indicator panel.
•In order to turn off just the cooler, hold [mode] and [cooler] buttons pressed simultaneously
for 5 seconds, and all figures indicating the part turned off will disappear on the digital
indicator panel.
•In order to reactivate the turned-off compartment, use the same combination of buttons.
Using a Freezer Compartment as Cooler Compartment Based On Demand
•The bottom-right and -left compartments on the appliance can be used either as freezer
and cooler.
•Preferably, you need to press [zone 1] button for 3 seconds to use bottom-left part as
cooler or [zone 2] button for 3 seconds to use bottom-right part as cooler.
Important : If Zone1/Zone2 compartment will be converted from freezer to cooler:
• You should empty the food in the related compartment and leave the door open
for 4 hours. Then, food will be placed in the relevant compartment.
• Baskets and/or shelves removed from the compartment should be re-fitted.
Similarly, in order to utilize any of bottom compartments used as cooler as freezers again,
you need to press the related compartment button for 3 seconds.
Important : If Zone1/Zone2 compartment will be converted from cooler to freezer:
• You should empty the food in the related compartment and leave the door open
for 2 hours. Then, food will be placed in the relevant compartment.
• When zone 1 and zone 2 compartments used as cooler are switched to Holiday
or Economic setting value, it will keep on running as cooler.
Important
• If you want to use one of zone compartments as cooler, please give priority to Zone 1
compartment for energy saving.
• Do not use Zone 2 compartment as cooler at ambient temperatures over 38°C.

VITASTORE mode
VITASTORE works to protect the flavor, texture, and appearance of food. By maintaining ideal
temperature and humidity levels, pre-set to optimize the freshness of fruits and vegetables, we
create the conditions for longer shelf-life. To select VITASTORE mode, Zone1 section should
be cooler. To switch the appliance to VitaStore mode, you should just press [mode] button until
“VitaStore symbol” light comes on. Zone 1 button will be off and user can not change Zone1
compartment temperature.
If Zone 1 was used as freezer, user should observe below rules before usage of VitaStore
mode. Important: If Zone1/Zone2 compartment will be converted from freezer to cooler:
• You should empty the food in the related compartment and clean the compartment.
You should leave the door close for 4 hours. Then, food will be placed in the relevant
compartment.
• Baskets and/or shelves removed from the compartment should be re-fitted.
Note:
• VitaStore mode shouldn’t be activated if Zone 1 is used as freezer.
•Foods should not be put in front of the fan.
•VitaStore keeps fruits and vegetables fresh and helps vitamin and nutritional values of fruits
and vegetables to protect by maintaining ideal humidity and temperature conditions.

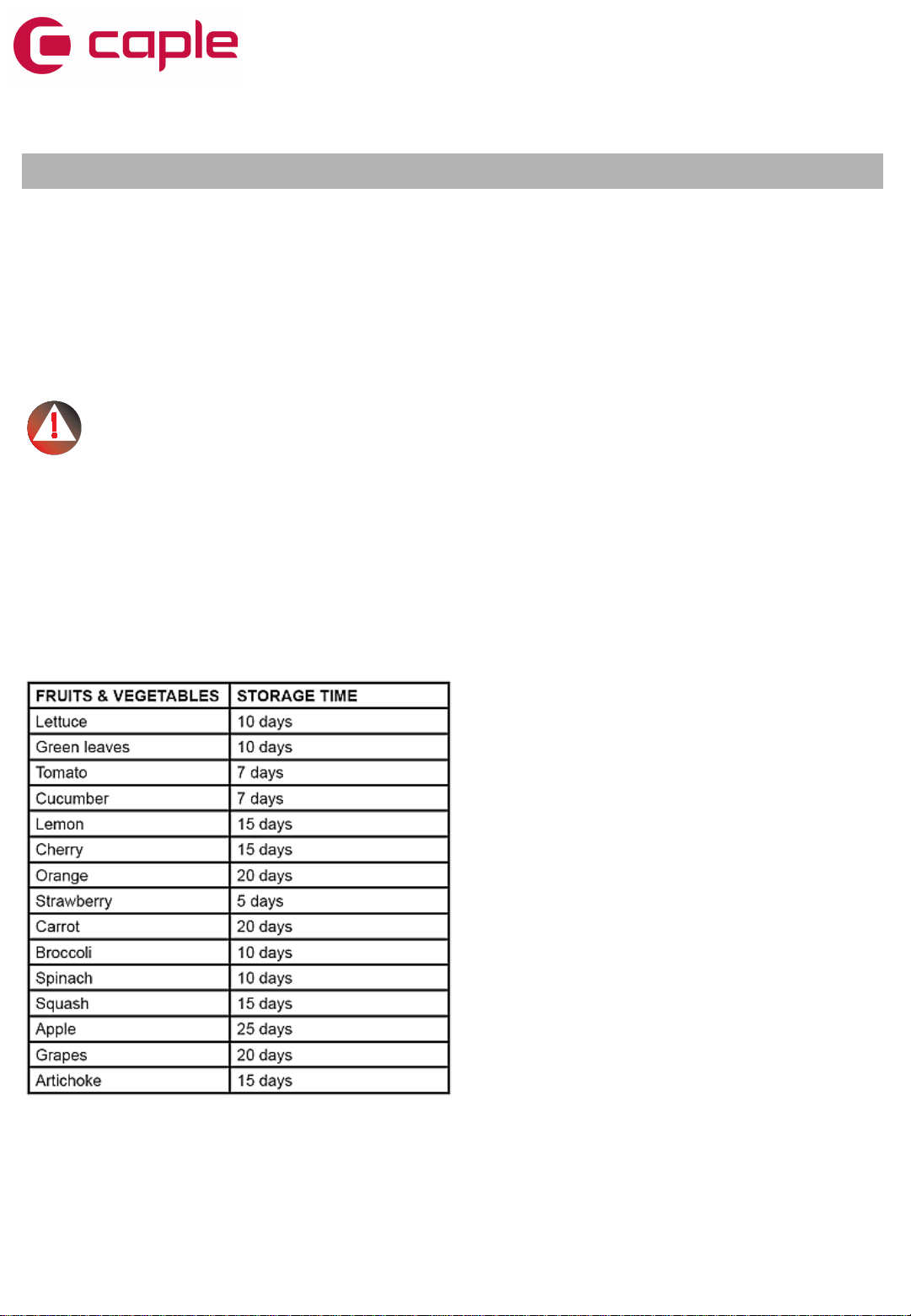

Maximum storage conditions of some fruits and vegetables
Note:
•These conditions illustrate an maximum rate of decay of some fruits and vegetables stored
properly with VitaStore mode.All storage times are suggestion. Storage times of fruits and
vegetables depend on the quality of the food, postharvest conditions and uninterrupted
refrigeration from harvest until storage in a VitaStore appliance. Individual cases may vary.
•Packaged fruits and vegetables are consumed until expire dates of produces.
