Caple RI5505 User manual

RI5505
Caple 50/50 Integrated Fridge Freezer
Service Manual

1
Information on the Frost Free Technology
The New Generation Cooling Technology refrigerators are
different from the other static refrigerators in terms of their
operational system.
In normal fridge freezers, the humidity entering the fridge
freezer due to opening the door and the humidity inherent in
the food causes freezing in the freezer compartment. To
defrost the frost and ice in the freezer compartment, you are
periodically required to turn off the fridge, place the food that
needs to be kept frozen in a separately cooled container
and remove the ice gathered in the freezer compartment.
The situation is completely different in no-frost refrigerators.
Dry and cold air is blown into the fridge and freezer
compartments homogeneously and evenly from several
points via a blower fan. Cold air dispersed homogeneously
and evenly between the shelves cools all of your food
equally and uniformly, thus preventing humidity and
freezing.
Therefore your New Generation Cooling Technology fridge
freezer allows you ease of use, in addition to its huge
capacity and stylish appearance.
Caple RI5505 50/50 Integrated Fridge Freezer

2
This button allows setting temperature of the fridge. In order to set values for fridge partition,
press this button. Use this button also to activate Super Cooling mode.
Fridge partition temperature setting button
Alarm light
In case of a problem within the fridge, the alarm led will release red light.
Super Cooling Mode
When would it be used?
• To cooling huge quantities of food.
• To cooling fast food.
• To cooling food quickly.
• To store seasonal food for a long time.
How to use?
• Press temperature set button until super cooling light comes on.
• Super cooling led will light during this mode.
• For optimal appliance performance in maximum cooling capacity, set the appliance to
active Super Cooling mode 5 hours before you put the fresh food into the fridge.
During this mode:
If you press temperature set button, the mode will be cancelled and the setting will be
restored from MAX.
Note: “Super cooling” mode will be automatically cancelled after 5 hours.
Temperature Settings
• The initial temperature of the Setting
Display is middle temperature indicator.
• Press temperature set button once.
• Every time you press the button, the setting temperature will decrease.
• If you press temperature set button until super cooling symbol is displayed on your
fridge settings display and you do not press any button within the following 3
seconds, Super cooling will blink.
• If you keep on pressing, it will restart from last value.
It ensures that the temperature settings in the cooling and freezing compartments
of your refrigerator are performed automatically. It may be set to any value ranging from
MIN to MAX. As you press temperature set button from MIN to MAX, the temperature
decreases. To save energy in winter months, operate your refrigerator in a lower position.
Caple RI5505 50/50 Integrated Fridge Freezer

3
Demo mode :
This mode will be use for only sales points by salesman to show functions & modes to customer
without operating components as a compressor, fan, motor..Etc
Entering Demo mode:
•Firstly the power is on , with in 1 minute user will push ‘’SET’’ button for 10 seconds , Then appliance
will go on “demo function” and Super LED symbol will blink during the mode.
•All functions can be adjusted to show how they are adjusted to the customer.
Canceling Demo mode:
•For cancelling; Same operation will be used. If user will push SET button for 10 seconds, demo
function will be cancelled.
•When appliance is Demo mode; if plug is removed or there is an electricty breakdown; demo mode
will continue with current settings after user plug into or electricity breakdown finish.
Warnings for Temperature Settings
• Your temperature adjustments will not be deleted when an energy breakdown occurs.
• Do not pass to another adjustment before completing an adjustment.
• Temperature adjustments should be made according to the frequency of door openings, the
quantity of food kept inside the fridge and ambient temperature of the place of your fridge.
• Your fridge should be operated up to 24 hours according to the ambient temperature without
interruption after being plugged in to be completely cooled.
• Do not open doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of
your fridge, when you take the plug off and then plug it on again to operate it or
when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

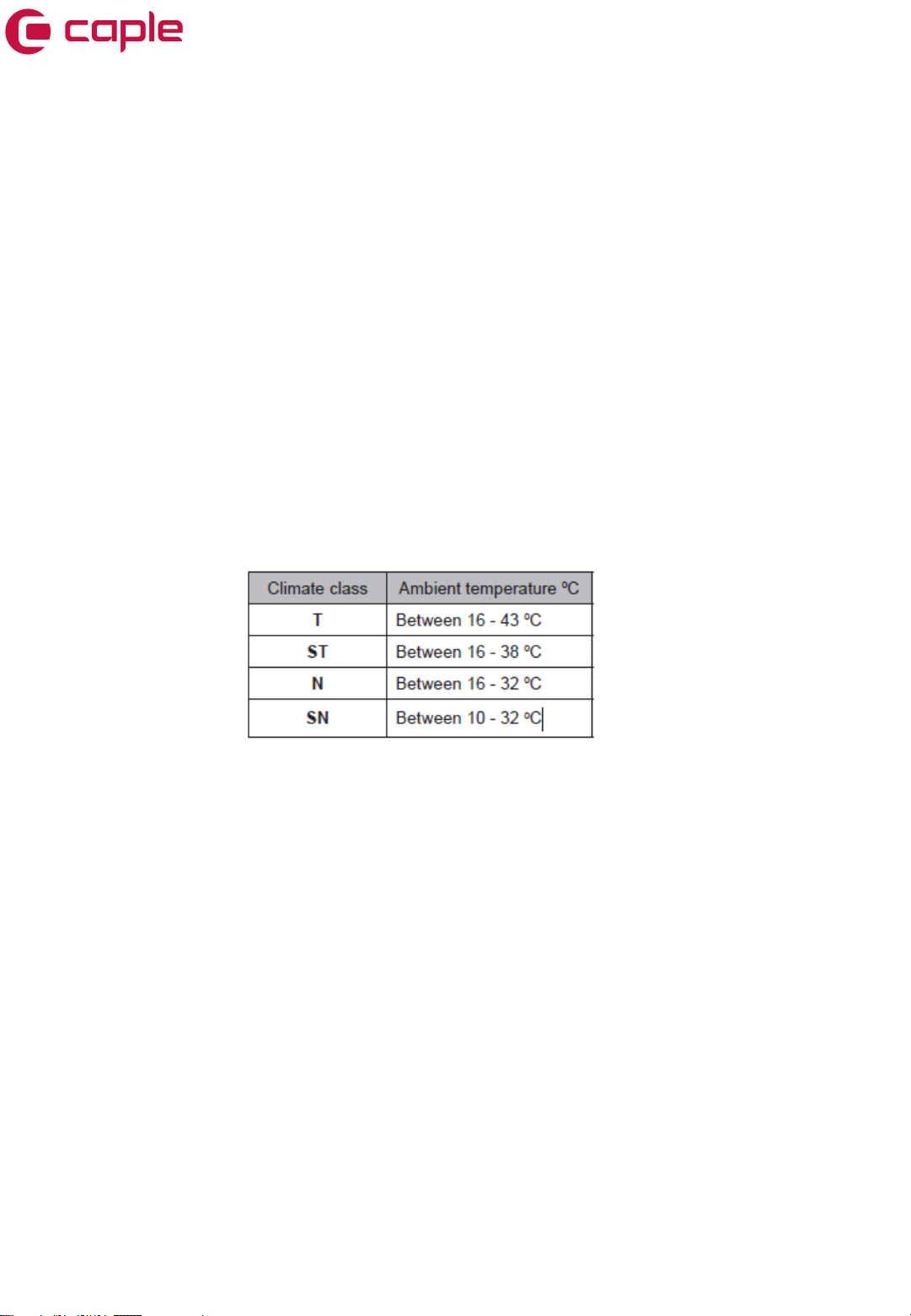

• Your fridge is designed to operate in the ambient temperature intervals stated in the standards,
according to the climate class stated in the information label. We do not recommend operating
your fridge out of stated temperatures value limits in terms of cooling effectiveness.
• This appliance is designed for use at an ambient temperature within the 16°C - 38°C range.
Caple RI5505 50/50 Integrated Fridge Freezer

7
Changing The Door Swing Direction to Right Hand
1- Unscrew the two screws fixing the top hinge (Pic-1) and remove the refrigerator door. (Pic-2)
Picture-1 Picture-2
Picture-4
2- Unscrew the two screws fixing the middle hinge
side bracked and remove it. (Pic-3)
Picture-3
3- Uncrew the two screws fixing the middle hinge (Pic-4) and remove the freezer door. (Pic-5)
Picture-5
Caple RI5505 50/50 Integrated Fridge Freezer

8

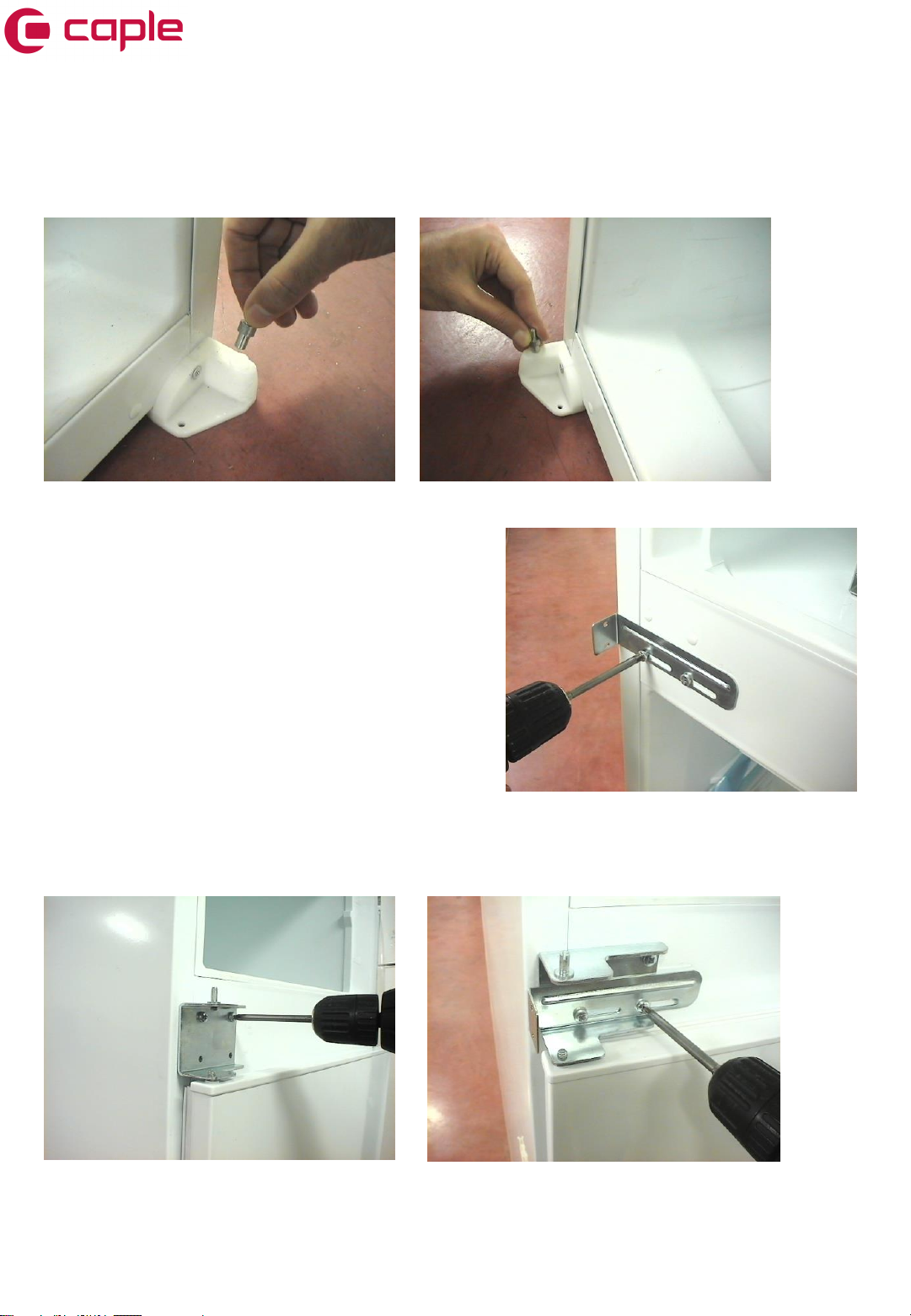

5- Unscrew the middle hinge side bracked on the
left and remove it. (Pic-7)
Remove the middle hinge screw caps (big) on the
left side.
4- Remove the bottom hinge pin (Pic-5) and insert it to the left side foot. (Pic-6)
Picture-5 Picture-6
Picture-7
6- Assemble the refrigerator door. Rotate the middle hinge by 1800and screw it to the left
side. (Pic-8) Than screw the middle hinge side bracked on the middle hinge. (Pic-9)
Picture-8 Picture-9
Caple RI5505 50/50 Integrated Fridge Freezer

9
7- Remove the top hinge screw caps (big) on the left side (Pic-10) and insert them to the
right side. (Pic-11) (You can find the new caps in the user manual bag)
Picture-10 Picture-11
9- Assemble the freezer door and screw
the top hinge to the left side. (Pic-13)
Picture-13
10- Screw the middle hinge side bracked on the right of refrigorator. (Pic-14) and insert the
middle hinge screw caps (big) on the right side. (Pic-15)
(You can find the new caps in the user manual bag)
Picture-14 Picture-15
8- Unscrew the pin of the hinge from Hole
1, rotate the top hinge by 1800and screw
the pin to Hole 2. (Pic-12)
Picture-12
Hole 1
Hole 2
Caple RI5505 50/50 Integrated Fridge Freezer

1010

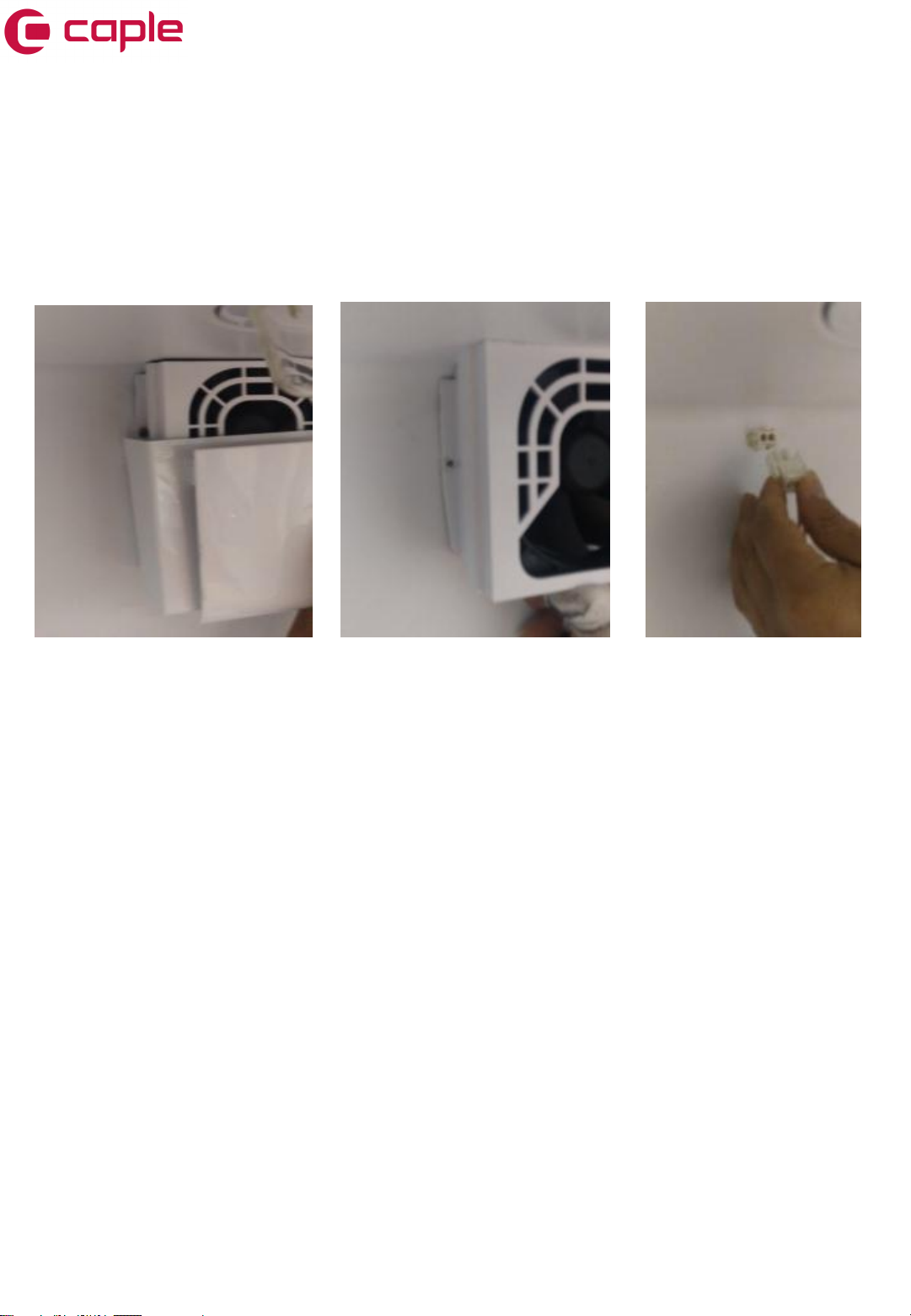

Replacement Turbo Fan Motor
Picture-1 Picture-2
1-Remove the fan motor cover. (Pic-1) Unscrew the two screws and remove the fan motor
body. (Pic-2) Take out the sockets and replace the fan motor (Pic-3)
Picture-3
Caple RI5505 50/50 Integrated Fridge Freezer

1111
Replacement Head Panel and Main Board
1. First remove cover by pulling leftward as
shown below. 2. Remove other cover by pulling backward from top side of the cover as shown below
1
3

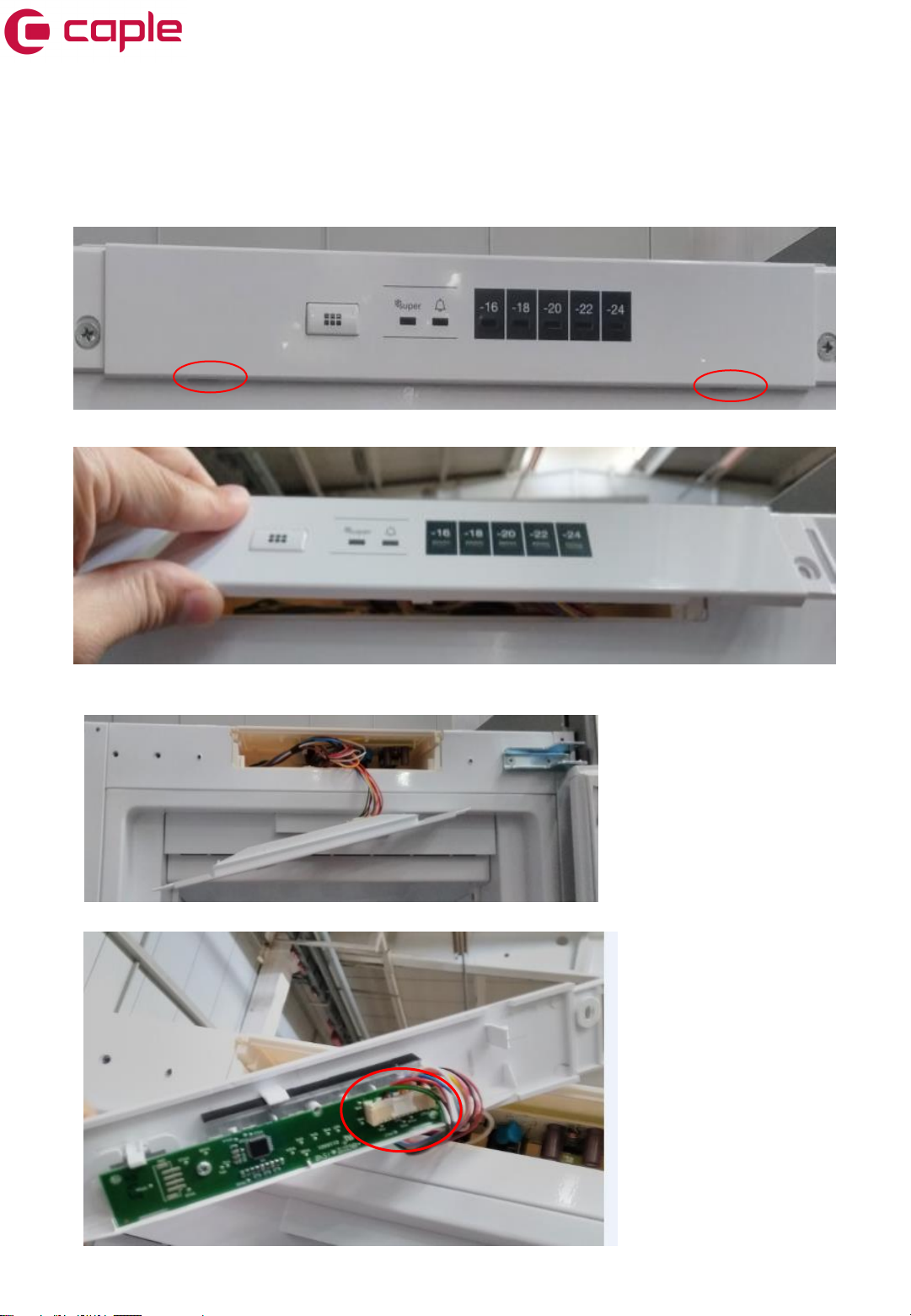

3. Unscrew screws marked with red circle at the picture below.
Caple RI5505 50/50 Integrated Fridge Freezer

12
4. Disassemble snapfits at the area marked with red circle at the picture below .
It can be used any suitable tool to disassemble.
5. Unplug socket on the board assembled head panel.
Caple RI5505 50/50 Integrated Fridge Freezer

13

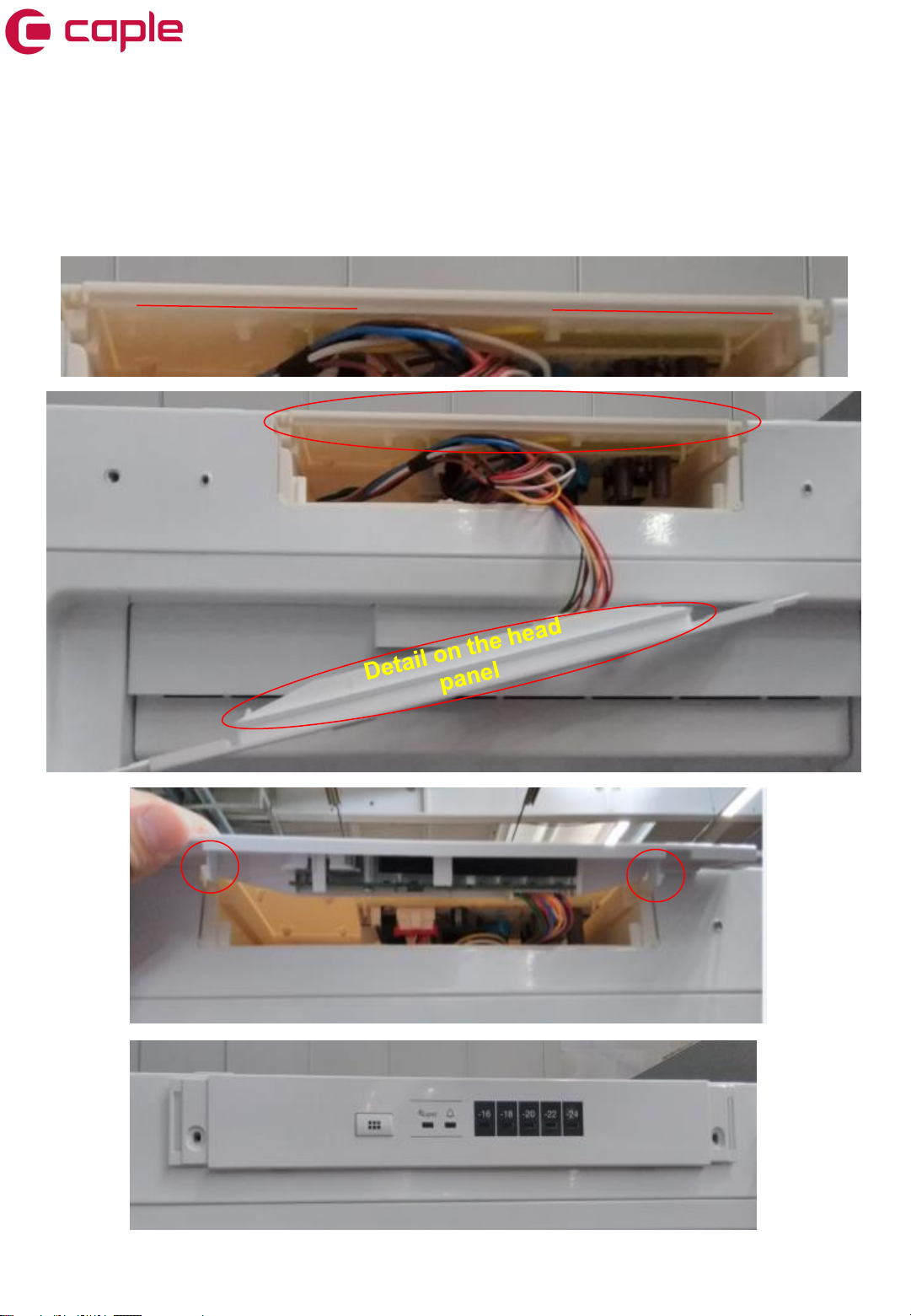

6. To reassemble head panel ; first plug socket mentioned before and then place detail on
the head panel to related detail on the cover and then push head panel to place snapfits
marked with red circle below.
Detail on the cover
Snap-fit
Caple RI5505 50/50 Integrated Fridge Freezer

14
7. Then screw head panel with screwdriver and assemble covers and complete head
panel assembly.

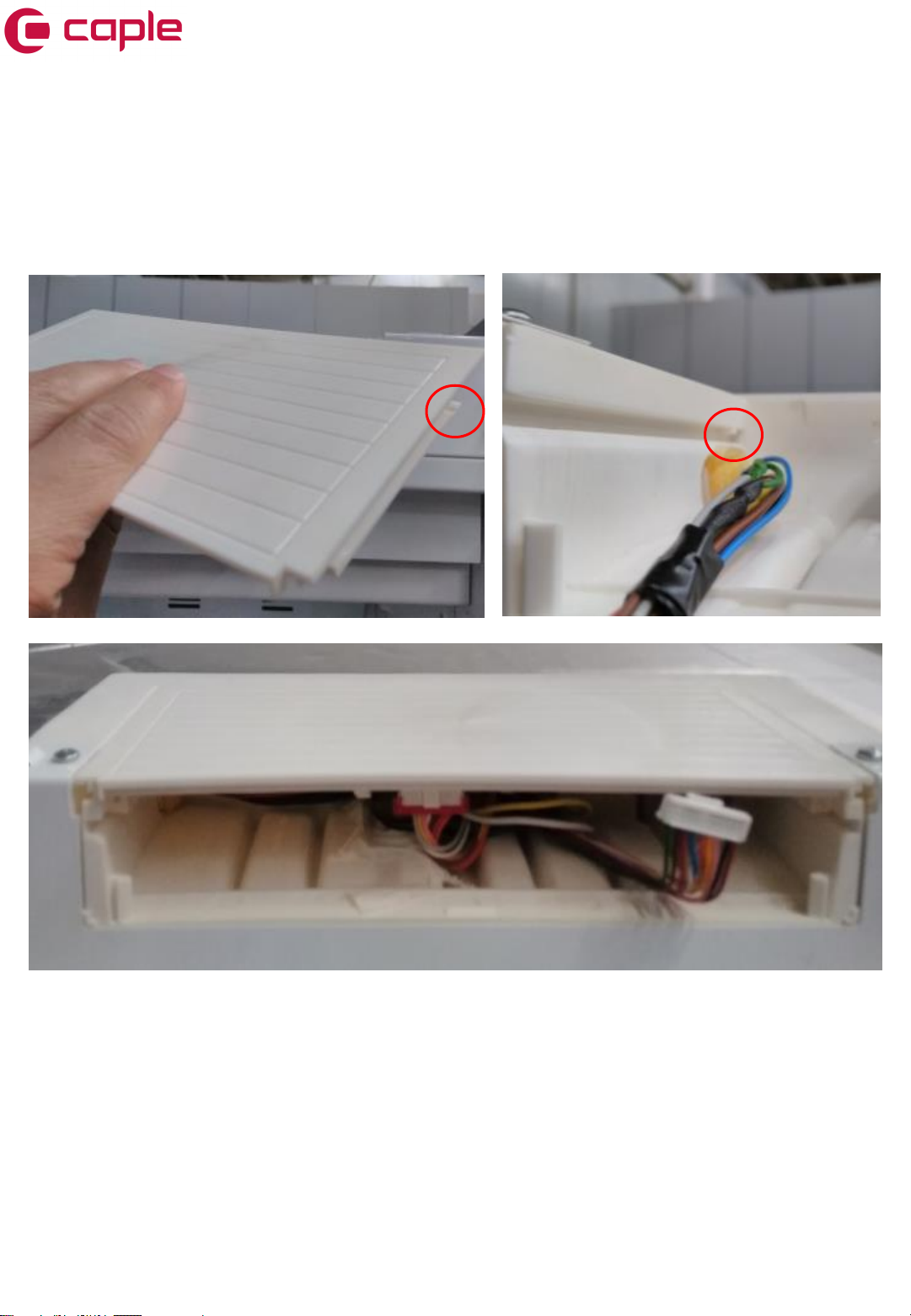

8. Pull cover backward and remove from housing
Caple RI5505 50/50 Integrated Fridge Freezer

15
9. Then unplug all sockets.
10. To reassemble cover first plug all sockets related place on the board.
Caple RI5505 50/50 Integrated Fridge Freezer

16
11. To reassemble cover pay attention to assemble with right direction. Details on the cover
and housing should be matched eachother
Housing
Cover
Caple RI5505 50/50 Integrated Fridge Freezer

17

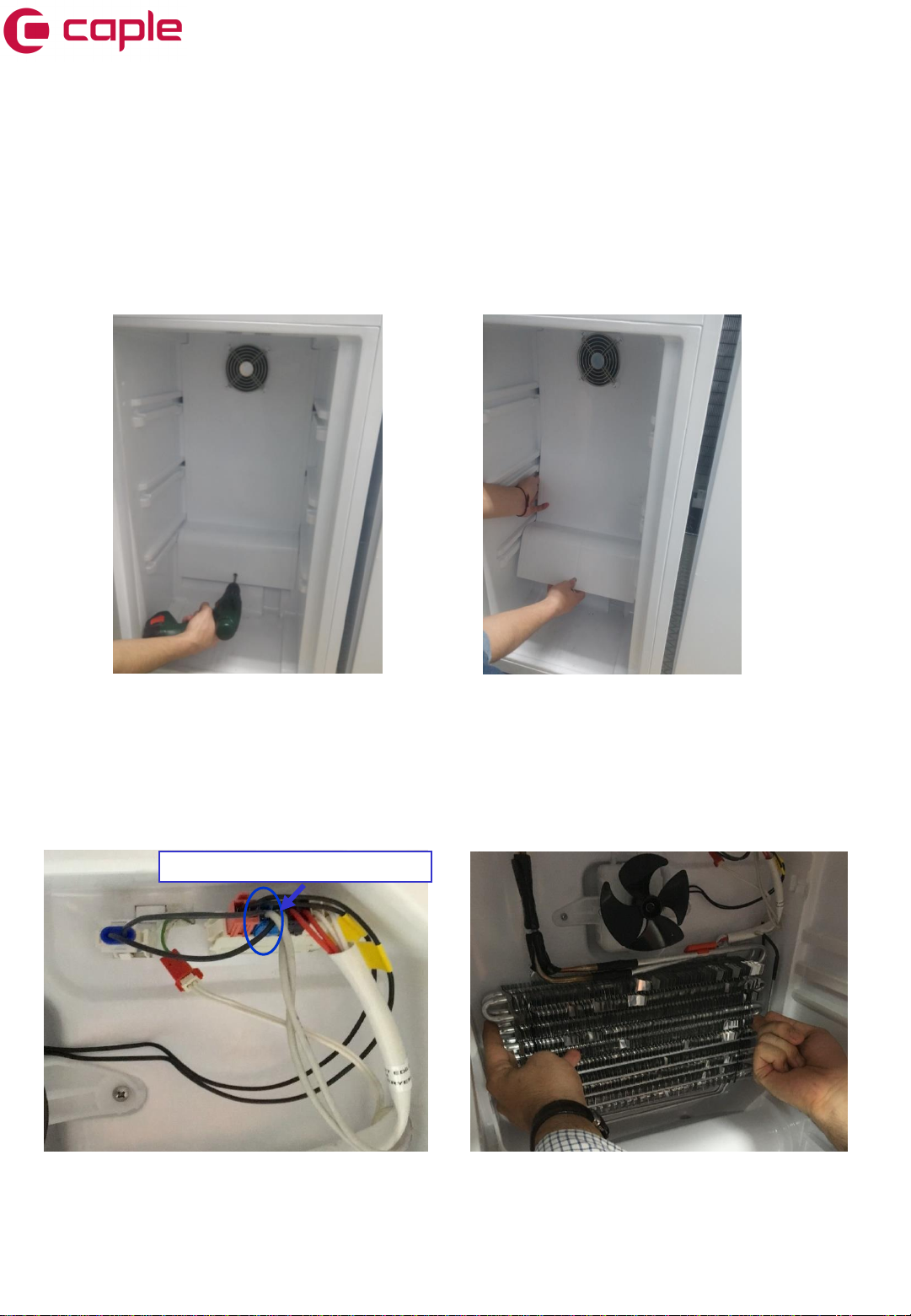

Replacement of Freezer Multiflow Cover
1. Displace the glass shelfs and baskets if there is.
2. Unscrew the screw fixing the multiflow group. (Pic-1)
3. Removing the freezer bottom cover by flexing bottom and sides of it. (Pic-2)
Picture-1 Picture-2
2. Displace the fin evaporator balanced by
holding on both sides. (Pic-2)
1. Remove the fin evaporator resistance
connectors from the sockets. (Pic-1)
(blue connector)
Picture-1 Picture-2
CAUTION: The fin evaporator should not be pulled upward-downward. Otherwise,
the fin evaporator fixing plastics might be broken.
Fin Evap Res. Connector
Replacement of Freezer Evap. Gr
Caple RI5505 50/50 Integrated Fridge Freezer

18
Replacement of Thermal Fuse
Picture-1 Picture-2
1. Remove the thermal fuse connector.
(Pic-1) (black-white connector) 2. Thermal fuse has two details. These details hold on to the pipe.
It could be removed easily.(Pic-2)
Termal Fuse
Connector
Replacement of Freezer Fan Motor
1. Remove the fan motor connector. (Pic-1)
2. Unscrew the fan motor fixing screws and displace the fan motor. (Pic-2)
3. Remove the propeller. (Pic-3)
Picture-1 Picture-2 Picture-3
Caple RI5505 50/50 Integrated Fridge Freezer

19

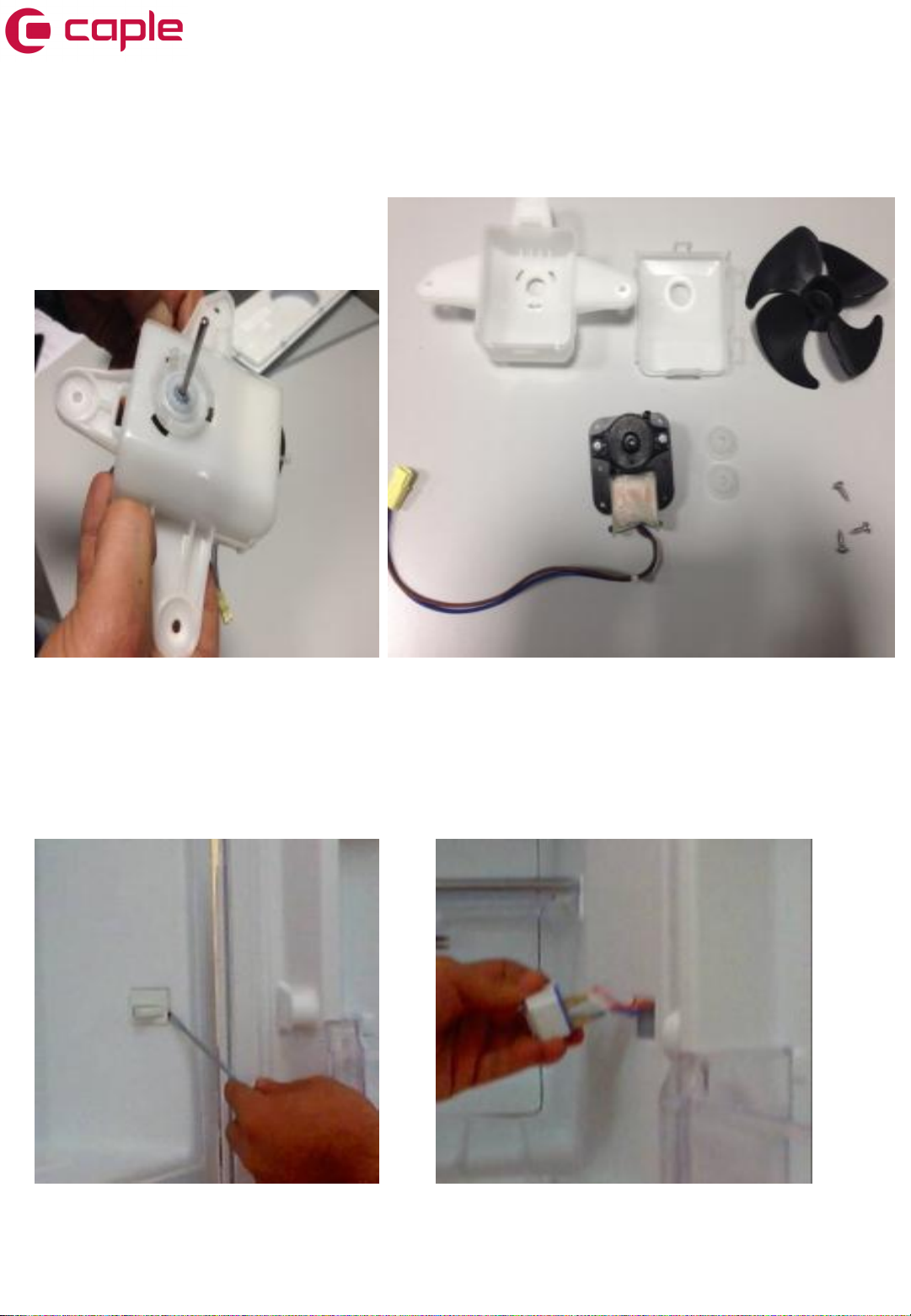

4. Displace the details on the fan
motor box. (Pic-4)
FAN
MOTOR
FAN MOTOR
COVER
PROPELLER
FAN
MOTOR
BOX
SCREWS
FAN
MOTOR
RUBBER
Fan Motor ComponentsPicture-4
Replacement of Door Switch
1. Insert a screwdriver into the gap and
pull the door switch. 2. Disconnect the connectors. And remove the door switch.
Picture-1 Picture-2
