Caple RFF730 User manual

RFF730
Caple 70/30 Freestanding Fridge Freezer
Service Manual

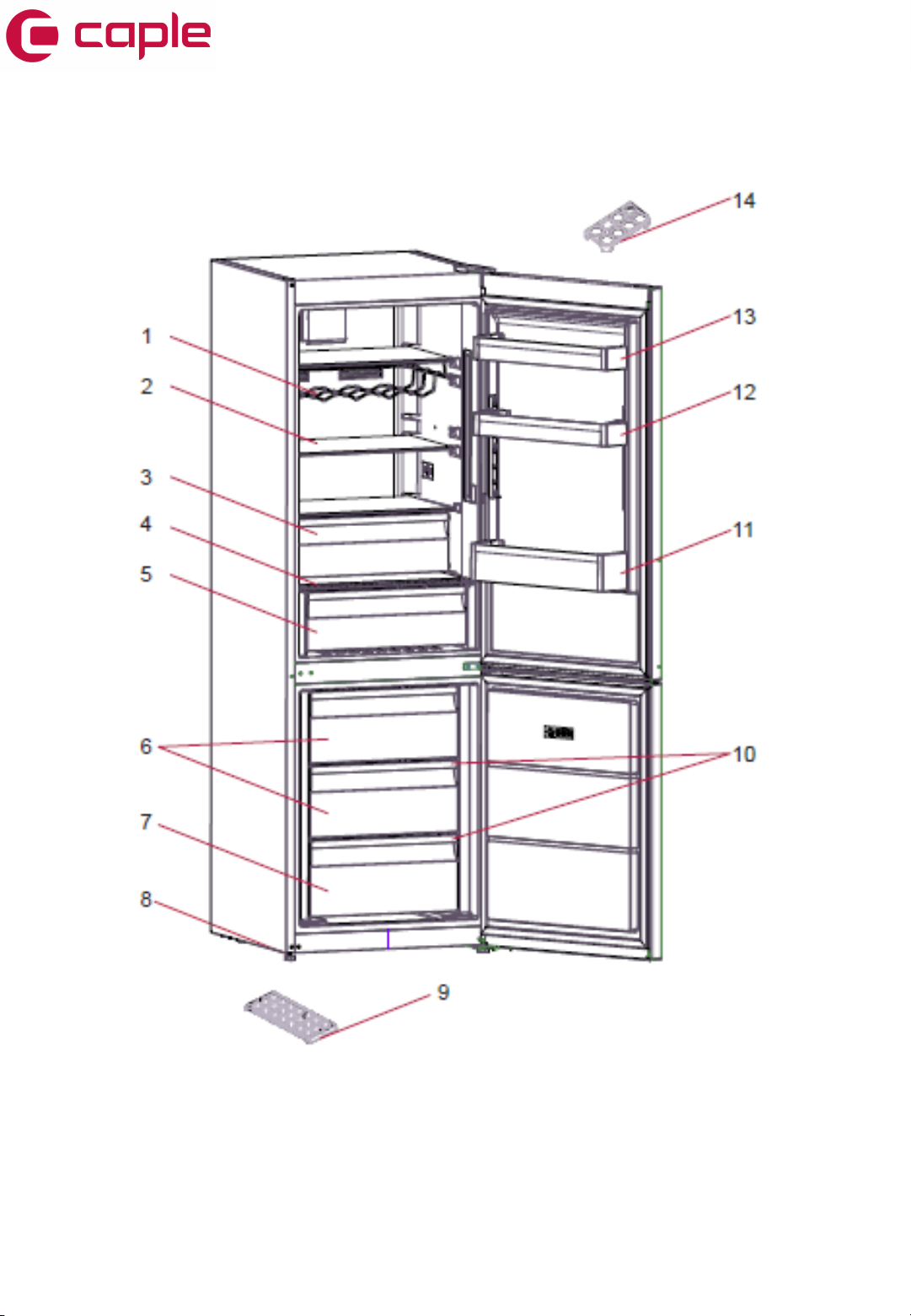

1) Wine rack (In some models)
2) Fridge shelves
3) Chiller (In some models)
4) Crisper cover
5) Crisper
6) Freezer top-middle basket
7) Freezer bottom basket
8) Leveling feet
9) Ice tray
10) Freezer glass shelves
11) Bottle shelf
12) Adjustable door shelf (In some models)
13) Door shelf
14) Egg holder
RFF730 Caple 70/30 Freestanding Fridge Freezer

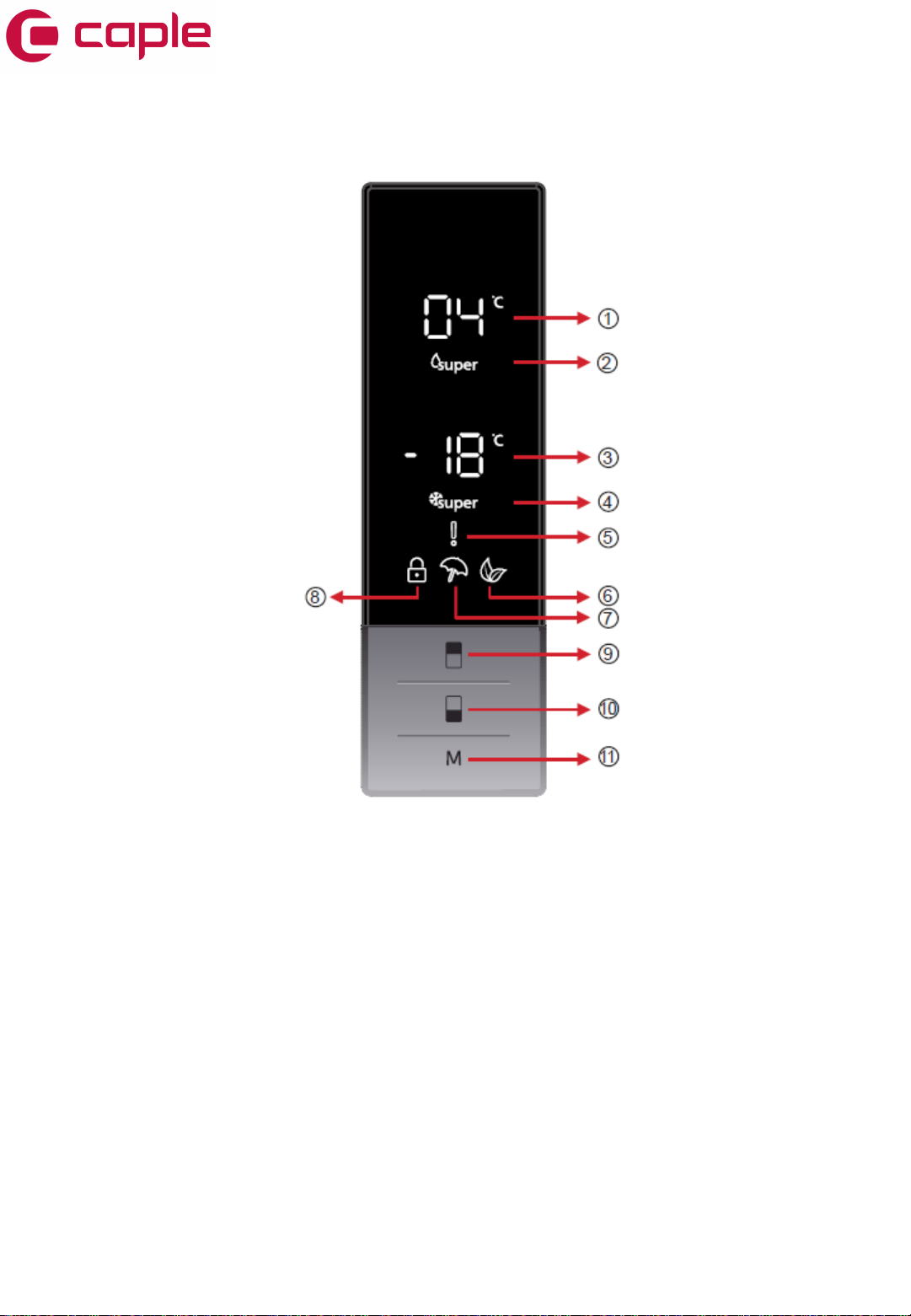

1. It is cooler set value screen.
2. It is super cooling indicator.
3. It is freezer set value screen.
4. It is super freeze indicator.
5. It is alarm symbol.
6. It is economy mode symbol.
7. It is holiday mode symbol.
8. It is child-lock symbol.
9. It enables the setting value of cooler to be modified and super cool mode to be
activated if desired. Cooler maybe set to 8, 6, 5, 4, 2 °C super cool.
10. It enables the setting value of freezer to be modified and super freeze mode to be
activated if desired. Freezer may be set to -16, -18, -20, -22, -24°C super freeze.
11. It enables the modes (economy, holiday…) to be activated if desired.
RFF730 Caple 70/30 Freestanding Fridge Freezer

Super freeze mode
How would it be used?
• Press freezer set button until Super freeze symbol will be seen on the screen.
Buzzer will sound beep beep. Mode will be set.
During this mode:
• Temperature of cooler and super cool mode may be adjusted. In this case
super freeze mode continues.
• Economy and Holiday mode can not be selected.
• Super freeze mode can be cancelled by the same operation of selecting.
Super cool mode
How would it be used?
• Press cooler set button until Super cool symbol will be seen on the screen.
Buzzer will sound beep beep. Mode will be set.
During this mode:
• Temperature of freezer and super freeze mode may be adjusted. In this case
super cool mode continues.
• Economy and Holiday mode can not be selected.
• Super cool mode can be cancelled by the same operation of selecting.
RFF730 Caple 70/30 Freestanding Fridge Freezer

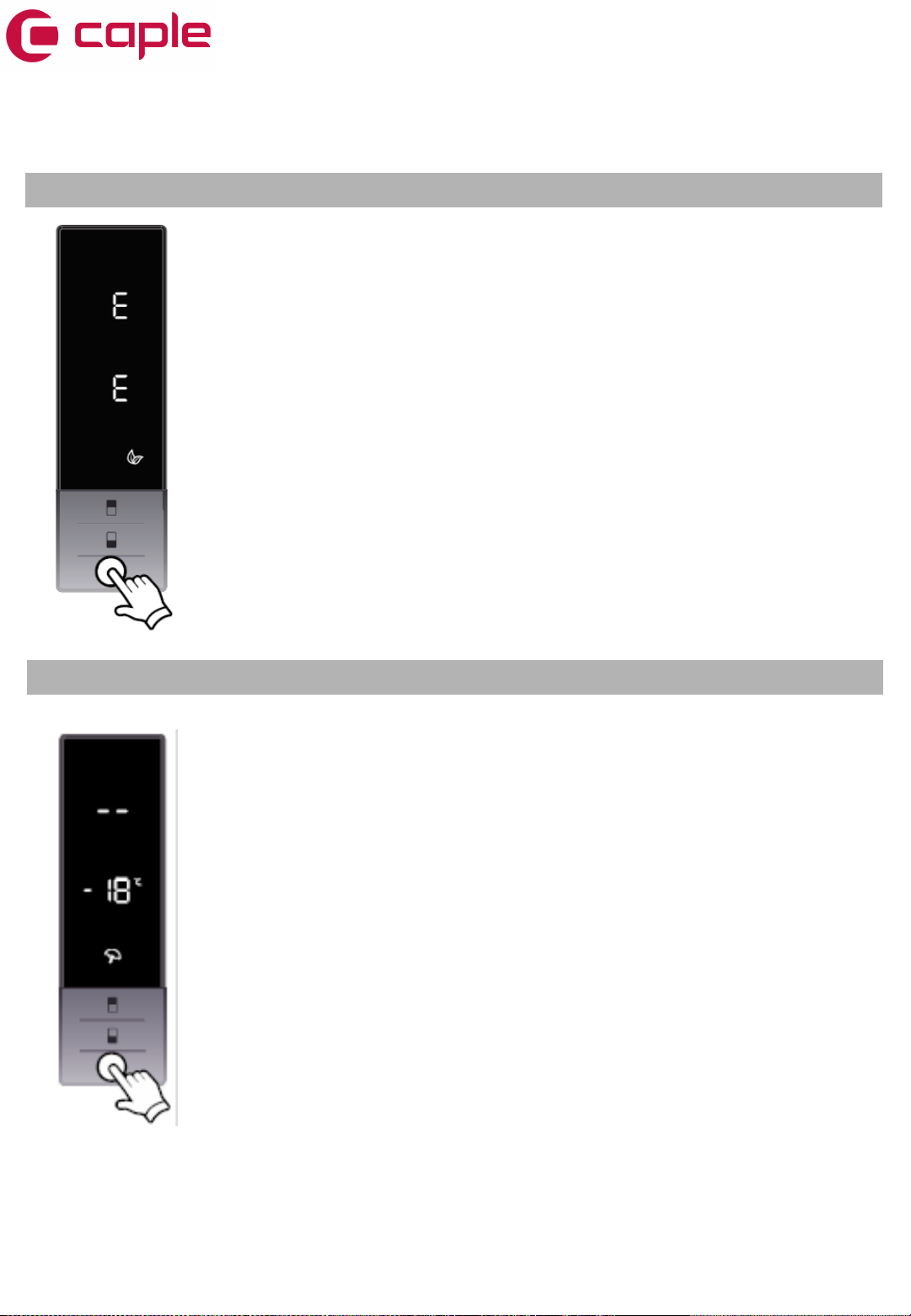

Economy Mode
How would it be used?
• Push "mode button" until eco symbol appears.
• If no button is pressed for 1 second. Mode will be set. Eco symbol will blink 3
times. When mode is set, buzzer will sound beep beep.
• Freezer and refrigerator temperature segments will show "E".
• Economy symbol and E will light till mode finishes.
During this mode:
• Freezer may be adjusted. When economy mode will be cancelled, the selected
setting values will proceed.
• Cooler may be adjusted. When economy mode will be cancelled, the selected
setting values will proceed.
• Super cool and super freeze modes can be selected. Economy mode is
automatically cancelled and the selected mode is activated.
• Holiday mode can be selected after cancelling the economy mode. Then the
selected mode is activated.
• To cancel, you will just need to press on mode button.
Holiday Mode
How would it be used?
• Push "mode button" until holiday symbol appears
• If no button is pressed for 1 second. Mode will be set. Holiday symbol will blink 3
times. When mode is set, buzzer will sound beep beep.
• Cooler temperature segment will show "--".
• Holiday symbol and "--" will light till mode finishes.
During this mode:
• Freezer may be adjusted. When holiday mode will be cancelled , the selected
setting values will proceed.
• Cooler may be adjusted. When holiday mode will be cancelled, the selected
setting values will proceed.
• Super cool and super freeze modes can be selected. Holiday mode is
automatically cancelled and the selected mode is activated.
• Economy mode can be selected after cancelling the holiday mode. Then the
selected mode is activated.
• To cancel, you will just need to press on mode button.
RFF730 Caple 70/30 Freestanding Fridge Freezer

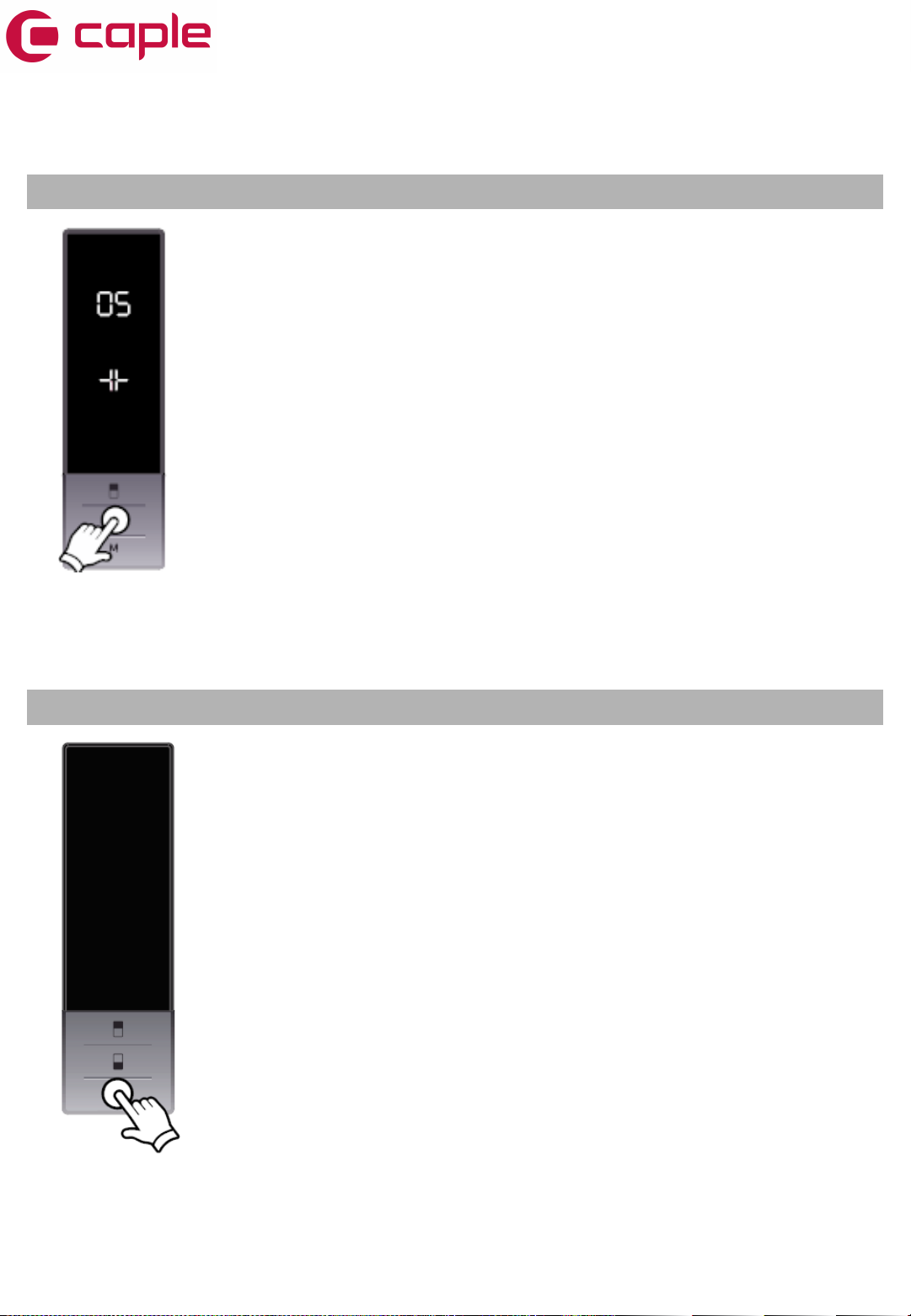

Drink Cool Mode
When would it be used?
This mode is used to cool the drinks within adjustable time.
How would it be used?
• Press freezer button for 3 seconds.
• Special animation will start on freezer set value screen and 05 will blink on
cooler set value screen.
• Press cooler button to adjust the time (05 - 10 - 15 - 20 - 25 - 30 minutes).
• When you select the time the numbers will blink 3 times on screen and sound
beep beep.
• If no button is pressed within 2 seconds the time will be set.
• The countdown starts from the adjusted time minute by minute.
• Remaining time will blink on the screen.
• To cancel this mode press freezer set button for 3 seconds.
Screen Saver Mode
How to use?
• This mode will be activated when you press on mode button for 5 seconds.
• If no button is pressed within 5 seconds when he mode is active, lights of the
control panel will go off.
• If you press any button when lights of control panel are off, the current settings
will appear on the screen, and then you can maket he adjustment as you want. If
you neither cancel screen saver mode nor press on any button in 5 seconds, the
control panel will go off again.
• To cancel screen saver mode press on mode button for 5 seconds again.
• When screen saver mode is active you can also activate child lock.
• If no button is pressed within 5 seconds after child lock is activated, the lights of
the control panel will turn off. You can see latest status of settings or modes after
you pres any button. While control panel ‘s light is on, you can cancel child lock as
described in the instruction of this mode.
RFF730 Caple 70/30 Freestanding Fridge Freezer

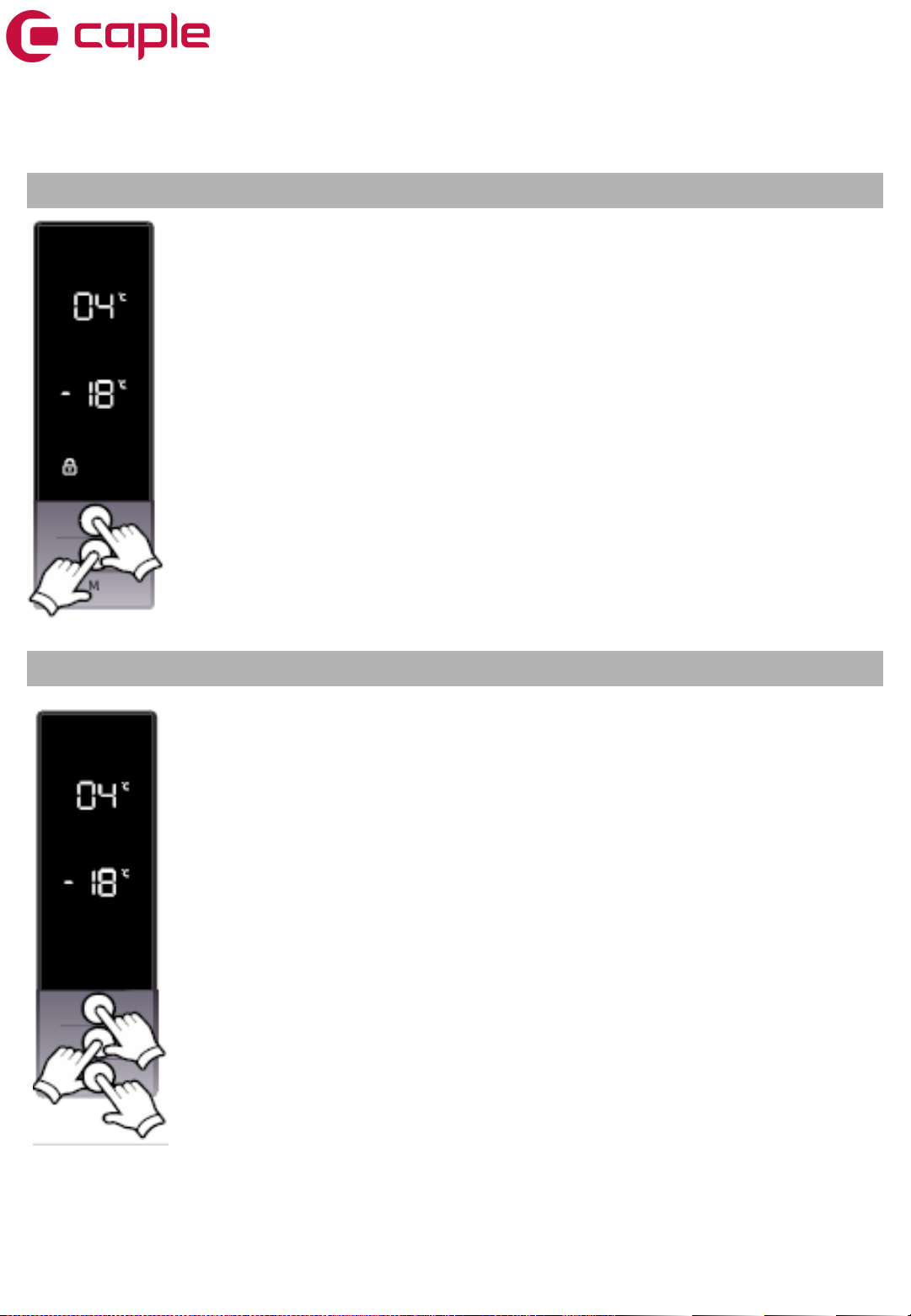

Child Lock
When would it be used?
To prevent children from playing with the buttons and changing the settings
you have made, child lock is available in the appliance.
Activating Child Lock
Press on Freezer and Cooler buttons simultaneously for 5 seconds.
Deactivating Child Lock
Press on Freezer and Cooler buttons simultaneously for 5 seconds.
Light cancelling mode
When would it be used?
• If you want to cancel lights of cooler, you can select this mode.
• While pushing on freezer, cooler, mode buttons, open and close one of the
doors for 3 times. The mode will be selected in this way. From now on, the
lights will not come on when the function is not cancelled by the same way.
• If you want to cancel this mode, repeat the same process or the mode will
automatically cancel itself after 24 hours.
RFF730 Caple 70/30 Freestanding Fridge Freezer

Demo Mode
Entering Demo mode:
•Firstly the power is on , secondly within 1 minute user will push mode & freezer button at the same
time , Then appliance will go on “demo function” and Demo Symbol will light during the mode.
•All functions can be adjusted to show how they are adjusted to the customer.
•During the demo mode to show the alarm symbol , at the 3th. pushing of the mode button SR alarm
symbol and the “SR word” on the 7-segment will be active.
Canceling Demo mode:
For cancelling; Same operation will be used. If user will push mode & freezer button at the same time,
demo function will be cancelled.
When appliance is Demo mode; if plug is removed or there is an electricity breakdown; demo mode
will continue with current settings after user plug into or electricity breakdown finish.
RFF730 Caple 70/30 Freestanding Fridge Freezer

• Initial temperature value for Freezer Setting Indicator is -18°C.
• Press freezer set button once.
• When you first push this button, the last set value will blink on screen.
• Whenever you press on this button, lower temperature will be set
(-16°C, -18°C, -20°C, -22°C, -24°C super freeze).
• When you push the freezer set button until super freeze symbol appears, and if
you do not push any button in 1 seconds Super Freeze will flash.
• If you continue to press, it will restart from -16°C.
• The temperature value selected before Holiday Mode,
Freezer temperature settings
• Initial temperature value for Cooler Setting Indicator is +4 °C.
• Press cooler button once.
• When you first push this button, the last value appears on the setting indicator of
the cooler.
• Whenever you press on this button, lower temperature will be set. (+8°C, +6°C,
+5°C, +4°C, +2°C, supercool)
• When you push the cooler set button until supercool symbol appears, and if you
do not push any button in 1 seconds Super Cool will flash.
• If you continue to press, it will restart from +8°C.
• The temperature value selected before Holiday Mode, Super Freeze Mode, Super
Cool Mode or Economy Mode is activated will remain the same when the mode is
over or cancelled. The appliance continues to operate with this temperature value.
Cooler temperature settings
RFF730 Caple 70/30 Freestanding Fridge Freezer

• Your temperature adjustments will not be deleted when an energy breakdown occurs.
• It is not recommended that you operate your fridge in environments colder than 10°C in terms of
its efficiency.
• Temperature adjustments should be made according to the frequency of door openings and the
quantity of food kept inside the fridge.
• Do not pass to another adjustment before completing an adjustment.
• Your fridge should be operated up to 24 hours according to the ambient temperature without
interruption after being plugged in to be completely cooled. Do not open doors of your fridge
frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when
you take the plug off and then plug it on again to operate it or when an energy breakdown occurs.
Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards,
according to the climate class stated in the information label. We do not recommend operating your
fridge out of stated temperatures value limits in terms of cooling effectiveness.
Note: If the temperature of the environment is higher than 38°C, the freezer partition temperature
cannot be adjusted to -22°C and -24°C. It can only be adjusted to the values of -16°C, -18°C, -20°C.
RFF730 Caple 70/30 Freestanding Fridge Freezer

Blown : Cold Air
Returned: Hot Air
Cutaway view: Air Flow Direction
RFF730 Caple 70/30 Freestanding Fridge Freezer

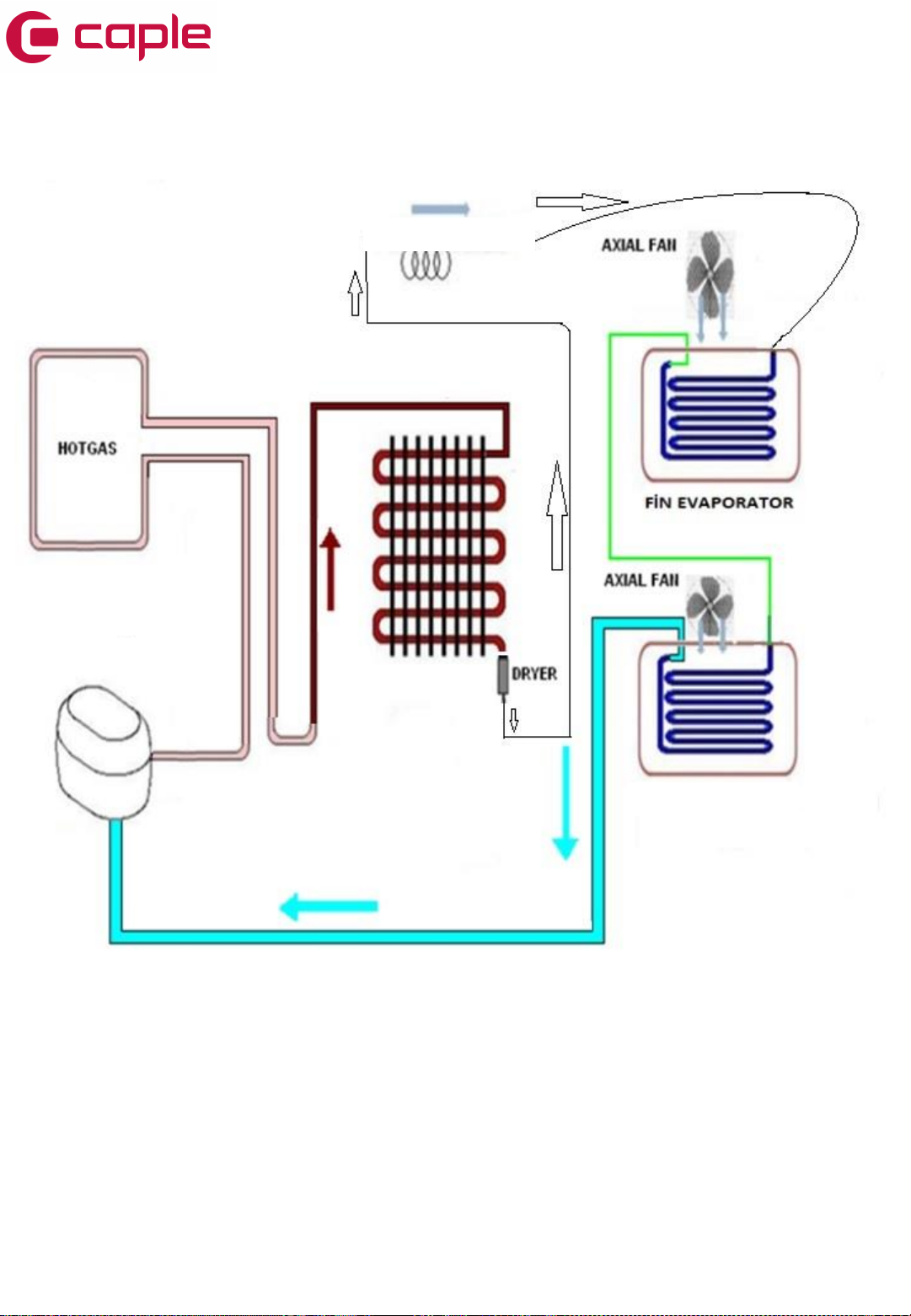

This model is double controlled product without any valve. When both cooler
& freezer set by user :
Mainboard controls both the cooler sensor & freezer sensor. When cooler part
reach requested value, if the freezer part haven’t reach the requested level;
compressor continues to run.
While freezer continue to cool down, with the help of the RDH (Ref. Defrost
Heater ), cooler will stay at constant value. When the freezer reach the
requested value both compressor & RDH will be stop.
Compressor Condenser
Capillary Tube
Streamer
RFF730 Caple 70/30 Freestanding Fridge Freezer

Resistance Values According To The Temperature Sensor (°C/Ohm Rates)
( For The Freezer Defrost and The Cooler Ambient Sensor)
45 °C/1kΩ -1 °C/6.2kΩ
35 °C/1.5kΩ -3 °C/6.8kΩ
30 °C/1.8kΩ -5 °C/7.5kΩ
25 °C/2.2kΩ -7 °C/8.2kΩ
19 °C/2.7kΩ -12 °C/10kΩ
14 °C/3.3kΩ -15 °C/12kΩ
10 °C/3.9kΩ -20 °C/15kΩ
5.5 °C/4.7kΩ -24 °C/18kΩ
1.5 °C/5.6kΩ -31.5 °C/27kΩ
0°C/6kΩ -35.5 °C/33kΩ
Sensor Resistance Values According To The Temperature (°C/Ohm Rates)
(For The Cooler Defrost Sensor)
45 °C/2.15kΩ-1 °C/17.1kΩ
35 °C/3.26kΩ-3 °C/19kΩ
30 °C/4.02k12Ω-
5 °C/21.1kΩ
25 °C/5kΩ-7 °C/23.5kΩ
19 °C/6.53kΩ-12 °C/30.8kΩ
14 °C/8.23kΩ-15 °C/36.5kΩ
10 °C/9.95kΩ-20 °C/48.6kΩ
5.5 °C/12.3kΩ-24 °C/61.5kΩ
1.5 °C/15kΩ-31.5 °C/98kΩ
0 °C/16.3kΩ-35.5 °C/12.6kΩ
RFF730 Caple 70/30 Freestanding Fridge Freezer

Freezer Defrost Program
•According to the conditions of usage, the defrost might be activated after the min
compressor running time; 8 hours or max total time; 55 hours. Below matters are also
effected;
•Consisted ice amount,
•Door open-close,
•Sudden usage variance,
•Cooler sudden temperature rise,
When the refrigerator works on first time;
If the cooler compartment defrost sensor and the freezer compartment defrost sensor are
hotter than -5°C, the test system works automatically. These below components are tested
automatically every 5 seconds.
The compressor and freezer fan motor starts and stops after 5 seconds.
The defrost resistance stars and stops after 5 seconds.
The cooler defrost resistance starts and stops after 5 seconds.
The DC Radial Fan starts and stops after 5 seconds.
After these steps, the system waits 5 minutes and then it will switch normal mod.
There are three types of sensors. They are cooler, freezer defrost, cooler defrost sensors. Cooler and
freezer defrost sensors have the same features but their cable length is different. The resistance
values of all sensors decrease when the temperature values of the sensors increase. For example,
the resistance value that is 33 kΩ in the -35.5 ºC goes down to 1kΩ in the 45 ºC and therefore the
ambient temperature should be considered while the sensor is being checked. If the ambient
temperature is 25 ºC, the measuring device shows about 2.2kΩ (if ntc sensor is steady).
NTC Sensor
Cooler Defrost Program
The cooler defrost and the freezer defrost are operated parallel except those below.
If the cooler defrost sensor does not feel 5°C three times during a particular period of time.
•Defrost will be activated after the refrigerator works max 9 hours. According to the
conditions of usage, the defrost might be activated (due to mentioned those below) after
the compressor works min 5 hours.
•Consisted ice amount,
•Door open-close,
•Sudden usage variance,
•Cooler sudden temperature rise,
RFF730 Caple 70/30 Freestanding Fridge Freezer

In Case of Power Cut
•All regulated parameters and functions are kept in memory when the power cut.
• When the electricity comes, if the defrost sensor temperature is lower than -5 ºC the
compressor works 5 minutes later. If it is higher than -5 ºC.
Other Features
Warnings : The door open warning is active 2 minutes later and it alarms.
Door Direction : It is possible to reverse the door.
Gasket : It is possible to change the gasket.
Freezer Defrosting Time
The Defrost is disabled when the defrost sensor temperature feels 8ºC.If defrost time
passes 37 minutes, defrost completing temperature will be rise to 15ºC.
The cooler defrost and the freezer defrost are operated parallel except those below. The
cooler defrost will not work if the freezer defrost stops.
The defrost process stops when the defrost sensor temperature feels 7ºC. At the low
ambient temperature or when the compressor stops; to balance, defrost stops when the
defrost sensor temperature feels 15⁰C. But if the defrost time or the compressor stopping
time goes over 6 hours, the resistance will be stopped.
Compressor delay: First, the defrost process ends, the system waits 5 minutes, just after that
the compressor is active.
Cooler Defrosting Time
RFF730 Caple 70/30 Freestanding Fridge Freezer

Unsufficient cooling
Is the appliance
too close to wall or
heat sources
(stove, central heating,
oven, cooker etc.
)?
It should be placed min 50cm
distance from heat sources and
min 5 cm from electric
al ovens.
Is the ambient temperature
high?
Raise the thermostat value
.
Check whether putting the hot foods
in the refrigerator?
Put the foods
after get cold.
Is there any gas leakage
in refrigerant
system?
Check
all welding points in the
system.
The foods in the
cooler
compartment are
freezing.
Were the foods placed close
to
cooling air outlet
?
Please do not block air
outlets
Is the cooler
thermostat value high ?
Is there any hot foods close to the
cooler sensor?
Decrease the cooler thermostat
value and
do not put hot things
close to the sensor.
Are there any
sweating or icing?
Were t
he liquid foods in the closed
containers?
Put th
e liquid foods into the
closed containers.
Were t
he hot foods put into the
refrigerator?
Put it into
after getting cold.
Was
the refrigerator door opened?
Do
not leave the refrigerator
door open and do not often
open or close.
Abnormal
Noise
Is
the appliance on the flat surface?
The
floor should be straight and
balance the refrigerator with the
help of the adjustable feet.
Is the compressor feet loose
Fix it.
Is the condenser
or fan stationary
normal?
Fix it.
Do the capillary tube or all other
tubes touch any where?
Fix it.
RFF730 Caple 70/30 Freestanding Fridge Freezer

Entering service mode :
Push freezer temperature button continuously. During this time, open and close the cooler door for least 3
times. The appliance will enter service mode 3 sec. late.
• If there is a faulty situation, error code will be observed on screen. Otherwise nothing will be on the screen.
•Buzzer will sound beep for 0.1 sec. each 5 sec. during service mode.
•Child lock icon will blink
•Service function could be activated by pushing «Mode»button
SERVICE FUNCTION0
While display is on
servıce mode, it could be changed among service functions by touching mode icon
TOUCHING M
(MODE)
BUTTON ONE
TİME.
STARTING MODE
Eco icon blinks
The number of components which is controlled is shown at freezer segments of display
Eco ıcon
goes off when the starting test finishes and then display returns to initial service mode.
TOUCHING M
(MODE)
BUTTON TWO
TİMES.
MANUAL DEFROST
Holıday icon blinks
Defrost might be finished manually
or automatically.
Defrost might
be finished manually by using the cooling set button. Holiday icon goes off and display returns to initial
service mode.
Automatic defrost operates
according to the standard defrost time.
Holiday icon goes
off when he when the manual defrost ends and display returns to initial service mode.
TOUCHING M
(MODE)
BUTTON THREE
TİMES.
DAMPER MOTOR CONTROL MODE (this is a general function for other models which have damper)
SC icons
blink.
There
is no function due to not having damper component in the product
Unless
touch anything on the screen for 5 minutes , this function will be finished.
SC icons goes off and
display returns to initial service mode.
TOUCHING M
(MODE)
BUTTON FOUR
TİMES.
CURRENT TEMPERATURE VALUES INDICATOR
Sf icons blink.
Current temp. Value of freezer set
sensor is shown on cooler set segment. Freezer set segment shows "1"
After touching freezer set icon one time , current temp. Value of
cooler sensor is shown on cooler set segment. Freezer set
segment shows
«2"
After touching freezer set icon one more time , current temp. Value of defrost
sensor is shown on cooler set segment.
Freezer set
segment shows «3"
After touching freezer set icon one more time ,
Constant
value is shown on cooler set segment due to not being an ambient
sensor in the appliance .
Freezer set segment shows «4" (this is a general function for other models which have ambient
sensor)
After touching freezer set icon one more time , current temp. Value of cooler serpentine
sensor is shown on cooler set
segment.
Freezer set segment shows «5"
Unless
touch freezer set icon for 5 minutes , function will be finished automatically.
Touching
cooler set icon, function will be finished manually.
Sf icon
goes off and display returns to initial service mode.
TOUCHING M
(MODE)
BUTTON FİVE
TİMES.
DOOR SWITCH CONTROL
No icons
at display
Cooler
set segment gıves ınformatıon about cooler door
Mode just could
be deactıvated by cooler set button.
RFF730 Caple 70/30 Freestanding Fridge Freezer

SENSOR TEMPERATURE
USER
MODE
REACTION
SERVICE MODE
REACTION
(1) Freezer
> +50 0C or <-50 0C
(sensor is short or open)
Display SR
(blinks) in
Freezer
number
segment
&
SR Symbol
blinks
&
Buzzer ‘beep’
Display FE 01
(2) Refrigerator Display FE 02
(3) Defrost Display FE 03
(5) Serpentine sensor Display FE 04
Breakdown of (1) and (2) Display FF 12
Breakdown of (1) and (3) Display FF 13
Breakdown of (1) and (5) Display FF 15
Breakdown of (2) and (3) Display FF 23
Breakdown of (2) and (5) Display FF 25
Breakdown of (3) and (5) Display FF 35
Breakdown of (2) and (3) and (5) Display FH 06
Breakdown of (1) and (3) and (5) Display FH 02
Breakdown of (1) and (2) and (5) Display FH 05
Breakdown of (1) and (2) and (3) Display FH 04
Breakdown of all sensors Display FU 00
Component defect on display
DEFECT TYPE DETAILS USER MODE
REACTION
SERVICE MODE
REACTION
Compressor Defect
Defrost sensor temp > -100C
(D sensor temp.unchanges for
10 min.continuous compressor
run)
Display SR
(blinks) in Freezer
number segment
&
SR Symbol blinks
&
Buzzer ‘beep’
Display FO 05
Defrost Heater
Defect Defrost sensor < 00C Display FO 06
RFF730 Caple 70/30 Freestanding Fridge Freezer

Low voltage error on display
DEFECT TYPE DETAILS USER MODE REACTION SERVICE MODE REACTION
Low voltage Power supply < 170
Freezer and refrigerator
number segment shows
‘_’
&
Buzzer ‘beep’
Freezer and refrigerator
number segment shows ‘_’
Cooling error on display
Note: To prevent the wrong alarms, this alarm status is disabled on following conditions:
•During the first 6 hours after the product was firstly connected.
•During the defrost period
•During the first two hours after a defrost
•During the first 2 hours that one of the doors was open.
DEFECT TYPE DETAILS USER MODE
REACTION
SERVICE MODE
REACTION
Freezer sensor > -100C Freezer compartment
is not cool enough
Freezer number
segment and alarm
icon blink
Display CO 01
Ref. sensor > +100C and if
Holiday mode is not active
Refrigerator
compartment is warm
Refrigerator number
segment and alarm
icon blink
Display CO 02
Ref. sensor < -50C
Refrigerator
compartment is so
cool
Refrigerator number
segment and alarm
icon blink Display CO 03
F sensor > -10°C
and
R sensor >15°C and if
Holiday mode is not active
Freezer and
Refrigerator
compartment both are
not cool enough
Freezer and
Refrigerator number
segment and alarm
icon blink
Display CO 04
RFF730 Caple 70/30 Freestanding Fridge Freezer

3. Displace the top door (Pic-3)
Picture-1
1.Hold the top hinge cover and
remove it toward that direction (Pic-1)
2. Disconnect the display connector.
Unscrew the screws fixing the top hinge
and remove it. (Pic-2)
Picture-2
Picture-4
4. Unscrew the two screws fixing
the middle hinge and remove it.(Pic-4)
Picture-3
RFF730 Caple 70/30 Freestanding Fridge Freezer
