Caple CAFF41 User manual

Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk
Free standing fridge freezer
instruction manual
CAFF41
CAFF41 Free Standing Fridge Freezer.indd 1 06/01/2017 10:24

Instruction manual CAFF41
Please keep this instruction manual for future reference
2
CONTENTS
General warnings 3
Old and out-of-order fridges 7
Safety warnings
General features 9
Installing and operating your fridge 10
Before operating your fridge 11

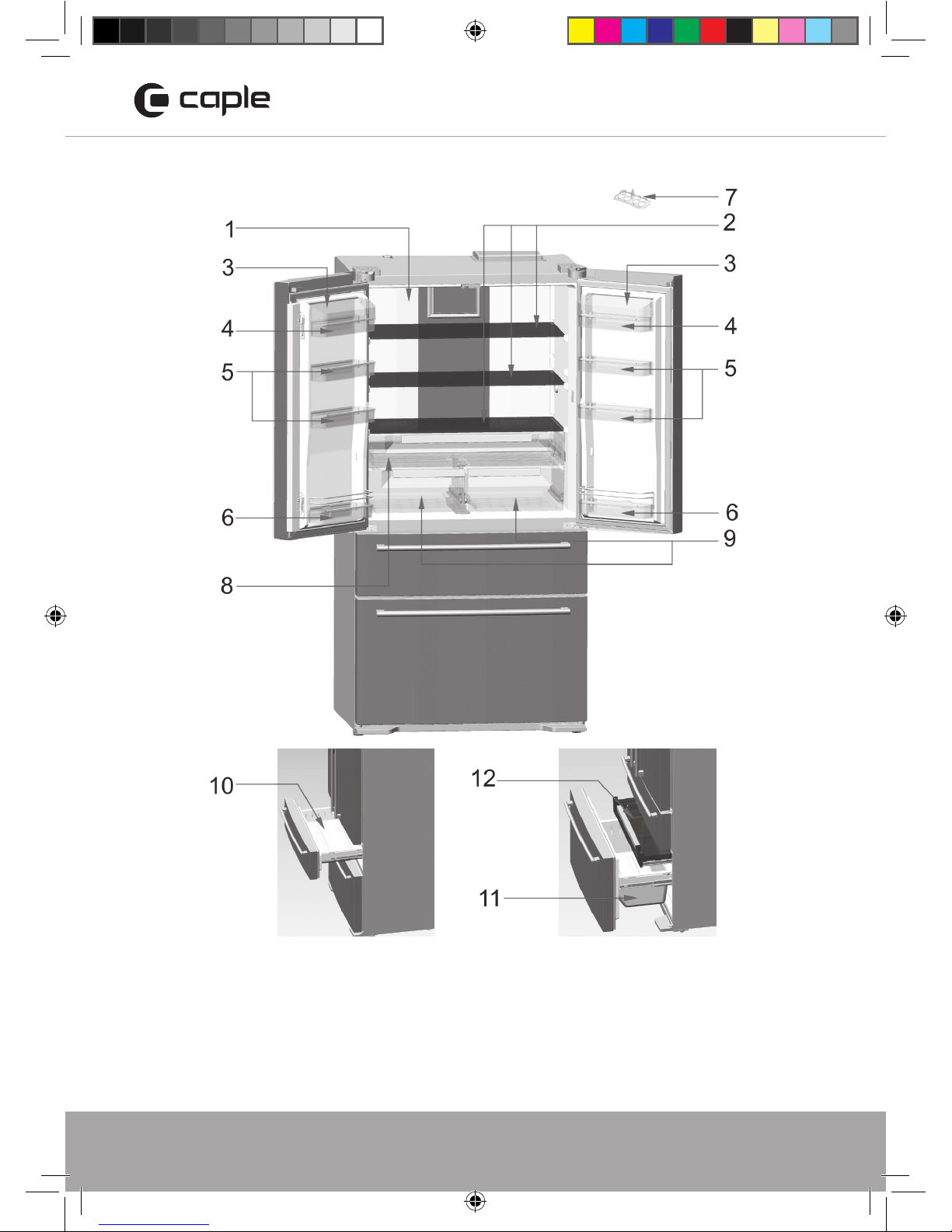

Parts of the appliance 12
Electronic display and usage 13
Operating your fridge 14
Storing frozen food 22
Cleaning & maintenance 25
Transportation 26
Troubleshooting 27
Energy saving tips 29
Electrical connection 30
CAFF41 Free Standing Fridge Freezer.indd 2 06/01/2017 10:24

Instruction manual CAFF41
Please keep this instruction manual for future reference
3
GENERAL WARNINGS
WARNING:
Keep vantilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
WARNING:
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING:
Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
WARNING:
Do not damage the refrigerant circuit.
WARNING:
To avoid a hazard due to the instability of the appliance, it
must be fixed in accordance with the instructions.
CAFF41 Free Standing Fridge Freezer.indd 3 06/01/2017 10:24

Instruction manual CAFF41
Please keep this instruction manual for future reference
4
WARNING:
-If your appliance uses R600a as a refrigerant – you
can learn this information from the rating label on the
cooler- you should be careful during transport to prevent
your appliance’s cooler elements from being damaged.
Although R600a is an environmental friendly and natural
gas, as it is explosive, in case of a leakage to be occurred
due to a damage in the cooler elements move your
fridge from open flames or heat sources and ventilate
the room where the appliance is located for a few
minutes.
-While carrying and positioning the fridge, do not damage
the cooler gas circuit.
-Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
-This product is not designed for commercial use, it is a
household appliance only. It is not intended to be used
in:
-Staff kitchen areas in shops, offices and other
working environments.
-Bed and breakfast type environments.
-By clients in hotels, motels and other residential
type environments.
-If the socket does not match the refrigerator plug, please
contact Caple service. It must be replaced by a Caple
approved engineer or similar qualified persons in order
to avoid a hazard.
CAFF41 Free Standing Fridge Freezer.indd 4 06/01/2017 10:24

Instruction manual CAFF41
Please keep this instruction manual for future reference
5
-This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure
that they do not play with the appliance.
-A specially grounded plug has been connected to the
power cable of your refrigerator. This plug should be used
with a specially grounded socket of 13 amperes. If there
is no such socket in your house, please have it installed
by an authorised electrician.
-This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazard involved. Children shall not
play with the appliance. Cleaning and user maintenance,
shall not be made by children without supervision.
-If the supply cord is damaged, it must be replaced by a
Caple approved engineer or similar qualified persons in
order to avoid a hazard.
-This appliance is not intended for use at altitudes
exceeding 2000m.
CAFF41 Free Standing Fridge Freezer.indd 5 06/01/2017 10:24

Instruction manual CAFF41
Please keep this instruction manual for future reference
6
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice. This appliance is marked according to the European directive 2002/96/EC on
Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. The symbol
on the product indicates that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this
product, please contact your local council, your household waste disposal service or
the retailer where you purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies
with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic
Compatibility (EMC).
CAFF41 Free Standing Fridge Freezer.indd 6 06/01/2017 10:24

Instruction manual CAFF41
Please keep this instruction manual for future reference
7
OLD AND OUT-OF-ORDER FRIDGES
- If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
- Old fridges and freezers contain isolation material and refrigerant with CFC.
Therefore, take care not to harm the environment when you are discarding your
old fridges.
NOTES:
- Please read the instruction manual carefully before installing and using your
appliance. Caple cannot be held responsible for damage occurred due to misuse.
- Follow all instructions on your appliance and instruction manual, and keep this
manual in a safe place to resolve the problems that may occur in the future.
- This appliance is produced for domestic use only and it can only be used in house
and for the specified purposes. It is not suitable for commercial or common use.
Such use will cause the guarantee of the appliance to be canceled and Caple will
not be responsible for the losses to be occurred.
CAFF41 Free Standing Fridge Freezer.indd 7 06/01/2017 10:24

Instruction manual CAFF41
Please keep this instruction manual for future reference
8
SAFETY WARNINGS
-Do not use multiple receptacles or extension cord.
-Do not plug in damaged, torn or old plugs.
-Do not pull, bend or damage the cord.
-In case your supply cord is damaged, it should be
replaced by Caple service in order to avoid any danger.
-This appliance is designed for use by adults, do not allow
children to play with the appliance or let them hang on
the door.
-Do not break or scrape ice with sharp objects like a knife
or similar.
-Do not plug-in or pull out the plug from the receptacle
with wet hands to prevent electrocution!
-Do not place glass bottles or beverage cans in the freezer
department. Bottles or cans may explode.
-Do not place explosive or flammable material in your
fridge for your safety. Place drinks with higher alcohol
amount vertically and by closing their necks tightly in the
fridge department.
-When taking ice made in the freezer department, do not
touch it, ice may cause ice burns and/or cuts.
-Do not touch frozen goods with wet hands!
-Do not re-freeze frozen goods after being melted. This
may cause health issues like food poisoning.
-Fix the accessories in the fridge during transportation to
prevent damage to accessories.
CAFF41 Free Standing Fridge Freezer.indd 8 06/01/2017 10:24

Instruction manual CAFF41
Please keep this instruction manual for future reference
9
GENERAL FEATURES OF THE CAFF41
1. When the doors are closed, please check if there are any gaps between door
gasket and the body. If there are any gaps, please contact Caple service
immediately.
2. When the freezer door is closed, a vacuum is formed. Do not force the door
open immediately. Please wait until the pressure has stabilized.
3. Air circulation of the fridge and freezer compartments are not mixed with other
compartments thanks to the frost-free technology. This technology stops odors
passing through compartments, and also allows vegetables to stay fresh for
longer.
4. The fan will often run independently even if the compressor is not running.
This maintains a better air circulation, and is energy efficient.
5. Hidden LEDs and hidden air holes give the refrigerator a more appealing
appearance.
6. Through a specific air flow design, fans give out cold air from multiple outlets
on all shelf levels, maintaining a more consistent temperature throughout.
7. The display edges and corners form a smooth surface against the door and
ensure a perfect appearance. Thanks to the touch control panel, temperature
controls can be adjusted easily.
8. The interior LED light turns on gradually instead of an sudden flash. The LEDs
lights up to 100% brightness within a few seconds after the door is opened.
9. Telescopic rails used in the chiller compartments ensures that the draw operates
easily and quietly.
10. The chiller draw is fitted with soft close runners to prevent the door from
slamming shut. This function eliminates the risk of the draw staying partially
open.
11. Finger print proof doors never leave finger prints thanks to a special layer coated
over the stainless steel door
CAFF41 Free Standing Fridge Freezer.indd 9 06/01/2017 10:24

Instruction manual CAFF41
Please keep this instruction manual for future reference
10
INSTALLING AND OPERATING YOUR FRIDGE
- Before starting to use your fridge, you should pay attention to the following
points.
- Operating voltage for your fridge is 220-240 V at 50Hz.
CAUTION!: Never replace any electrical parts inside the refrigerator. In cases
requiring replacement, contact Caple Service.
- We do not take the responsibility of the damages that occur due to ungrounded
usage.
- Place your fridge in a place that it would not be exposed to direct sunlight.
- Install the distance adjustment plastic (the part with black
vanes at the rear) by turning it 90° as shown in the figure
to prevent the condenser from touching the wall.
- Your appliance should be at least 50 cm away from hobs,
ovens and other heater cores, and should be at least 5 cm
away from electrical ovens.
- It should never be used outdoors or left in the rain.
- When your fridge is placed next to a deep freezer, there
should be at least a 2cm gap between them to prevent
humidity on the outer surface.
- Do not place anything on your fridge, and install your fridge in a suitable place so
that at least 15 cm is available above it.
- The adjustable front legs should be stabilized at an appropriate height to allow
your fridge to operate in a stable and proper way. You can adjust the legs by
turning them clockwise (or in the opposite direction). This should be done before
placing food in the fridge.
- Before using your fridge, wipe all parts with warm water added with a teaspoon
of sodium bicarbonate, and then rinse with clean water and dry. Replace all parts
after cleaning.
- No carpets, rugs, etc. which may obstruct air circulation should be laid under the
refrigerator.
CAFF41 Free Standing Fridge Freezer.indd 10 06/01/2017 10:24
