Caple CAFF46GM User manual

Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
Free Standing Fridge Freezer
Instruction Manual
CAFF46GM

2Instruction manual CAFF46GM Please keep this instruction manual for future reference
CONTENTS
Warnings 3
Environmental Protection 13
General Features 14
Electrical Connection 15
Product Overview 16
Dimensions 17
Using The Appliance 18
Accessories 26
Chiller Compartment & Humidity Controlled Drawer 27
Food Storage 29
Cleaning And Maintenance 36
Transport And Repositioning 38
Troubleshooting 39
Energy Saving Tips 43
Caple Contact Details 44

3Instruction manual CAFF46GMPlease keep this instruction manual for future reference
SAFETY INSTRUCTIONS
Read these instructions carefully and completely before
using your appliance. They provide you with important
information regarding the safe installation, use and
maintenance of the appliance as well as useful advice
for getting the best out of your fridge freezer. Keep this
booklet in a safe place for future reference and pass on
to any future owner.
-This appliance is produced in accordance with all
applicable local and international standards
and regulations.
-This appliance is intended to be used in household and
similar applications such as:
› Staff kitchen areas in shops, offices and other
working environments.
› Farm Houses.
› By clients in hotels, motels and other residential
type environments.
› Bed and breakfast type environments.
-This appliance may only be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, if
they are supervised whilst using it. They may only use
it unsupervised if they have been shown how to use it
in a safe manner. They must be able to recognise and
understand the dangers of misuse.

4Instruction manual CAFF46GM Please keep this instruction manual for future reference
SAFETY WITH CHILDREN:
-This appliance can be used by children aged from 8
years and above.
-Children less than 8 years of age should be kept away
unless continuously supervised or they have been
shown how to use it in a safe manner. Children must
be able to understand and recognise the possible
dangers caused by incorrect operation.
-Children should be supervised in the vicinity of
the appliance.
-Never allow children to play with the appliance.
-Cleaning and user maintenance should not be carried
out by children without supervision.
-Children aged from 3 to 8 years are allowed to load
and unload refrigerating appliances.
-Materials used for packaging (nylon, staplers,
Styrofoam etc.) may cause harmful effects to children,
they should be disposed of immediately.
-Children can injure themselves on an open door. Do
not let children sit on the open door, lean against it or
swing on it.

5Instruction manual CAFF46GMPlease keep this instruction manual for future reference
TECHNICAL SAFETY:
-Maintenance and repair work must be made only
by authorised Caple service technicians. Installation
and repair work that is carried out by unauthorised
technicians may endanger you.
-While the appliance is under warranty, repairs should
only be undertaken by a Caple authorised service
technician. Otherwise the warranty will be invalidated.
-It is dangerous to alter or modify the specifications of
the appliance in any way. The requirements for this
appliance are stated on the rating label.
-Risk of injury due to electric shock. Any contact with
live connections or tampering with the electrical or
mechanical components of the appliance will endanger
your safety and may lead to the
appliance malfunctioning.
-To maintain the efficiency and safety of your appliance,
we recommend you always use original spare parts
and to call only our authorised Caple Service agents in
case of need.
-Multi-socket adapters and extension leads should
not be used to connect the appliance to the mains
electricity supply.
-The electrical system of this appliance may be used
safely only when it is correctly connected to an
efficient earthing system in compliance with the safety
standards currently in effect.

6Instruction manual CAFF46GM Please keep this instruction manual for future reference
-Insert the plug into a socket with an efficient ground
connection. If the socket has no ground contact or the
plug does not match, we recommend you consult a
qualified electrician for assistance.
-The appliance must be connected with a properly
installed fused socket. The power supply (AC) and
voltage at the operating point must match with the
details on the rating plate of the appliance.
-Consult a qualified electrician or service person if the
Grounding instructions are not completely understood,
or if you have doubts on whether the appliance is
properly grounded.
-The incorrect grounding may cause breakdown and
electric shock.
-We do not accept responsibility for any damages that
occur due to ungrounded usage.
-If the socket does not match the refrigerator plug, it
must be replaced by the manufacturer, a service agent
or similarly qualified persons in order to avoid
a hazard.
-A specially grounded plug has been connected to the
power cable of your refrigerator. This plug should be
used with a specially grounded socket of 13 amperes.
If there is no such socket in your house, please have
one installed by an authorised electrician.

7Instruction manual CAFF46GMPlease keep this instruction manual for future reference
INSTALLATION WARNINGS:
-Prior to installation, ensure that the local distribution
conditions (electricity voltage and frequency) and the
requirements of the appliance are compatible.
-During installation the appliance must be completely
disconnected from the mains electricity supply.
-Do not operate the appliance before it is fully installed.
-The appliance must be installed by an
authorised technician.
-In order to avoid any hazards resulting from the
instability of the appliance, it must be fixed in
accordance with the following instructions.
-This appliance is not intended for use at altitudes
exceeding 2000m.
-Your appliance must be at least 50 cm away from
stoves, gas ovens and heater cores, and at least 5 cm
away from electrical ovens.
-If your fridge freezer is placed next to a deep fridge,
there must be at least 2cm between them to prevent
humidity forming on the outer surface.
-Do not cover the body or top of fridge with lace. This
will affect the performance of your fridge.
-Clearance of at least 150 mm is required at the top of
your appliance. Do not place anything on top of
your appliance.

8Instruction manual CAFF46GM Please keep this instruction manual for future reference
-Caple is not responsible for any damage that may
be caused by defective placement and installation by
unauthorised persons.
-When unpacking the appliance, make sure that it is not
damaged during transportation.
-Check the appliance for any damage.
-In the case of any defect; do not use the appliance and
contact your retailer or Caple Service immediately.
-Ensure that the supply cord is not wedged, trapped
or damaged during the installation. If the supply cord
is damaged, it must be replaced by a Caple service
technician or similarly qualified persons in order to
prevent a hazard.
-Never touch the power cord/plug with wet hands. This
may cause a short circuit or electric shock.
-The plug must be accessible after installation.
-Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
-Protect your appliance against atmospheric effects. Do
not expose it to effects such as sun, rain, snow etc.

9Instruction manual CAFF46GMPlease keep this instruction manual for future reference
DURING USE:
-Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
-Place drinks with high alcohol content vertically in
the fridge compartment and make sure their tops are
tightly closed.
-If you know you will not be using the appliance for a
while switch it off from the main supply and unplug it.
-Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
-Do not place your appliance on a carpeted surface as
this will prevent adequate ventilation.
-When the appliance is not in use, we recommend you
turn it off, and isolate it from the electrical supply.
-This appliance must be used in the vertical position on
a flat surface.
-Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
-The manufacturer will not be held liable for any
damages that might arise out of incorrect or improper
use of the appliance.
-Do not touch frozen goods with wet hands. Your hands
may freeze to the frozen food.

10 Instruction manual CAFF46GM Please keep this instruction manual for future reference
-Do not eat ice-cream or ice cubes immediately after
they are removed from the freezer compartment.
Frozen food can cause frost burn to the lips
and tongue.
-Do not re-freeze partially or fully thawed food. This
may cause health issues such as food poisoning.
Defrosted food may only be re-frozen after it has
been cooked.
-Do not place glass bottles or cans containing
carbonated drinks in the freezer compartment as they
will burst when the contents freezes.
-If using the appliance to quickly cool drinks, do not
leave bottles inside the freezer compartment for more
than 1 hour, otherwise they could burst.

11Instruction manual CAFF46GMPlease keep this instruction manual for future reference
CLEANING AND MAINTENANCE:
-Clean the appliance thoroughly before use.
-Always switch off the appliance from the mains
isolating the electrical supply before any cleaning or
maintenance.
-Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
TRANSPORT:
-Always transport the appliance in its original packaging
and in an upright position.
-If your appliance uses R600a as a refrigerant, you
should take care during transportation and installation
to prevent the cooler elements from being damaged.
R600a is an environmentally friendly and natural
gas, but it is explosive. In the event of a leak due to
damage of the cooler elements, move your fridge away
from open flames or heat sources and ventilate the
room where the appliance is located for a few minutes.
-Never use the door handles for lifting.
-The appliance is heavy and could cause injury, it must
be transported by two people.

12 Instruction manual CAFF46GM Please keep this instruction manual for future reference
DISPOSAL OF OLD APPLIANCE:
-Old fridges and fridges contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
-If your old fridge or fridge has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
-Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
7
RI5505 Fridge Freezer Instruction Manual.indd 7RI5505 Fridge Freezer Instruction Manual.indd 7 05/02/2020 14:3005/02/2020 14:30
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
- The appliance is heavy and could cause injury, it must
be transported by two people.
DISPOSAL OF OLD APPLIANCE:
- Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
- If your old fridge or freezer has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
- Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.

13Instruction manual CAFF46GMPlease keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is
marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date of
purchase, model and serial number. Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together with
proof of purchase. If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all applicable
legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our website
www.caple.co.uk.

14 Instruction manual CAFF46GM Please keep this instruction manual for future reference
GENERAL FEATURES
1. When the doors are closed, check if there are any gaps between door gasket and the body.
If there are any gaps, contact Caple service immediately.
2. When the freezer door is closed, a vacuum is formed. Do not force the door open
immediately. Please wait until the pressure has stabilised.
3. Air circulation of the fridge and freezer compartments are not mixed with other
compartments thanks to the frost-free technology. This technology stops odours passing
through compartments, and also allows vegetables to stay fresh for longer.
4. The fan will often run independently even if the compressor is not running. This maintains
a better air circulation, and is energy efficient.
5. Through a specific air flow design, fans give out cold air from multiple outlets on all shelf
levels, maintaining a more consistent temperature throughout.
6. The display edges and corners form a smooth surface against the door and ensure a
perfect appearance. Thanks to the touch control panel, temperature controls can be
adjusted easily.
7. The interior LED light turns on gradually instead of sudden light. The LED lights up to
100% brightness within a few seconds after the door is opened.
8. Telescopic rails used in the chiller compartments ensure that the draw operates easily
and quietly.
9. The chiller drawers are fitted with soft close runners to prevent them from slamming shut.
This function eliminates the risk of the drawers staying partially open.
10. Finger print proof doors never leave finger prints thanks to a special layer coated over the
gunmetal door.

15Instruction manual CAFF46GMPlease keep this instruction manual for future reference
ELECTRICAL CONNECTION
For your safety please read the following information
WARNING:
This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse
in the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed
for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug.
HOW TO WIRE A 13 AMP PLUG.
IMPORTANT:
The wires in the mains lead on this appliance are
coloured in accordance with the
following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the
markings identifying the terminals in your plug
proceed as follows.
The green and yellow wire must be connected to the terminal in the plug which is marked with
the letter E or with the earth symbol
9
ELECTRICAL CONNECTION
For your safety please read the following information
WARNING:
This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for
any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug.
HOW TO WIRE A 13 AMP PLUG.
IMPORTANT:
The wires in the mains lead on this appliance are coloured in accordance with the following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the markings
identifying the terminals in your plug proceed as
follows.
The green and yellow wire must be connected
to the terminal in the plug which is marked
with the letter E or with the earth symbol
or coloured green and yellow.
The blue wire must be connected to the terminal
marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is firmly secured under the cord clamp.
GREEN/YELLOW
Earth
BROWN
Live
FUSE
13 Amps
BLUE
Neutral
Cord Clamp
RI5505 Fridge Freezer Instruction Manual.indd 9RI5505 Fridge Freezer Instruction Manual.indd 9 05/02/2020 14:3005/02/2020 14:30
or coloured green and yellow.
The blue wire must be connected to the terminal marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is firmly secured under the cord clamp.
9
ELECTRICAL CONNECTION
For your safety please read the following information
WARNING:
This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for
any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug.
HOW TO WIRE A 13 AMP PLUG.
IMPORTANT:
The wires in the mains lead on this appliance are coloured in accordance with the following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the markings
identifying the terminals in your plug proceed as
follows.
The green and yellow wire must be connected
to the terminal in the plug which is marked
with the letter E or with the earth symbol
or coloured green and yellow.
The blue wire must be connected to the terminal
marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is firmly secured under the cord clamp.
GREEN/YELLOW
Earth
BROWN
Live
FUSE
13 Amps
BLUE
Neutral
Cord Clamp
RI5505 Fridge Freezer Instruction Manual.indd 9RI5505 Fridge Freezer Instruction Manual.indd 9 05/02/2020 14:3005/02/2020 14:30

16 Instruction manual CAFF46GM Please keep this instruction manual for future reference
PRODUCT OVERVIEW
This presentation is only for information about the parts of the appliance. Parts may vary
according to the appliance model.
PRODUCT OVERVIEW
This presentation is only for information about the parts of the appliance. Parts may vary
according to the appliance model.
1. Egg holder
2. Fridge compartment shelves
3. Door top shelf covers
A 323 1
B
B1 B2
4
5
8
6
10
11 13
12
9
6
7
5
4
14 14
A. Fridge compartment
B. Freezer compartment
B1. Zone-1 / B2. Zone-2
4. Door shelves
5. Door bottle shelves
6. Door shelves
7. Chiller Compartment
8. Crisper Drawers
9. Ice box trays
10. Freezer top basket
11. Freezer bottom basket
12. Freezer top basket
13. Freezer bottom basket
14. Adjustable legs
A. Fridge compartment
B. Freezer compartment
B1. Zone-1 / B2. Zone-2
1. Egg holder
2. Fridge compartment
shelves
3. Door top shelf covers
4. Door shelves
5. Door bottle shelves
6. Door shelves
7. Chiller Compartment
8. Crisper Drawers
9. Ice box trays
10. Freezer top basket
11. Freezer bottom basket
12. Freezer top basket
13. Freezer bottom basket
14. Adjustable legs

17Instruction manual CAFF46GMPlease keep this instruction manual for future reference
DIMENSIONS

18 Instruction manual CAFF46GM Please keep this instruction manual for future reference
USING THE APPLIANCE
› Before using your fridge freezer, wipe all parts with a solution of warm water and a
teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to
the fridge freezer after cleaning.
› Remove all transport tapes and foam protection pieces.
Clean the interior with a cloth dampened in lukewarm
soap and water. Rinse with clean water and dry.
› Use the adjustable front legs to make sure your appliance
is level and stable You can adjust the legs by turning
them clockwise (or in the opposite direction). This should
be done before placing food in the fridge.
› Install the distance adjustment plastic (the part with
black vanes at the rear) by turning it 90° as shown in the
figure to prevent the condenser from touching the wall.
› Your fridge freezer may have an odour when it is operated for the first time. This is normal
and the odour will fade when your fridge freezer starts to cool.
› When the product is running, high temperature can be noticed on the side panels. This
is normal.
WARNING:
Connect to the electrical socket but do not switch the power to the refrigerator on for at least
12 hours. The coolant within the product needs time to settle after it has been transported and
put into position, failure to do this will affect the cooling performance of your appliance.
› Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium
bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge after cleaning.
› Remove all transport tapes and foam protection pieces. Clean the interior with a cloth dampened
in lukewarm soap and water. Rinse with clean water and dry.
› The adjustable front legs should be stabilized at an appropriate height to
allow your fridge to operate ina stable and proper way. You can adjust
the legs by turning them clockwise (or inthe opposite direction). This
should be done before placing food in the fridge.
›Install the distance adjustment plastic (the part with black vanes at the
rear) by turning it 90° as shown in the figure to prevent the condenser
from touching the wall.
›Your fridge may have an odour when it is operated for the first time. This
is normal and the odour will fade when your fridge starts to cool.
WARNING:
Connect to the electrical socket but do not switch the power to the refrigerator on for at least 12
hours. The coolant within the product needs time to settle after it has been transported and put into
position, failure to do this will affect the cooling performance of your appliance.

19Instruction manual CAFF46GMPlease keep this instruction manual for future reference
FROST FREE TECHNOLOGY
Fridge-freezers with Frost-free technology have a different operating system to static
fridge-freezers.
In normal (static) fridge-freezers, the humidity entering the fridge-freezer due to opening the
door, and the humidity inherent in the food, causes frost build-up in the fridge and
freezer compartments.
To defrost the frost and ice in the freezer compartment,
you are required to periodically switch off the fridge,
place the frozen food in a separate cooled container, then
remove the ice gathered in the freezer compartment. The
situation is completely different in Frost free
fridge-freezers.
A built-in fan blows dry and cold air evenly throughout the
fridge and freezer compartments. The cold air disperses
uniformly, ensuring all your food is cooled equally, thus
preventing humidity and ice build-up.
In the refrigerator compartment, air blown by the fan,
located at the top of the refrigerator compartment, is
cooled while passing through the gap behind the air duct.
At the same time, the air is blown out through the holes
in the air duct, evenly spreading cool air throughout the
refrigerator compartment.
There is no air passage between the freezer and
refrigerator compartments, therefore preventing the mixing
of odours. Therefore, your Frost-free fridge-freezer allows
ease of use, in addition to its huge capacity and stylish appearance.

20 Instruction manual CAFF46GM Please keep this instruction manual for future reference

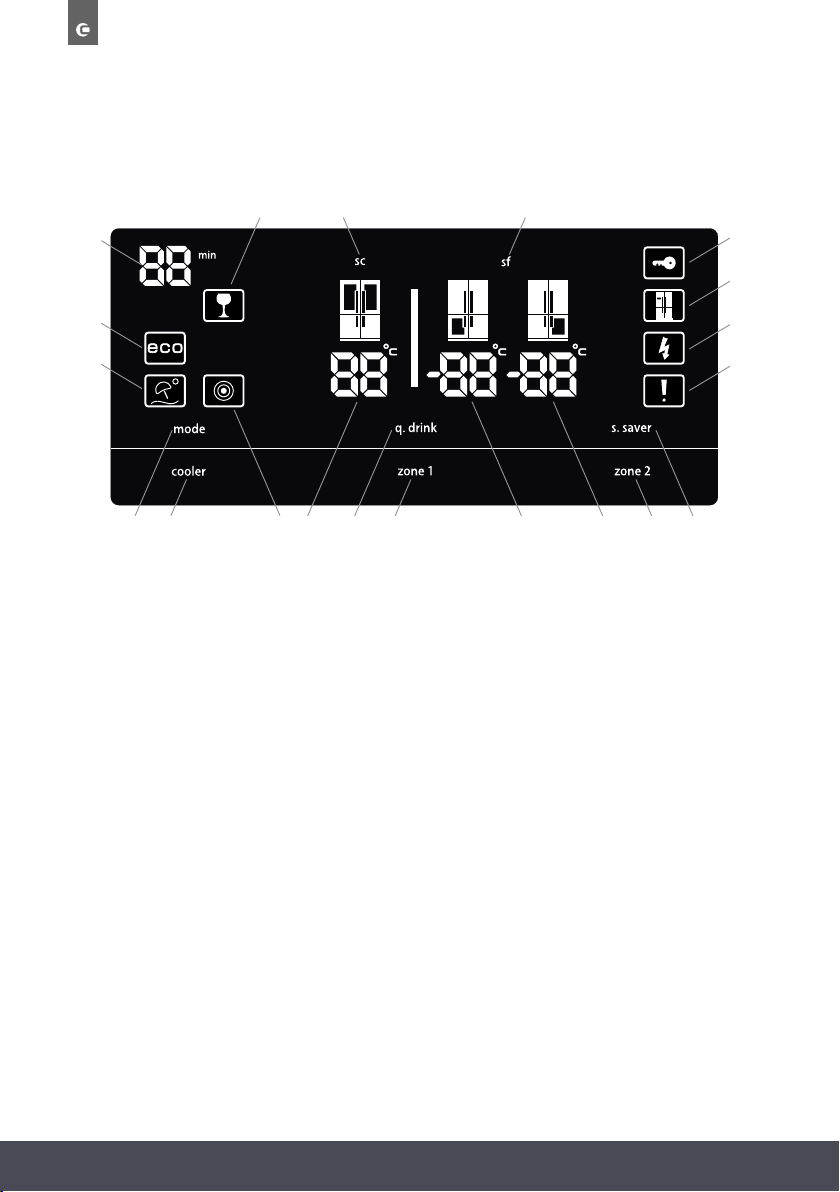

DISPLAY AND CONTROL PANEL
1. Fridge compartment
temperature indicator
2. Left freezer compartment
temperature indicator
3. Right freezer compartment temperature
4. Super Cool mode light
5. Super Freeze mode light
6. QDrink alarm timer
7. QDrink alarm light
8. Economy mode
9. Holiday mode
10. Night Sensor
11. Child lock
12. Dealer Demo mode
13. Low voltage warning
14. Alarm
15. Screensaver button
16. Zone 2 (right freezer) button
17. Mode button
18. Cooler button
19. Qdrink mode button
20. Zone 1 (left freezer) button
DISPLAY AND CONTROL PANEL
1. Fridge compartment temperature indicator
2. Left freezer compartment temperature indicator
3. Right freezer compartment temperature
4. Super Cool mode light
5. Super Freeze mode light
6. QDrink alarm timer
7. QDrink alarm light
8. Economy mode
9. Holiday mode
10. Night Sensor
11. Child lock
12. Dealer Demo mode
13. Low voltage warning
14. Alarm
15. Screensaver button
16. Zone 2 (right freezer) button
17. Mode button
18. Cooler button
19. Qdrink mode button
20. Zone 1 (left freezer) button
The values on the screen indicate temperature values specified by the consumer.
The Standby display is protected against faulty contact. Therefore, you must touch any key
on the display before you make an action. After 2 seconds, a beep will sound and the
display will be ready for use. Wait 20 seconds at the end of the process and the display will
return to Standby mode.
1 19 20 2101817 3 16 15
547
6
8
9
11
12
13
14
The values on the screen indicate temperature values specified by the consumer.
The Standby display is protected against faulty contact. Therefore, you must touch any key
on the display before you make an action. After 2 seconds, a beep will sound and the display
will be ready for use. Wait 20 seconds at the end of the process and the display will return to
Standby mode.
