Caple CAFF20 User manual

Instruction manual for side by side fridge freezer
Model code: CAFF20
Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk

2
Refrigerator - Freezer EN
Thank you for your trust and for buying this appliance. We hope it will
successfully serve the purpose for many years.
Refrigerator with freezer is for domestic use
only.
The right part of the appliance is refrigerator
and is used for storing fresh foods at the
temperature of 0°C and higher.
The left part is freezer and is used for freezing
fresh foods and storing frozen foods for longer
periods of time (up to one year, depending on
the kind of foods you store). The compartment
is marked with four stars..
Before Putting Into Use.........................2
esUrofsnoitcurtsnI snoitcurtsnIgnitnuoM
We Care for the Environment
Tips for Energy Savings
Important ...............................................3
Storing Time During Power SupplynoitpurretnI
Disposing of the Worn Out Appliance
Placing and Installation.........................4
Choosing the Right Place
Connection to Power Supply
Feet adjustment
Decorative plinthinstallation
Description of the Appliance.................6
Operation Control .................................6
Use.........................................................13
sdooFhserFgnirotS
Freezing Fresh Foods
gnikaMecI
Maintenance and Cleaning .................16
Defrosting the NO FROST refrigerator
Defrosting the NO FROST Freezer
Cleaning the Appliance
Switch Off the Appliance When Not In Use
Trouble-Shooting Guide......................16
Before Putting Into Use
•Before connecting the appliance to the mains
supply, leave it stand for about 2 hours,
which will reduce a possibility of malfunctions
in the cooling system due to transport
handling.
•Clean the appliance, and be thorough,
especially in the interior (See Cleaning and
Maintenance).
•In case the interior accessories are not
correctly placed, rearrange them as
described in chapter Description of the
Appliance.
Instructions for Use
These instructions for use are intended for the
user. They describe the appliance and its
correct and safe use. They were prepared for
various types of refrigerators therefore you
might find in it some functions that do not apply
to your appliance and description of the
accesories that your appliance does not
include.
Mounting Instructions
Integrated appliances are equipped with
instructions for mounting the appliance into the
kitchen unit. The appliance should be mounted
by qualified technician and instructions are for
his use only.
We Care for the Environment
•Our appliances are distributed in packaging
made of environmental friendly material
which could safely be recycled, disposed off
or destroyed, with no effects on the nature
whatsoever.

3
•When your appliance finally wears out,
please try not to burden the environment with
it; call your nearest authorised service agent.
(See Disposing of the Worn Out Appliance).
Tips for Energy Savings
•Try not to open the door too often, especially
when the weather is wet and hot. Once you
open the door,
close it as soon as
possible.
This is especially important if you
have
an
upright model.
•Every now and then check if the appliance is
sufficiently ventilated (adequate air
circulation behind the appliance).
•Use higher temperature settings only when
required or recommended.
•Before loading the appliance with packages
of fresh foods, make sure they are cooled to
ambient temperature.
•If the gasket is damaged or if it turns out that
the sealing is poor, the energy consumption
is substantially higher. To restore efficiency,
replace the gasket.
•Always consider instructions stated in
sections Positioning and Energy Saving Tips,
otherwise the energy consumption is
substantially higher.
Important
•If you have bought this appliance to replace
an old one equipped with a lock that cannot
be opened from inside (lock, bolt), make sure
that the lock is broken. This will make
it impossible for children to lock themselves
inside the appliance and suffocate.
•The appliance must be correctly connected to
the mains supply. (see: Connecting to the
Mains Supply).
•Do not touch the cooled surfaces while the
appliance operates, especially not with wet
hands, because the skin may stick to the cold
surfaces.
•Do not freeze bottles containing liquid,
especially not soft drinks, such as mineral
water, sparkling wine, beer, cola etc.,
because liquid expands during freezing and
the glass bottle is very likely to blow up.
•Do not eat frozen food (bread, fruit,
vegetables), because you can get frostbites.
•If the food has strange smell or color, throw it
away, because it is very likely that it is
spoiled and therefore dangerous to eat.
•Disconnect the appliance from the power
supply before repairing it (only a qualified
technician should repair it), before cleaning
and before replacing the light bulb.
•Do not defrost the appliance with other
electric devices (hair dryer etc.) and never
scrape the ice or frost layer with sharp tools.
Use only enclosed tools or tools
recommended by the manufacturer.
•For the sake of environment protection - be
careful not to damage the rear wall of the
appliance (the condenser unit or the tubes -
for example when moving the appliance) or
any part of the refrigerating system inside the
appliance.
•The refrigerating system of the appliance is
filled with refrigerant and oil, so when the
appliance is damaged, handle it with care
and dispose it of in compliance with
environmental protecting precautions. (See
We Care for the Environment).
•
appliance, all around the rim, is controlled by
the operation of the compressor and it
prevents the door gasket freezing on to the
freezer housing.
•If the supply cord is damaged, it must be
replaced by the manufacturer or his service
agent or a qualified person in order to avoid
hazard.
•The rating plate is inside the appliance or
outside on the rear wall.
The symbol on the product or on its
packaging indicates that this product
may not be treated as household
waste. Instead it shall be handed over
to the applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product,
please contact your local city office, your
household waste disposal service or the
shop where you purchased the product.
A Heating element is incorporated in the

4
Storing Time During Power Supply
Interruption
Do not open the freezer in case of failure or
power supply interruption! In case the
interruption is extended over longer period of
time (16 hours), take food out of the freezer and
use it, or make sure that is sufficiently cooled
(perhaps you have an extra appliance).
Disposing of the Worn Out Appliance
•When your appliance finally wears out,
dispose it of. If the appliance has a lock,
break it, in order to prevent eventual
accidents (danger of children becoming
inside the appliance).
•The refrigerating system of the appliance is
filled with refrigerant and insulating
substances which should be separately
treated and processed. Call your nearest
authorised service agent or specialised
servicing centre. If you don't find one, contact
your local authorities or your distributor. Be
careful not to damage the tubes on the rear
wall of the appliance (danger of pollution).
Placing and Installation
Choosing the Right Place
Place the appliance in a dry and regularly
ventilated room. Allowed ambient temperature
depends on the model (class) of the appliance
and is stated on the rating plate of the
appliance. Never place the appliance near heat
emitting devices (e.g. cooker, radiator, water
heater or similar devices) and do not expose it
to direct sunlight. The appliance should be
positioned at least 3 cm away from the electric
or gas cooker and at least 30 cm away from the
oil or coal stove. If this is not possible, use an
appropriate insulation. Behind the appliance
there should be free space at least 200 cm
2
wide and above the appliance the high kitchen
units should be at least 5 cm away from the
appliance in order to assure adequate
ventilation of the condenser unit.
Class Ambient temperature
SN (subnormal) from + 10°C to + 32°C
N (normal) from + 16°C to + 32°C
ST (sub-tropical) from + 16°C to + 38°C
T (tropical) from + 16°C to + 43°C
Connection to Power Supply
Connect the appliance with the cable and plug
to the power supply socket outlet with a ground
terminal (safety socket). Required nominal
voltage and frequency are indicated on the
rating plate. The connection to the mains
supply and earthing have to be made according
to current standards and regulations. The
appliance resists temporary voltage tolerance
up to -6 to +6 %.
Feet adjustment
The fridge/freezer must be installed on a firm,
flat and level surface for it to work quietly and
efficiently.
If the feet are not already fitted, screw them
into the two front corners of the bottom of the
casing.
Fine adjustments can be made to level the
appliance by turning the feet to raise or lower,
please follow the direction in the figure.
locked

5
Decorative socle installation
decorative plinth
screw

6
Description of the Appliance
Operation Control

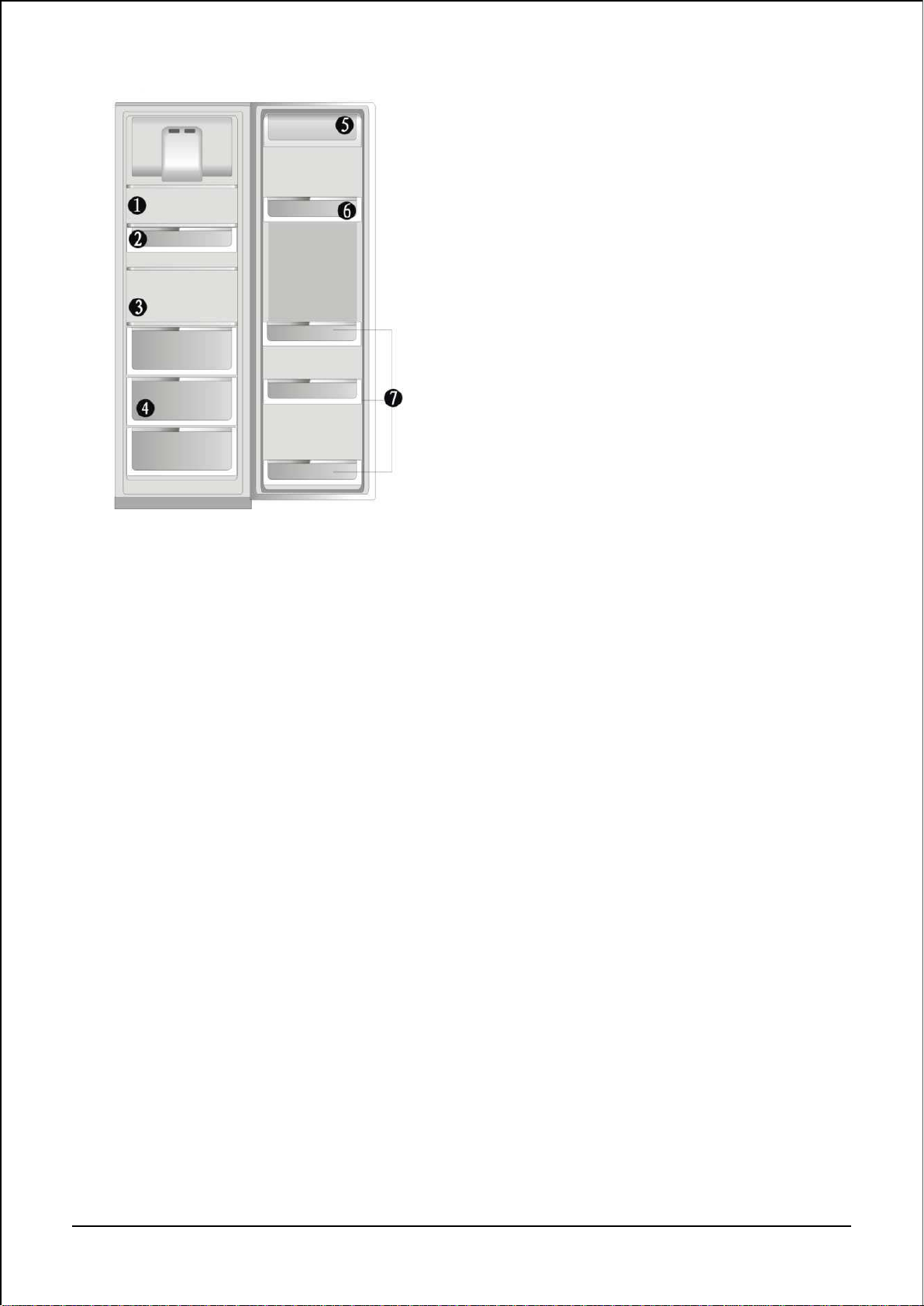

1Freezer door rack
2Freezer compartment glass
shelf
3ice-maker box
4Ice box
5Freezer compartment drawer
6Refrigerator compartment
glass shelf
7Refrigerator compartment
small drawer
8Vegetable crisper
9Refrigerator door rack
10 Substance box
11 Lower plastic cover
12 air channel cover

7
1. Button operation
1. Freezer compartment adjustment button
2. Mode Settings
3. Refrigerator compartment temperature
adjustment button.
4. Confirmation and lock/unlock button
2. Indicator lamp
A. Frozen tchermostat Indicator lamp
B. Mode selection Indicator lamp
C.Refrigerator thermostat Indicator lamp
D. Confirmation and lock/unlock button lamp
3
.
Display
5. Freezer icon
6. Refrigerator icon
7. Freezer compartment
8. Quick-freeze mode
9. Refrigerator compartment
10. Quick-cold mode
11. Intelligent mode
12. Vacation mode
13. Lock icon
14. Refrigerator compartmenttemperature
15. Compressor running dynamic signal
16. Freezer compartment temperature
4
.
Lock/Unlock mode
Press 4 button for 3 seconds persistently at the non-locked state (the 13 icon does not
show), the refrigerator will go into the state of Locked operation and the13 icon shows.
Press 4 button for 3 seconds persistently at the Locked state,the 13 icon disapears and
Locked state releases.

8
The following functions must be in operation
under the unlocked state
5
.
Intelligent mode
Press 2 button to select Intelligent mode, the 11 icon shows,then press 4 button to confirm,
the refrigerator will be running according toIntelligent mode.
When Intelligent mode is on the temperature of the refrigerator compartment is set on 5
degree and freezer compartment is set on -18 degree.
The refrigerator automatic adjusts to the best cooling temperature according tothe
temperature of the environment without manual adjustment.
6.
Vacation
mode
Press 2 button to select Vacation mode, the 12 icon shows ,then press 4 key to confirm, the
refrigerator will be running according to Vacation mode.
Temperature of the refrigerator compartment is set on 7 degree and freezer compartment is
set on -15 degree.
7.
Rapid cooling
mode
Press 2 button to select Rapid cooling mode , the 10 icon shows, then press D key to
confirm, the refrigerator will be running according to Rapid cooling mode.
When rapid cooling mode is on, refrigerator compartment will start a turbo speed to shorten
the cooling time to the temperature of 2 degree.
8. Quick
-
freeze mode
Press 2 button to choose Quick-freeze mode, the 8 icon shows, then press 4 key to confirm
the refrigerator will be running according to Quick-freeze mode.
9. Withdraw from Cold
-
speed, Quick
-
frozen, Intelligence and
V
a
cation
mode
When these modes have been in force,press 2 key to select corresponding mode,then
press 4 key to exit from corresponding mode.
10. Refrigerator compartment temperature settings
Press 3 button once,the Refrigerator compartment temperature displays with flashing,press
3 key again and you can set the temperature ,the range of temperature is from 2℃to 8℃
11. Freezer room temperature
settings
Press 1 button once,the refrigerator room temperature displays with flashing,press 4 key
again and you can set the temperature, the range of temperature is from -16℃to -24℃.

9
12.
Power failure memory fu
nction
When the electricity is off, the instantaneous work state is locked, After the electricity is on,
the Refrigerator recovers work state before power failure automatically .
13. Latency protection
function
With 5 minutes time-delay Circuit and procedures, The compressor’s running time intervals
are not less than five minutes at any time.
14. Failure tips
When the screen displays E1~E6,It is illustrated that the refrigerator is malfunctioning.
Fridge is still able to refrigerate with some failures.But it must be maintained as soon as
possible, so that the refrigerator can work well.

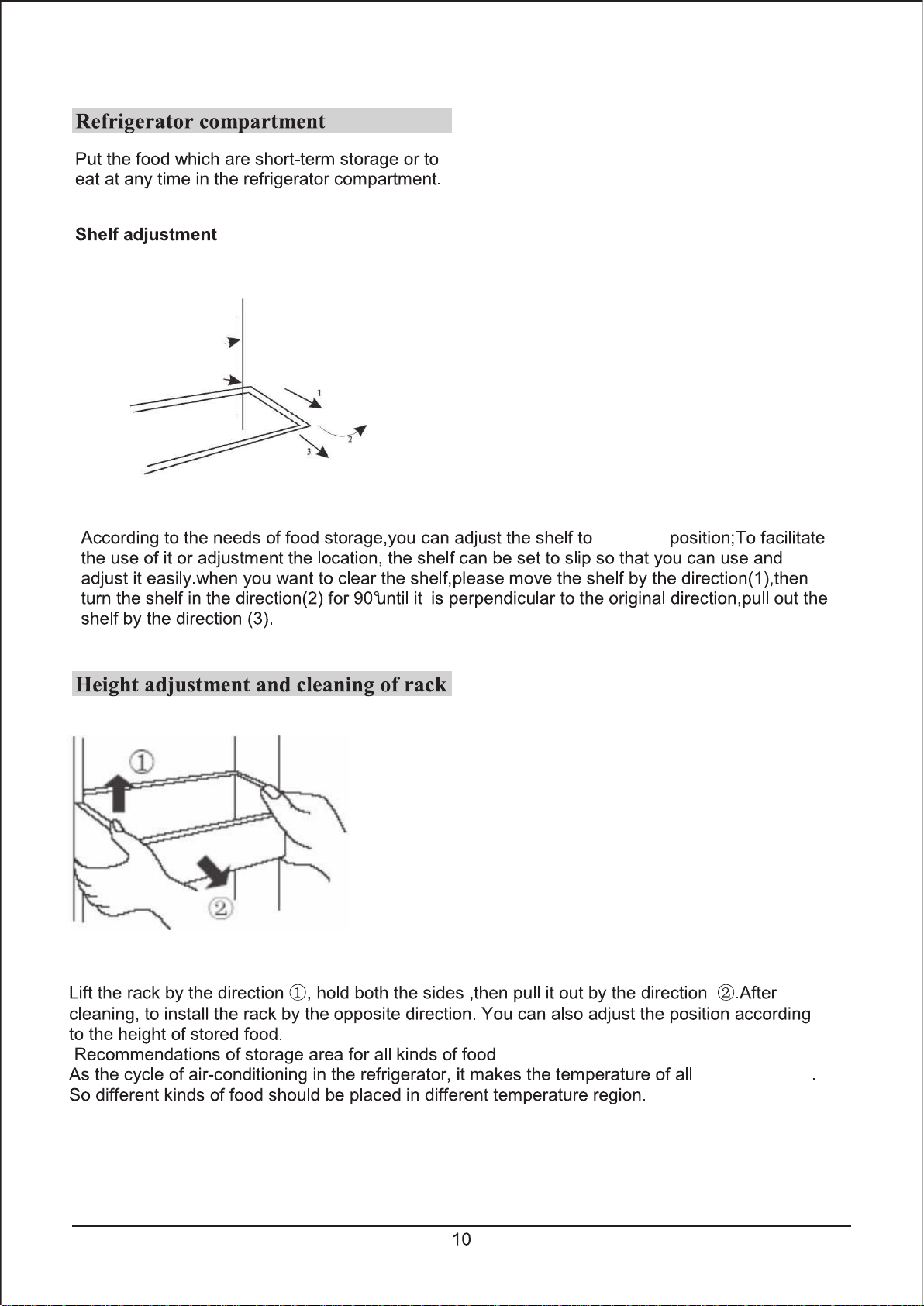

the best
areas different

11
1Store pasta, canned ,milk, etc.
2Store fast food, dairy products, etc.
3Store cooked meat and sausage, etc.
4Store fruits and vegetables, etc
5Store eggs, butter, cheese, etc.
6Store easy-open tin can , canned foods , spices..
7Store all kinds of bottled drinks and food
Wave
Fresh

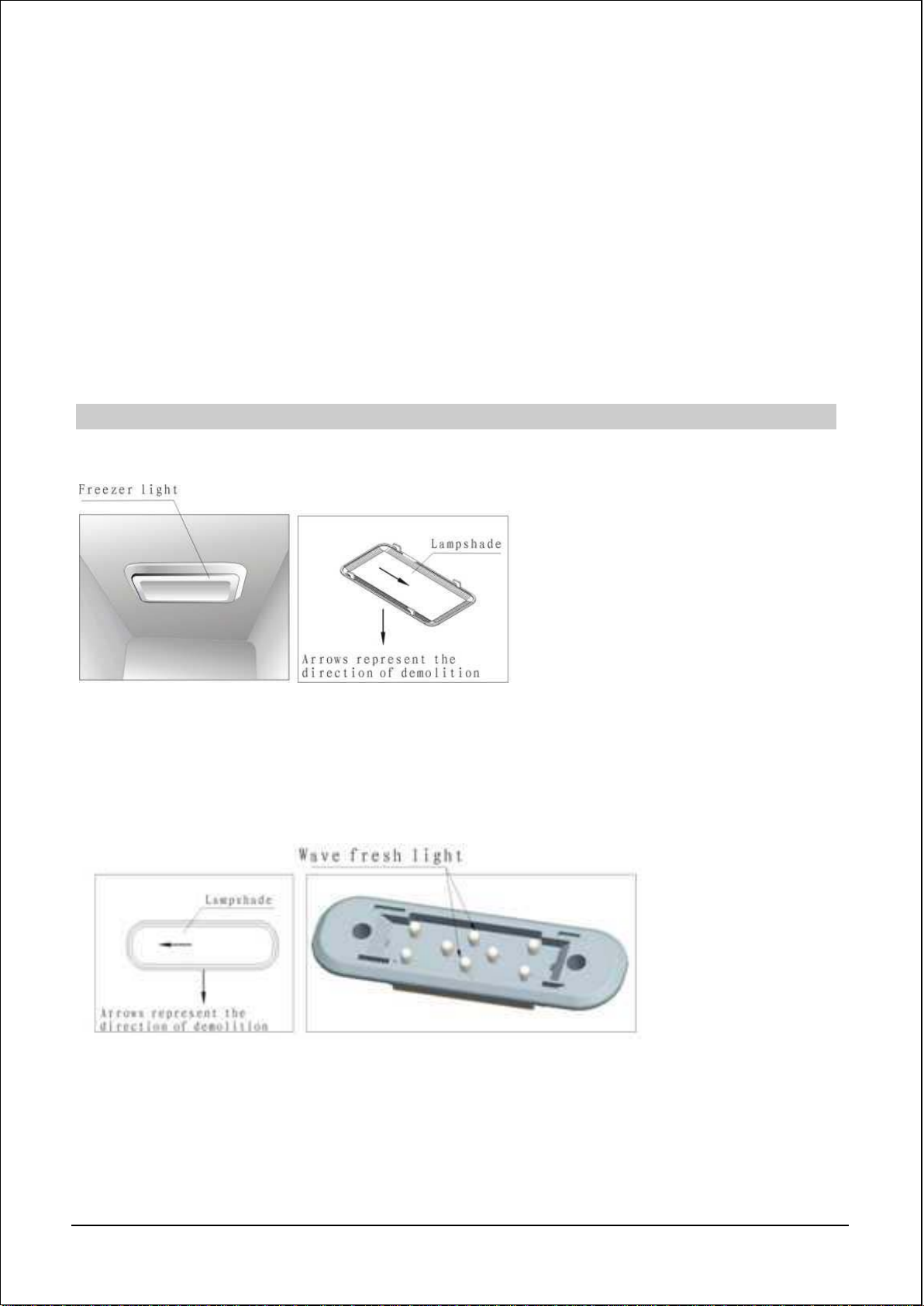

Light function
The light has a similar spectrum to that of sunlight. It will help fruit and vegetables to
photosynthesis, helping food to keep the vitamin C and lengthen the storage time.
Use of the UV - LED lamp helps to degrade pesticide residues on vegetables, washing
them in clean water before eating is still advised.

12
Freezer compartment
1. The storage grilles on the door of the freezer
room are used for the storage of frozen food.
2. The storage grilles in the freezer room are
used for the storage of frozen food .
3. The glass shelves are used for the storage of
frozen foods, such as fish, meat and ice cream.
4. Rotary ice maker is used to produce ice.
5. Ice box is used for the storage of ice cubes.
6. The Freezer drawer is used for the storage of
fish, meat and poultry with the food packaging.

13
Use
Storing Fresh Foods
Proper use of the appliance, adequately packed
food, correct temperature and taking into
account hygienic precautions will substantially
influence the quality of the food stored.
•Foods to be stored in the refrigerator should
be properly packed as to prevent mixing
various moisture degrees and odors (in
polyethylene bags or sheet, aluminium foil,
wax paper, or stored in covered containers
or bottles). Before you store food in the
refrigerator, cool it to ambient temperature.
•Before storing food in the refrigerator,
remove the excessive packaging (like
yoghurt in multi-package).
•Pack systematically and make sure that
foodstuffs do not touch each other (various
odours may mix). Assure adequate air
circulation around packages.
•Never store inflammable, volatile or
explosive substances.
•Beverages with high alcohol percentage
shall be stored in tightly sealed bottles in
vertical position.
•Food should not touch the rear wall of the
refrigerator!
•Foods should be cooled down before storing.
•Crispy and delicate foods should be stored in
the coldest parts of the refrigerator.
•Some organic solutions like volatile oils in
lemon or orange peel, acid in butter etc. can
cause damages and when in contact with
plastic surfaces or gaskets for longer period
of time.
•odor inside the refrigerator is a
sign that something is wrong with foods or
that your refrigerator needs cleaning.
Unpleasant odor can be eliminated or
reduced by washing the interior of the
refrigerator with a mild solution of water and
vinegar. We also recommend using activated
carbon filters to clean the air or to neutralize
odors.
•If you plan a longer journey, make sure to
remove quickly perishable articles of food out
of the appliance before you leave.
•Try not to open the door too often.
•Set the temperature gradually as to avoid
freezing of the foods. Use a thermometer
and measure the temperature in the
individual compartments. Place the
thermostat in a glass vessel filled with water.
Temperature readings are most reliable few
hour after steady state is reached.
Fresh Food Storage Time in the Refrigerator emitegarotSdooffoelcitrA (days)
1 2 3 4 5 6 7 8 9 10 11 12 13 14
Butter + + + + + + + = = = = =
Eggs + + + + + + + + + + = = = =
Meat: fresh uncut + + =
chopped + =
smoked + + + + + + + + + + = = = =
Fish + =
Marinade + + + + + + + + + + = = = =
Root + + + + + + + + = = = = = =
Cheese + + + + = = = = = = = = = =
Sweets + + = = = =
Fruit + + = = = = = = = =
Prepared dishes + + = =
Legend: + reccomended storage time = possible storage time
A unpleasant

14
Freezing Fresh Foods
•Carefully select food you intend to freeze; it
should be of adequate quality and suitable
for freezing.
•Use correct packaging and wrap it right.
−The packaging should be air tight and
shouldn't leak since this could cause
substantial vitamin loss and dehydration
of foods.
−Foils and bags should be soft enough to
tightly wrap around the foods.
•When preparing foods to be frozen, consider
sanitary precautions.
•Mark packages with following data: kind and
amount of foods andthe date of loading.
•It is most important thatthe food is frozen as
quickly as possible. Therefore we
recommend the size of the package not to be
too large and to be cooled before loading
into the freezer.
•The amount of fresh foods that can be
loaded in the freezer within 24 hours is
indicated on the rating plate (freezing
capacity). If the loaded amount is too large,
the quality of freezing is reduced which
affects the quality of frozen foods.
Storing Frozen Foods
Packages of frozen foods are stored in the
basket. If you remove the baskets, you can
store frozen packages directly on the cooling
shelves.
Commercially Frozen Foods
The storage time and the recommended
temperature for storing commerciallyfrozen
foods are indicated on the packaging. For
storing and using consider the manufacturer's
instruction. When shopping, be careful and
choose only adequately packed foods provided
with complete data and stored in freezers
where the temperature is not higher than -
18°C. Do not buy packages of food covered
with frost layer. This indicates that the package
was thawed before at least once. Be careful
that packages don't start to thaw, as the
temperature raise reduces the quality of foods.
Approximate Storage Time for Frozen Foods
Food Storage time (in months) 211101987654321
Vegetable + + +
Fruit + + +
Bread, pastries +
Milk +
Ready-made meals +
Meat: Beef + + +
Veal + + +
Pork + + +
Poultry + + +
Game + + +
Minced meat +
Smoked sausages +
Fish: lean +
fat +
Offal +

15
Defrosting of frozen foods
Partially thawed or defrosted foods should be
used as soon as possible. Cold air preserves
the food but it does not destroy microorganisms
which rapidly activate after defrosting and
make foods perishable. Partial defrosting
reduces the nutritional value of foods,
especially of fruits, vegetables and ready-made
meals.
Ice Making
1. Take out the ice maker.
2. Fill the ice maker with cold water or pure
water. Be careful not to exceed the water line ,
or the ice will not separate easily which causes
difficulty when taking out.
3. return the ice maker to the freezer.
4. when ice is solid , twist the rotary switch
clockwise then the ice will drop into the storage
box.
Caution: Do not fill water with other liquid in the
ice storage box .

16
Maintenance and Cleaning
Defrosting the NO FROST refrigerator
There is no need to defrost the refrigerator,
because ice depositing on the inner back wall
is defrosted automatically.
Periodic appearance of frost layer eventually
disappears automatically.
Defrosting the NO FROST freezer
Defrosting of NO FROST freezer is automatic.
Periodic appearance of frost layer eventually
disappears automatically.
Cleaning the Appliance
Disconnect the power supply before
cleaning the appliance.
Do not use coarse or aggressive cleaning
agents as you can damage the surface. Be
careful to remove any cleanser agent
remaining after cleaning.
•Clean the exterior with water and detergent.
Varnished surfaces are cleaned with soft
cloth and an alcohol based cleaning agent
(for example glass cleaners). You may also
use alcohol (ethanol or isoprophylic alcohol).
The application of abrasive and specially
aggressive cleaners, such as the stainless
steel cleaners, is not appropriate for the
cleaning of plastic and coated parts.
•Remove the detachable accesories in the
interior of the appliance and clean it with
water and liquid detergent. Plastic parts
cannot be washed in washing machine.
•Wash the interior of the appliance with
lukewarm water, in which you added one or
two spoonfuls of vinegar.
After cleaning, connect the appliance to power
supply and reload the packages.
Switch Off the Appliance When Not In
Use
If you do not intend to use the appliance for a
longer period disconnect the power
supply, take out the foods and clean the
appliance. Leave the door slightly open.
Trouble-Shooting Guide
During the service, you can come across some
troubles that in most cases result from
improper handling of the appliance and can
easy be eliminated.
The Appliance Fails to Operate After
Connecting to the Mains Supply
•Check the supply in the outlet socket and
make sure the appliance is switched on.
Continuous Operation of the Refrigerating
System
•the door was frequently opened or it was left
opened for too long;
•the door is not properly closed (the door may
sag, the gasket may be polluted or
damaged);
•perhaps you have overloaded the appliance
with fresh foods;
•The reason may be inadequate ventilation of
the compressor.
The Freezer Door is Hard to Open
If you want to open the door that has just or
recently been closed, you may find it hard to
open. The reason why this happens is, that
when you open the door, warm air gets into the
appliance and when it is getting cool, the
underpressure seals the door. After few
minutes (1-3), the door can easily be opened.
Noise
Cooling in refrigerating-freezing appliances is
enabled by the cooling system with
compressor, which produces noise. How noisy
the appliance is depends on where it is placed,
how it is used and how old the appliance is.
•During the operation of the compressor the
noise of liquid is heard and when the

17
compressor is not operating, the refrigerant
flow is heard. This is a normal condition and
it has no influence whatsoever on the lifetime
of the appliance.
•After starting the appliance, the operation
of the compressor and the refrigerant flow
may be louder, which does not mean that
something is wrong with the appliance and it
has no influence on the lifetime of the
appliance. Gradually the noise is reduced.
Sometimes unusual and stronger noise is
heard, which is rather unusual for the
appliance. This noise is often a consequence
of inadequate placing.
−The appliance shall be placed and
levelled firmly on solid base.
−It should not touch the wall or kitchen
units standing next to it.
−Check the accesories in the interior of
the appliance, they should be placed
correctly in their positions; also check
the bottles, tins and other vessels that
might touch each other and rattle.
Bulb replacement (parameters for both compartments: DC/12V)
Freezer compartment
- Remove the plug and cut off power supply.
- Dismantle the lampshade rightwards, following the direction of the arrow. remove the
lampshade
- Replace the lights by professionals
Refrigerator compartment
- Remove the plug and cut off power supply
- Dismantle the lampshade leftwards, following the direction of the arrow. Remove the
lampshade.
- Unload the screw at the bottom of the lamp holder, and then replace the same
specifications of the light bulbs.
- Follow these instructions in reverse to reassemble.
- Replace the lights by professionals

18
WE RESERVE THE RIGHT TO ALTER THE SPECIFICATIONS WITH NO
INFLUENCE ON THE OPERATION OF THE APPLIANCE .
- Remove the plug and cut off power supply
.
- Dismantle the lampshade downwards, following
the direction of the arrow. Remove the lampshade.
- Unload the screw at the bottom of the lamp
holder, and then replace the same specifications of
the light bulbs.
- Follow these instructions in reverse to reassemble.
- Replace the lights by professionals.
