Caple RBL5 User manual

Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk

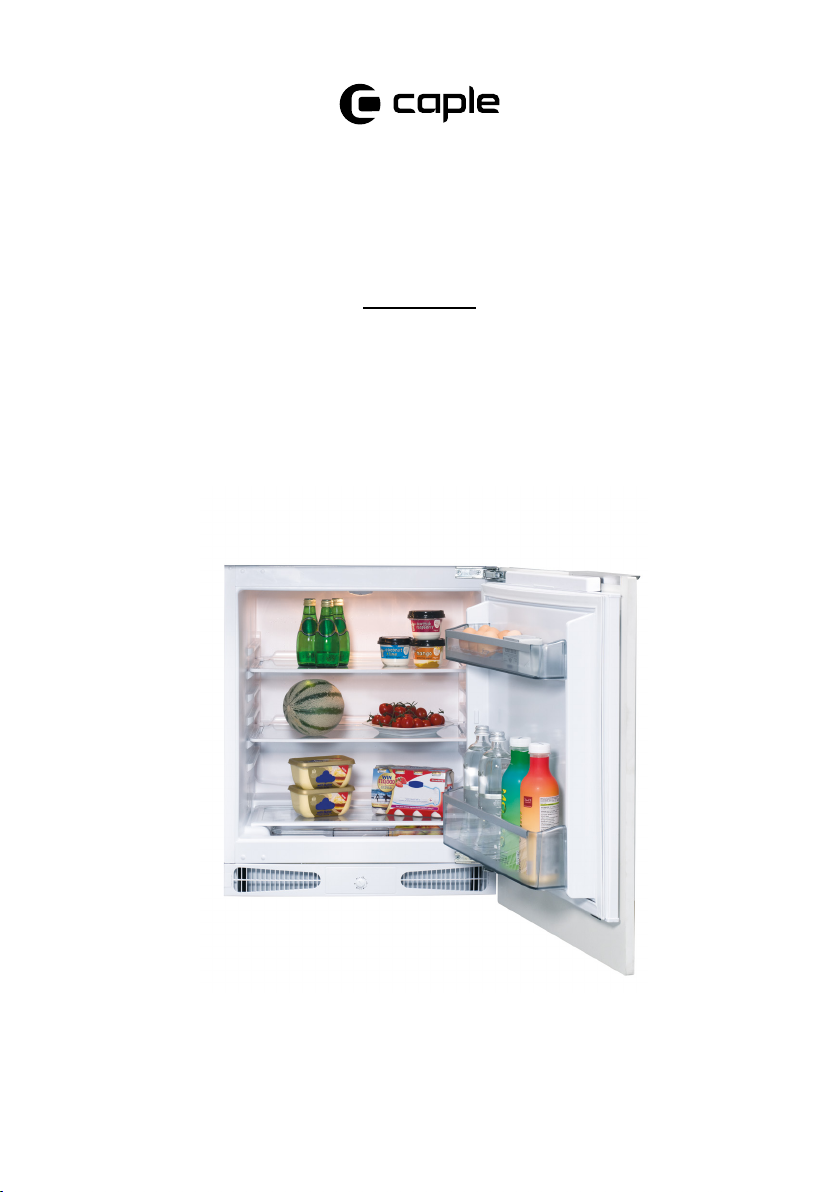

Built-under Larder Fridge
Instruction Manual
RBL5

2Instruction manual RBL5 Please keep this instruction manual for future reference
CONTENTS
Warnings 3
Environmental Protection 11
Electrical Connection 12
Product Dimensions 13
Description Of The Appliance 14
Using The Appliance 15
Operating your Fridge 16
Food Storage 17
Cleaning And Maintenance 19
Transport and Repositioning 21
Troubleshooting 21
Energy Saving Tips 23
Caple Contact Details 24

3Instruction manual RBL5Please keep this instruction manual for future reference
SAFETY INSTRUCTIONS
Read these instructions carefully and completely before
using your appliance. They provide you with important
information regarding the safe installation, use and
maintenance of the appliance as well as useful advice
for getting the best out of your fridge. Keep this booklet
in a safe place for future reference and pass on to any
future owner.
-This appliance is produced in accordance with all
applicable local and international standards and
regulations.
-This appliance is intended to be used in household and
similar applications such as:
› Staff kitchen areas in shops, offices and other
working environments.
› Farm Houses.
› By clients in hotels, motels and other residential type
environments.
› Bed and breakfast type environments.
-This appliance may only be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, if
they are supervised whilst using it. They may only use
it unsupervised if they have been shown how to use it
in a safe manner. They must be able to recognise and
understand the dangers of misuse.

4Instruction manual RBL5 Please keep this instruction manual for future reference
SAFETY WITH CHILDREN:
-This appliance can be used by children aged from 8
years and above.
-Children less than 8 years of age should be kept away
unless continuously supervised or they have been
shown how to use it in a safe manner. Children must
be able to understand and recognise the possible
dangers caused by incorrect operation.
-Children should be supervised in the vicinity of
the appliance.
-Never allow children to play with the appliance.
-Cleaning and user maintenance should not be carried
out by children without supervision.
-Children aged from 3 to 8 years are allowed to load
and unload refrigerating appliances.
-Materials used for packaging (nylon, staplers,
Styrofoam etc) may cause harmful effects to children,
they should be disposed of immediately.
-Children can injure themselves on an open door. Do
not let children sit on the open door, lean against it or
swing on it.
TECHNICAL SAFETY:
-Maintenance and repair work must be made only
by authorised Caple service technicians. Installation
and repair work that is carried out by unauthorised
technicians may endanger you.

5Instruction manual RBL5Please keep this instruction manual for future reference
-While the appliance is under warranty, repairs should
only be undertaken by a Caple authorised service
technician. Otherwise the warranty will be invalidated.
-It is dangerous to alter or modify the specifications of
the appliance in any way. The requirements for this
appliance are stated on the rating label.
-Risk of injury due to electric shock. Any contact with
live connections or tampering with the electrical
or mechanical components of the appliance will
endanger your safety and may lead to the appliance
malfunctioning.
-To maintain the efficiency and safety of your appliance,
we recommend you always use original spare parts
and to call only our authorised Caple Service agents in
case of need.
-Multi-socket adapters and extension leads should
not be used to connect the appliance to the mains
electricity supply.
-The electrical system of this appliance may be used
safely only when it is correctly connected to an
efficient earthing system in compliance with the safety
standards currently in effect.
-Insert the plug into a socket with an efficient ground
connection. If the socket has no ground contact or the
plug does not match, we recommend you consult a
qualified electrician for assistance.
-The appliance must be connected with a properly
installed fused socket. The power supply (AC) and

6Instruction manual RBL5 Please keep this instruction manual for future reference
voltage at the operating point must match with the
details on the rating plate of the appliance.
-Consult a qualified electrician or service person if the
Grounding instructions are not completely understood,
or if you have doubts on whether the appliance is
properly grounded.
-The incorrect grounding may cause breakdown and
electric shock.
-We do not accept responsibility for any damages that
occur due to ungrounded usage.
-If the socket does not match the refrigerator plug, it
must be replaced by the manufacturer, a service agent
or similarly qualified persons in order to avoid
a hazard.
-A specially grounded plug has been connected to the
power cable of your refrigerator. This plug should be
used with a specially grounded socket of 13 amperes.
If there is no such socket in your house, please have
one installed by an authorised electrician.
INSTALLATION WARNINGS:
-Prior to installation, ensure that the local distribution
conditions (electricity voltage and frequency) and the
requirements of the appliance are compatible.
-WARNING: In order to avoid any hazards resulting
from the instability of the appliance, it must be fixed in
accordance with the following instructions.

7Instruction manual RBL5Please keep this instruction manual for future reference
-This appliance is not intended for use at altitudes
exceeding 2000m.
-During installation the appliance must be completely
disconnected from the mains electricity supply.
-Do not operate the appliance before it is fully installed.
-The appliance must be installed by an
authorised technician.
-Your appliance must be at least 50cm away from
stoves, gas ovens and heater cores, and at least 5 cm
away from electrical ovens.
-If your appliance is placed next to a deep freezer,
there must be at least 2cm between them to prevent
humidity forming on the outer surface.
-Do not cover the body or top of fridge with lace. This
will affect the performance of your fridge.
-Caple is not responsible for any damage that may
be caused by defective placement and installation by
unauthorised persons.
-When unpacking the appliance, make sure that it is not
damaged during transportation.
-Check the appliance for any damage.
-In the case of any defect; do not use the appliance and
contact your retailer or Caple Service immediately.
-WARNING: When positioning the appliance, ensure
the supply cord is not trapped or damaged.
-If the supply cord is damaged, it must be replaced by a
Caple service technician or similarly qualified persons
in order to prevent a hazard.

8Instruction manual RBL5 Please keep this instruction manual for future reference
-Never touch the power cord/plug with wet hands.
This may cause a short circuit or electric shock.
-The plug must be accessible after installation.
-WARNING: Do not locate multiple portable socket-
outlets or portable power supplies at the rear of the
appliance.
-Protect your appliance against atmospheric effects. Do
not expose it to effects such as sun, rain, snow etc.
DURING USE:
-Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
-Place drinks with high alcohol content vertically in
the fridge compartment and make sure their tops are
tightly closed.
-If you know you will not be using the appliance for a
while switch it off from the main supply and unplug it.
-WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
-Do not place your appliance on a carpeted surface as
this will prevent adequate ventilation.
-When the appliance is not in use, we recommend you
turn it off, and isolate it from the electrical supply.
-This appliance must be used in the vertical position on
a flat surface.

9Instruction manual RBL5Please keep this instruction manual for future reference
-WARNING: Do not use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer.
-The manufacturer will not be held liable for any
damages that might arise out of incorrect or improper
use of the appliance.
CLEANING AND MAINTENANCE:
-Clean the appliance thoroughly before use.
-Always switch off the appliance from the mains
isolating the electrical supply before any cleaning
or maintenance.
-WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
TRANSPORT:
-Always transport the appliance in its original packaging
and in an upright position.
-WARNING: Do not damage the refrigerant circuit.
-If your appliance uses R600a as a refrigerant
(this information will be provided on the label of the
appliance) you should take care during transportation
and installation to prevent the cooler elements from
being damaged. R600a is an environmentally friendly
and natural gas, but it is explosive. In the event of a

10 Instruction manual RBL5 Please keep this instruction manual for future reference
leak due to damage of the cooler elements, move your
appliance away from open flames or heat sources and
ventilate the room where the appliance is located for a
few minutes.
-Never use the door handles for lifting.
-The appliance is heavy and could cause injury, it must
be transported by two people.
DISPOSAL OF OLD APPLIANCE:
-Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
-If your old fridge or freezer has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
-Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
7
RI5505 Fridge Freezer Instruction Manual.indd 7RI5505 Fridge Freezer Instruction Manual.indd 7 05/02/2020 14:3005/02/2020 14:30
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
- The appliance is heavy and could cause injury, it must
be transported by two people.
DISPOSAL OF OLD APPLIANCE:
- Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
- If your old fridge or freezer has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
- Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.
WARNING: Serious injury or death risk
RISK OF ELECTRIC SHOCK: Dangerous voltage risk
FIRE: Warning; Risk of fire / flammable materials
CAUTION: Injury or property damage risk
IMPORTANT: Operating the system correctly
7
RI5505 Fridge Freezer Instruction Manual.indd 7RI5505 Fridge Freezer Instruction Manual.indd 7 05/02/2020 14:3005/02/2020 14:30
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
- The appliance is heavy and could cause injury, it must
be transported by two people.
DISPOSAL OF OLD APPLIANCE:
- Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
- If your old fridge or freezer has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
- Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
7
RI5505 Fridge Freezer Instruction Manual.indd 7RI5505 Fridge Freezer Instruction Manual.indd 7 05/02/2020 14:3005/02/2020 14:30
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
- The appliance is heavy and could cause injury, it must
be transported by two people.
DISPOSAL OF OLD APPLIANCE:
- Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
- If your old fridge or freezer has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
- Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
7
RI5505 Fridge Freezer Instruction Manual.indd 7RI5505 Fridge Freezer Instruction Manual.indd 7 05/02/2020 14:3005/02/2020 14:30
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
- The appliance is heavy and could cause injury, it must
be transported by two people.
DISPOSAL OF OLD APPLIANCE:
- Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
- If your old fridge or freezer has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
- Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
7
RI5505 Fridge Freezer Instruction Manual.indd 7RI5505 Fridge Freezer Instruction Manual.indd 7 05/02/2020 14:3005/02/2020 14:30
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
- The appliance is heavy and could cause injury, it must
be transported by two people.
DISPOSAL OF OLD APPLIANCE:
- Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
- If your old fridge or freezer has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
- Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
7
RI5505 Fridge Freezer Instruction Manual.indd 7RI5505 Fridge Freezer Instruction Manual.indd 7 05/02/2020 14:3005/02/2020 14:30
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
- The appliance is heavy and could cause injury, it must
be transported by two people.
DISPOSAL OF OLD APPLIANCE:
- Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
- If your old fridge or freezer has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
- Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly

11Instruction manual RBL5Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice. This
appliance is marked according to the European Directive on Waste Electrical and Electronic
Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The symbol on the product indicates that
this product may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our website
www.caple.co.uk
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date
of purchase, model and serial number (placed on the inside of the appliance storage drawer).
Registration can also be completed online by visiting www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together
with proof of purchase.
If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.

12 Instruction manual RBL5 Please keep this instruction manual for future reference
ELECTRICAL CONNECTION
For your safety please read the following information
ELECTRICAL CONNECTION
For your safety please read the following information
WARNING:
This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse
in the plug.
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
IMPORTANT:
Do not use the appliance without the fuse cover in position.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
The mains lead of this appliance has been fitted with a BS 1363A 13A fused plug. To change a
fuse in this type of plug, follow the steps below:
1. Remove the fuse cover and fuse.
2. Fit replacement 13A fuse, ASTA approved to BS 1362 type, into the fuse cover.
3. Replace fuse cover.
The mains lead of this appliance has been fitted with a BS 1363A 13A fused plug.
To change a fuse in this type of plug, follow the steps below:
1. Remove the fuse cover and fuse.
2. Fit replacement 13A fuse, ASTA approved to BS
1362 type, into the fuse cover.
3. Replace fuse cover.
WARNING
This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in
the plug.
ELECTRICAL CONNECTION
For your safety please read the following information
WARNING:
This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse
in the plug.
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
IMPORTANT:
Do not use the appliance without the fuse cover in position.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
The mains lead of this appliance has been fitted with a BS 1363A 13A fused plug. To change a
fuse in this type of plug, follow the steps below:
1. Remove the fuse cover and fuse.
2. Fit replacement 13A fuse, ASTA approved to BS 1362 type, into the fuse cover.
3. Replace fuse cover.
The mains lead of this appliance has been fitted with a BS 1363A 13A fused plug.
To change a fuse in this type of plug, follow the steps below:
1. Remove the fuse cover and fuse.
2. Fit replacement 13A fuse, ASTA approved to BS
1362 type, into the fuse cover.
3. Replace fuse cover.
IMPORTANT
Do not use the appliance without the fuse cover in position.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
The mains lead of this appliance has been fitted with a BS 1363A 13A fused plug. To change a
fuse in this type of plug, follow the steps below:
1. Remove the fuse cover and fuse.
2. Fit replacement 13A fuse, ASTA approved to BS 1362 type, into the fuse cover.
3. Replace fuse cover.
ELECTRICAL CONNECTION
For your safety please read the following information
WARNING:
This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse
in the plug.
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
IMPORTANT:
Do not use the appliance without the fuse cover in position.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
The mains lead of this appliance has been fitted with a BS 1363A 13A fused plug. To change a
fuse in this type of plug, follow the steps below:
1. Remove the fuse cover and fuse.
2. Fit replacement 13A fuse, ASTA approved to BS 1362 type, into the fuse cover.
3. Replace fuse cover.
The mains lead of this appliance has been fitted with a BS 1363A 13A fused plug.
To change a fuse in this type of plug, follow the steps below:
1. Remove the fuse cover and fuse.
2. Fit replacement 13A fuse, ASTA approved to BS
1362 type, into the fuse cover.
3. Replace fuse cover.

13Instruction manual RBL5Please keep this instruction manual for future reference
PRODUCT DIMENSIONS
DIMENSIONS
548mm
min. 820-890mm
600mm
595mm
595mm
min. 550mm
812-882mm
min.25mm
715mm
100-170mm
NOTE:
Please refer to seperate installation sheet for details on how to install your appliance.

14 Instruction manual RBL5 Please keep this instruction manual for future reference
DESCRIPTION OF THE APPLIANCE
1) Fridge Shelves
2) Crisper Cover
3) Crisper
4) Thermostat knob
5) Door Shelves
6) Egg Holder
This presentation is only for information about the parts of the appliance. Parts may vary
according to the appliance model.
1
2
3
4
6
5
1) Fridge Shelves
2) Crisper Cover
3) Crisper
4) Thermostat knob
5) Door Shelves
6) Egg Holder

15Instruction manual RBL5Please keep this instruction manual for future reference
USING THE APPLIANCE
› Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of
sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge
after cleaning.
› Remove all transport tapes and foam protection pieces. Clean the interior with a cloth
dampened in lukewarm soap and water. Rinse with clean water and dry.
› The adjustable front legs should be stabilised at an appropriate height to allow your fridge
to operate in a stable and proper way. You can adjust the legs by turning them clockwise (or
in the opposite direction). This should be done before placing food in the fridge.
› Your fridge may have an odour when it is operated for the first time. This is normal and the
odour will fade when your fridge starts to cool.
WARNING
Connect to the electrical socket but do not switch the power to the fridge on for at least 12
hours. The coolant within the product needs time to settle after it has been transported and put
into position, failure to do this will affect the cooling performance of your appliance.

16 Instruction manual RBL5 Please keep this instruction manual for future reference
Your fridge is designed to operate in the ambient temperature intervals stated in the standards,
according to the climate class stated in the information label. We do not recommend operating
your fridge out of stated temperatures value limits in terms of cooling effectiveness.
This appliance is designed for
use at an ambient temperature
within the 10°C - 32°C range.
OPERATING YOUR FRIDGE
THERMOSTAT SETTING
The thermostat automatically regulates
the inside temperature of the
refrigerator. By rotating the knob from
position 1 to 5, colder temperatures
can be obtained.
IMPORTANT NOTE
Do not try to rotate knob beyond 1 position it will stop your appliance.
› For short-term storage of food in the fridge, you can set the knob between minimum and
medium position (1-3).
› For long-term storage of food in the fridge, you can set knob medium position (3-4).
› Note that; the ambient temperature, temperature of the freshly stored food and how often
the door is opened, affects the temperature in the fridge. If required, change the temperature
setting.
› When you first switch on the appliance, you should ideally try to run it without any food in for
24 hours and not open the door. If you need to use it straight away, try not to put much food
inside.
› If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting in
order not to damage the compressor.
CLIMATE CLASS AMBIENT TEMPERATURE
TBetween 16 and 43 (°C)
ST Between 16 and 38 (°C)
NBetween 16 and 32 (°C)
SN Between 10 and 32 (°C)

17Instruction manual RBL5Please keep this instruction manual for future reference
FOOD STORAGE
REFRIGERATOR COMPARTMENT
› To reduce humidity and avoid the consequent formation of frost, always store liquids in
sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the
evaporating liquid and, in time, your appliance will require more frequent defrosting.
› Never place warm food in the refrigerator. Warm food should be allowed to cool at room
temperature and should be arranged to ensure adequate air circulation in the refrigerator
compartment.
› Make sure no items are in direct contact with the rear wall of the appliance as frost will
develop and packaging will stick to it. Do not open the refrigerator door frequently.
› We recommend that meat and clean fish are loosely wrapped and stored on the glass
shelf just above the vegetable bin where the air is cooler, as this provides the best storage
conditions.
› Store loose fruit and vegetable items in the crisper containers.
› Store loose fruit and vegetables in the crisper.
› Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green
leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana, peach,
apricot, fig etc.).
› Do not put wet vegetables into the refrigerator.
› Storage time for all food products depends on the initial quality of the food and an
uninterrupted refrigeration cycle before refrigerator storage.
› To avoid cross-contamination do not store meat products with fruit and vegetables. Water
leaking from meat may contaminate other products in the refrigerator. You should package
meat products and clean any leakages on the shelves.
› Do not put food in front of the air flow passage.
› Consume packaged foods before the recommended expiry date.

18 Instruction manual RBL5 Please keep this instruction manual for future reference
NOTE:
Potatoes, onions and garlic should not be stored in the refrigerator. The table below is a quick
guide to show you the most efficient way to store the major food groups in your refrigerator
compartment.
To avoid contamination of food, please respect the following instructions:
› Opening the door for long periods can cause significant increase of the temperature in the
compartments of the appliance.
› Regularly clean surfaces that can come in contact with food accessible drainage systems.
› Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact
with or drips onto other food.
FOOD MAXIMUM STORAGE
TIME*
HOW AND WHERE
TO STORE
Vegetables and fruits 1 week Vegetable bin
Meat and fish 2-3 days
Wrap in plastic foil, bags, or in a
meat container and store on the
glass shelf
Fresh cheese 3-4 days On the designated door shelf
Butter and margarine 1 week On the designated door shelf
Bottled products
e.g. milk and yoghurt
Until the expiry date recommended
by the producer On the designated door shelf
Eggs 1 month On the designated egg tray
Cooked food 2 days All shelves
* These are guidelines only, always refer to the expiry date, or best before date recommended
by the producer.

19Instruction manual RBL5Please keep this instruction manual for future reference
CLEANING AND MAINTENANCE
Disconnect the unit from the power supply before cleaning.
Do not wash your appliance by pouring water on it.
Do not use abrasive products, detergents or soaps for cleaning the appliance. After
washing, rinse with clean water and dry carefully. When you have finished cleaning,
reconnect the plug to the mains supply with dry hands.
› Make sure that no water enters the lamp housing and other electrical components.
› The appliance should be cleaned regularly using a solution of bicarbonate of soda and
lukewarm water.
› Clean the accessories separately by hand with soap and water. Do not wash accessories in a
dish washer.
› Clean the condenser with a brush at least twice a year. This will help you to save on energy
costs and increase productivity.
CLEANING AND MAINTENANCE
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
Disconnect the unit from the power supply before cleaning.
Do not wash your appliance by pouring water on it.
Do not use abrasive products, detergents or soaps for cleaning the appliance. After
washing, rinse with clean water and dry carefully. When you have finished cleaning,
reconnect the plug to the mains supply with dry hands.
›Make sure that no water enters the lamp housing and other electrical components.
› The appliance should be cleaned regularly using a solution of bicarbonate of soda and
lukewarm water.
› Clean the accessories separately by hand with soap and water. Do not wash accessories in
a dish washer.
› Clean the condenser with a brush at least twice a year. This will help you to save on energy
costs and increase productivity.
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
NOTE:
The power supply must be disconnected during cleaning.
NOTE:
The power supply must be disconnected during cleaning.
DEFROSTING THE REFRIGERATOR COMPARTMENT
› Defrosting occurs automatically in the refrigerator compartment during operation. The water
is collected by the evaporation tray and evaporates automatically.
› The evaporation tray and the water drain hole should be cleaned periodically with the
defrost drain plug to prevent the water from collecting at the bottom of the refrigerator
instead of flowing out.
› You can also clean the drain hole by pouring half a glass of water down it.
Instruction manual RBR6
Please keep this instruction manual for future reference
13
DEFROSTING
Refrigerator compartment;
- Defrosting occurs automatically in refrigerator during operation; the defrost water
is collected by the evaporating compartment and evaporates automatically.
- The defrost water drain hole should be cleaned periodically with the defrost
drain plug removed to prevent the water from collecting in the bottom of the
refrigerator instead of flowing out.
- You can also pour ½ glass of water into the drain hole to clean inside.
Freezer compartment;
The frost, accumulated in the freezer compartment, should be removed periodically.
(Use the plastic scraper provided) The freezer compartment should be cleaned
in the way as the refrigerator compartment, with the defrost operations of the
compartment at least twice a year.
For this;
- The day before you defrost, set the thermostat dial to “5” position to freeze the
foods completely.
- During defrosting, frozen foods should be wrapped in several layers of paper and
kept in a cool place. The inevitable rise in temperature will shorten their storage
life. Remember to use these foods within a relatively short period of time.
- Set thermostat knob to position « . » or unplug the unit; leave the door open until
completely defrosted.
- To accelerate the defrosting process one or more basins of warm water can be
placed in the freezer compartment.
- Dry the inside of the unit carefully and set the thermostat knob to MAX position.
RBR6 - Instruction Manual.indd 13 15/08/2018 10:15
CLEANING AND MAINTENANCE
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
Disconnect the unit from the power supply before cleaning.
Do not wash your appliance by pouring water on it.
Do not use abrasive products, detergents or soaps for cleaning the appliance. After
washing, rinse with clean water and dry carefully. When you have finished cleaning,
reconnect the plug to the mains supply with dry hands.
›Make sure that no water enters the lamp housing and other electrical components.
› The appliance should be cleaned regularly using a solution of bicarbonate of soda and
lukewarm water.
› Clean the accessories separately by hand with soap and water. Do not wash accessories in
a dish washer.
› Clean the condenser with a brush at least twice a year. This will help you to save on energy
costs and increase productivity.
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
NOTE:
The power supply must be disconnected during cleaning.

20 Instruction manual RBL5 Please keep this instruction manual for future reference
REPLACING THE LED LIGHT
The LED light must be replaced by an authorised engineer or similar only. For more information
please contact Caple service - 0117 938 7420 or [email protected].uk
HOLIDAY
SHORT HOLIDAYS
Leave the fridge operating during holidays of less than three weeks.
LONG HOLIDAY
If the appliance will not be used for several months, remove all items and turn off the
appliance. Set the thermostat to “•” position, defrost and clean your fridge. To prevent odour
and mould growth, leave the door open slightly (blocking it open if necessary).
TRANSPORT AND REPOSITIONING
› The original packaging and foam may be kept for re-transportation (optional).
› Fasten your appliance with thick packaging, bands or strong cords and follow the
instructions for transportation on the packaging.
› Remove all movable parts (shelves, accessories, vegetable bins, and so on) or fix them into
the appliance against shocks using bands/tape when re-positioning or transporting.
› Always carry your appliance in the upright position.
