Integrated Washer Dryer
Instruction Manual
WDI3301

2Instruction manual WDi3301 Please keep this instruction manual for future reference
CONTENTS
Warnings 3
Environmental Protection 13
Warranty 13

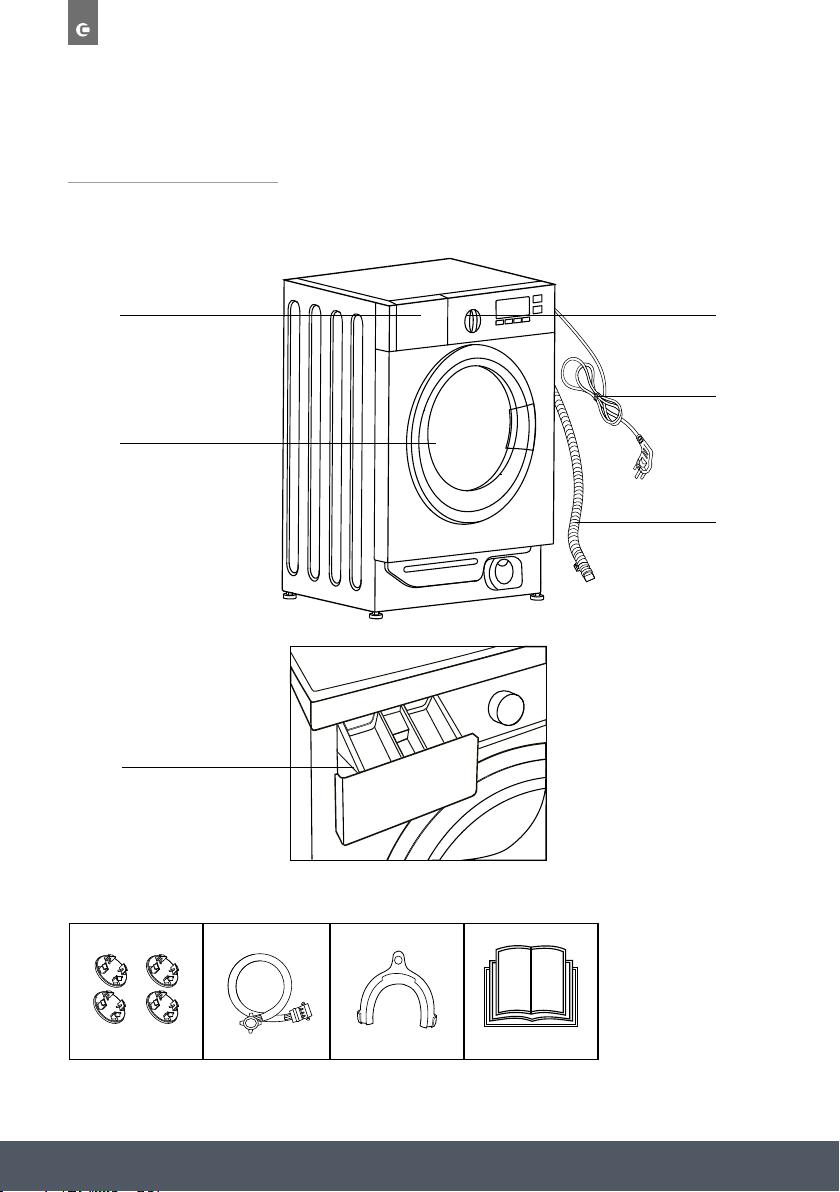

Overview of Washer Dryer 14
Installation 15

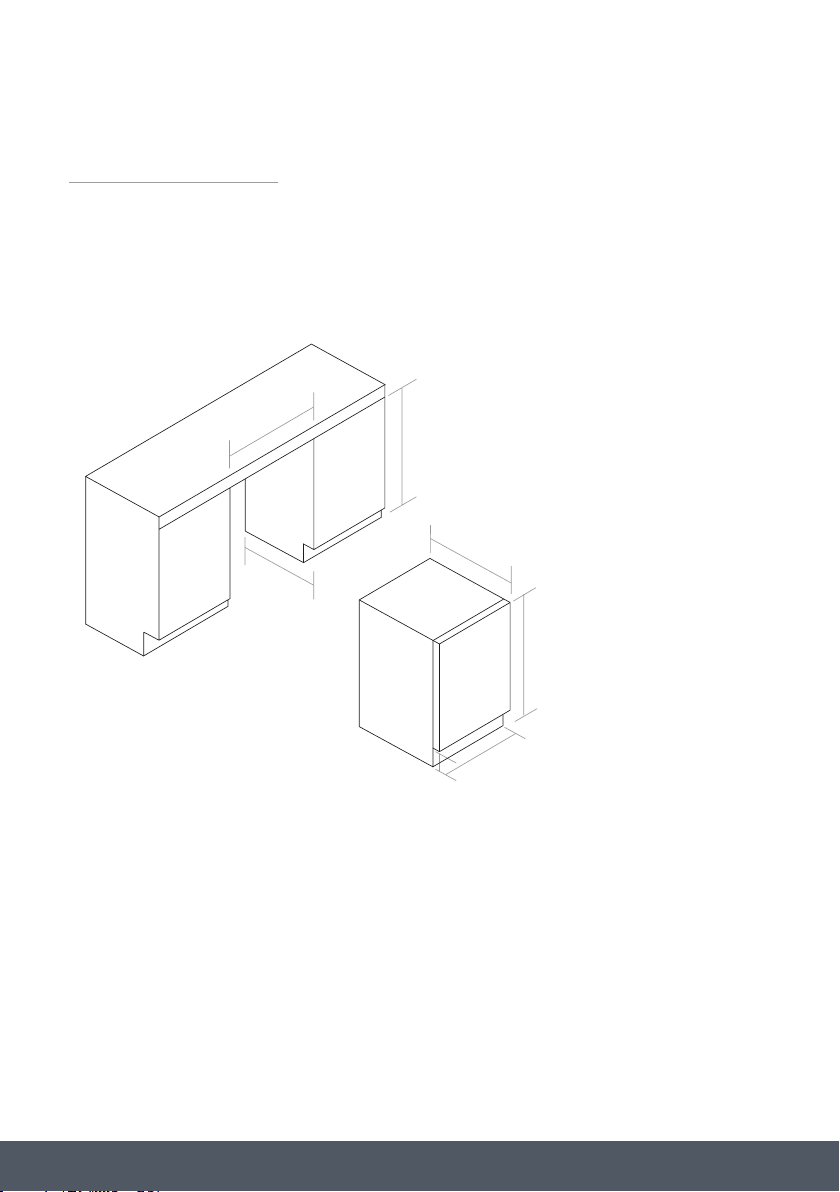

Built In Installation 19
Operation 24
Detergent Drawer 28
Quick User Guide 29
Control Panel 30
Programmes 36
Table Of Programmes 38
Cleaning And Maintenance 39
Troubleshooting 43
Product Specifications 45
Caple Contact Details 48

3Instruction manual WDi3301Please keep this instruction manual for future reference
Keep these instructions for use with the appliance. If the
appliance should be sold or passed on to others, make
sure that the instructions are passed on with it. We
thank you for taking note of these suggestions before
installing and using the appliance. They have been
written for your personal safety and the safety of others.
CAUTION: HOT SURFACE CAUTION: RISK OF FIRE
CAUTION: HOT SURFACE
CAUTION: RISK OF FIRE
WARNINGS
-This appliance is intended to be used in household and
similar applications such as:
• Staff kitchen areas in shops, offices and other
working environments.
• Farm Houses.
• By clients in hotels, motels and other residential type
environments.
• Bed and breakfast type environments.
-Your machine is designed for use in a domestic
environment. The warranty will be invalid if you use it
for commercial purposes.
-This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.

4Instruction manual WDi3301 Please keep this instruction manual for future reference
-This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
-Children shall not play with the appliance.
-Cleaning and user maintenance shall not be made
by children without supervision. Children of less
than 3 years should be kept away unless continuously
supervised.
-Keep the packing materials from your machine away
from children to avoid hazards.
-Keep pets away from your machine.
-It could be possible for a child or pet to gain access to
the washer dryer through the porthole door. Therefore,
please check the drum before using the appliance.
-Glass door may be very hot during the operation.
Keep kids and pets far away from the machine during
the operation.
-DO NOT use the washer dryer if you suspect that it is
damaged in any way. Under no circumstances should
you attempt to repair the appliance yourself. Repairs
carried out by inexperienced persons may cause
serious injury.
-Consult your local appointed service engineer and
insist on genuine spare parts.

5Instruction manual WDi3301Please keep this instruction manual for future reference
-The washer dryer should be serviced by an appointed
service organisation and only genuine parts used.
-It is recommended that the washer dryer be serviced
annually by a person competent to service
tumble dryers.
-It is dangerous to alter or modify the product in any
way other than fitting authorised accessories.
-The new hose-sets supplied with the appliance are to
be used and that old hose-sets should not be reused.
-DO NOT allow fluff to accumulate around the washer
dryer. Risk of fire.
-DO NOT use the product if the fluff filter is not in
position or is damaged; fluff could be ignited.
-Lint and fluff must not be allowed to collect on the
floor around the outside of the machine.
-It is important to clean the lint filter after each drying
cycle or the restrictions to airflow will extend drying
times and could cause the safety cut-out to trip.
-It is important to clean fluff from the window of the
dryer and around the door seal after each drying cycle.
Failure to do so could result in water leaking.

6Instruction manual WDi3301 Please keep this instruction manual for future reference
INSTALLATION WARNINGS
-The washer dryer must be installed by a Registered
Installer.
-Do not install the product in a low temperature room
or in a room where there is a risk of frost occurring.
At temperatures around freezing point the product
may not be able to operate properly: there is a risk
of damage if the water is allowed to freeze in the
hydraulic circuit (valves, hoses, pumps).
-The appliance shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or caustic gases.
-The appliance shall not be installed at a humid place.
-Never install the washer dryer near curtains.
-The appliance must not be installed behind a lockable
door, a sliding door or a door with a hinge on the
opposite side to that of the tumble dryer.
-Please note it is not recommended that the washer
dryer is placed directly next to ovens or cookers as the
performance of the dryer may be affected.
-Do not stack the washer dryer on top of other
appliances.

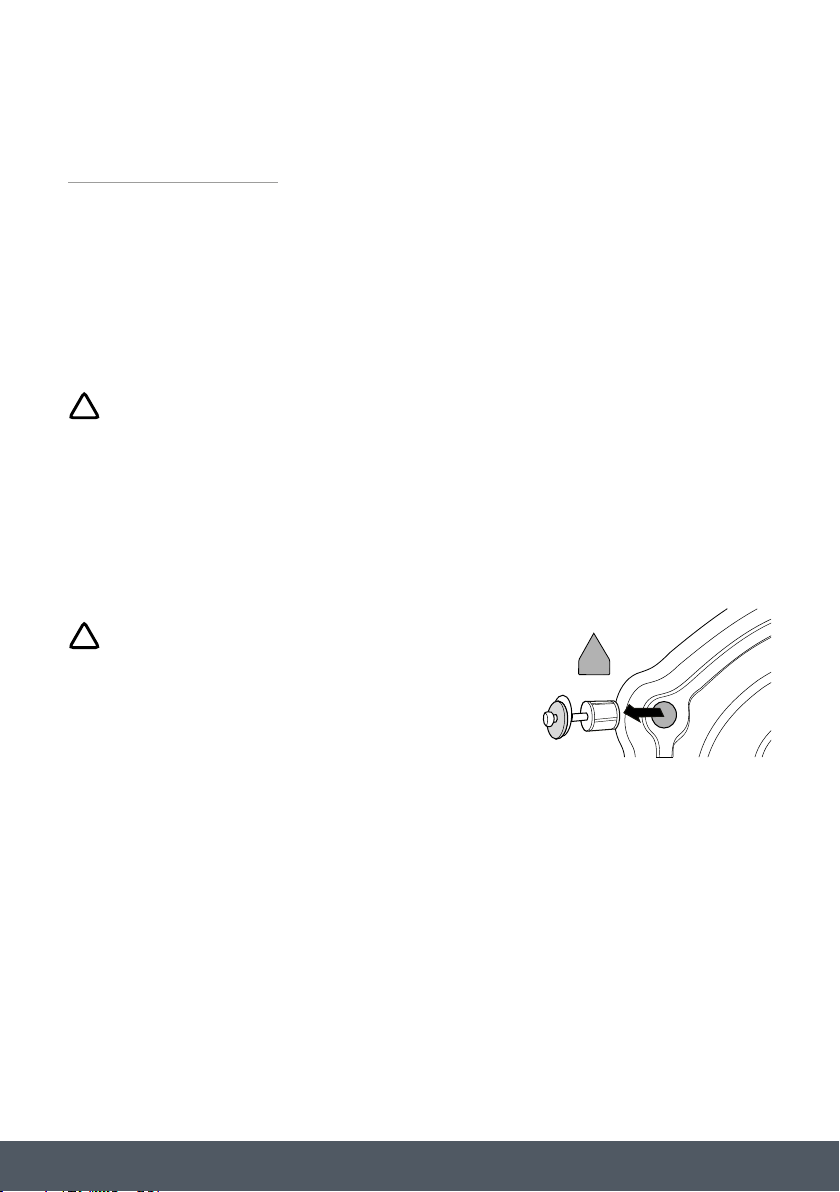

-Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.

7Instruction manual WDi3301Please keep this instruction manual for future reference
VENTILATION WARNINGS
-Install the rear of the appliance close to a wall or
vertical surface.
-There should be a gap of at least 12mm between the
machine and any obstructions. The inlet and outlet air
should be kept clear of obstruction.
-DO NOT block the air inlets at the front and back of
your washer dryer.
-DO NOT block the air inlets at the base and side of
your washer dryer.
-Make sure carpets or rugs do not obstruct the base or
any ventilation openings.
-Prevent items from falling or collecting behind the
washer dryer as they may obstruct the air inlet and
outlet.
-Adequate ventilation must be provided to avoid back
flow of gases into the room from appliances burning
other fuels, including open fires.
-Exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliances burning gas
or other fuel.
-The rear of the washer dryer gets quite hot during use.
-Position the appliance so that the back is not
accessible while in operation, but ensure that the sides
have a space available to allow airflow.

8Instruction manual WDi3301 Please keep this instruction manual for future reference
LAUNDRY WARNINGS
-Before using for the first, the product shall be
calibrated.
-Before washing the clothes at first time, the product
shall be operated in one round of the whole
procedures without the clothes inside.
-Always refer to the laundry care labels for directions on
suitability for washing and drying.
-Fabric softeners, or similar products should be used as
specified by the fabric softener instructions.
-Make sure that all pockets are emptied. Sharp and rigid
items such as coin, brooch, nail, screw or stone etc.
may cause serious damages to this machine.
-Remove all objects from pockets such as lighters and
matches.
-DO NOT exceed the recommended maximum load.
-DO NOT dry articles in the appliance if anything other
than a water solution has been used in the cleaning
process.
-DO NOT dry unwashed items in the washer dryer.
-DO NOT attempt to dry dripping wet articles.
-Clothes should be spin dried or thoroughly wrung
before they are dried.
-Under no circumstances should anything other
than the recommended articles be placed in the
washer dryer.

9Instruction manual WDi3301Please keep this instruction manual for future reference
-It is forbidden to wash carpets.
-Glass fibre curtains should NEVER be put in this
machine.
-Skin irritation may occur if other garments are
contaminated with glass fibres.
-Foam rubber materials can, under certain
circumstances, when heated become ignited by
spontaneous combustion.
-Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads MUST NOT be
dried in the washer dryer.
-Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of
detergent before being dried. This will reduce, but not
eliminate, the hazard.
-The washer dryer is not to be used if industrial
chemicals have been used for cleaning.
-The drum inside may be very hot. Always allow the
washer dryer to complete the cool down period before
removing the laundry.
-The final part of the drying cycle occurs without heat
(cool down cycle) to ensure that the items are left at a
temperature that ensures that the items will not
be damaged.

10 Instruction manual WDi3301 Please keep this instruction manual for future reference
-WARNING: Never stop the machine before the end of
the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.
-Do not lean on the door when loading the machine or
use the door to lift or move the machine.
-Do not climb up and sit on top cover of the machine.
-Please do not close the door with excessive forces. If it
is found difficult to close the door, please check if the
clothes are put in or distributed well.
-Please check whether the water inside the drum has
been drained before opening its door. Please do not
open the door if there is any water visible.
-Be careful of burning when the product drains hot
washing water.
-After the programme is completed, please wait for two
minutes to open the door (Some models).
-Never refill the water by hand during washing.
-The machine whose lid can be opened during water
extraction, that it takes 15s or more for complete stop
of water extracting chamber tub.

11Instruction manual WDi3301Please keep this instruction manual for future reference
ELECTRICAL WARNINGS
-Do not plug the machine in and switch it on at the
mains until the installation is completed.
-The technical details (supply voltage and power input)
are indicated on the product rating plate.
-Any electrical work required to install the appliance
should be carried out by a qualified person.
-The appliance must not be supplied through an
external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by
a utility.
-DO NOT use a two-way adaptor, or extension lead. The
dryer must be connected to its own socket.
-This appliance must be Earthed.
-The socket outlet and the plug on the appliance must
be of the same type.
-Do not touch the appliance when hands or feet are
damp or wet.
-We recommend that the appliance is unplugged each
time after use. It should always be disconnected from
the electricity supply for long periods (i.e. weekends, if
it is to be left unattended for holidays etc.).
-The special mains cable and plug assembly must only
be replaced with a genuine part available from the
manufacturer or service agent in order to avoid
a hazard.

12 Instruction manual WDi3301 Please keep this instruction manual for future reference
-Make sure that the electrical system is earthed,
complies with all applicable law and that the
(electricity) socket is compatible with the plug of
the appliance. Otherwise, seek qualified
professional assistance.
-The plug should be accessible for disconnection after
the appliance has been installed.
-Always remove the plug before cleaning the appliance.
Explanation of the symbols:
Explanation of the symbols:
This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it’s avoided.！WARNINGThis combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.CAUTION
WARNING: This combination of symbol and signal
word indicates a potentially dangerous situation which
may result in death or serious injuries unless it’s avoided.
Explanation of the symbols:
This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it’s avoided.！WARNINGThis combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.CAUTION
CAUTION: This combination of symbol and signal
word indicates a potentially dangerous situation which
may result in slight or minor injuries or damage to
property and the environment.

13Instruction manual WDi3301Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance
is marked according to the European Directive on Waste Electrical and Electronic Equipment
(WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The symbol on the product indicates that
this product may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. Disposal must
be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all applicable
legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our website
www.caple.co.uk
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date
of purchase, model and serial number (placed on the inside of the appliance storage drawer).
Registration can also be completed online by visiting www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together
with proof of purchase.
If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.

14 Instruction manual WDi3301 Please keep this instruction manual for future reference
P.06 P.07
Safety PrecautionsOverview of Washing Machine Inlet pipe
Transport
plughole
ComponentAccessories
Door
Detergent Drawer Control Panel
Power Plug
Outlet Hose
Detergent Box
P.06 P.07
Safety PrecautionsOverview of Washing Machine Inlet pipe
Transport
plughole
ComponentAccessoriesDoor
Detergent Drawer Control Panel
Power Plug
Outlet Hose
Detergent Box
P.06 P.07
Safety PrecautionsOverview of Washing Machine
Inlet pipe
Transport
plughole
ComponentAccessoriesDoor
Detergent Drawer Control Panel
Power Plug
Outlet Hose
Detergent Box
AccessoriesTransport plughole Supply hose hot water (optional)Supply hosecold water Drain hose (optionalsupport )
•The product line chart is for reference only, please refer to real product as standard.
Note!8Owner’s manualProduct DescriptionINSTALLATIONDoorDetergent DrawerControl PanelPower PlugDrain hose
AccessoriesTransport plughole Supply hose hot water (optional)Supply hosecold water Drain hose (optionalsupport )
•The product line chart is for reference only, please refer to real product as standard.
Note!8Owner’s manualProduct DescriptionINSTALLATIONDoorDetergent DrawerControl PanelPower PlugDrain hose
OVERVIEW OF WASHER DRYER
ACCESSORIES
Transport hole plug Supply hose
cold water
Drain hose support Owner’s manual

15Instruction manual WDi3301Please keep this instruction manual for future reference
INSTALLATION
UNPACKING THE WASHER DRYER
Unpack your washer dryer and check if there is any damage during the transportation. Also make
sure that all the items (as shown on page 14) in the attached bag are received. If there is any
damage to the washer dryer during the transportation, or any item is missing, please contact
your retailer immediately.
DISPOSE OF THE PACKING MATERIALS
！
WARNING:
Keep packaging materials away from children.
The packing materials of this machine may be dangerous to children. Please dispose of them
properly. Please dispose of the related packing materials according to the relevant local
regulations. Please do no throw the packing materials away together with the other daily
living disposals.
REMOVE TRANSPORT BOLTS
！
WARNING:
› You must remove the transport bolts from the backside
before using the product.
› You’ll need the transport bolts again if you move the
product, so make sure you keep them in a safe place.
Please take the following steps to remove the bolts:
1. Loosen all bolts with spanner and then remove along with the flat washers, rubber bungs and
plastic spacer tubes.
2. Cover the open transportation bolt holes with the plastic cap included in the instruction bag.
3. Keep the transport bolts, flat washers, rubber bungs and plastic spacer tubes stored away
safely for future use.
NOTE:
During the removal of the bolts, spacer tubes fall inside the product. These can be removed by
tilting the product forward and recovering them from the floor or inside the base of the machine.

16 Instruction manual WDi3301 Please keep this instruction manual for future reference
1
2
3
SELECT THE LOCATION
！
WARNING:
› Stability is important to prevent the product from moving.
› Make sure that the product does not stand on the power cord.
The washer dryer must be placed in a location according to the below:
› Rigid, dry, and level surface (if not level, please make it level with reference to the following
figure “Adjust Legs”)
› Avoid direct sunlight
› Sufficient ventilation
› Room temperature is above 0°C
› Keep far away from heat resources.
› Do not install the washer dryer on carpeted floor.

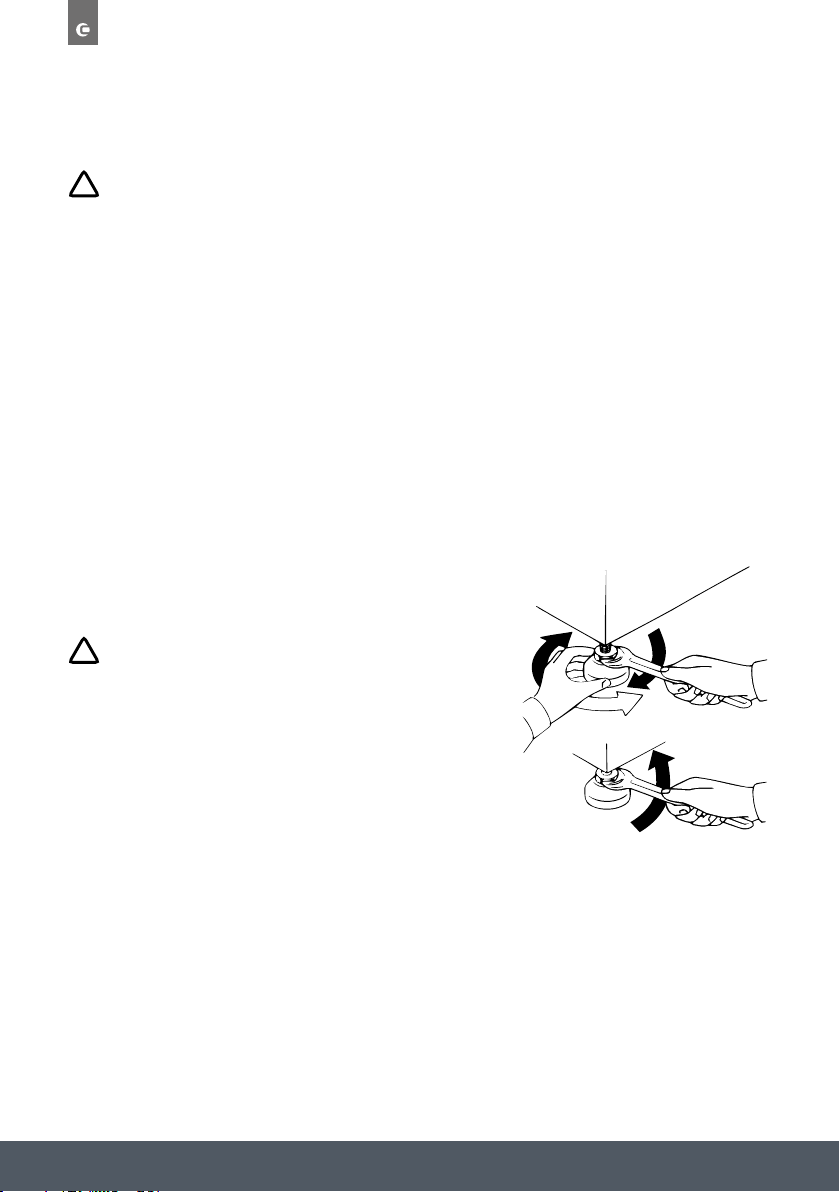

ADJUST LEGS
！
WARNING:
› The lock nuts on all four feet must be screwed
tightly against the housing.
Level the appliance using the feet:
1. Turn the nut clockwise to release the screw.
2. Rotate the foot to raise or lower it until it touches
to the floor.
3. Lock the foot, screwing in the nut, until it tightens against to the bottom of the
washer dryer.
Check the washer dryer is steady using a spirit level or by pressing the four corners on top of the
appliance in sequence.
NOTE:
The 4 legs allow the height of the washer dryer to be adjusted from 825mm to a maximum of
835mm.

17Instruction manual WDi3301Please keep this instruction manual for future reference
CONNECT INLET PIPE
！
WARNING:
› To prevent leakage or water damage, follow the
instructions in this chapter.
› Do not kink, crush, modify or sever water inlet hose. The
washer dryer should be installed in its final position such
that the inlet pipe is not trapped.
1. Connect the inlet pipe to the water supply tap. Only use
the pipe supplied with the appliance (do not reuse old
pipe-sets).
2. Connect the other end of the inlet pipe to the inlet valve
at the back of the washer dryer and fasten the pipe tightly
clockwise.
NOTE:
If there is any leakage with the hose, repeat these steps to connect the inlet hose.
CONNECT OUTLET HOSE
！
WARNING:
› Do not kink or trap the drain hose.
› Position drain hose properly, otherwise damage might result of water leakage.
› When installing drain hose, fix it properly.
› If drain hose is too long, do not force it into the washer dryer as it will cause
abnormal noises.
The drain hose should be inserted into suitable drain pipe of between 60cm and 100cm height
above the floor using the curved drain hose support.
The drain hose can be connected in three different ways:
1. Connect it to a drain pipe
2. Attach it to a sink
3. Connect it to the sink drain pipe
1. . Only eCONNECT OUTLET HOSE60100The drain hose can be connected in three different ways:1.Connect it to a drain pipe2.Attach it to a sink3.Connect it to the sink drain pipeer dryerIf there is any leakage with the hose, repeat the steps to connect inlet hose. 2.other end of the inlet pipe to theinlet valve at the back of the washing machine and fasten the pipe tightly clockwise.
910INSTALLATION1.Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts.2.Loosen the lock nut turn the feet until it closely contacts with the floor.3.Adjust the legs and lock them with a spanner, make sure the machine is steady.Levelling the washer dryer
•The lock nuts on all four feet must be screwed tightly against the housing.
Connect Water Supply HoseConnect the inlet pipe as indicated, There are two ways to connect the inlet pipe.1.Connection between ordinary tap and inlet hose.•To prevent leakage or water damage, follow the instructions in this chapter Do not kink, crush, modify or sever .!•water inlet hose•For the model equips hot valve,connect it to hot water tap with hot water supplyhose. Energy consumption will decrease automatically for some program.2341RaiseLowerLock nutfootWarning!！Warning!！！Loosen clamp nut and four boltsTighten clamp nutPress slide bushing, insert inlet hose into connecting base
slide bushing
2341Connection finished
clamp nut
Tap with threads and inlet hoseSpecial tap for washer dryer2.Connection between screw tap and inlet hose.
slide bushing
1. . Only eCONNECT OUTLET HOSE60100The drain hose can be connected in three different ways:1.Connect it to a drain pipe2.Attach it to a sink3.Connect it to the sink drain pipeer dryerIf there is any leakage with the hose, repeat the steps to connect inlet hose. 2.other end of the inlet pipe to theinlet valve at the back of the washing machine and fasten the pipe tightly clockwise.

18 Instruction manual WDi3301 Please keep this instruction manual for future reference

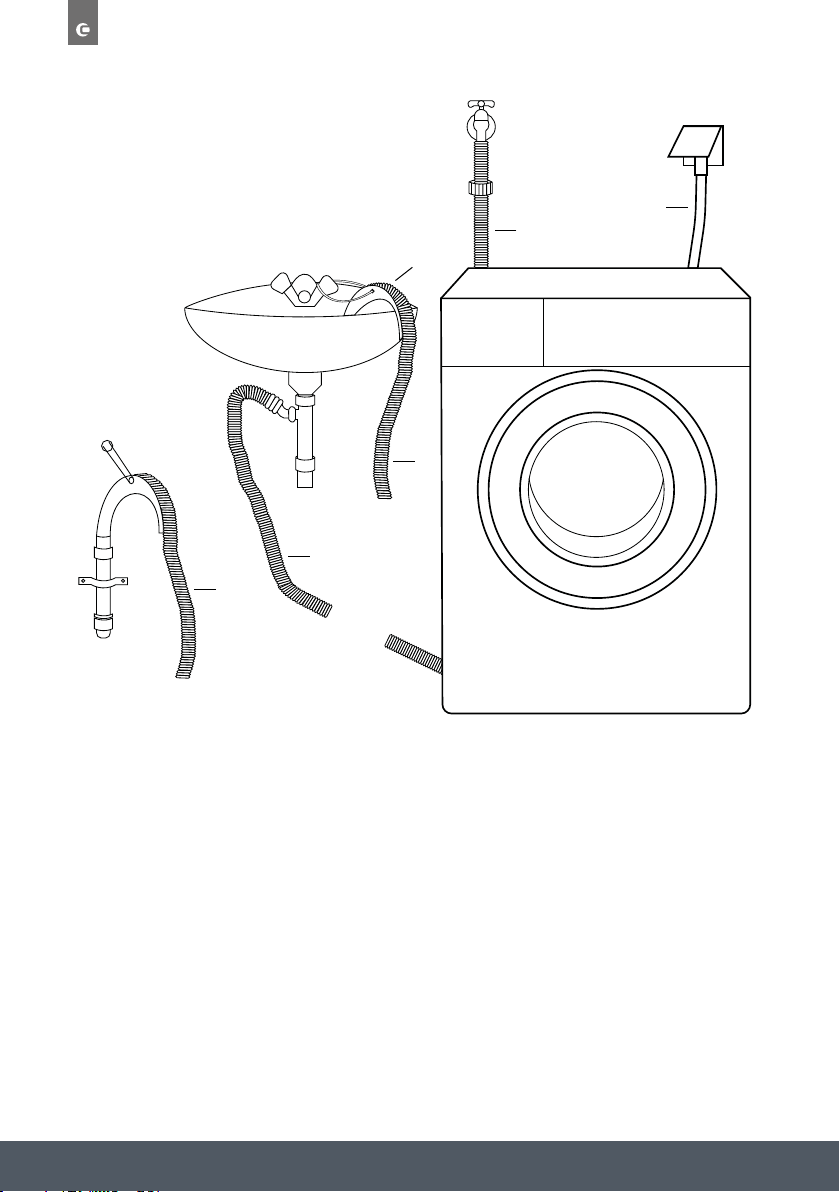

1. Drain Hose connection to Drain Pipe
2. Drain Hose connection to Sink Drain Pipe
3. Drain Hose attached to Sink
4. Drain Hose Support
5. Water Inlet Pipe
6. Electrical Connection
NOTE:
When using the outlet hose support, please install it like the above image. If the outlet hose is
too long, do not force it into the washer dryer as it will cause abnormal noises.
When installing outlet hose, fit it properly with rope.
WARNING:
Contact Caple Service should the power cord need replacement. Installation faults are not
covered by the manufacturers warranty.
1
2
3
4
5
6

19Instruction manual WDi3301Please keep this instruction manual for future reference
BUILT IN INSTALLATION
Before installing the washer dryer, please read these built-in instructions carefully and keep for
future reference. This appliance has been designed to be built into the kitchen furniture. The
recess should have the dimensions as shown in the figure below:
WARNING:
When installing the appliance into the kitchen, if possible, ensure the hoses are placed in either
of the two recesses on the back of the appliance. This will help to prevent the hoses from being
kinked or trapped.
540mm
152.5mm
min. 825mm
600mm
595mm
560mm
825-835mm

20 Instruction manual WDi3301 Please keep this instruction manual for future reference
Door opening from left to right
PREPARATION AND ASSEMBLY OF THE DOOR
The appliance is prearranged for the assembly of a door opening from right to left or from left
to right.
APPENDIX
1. Self-tapping screws (ST4*12)
2. Self-tapping screws (M5*12)
3. Self-tapping screws (ST4.8*15)
4. Hinges
5. Counter magnet
6. Spacer
7. Door template
TOOLS
1. Screw Driver
2. Automatic Driver
3. Ruler
4. Pencil
AppendixSelf-tapping screws(ST4*12)
Self-tapping screws
(M5*12)
Hinges
Counter magnetSpacerFixed position paperTool
Screw driverAutomatic driverRulerPencilBuilt-in installation
Install Steps
Overview1
825mm
600mm
540mm
595mm
152.5mm580mm825mmPreparation and assembly of the doorThe door is open from right to leftThe door is open from left to right1028MAINTENANCE
AppendixSelf-tapping screws(ST4*12)
Self-tapping screws
(M5*12)
Hinges
Counter magnetSpacerFixed position paperTool
Screw driverAutomatic driverRulerPencilBuilt-in installation
Install Steps
Overview1
825mm
600mm
540mm
595mm
152.5mm580mm825mmPreparation and assembly of the doorThe door is open from right to leftThe door is open from left to right1028MAINTENANCE
AppendixSelf-tapping screws(ST4*12)
Self-tapping screws
(M5*12)
Hinges
Counter magnetSpacerFixed position paperTool
Screw driverAutomatic driverRulerPencilBuilt-in installation
Install Steps
Overview1
825mm
600mm
540mm
595mm
152.5mm580mm825mmPreparation and assembly of the doorThe door is open from right to leftThe door is open from left to right1028MAINTENANCE
AppendixSelf-tapping screws(ST4*12)
Self-tapping screws(M5*12)
Hinges
Counter magnetSpacerFixed position paperTool
Screw driverAutomatic driverRulerPencilBuilt-in installation
Install Steps
Overview1
825mm
600mm
540mm
595mm
152.5mm580mm825mmPreparation and assembly of the doorThe door is open from right to leftThe door is open from left to right1028MAINTENANCE
AppendixSelf-tapping screws(ST4*12)
Self-tapping screws(M5*12)
Hinges
Counter magnetSpacerFixed position paperTool
Screw driverAutomatic driverRulerPencilBuilt-in installation
Install Steps
Overview1
825mm
600mm
540mm
595mm
152.5mm580mm825mmPreparation and assembly of the doorThe door is open from right to leftThe door is open from left to right1028MAINTENANCE
AppendixSelf-tapping screws(ST4*12)
Self-tapping screws(M5*12)
Hinges
Counter magnetSpacerFixed position paperTool
Screw driverAutomatic driverRulerPencilBuilt-in installation
Install Steps
Overview1
825mm
600mm
540mm
595mm
152.5mm580mm825mmPreparation and assembly of the doorThe door is open from right to leftThe door is open from left to right1028MAINTENANCE
AppendixSelf-tapping screws(ST4*12)
Self-tapping screws(M5*12)
Hinges
Counter magnetSpacerFixed position paperTool
Screw driverAutomatic driverRulerPencilBuilt-in installation
Install Steps
Overview1
825mm
600mm
540mm
595mm
152.5mm580mm825mmPreparation and assembly of the doorThe door is open from right to leftThe door is open from left to right1028MAINTENANCE
AppendixSelf-tapping screws(ST4*12)
Self-tapping screws(M5*12)
Hinges
Counter magnetSpacerFixed position paperTool
Screw driverAutomatic driverRulerPencilBuilt-in installation
Install Steps
Overview1
825mm
600mm
540mm
595mm
152.5mm580mm825mmPreparation and assembly of the doorThe door is open from right to leftThe door is open from left to right1028MAINTENANCE
AppendixSelf-tapping screws(ST4*12)
Self-tapping screws
(M5*12)
Hinges
Counter magnetSpacerFixed position paperTool
Screw driverAutomatic driverRulerPencilBuilt-in installation
Install Steps
Overview1
825mm
600mm
540mm
595mm
152.5mm580mm825mmPreparation and assembly of the doorThe door is open from right to leftThe door is open from left to right1028MAINTENANCE
AppendixSelf-tapping screws(ST4*12)
Self-tapping screws
(M5*12)
Hinges
Counter magnetSpacerFixed position paperTool
Screw driverAutomatic driverRulerPencilBuilt-in installation
Install Steps
Overview1
825mm
600mm
540mm
595mm
152.5mm580mm825mmPreparation and assembly of the doorThe door is open from right to leftThe door is open from left to right1028MAINTENANCE
AppendixSelf-tapping screws(ST4*12)
Self-tapping screws
(M5*12)
Hinges
Counter magnetSpacerFixed position paperTool
Screw driverAutomatic driverRulerPencilBuilt-in installation
Install Steps
Overview1
825mm
600mm
540mm
595mm
152.5mm580mm825mmPreparation and assembly of the doorThe door is open from right to leftThe door is open from left to right1028MAINTENANCE
Door opening from right to left
1.
1. 2. 3. 4.
4.3.
6.
2.
5. 7.
