Caple Di455DL Manual

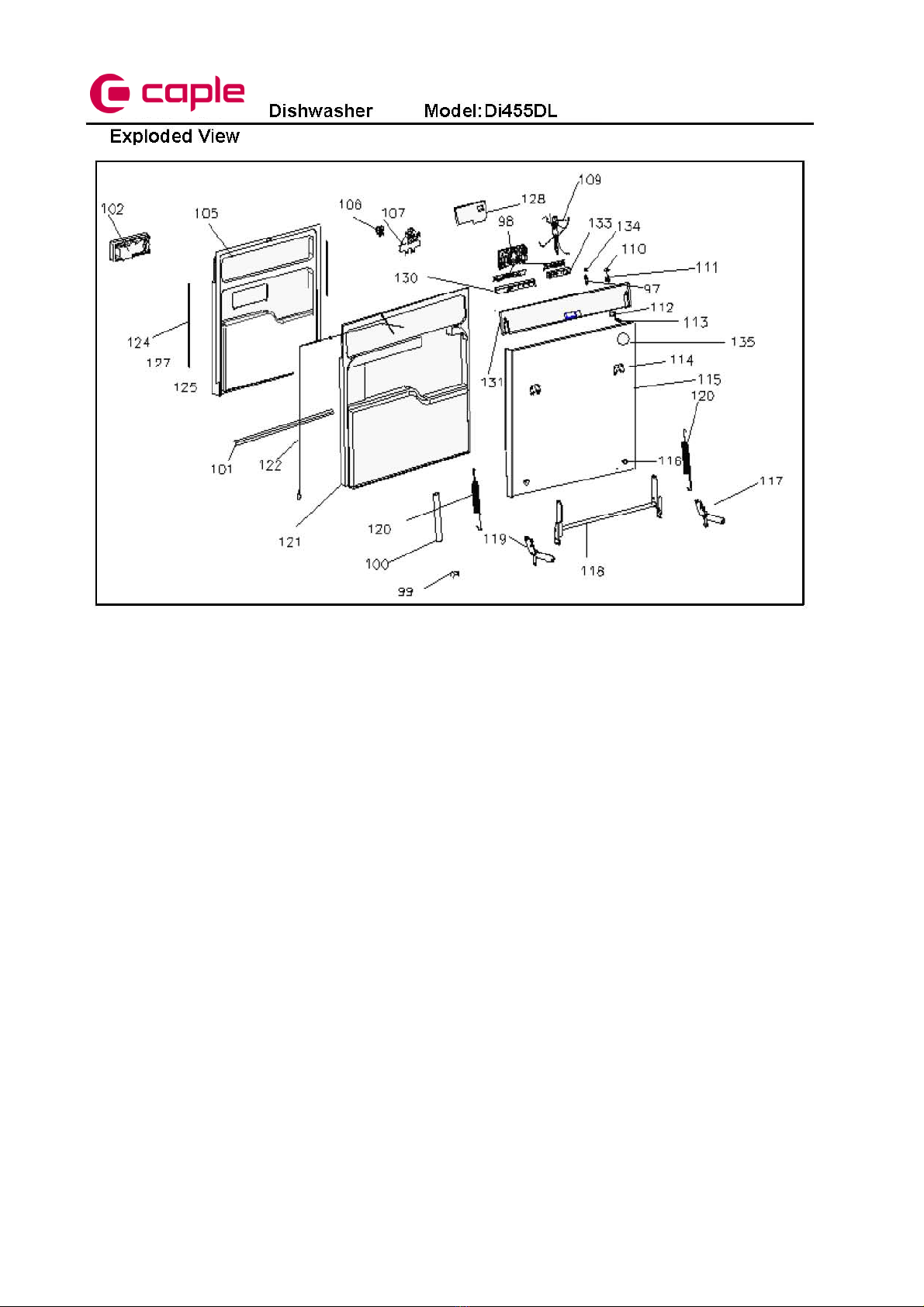

Parts List
NO. Name of part Part Specialized code QTY. Remark
1 Upper rear crosspiece 0120103082 1
2 Main screw for self threading screw 3.5 0120200057 3
3 Upper front crosspiece 0120103079 1
4 Right upright assembly 0120105717 1
5 Painted right side pannel 0120106819 1
6 Upper basket 0120201766 1
7 Tilter for upper basket 0120201235 2
8 Adjustable foot 0120600009 2
9 Cutlery basket 0120803156 1
10 Lower basket 0120201765 1
11 Rear intermediate crosspiece 0120103081 1
12 Drain hose stop 012G2160204 1
13 Lower rear crosspiece for acquostop 0120103080 1
14 Insulated tub assembly 0120103084 1
15 Wheel for lower basket 0120200964 8
16 Wheel for high basket 0120200963 8
18 Basket rail stop 0120200967 4
19 Mobile rail for basket 012G1020069 2
20 Tub gasket 0120300395 1
21 Support frame for tub gasket 0120103088 1
22 Upright small block 0120200124 2
23 Hooking 012G2150037 1
24 Tray 0120106846 1
26 Rail support assembly 0120200966 4
27 Left upright assembly 0120105716 1
28 Cover for front crosspiece 0120200065 1
29 Lower front crosspiece 0120103083 1
30 Painted left side pannel 0120106818 1
31 Right threaded tapered gear 0120800223 1
32 Left threaded tapered gear 0120800224 1
33 Tie rod for foot adjusting 0120100051 2
34 knife rest 0120201260 1
35 Wheel support pin 0120200965 16
43 Outer duct 012G2160236 1
44 Basket guide housing 0120201007 1
45 O-Ring 012G4050157 3
46 Ring nut for outer duct fastenig 0120203186 1
47 Feeding dispenser assembly 0120801832 1
48 Water diversion pipe 0120201011 1
49 Pin for inner duct hooking 0120201010 1
50 Upper sprayer assembly 0120201221 1
51 Support for float 0120202056 1
52 Float for Acquastop 0120503119 1
53 Micro switch Elbi Type S3 012G6050040 1
54 Power supply cable 0124000096 1
55 Air outlet 012G2160197 2
56 Thermo limiter assembly 0120800379 1
57 Drain pump 012G5040004 1
Dishwasher Model:Di455DL

Parts List
NO. Name of part Part Specialized code QTY. Remark
Dishwasher Model:Di455DL
58 O-Ring 012G4050158 1
59 Drain hose assembly 012G2140061 1
60 Pressure switch tube 012G2140067 1
61 Coupling (colunm / heating element) 0120200225 1
62 Heater assembly 0120800355 1
63 Water intake hose（heating element) 0120200220 1
64 Water softener 012G9380537 1
65 Washing pump assembly 0124000051 1
66 Vibration-proof ring motor 012G4050159 1
67 Motor bracket assembly 012G9350006 1
68 Breather assembly 012G2160196 1
69 PVC tube + 40% nitrilic rubber 0120300644 1
70 Connection for 3rd sprayer 012G2160200 1
71 3rd sprayer 0120201003 1
72 Breather ring nut 0120201008 1
73 tube clamp 012G1040022 2
74 Lower sprayer 012G1450620 1
75 Lower sprayer column 0120201005 1
76 Lower sprayer base 0120201004 1
77 O-type sealing ring 012G4050153 1
78 Lower sprayer base fixing piece 012G2160193 1
79 Salt dispenser funnel 0120201753 1
80 Softener ring nut 012G2150042 1
81 Water softener sealing ring 012G4050236 1
82 Cover of salt dispenser port assembly 0120802037 1
83 Electric wave filter 0120400001 1
84 Connection pipe 012G4050244 1
85 1-level pressure switch 012G6050031 1
86 Water gutter 012G2160191 1
87 Rubber coupling 012G4050152 2
88 Ring nut for cup fastening 0120201292 1
89 Cup gasket 012G4050151 1
90 Microfilter (polyesthere) 012G1040014 1
91 Cylindric stainless steel filter 0120200949 1
92 Stainless steel extractable filter 012G1040012 1
93 Extractable glass filter 0120201009 1
95 Acquastop device 012G9381036A 1
96 Elasticity retainer 0120600060 2
97 Red indicator 0124000324 1
98 control panel 0124000223 1
99 Hinge shaft 012G8080007 4
100 Door spring Cover 0120200048 2
101 Door gasket 012G4050172 1
102 Detergent dispenser 0124000215 1
105 Inner Door 0120103094 1
106 Door switch 0120800356 1
107 Switch mechanism assembly 0120800357 1
109 Control cable 0124000224 1

Parts List
NO. Name of part Part Specialized code QTY. Remark
Dishwasher Model:Di455DL
110 Power Key-press 0120200226 1
111 Power supply switch 012G9370091 1
112 Springs adjusting small block 0120100042 2
113 Spring adjusting screw 0120600197 2
114 Block hooking bracket 0120100052 2
115 Outer door 0120103089 1
116 Rubber 0120300014 2
117 Left hinge articulation 012G9380558 1
118 Complete hinge assembly 0120800660 1
119 Right hinge articulation 012G9380559 1
120 Door spring 0120100047 2
122 Adjustable cable 0120103154 2
124 Door gasket guard strip 012G2140094 2
128 control cover 0120200244 1
130 Left led card support 0120300394 1
131 Dashboard 0120203341 1
133 Right led support protection 0120300393 1
135 Sealed plug 0120300304 2

2
Contents
1. Product Code illumination and Series introduction …………………….………...3
2. Features………………………………………………… ……………………………….4
3. Net Dimension…………………………………………………………………………….5
4. Installation and Accessory Parts…………………… ………………………………….5
5. Parts and Functions………………………………… ………….. ………………...…...6-11
6. Function Schedule……………………………………………………………………….12
7. Program Diagram………………………………………………………………………..13
8. Maintenances Service and Trouble Shooting……… ………………………………..14-19
9. Circuit Diagram……………………………… ………………………………….….……20

3
Product Code illumination and Series Introduction
1.Product Code Illumination and Series Introduction
Model Identification
D W 9 ─□□□□
A B C D E F
A: Abbreviation of dishwasher
B: Code name of Nominal capacity
C: Series of factory design
D: Freestanding/built –in/semi-built-in
E: Mechanical/Electronic
F: The second series of factory design code name described/outer side material
Examples:
DW9-CBE0
It represents automatic spraying electronic built –in dishwasher, the cavity capacity is 9
standard sets.

4
Features
2.Features
2.1Prewashing
It may avild the peak of using electricty effctively,saving electricity consumption.
2.2Half load washing
Half loading fashtion which the upper-rack only mode is available get saving electricity and
water consumption,if the dishwares is not too much.
