Cappuccino PC Echo77F-PoER User manual

1.0.1 Edition 10/03/2014
All information is subject to change without notice.
Echo77F-PoER
3rd Gen Intel®Core™ Mobile i7/i5/i3, Ivy Bridge
Extended Temp. Fan-less Embedded Controller
USER
Manual
USER
Manual

Worldwide Technical Support and Product Information
www.CappuccinoPC.com
Unicomp Labs, Inc
46 Cain Drive, Brentwood, NY 11717
Tel: [phone]
Fax: [phone]
For further support information, refer to the Technical Support and Professional Services
appendix. To comment on Unicomp Labs, Inc. documentation, refer to the Unicomp Labs, Inc.
web site at www.CappuccinoPC.com.
© 2014 Unicomp Labs, Inc. All rights reserved.

Record of Revision
Version Date Page Description Remark
V1.0.0 April 02, 2013 All Preliminary Release
V1.0.1 April 10, 2014 P3 CPU List

iv
©Echo-77-PoEREmbedded System User Manual
This manual is intended to be used as a practical and informative guide
only and is subject to change without prior notice. It does not represent
commitment from Unicomp Labs, Inc. Unicomp shall not be liable for direct, indirect,
special, incidental, or consequential damages arising out of the use of the
product or documentation, nor for any infringements upon the rights of third
parties, which may result from such use.
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
FCC
The product(s) described in this manual complies with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to remain CE
compliant, only CE-compliant parts may be used. Maintaining CE compliance
also requires proper cable and cabling techniques.
CE
This document contains proprietary information protected by copyright.
All rights are reserved. No part of this document may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer. Company/product names mentioned herein
are used for identication
Declaimer
Declaration of Conformity
Copyright and Trademarks

v
Order Information
Optional Accessories
Part Number Description
Echo77F-PoER Fanless Embedded System with 6 GbE LAN, 2 SO-DIMM, 4 COM, 4 USB 3.0, 2
SATA III SSD/HDD, Isolated DIO, 4-Port Gigabit PoE+
Part Number Description
DDR3-4GB-Wide DDR3 4GB 1333/1066MHz RAM, Wide Temperature -40°C ~ +85°C
KVR1333D3S9/8G Kingston® DDR3 8GB PC1333 RAM
KVR1333D3S9/4G Kingston® DDR3 4GB PC1333 RAM
PWA-120WM4P 120W, 24V, 90VAC to 264VAC power adapter
SCSI-20P 20-pin SCSI Cable, 1M
TMB-SCSI Terminal Board with One 20-pin SCSI Connector and DIN-Rail Mounting
WiFi Module Intel MiniPCIe WiFi Module with Antenna

vi
Table of Contents
Declaimer iv
Declaration of Conformity iv
Copyright and Trademarks iv
FCC iv
CE iv
Order Information v
Optional Accessories v
General Introduction 1
1.1 Overview 1
1.2 Product Specication 2
1.2.1 Specications of Echo77F-PoER 2
1.3 Supported CPU List 3
1.4 Mechanical Dimension 4
Getting to Know Your Echo77F-PoER 5
2.1 Packing List 5
2.2 Front Panel I/O Functions 5
2.2.1 Audio Jacks 5

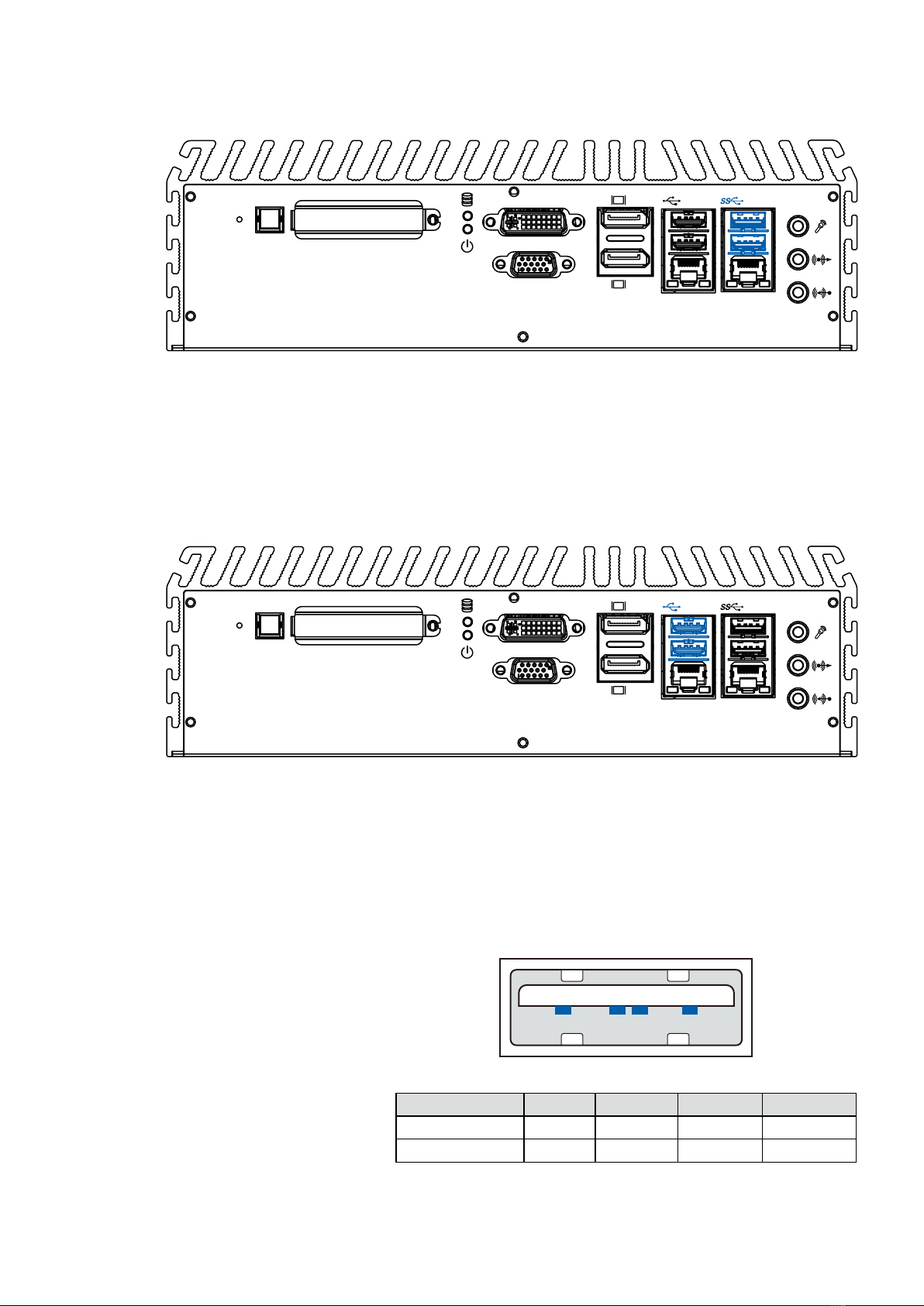

2.2.2 Dual USB 3.0 6
2.2.3 Dual USB 2.0 6
2.2.4 10/100/1000 Mbps Ethernet Ports 7

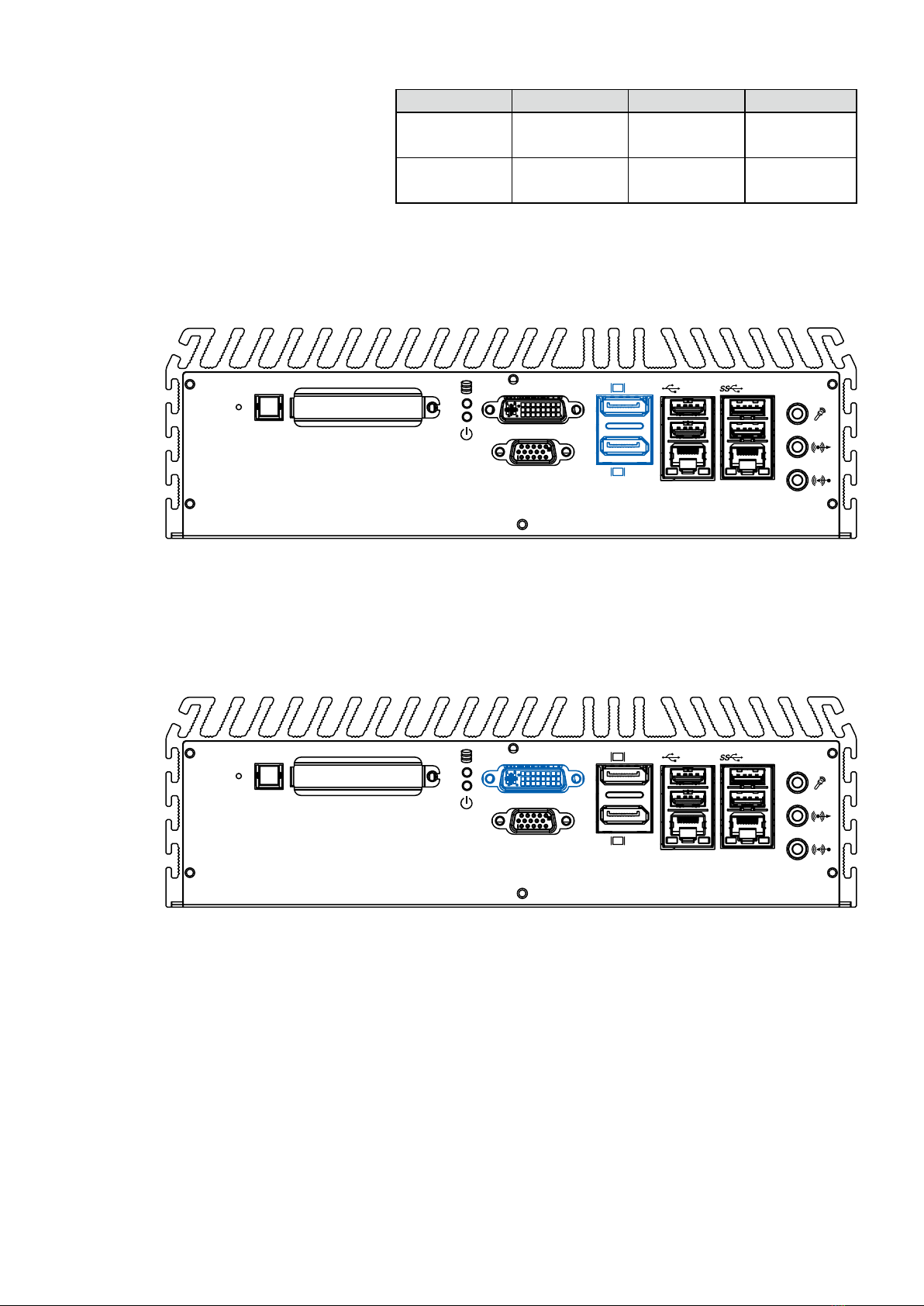

2.2.5 Dual Display Port 8
2.2.6 DVI-D/HDMI Connector 8

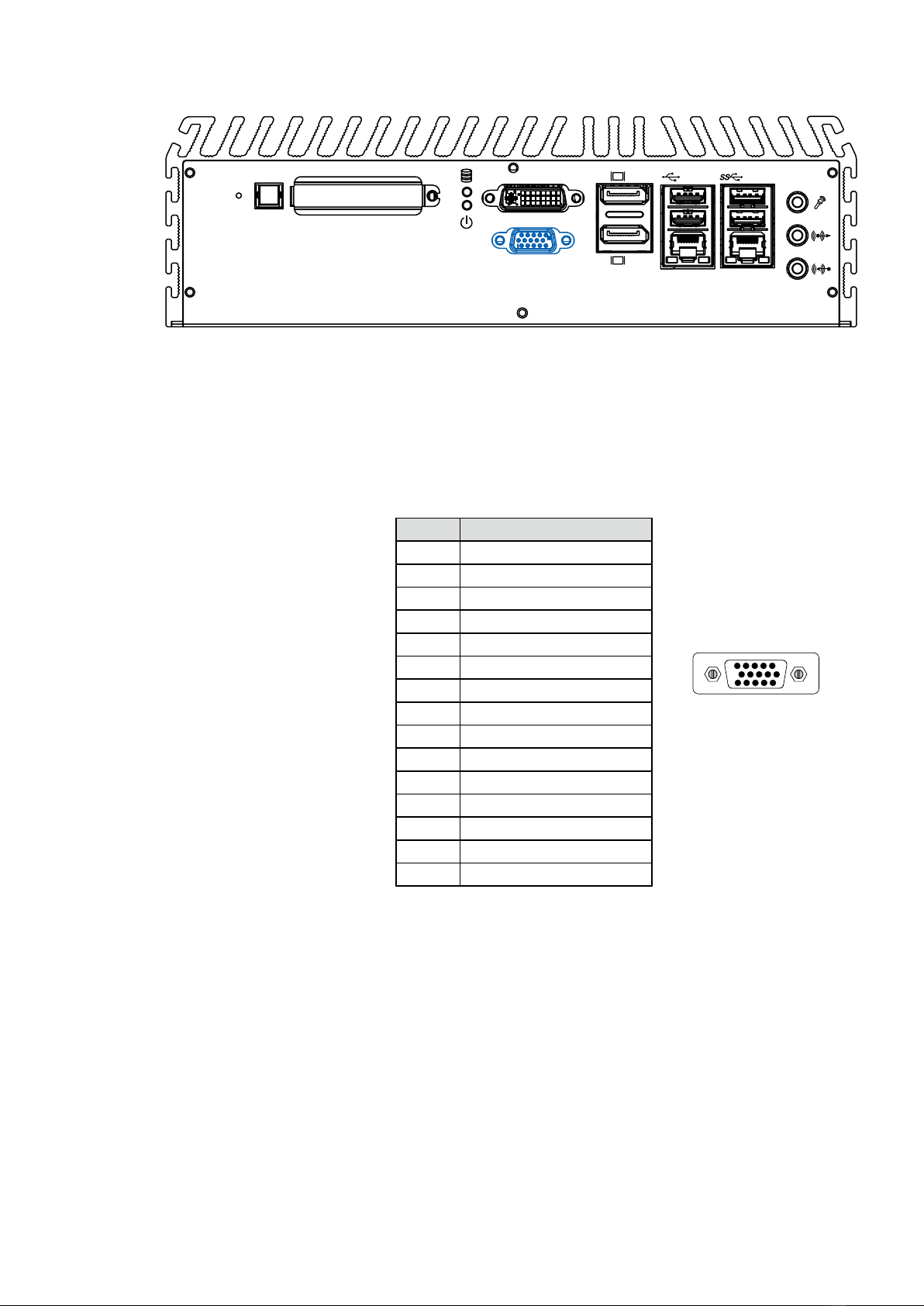

2.2.7 VGA Connector 9
2.2.8 PWR and HDD LED Indicators 10
2.2.9 CFast Card 10
2.2.10 Power Button 11
2.2.11 Reset Tact Switch 11
2.3 Rear Panel I/O Functions 12

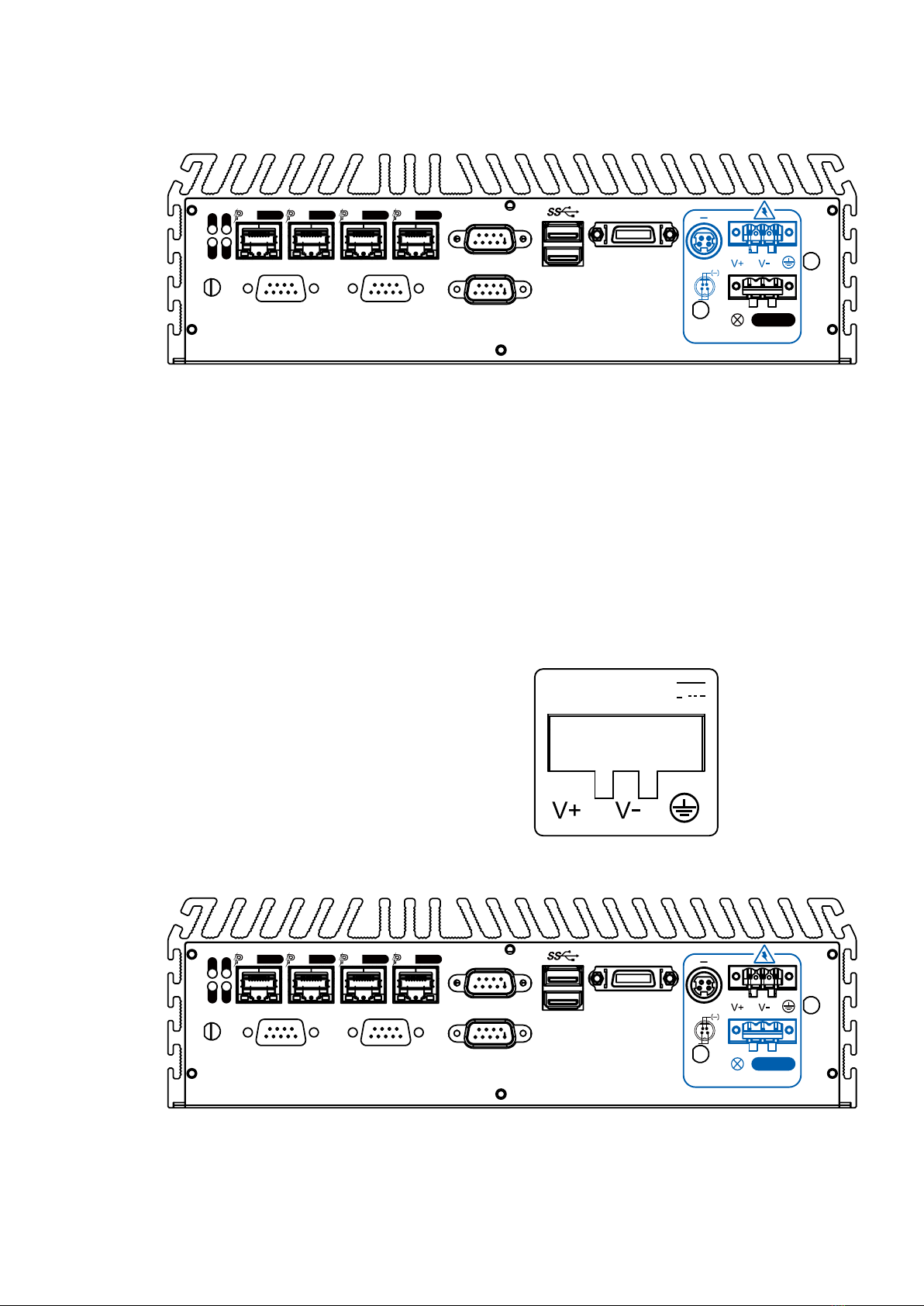

2.3.1 DC-In 6~36V Mini DIN or Power Terminal Block 12
2.3.2 Remote Power On/Off Switch 12
2.3.3 Isolated 8 DI / 8 DO 13
2.3.4 Serial Port COM2 15
2.3.5 Serial Port COM1/COM3 / COM4 15
2.3.6 PoE, Power over Ethernet Ports 16
2.4 Main Board Expansion Connectors 17
2.4.1 J1 Miscellaneous Pin Header 19
2.4.2 CN23, CN25, J4 LVDS 19
2.4.2 CN23, CN25, J4 LVDS 20
2.4.3 CN17, CN20 SATA3 & CN21 SATA Power Connector 22
2.4.4 CN13 SATA-II Connector J3 SATA DOM Power Connector 24
2.4.5 J2 Internal USB Dual Port 26
2.4.6 CN8, CN14 Mini-PCIe, mSATA Connectors 27
2.4.7 CN16 GPIO 29
2.4.8 FAN1 30
2.4.9 CN27, CN28 SUMIT 31
2.4.10 Battery 32

G
2.5 Main Board Jumper Setting 33
2.5.1 JP3 LVDS Backlight Power Selection 34
2.5.2 JP2(A) CMOS Clear Jumper Setting 35
2.5.3 JP2(B) ME Clear Jumper Setting 36
2.5.4 JP1 AT/ATX Power Mode Jumper Setting 37
System Setup 38
3.1 Install DDR3 / DDR3L SODIMM Modules 38
3.2 Install HDD 39
3.3 Install MiniPCIe Cards 41
3.4 Install SATA DOM 42
3.5 Mount Your Echo77F-PoER 43
BIOS and Driver 46
4.1 BIOS Settings 46
4.1.1 Main Menu 47
4.1.2 Advanced Function 47
4.1.3 Chipset Function 52
4.1.4 Boot Function 53
4.2 Operating System 53
4.3 Driver Installation 54
4.3.1 Chipset Driver Installation 54
4.3.2 Intel HD 4000 Graphics Driver Installation 55
4.3.3 Network Device Driver Installation 55
4.3.4 Audio Driver Installation 56
4.3.5 USB 3.0 Driver Installation 56
4.3.6 Storage Support Software Installation 57
4.3.7 Intel AMT Function Support 57
Appendix A : Isolating DIO Guide 58
Appendix B : GPIO & WDT Function 60
A. Entry MB PnP Mode 60
B. Located on Logical Device 7 60
C. Access the Super I/O Register 60
D. Start to Access the Echo77F-PoER GPIO Port 60
E. WDT ON/OFF and Timer-Counter setting 61

1
Product Introduction
General Introduction
Echo77F-PoER support 3rd Gen Intel® Quad-Core™ series
processor (6M Cache, up to 3.30 GHz), DDR3L and DDR3
maximum dual channel 16GB ram, DVI-D/HDMI and VGA
dual display, 4 independent gigabit PoE (Power-over-
Ethernet) ports, 2 GbE LANs, CFast, two 2.5” SATA 6Gp/s
HDD/SSD trays, JST connector, and 2 miniPCI-express, plus
with Trusted Platform Module.
Using only one Ethernet cable to supply power and
transmit and sync data simultaneously, Echo77F-PoER apply
IEEE 802.3at power sourcing equipment enable to supply
50 to 57 VDC, 600 mA, and 25.5W at the powered device,
for example, HD LCDs, touchscreens, cameras and motion
sensors.
Design for wider compatibility, higher power supply but less
total cost and wiring, Echo77F-PoER is one-of-a-kind dream
fan-less embedded system for machine Vision, outdoor
imaging, 3-D imaging, ITS (Intelligent Traffic Solutions),
quality control, and medical imaging applications.
1
1.1 Overview

2
Product Introduction
© Echo77F-PoER Embedded System User Manual
1.2 Product Specication
System
Processor 3rd Generation Intel® Quad Core™ i7/i5/i3 Ivy Bridge Processors (6M Cache, up to 3.30 GHz)
Chipset Intel® QM77
BIOS AMI
SIO IT8783F
Memory DDR3 1066/1333/1600 MHz, DDR3L 1066/1333 MHz, Max. 16GB
2 204-pin SO-DIMM Sockets
I/O Ports
Serial Interface 3 COM RS-232, 1 COM RS-232 / 485 / 422
USB 4 USB 3.0, 2 USB 2.0, 2 Internal USB 2.0
Isolated DIO 8 DI, 8 DO
LED Power, HDD and CFast LEDs
GPIO 16 GPIO
Expansion
Mini PCIe 1 miniPCIe Socket: PCIe + USB + SIM Card Socket
1 miniPCIe Socket: PCIe + USB
SUMIT A, B 2 SUMIT Slots (Optional)
JST Connector 1 Internal 6-pin (Internal USB 2.0)
Graphics
hipset Intel® GMA HD 4000
Display Memory Shared Memory, Up to 1.7GB
Interface DB-15 VGA / 1920 x 1200 Max., DVI-D / 1920 x 1200 Max.,
Display Port 1 / 2560 x 1600 Max., Display Port 2 / 1920 x 1200 Max.,
LVDS / Dual Channel 24-bit / 1920 x 1200 Max.
Storage
SATA 2 SATA III 6Gbps
1 SATA II 3Gbps - Support Horizontal Type SATA DOM
mSATA 2 SATA II 3Gbps
Storage Expansion CFast Slot Push In / Out Ejector
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface Line-in, Line-out, Mic-in, Front Audio Header
Ethernet
LAN1 Intel® 82579LM Gigabit LAN, Wake on LAN, PXE Support
LAN2 Intel® 82574L Gigabit LAN, Wake on LAN, PXE Support
Power over Ethernet
4 Gigabit IEEE 802.3at (25.5W / 48V) PoE Ports by Intel® 82574L
Power
Power Input 1 Mini DIN, One 3-pin Terminal Block for DC-IN : V+, V-, Frame Ground
Power Input Voltage DC-IN 6 ~ 36V
Power Adapter AC to DC +24V / 5A 120W Max. (Optional)
Protection On-board LT4356 for Power Input High Voltage Surge Protection
Other
Trusted Platform Module (TPM) Inneon SLB9635, LPC interface (Optional)
Watchdog Timer Reset: 1 to 255 sec / min Per Step
HW Monitor Temperature / Voltages Auto Throttling Control When CPU Overheats
Mechanical
Chasis Construction Aluminum Housing
Size (W x D x H) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight 2.8 Kg (6 lb)
Mounting Wall-mount by Mounting Bracket
Environmental
Operating Temperature -25°C to 70°C (-13°F to 157°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, Non-condensing
Relative Humidity 95% at 70°C
Vibration Random: 0.5Grms @5~500 Hz according to IEC68-2-64
Sinusoidal: 0.5Grms @5~500 Hz according to IEC68-2-64
Shock Operating, 20 Grms, Half-sine 11 ms Duration (w / SSD, According to IEC60068-2-27)
EMC CE, FCC, RoHS, EN50155 & EN50121-3-2
1.2.1 Specications of Echo77F-PoER

3
Product Introduction
1.3 Supported CPU List
Echo77F-PoERaccepts 3rd generation Intel® i7/i5/
i3 processors via a rPGA988B CPU socket. The following
processors have been tested by Unicomp Labs, Inc. for the
compatibility with Echo77F-PoER. Instead of i7-
3610QE, i5-3610ME and i3-3120ME, You may also select
other processor according to your consideration of
application and performance.
Series Max. TDP iAMT Embedded
i7 3840QM 45W √
3820QM 45W √
3740QM 45W √
3720QM 45W √
3632QM 35W
3630QM 45W
3612QM 35W
3610QE 45W √ O
3610QM 45W
3540M 35W √
3520M 35W √
i5 3610ME 35W √ O
3380M 35W √
3360M 35W √
3340M 35W √
3320M 35W √
3230M 35W
3210M 35W
i3 3130M* 35W
3120ME 35W O
3120M* 35W
3110M* 35W
The processors with "O" are listed in Intel® Embedded Roadmap
and with a 7-year life cycle support (from 2011 to 2017). The
processors with "*" the maximum operation temperature is
55OC.

4
Product Introduction
© Echo77F-PoER Embedded System User Manual

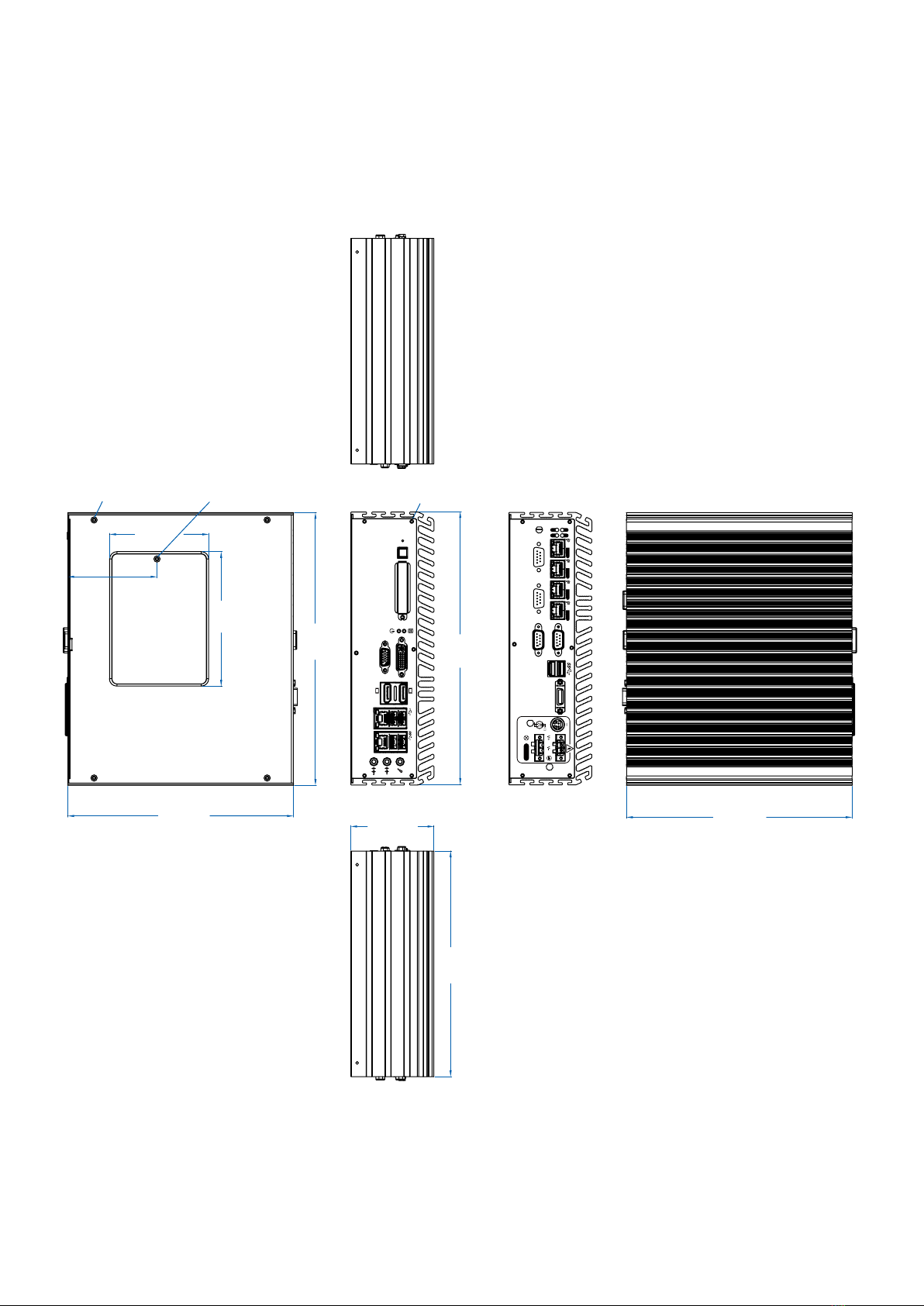

1.4 Mechanical Dimension
Figure 1.1 Echo77F-PoER
215 (8.5”)
215
(8.5”)
79 (3.1”)
260
(10.2”)
260
(10.2”)
128
(5”)
94 (3.7”)
85 (3.3”)
215 (8.5”)
SCREW:KHS-#6-32 SCREW:KHS-#6-32
SCREW:FH-M3X8
COM2 COM1
Isolated DIO
+
Power Switch
On / Off
(+)
COM4COM3
3 5
4 6
LAN6
PoE
LAN5
PoE
LAN4
PoE
LAN3
PoE
CFast
ResetD VI-D
VGA
2
1
LAN2 LAN1

5
Getting to Know Your Echo77F-PoER
Getting to Know Your Echo77F-PoER
2.1 Packing List
2
2.2.1 Audio Jacks
The Echo77F-PoER offers stereo audio connector of MIC
, Line_In and Line_Out. The audio chip controller is by
ALC892 which is compliant with the Intel®Azalia standard.
To utilize the audio function in Windows, you need to
install corresponding drivers for both Intel QM77 chipset
and Realtek ALC892 codec. Please refer to Section 4 for
information of driver installation.
2.2 Front Panel I/O Functions
Item Description Qty
1 Echo77F-PoER fanless controller
(According to the conguration you order, the Echo77F-PoER may contain HDD and
DDR3 SO-DIMM. Please verify these items if necessary.)
1
2 Accessory box, which contains
• Drivers & Utilities DVD
• Wall-mounting bracket
• M4 screws for wall-mounting bracket
• 4-pin pluggable terminal block
1
2
4
2
CFast
Reset DVI-D
VGA
2
1
LAN2 LAN1

6
Getting to Know Your EFKR)3R(5
©Echo77F-PoER Embedded System User Manual
2.2.2 Dual USB 3.0
The Echo77F-PoER comes with 2 USB 3.0 hosts on the front
panel. These USB 3.0 ports allow data transfers up to 5 Gb/
s. The controller supports SuperSpeed (SS), high-speed (HS),
full-speed (FS) and los-speed (LS) trac on the bus.
2.2.3 Dual USB 2.0
The Echo77F-PoER comes with 2 USB 2.0 hosts on the front
panel. The USB interface supports Plug and Play, which
enables you to connect or disconnect a device whenever
you want, without turning off the system. The hosts can
be used for an external flash disk or hard drive for storing
large amounts of data. You can also use these USB hosts to
connect to a keyboard or a mouse. The following diagram
shows the pinouts for USB1 and USB2 port.
Pin Number 1 2 3 4
USB1 +5V USB1- USB1+ GND
USB2 +5V USB2- USB2+ GND
1 2 3 4
CFast
Reset DVI-D
VGA
2
1
LAN2 LAN1
CFast
Reset DVI-D
VGA
2
1
LAN2 LAN1

7
Getting to Know Your Echo77F-PoER
2.2.4 10/100/1000 Mbps Ethernet Ports
The 10/100/1000 Mbps Ethernet LAN ports 1 and 2 use 8-pin
RJ-45 connector. LAN1 is equipped with Intel 82579LM for
AMT function. LAN2 is equipped with Intel 82574L. Using
suitable RJ-45 cable, you can connect Echo77F-PoER system
to a computer, or to any other piece of equipment that has
an Ethernet connection, for example, a hub or a switch.
Moreover, both of them have Wake-on-LAN and Preboot
Execution Environment capabilities. The following diagram
shows the pinouts for LAN1 and LAN2 port.
Pin No. 10 / 100 Mbps 1000 Mbps
1 E_TX+ MDI0_P
2 E_TX- MDI0_N
3 E_RX+ MDI1_P
4 ---- MDI2_P
5 ----- MDI2_N
6 E_RX- MDI1_N
7 ----- MDI3_P
8 ------ MDI3_N
The Ethernet ports use standard RJ-45 jack connectors
with LED indicators on the front side to show Active/Link
status and Speed status. The LED indicators on the right
bottom corners glow a solid green color when the cable is
properly connected to a 100 Mbps Ethernet network. The
LED indicator on the left bottom corner will ash on and o
when Ethernet packets are being transmitted or received.
The LED indicators on the right bottom corners glow a
solid orange color when the cable is properly connected
to a 1000 Mbps Ethernet network. The LED indicator on
the left bottom corner will ash on and o when Ethernet
packets are being transmitted or received.
1 8
CFast
Reset DVI-D
VGA
2
1
LAN2 LAN1

8
Getting to Know Your EFKR)3R(5
©Echo77F-PoER Embedded System User Manual
Location 10 Mbps 100 Mbps 1000 Mbps
Right Bottom
LED
o Solid Green Solid Orange
Left Bottom
LED
Flash Yellow Flash Yellow Flash Yellow
2.2.5 Dual Display Port
Each digital port is capable of driving resolutions up to
2560x1600 at 60 Hz through Display Port.
2.2.6 DVI-D/HDMI Connector
The DVI-D connector on the front panel supports both
DVI and HDMI operation mode. This connector can either
output DVI signals or HDMI signal. The DVI output mode
supports up to 1920x1200 resolutions and HDMI output
mode supports up to 1920x1200 resolutions. The DVI or
HDMI mode is automatically selected according to the
display device connected. You shall need a DVI-D to HDMI
cable when connecting to a HDMI display device.
CFast
Reset DVI-D
VGA
2
1
LAN2 LAN1
CFast
Reset DVI-D
VGA
2
1
LAN2 LAN1

9
Getting to Know Your Echo77F-PoER

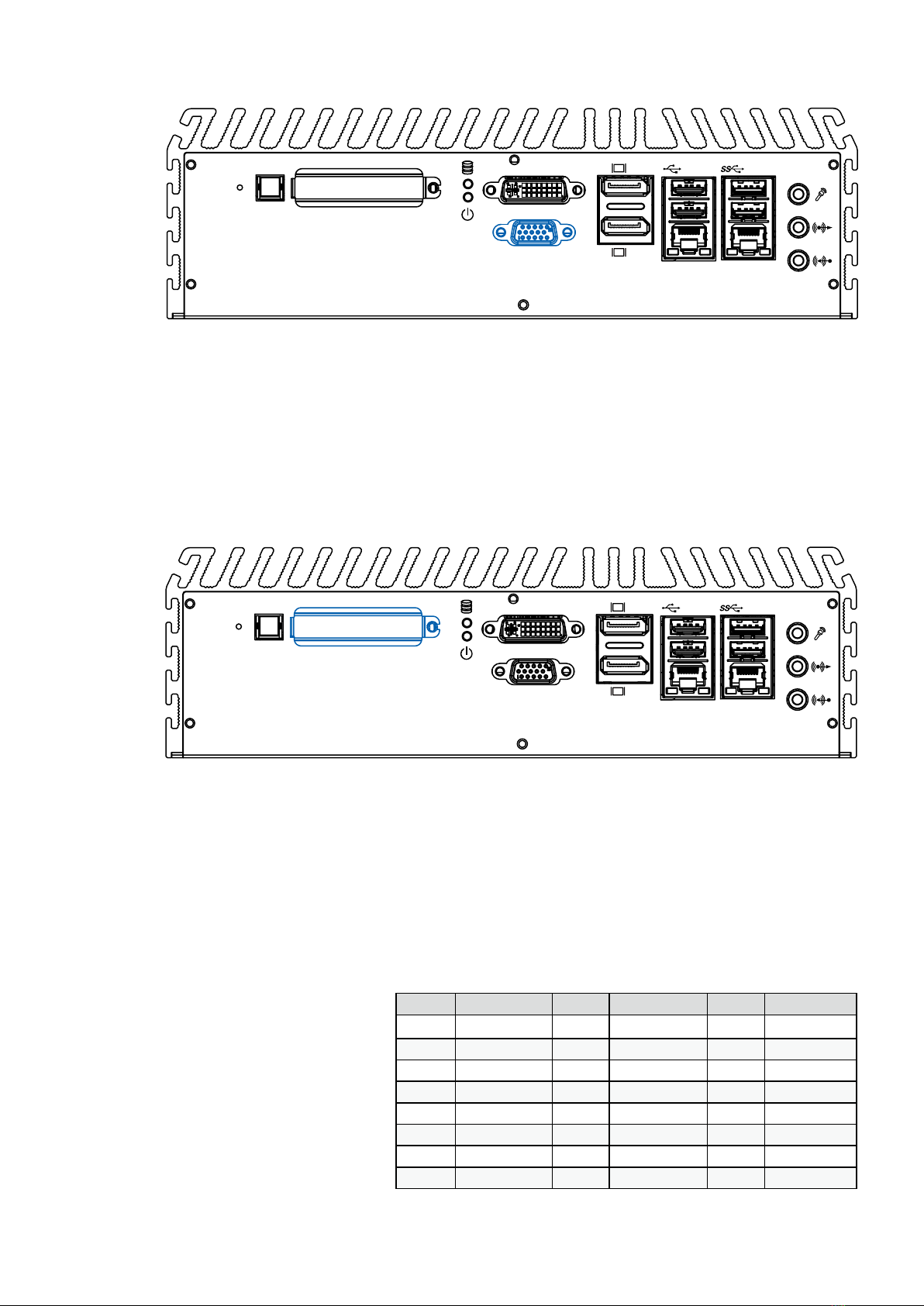

2.2.7 VGA Connector
The Echo77F-PoER comes with a DB15 female connector on
the front panel to connect a VGA monitor. To ensure that
the monitor image remains clear, be sure to tighten the
monitor cable after connecting it to the Echo77F-PoER. The
VGA output mode supports up to 1920x1200 resolutions.
The pin assignments of the VGA connector are shown
below.
Pin No. Description
1 Red Color Signal
2 Green Color Signal
3 Blue Color Signal
4 NC
5 Ground
6 VGA Detect
7 Ground
8 Ground
9VCC
10 Ground
11 NC
12 DDC-DATA
13 H-Sync.
14 V-Sync.
15 DDC-CLK
5
10
15
1
6
11
CFast
Reset DVI-D
VGA
2
1
LAN2 LAN1

10
Getting to Know Your EFKR)3R(5
©Echo77F-PoER Embedded System User Manual
2.2.8 PWR and HDD LED Indicators
Yellow-HDD LED: A hard disk / CFast LED. If the LED is on, it
indicates that the system’s storage is functional. If it is o, it
indicates that the system’s storage is not functional. If it is
ashing, it indicates data access activities.
Green-Power LED: If the LED is solid green, it indicates that
the system is powered on.
2.2.9 CFast Card
The Echo77F-PoER system comes with a CFast socket on
the front panel for Type-I / Type-II Compact Flash card. It
is implemented by a SATA II Port from QM77 PCH. Be sure
to disconnect the power source and unscrew the CFast
socket cover before installing a CFast card. The Echo77F-
PoE does not support the CFast hot swap and PnP (Plug and
Play) functions. It is necessary to remove power source rst
before inserting or removing the CFast card. The following
table shows the pinouts for CFast port:
Pin No. Description Pin No. Description Pin No. Description
S1 GND PC2 GND PC10 NC
S2 SATA_TX_P2 PC3 NC PC11 NC
S3 SATA_TX_N2 PC4 NC PC12 NC
S4 GND PC5 NC PC13 +3.3V
S5 SATA_RX_N2 PC6 NC PC14 +3.3V
S6 SATA_RX_P2 PC7 GND PC15 GND
S7 GND PC8 NC PC16 GND
PC1 NC PC9 CFAST_LED_N PC17 NC
CFast
Reset DVI-D
VGA
2
1
LAN2 LAN1
CFast
Reset DVI-D
VGA
2
1
LAN2 LAN1

11
Getting to Know Your Echo77F-PoER

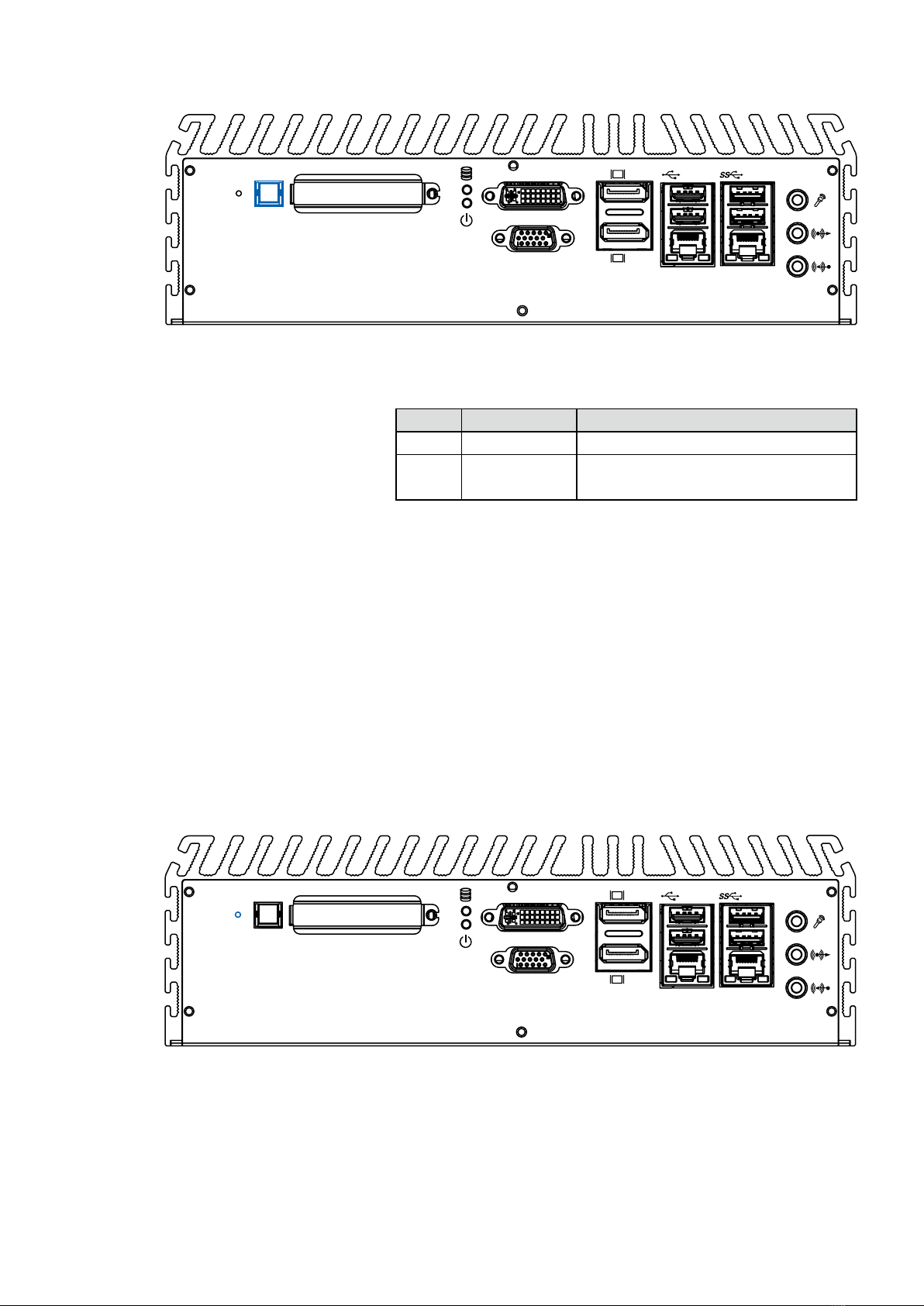

It is a hardware reset switch. Use this switch to reset
the system without turning off the power. Momentarily
pressing the switch will activate a reset.
2.2.10 Power Button
The power button is a non-latched switch with dual color
LED (Blue/Orange) for indication S0, S3 and S5 status. Power
button dual-color LED indicator:
Status LED Display System Situation
S0 Solid Blue System working
S3, S5 Solid Orange Suspend to RAM, System off with
standby power
To turn on the Echo77F-PoER, press the power button and
the blue LED is lighted up. To turn off the Echo77F-PoER,
you can either issue a shutdown command in OS, or just
simply press the power button.
In case of system halts, you can press and hold the power
button for 4 seconds to compulsorily shut down the system.
Please note that a 4 seconds interval is kept by the system
between two on/off operations (i.e. once turning off the
system, you shall wait for 4 seconds to initiate another
power-on operation).
2.2.11 Reset Tact Switch
CFast
Reset DVI-D
VGA
2
1
LAN2 LAN1
CFast
Reset DVI-D
VGA
2
1
LAN2 LAN1

12
Getting to Know Your EFKR)3R(5
©Echo77F-PoER Embedded System User Manual
2.3 Rear Panel I/O Functions
2.3.1 DC-In 6~36V Mini DIN or Power Terminal Block
The Echo77F-PoER oers 6 to 36 VDC power input with the
terminal block. If the power is supplied properly, the Power
LED will light up a solid green.
80V power surge protection is design in in LTC4356.
Grounding and write routing help limit the eects of noise
due to EMI. Run the ground connection from the ground
screw to the grounding surface prior to connecting the
power.
See the figure shown below for the location of the earth
ground on the terminal block power connector. Connect
the earth ground wire to an appropriate grounded metal
surface.
DC 16-28V
2.3.2 Remote Power On/O Switch
It is a 2-pin power-on or power-o switch through Phoenix
Contact terminal block. You could turn on or o the system
power by using this contact. This terminal block support
dual function of soft power-on / power-off (instant off or
delay 4 second), and suspend mode.
COM2
COM1
Isolated DIO
+
Power Switch
On / Off
(+)
COM4COM3
3 5
4 6
LAN6
PoE
LAN5
PoE
LAN4
PoE
LAN3
PoE
COM2
COM1
Isolated DIO
+
Power Switch
On / Off
(+)
COM4COM3
3 5
4 6
LAN6
PoE
LAN5
PoE
LAN4
PoE
LAN3
PoE

13
Getting to Know Your Echo77F-PoER
2.3.3 Isolated 8 DI / 8 DO
The Echo77F-PoER offers an 16-bit DIO ( 8-DI / 8-DO)
connector. Each bit of DI and DO equipped with a photo-
coupler for isolated protection. A power buffer device
TPD2007F integrated in 8-DO circuit for motors, solenoids,
and lamp drivers applications.
Pin No. Denition Mapping to SIO GPIO
Function
1 INPUT0 SIO_GPI50
2 INPUT 1 SIO_GPI51
3 INPUT 2 SIO_GPI52
4 INPUT 3 SIO_GPI53
5 INPUT 4 SIO_GPI54
6 INPUT 5 SIO_GPI55
7 INPUT 6 SIO_GPI56
8 INPUT 7 SIO_GPI57
9 DI_COM
10 GND
11 OUTPUT0 SIO_GPO20
12 OUTPUT 1 SIO_GPO21
13 OUTPUT 2 SIO_GPO22
14 OUTPUT 3 SIO_GPO23
15 OUTPUT 4 SIO_GPO24
16 OUTPUT 5 SIO_GPO25
17 OUTPUT 6 SIO_GPO26
18 OUTPUT 7 SIO_GPO27
19 N.C.
20 External 24VDC Input
COM2
COM1
Isolated DIO
+
Power Switch
On / Off
(+)
COM4COM3
3 5
4 6
LAN6
PoE
LAN5
PoE
LAN4
PoE
LAN3
PoE
