Carina Easy User manual

Instruction Manual

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety should always be
followed, including the following:
(110-120V area) or 1 watts (220-240V area).
16.The sound pressure level under normal operating conditions is
7 dB(A).
17.Please turn off the machine or unplug when the machine is not
operating properly.
18.Never place anything on the foot controller.
19.If the supply cord that fixed with foot controller is damaged, it
must be replaced by the manufacturer or its service agent or a
similar qualified person in order to avoid a hazard.
20.This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
21.Children should be supervised to ensure that they do not play
with the appliance.
Read all instructions before using this sewing machine.
1. An appliance should never be left unattended when plugged in.
2. Always unplug this appliance from the electric outlet immediately
after using and before cleaning.
3. Always unplug before re-lamping. Replace bulb with same type
rated 10 watts
1. Do not allow to be used as a toy. Close attention is necessary
when this appliance is used by or near children.
2. Use this appliance only for its intended use as described in this
manual. Use only attachments recommended by the
manufacturer as contained in this manual.
3. Never operate this appliance if it has a damaged cord or plug, if it
is not working properly, if it has been dropped or damaged, or
dropped into water. Return the appliance to the nearest authorized
dealer or service center for examination, repair, electrical or
mechanical adjustment.
4. Never operate the appliance with any air openings block. Keep
ventilation openings of the sewing machine and foot controller
free from accumulation of lint, dust, and loose cloth.
. Keep fingers away from all moving parts. Special care is required
around the sewing machine needle.
6. Always use the proper needle plate. The wrong plate can cause
the needle to break.
7. Do not use bent needles.
8. Do not pull or push fabric while stitching. It may deflect the
needle causing it to break.
9. Switch the sewing machine off ("O") when making any adjustments
in the needle area, such as threading needle, changing needle,
threading bobbin, or changing presser foot, and the like.
10.Always unplug sewing machine from the electrical outlet when
removing covers, lubricating, or when making any other user
servicing adjustments mentioned in the instruction manual.
11.Never drop or insert any object into any opening.
12.Do not use outdoors.
13.Do not operate where aerosol spray products are being used or
where oxygen is being administered.
14.To disconnect, turn all controls to the off ("O") position, then
remove plug from outlet.
1 .Do not unplug by pulling on cord. To unplug, grasp the plug, not
the cord.
DANGER
SAVE THESE INSTRUCTIONS
- To r duc th risk of l ctric shock:
WARNING - To r duc th risk of burns, fir , l ctric
shock, or injury to p rsons:
This sewing machine is intended for household use only.

Congratulations
As the owner of a new sewing machine, you will enjoy precision quality stitching
on all types of fabrics, from multiple layers of denim to delicate silks.
Your sewing machine offers the ultimate in simplicity and ease of operation. For
your safety and to fully enjoy the many advantages and ease of operation of your
sewing machine, we recommend that you read all the important safeguards and
use and care instructions in this instruction book.
May we suggest that before you start to use your sewing machine, you discover
the many features and advantages by going through this instruction book, step by
step, while seated at your sewing machine.

List of cont nts
Details of the machine.............................................................2/3
Accessories ................................................................................4
Fitting the snap-in sewing table..................................................
Connecting machine to power source ........................................6
Changing the bulb ......................................................................7
Two-step presser foot lifter.........................................................8
Attaching the presser foot holder ...............................................9
Winding the bobbin...................................................................10
Inserting the bobbin..................................................................11
Inserting the needle (System 130/70 H) ..................................12
Threading the upper thread......................................................13
Thread tension .........................................................................14
Raising the bobbin thread ........................................................1
Matching needle/ fabric/ thread ................................................16
How to choose your pattern .....................................................17
Stitch length dial (2-dial model only) ......................................18
Sewing straight stitch ...............................................................19
Reverse sewing/ Removing the work/ Cutting the thread ........20
Blind hem/ lingerie stitch ..........................................................21
Sewing on buttons (1-dial model only) .....................................22
Sewing on buttons (2-dial model only) .....................................23
Sew 4-step buttonholes............................................................24
Zippers and piping....................................................................2
3-step zig-zag...........................................................................26
Applique ...................................................................................27
Monogramming and embroidering with Embroidery hoop*....28/29
Maintenance.............................................................................30
Trouble shooting guide.............................................................31

2

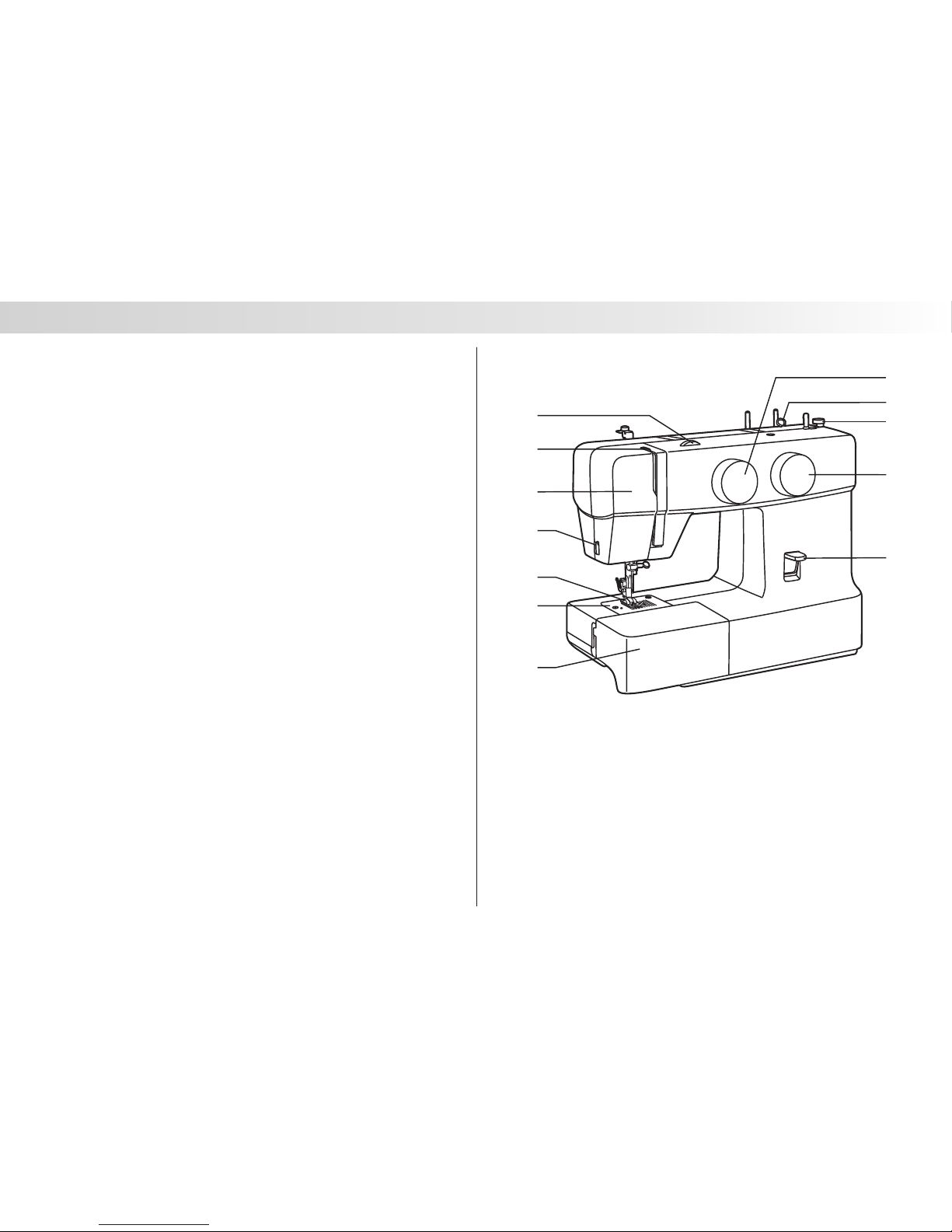

1. Thread tension dial
2. Thread take-up lever
3. Face plate
4. Thread cutter
. Presser foot
6. Needle plate
7. Sewing table and accessory box
8. Pattern selector dial
9. Thread guide
10. Bobbin stopper
11. Stitch length dial ( )
12. Reverse sewing lever
2-dial model
D tails of th machin
1
2
4
6
7
5
3
8
10
9
11
12

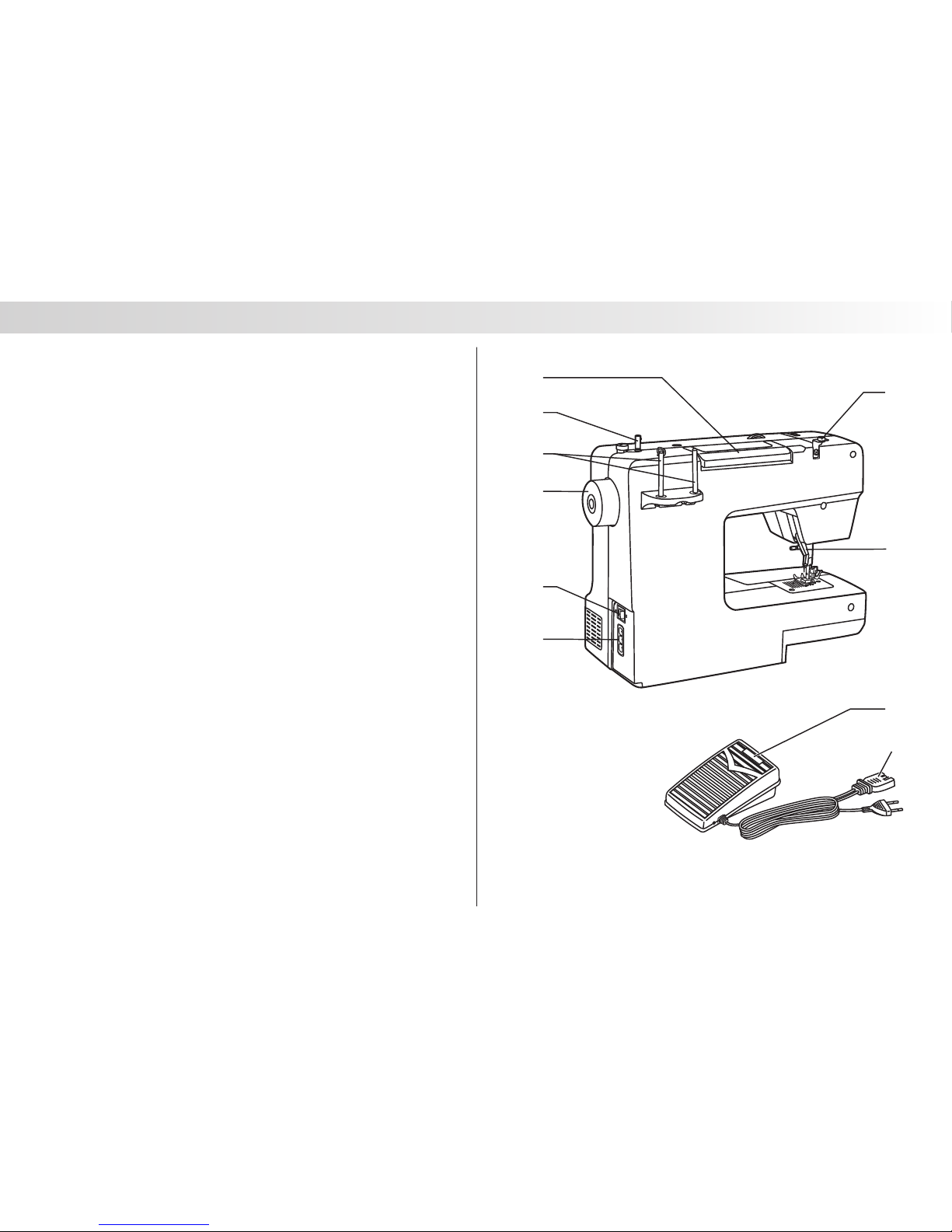

13. Handle
14. Bobbin winding spindle
1 . Spool pins
16. Handwheel
17. Power switch
18. Main plug socket
19. Bobbin thread guide
20. Presser foot lifter
21. Foot control
22. Power cord
3
D tails of th machin
13
14
16
18
19
17
15
20
21
22

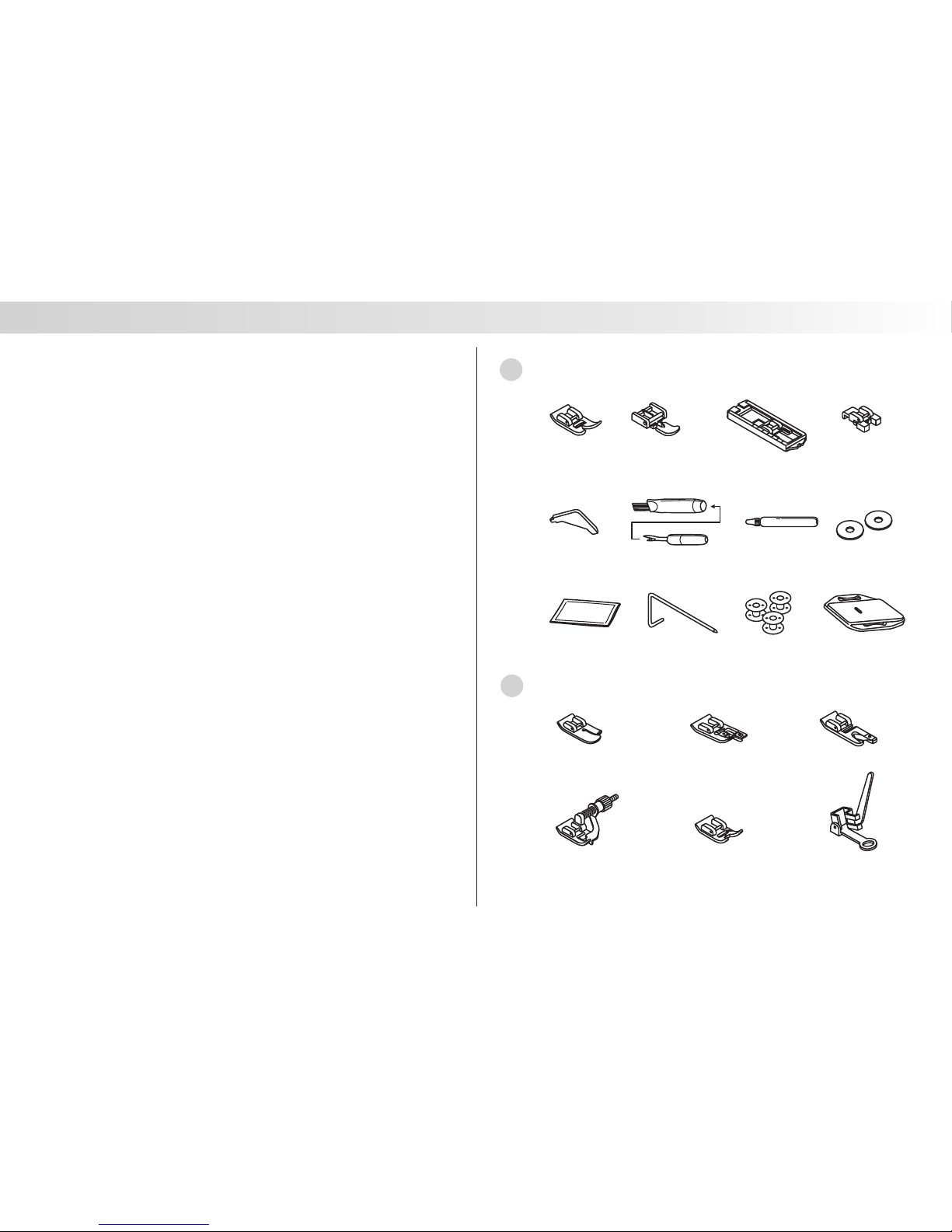

Acc ssori s
Standard acc ssori s (1)
a. All purpose foot
b. Zipper foot
c. Buttonhole foot
d. Button sewing foot
e. L-screwdriver
f. Seam ripper/ brush
g.
h. Spool pin felt (2x)
i. Pack of needles (3x)
j. Edge/ quilting guide
k. Bobbin (3x)
l. Darning plate
Oil bottle
m. Quilting foot
n. Overcasting foot
o. Hemmer foot
p. Blind hem foot
q. Satin stitch foot
r. Darning/ embroidery foot
Optional acc ssori s (2)
006800008
om
006916008
n
006803008
006016008
rp
006812008 006804008
q
Optional acc ssori s
4
Standard acc ssori s
1
2
a
006806008
b
00690 008
d
006914008
c
006909008
h
g
f
ij l
k

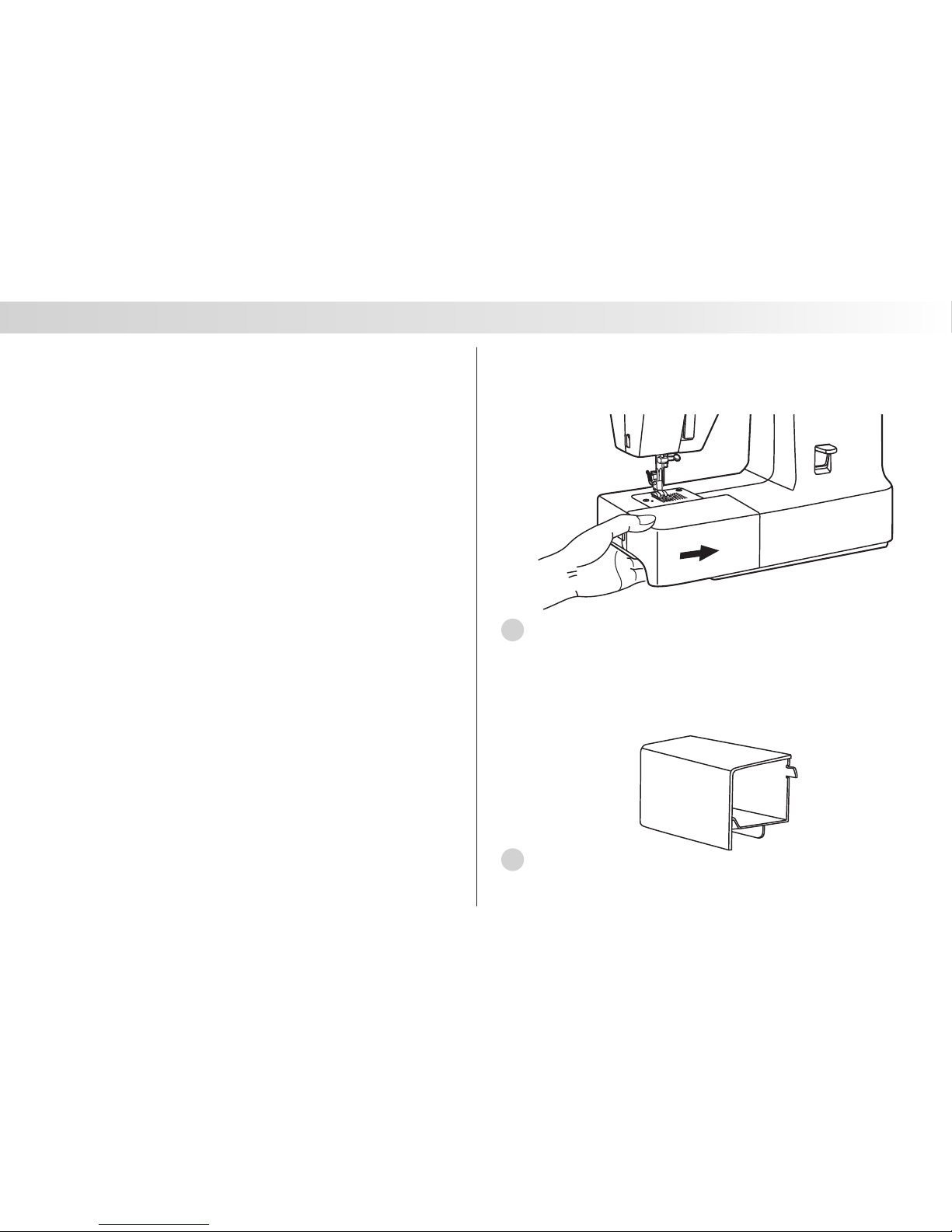

Keep the snap-in sewing table horizontal, and push it in the
direction of the arrow. (1)
The inside of the snap-in sewing table can be utilized as an
accessory box. (2)
5
1
2
Fitting th snap-in s wing tabl

A
Polarized attachment plug
Conductor ilntended
to be grounded
1
2 3
6
Conn cting machin to pow r sourc
Connect the machine to a power source as illustrated. (1)
For appliance is equipped with a polarized plug which must be
used with the appropriate polarized outlet. (2)
Unplug power cord when machine is not in use.
Foot control regulates the sewing speed. (3)
Consult a qualified electrician if in doubt as to connect
machine to power source.
Unplug power cord when machine is not in use.
Press main switch (A) for power and light on .
Att ntion:
Foot control
Att ntion:
S wing light
The foot control must be used with the appliance by FC-1902
(110-120V area)/ FC-2902A (220-240V area) manufactured by
ZHEJIANG FOUNDER MOTOR CORPORATION LTD. (China)
4C-316B (110-120V area)/ 4C-326G (230V area)
manufactured by Wakaho Electric Ind. Co., Ltd. (Vietnam)
(" l ")
For appliance with a polarized plug (one blade is wider than
the other). To reduce the risk of electric shock, this plug is
intended to fit in a polarized outlet only one way. If it does
not fit fully in the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install the proper outlet. Do
not modify the plug in any way. (2)
IMPORTANT NOTICE

7

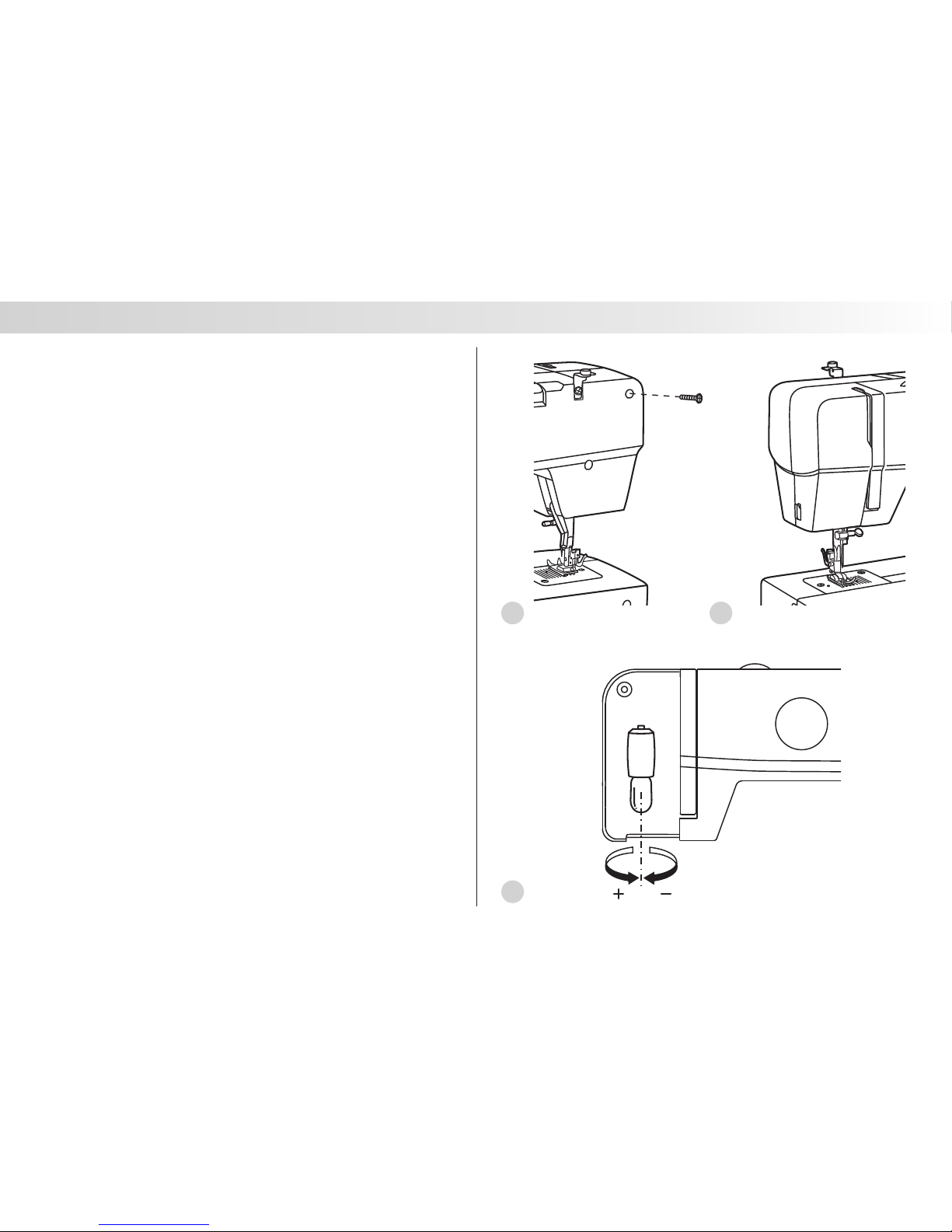

Changing th bulb
Disconnect the machine from the power supply by removing the
plug from the main socket!
- Loosen screw (A) as illustrated. (1)
- Unscrew the bulb and fit new one (C). (3)
- Replace the cover and tighten screw.
Should there be any problem. Ask your local dealer for advice.
Replace bulb with same type rated 10 watts(110-120V area) or
1 watts (220-240V area).
- Remove the (B). (2)face plate
1
3
2
B
A

8

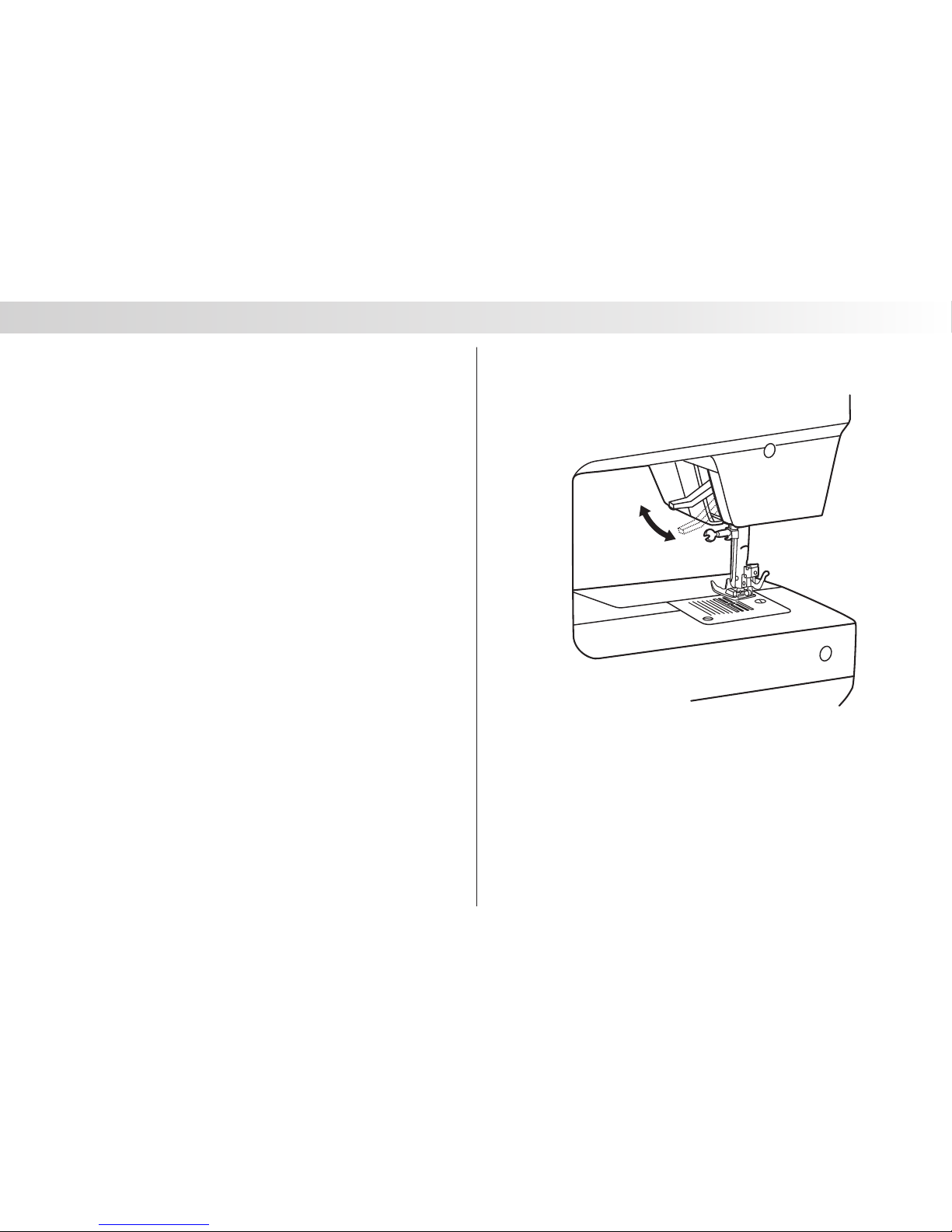

When sewing several layers or thick fabrics, the presser foot
can be raised a second stage for easy positioning of the work
.(A)
Two-st p pr ss r foot lift r
A

Raise the presser clamp (a) with the presser foot lifter. Attach
the presser foot holder (b) as illustrated. (1)
Lower the presser foot holder (b) using the presser foot lifter,
until the cut-out (c) is directly above the pin (d). (2) The presser
foot (f) will engage automatically.
Raise the presser foot using the presser foot lifter.
Raise the lever (e) and the foot disengages. (3)
Attach the edge/ quilting guide (g) in the slot as illustrated.
Adjust as needed for hems, pleats, quilting, etc. (4)
Turn power switch to off ("O") when carrying out any of the
above operations!
Attaching th pr ss r foot
R moving th pr ss r foot
Attaching th dg / quilting guid
Att ntion:
Attaching th pr ss r foot hold r
1
3
2
4
9
b
a
a
c
d
e
f
b
e
g

10
Winding th bobbin
- Place the thread and Spool pin felt (a) onto the spool pin. (1)
- Pass the thread through the thread guide. (2)
- Wind thread clockwise around bobbin winder tension discs. (3)
- Thread bobbin as illustrated and place on spindle. (4)
- Push bobbin spindle to right. ( )
- Hold thread end. (6)
- Step on foot control pedal. (7)
- Cut thread. (8)
- Push bobbin spindle to left (9) and remove.
When the bobbin winder spindle is in "bobbin winding" position,
the machine will not sew and the hand wheel will not turn. To
start sewing, push the bobbin winder spindle to the left (sewing
position).
Pl as Not :
12
5
34
6 87 9

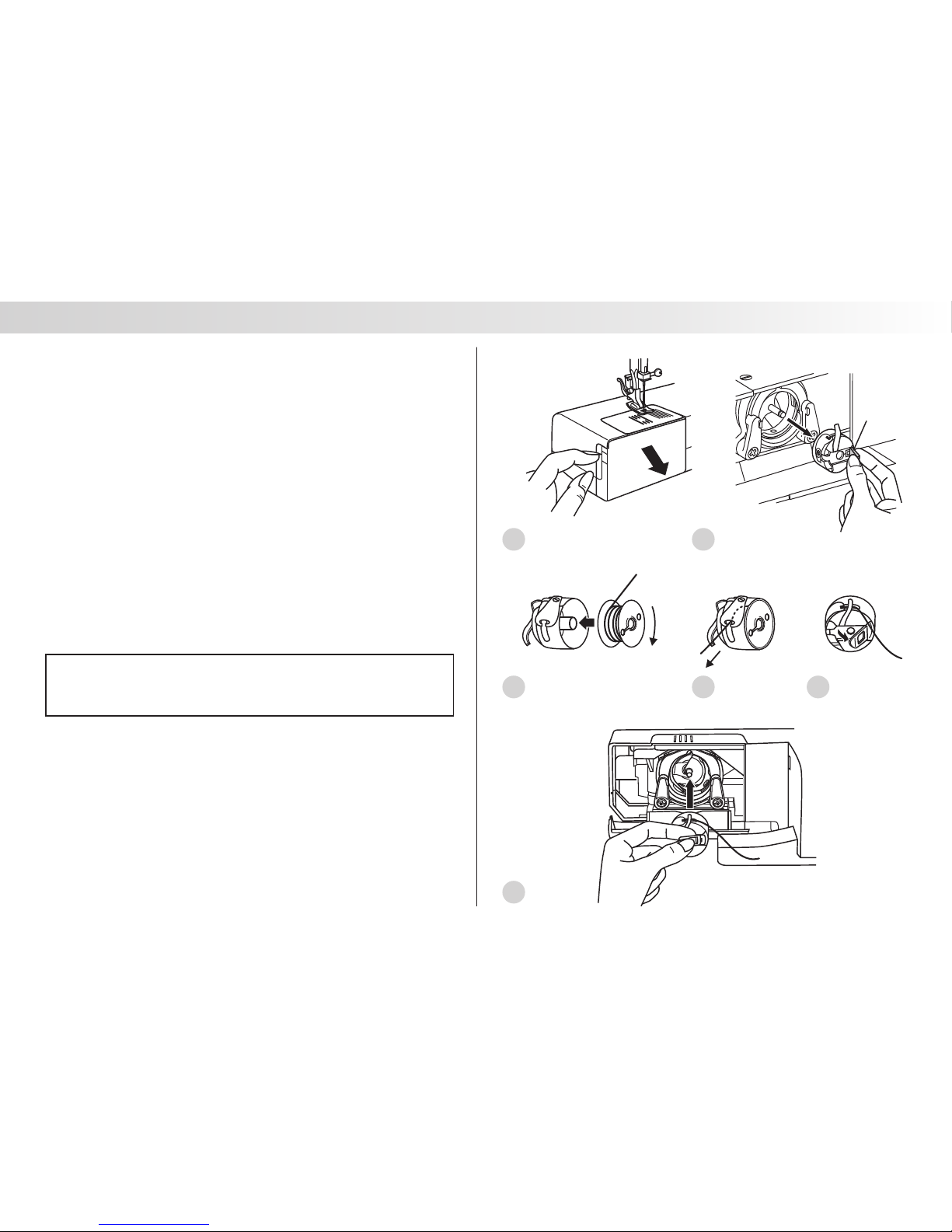

Ins rting th bobbin
Wh n ins rting or r moving th bobbin, th n dl must b
fully rais d.
Att ntion:
- Remove the sewing table, then open the hinged cover. (1)
- Pull the bobbin case tab (a) and remove the bobbin case. (2)
- Hold the bobbin case with one hand. Insert the bobbin so that
the thread runs in a clockwise direction (arrow). (3)
- Pull the thread through the slit and under the finger. (4) Leave
a 6 inch tail of thread.
- Hold the bobbin case by the hinged latch. ( )
- Insert it into the shuttle. (6)
Turn power switch to off ("O") before inserting or removing
the bobbin.
11
3 4 5
6
1 2
a

12
Change the needle regularly, especially if it is showing signs of
wear and causing problems.
Insert the needle as illustrated as follows:
A. Loosen the needle clamp screw and tighten again after
inserting the new needle. (1)
B. The flat side of the shaft should be towards the back.
C/D.Insert the needle as far up as it will go.
Turn power switch to off ("O") before inserting or removing
the needle.
Needles must be in perfect condition. (2)
Problems can occur with:
A. Bent needles
B. Damaged points
C. Blunt needles
Att ntion:
1
2
Ins rting th n dl (Syst m 130/705H)
A
B
C
D
ABC

13
Thr ading th upp r thr ad
This is a simple operation but it is important to carry out correctly
as by not doing so
- Start by raising the needle to its highest point (1), and
continue turning the handwheel counterclockwise until the
needle just slightly begins to descend. Raise the presser foot
to release the tension discs. (2)
For safety, it is strongly suggested you turn off the
power before threading.
- Place the thread and spool pin felt (a) onto the spool pin. (3)
- Draw thread from spool through the thread guide to the upper
thread guide. (4)
- Thread tension module by leading thread down right channel
and up left channel. ( ) During this process it is helpful to hold
the thread between the spool and thread guide.
- At the top of this movement pass thread from right to left
through the slotted eye of the take-up lever and then
downwards again. (6)
- Now pass thread behind the thin wire needle clamp guide (7)
and then down to the needle which should be threaded from
front to back.
- Pull about 6-8 inches of thread to the rear beyond the needle
eye. Trim thread to length with built in thread cutter. (8)
several sewing problems could result.
Not :
5
4
6 87

BA
CD
1 2
Thr ad t nsion
Upp r thr ad t nsion
Low r thr ad t nsion
Pl as not :
Basic thread tension setting: "4" (1)
To increase the tension, turn the dial to the next number up.
To reduce the tension, turn the dial to the next number down.
A. Normal thread tension for straight stitch sewing.
B. Thread tension too loose for straight stitch sewing. Turn dial
to higher number.
C.Thread tension too tight for straight stitch sewing. Turn dial to
lower number.
D.Normal thread tension for zig zag and decorative sewing.
Correct thread tension is when a small amount of the upper
thread appears on the bottom side of fabric.
(2)
To test the bobbin thread tension, remove the bobbin case and
bobbin and hold it by suspending it by the thread. Jerk it once or
twice. If the tension is correct, the thread will unwind by about
an inch or two. If the tension is too tight, it does not unwind at all.
If the tension is too loose, it will drop too much. To adjust, turn
the small screw on the side of the bobbin case.
- Proper setting of tension is important to good sewing.
- There is no single tension setting appropriate for all stitch
functions, thread or fabric.
- A balanced tension (identical stitches both top and bottom) is
usually only desirable for straight stitch construction sewing.
- 90% of all sewing will be between "3" and " ".
- For zig zag and decorative sewing stitch functions, thread
tension should generally be less than for straight stitch sewing.
- For all decorative sewing you will always obtain a nicer stitch
and less fabric puckering when the upper thread appears on
the bottom side of your fabric.
14

15

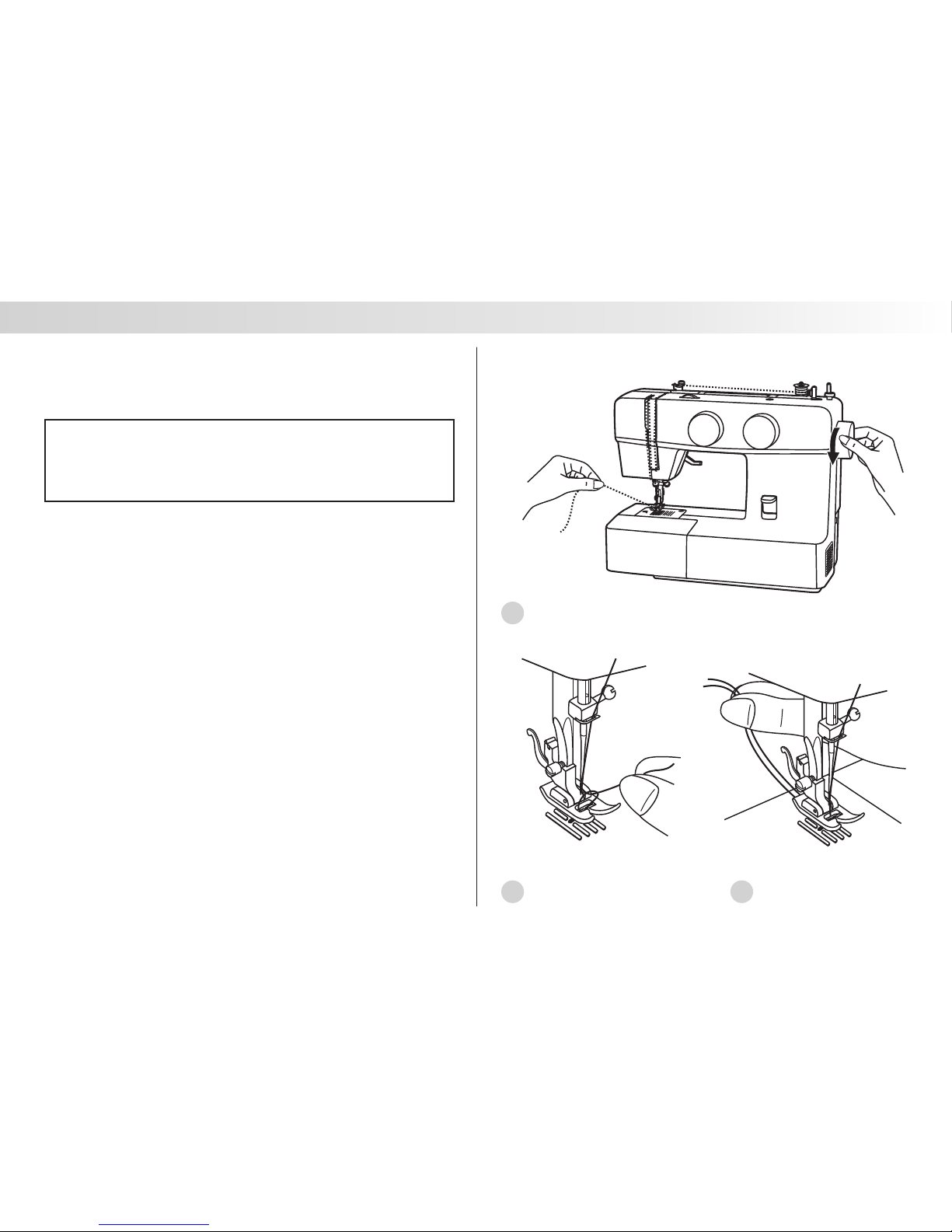

Raising th bobbin thr ad
Hold the upper thread with the left hand. Turn the handwheel (1)
towards you (counterclockwise) lowering, then raising needle.
If it is difficult to raise the bobbin thread, check to make sure
the thread is not trapped by the hinged cover or the sewing
table.
Gently pull on the upper thread to bring the bobbin thread up
through the needle plate hole. (2)
Lay both threads to the back under the presser foot. (3)
Not :
1
32

16
Standard sharp needles. Sizes range thin to large.
9 (6 ) to 18(110)
Semi-ball point needle, scarfed. 9(6 ) to 18(110)
Full ball point needle 9(6 ) to 18(110)
Leather needles. 12(80) to 18(110)
NEEDLE, FABRIC SELECTION
Not : 1. Twin needles, can be purchased for utility and decorative work.
2. When sewing with twin needles, the stitch width dial should be set at less than "3".
3. European needles show sizes 6 , 70, 80 etc. American and Japanese needles show size 9, 11, 12 etc.
4. Replace needle often (approximately every other garment ) and / or at first thread breakage or skipped stitches.
Natural woven fabrics-wool, cotton, silk, etc. Qiana.
Not recommended for double knits.
Natural and synthetic woven fabrics, polyester blends.
Knits-polyesters, interlocks, tricot, single and double knits. Can
be used instead of 1 1 for sewing all fabrics.
NEEDLES EXPLANATION TYPE OF FABRIC
Sweater knits, Lycra, swimsuit fabric, elastic.
Leather, vinyl, upholstery.
(Leaves smaller hole than standard large needle.)
NEEDLE, FABRIC, THREAD SELECTION GUIDE
NEEDLE SIZE FABRICS THREAD
9-11(6 -7 )
12(80)
Lightweight fabrics-thin cottons, voile, serge, silk, muslin, Qiana, interlocks,
cotton knits, tricot, jerseys, crepes, woven polyester, shirt & blouse fabrics.
Medium weight fabrics-cotton, satin, kettleclote, sailcloth, double knits,
lightweight woollens.
Medium weight fabrics-cotton duck, woolen, heavier knits, terrycloth, denims.
Heavyweight fabrics-canvas, woolens, outdoor tent and quilted fabrics,
denims, upholstery material (light to medium).
Heavy woollens, overcoat fabrics, upholstery fabrics, some leathers and vinyls.
IMPORTANT: Match needle size to thread size and weight of fabric
14(90)
16(100)
18(110)
Light-duty thread in cotton, nylon or
polyester.
Most threads sold are medium size and
suitable for these fabrics and needle sizes.
Use polyester threads on synthetic
materials and cotton on natural woven
fabrics for best results. Always use the
same thread on top and bottom.
Heavy duty thread, carpet thread.
(Use heavy foot pressure-large numbers.)
HA 1
1 1
1 1/70 H(SUK)
1 1/70 H(SUK)
130 PCL
Matching n dl / fabric/ thr ad

How to choos your patt rn
17
To select a stitch, simply turn the pattern selector dial (a). The
pattern selector dial may be turned in either direction. The
following page shows the recommended range of stitch lengths.
Adjust the stitch length with the stitch length dial (b) according to
the fabric being used. ( only)
a. Pattern selector dial
b. Stitch length dial ( )
c. Reverse sewing lever
2-dial model
2-dial model
c
ab
1 dial
stitch patt rns)(8
2 dials
stitch patt rns)(9
3
1
4
2
3
1
4
2
Mod l Stitch patt rns
