Table of contentsTable of contents
Introduction
Introduction ........................................................................................................................................... 58
Intended use ......................................................................................................................................... 58
Sewing machine components............................................................................................................... 58
Accessories .......................................................................................................................................... 58
Technical data....................................................................................................................................... 59
Important safety instructions
Important safety instructions................................................................................................................. 60
Getting ready
Connecting machine to power source ...................................................................................................61
Installing the snap-in sewing table........................................................................................................ 62
Inserting the needle .............................................................................................................................. 62
Two-step presser foot lifter ................................................................................................................... 63
Attaching the presser foot holder.......................................................................................................... 63
Winding the lower thread ...................................................................................................................... 64
Inserting the bobbin .............................................................................................................................. 64
Threading the upper thread .................................................................................................................. 65
Automatic needle threader.................................................................................................................... 66
Thread tension.......................................................................................................................................67
Bringing up the lower thread..................................................................................................................67
Sewing basics
Sewing / Useful applications................................................................................................................. 68
Matching the needle, fabric and thread................................................................................................. 69
How to choose your stitch......................................................................................................................70
Straight stitching and needle position ....................................................................................................70
Zigzag stitching......................................................................................................................................71
Zipper foot..............................................................................................................................................71
Invisible zipper application.....................................................................................................................72
Blind stitch .............................................................................................................................................73
Button sewing foot .................................................................................................................................73
Buttonhole foot.......................................................................................................................................74
Overlock stitches ...................................................................................................................................75
3-step zigzag .........................................................................................................................................75
Stretch-stitch..........................................................................................................................................76
Patch work .............................................................................................................................................76
Monogramming and embroidering with embroidery hoop* ................................................................... 77
Applique.................................................................................................................................................78
Scallop stitching.....................................................................................................................................78
Maintenance
Maintenance ..........................................................................................................................................79
Storage ..................................................................................................................................................79
Trouble shooting guide.......................................................................................................................... 80
Disposal / Guarantee / Service / Manufacturer
Disposal .................................................................................................................................................81
Guarantee..............................................................................................................................................81
Service number .................................................................................................................................... 82
Manufacturer......................................................................................................................................... 82

GB / IE / NI58
IntroductionIntroduction
Introduction
Congratulations on the purchase of your sewing machine. You have bought a top quality product
which has been manufactured with great care.
These Operating Instructions contain all you need to know about using your sewing machine.
However, if you still have any questions, please contact your dealer. We hope you enjoy your
sewing machine and wish you success.
Before you use the sewing machine for the rst time, it is essential that you make yourself fully
familiar with the functions of the sewing machine and discover how to use the sewing machine
correctly. Read the following Operating Instructions as well as the safety instructions. Keep these
instructions in a safe place. When passing the sewing machine on to a third party, pass these
instructions on, too.
Intended use
The sewing machine is intended ...
- for use as a movable machine
- for sewing typical household textiles
- only for private household use
The sewing machine is not intended ...
- to be installed at a xed location
- for the processing of other materials (e.g. leather or other heavy materials such as tent or sail
fabrics)
- for commercial or industrial use

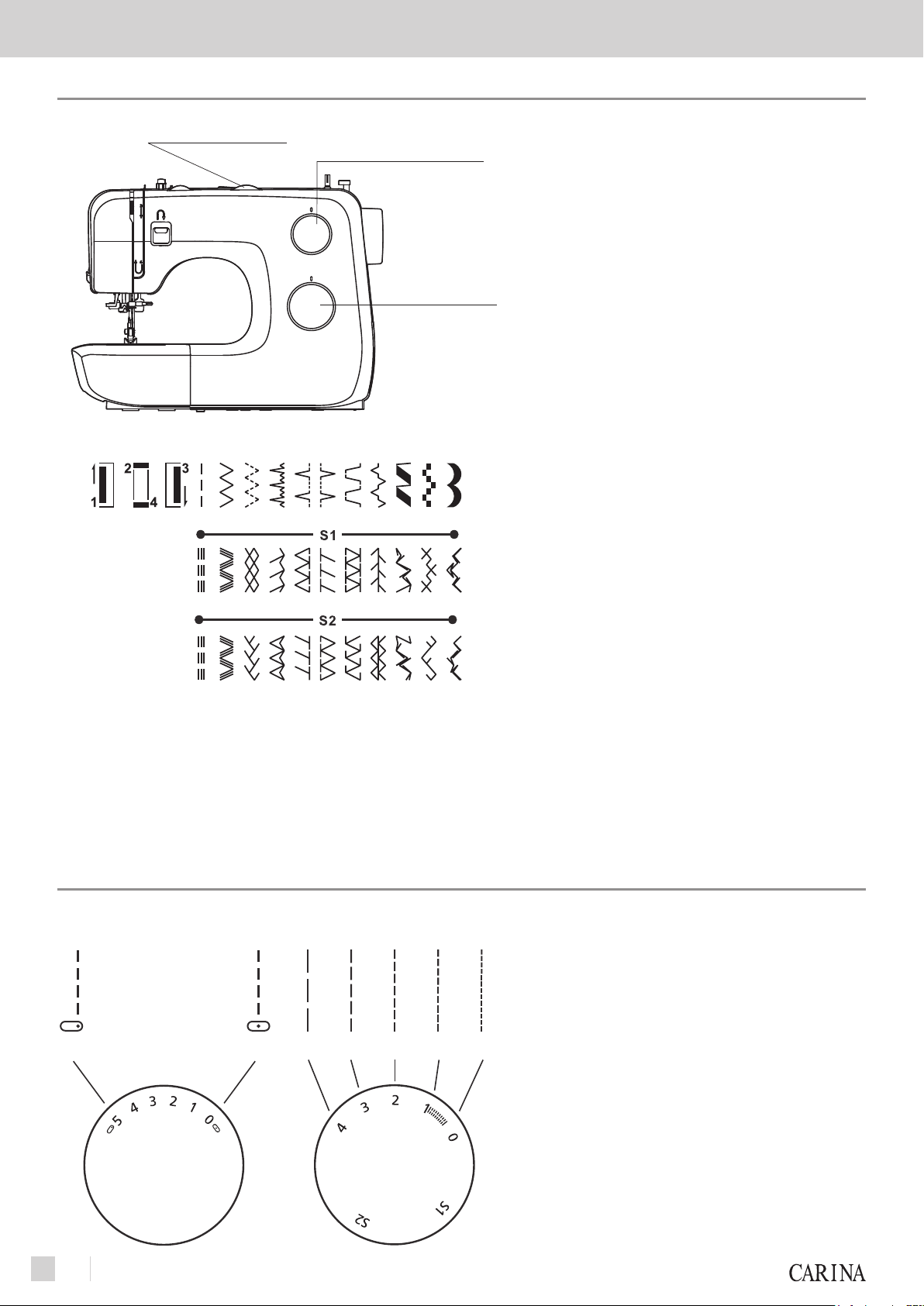

Sewing machine components
1Thread take-up lever 12 Reverse sewing lever
2Bobbin thread guide 13 Bobbin winder stopper
3Thread tension dial 14 Bobbin winder spindle
4Needle width dial 15 Spool pin
5Stitch length dial 16 Upper thread guide
6Pattern selector dial 17 Handle
7Sewing table 18 Two-step presser foot lifter
8Needle plate 19 Main plug socket
9Presser foot 20 Power switch
10 Automatic needle threader 21 Hand wheel
11 Thread cutter 22 Hole for second spool pin

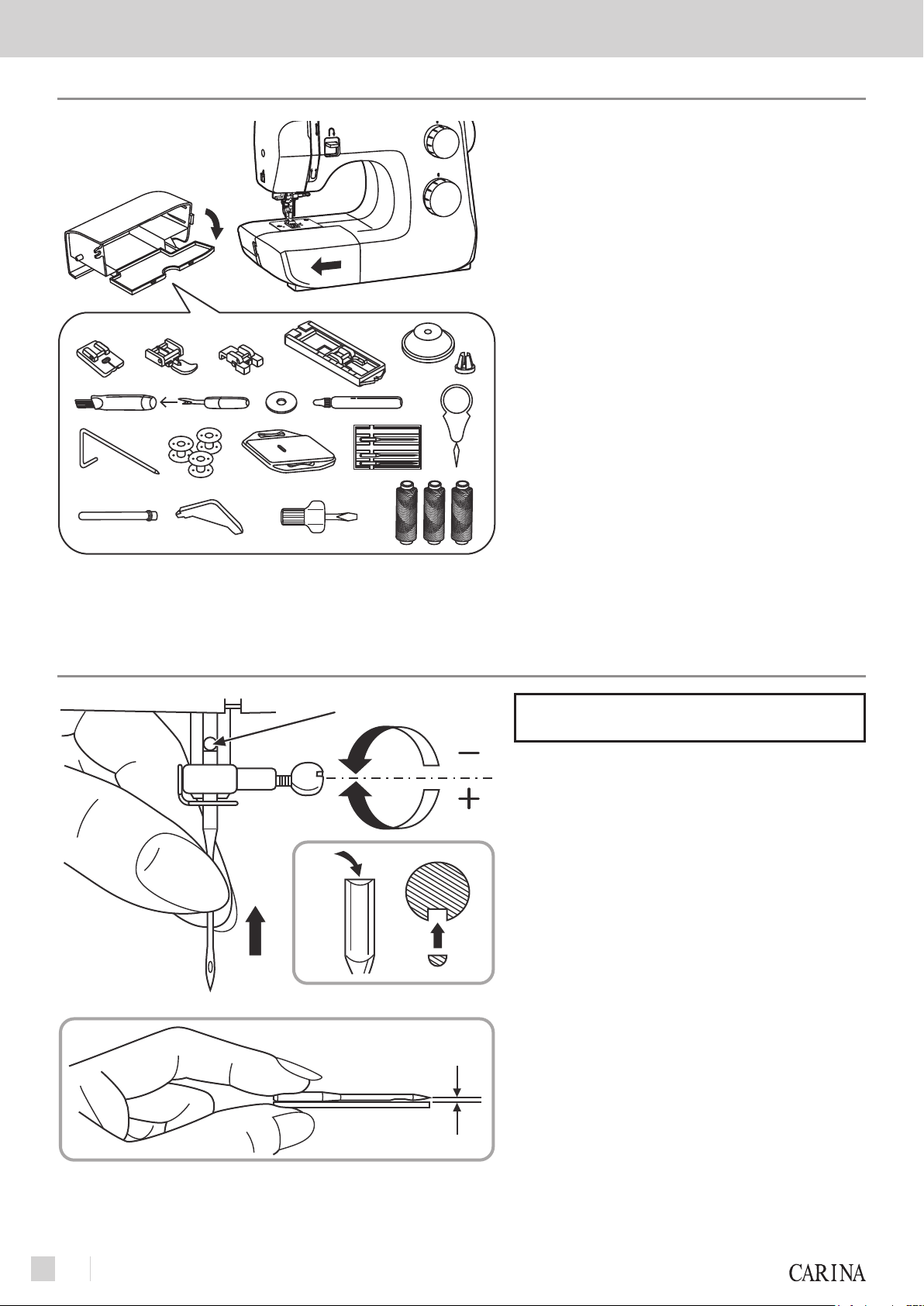

Accessories
aAll-purpose presser foot (already installed) kL-screwdriver
bInvisible zipper foot lScrewdrivers
cZipper foot mBobbins(1x blue, 1x pink, 1x yellow)
dButton sewing foot nStitch ripper / brush
eButtonhole foot oEmbroidery and darning plate
fNeedle threader pEdge / quilt guide
gBobbins(4x)(1x already installed) qSecondary spool pin
hFelt cushion rSpool pin cap(large & small)
iOil bottle sDust cover
jNeedle box: 3x single needles(90/#14) tFoot pedal / power plug
(1x already installed), 1x single needle(75/#11)

GB / IE / NI 59
Introduction
Technical data
Rated voltage 230 Volt/ 50 Hz
Power rating - Total 70 Watt
Dimensions - When handle is folded down Approx. 388x275x169 mm (LxHxW)
Cable length - Power cable Approx. 1.8 m
- Foot control cable Approx. 1.4 m
Weight - Machine Approx. 5.6 kg
Material Aluminium / plastic
Operating components - Mains power switch ON/OFF Supplied
- Foot pedal for sewing speed Supplied
Display components - Sewing light Supplied
Looper system Oscillating hook
Needle system 130/705H
Interference-free In acc. with EU Directive
TÜV SÜD approved Yes
Product guarantees 3 years
Protection class II

GB / IE / NI60
Important safety instructionsImportant safety instructions
Important safety instructions
When using an electrical appliance, the basic safety instructions should always be followed.
Read all Operating Instructions before using this sewing machine.
DANGER - To reduce the risk of electric shock:
1. The sewing machine should never be left unattended when plugged in.
2. Always remove the plug from the socket immediately after use as well as before cleaning and
other maintenance.
WARNING - To reduce the risk of burns, re, electric shock, or injury to persons:
1. Read the instruction carefully before you use the machine
2. Keep the instructions at a suitable place close to the machine and hand it over if you give the
machine to a third party.
3. Use the machine only in dry locations.
4. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
5. Children shall not play with the appliance.
6. Cleaning and user maintenance shall not be made by children without supervision.
7. Always switch off the machine if you carry out preparation for work (change the needle, feed
the yarn through the machine, change the footer, etc.).
8. Always unplug the machine if you leave it unattended, to avoid injury by expediently switch on
the machine.
9. Always unplug the machine if you changing the lamp or carry out maintenance (oiling, cleaning).
10. Don't use the machine if it’s wet or in humid environment.
11. Never pull at the cord, always unplug the machine by gripping the plug.
12. If the LED lamp is damaged or broken, it must be replaced by the manufacturer or its service
agent or a similarly qualied person, in order to avoid a hazard.
13. Never place anything on the pedal.
14. Never use the machine if the air vents are blocked, keep the air vents of the machine and the
food pedal free from dust, fusel and leftovers.
15. The machine must only be used with designated foot controller, in order to avoid a hazard. If
the foot controller is damaged or broken, it must be replaced by the manufacturer or its service
agent or a similarly qualied person.
16. The sound pressure level at normal operation is smaller than 75dB(A).
17. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities.
18. Contact your local government for information regarding the collection systems available.
19. If electrical appliances are disposed of in landlls or dumps, hazardous substances can leak
into the groundwater and get into the food chain, damaging your health and well-being.
20. When replacing old appliances with new ones, the retailer is legally obligated to take back your
old appliance for disposal at least for free of charge.
SAVE THESE INSTRUCTIONS
This sewing machine is intended for household use only.
Be sure to use the sewing machine in the temperature range from 5ºC to 40ºC.
If the temperature is excessively low, the machine can fail to operate normally.

GB / IE / NI 61
Getting ready
Connecting machine to power source
Important:
Unplug power cable when machine is not
in use.
Important:
Consult a qualied electrician if in doubt
about connecting the machine to the
power source. Unplug power cable if you
are not using the power supply.
The sewing machine must be used with
the ELECTRONIC foot pedal (t) FC-
2902D (220-240V), 4C-326G (230V),
4C-336G(220-240V).
Connect the machine to a power source
as illustrated in the adjacent drawing.
Illumination
The machine is started and the light
switched on by pressing the main switch
(20) in position " l ".
Foot pedal
The operating speed of the machine is
regulated with the pedal (t).
20
Getting ready

GB / IE / NI62
Important safety instructions
Installing the snap-in sewing table
If you want to sew on the arm bed, pull
out the snap-in sewing table (7) in the
direction of the arrow.
Inserting the needle
Important:
Turn the power switch (20) to off ("O").
Change the needles regularly, especially
at the rst signs of problems when sewing.
Insert the needle as in the illustration.
A. Loosen the needle clamp screw and
tighten again after inserting the new
needle.
B. The at side of the shaft should be
towards the back.
C/D. Insert the needle up to the stop at the
end of the shaft.
Only use fully-functional needles:
Problems can occur with the use of:
- Bent needles
- Blunt needles
- Damaged points
A
B
C
D
The inside of the snap-in sewing table (7)
can be utilised as an accessory box.
The included accessories can be found
inside the snap-in compartment.

GB / IE / NI 63
Important safety instructions
Two-step presser foot lifter
When sewing thick fabrics, the passage
of fabrics under the presser foot can be
improved by raising the two-step presser
foot lifter (18) further (arrow).
Attaching the presser foot holder
Important:
Turn the power switch (20) to off ("O")
when carrying out all the operations!
1. Install the presser foot holder
Raise the presser bar (A) by lifting the
two-step presser foot lifter (18). Attach
the presser foot holder (B) as illustrated.
2. Inserting the presser foot
Lower the presser foot bar (A) until the
groove (C) is directly above the pin (D).
Lower the presser foot bar (A) as far
as it will go. The presser foot (a) will
engage automatically.
3. Removing the presser foot
Raise the presser foot.
Press the lever (E) gently towards the
front and the presser foot disengages.
4. Inserting the edge/ quilt guide (p)
As shown in the illustration carefully
insert the edge/ quilt guide (p) e.g. For
hems, pleats, etc.
C
D
E
a
E
p
B
A
21
34
