Carlton C16VB09E User manual

C16VB09E
GB
FR
CZ
SK
TR
BAGLESS CYLINDER VACUUM CLEANER
INSTRUCTION MANUAL
TORBASIZ SİLİNDİR ELEKTRİKLİ SÜPÜRGE
KULLANIM EL KİTABI
ASPIRATEUR CYLINDRIQUE SANS SAC
MANUEL D’INSTRUCTIONS
BEZSÁČKOVÝ VÁLCOVÝ VYSAVAČ
NÁVOD K OBSLUZE
BEZSÁČKOVÝ CYKLÓNOVÝ VYSÁVAČ
NÁVOD NA POUŽÍVANIE

Contents GB
Unpacking....................................................................................3
Product Overview.........................................................................4
Preparation Before Use.................................................................5
Operation.....................................................................................5
Powering Off and Storage ............................................................6
Emptying the Bin .........................................................................6
Cleaning the HEPA filter unit........................................................6
Cleaning the Motor Protection Filter ............................................7
Cleaning the Exhaust Filter...........................................................8
Specifications...............................................................................8
Safety First!................................................................................33
Contenu FR
Déballage ....................................................................................9
Présentation du produit.............................................................10
Préparations avant l’utilisation ..................................................11
Fonctionnement ........................................................................11
Arrêt et rangement....................................................................12
Vidage du compartiment des déchets........................................12
Nettoyage du support de filtre HEPA..........................................13
Nettoyage du filtre de protection du moteur..............................13
Nettoyage du filtre d’échappement............................................14
Spécifications ............................................................................14
La sécurité en priorité ! ..............................................................33
Obsah CZ
Vybalení.....................................................................................15
Rozkreslení výrobku...................................................................16
Příprava před použitím...............................................................17
Obsluha......................................................................................17
Vypnutí a uložení .......................................................................18
Vyprázdnění zásobníku..............................................................18
Čištění filtru HEPA ......................................................................18
Čištění ochranného filtru motoru...............................................19
Čištění filtru vyfukovaného vzduchu ..........................................20
Technické údaje..........................................................................20
Bezpečnost především! ..............................................................34
Obsah SK
Rozbalenie.................................................................................21
Prehľad výrobku.........................................................................22
Príprava pred používaním ..........................................................23
Obsluha......................................................................................23
Vypnutie a skladovanie..............................................................24
Vyprázdnenie vrecka..................................................................24
Čistenie jednotky HEPA filtra......................................................24
Čistenie filtra na ochranu motora...............................................25
Čistenie výstupného filtra ..........................................................26
Technické údaje..........................................................................26
Bezpečnosť je najdôležitejšia!....................................................34
İçindekiler TR
Paketten çıkarma ......................................................................27
Ürüne Genel Bakış .....................................................................28
Kullanımdan Önce Hazırlama ...................................................29
Çalışma......................................................................................29
Kapatma ve Saklama..................................................................30
Kutuyu Boşaltma........................................................................30
HEPA filtresi ünitesini temizleme ...............................................30
Motor Koruma Filtresini Temizleme ...........................................31
Çıkış FiltresiniTemizleme ...........................................................32
Özellikler ...................................................................................32
Önce Güvenlik! ..........................................................................35

3
GB
Unpacking
Remove all packaging from the vacuum cleaner. Retain the packaging. If you dispose of it
please do so according to any local regulations.
The following items are included:
Congratulations on the purchase of your new Carlton Vacuum Cleaner.
We recommend that you spend some time reading this instruction manual in
order to fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this instruction
manual for future reference.
The Main Unit
Hard Floor Brush
(P.N.: CH812B-HF)
Hose
(P.N.: CH812B-HS)
Combination Nozzle
(P.N.: CH812B-CN)
Telescopic Tube
(P.N.: CH812B-TB)
Instruction Manual
(P.N.: CH812B-IM)

4
GB
1
2
4
3
7
8
9
10
13
5
6
11
12
14 15
16
17
19
20 21
22
23 24
25
26
27
18
Handle
Hose connection opening
Rear wheels
Cover
Motor Protection Filter
HEPA filter unit
Top
Mesh guard
HEPA filter
Base
Lever clasps
Bin
Bin handle
ON/OFF button
Cord rewind button
Grill
Exhaust filter
Mains plug
Handgrip
Clip
Wheel
Handgrip of hose
Hose connector
Hose
Telescopic tube
Combination nozzle
Hard floor brush
1 15
2 16
5 19
7 21
9 23
11 25
13 27
3 17
6 20
8 22
10 24
12 26
14
4 18
Product Overview

5
GB
Preparation Before Use
To connect the hose, insert the hose connector into the hose1.
connection opening until you hear‘click’ sound.
To connect the telescopic tubes to the handgrip of2.
the hose, insert the narrow section into the wider
section while turning a little.
Extend the telescopic tube to a length you find3.
the most comfortable by pressing the button
located on the telescopic tube.
Connect a nozzle/brush suitable for the floor type to be4.
cleaned. The hard floor brush can be used with brush strips
lowered or raised. You may also connect the combination
nozzle to vacuum corners, slots or grooves. It can also be
used as a brush nozzle by turning the brush out in the
direction of the arrow.
Operation
Hold the mains plug and pull the retractable mains cable out of the vacuum cleaner.1.
Connect it to the mains socket. The YELLOW mark indicates the ideal length to extend
the cable. Do not extend the mains cable beyond the RED mark which indicates the
maximum length.
Press the ON/OFF button on the top of the vacuum cleaner to turn it on.2.
To move the vacuum cleaner from room to room, you can unplug and carry it by either3.
the handle or the handgrip. Never use the mains cable to pull the vacuum cleaner.

6
GB
Powering Off and Storage
Press the ON/OFF button on the top of the1.
vacuum cleaner to turn it off and then remove the
mains plug from the mains socket.
Press the cord rewind button to rewind the2.
retractable mains cable.
Put the vacuum cleaner in an upright position3.
and attach the telescopic tube to the clip on the
vacuum cleaner.
Emptying the Bin
Always unplug the vacuum cleaner from the
mains socket before emptying the bin.
Remove the hose connector from the cleaner.1.
Unclip the lever clasps and open the cover.
Use the bin handle to turn the bin anti-clockwise2.
till it stops, then lift the bin up.
To prevent the dust dispersing, lower the bin into3.
your dustbin. Take out the filter unit to empty the
bin.
If you find the filter unit is blocked or dirty, follow4.
the steps in“Cleaning the HEPA Filter unit”. If not,
skip this step.
Relocate the filter unit back into the bin and then5.
put them back to the vacuum cleaner by aligning the tabs at the bottom of the bin
with the slots on the vacuum cleaner. Turn the bin clockwise with the bin handle until
it locks in place.
Close the cover and clip the lever clasps.6.
Cleaning the HEPA filter unit
Always unplug the vacuum cleaner from the mains
socket before cleaning.
To take out the filter unit from the bin, tilt it a bit to1.
get the base past the inlet.
Hold the base then untighten the top of the filter unit.2.

7
GB
Lift the mesh guard from the HEPA filter and shake out the dust accumulated on the3.
mesh guard gently over your dustbin. You may rinse it gently under a running tap.
Shake out the dust accumulated on the HEPA filter. You may soak it in warm soapy4.
water for a few minutes, and then rinse it under a running tap to remove all traces of
soap. Do not reassemble the filter unit until it is completely dry.
To reassemble the filter unit, hold the mesh guard with5.
the arrows pointing up, and lower it over the HEPA
filter.
Fit the top of the filter unit to the top of the HEPA filter,6.
and turn it clockwise. Do not over-tighten it.
Relocate the filter unit back in the bin again, tilt it a bit7.
to get the base past the inlet.

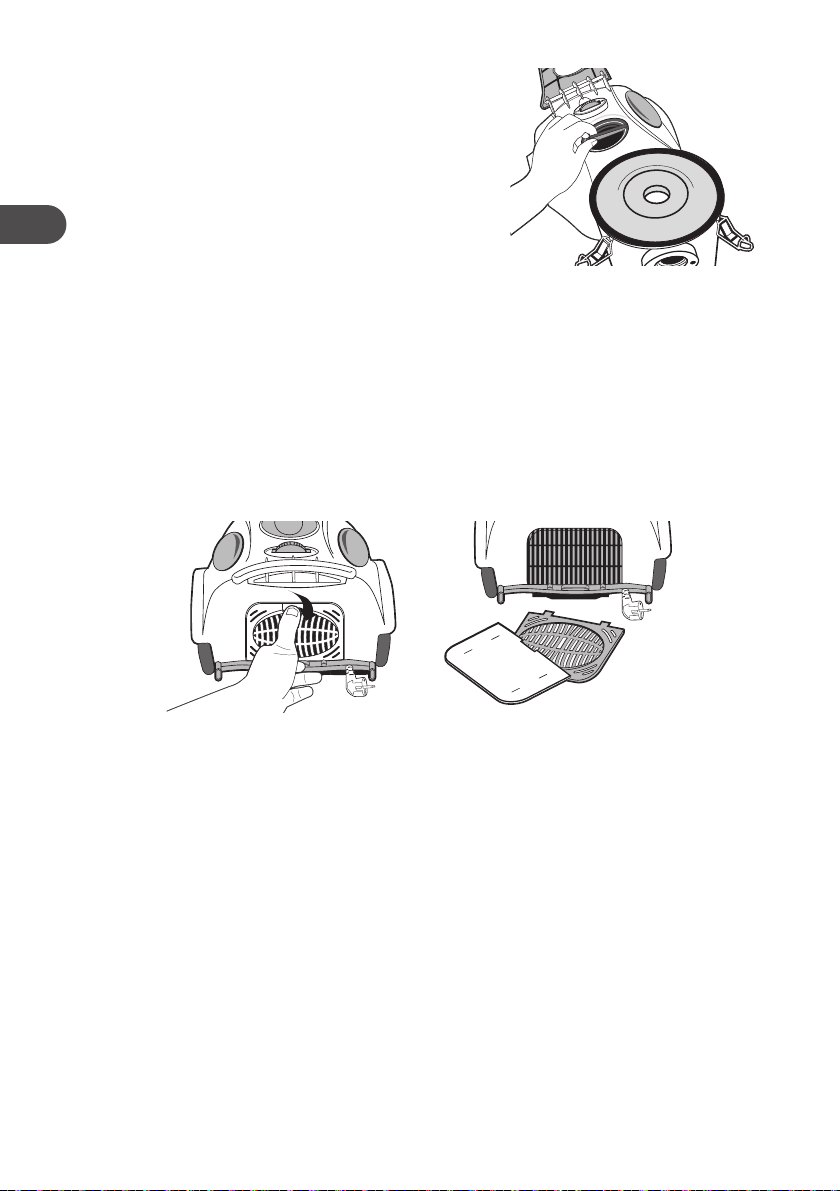

Cleaning the Motor Protection Filter
The motor protection filter should be cleaned twice a year, or when it appears to be
visibly clogged.
Always unplug the appliance from mains socket before replacing the filter.
Unclip the lever clasps and open the cover.1.
Take out the motor protection filter.2.
Shake out the dust accumulated on the filter into a dustbin.3.
Relocate the filter back. Close and clip the cover.4.

8
GB
Cleaning the Exhaust Filter
Always unplug the appliance from mains socket before replacing the filter.
Unclip the grill and take out the exhaust filter.1.
Shake out the dust accumulated on the filter into a dustbin.2.
Relocate the filter and the grill.3.
Specifications
Supply voltage: 230-240V~50Hz
Power input: 1200-1400W (1600 MAX)
Dust capacity: 2.5L
We continually strive to improve our products, specifications may change without
prior notice.

9
FR
Déballage
Déballez tous les matériaux d’emballage de l’aspirateur. Conservez l’emballage. Si vous le
jetez, veuillez respecter les règles de recyclage.
Les éléments suivants sont inclus :
Nous vous félicitons d’avoir acheté votre nouvel aspirateur Carlton.
Nous vous conseillons de consacrer un peu de temps à lire dans l’ordre ce
manuel d’instructions afin de vous familiariser avec toutes les fonctions
offertes par votre nouvel aspirateur.
Lisez attentivement toutes les instructions de sécurité avant l’utilisation et
conservez ce manuel d’instructions pour toute future référence.
Unité Principale
Brosse pour Sols Durs
(Numéro de pièce : CH812B-HF)
Tuyau
(Numéro de pièce : CH812B-HS)
Bec Multifonctionnel
(Numéro de pièce : CH812B-CN)
Tube Télescopique
(Numéro de pièce : CH812B-TB)
Manuel d’Instructions
(Numéro de pièce : CH812B-IM)

10
FR
1
2
4
3
7
8
9
10
13
5
6
11
12
14 15
16
17
19
20 21
22
23 24
25
26
27
18
Poignée
Orifice de connexion du tuyau
Roues arrière
Couvercle
Filtre de protection du moteur
Support du filtre HEPA
Couvercle
Protection en mailles
Filtre HEPA
Base
Loquets
Compartiment des déchets
Poignée du compartiment des
déchets
Bouton MARCHE/ARRET
Bouton d’enroulement
du câble
Grille
Filtre d’échappement
Câble d’alimentation
Poignée
Clip
Molette
Poignée de tuyau
Connecteur de tuyau
Tuyau
Tube télescopique
Bec multifonctionnel
Brosse pour sols durs
1 15
2
16
5
19
7
21
9
23
11
25
13
27
3
17
6
20
8
22
10
24
12
26
14
4
18
Présentation du produit
