1. SAFETY PRECAUTIONS
1.1. General
The 39HQ air handling units (AHUs) has been de-
signed and manufactured in accordance CE directive
EN292. In order to guarantee safe operation and use
of the unit, please carefully read and observe the in-
structions in this document and pay special attention
-
tions in the design and/or installation of the AHU that
are carried out without discussion with Alarko Carrier
and without advance written agreement will result in
the loss of the right to any warranty claims and any
claim for injury to personnel as a result of these modi-
Maintenance procedures may only be carried out by
are manufactured and supplied in accordance with
guidelines of the Pressure Equipment Directive
(PED).
CE declarations of AHU’s can be found at www.
alarko-carrier.com.tr website.
1.2. Applications
AHUs are designed for the movement and condition-
ing of air, unless otherwise agreed during the design
stage.
1.3. Cautions
The following warning pictogram and labels are used
on the unit.
Lifting Point
This label shows where the AHU can be lifted with
support beams. Support beams shall be used with
cranes. If forklifts are used for lifting, support beams
cannot be used.
Transporting from Side Base
It is not allowed to place lifting devices for transport
Earthing
This pictogram indicates where the AHU must be
earthed and is on one of the support beams beneath
the casing in the fan section.
- The electrical components in the AHU must be
earthed, except for components with double in-
sulation and/or components with a supply voltage
below 50 V.
- The electrical components must be installed in ac-
cordance with national and local regulations.
Rotating Parts
This pictogram indicates that there are rotating parts
behind this access cover, door or panel which may
cause injury. The components that include rotating
parts are the fan and heat recovery wheel. If there
doors, access covers or panels that include rotating
parts and pose a potential risk, this is also indicated
by this pictogram.
Hot Surfaces
This pictogram indicates that there are components
behind this access / guard cover, door or panel that
can cause serious burns when touched.
The components that may have hot surfaces are the
-
behind doors, access / guard covers or panels that
have hot surfaces and pose a potential risk, this is
also indicated by this pictogram.
8
Electric Voltage
This pictogram indicates that there are electrical com-
ponents behind this access cover, door or panel that
may be dangerous for the user/installer. Only per-
permitted to carry out work on these components.
The pictogram is attached to the access cover for the
electric heater control box.
Z Proles
This pictogram is located at the bottom of the fan sec-
during commissioning before the fan is started up.
Capacity Label
This label contains the data for the AHU, such as or-
der number, type of AHU, etc. The label is normally
located on the door of the fan cell or on the access
cover.
Opening the Fan Cell
This pictogram is positioned on the outside of the
door or access/guard cover of the fan assembly.
This pictogram warns that the fan must have been
minutes before the door or access / guard cover is
opened.
Caution: All doors and access / guard covers must be
closed before starting up the AHU.
Cell Matching Label
This label shows that matching surfaces of AHU units
for assembly. It is located at bottom right and left cor-
ner of the units. Sample label is above.
Lifting and Transport
An instruction is attached to the AHU describing the
procedures that must be followed for lifting and trans-
port. For further details on this subject, see Chapter
2.
Packing materials must be disposed of in a respon-
sible manner end in accordance with local regula-
tions.
2. TRANSPORT & LIFTING IN-
STRUCTIONS
2.1. General
Transport and lifting of 39HQ AHUs must always be
in accordance with the instructions below. If these in-
structions are not observed, irreparable damage may
occur to the unit, and people in the immediate vicinity
of the unit are also endangered. Alarko Carrier San-
ayi ve Ticaret AS does not accept any responsibility if
these instructions are not observed.
personnel. The AHU must only be lifted with lifting
bars supplied by Alarko Carrier Sanayi ve Ticaret AS.
Lifting must be carried out in accordance with local
2.2. Transport & Storage
Lifting of the AHU is only permitted under the des-
ignated lifting methods. For transporting marked
points shall be used. If it is not possible to use
marked points due to the loading conditions, trans-
porting can only be done by forklift (cranes can-
This applies to transport as well as storage, and is
AHUs are delivered as side by sections. Moving the
plastic cover will let the dirt and particulates enter to
the unit from openings.
9
Take appropriate precautions on site and do not
move the protection cover unless you complete the
installation of the unit.
2.3. Roof edge protection during trans-
port (outside installation)
During transport by truck the units are attached to the
loading surface with tie ropes, pulled across the unit
towards the side edges of the truck.
On external units, to protect the roof edge from dis-
tortion by the tie ropes protection plates are added.
Fig. 1. Before lifting, place support proler as shown
in Fig. 1.
2.4. Ooading or Hoisting
Depending on the dimensions of the AHU and the
situation on site, the AHUs are supplied in previously
agreed transport sections. Before proceeding with
the transport and installation of the cell sections, al-
ways consult the documents that give the dimensions
and weights of the sections, as well as the installation
sequence. For ease of installation, follow dimension-
al drawings indicating cell dimensions and weight.
The weight of each transport section is given on the
unit (See Appendix -1). The points that will be used
for transport are marked by the label shown below on
base frame.
For lifting and moving AHUs, the following methods
are recommended:
Method 1
Attach hoisting ropes to lifting bars. Evenly positioned
be used between the lifting ropes to prevent dam-
age to the top of the unit and ensure that no excess
pressure is applied to the side panels. Spacers used
should be durable to the force applied by the ropes
(in terms of dimension and material).
Fig. 2. Vertical transport using pallet truck
Method 2
Attach hoisting ropes connected to lifting bars to lift-
ing beams. To do this (in terms of strength), use a
proper beam.
Note: For lifting, make sure load is distributed evenly.
Fig. 3. Vertical transport by lifting beams
Note: For lifting, make sure load is distributed evenly.
10
2.5. Horizontal Transport

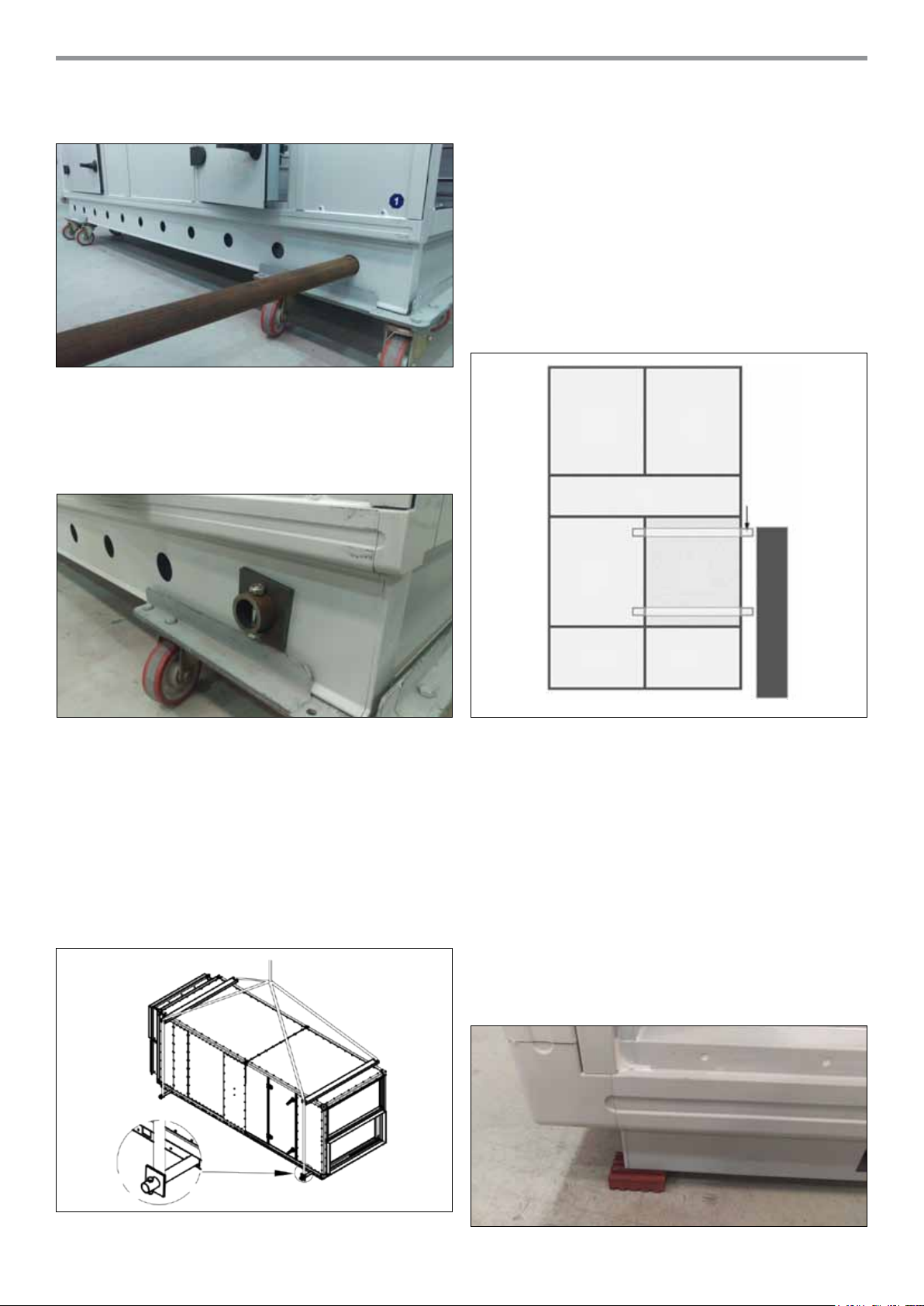

For horizontal transport, pallet lifters or transport
skids can be placed under unit frame or under the
lifting bars. Lifters used should be placed properly to
support the lifting points. During lifting and transport
process, never use transversal side base frame pro-
-
PORT, ALWAYS PROVIDE SUPPORT UNDER THE
LIFTING POINTS. The use of bars as rollers can re-
sult in damage to the unit frame.
For lifting and moving AHUs, the following methods
are recommended:
Method 1
Attach hoisting ropes to lifting bars. Evenly positioned
be used between the lifting ropes to prevent dam-
age to the top of the unit and ensure that no excess
pressure is applied to the side panels. Spacers used
should be durable to the force applied by the ropes
(in terms of dimension and material).
3. PRE-ASSEMBLY
PREPARATIONS
The following material is supplied with the unit as
standard by Alarko Carrier Sanayi ve Ticaret AS:
-
tions
The following material is supplied with the unit as op-
tional by Alarko Carrier Sanayi ve Ticaret AS.
Fig. 5. Fastening of lifting bars - 1
Measure and inspect the installation site. Surface of
installation site should be smooth and level, having
-
ing interconnection of modules. Make sure a base
the siphon. See Chapter 10.7 for siphon height cal-
culation.
Determine correct assembly sequence of AHU sec-
tions. Use the most logical sequence, taking the in-
stallation site into account.
Each cell composing AHU has a label showing order
number, module number and its weight, and a num-
ber system indicating adjacent modules is applied.
Connect the modules considering these labels (See
Appendix -1).
4. LIFTING INSTRUCTIONS
4.1. General
See Transport and Lifting chapter.
4.2. Lifting Bar Certication
Machinery Directive 2006/42/EC and they are for sin-
gle use.
4.3. Fastening of Lifting Bars
1. Remove the bolt and the locking plate on one side
of the lifting bar.
Fig. 4. Horizontal transport with pallet truck
11
Fig. 6. Fastening of Lifting Bars - 2
3. After inserting the lifting bar, re-insert the bolt and
locking plate in the correct position.
Fig. 7. Fastening of Lifting Bars - 3
4. Position the lifting ropes on lifting bars. Evenly posi-
should be used between the lifting ropes to prevent
damage to the top of the unit and ensure that no ex-
cess pressure is applied to the side panels. Spacers
used should be durable to the force applied by the
ropes (in terms of dimension and material).
Fig. 8. Vertical transport with bars
Fig. 10. Anti-vibration rubber pad
5. Before proceeding lifting, make sure load is dis-
tributed evenly and check if the steps above are per-
formed (Lifting bars cannot be removed if there is no
enough space between the unit and the wall)
As shown in the example below, it is not possible to
remove 6th section of the AHU from the right side
because it is so close to the wall. Bar can be re-
moved from the left side if 3rd section of the AHU is
not placed. When 6th section is placed, remove bolts
and plates on the right side to remove the lifting bars.
Fig. 9. Placement diagram (Upper view)
5. ASSEMBLY
5.1. Air Handling Unit Assembly
-
sitioned.
pads and then remove the lifting bars.
2. Slide the lifting bar into the hole on the base frame
intended for that purpose.
3
1
2
4 7
5
6
12

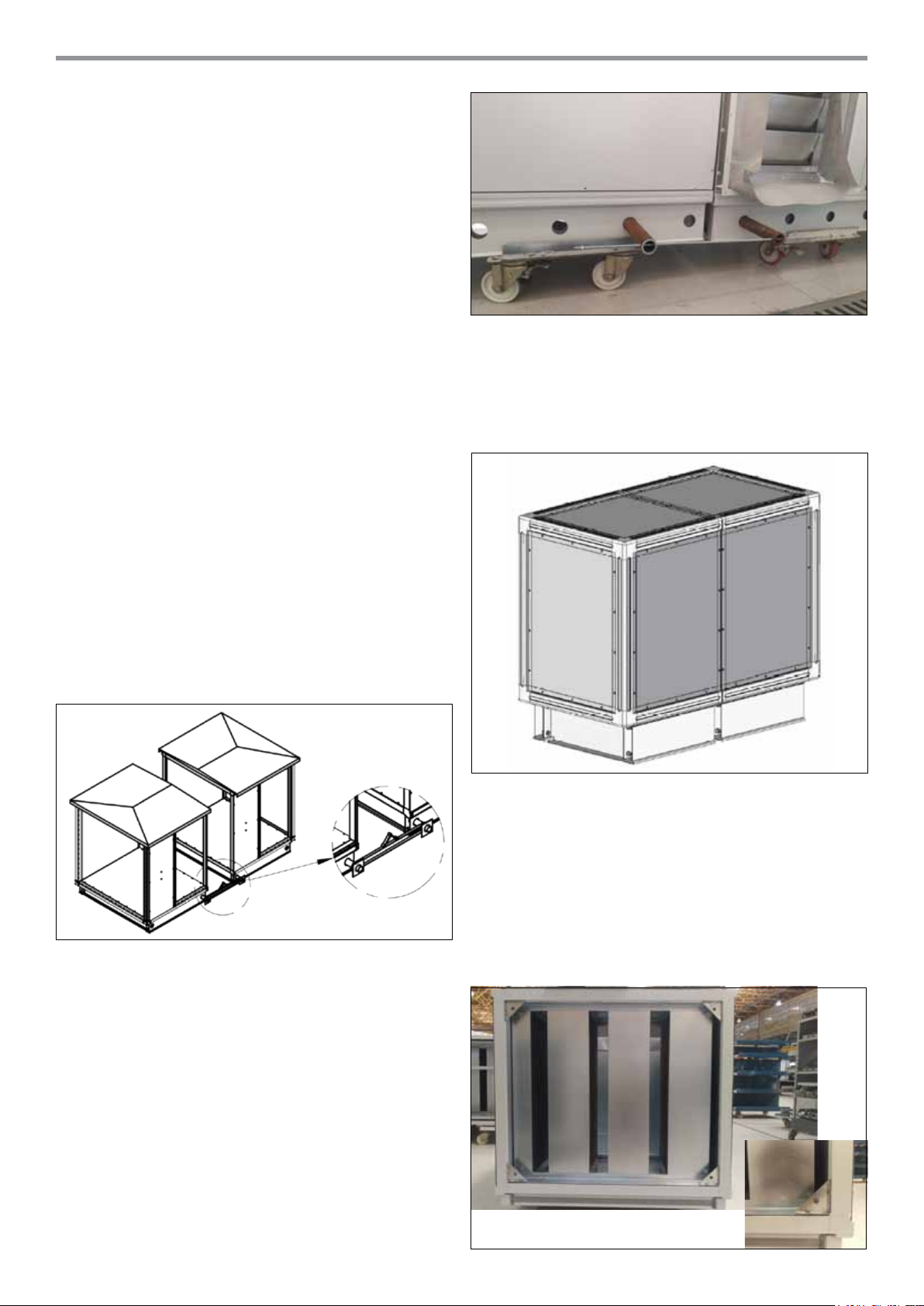

location where the next cell will be positioned and
then place this section on rubber pads.
-
tions. This should be done in four sides, and the
sealing tape should overlap at the corners (See
Fig. 15 and 19).
quantity,...) are given in customer drawings.
The labels showing the matching surfaces are for
easily matching the unit surfaces correctly during as-
sembly of AHU. Same numbers should be side by
side.
Note: Attach the insulation tape supplied to only one
of the two assembled sections.
Ensure that both sections can still be moved. In-
sert a lifting bar into both sections, so that they
can be pulled closer towards each other.
Two methods can be used for pulling the sections to-
wards each other:
Method 1
Pull the sections against each other, using the pull
ropes attached to the lifting bars. Pull evenly on both
sides of the AHU.
Fig. 11. Connecting sections using pull ropes
Fig. 12. Connecting the sections using threaded bars
Fig. 13. Unit having equal width and height
Method 2
Insert a bar with threaded ends through both lifting
bar holes. Screw a nut onto the threaded ends of the
bar and tighten it. Pull evenly on both sides of the
AHU.
Note: Before connecting the sections, they should be
horizontally and vertically aligned.
5.2. Connection of Modules having
Equal Width and Height
To connect the AHU sections, use one of the follow-
ing methods according to AHU construction.
Method 1
This method applies for sections ending with cell con-
13
Fig. 14. Connection bars with corner connection
parts (ags)
Fig. 15. Bonding insulation tape on cell joint
Fig. 17. Section Joining Parts
Fig. 18. Perspective view and assembly detail
Fig. 16. Corner connection
Before moving the sections against each other, make
of the two sections.
-
tioning of the sections and secure the corners with
a bolt. After assembly, both sections must be fully
aligned.
Section joining shall be made from internally when-
ever possible, if it is not possible it will be made from
externally. Outside joining shall not be chosen, if join-
ing from internally is possible.
Section joining shall be made with parts shown on
Figure 17. Distance between the parts shall be equal
as shown on Figure 18-19. See Annex-4 for quanti-
disassembled after section joining.
If a unit has to be connected from externally and has
joining parts have to mount over on sealing strips.
In that case, assembly points of section joining parts
are marked on sealing strips and drilled with Ø5 bore.
Only sealing strips should be drilled, not panels.
14
Fig. 21. Unit without intermediate base frame
Fig. 19. Side view
Fig. 20. Insulation tape application
6.
STACKED CELL SECTIONS
6.1. Unit without Intermediate Base
Frame (Equal Width)
Indoor Installation
the corners are in the same plane.
below. For sections having equal length, these
no further works are required.
Check for insulation tape before section joining. In-
sulation tape shall be applied on one of the section,
Figure 20.
procedure. For an outdoor installation of the AHU,
all external joints of the sections should be sealed.
For outdoor installation of the AHU, roof should be
applied as described in Chapter 8.
15
Fig. 22. Prole installation, indoor installation, unit
without main base frame at intermediate section
Fig. 24. Unit without intermediate base frame having
a shorter top section
Fig. 25. Unit without intermediate base frame having
a shorter top section, roof installation
Fig. 26. Unit without intermediate base frame having
a longer top section
Fig. 23. Prole installation, outdoor installation, unit
without main base frame at intermediate section
Outdoor Installation
below. For sections having equal length, these
-
-
low.
the ends.
16
Note: For outdoor installation, seal all ends of the
joints.
6.2. Unit with Intermediate Base Frame
(Equal Width)
Fig. 27. Unit with intermediate base frame
Fig. 28-1. Connection of unit proles with intermedi-
ate base frame
Fig. 28-2. Connection of units with intermediate base
frame
Fig. 29. Stacking, outdoor installation
Indoor Installation
length are supplied with the AHU.
-
plane. The base frame of the top section should
be slightly back compared to the bottom casing
section.
If stacking units in an indoor installation the connec-
unit sections. Use the following assembly method for
connection:
section, stopping at the module line (panel level)
(A).
section (C).
between A, B and C joints on service side and
rear side, maintaining minimum 960 mm distance
in between.
At the end of the unit (width side) there is no need for
Outdoor Installation
should be mounted over the entire unit length and
width.
17
Fig. 30. Connection prole, at length direction, unit
with intermediate base frame

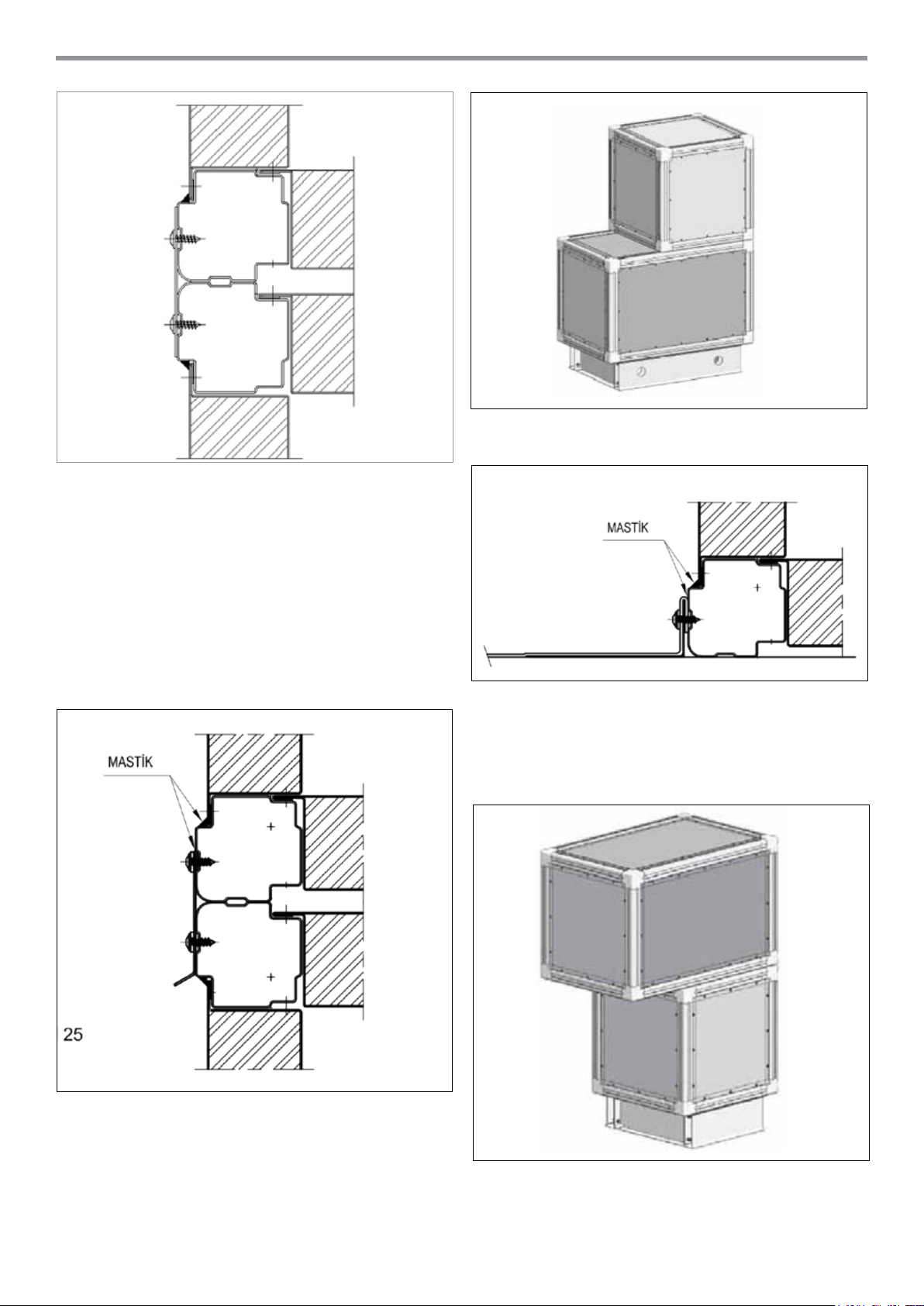

Fig. 32. Unit with intermediate base frame having a
shorter top section
Fig. 34. Unit with intermediate base frame having a
longer top section
Fig. 33. Width cross section view of unit having short-
er top section, unit roof detail
Fig. 31. Connection prole, at width direction, unit
with intermediate base frame
and width directions of sections.
-
plied to the correct length and mount it as de-
scribed below.
Cross section view in length direction (A - A)
correct length and mount it as described below.
Cross section view in width direction, equal base
frame lenght (B)
-
below.
and mount it as shown below.
A longer top section needs no further process at the
ends.
18
Note: For outdoor installation, seal all ends of the
proles. Repeat this procedure for all corner and
butt joints.
6.3. Units with Dierent Widths
situations. For an indoor installation the method de-
scribed below applies to all situations.
Indoor Installation
The top cell includes a projecting cross beam that is
-
tom cell is installed in the correct place.
section to the corner posts of the bottom section.

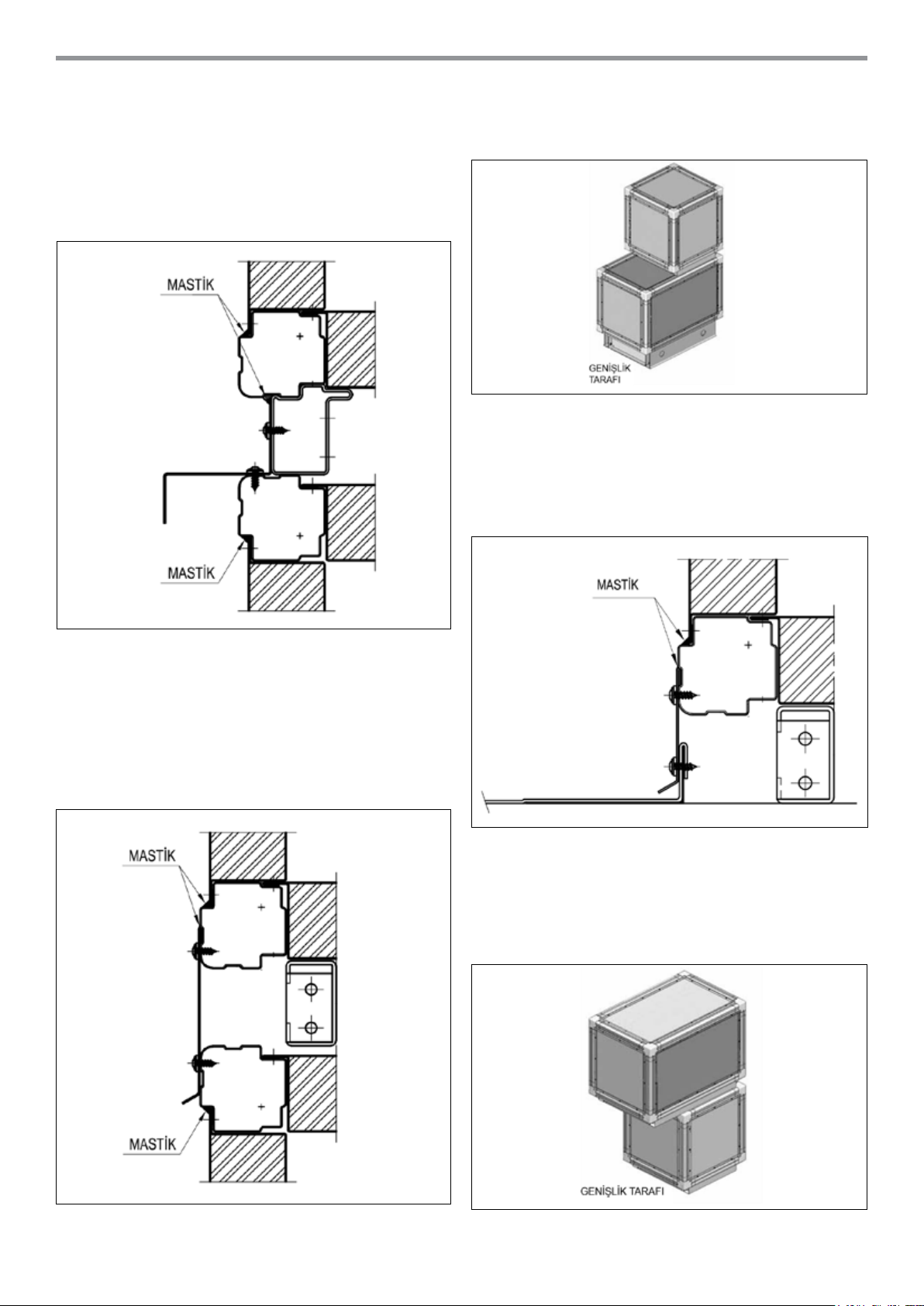

Fig. 35. View in width direction, unit with unequal
widths
Fig. 37. Unit with unequal widths - situation A
Fig. 38. Roof nish, situation A, side 2
Fig. 36. View in length direction, unit with unequal
widths
Outdoor Installation
The top cell includes a projecting cross beam that
over the entire unit length and width.
-
sional drawing. The position of the top section can
be as described in one of the four situations be-
low:
-
rect length and mount it on the correct side (See
Fig. 39).
-
rect length and mount it on the correct side as de-
scribed below.
19

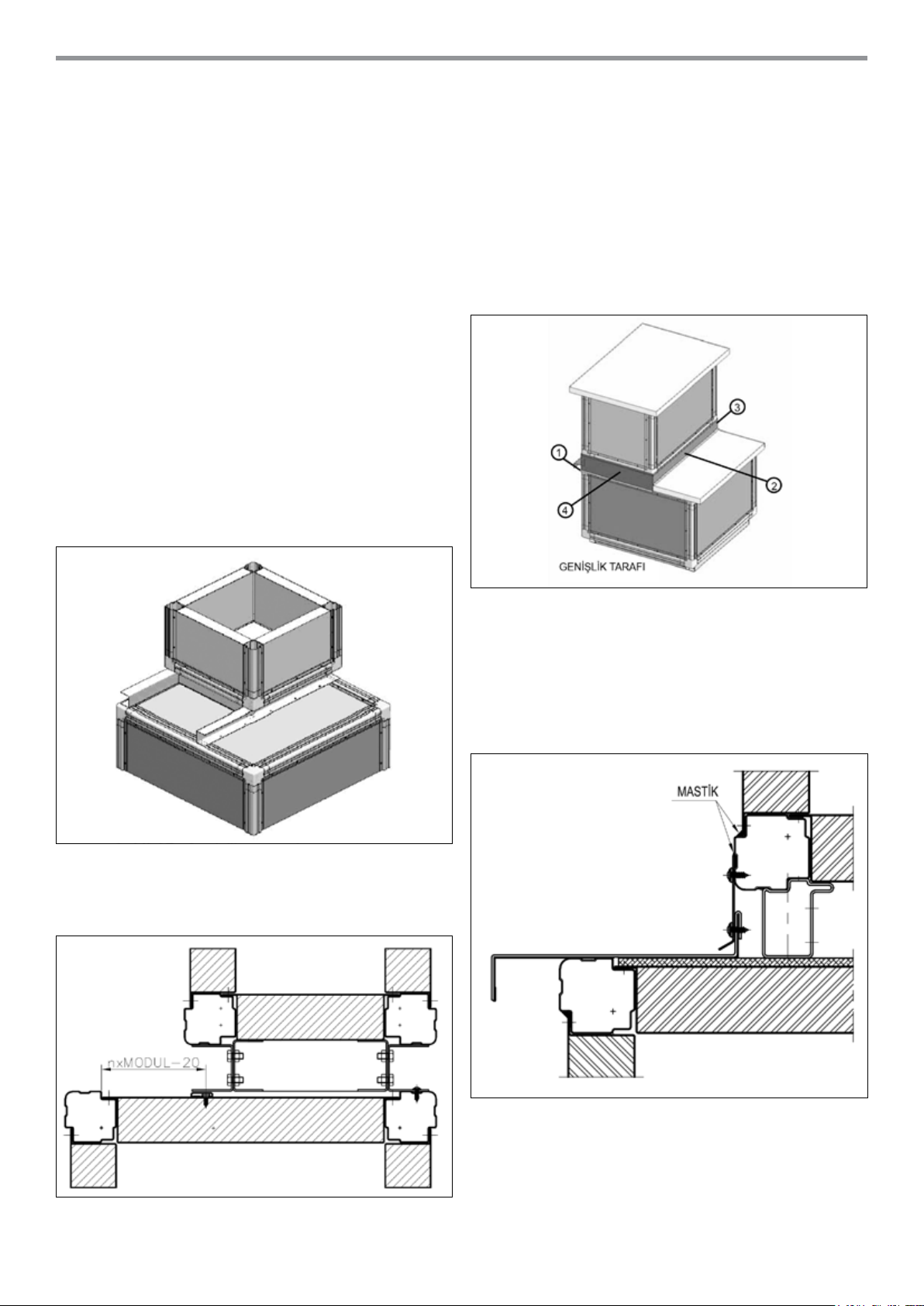

Fig. 39. Units with unequal widths - situation B
Fig. 41. Roof nish, situation C, side 4
Fig. 42. Roof installation, unit with longer top cell, Z-
proles over width prole
Fig. 43. Unit with unequal widths - situation D
Fig. 40. Units with unequal widths - situation C
the correct length and mount them on the correct
sides.
the correct length and mount them on the correct
sides (See Fig. 42).
the correct length and mount them on the correct
sides.
-
rect length and mount them on the correct sides
(See Fig. 30).
-
rect length and mount them on the correct sides
(See Fig. 38).
-
rect length and mount them on the correct sides
(See Fig. 31).
-
rect length and mount it on the correct side as de-
scribed below.
the top section as described below. Roof membrane
of the bottom casing section can be applied over
the correct length and mount them on the correct
sides (See Fig. 38).
-
rect length and mount them on the correct sides
(See Fig. 31).
-
rect length and mount them on the correct sides
(See Fig. 43).
20
of top section as shown in Fig. 42 in this chapter.
6.4
Connection of Double Deck Mixing
Box
Fig. 45. Fresh air inlet hood
Fig. 44. Flexible connection of double deck section
Note: The connection between the outdoor air
suction grille and the corner post should be
sealed.
8. ROOF COVER
For multi-section air handling units to be installed
outdoors, after the assembly, connection area should
be covered with special roof cover material supplied
use one of the following two methods.
Method 1
that the strip projects enough to attach it to the
side of the roof edge with a blow dryer.
two casing sections to be connected is clean and
dust-free.
the entire length of the joint up to the roof edge.
-
derside of the roof edge.
7. FRESH AIR INLET HOOD
The fresh air inlet hood may be supplied loose with
the AHU.
In this case the rain hood must be attached in the cor-
rect position as follows:
the correct location.
the corner post.
Other manuals for AiroVision 39 HQ
2
Table of contents
Other Carrier Air Handler manuals
Carrier
Carrier 40MBAB User manual
Carrier
Carrier WeatherMaker 50TC 17-30 Series Installation and user guide
Carrier
Carrier AIRSTREAM 42BHE06 Dimensions and installation guide
Carrier
Carrier 40RU 07-16 Dimensions and installation guide
Carrier
Carrier 40MBFAQ User manual
Carrier
Carrier Gemini 38AU 07-14 Series Dimensions and installation guide
Carrier
Carrier 39T Dimensions and installation guide
Carrier
Carrier 40WAV User manual
Carrier
Carrier OptiClean FN1AAF 005 User manual
Carrier
Carrier 40MBAB User manual
Carrier
Carrier 40MUAA User manual
Carrier
Carrier FAS072 Dimensions and installation guide
Carrier
Carrier 40MUAA User manual
Carrier
Carrier 38MURA User manual
Carrier
Carrier Aero 39MN Series Dimensions and installation guide
Carrier
Carrier PF4MNX User manual
Carrier
Carrier CAS072 Dimensions and installation guide
Carrier
Carrier 40MUAAQ18XB3 User manual
Carrier
Carrier 40VM9100 Series User manual
Carrier
Carrier 40VMV012 User manual
Popular Air Handler manuals by other brands
Salda
Salda VEKA INT E 400 installation instructions
Trane
Trane 2TEE3C31A1000A Installer's guide
Vents
Vents DVUT 1000 PB EC user manual
Dantherm
Dantherm KONTROLLELEKTRONIK EFC2 V2 TC Service manual
Vent-Axia
Vent-Axia Solo Pro SVP Installation and wiring instructions
BLAUBERG Ventilatoren
BLAUBERG Ventilatoren TwinBox EC 150 user manual
